Auto-Connector Assembly Machine 3D Model -Robotic Arms 3D model

[file format]-SolidWorks 2016 Assembly (including Design Tree)-IGS (supports all 3D software)[Core Technical Parameters]

• Precision motion simulation: 3-axis robotic arm+visual positioning system
• Industrial grade accuracy: 0.02mm tolerance modeling (compliant with ISO 2768-m standard)
• Modular configuration: supports SCARA/Delta robotic arm quick replacement solution[Typical application scenarios]
• Design of fully automatic production line for automotive electronic connectors
• Consumer electronics assembly equipment fault simulation training
• Industry 4.0 digital twin system HMI docking
• Flexible Manufacturing System (FMS) Teaching Demonstration

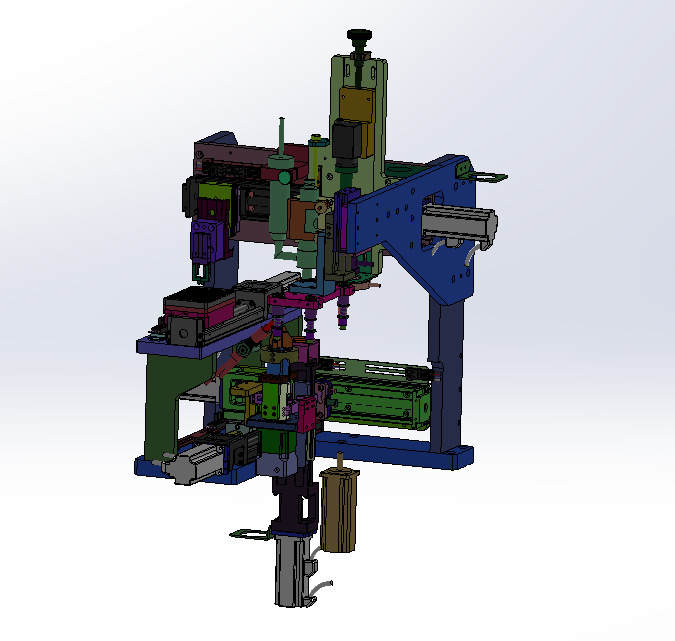

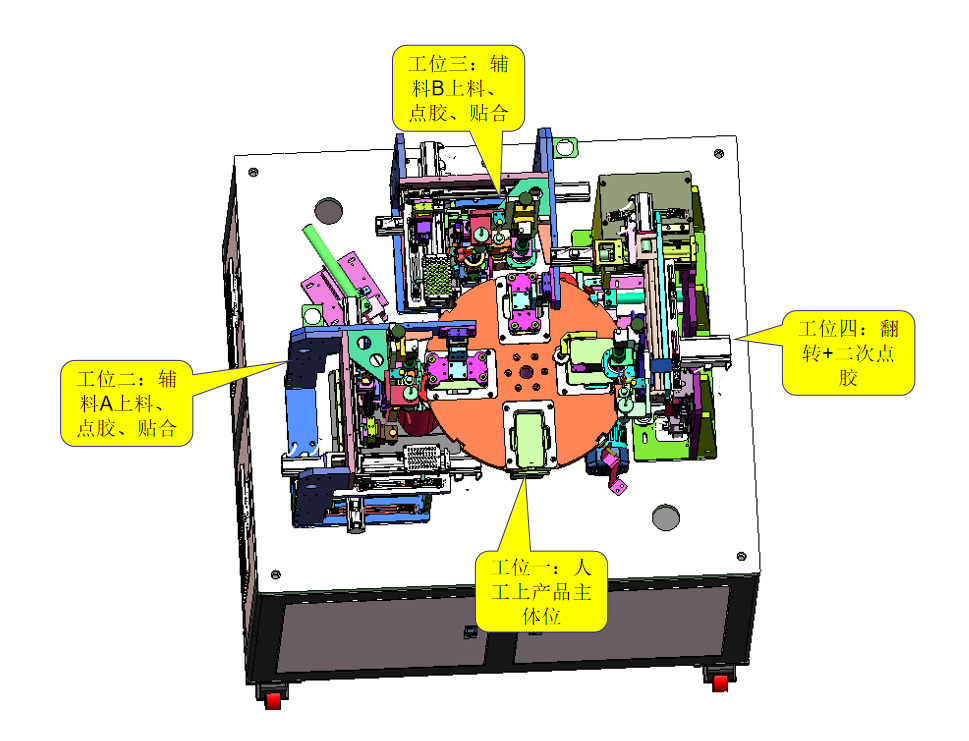

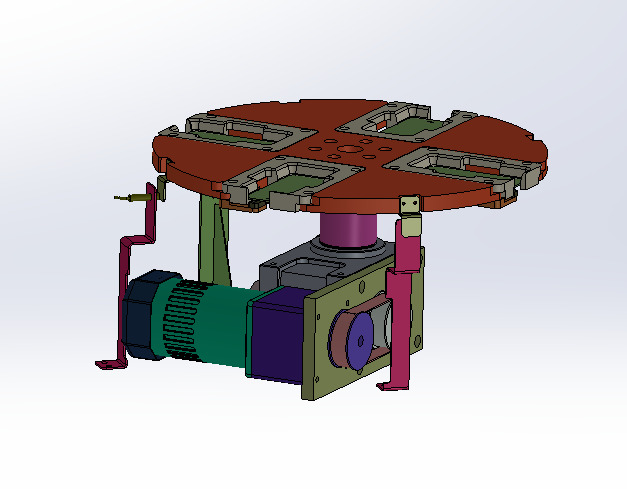

This is an automatic connector assembly equipment that uses an indexer turntable. It operates in four workstations:Workstation 1: The product main body is manually placed.Workstation 2: The mechanism automatically picks auxiliary material A from the carrier tray, applies glue, and then attaches it to the main body. After a successful re - inspection by the CCD, it moves on to the next workstation.Workstation 3: The mechanism automatically picks auxiliary material B from the carrier tray, applies glue, and then attaches it to the main body. After a successful re - inspection by the CCD, it proceeds to the next workstation.Workstation 4: The main body with auxiliary materials A and B already attached at the front is turned over as a whole, and secondary glue application is carried out.
