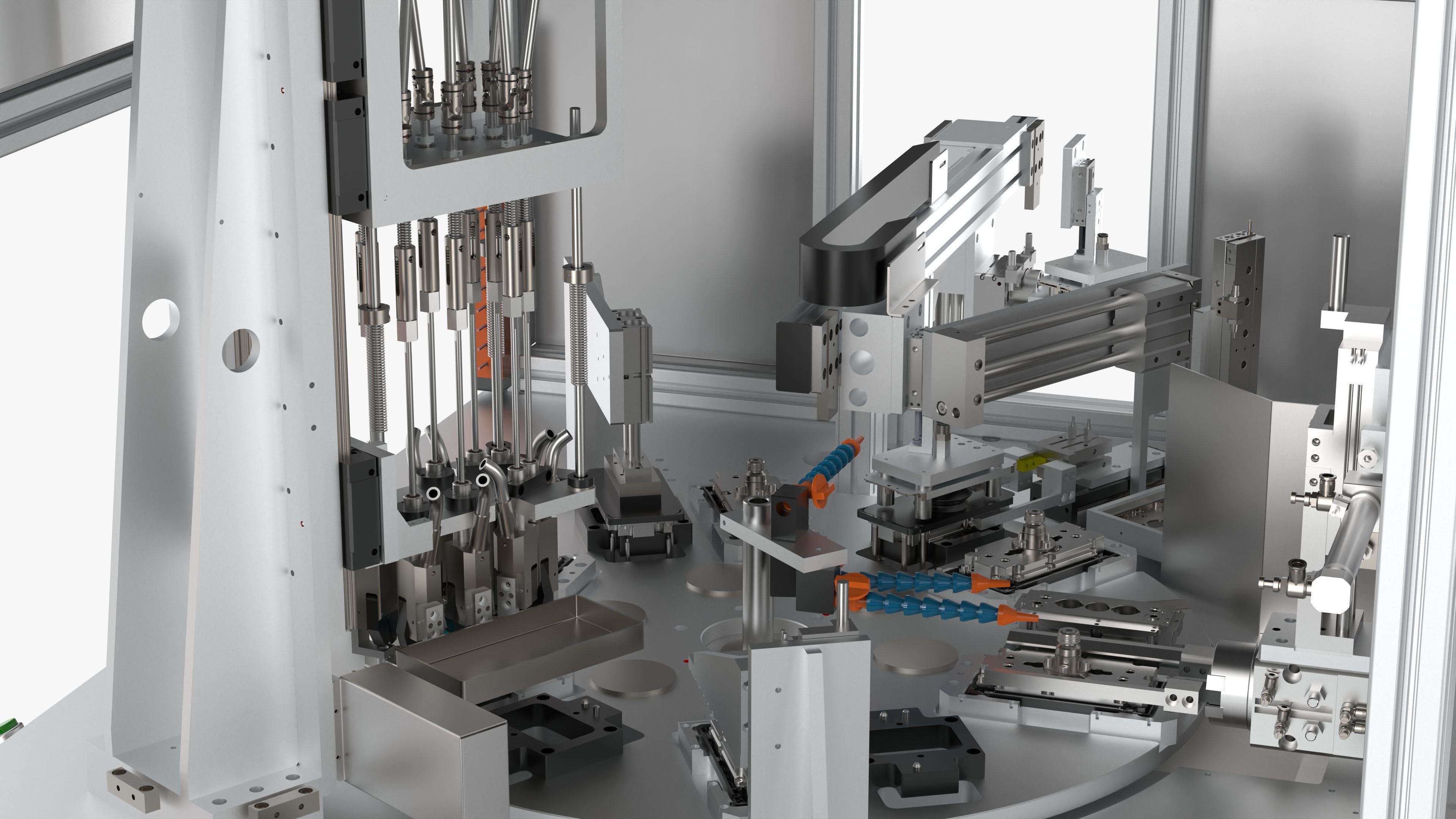

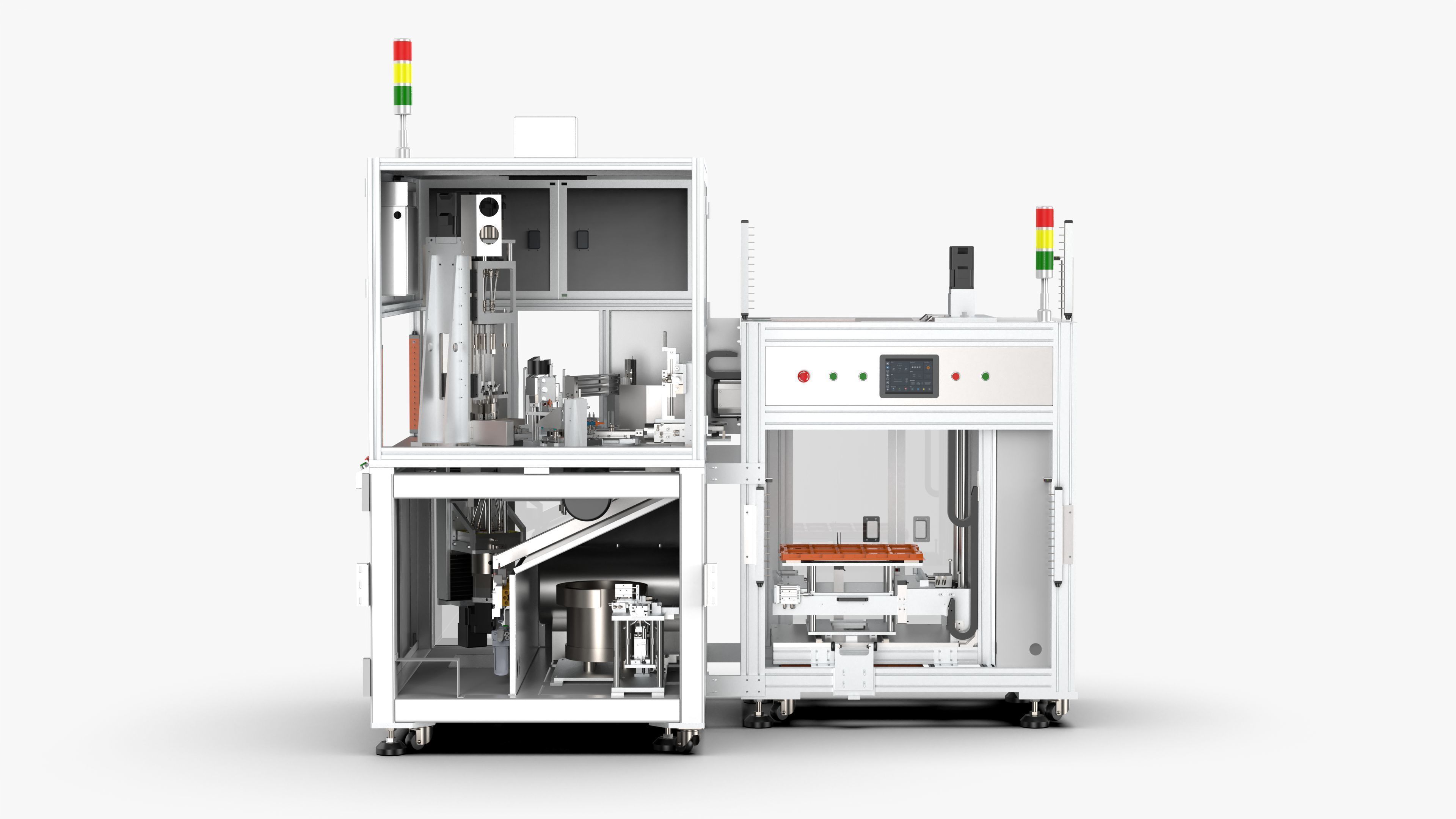

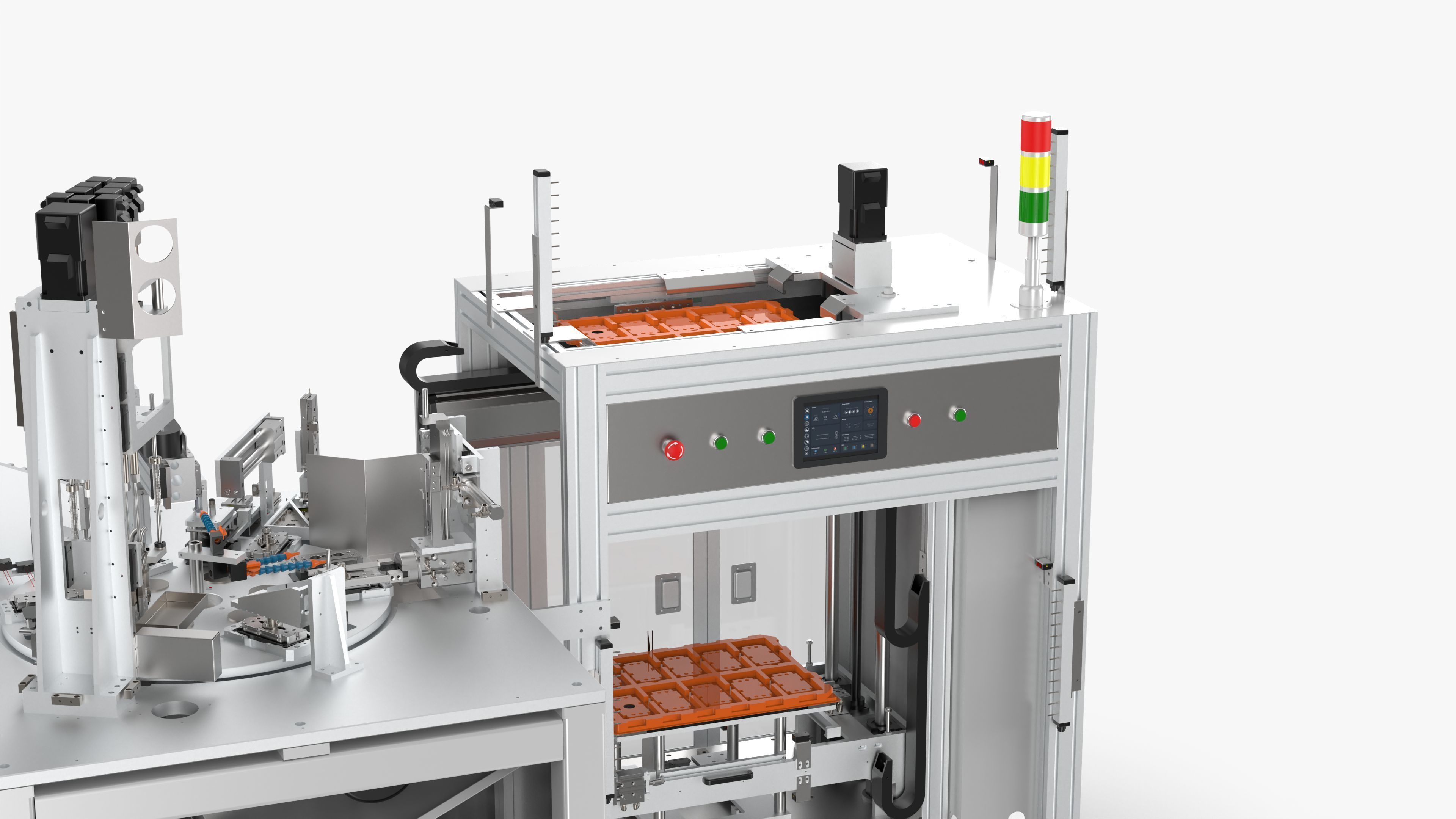

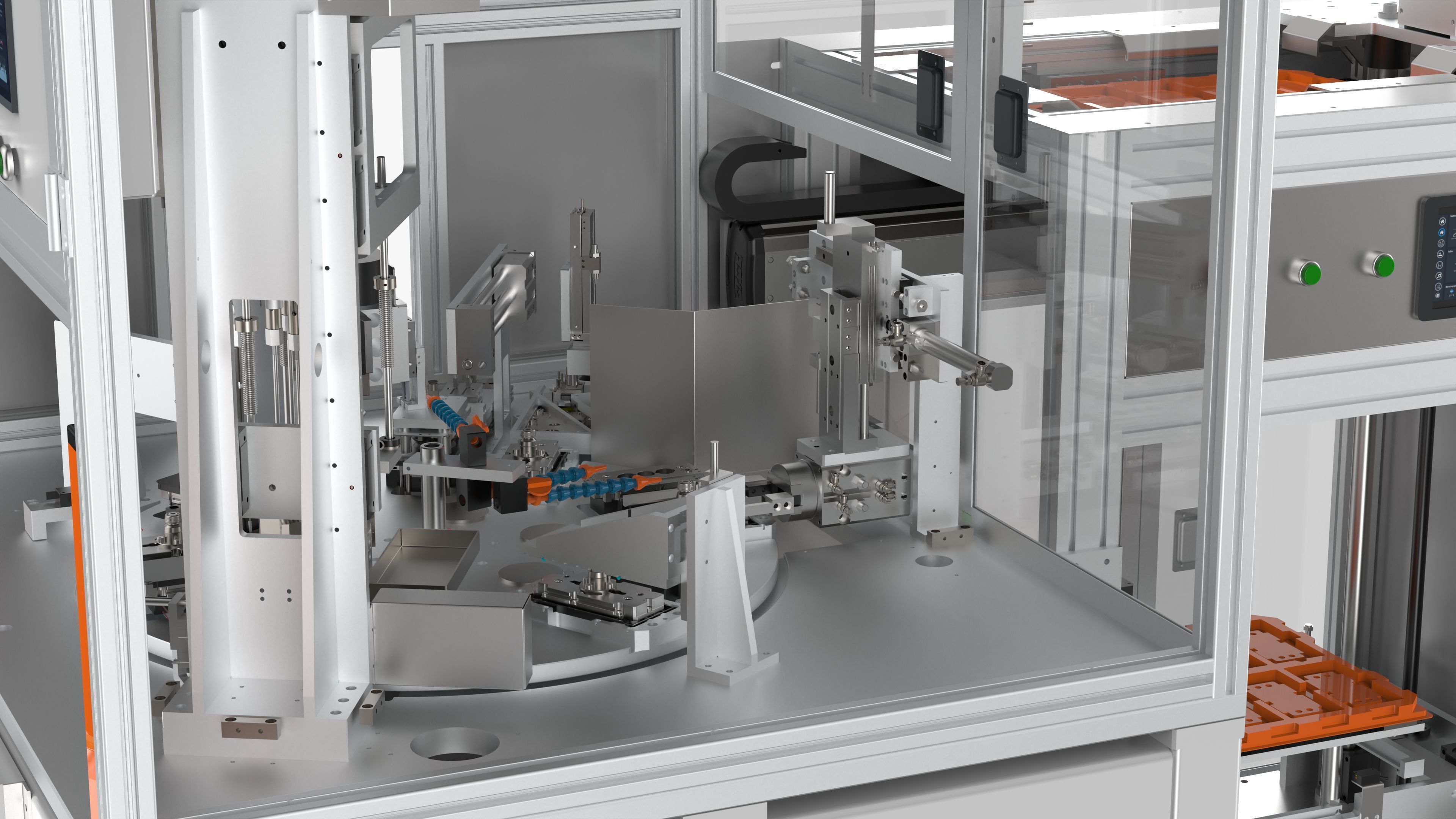

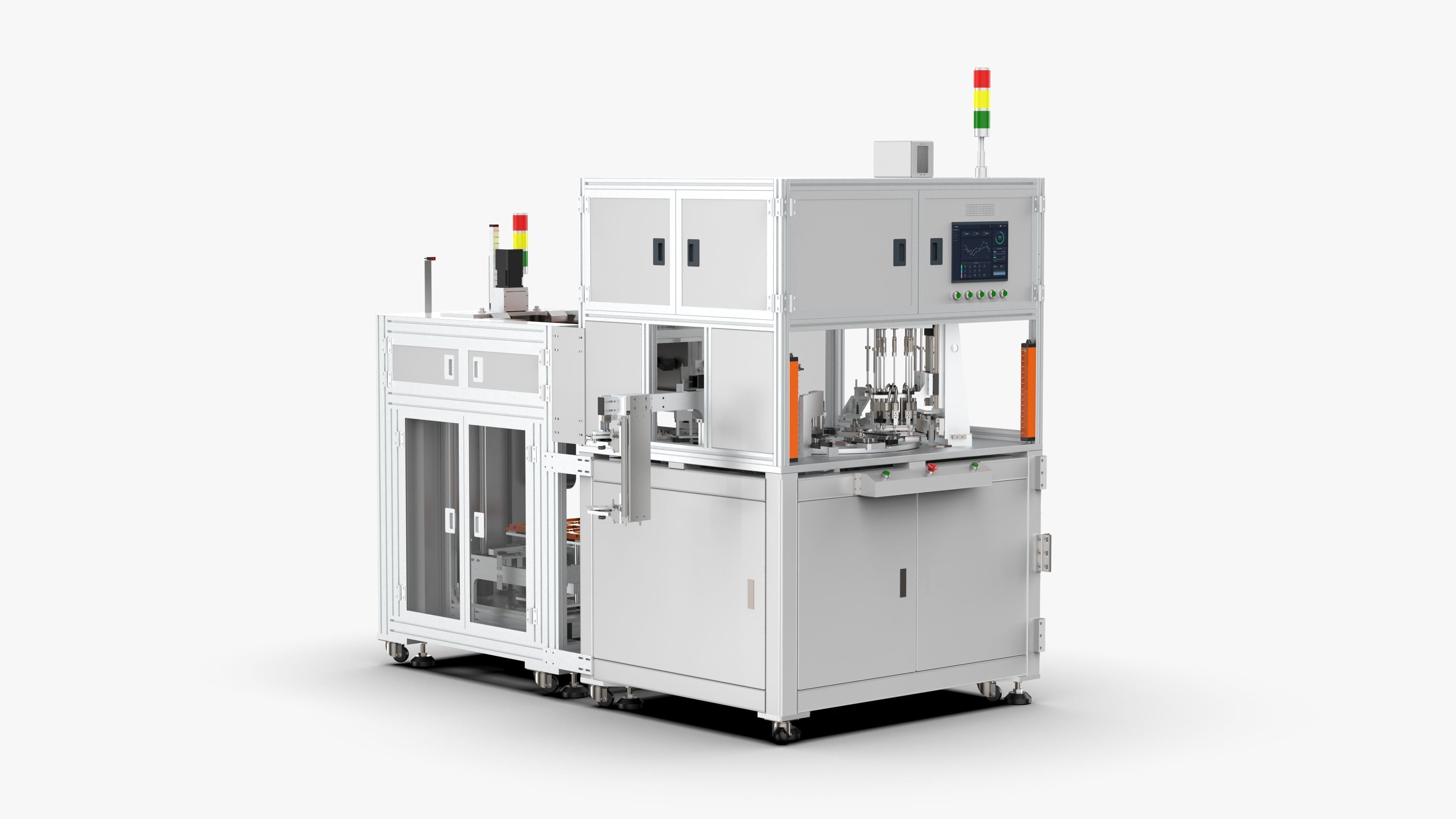

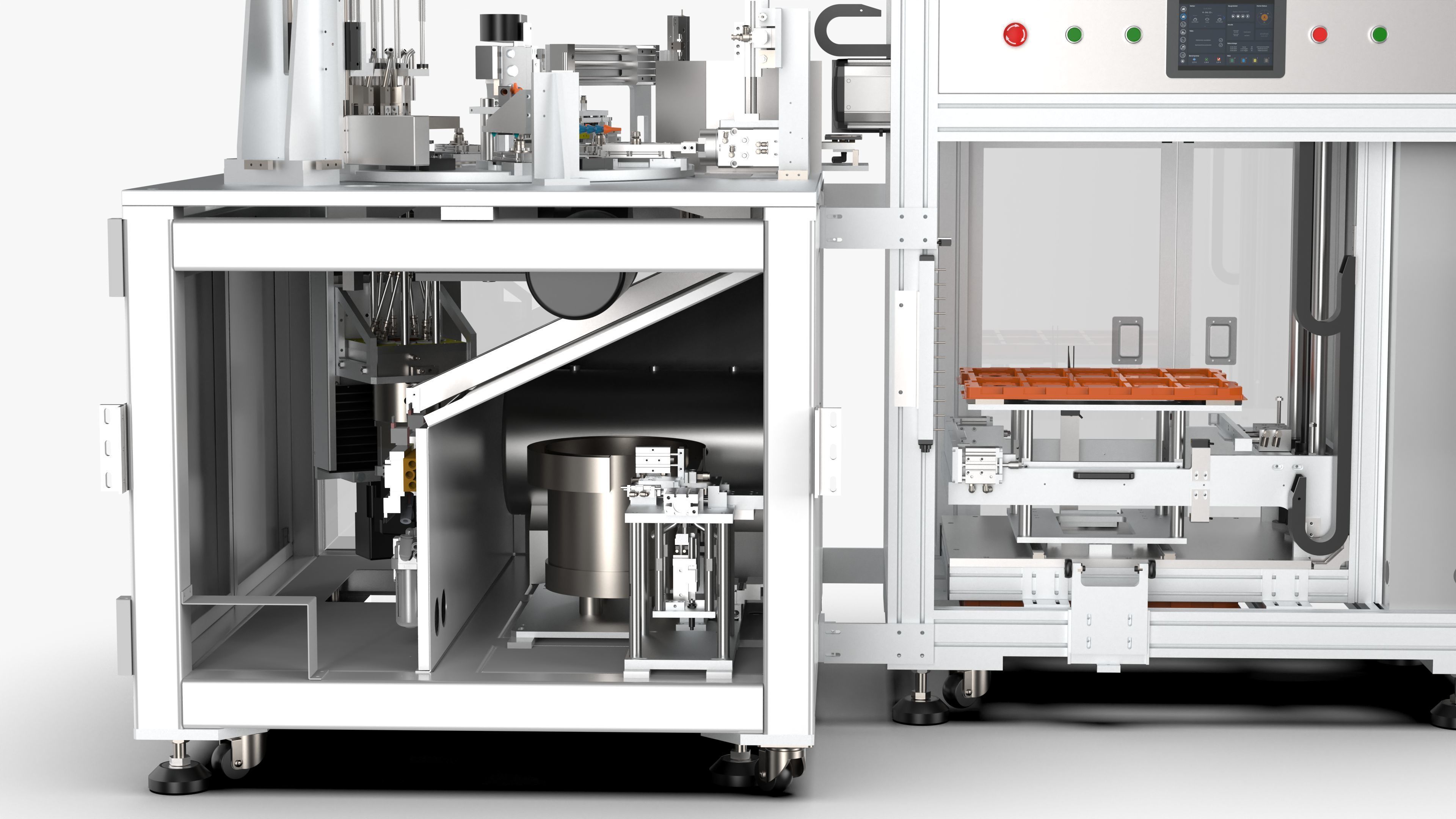

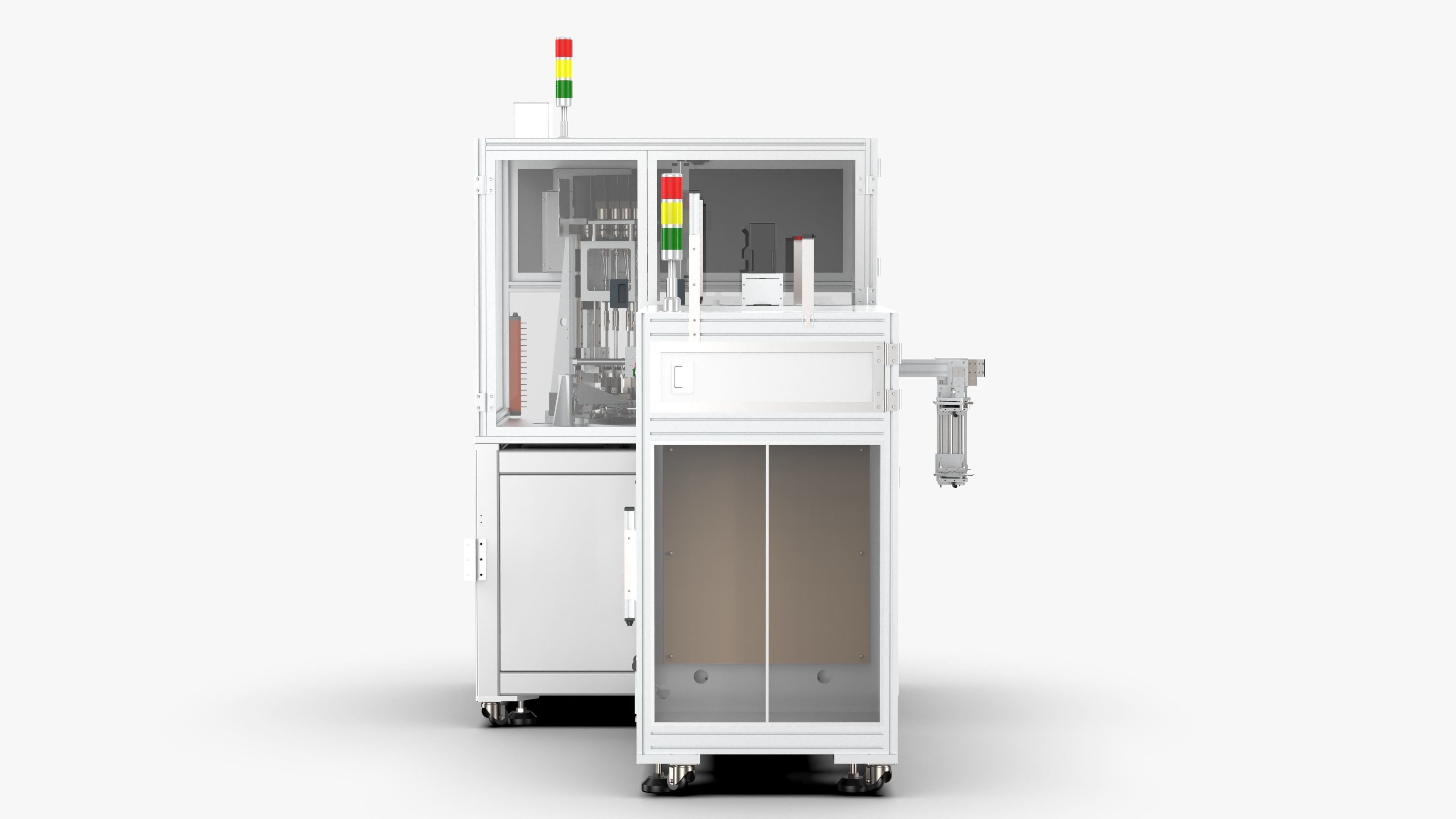

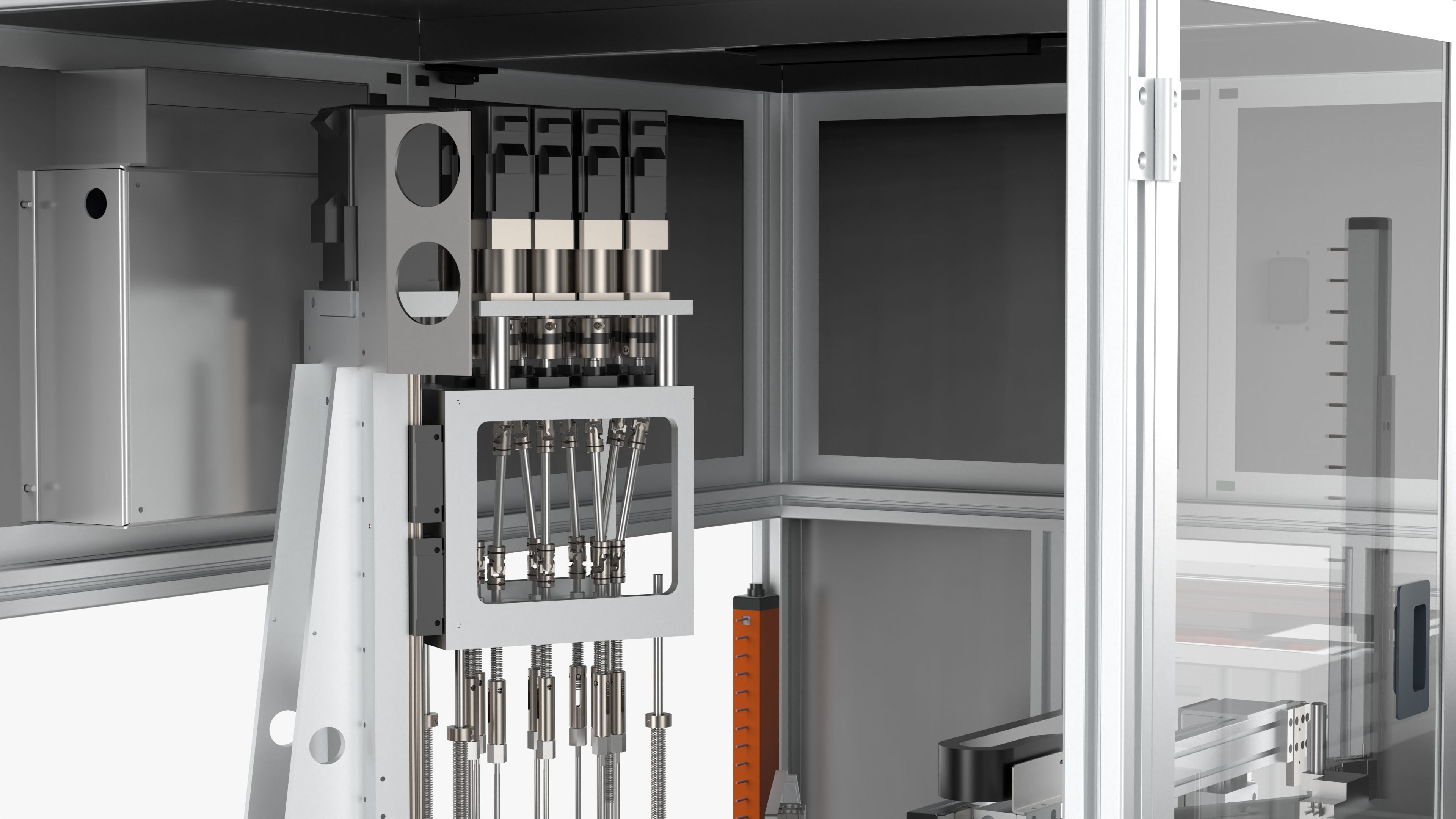

Automatic Double Side Screw Locking Machine 3D model

Automatic Double Side Screw Locking Machine

Introduction

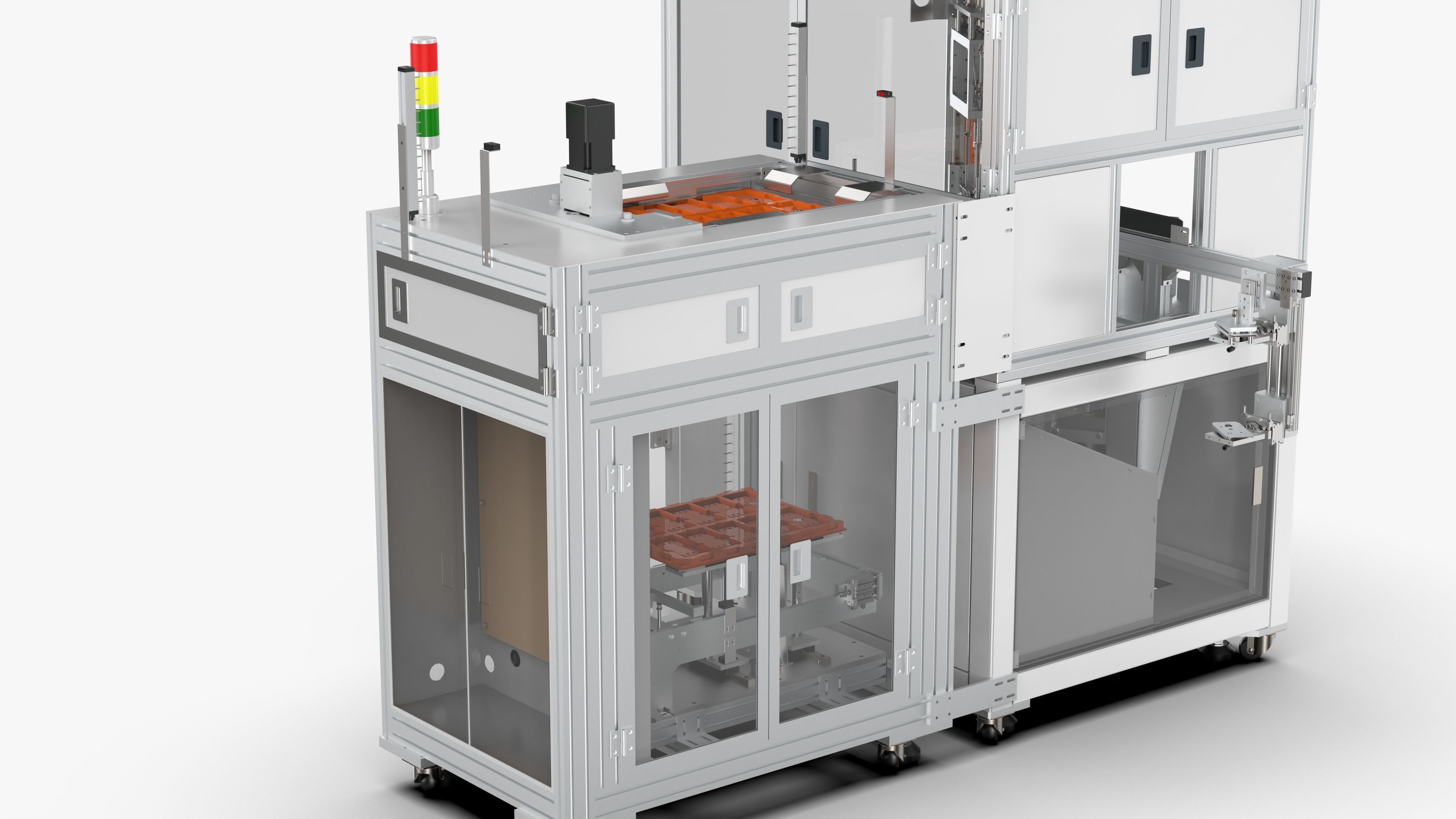

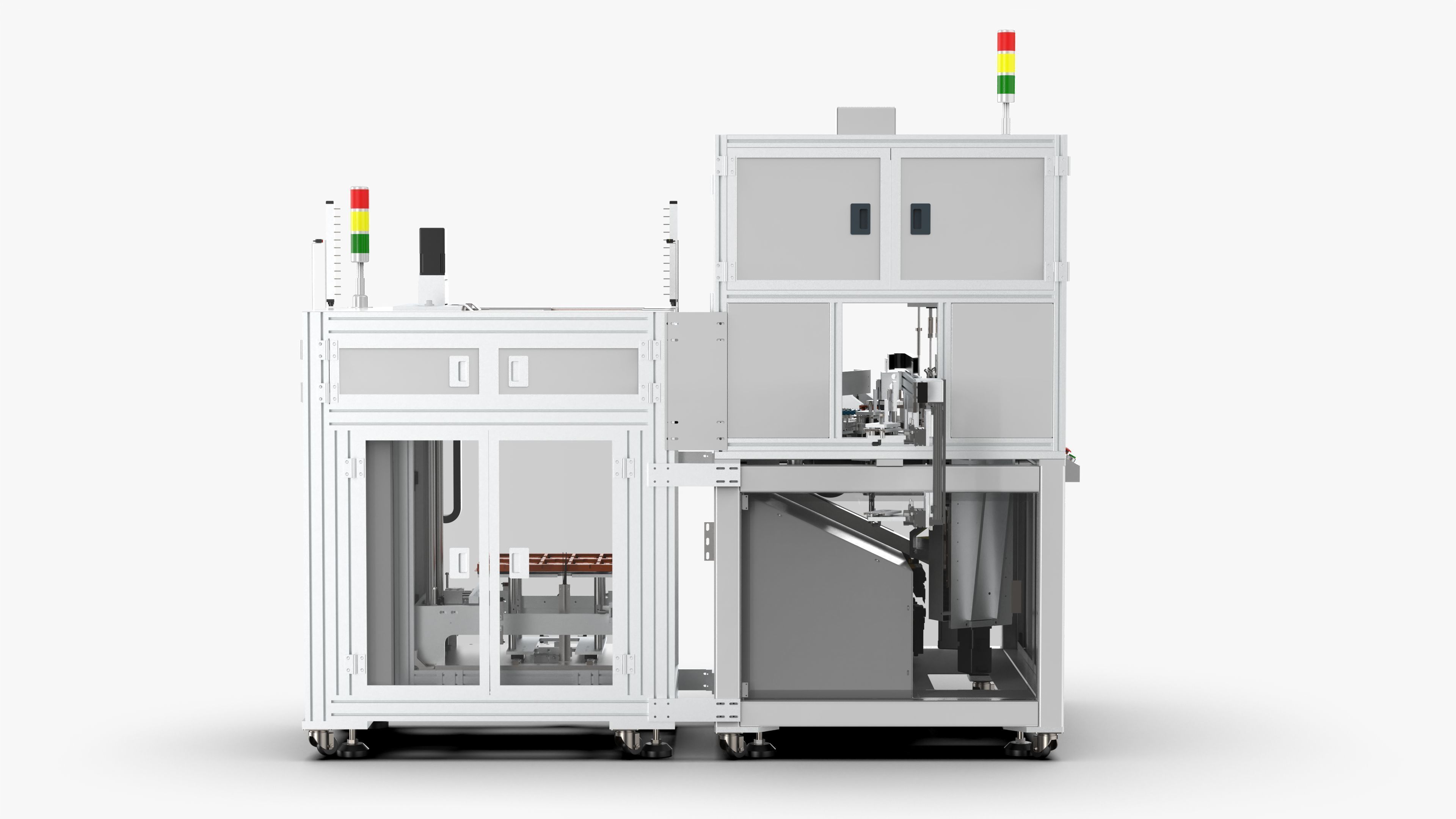

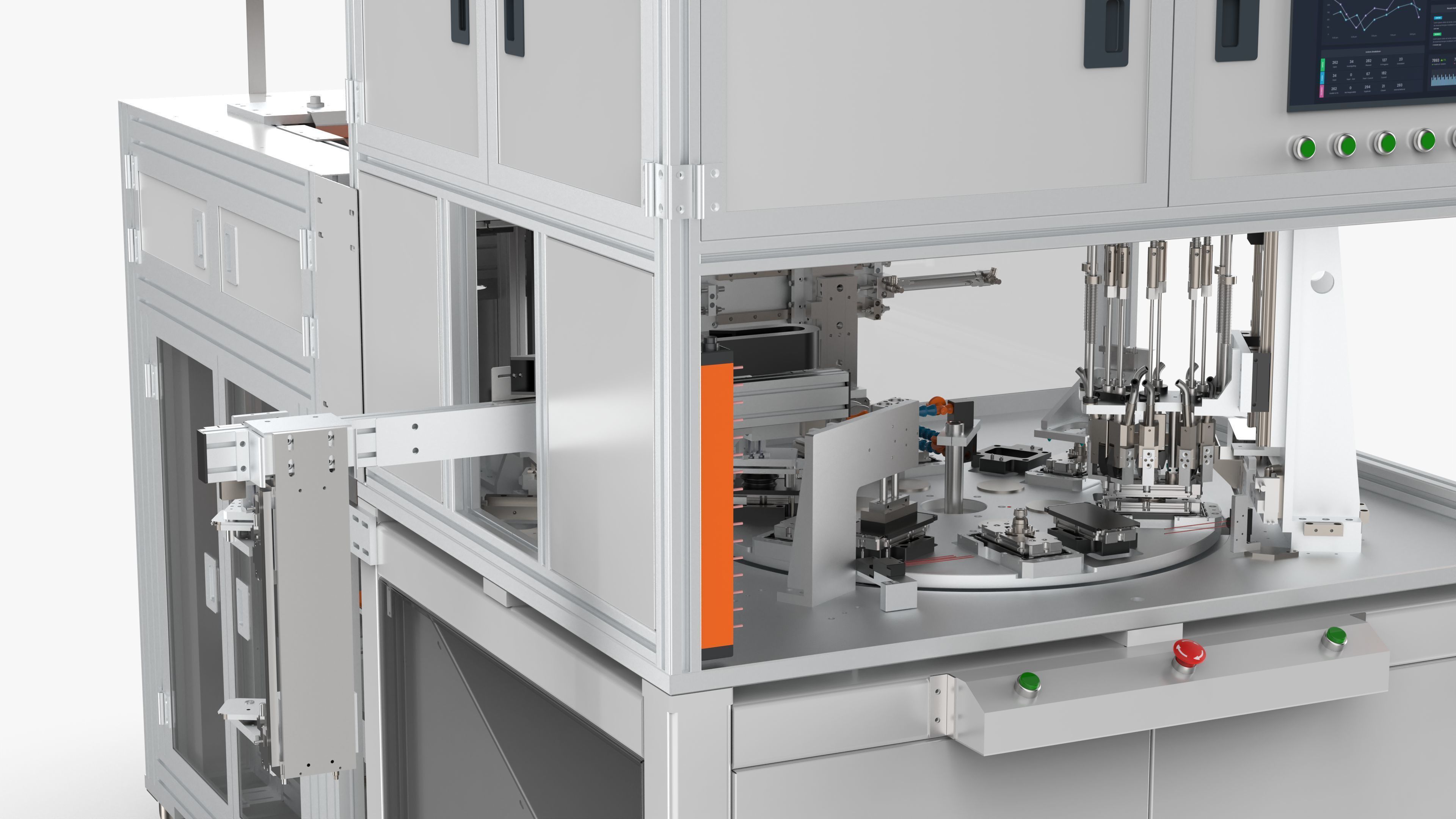

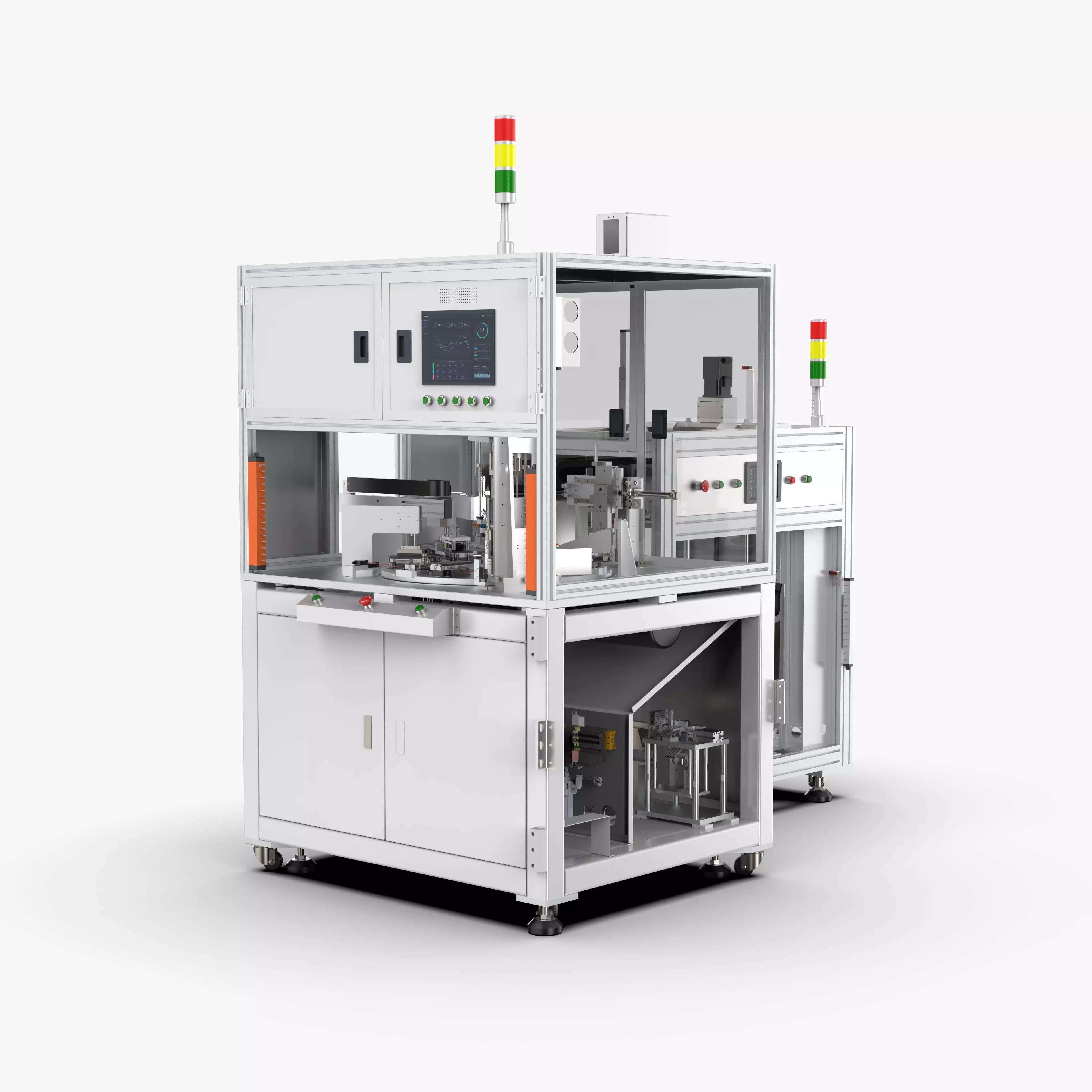

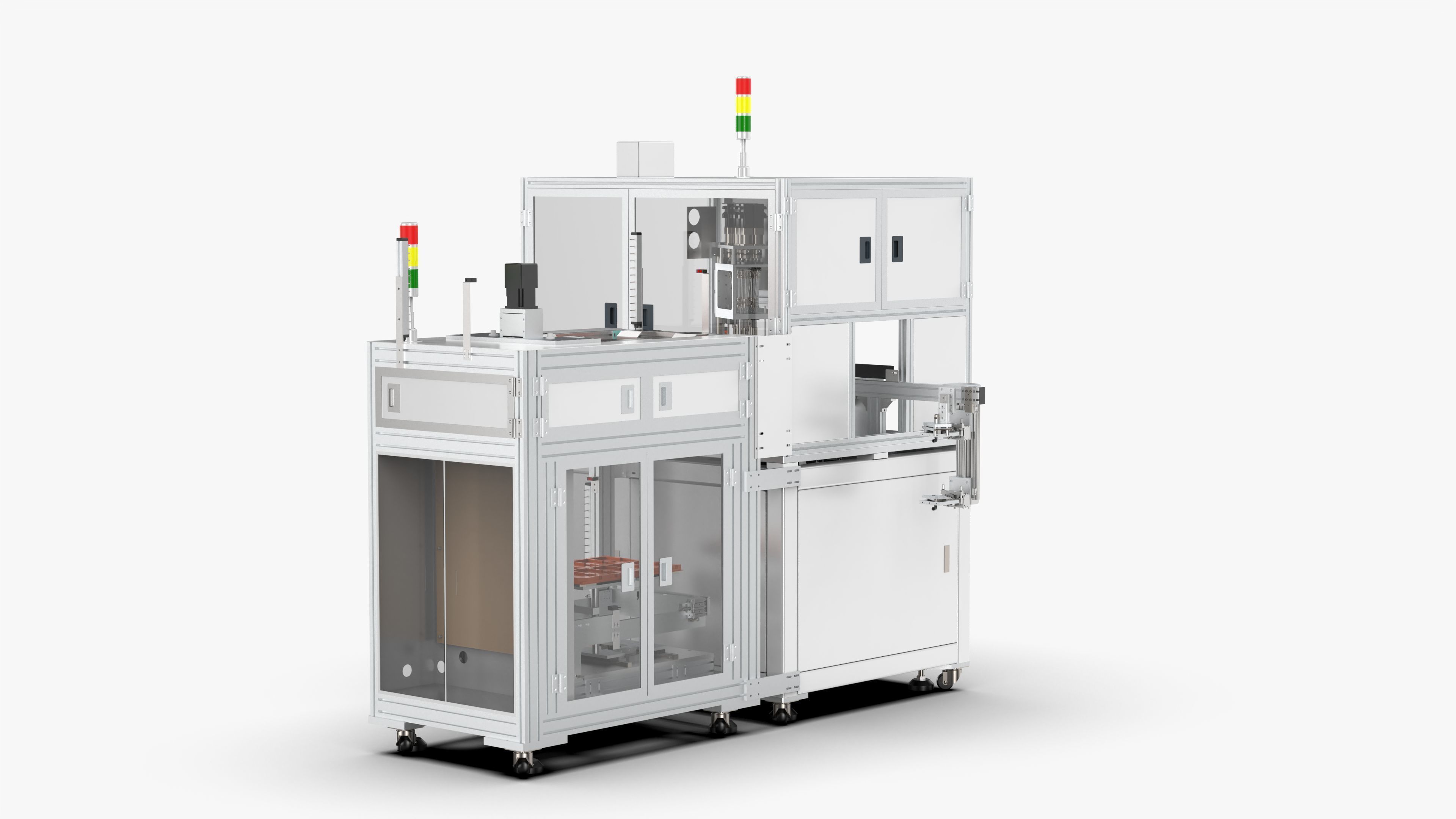

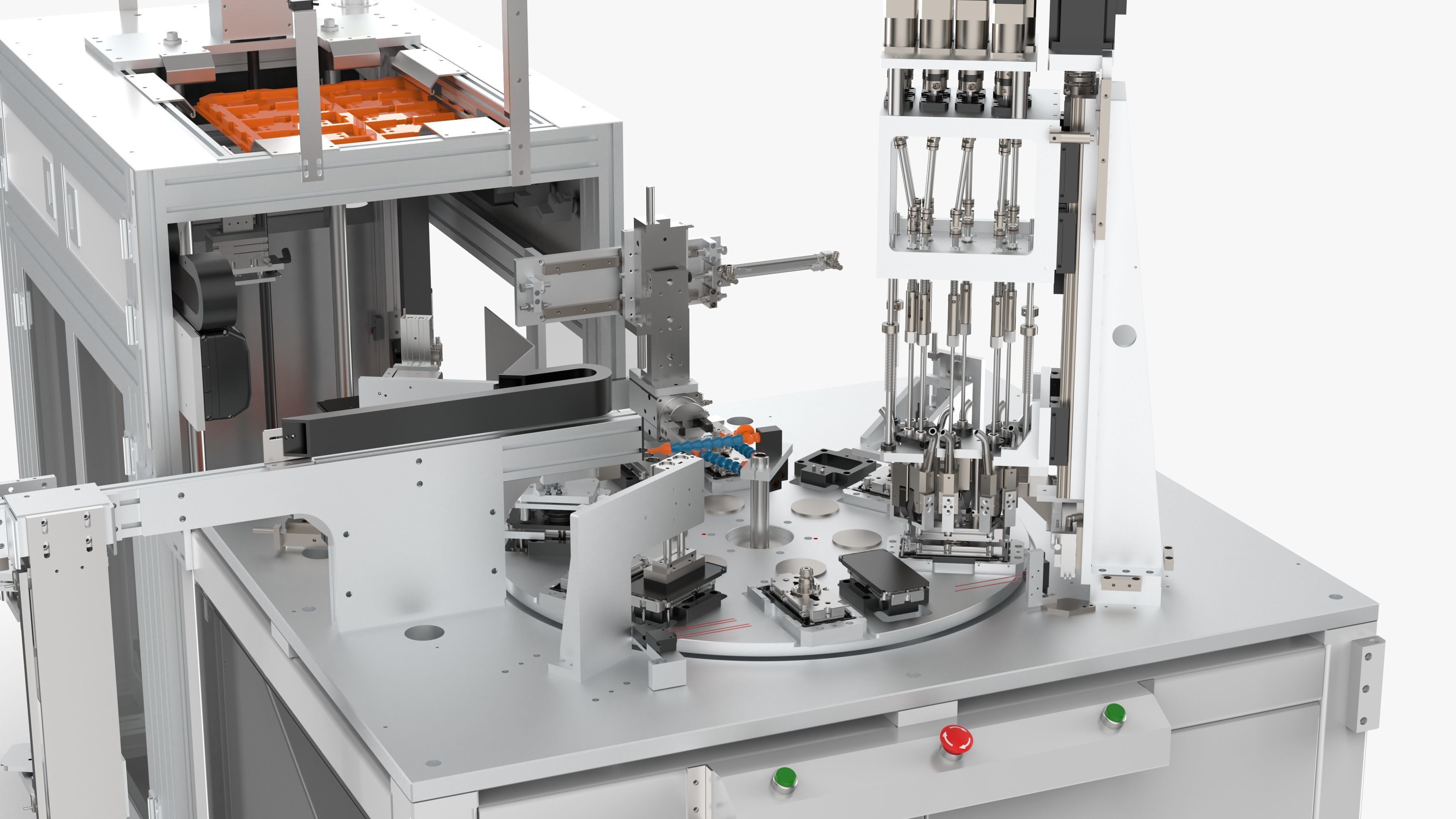

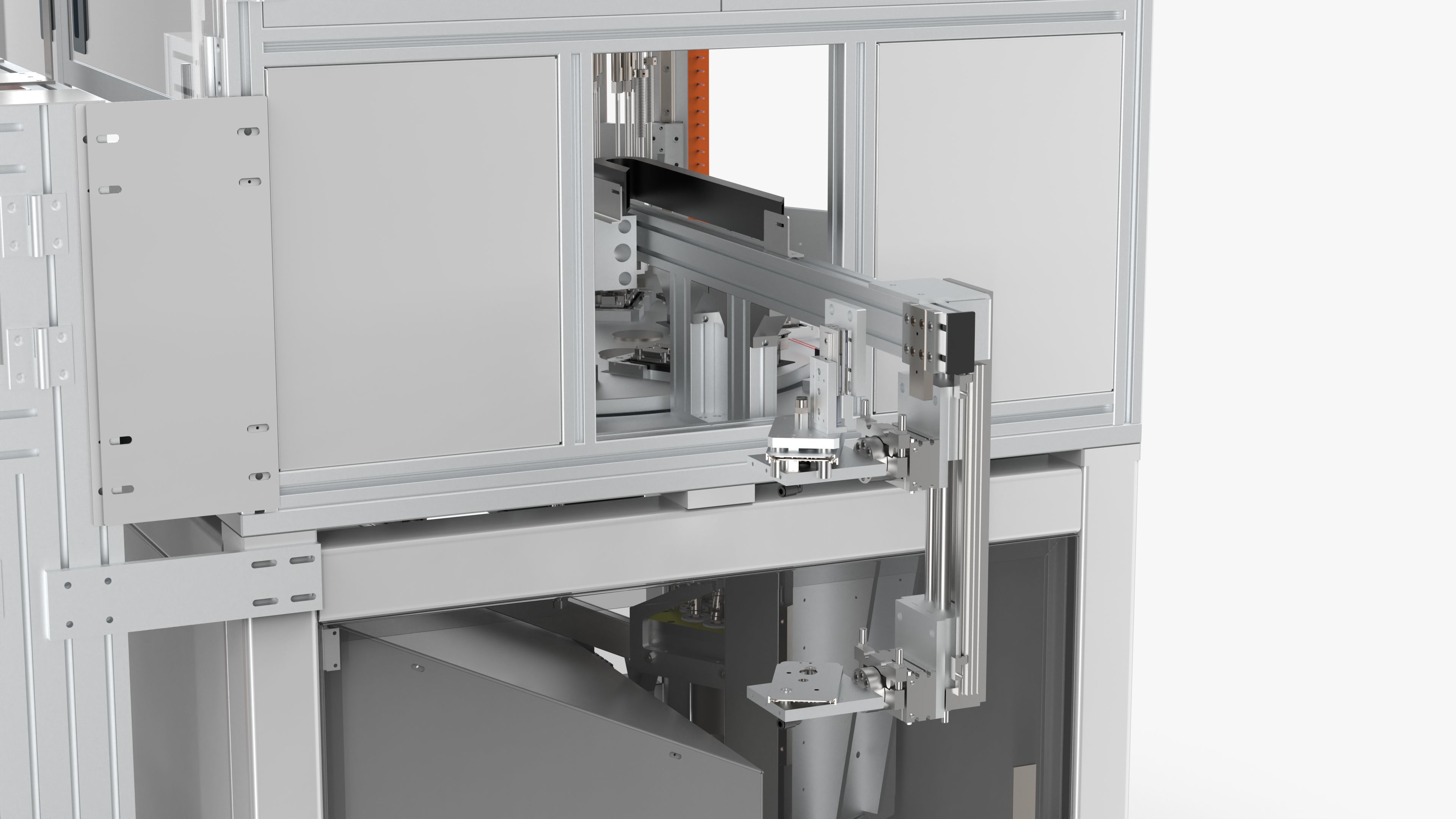

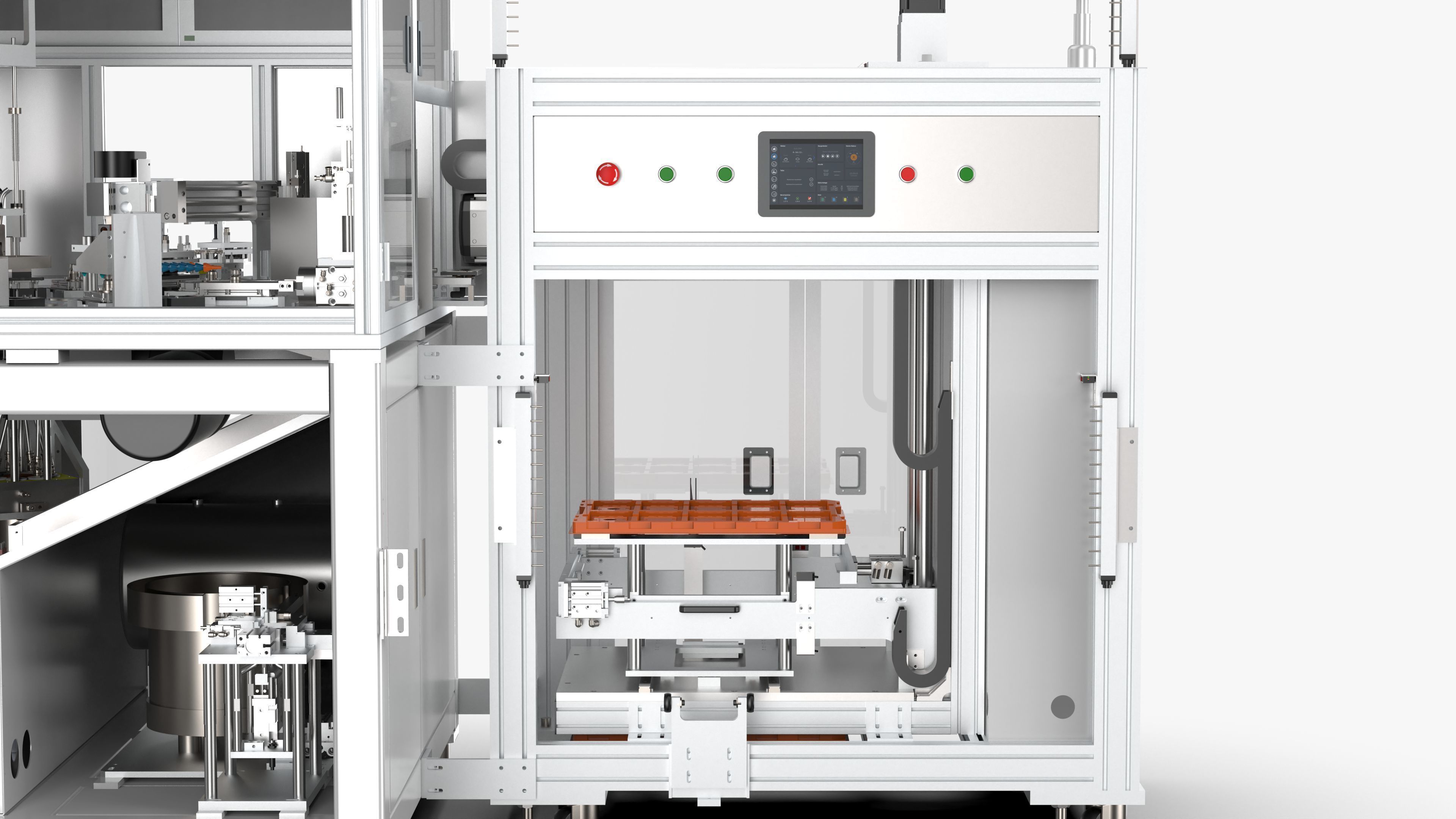

This is an original turntable multi-station, and a non-standard device for multi-axis synchronous unlocking screws. There are screws on both sides of the product that need to be unlocked. The whole machine is more classic except for the gear synchronous transmission multi-axis rotation structure. Other structural reference values ??are also high. Among them, the screw automatic distributing and supplying mechanism is self-made, the design is more ingenious, and it also has certain reference value. This machine can be connected with other non-standard feeding equipment or assembly line.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 6,396,360
• Vertice: 19,189,080
