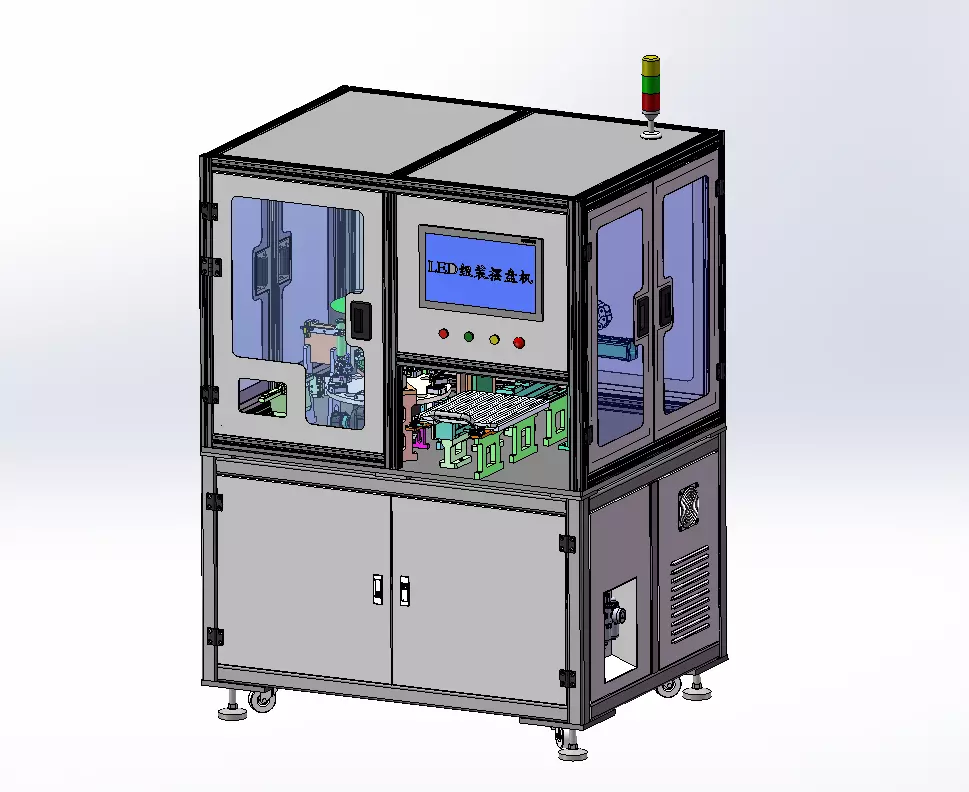

LED Assembly and Plating Machine 3D model

This is an automatic assembly and 摆盘 (It should be traying, so I'll correct it here) equipment for LED lights. It features a four - station design with a turntable, and the equipment operates in a counter - clockwise direction.Process 1: The LEDs are fed through a vibrating disk, their pins are cut, and then they are flipped and placed into the fixture.Process 2: The LED lamp holders are fed, and the robotic gripper picks them up and assembles them into the fixture.Process 3: The glue - dispensing mechanism applies glue to the assembled products and cures it.Process 4: The robot automatically trays and collects the finished products.The overall equipment measures 1200mm in length and 900mm in width. It has a compact layout and well - refined details. This is a non - standard equipment that has been put into production, and it has high reference value.
