Auger flight forming machine

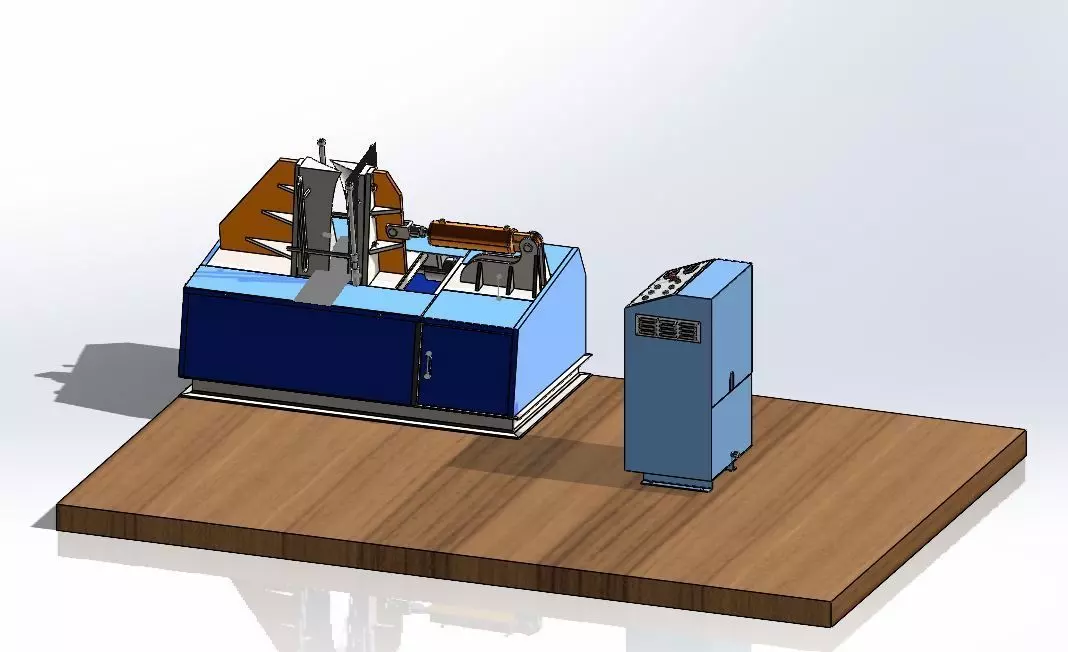

Auger flight forming machine 3D model

Description

An auger flight forming machine is a specialized device that produces auger flights from steel plates. Auger flights are a type of screw blade that have a helical shape, and are used in screw presses, earth augers, concrete mixers, and other applications. Let's learn more about the auger flight forming machine:

  1. The basic structure of the auger flight forming machine:

    • Frame: The frame is the main part of the machine, made of steel profiles or steel boxes, which functions to bear the force and shape the machine.
    • Transmission system: The transmission system consists of a motor, a gearbox, gears, shafts, and other parts, which functions to transmit power and speed to the machine.
    • Feeding system: The feeding system consists of a feeding table, a feeding shaft, and other parts, which functions to feed the steel plate into the machine continuously and evenly.
    • Forming system: The forming system consists of parts such as cutting knives, bending knives, twisting knives, and other parts, which functions to cut, bend, and twist the steel plate into auger flights according to the requirements.
  2. The working principle of the auger flight forming machine:

    • The auger flight forming machine works based on the principle of bending and twisting the steel plate by the pressing force and the twisting force.
    • When the motor starts, the transmission system will transmit power and speed to the feeding shaft and the forming shaft.
    • The feeding shaft will pull the steel plate into the machine, while the forming shaft will cut, bend, and twist the steel plate into auger flights.
    • The auger flights after being formed will be pushed out of the machine by the twisting force of the forming shaft.
  3. The applications of the auger flight forming machine:

    • The auger flight forming machine is used to produce auger flights for screw presses, earth augers, concrete mixers, and other applications.
    • The auger flight forming machine can produce auger flights with different diameters, lengths, thicknesses, and twisting angles, depending on the customer's needs.
    • The auger flight forming machine can work with different types of steel plates, such as carbon steel, stainless steel, galvanized steel, and other types of steel.
  4. The benefits of the auger flight forming machine:

    • High efficiency: With a simple design and an effective working principle, the auger flight forming machine allows to transport and process the materials quickly and efficiently.
    • High reliability: The auger flight forming machine is usually made of high-quality materials such as steel plates and stainless steel, which can withstand abrasion, corrosion, high temperature and high pressure.
    • Easy maintenance: The auger flight forming machine has a simple design, easy to disassemble, clean and maintain.
    • Space saving: The auger flight forming machine can be installed in different directions, maximizing the space utilization.
    • Energy saving: The auger flight forming machine has an electric motor that saves energy, reduces operating costs and protects the environment.Please contact me via Email: a92n4592@gmail.com or whatsapp 0777539986 I will help you complete your projectSincerely thank you
Item rating
0 0
Auger flight forming machine
$130.00

Royalty Free License
Auger flight forming machine
$130.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • SolidWorks (.sldprt, .sldasm, .slddrw)117 MB
  • AutoCAD (.dwg)117 MB

3D Model details

  • Ready for 3D Printing
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Other
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Publish date2024-03-09
  • Model ID#5147194
