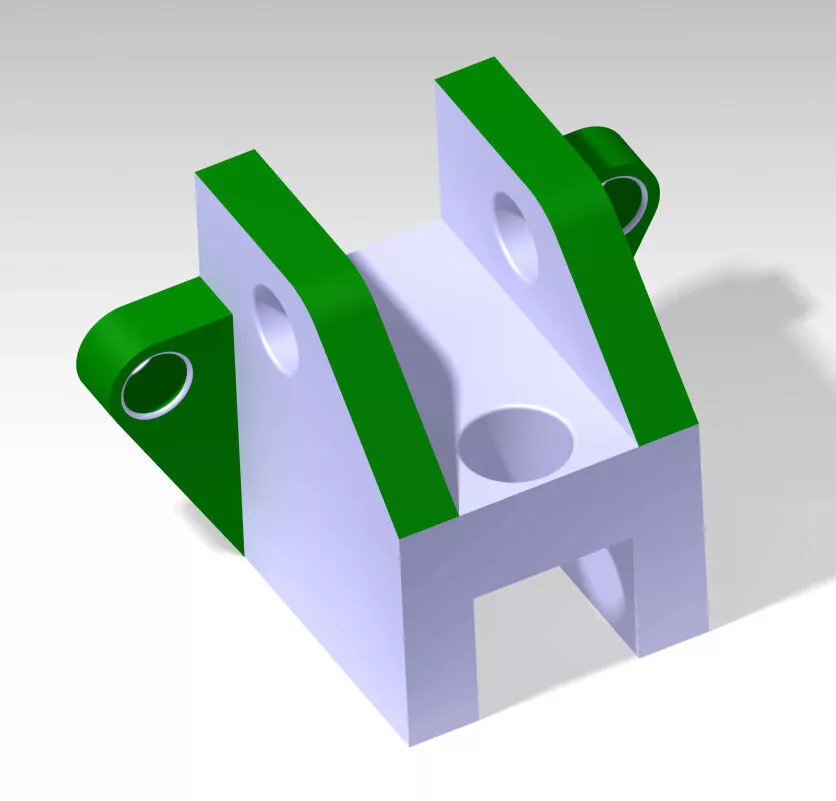

This project highlights a unique engineering solution: a high-precision Bearing Support Block featuring offset, angled mounting lugs. This isn't just a 3D shape; it is a calculated solution to a complex structural problem, designed based on precise blueprints and dimensions.

Engineering Insights: We utilize CATIA's Generative Shape Design (GSD) workbench to set up precise reference planes for flawless feature creation.

Absolute Collinear Alignment: The design employs advanced strategies to keep the central bearing bore perfectly aligned while managing unique lug offsets.

Symmetry & Tree Efficiency: The model is built with a strict geometric logic to maintain a clean, organized Specification Tree that is easy to audit and edit.

Manufacturing Ready: This case study represents a robust design, optimized for real-world mechanical constraints and future engineering modifications (DFM).
