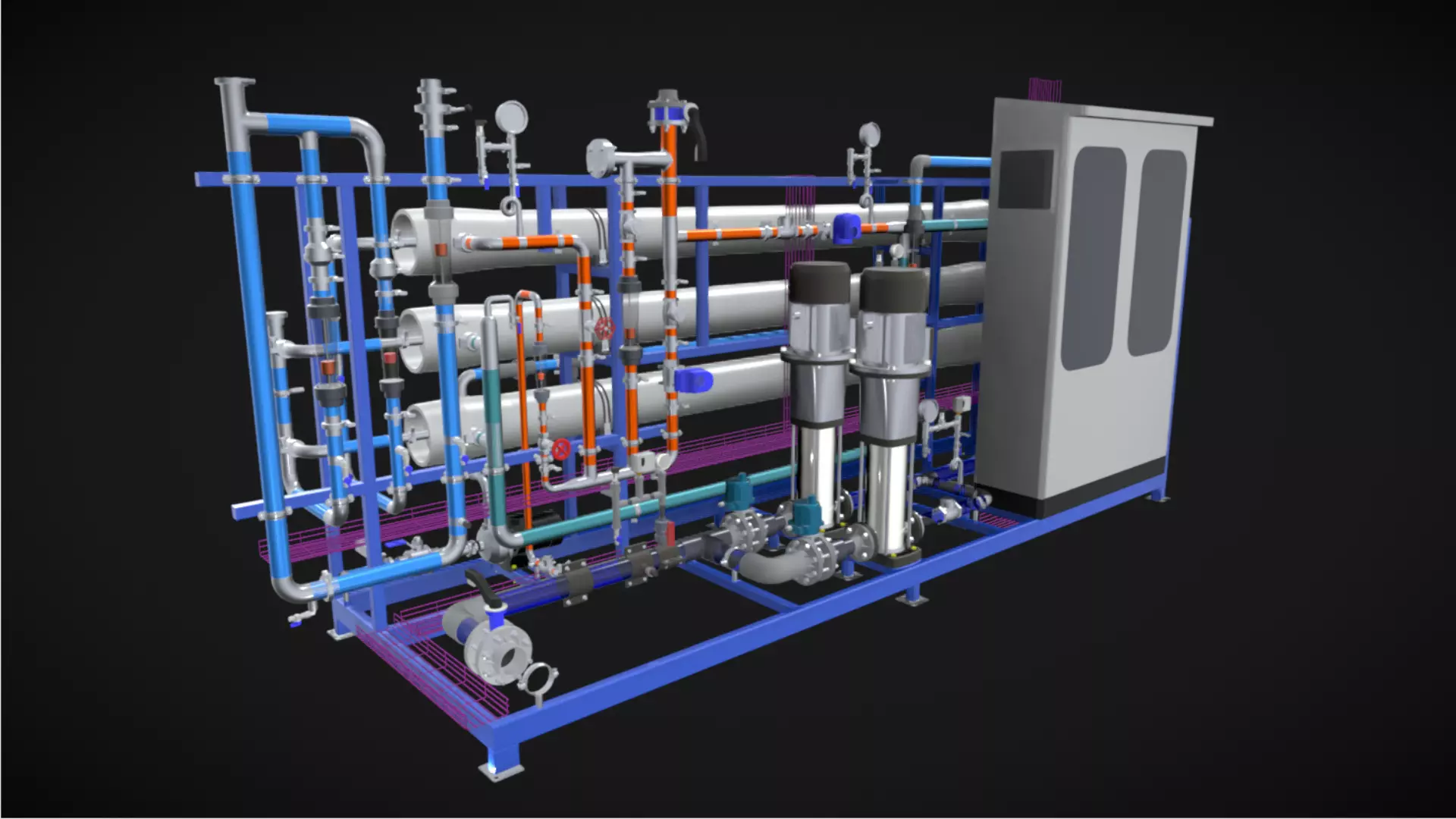

9m³/h 2-Stage RO System

High-capacity 2-stage reverse osmosis system (9 m³/h) designed for beverage manufacturing, continuous 24/7 operation, and real-time quality control.The system integrates dual high-pressure RO stages, advanced sensors, smart automation, and a complete CIP loop for hygienic maintenance.

System IncludesRO Membrane Assembly• 3 × 8040 membrane pressure vessels• Each vessel holds 3 high-recovery 8040 RO membranes• Total: 9 membranes arranged for industrial-grade efficiency• Optimized for beverage and food-grade water processing

Dual High-Pressure Pumping System• Two high-pressure pumps configured for 2-pass RO• Ensures stable pressure, redundancy, and continuous operation• Automatic switchover and pressure balancing logic

** Automation & Control**• Automatic membrane flushing valves (startup + shutdown)• Full CIP cleaning loop designed for quick connection and chemical circulation• Pressure sensors at:o RO Feedo After RO Stage 1o After RO Stage 2• Enables precise differential pressure monitoring for membrane health

Water Quality Monitoring• pH sensor• Electrical conductivity (EC) sensor• Pressure sensors at critical points• Real-time display via IoT platform

** IoT Smart Monitoring**• Remote dashboard• Live status for pressure, quality, pump load• Instant phone alerts for deviations or downtime• Ideal for factories requiring strict QC and traceability

Modeling & File Formats• Modeled entirely in Autodesk Inventor (high accuracy, engineering-grade)• Delivered in .glb and .usdz formats• Suitable for:o Layout planningo Instructional animationo Industrial presentationso VR/AR equipment placement

** Ideal For**• Beverage factories• Food processing plants• Filling and bottling lines• Industrial RO water production requiring hygienic, stable output
