DESCRIPTION

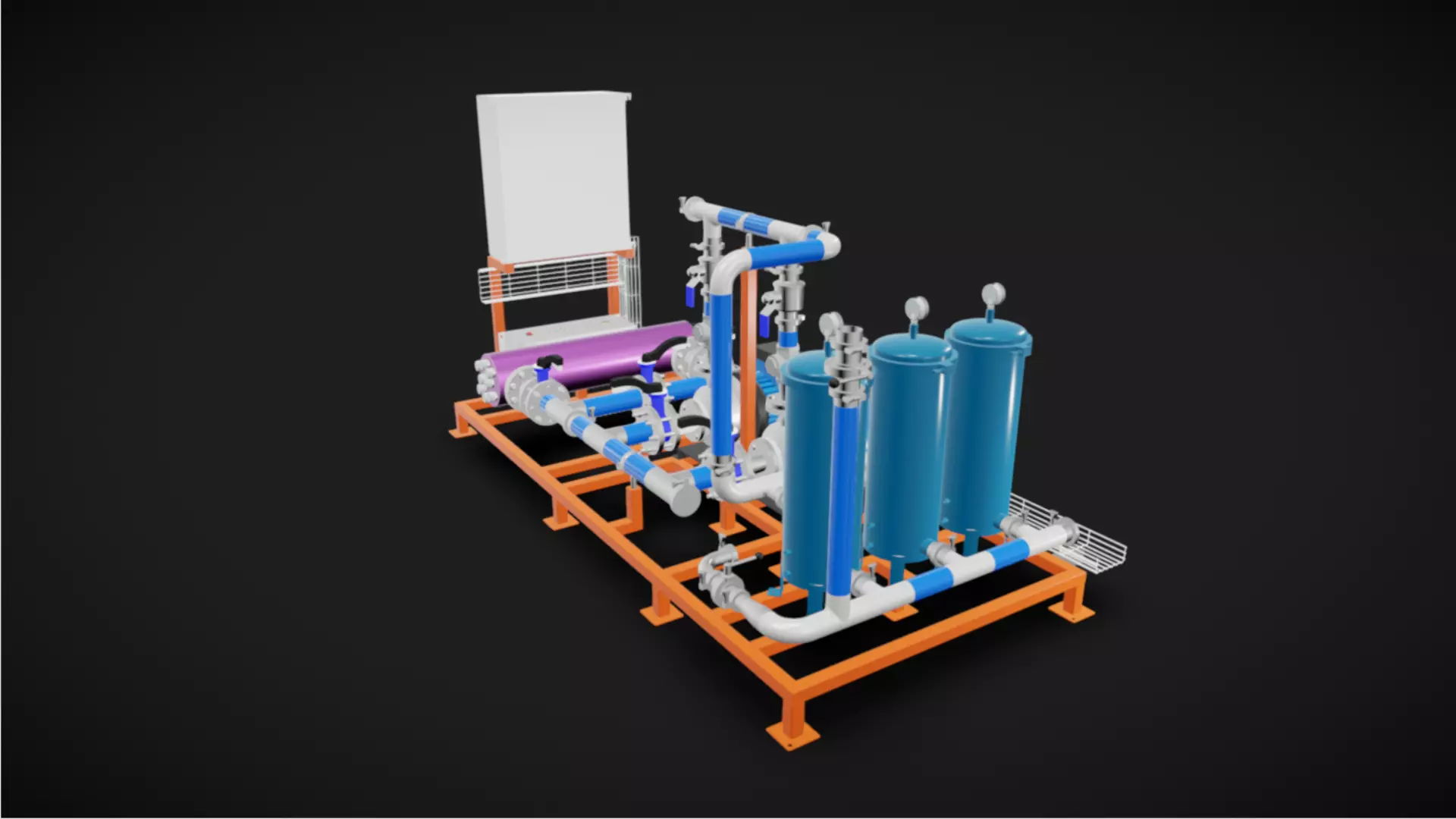

10m3/h Industrial Filtration System – Dual Pumps, UV 440W, 0.2µm Final Filter

This is a detailed industrial 3D model of a sterile water filtration system designed for RO water production lines.The system includes dual feed pumps, 440W UV sterilizer, and a three-stage stainless-steel fine filtration assembly with a 7-cartridge 0.2µm PP module for high-purity water applications.

System Features• 2× Feed Pumps (Inverter-controlled for stable pressure)• 1× UV Sterilizer 440W for bacterial elimination• 3× 20-inch Fine Filter Housings (SS304)• 1× 7-cartridge 0.2µm PP Module (absolute filtration)• Automatic operation via:o Variable Frequency Drive (VFD)o Pressure Sensors• Complete Stainless-Steel Piping System• Industrial-grade skid layout, optimized for manufacturing

Model Characteristics• Clean topology for fast rendering and lightweight workflows• Real-world dimensions & realistic stainless-steel materials• Ideal for:o Industrial designo Water treatment engineeringo Technical presentationso Factory simulationo Training and animation

*Included*• Full assembly model (pump skid + filters + UV + piping)• Organized components and naming structure• Neutral format files for universal compatibility

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
NEW
Recently added to CGTrader - explore one of the latest models on the marketplace.

10m3h Industrial Filtration System 3D model

Royalty Free License (no AI)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
STL
Stereolithography<br />File Size: 37 MB
OBJ
OBJ<br />File Size: 73.2 MB
FBX
Autodesk FBX<br />File Size: 12.1 MB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
The model includes animations (movement or actions) that can be played in supported software or engines.
The model has a skeleton or bone structure, making it ready for posing or animation.
PBR
Uses Physically Based Rendering materials, which give the model realistic lighting and surface properties.
Textures
The model includes image files (textures) that add color, patterns, or detail to its surfaces.
Materials
The model has material settings that define how surfaces look (color, shine, transparency, etc.).
UV Mapping
The model's surfaces are mapped to a 2D image, allowing textures to display correctly.
Plugins Used
Some external plugins were used to create the model. These may be required for full functionality.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Geometry
Polygon mesh
A model built from polygons (triangles or quads) connected in a mesh.
85000 polygons
The total number of polygons (flat shapes) that make up the 3D model.
/ 95000 vertices
The number of points (corners) that define the shape of the model's polygons.
Unwrapped UVs
