DESCRIPTION

Discover the ultimate DIY BBQ smoker trailer plan featuring a Santa Maria grill! Build your own custom smoker on wheels and elevate your outdoor cooking game. Get step-by-step instructions, detailed diagrams, and expert tips for creating the perfect backyard barbecue experience. Start your journey to becoming a pitmaster today!we present to you the ultimate Octagon BBQ smoker plans ready and accurately for fabricationswith dimensionsWidth 1778 mm,Height 1880 mm andLength 4209mm

Here are additional specifications:

  • Horizontal Cooking Chamber:
  • Length: 1823 mm (71.77 inches)
  • Octagon Firebox:
  • Dimensions: 816 mm (32.12 inches) long x 784 mm (30.87 inches) width x 776 mm (30.55 inches) height
  • Warmer Chamber:
  • Dimensions: 816 mm (32.12 inches) long x 784 mm (30.87 inches) width x 1008 mm (39.68 inches) height

Santa Maria Grill:

  • Height: 17730 mm (698.03 inches)
  • Length: 923 mm (36.33 inches)
  • Width: 500 mm (19.68 inches)
  • Side Storage Unit:
  • Height: 200 mm (7.87 inches)
  • Length: 1500 mm (59.05 inches)
  • Width: 370 mm (14.56 inches)Features:
  • Robust Slide Mechanism for the Santa Maria Grill
  • Collapsible Smoke Stack
  • Regulatory Plate between Firebox and Warmer Chamber
  • 4 Removal Meat Racks Inside the Warmer
  • 4 Removal Meat Racks Inside the Cooking Chamber
  • Firebox Door for Easy Ash Removal and Damper Control
  • Timbren Suspension for Smooth Transportation
  • Heat and Material Stimulation Analysis to Prevent Heat Loss**Technical Files include:**
  • Dimensions in both Inches and mm
  • PDF well-dimensioned files of individual components
  • PDF Sub-assemblies files, well-defined and accurate
  • Weld specifications and instructions for DIY
  • DXF/DWG files of all sheet metal parts for laser/plasma cutting and bending
  • Detailed Bill of Materials (BOM) of all assemblies, quantities, and material specifications
  • BOM list of commercial components such as fasteners with respective costs.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

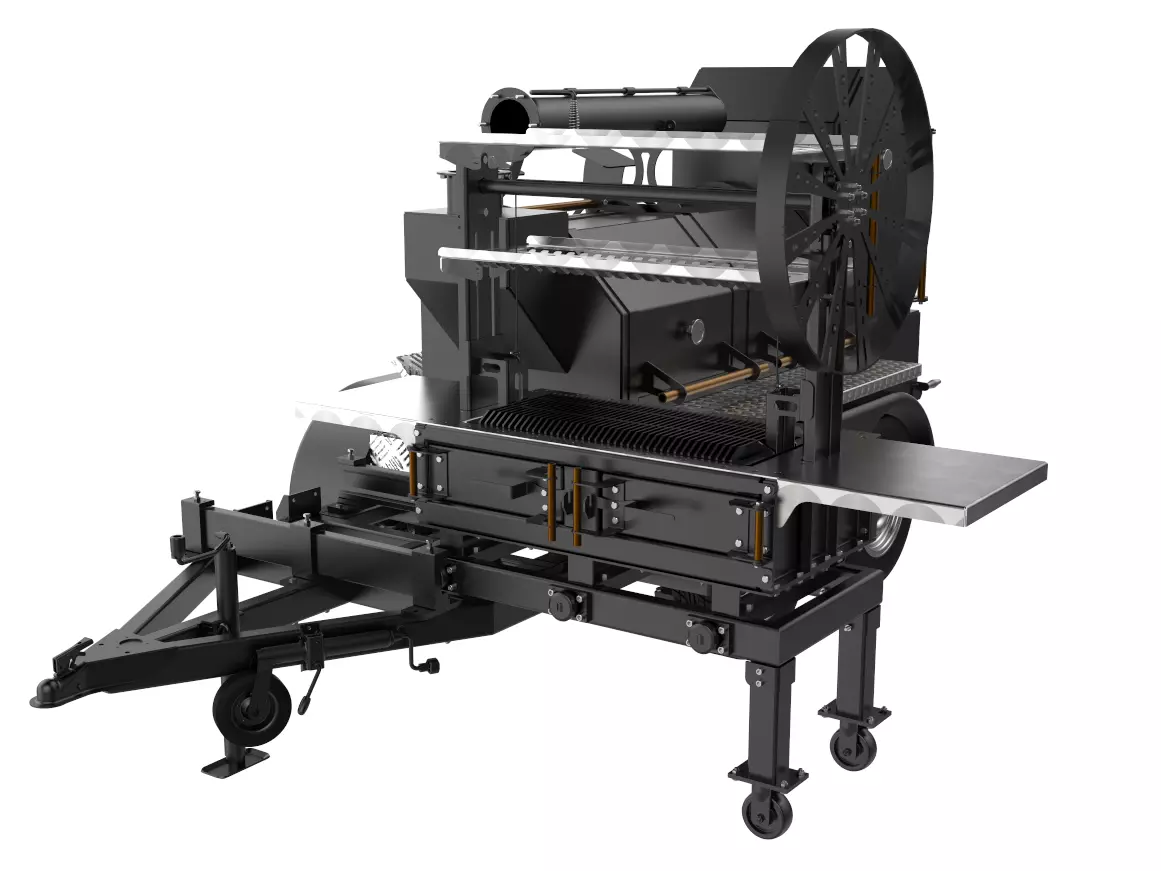

BBQ Smoker Trailer Plan with Santa Maria Grill 3D model
