DESCRIPTION

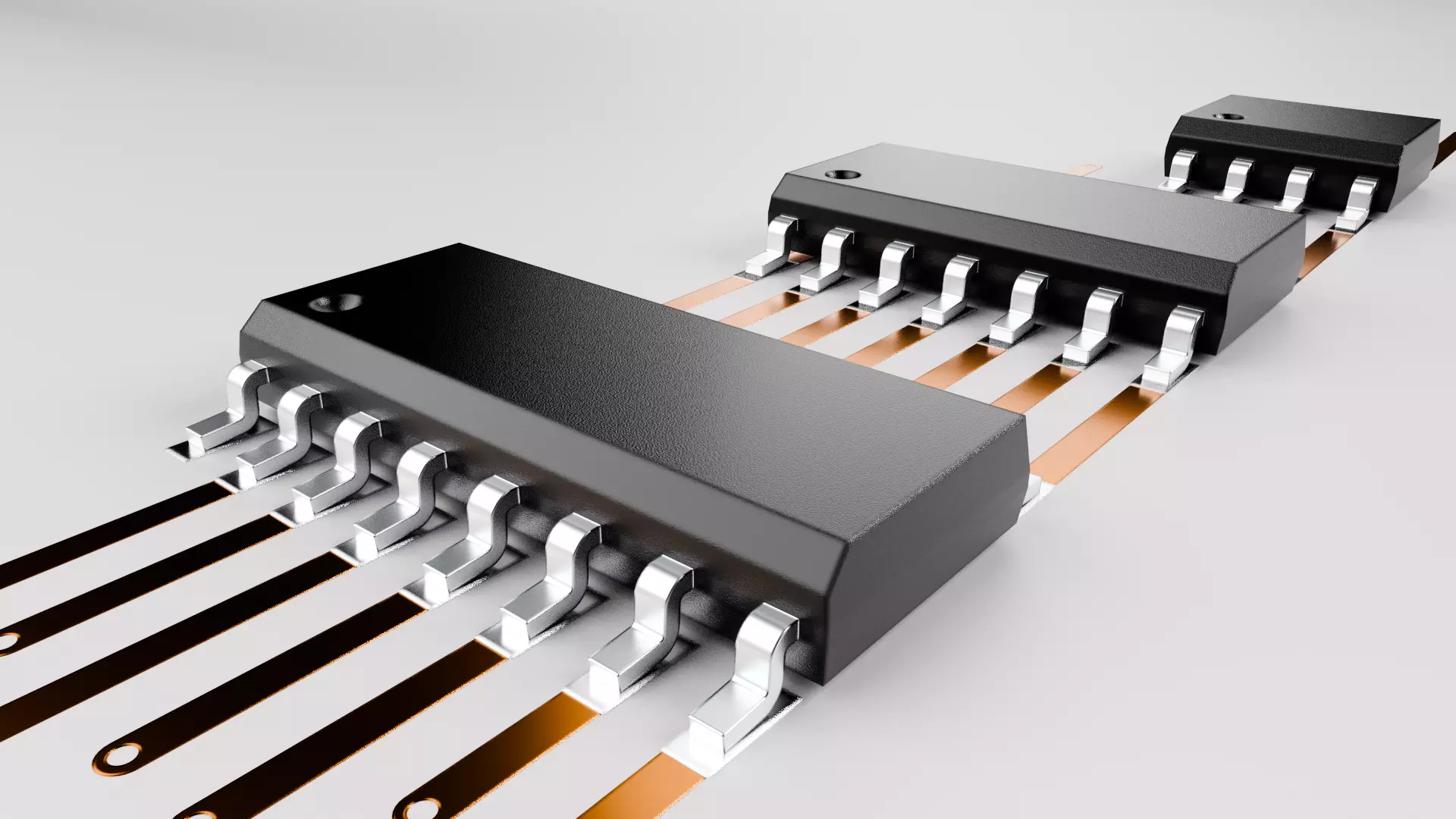

SOIC8 / SOIC14 / SOIC16 — High-Accuracy SMD Package Library

Professional-grade 3D models of SOIC integrated circuit packages for PCB visualization, technical documentation, and photorealistic rendering.

Why this pack?

Most free SOIC models are simple boxes with flat pins. These models include:

  • Correct chamfer on pin 1 corner (per JEDEC MS-012 / EIAJ)
  • Pin 1 orientation dot
  • Three body quality variants per package: H / M / L (high, medium, low)
  • Pad variants included for PCB layout visualization
  • 2048×2048 32-bit EXR normal maps for Blender photorealistic rendering## Included formats

STEP (FreeCAD, SolidWorks, CATIA, Fusion 360) + STL + Blender-ready resources.

STEP files are provided as assemblies. Each component (body, pins, pad) is a separate part for accurate material and property assignment in CAD environments.

Packages included

SOIC-8 · SOIC-14 · SOIC-16 — 3 quality variants each + pad versions

Ideal for

PCB renders · Datasheet illustrations · Product presentations · Technical documentation

SOIC8Step.zip

  • SOIC8H (264.1 KB)
  • SOIC8M (63.10 KB)
  • SOIC8L (60.3 KB)
  • SOIC8PadH (38.2 KB)
  • SOIC8PadL (35.8 KB)|

SOIC14Step.zip

  • SOIC14H ( 265.7 KB)
  • SOIC14M (64.2 KB)
  • SOIC14L (63.1 KB)
  • SOIC14PadH (39.9 KB)
  • SOIC14PadL (37.5 KB)

SOIC16Step.zip

  • SOIC16H (266.3 KB)
  • SOIC16M (63.5 KB)
  • SOIC16L (53.5 KB)
  • SOIC16PadH (40.4 KB)
  • SOIC16PadL (38.0 KB)

SOIC8Stl.zip

  • SOIC8H (576.9 KB)
  • SOIC8M (62.3 KB)
  • SOIC8L (53,2 KB)
  • SOIC8PadH (28.2 KB)
  • SOIC8PadL (9.5 KB)

SOIC14Stl.zip

  • SOIC14H (322.5 KB)
  • SOIC14M (100.3 KB)
  • SOIC14L (91.9 KB)
  • SOIC14PadH (43.8 KB)
  • SOIC14PadL (16.5 KB)

SOIC16Stl.zip

  • SOIC16H (1.1 MB)
  • SOIC16M (113.1 KB)
  • SOIC16L (104.8 KB)
  • SOIC16PadH (43.8 KB)
  • SOIC16PadL (18.8 KB)
Blender files

resources.zip2048 x 2048 normal maps 32 bits

  • resources/SOICH_Normal.exr 64 Mb
  • resources/SOIC8M_Normal.exr 64 Mb
  • resources/SOIC8L_Normal.exr 64 Mb
  • resources/SOIC14M_Normal.exr 64 Mb
  • resources/SOIC14L_Normal.exr 64 Mb
  • resources/SOIC16M_Normal.exr 64 Mb
  • resources/SOIC16L_Normal.exr 64 Mb
Related Tagscircuitelectronicsintegratedstepblenderpcbsmdpackagesurfacemount
