Computer ports sockets

Computer ports sockets 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No Unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare TexturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

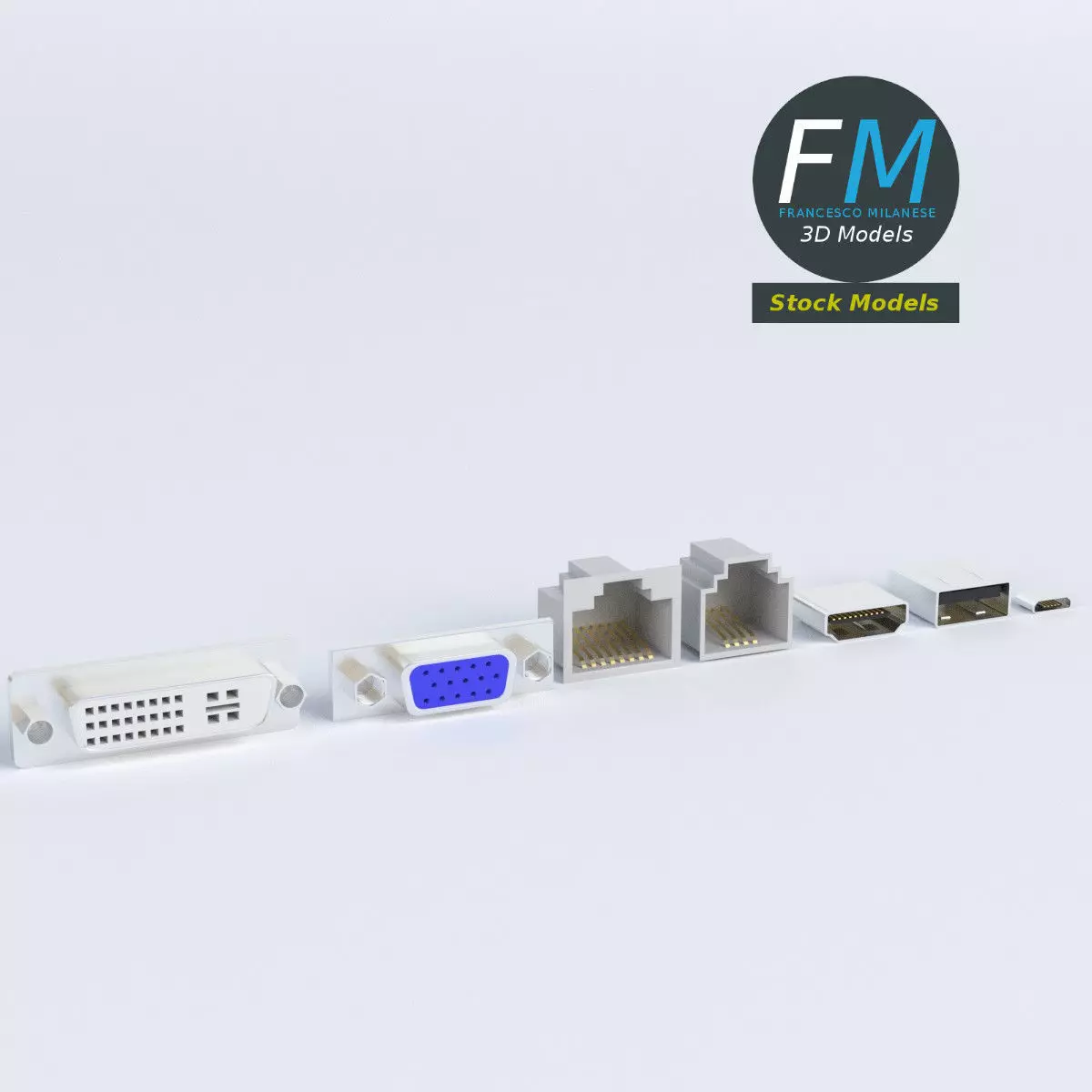

Computer ports sockets 3D Model. 7 individual objects (dvi-i, vga, micro-usb, usb-a, hdmi, rj45 ethernet, rj11 phone), sharing the same non overlapping UV Layout map, Material and PBR Textures set. Production-ready 3D Model, with PBR materials, textures, non overlapping UV Layout map provided in the package. Quads only geometries (no tris/ngons). Easily customizable: UV unwrapped geometries, so you can create new Textures (or modify the existing ones) using the UV Layout maps provided in the package (as png with alpha). Each Object, Material or Texture provided in the package has a unique, meaningful name. Made in Blender (Cycles / Eevee materials) then exported to OBJ and FBX; materials and textures made in Substance Painter, exported for PBR, V-Ray, Unity, Unreal. PROMO IMAGES: the first image has been rendered in Cycles (or Eevee) for Blender; in particular, you can find 11+ promo images in this description:

  • nr. 1-2-3-4-5-6 rendered in Cycles (Blender)
  • nr. 7-8 are wireframe images;
  • nr. 9-10 are screenshots from the Blender scene, showing the UV Layout;
  • other images: UV layouts (at least one). Formats included: FBX, OBJ; scenes: BLEND (with Cycles / Eevee materials); other: png with Alpha. 7 Objects (meshes), 1 PBR Material, UV unwrapped (non overlapping UV Layout map provided in the package); UV-mapped Textures. UV Layout maps and Image Textures resolutions: 2048x2048; PBR Textures made with Substance Painter. Polygonal, QUADS ONLY (no tris/ngons); 24394 vertices, 24009 quad faces (48018 tris). Real world dimensions; scene scale units: cm in Blender (that is: Metric with 0.01 scale). Uniform scale object (scale applied in Blender).

PBR Multi-Engine Textures Pack included: in a zipped folder, you'll find the PBR Textures set for a bunch of rendering engines or game engines!

  • Cycles (or Eeevee) for Blender (base color, occlusion + roughness + metallic + alpha (in a single PNG file), normal);
  • Vray for 3D Studio MAX (diffuse, reflect, reflection glossiness, normal);
  • Unity 5 Standard Metallic (albedo + transparency, metallic + smoothness, normal);
  • Unreal Engine 4 (base color + alpha, occlusion + roughness + metallic, normal);
  • generic PBR Spec Gloss workflow (diffuse + opacity, specular, glossiness, normal, height)
  • generic PBR Metal Rough workflow (base color + opacity, roughness, metallic, normal, height); you can use it in Eevee for Blender, too; so, you'll be able to edit the Textures, or just import the fbx/obj file, along with the Textures set you want, in your 3D Modeling software or game engine, and link them together to get a game / production ready asset! IMPORTANT --- Main renderings made in Blender + Cycles (or Eevee) using an HDR Environment Texture Image which is NOT provided in the package!
Item rating
1 0
Computer ports sockets
$9.00

Royalty Free License
Computer ports sockets
$9.00

Royalty Free License
Response 80% in 0.8h
3D Modeling

3D Model formats

Format limitations
Native
  • Blender 2.79 (.blend)8.08 MBVersion: 2.79Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)952 KB
  • Textures 21.3 MB
  • OBJ (.obj, .mtl)667 KB
  • PDF (.pdf)10.9 MB

3D Model details

  • Publish date2021-07-15
  • Model ID#3155521
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 48,018
  • Vertices 24,394
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Non-overlapping
  • Plugins used
  • Ready for 3D Printing
