DESCRIPTION

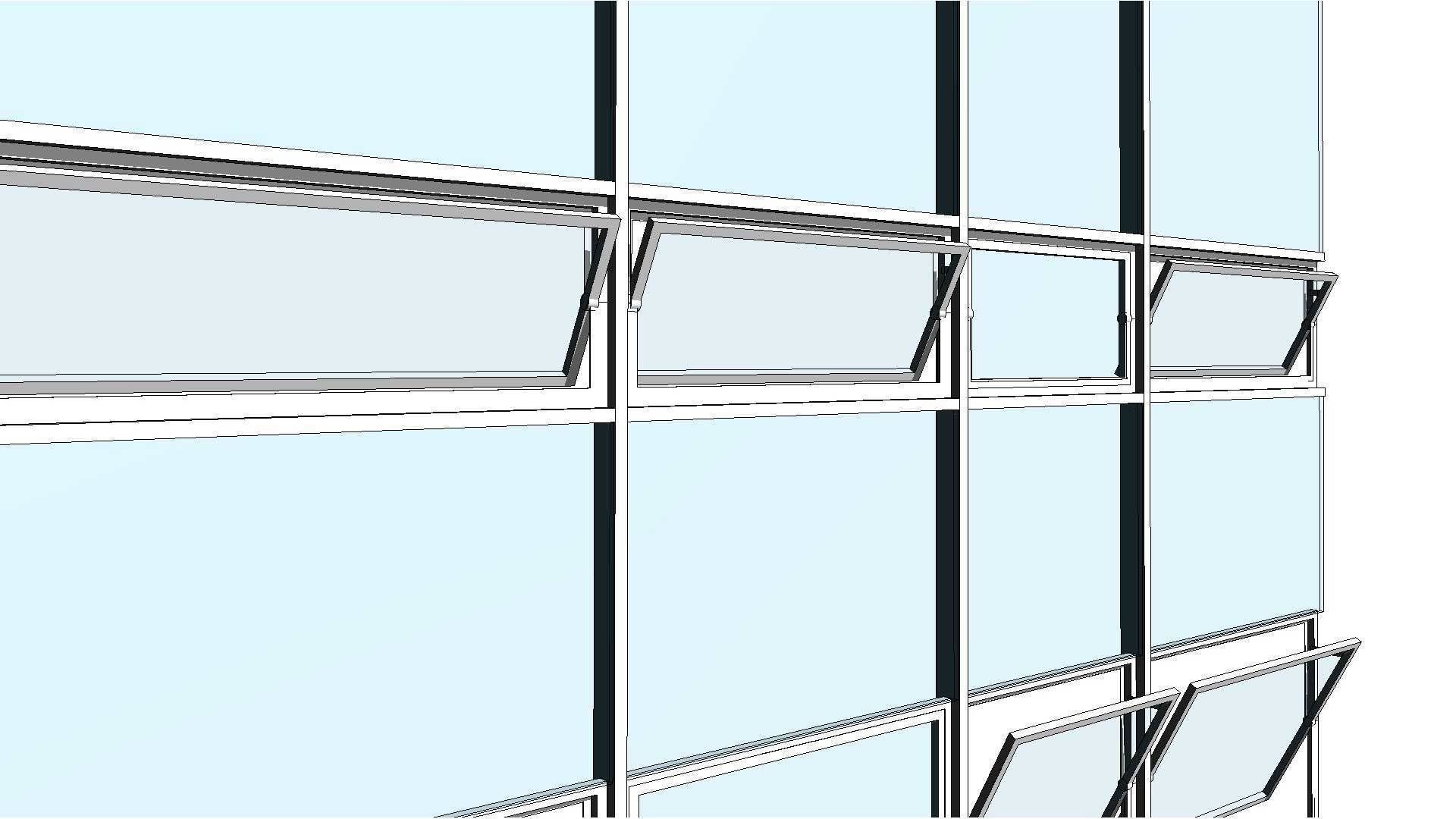

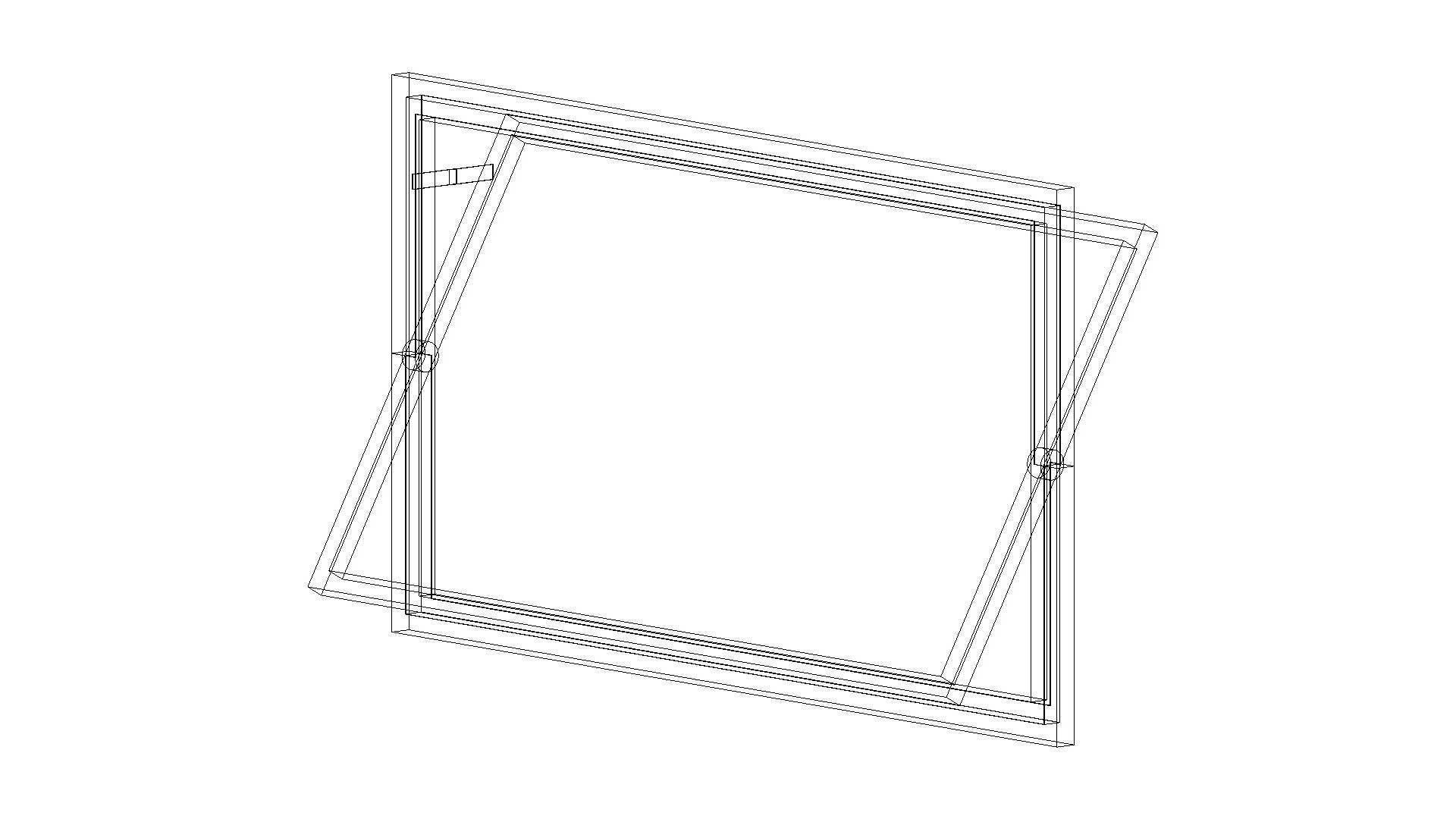

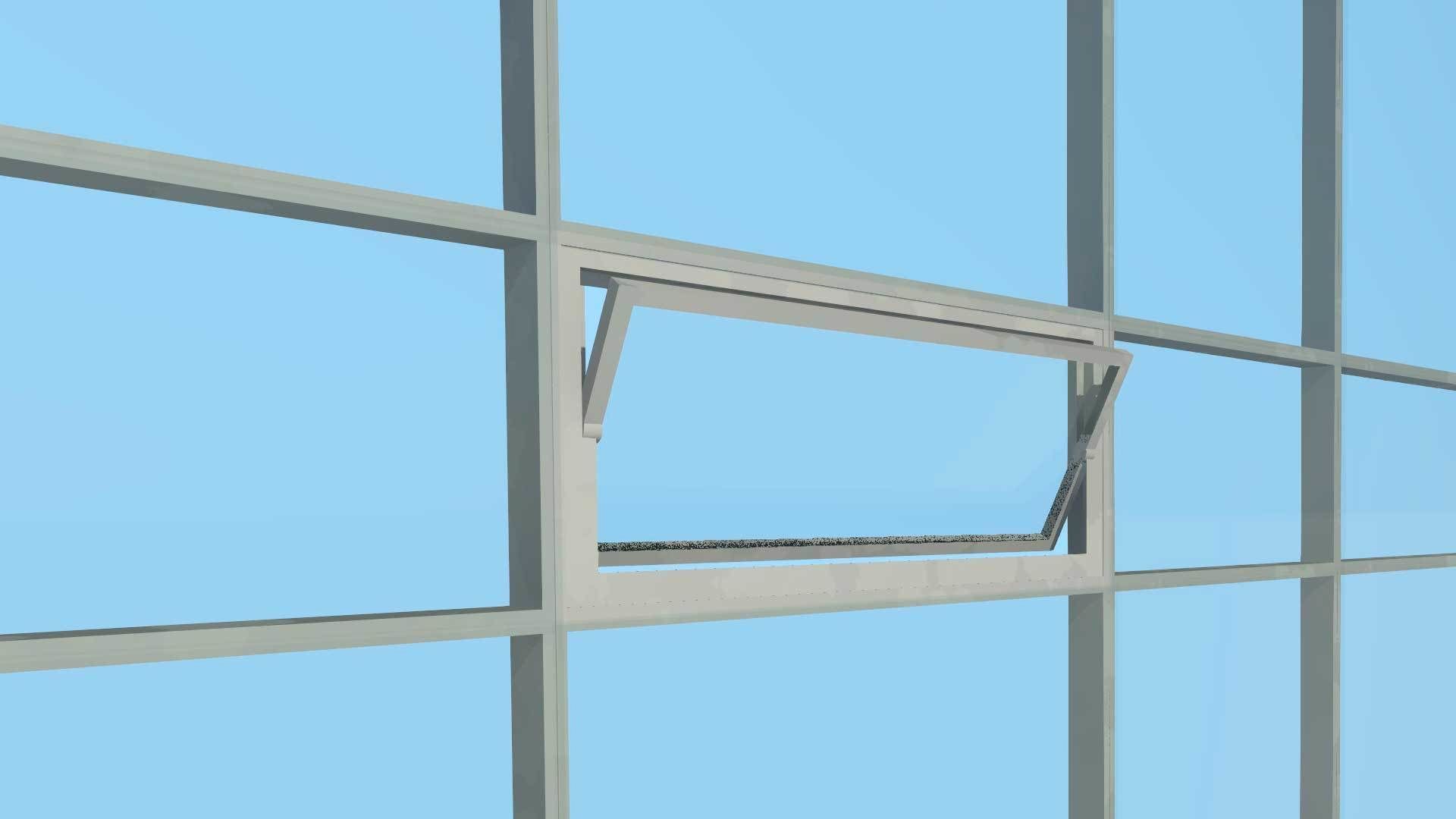

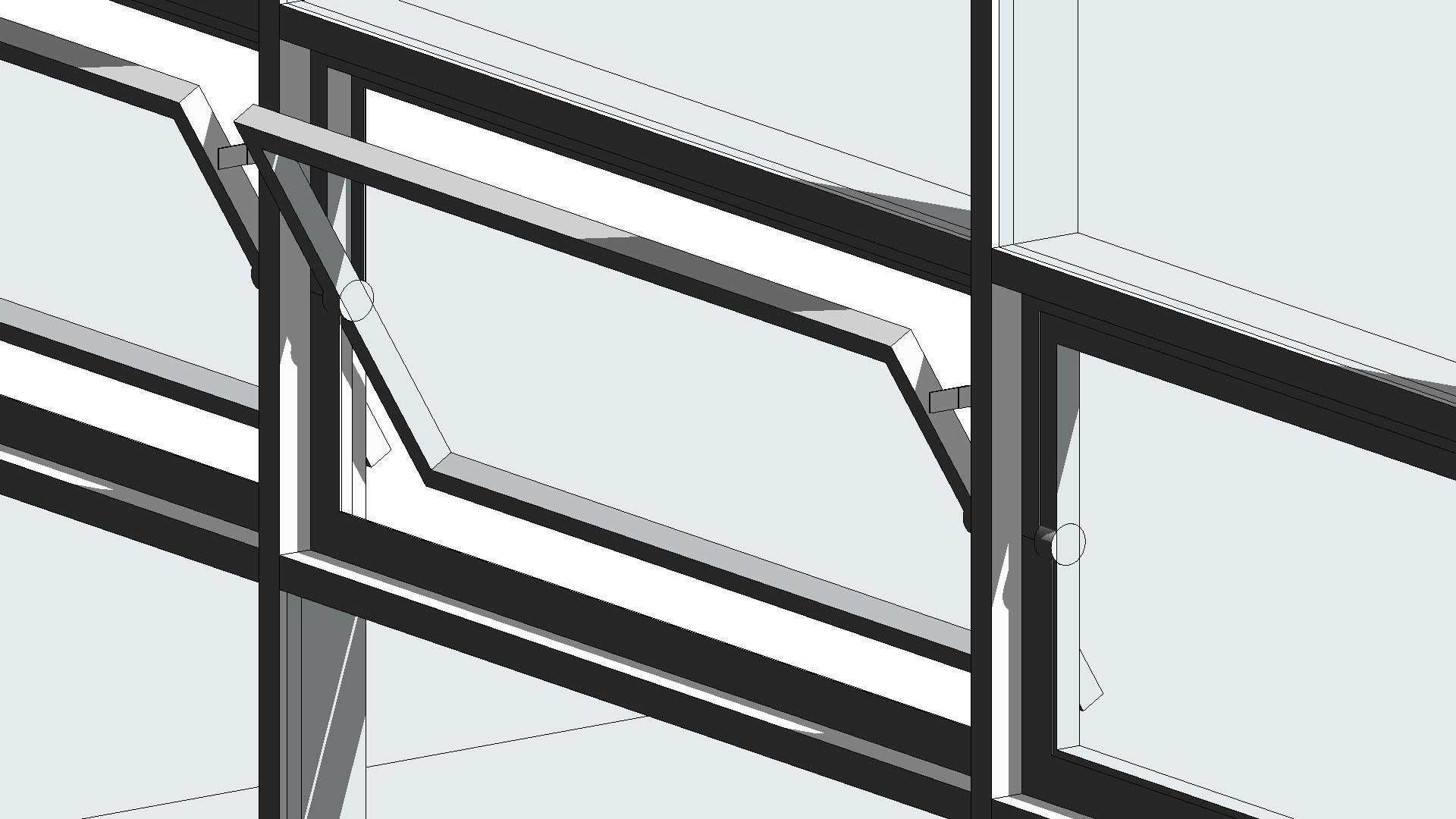

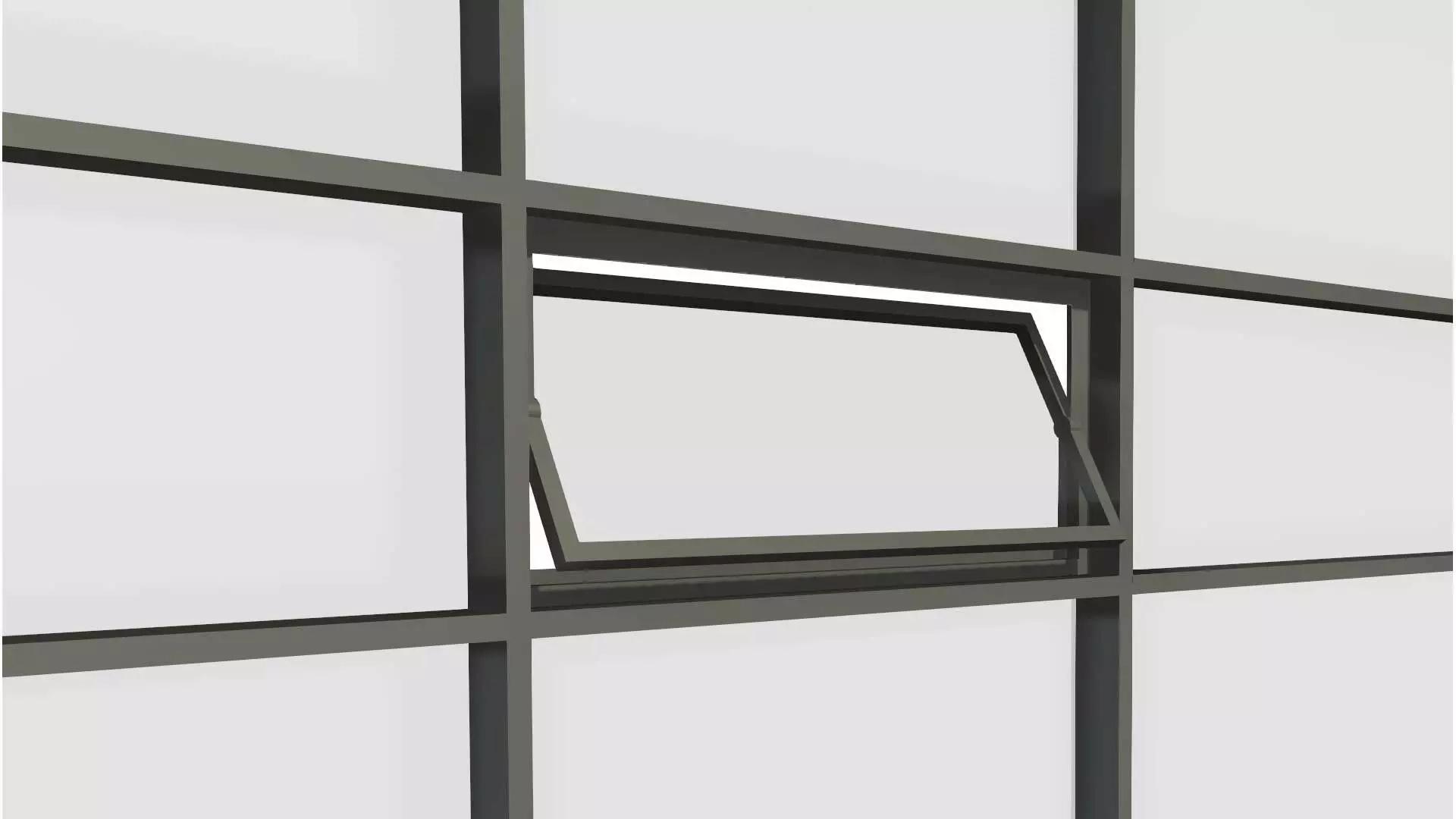

Fully Parametric Revit Family for a horizontal axis Pivot Window suitable for any curtain wall panel. Partially pivot opening window, 30degrees maximum opening with safety hinges.

Model is fully parametric, controlling all design aspects of the model to match any design requirement and automatically adjust to any curtain wall panel dimensions.Instance parameter for graphical representation of window being closed or open together with all materials available as separate parameters

This is a curtain wall based family that can be placed on any curtain wall panel. Width and height are automatically inherited from the curtain wall panel size. Available parameters allow designers to adjust the offset from the curtain wall axis, as well as the window panel frame width and depth.

ATTRIBUTES:Revit Version : 2022Family Type : Curtain Wall Panel FamilyFile Extension : .rfa

PARAMETERS:Window Width and height are automatically inheritedWindow Panel Frame Width and DepthWindow SetbackOpen/Close Option ON/OFFALl materials are parametric

Related Tagsrevitfamilyparametriccurtain wallpanelwindowpivotaluminiumglazingarchitectural
