Office Desk Drawer Organizer Cabinet 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

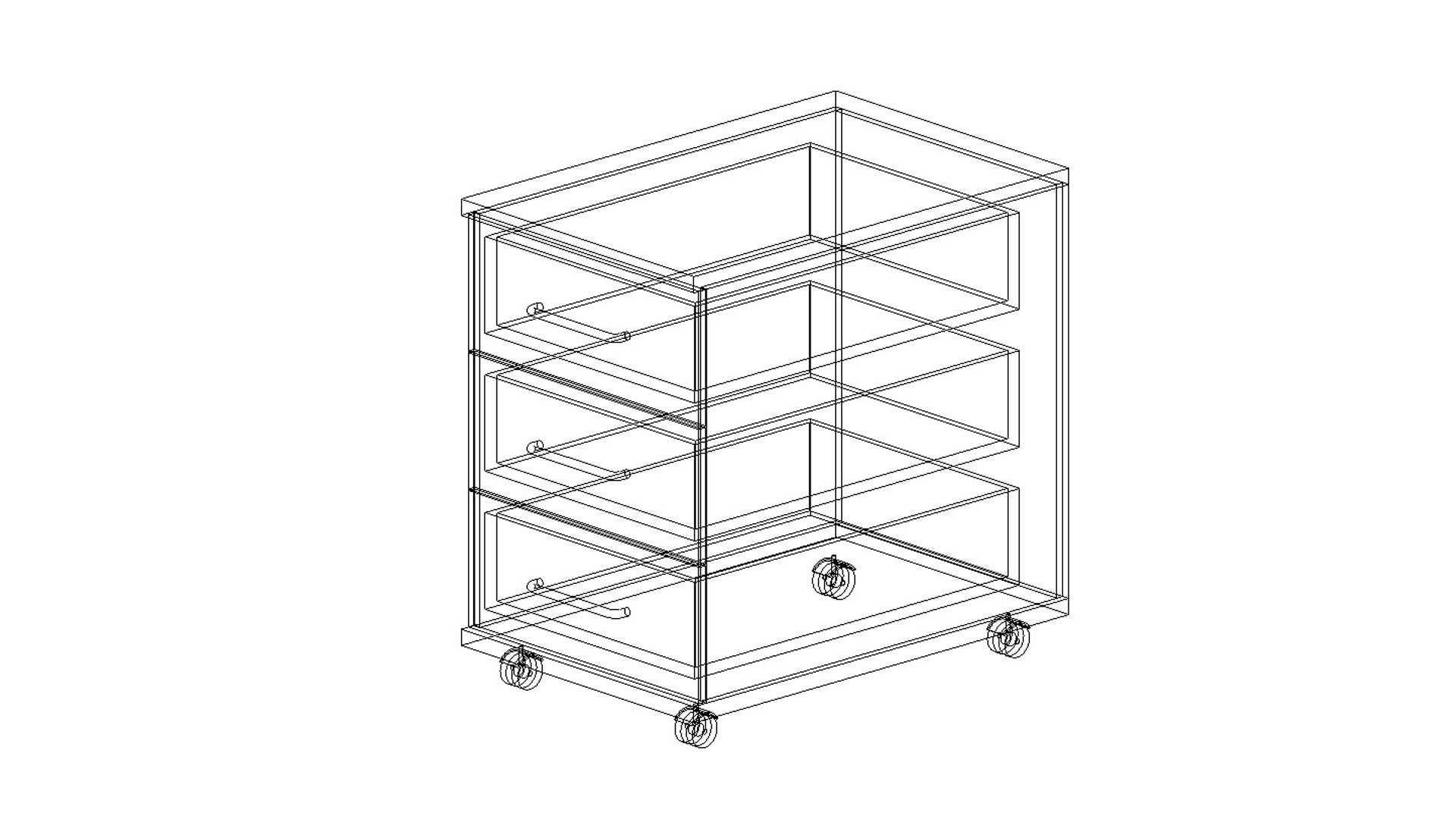

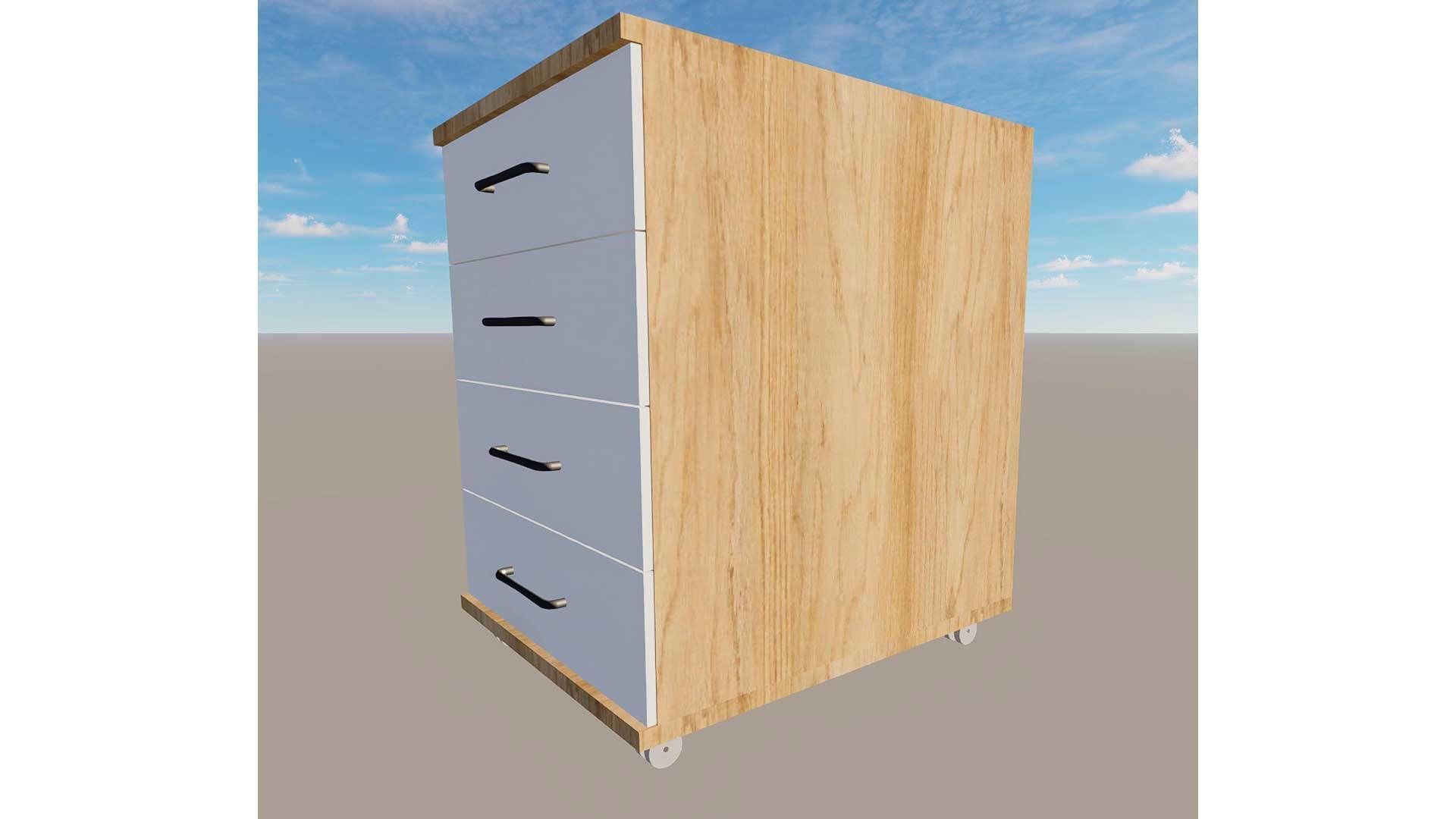

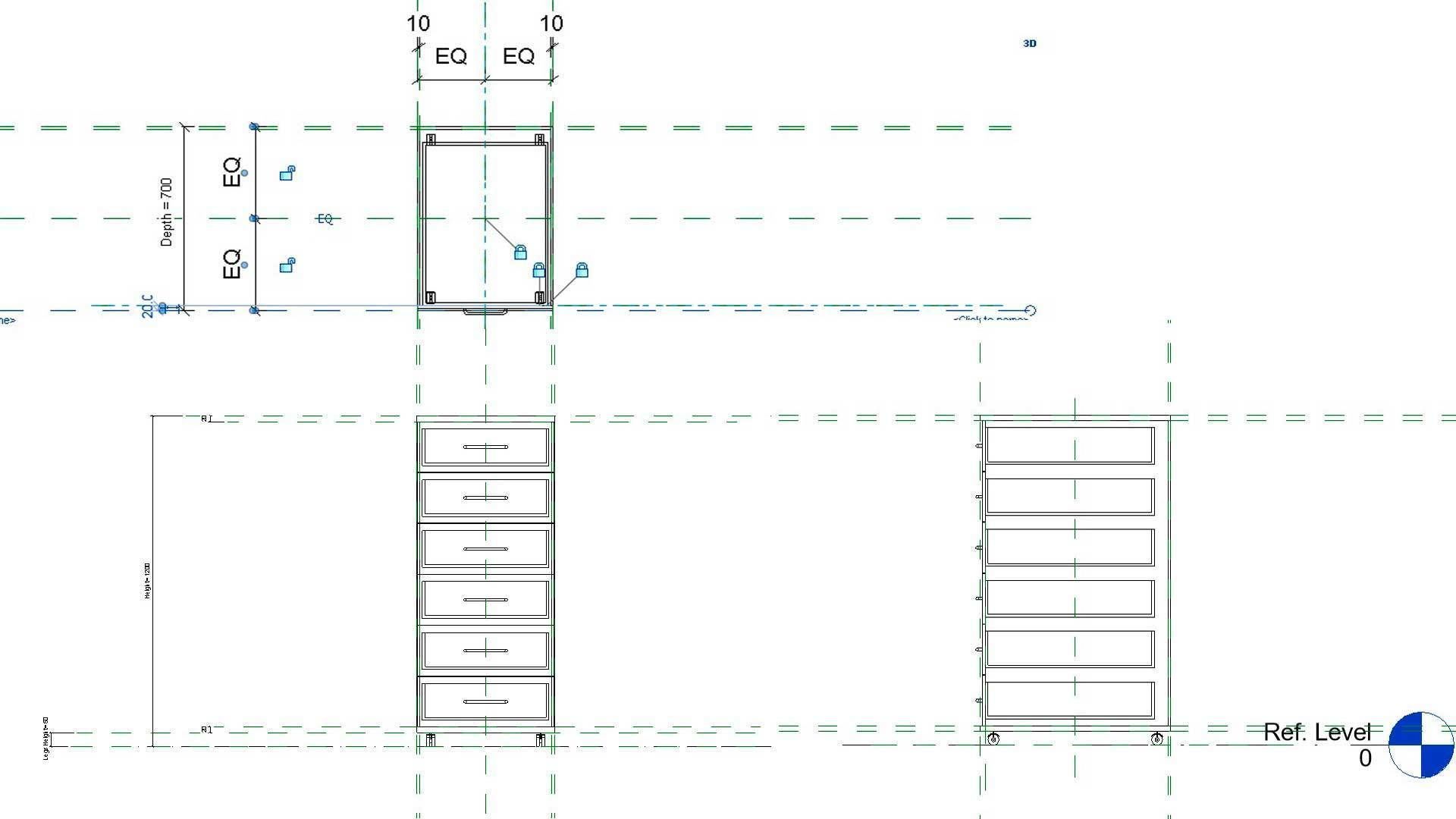

This is a revit family model for an office desk drawer organizer canitet. The model is fully parametric so users can change all dimensions and sizes as well as drawer number for each model.

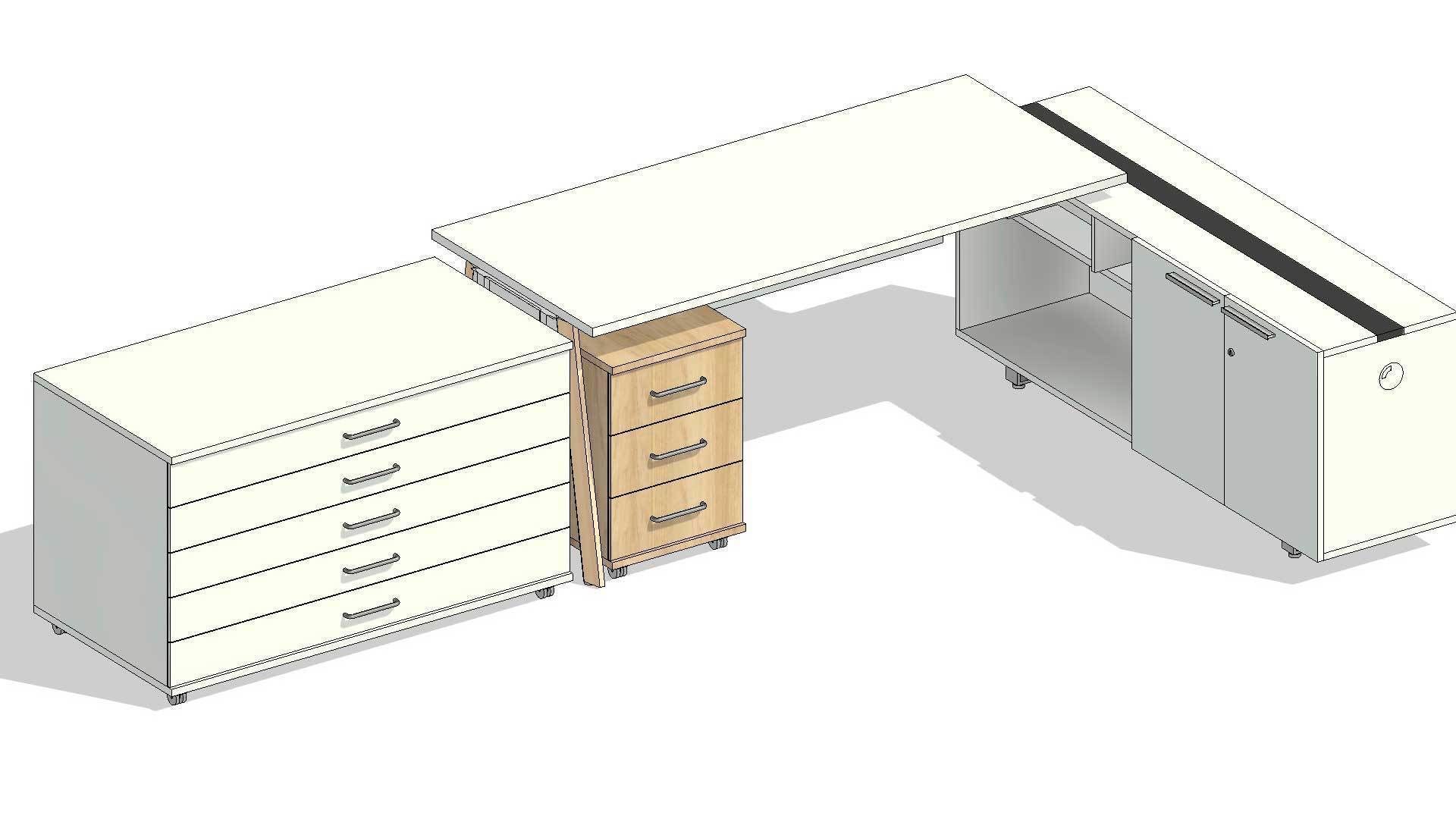

All materials can be changed making either wooden cabinets or metal drawer organizers. The model can be used as an under the desk drawer cabinet, or as a stand alone organizer fitting furniture. The cabinet is supported on four wheels which adjustable wheel legs support height.

By adjusting the height of the cabinet and selecting number of drawers cabinet, each drawer height is calculated automatically.

ATTRIBUTES:

  • Revit Version : 2022
  • Family Type : Generic Model
  • File Extension : .rfa

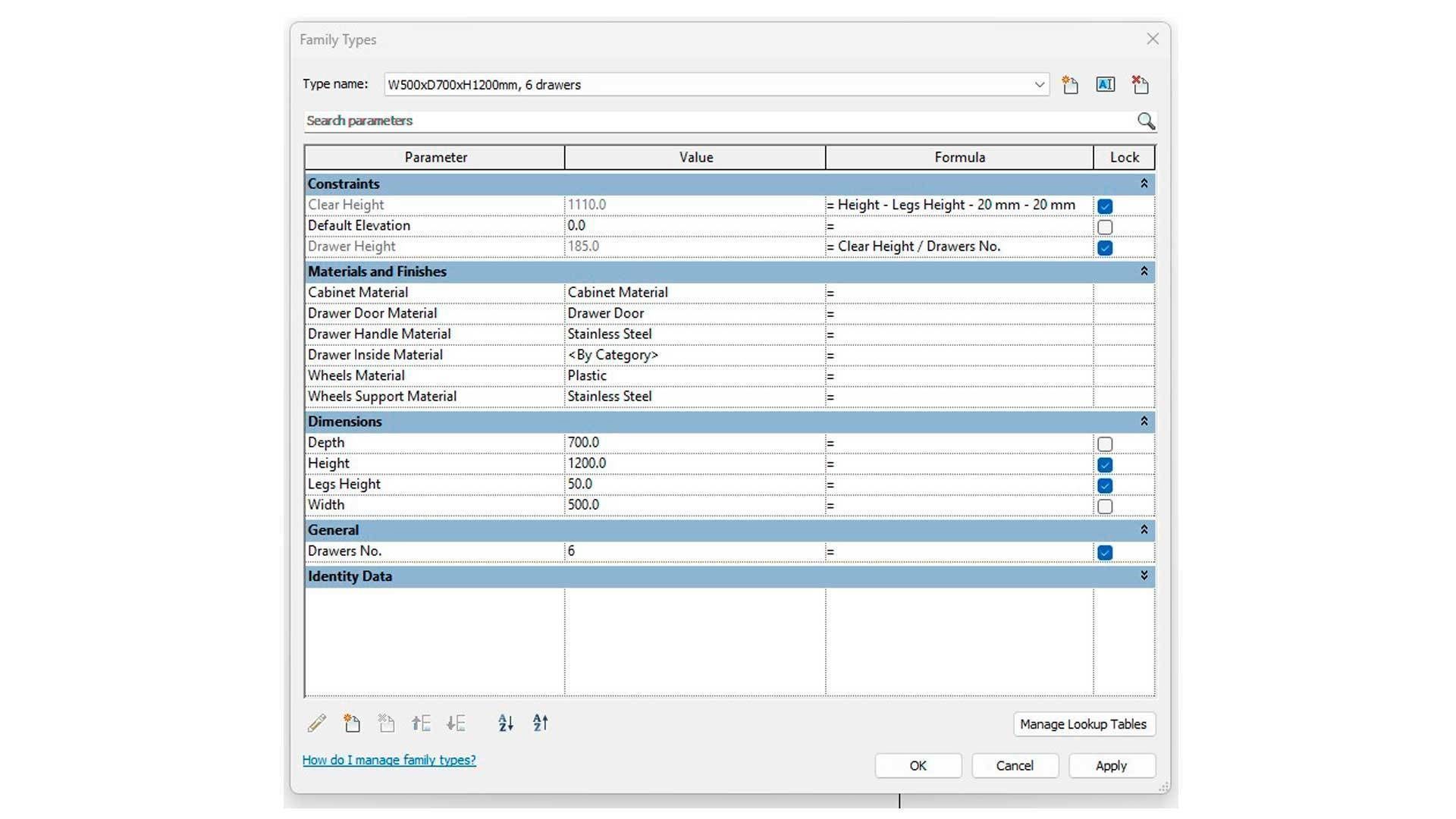

PARAMETERS:

  • Width
  • Depth
  • Height
  • Number of Drawers
  • Wheels support legs height
  • All materials ( cabinet, drawer front and inside, drawer hangle, wheels and wheels support legs )

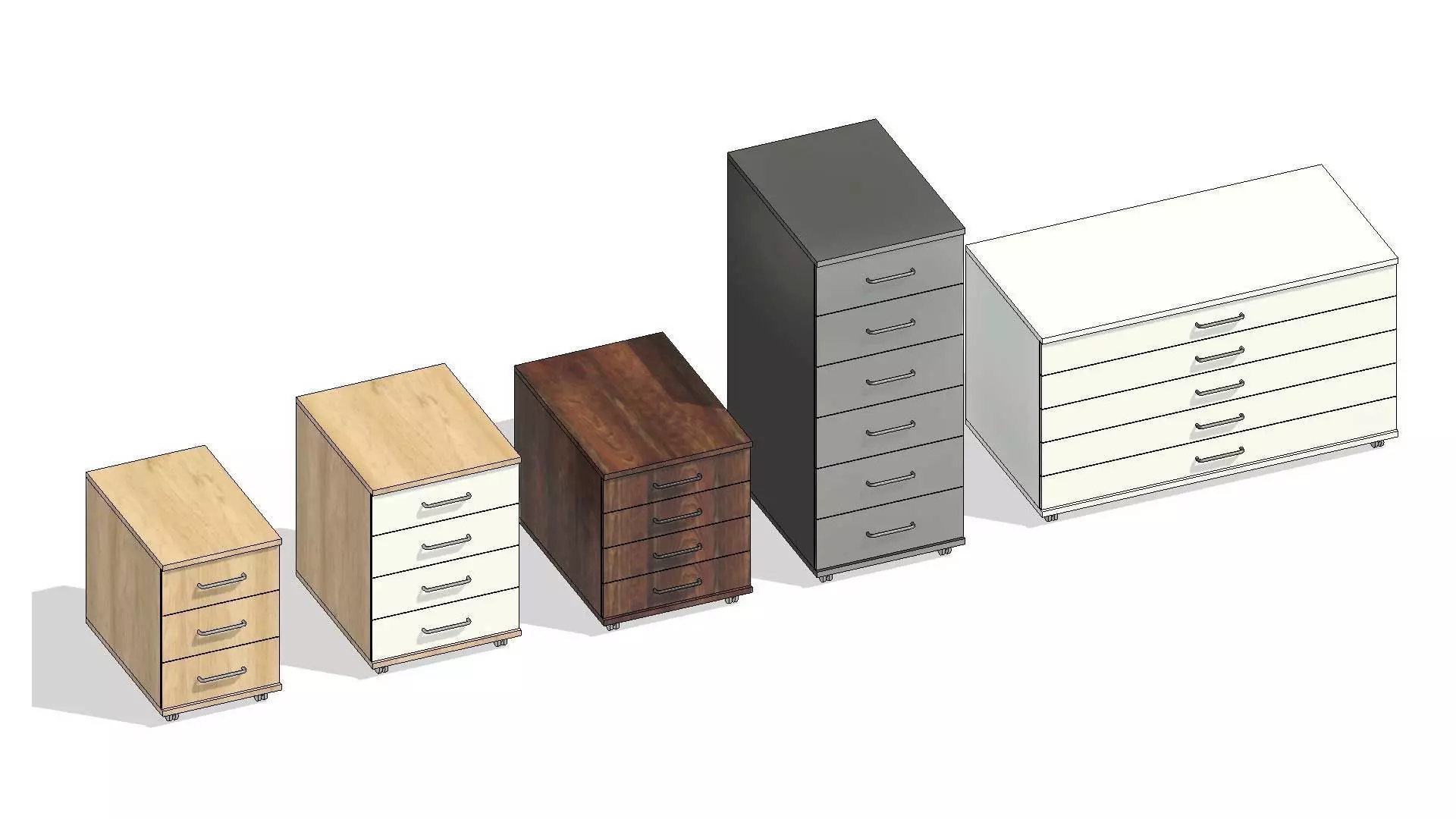

FAMILY TYPES:

  • W400xD600xH600mm, 3 drawers
  • W500xD700xH600mm, 4 drawers
  • W500xD600xH700mm, 4 drawers
  • W1200xD600xH700mm, 5 drawers
  • W500xD700xH1200mm, 6 drawers

User can create unlimited number of other family types to match every design needs.
