SOLAR ENERGY GROUND MOUNTED INSTALLATION-CATALOG-2 3D model
SOLAR ENERGY GROUND MOUNTED INSTALLATION CATALOG

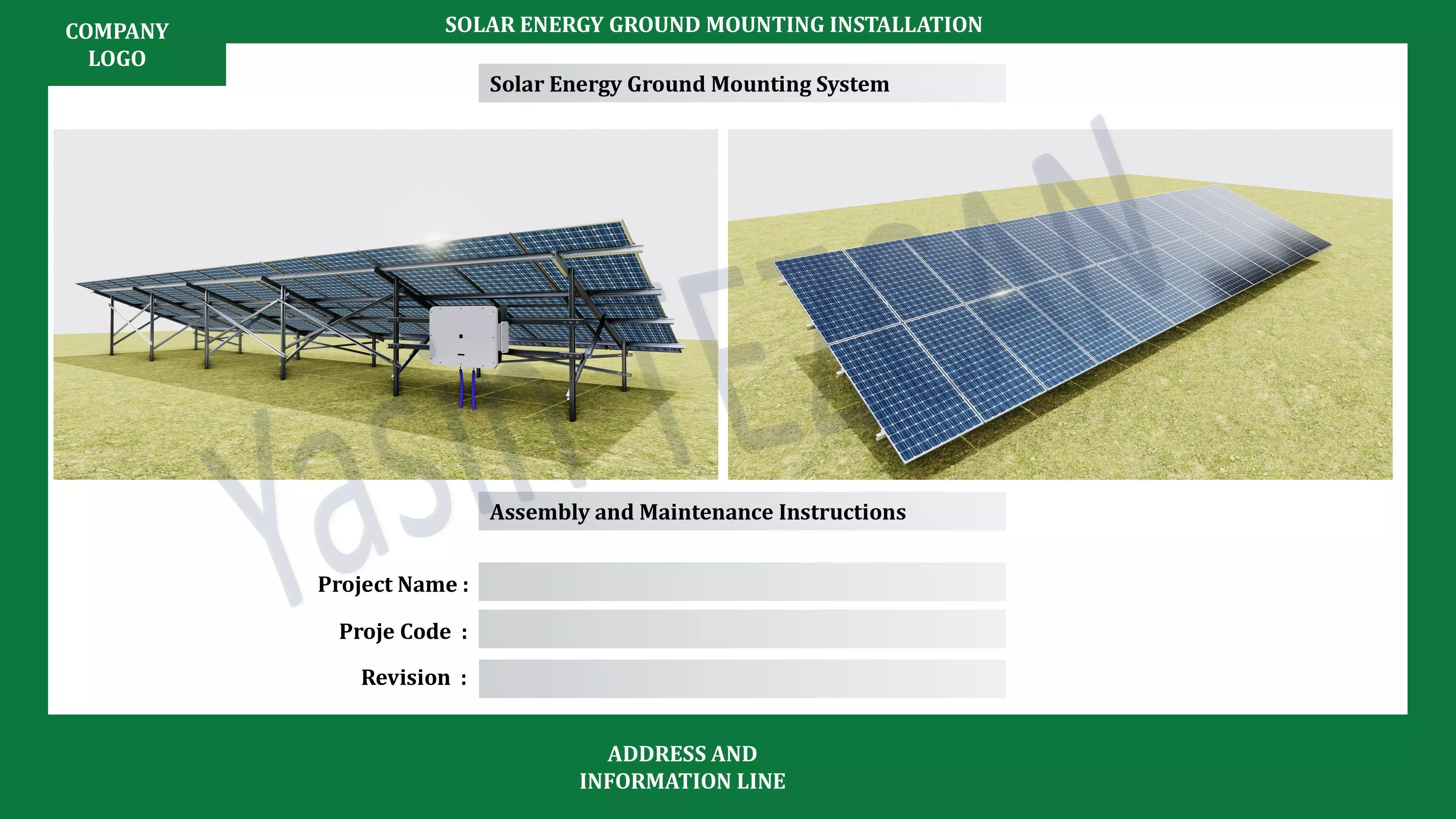

It is prepared in Powerpoint environment, editable and customizable format.It is prepared as a ground assembly guide for single column solar energy construction.There are 2x13 and 2x26 panel arrays in the assembly guide and catalog.
2x13 Vertical Solar Glass Panel Layout
Ground Connection Type; With Concrete Friction Pile
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 14,3 kWp power in 1 hour
The system consists of 6 axles and the distance between each axle is 2650 mm.
Horizantal angle of panel 20°
The closest distance of the panels to the floor 600 mm.
Prepared With BLENDER Version 4.0.1
Polygons : 197375
Vertices : 268272
Objects : 424
2x26 Vertical Solar Glass Panel Layout
Ground Connection Type; With Concrete Friction Pile
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 28,6 kWp power in 1 hour
The system consists of 12 axles and the distance between each axle is 2650 mm.
Horizantal angle of panel 20°
The closest distance of the panels to the floor 600 mm.
Prepared With BLENDER Version 4.0.1
Polygons : 400717
Vertices : 542083
Objects : 851
3D Model formats
Format limitations
- Blender (.blend) (2 files)80.9 MBVersion: 4.0.1Renderer: Eevee 4.0.1Version: 4.0.1Renderer: Eevee 4.0.1
- Other 57.4 MB
- PDF (.pdf)5.33 MB
- JPG (.jpg) (2 files)126 MB
- PNG (.png)101 MB
- EXR (.exr)101 MB
- OBJ (.obj, .mtl) (4 files)110 MB
- Autodesk FBX (.fbx) (2 files)87.7 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 400,717
- Vertices 542,083
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2025-02-24
- Model ID#5892165
