4 kWp Roof Solar Project Type 1 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail

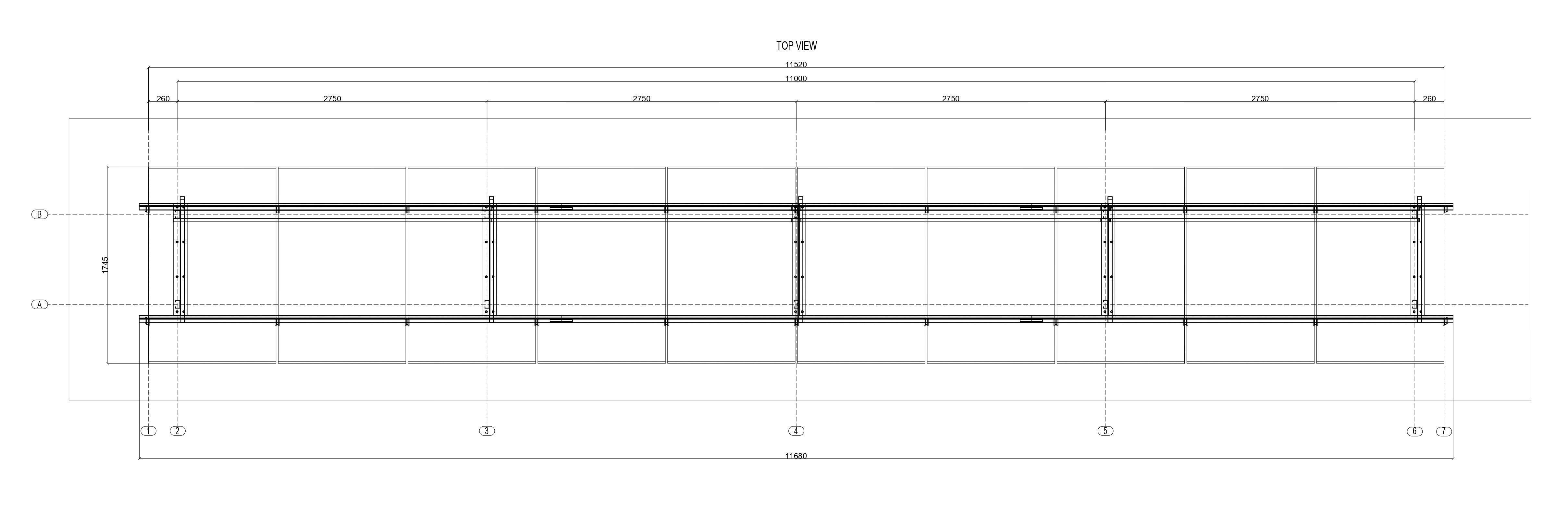

DESCRIPTION

4,5 kWp Roof Solar Project Type 1

Static Steel Fabrication Project

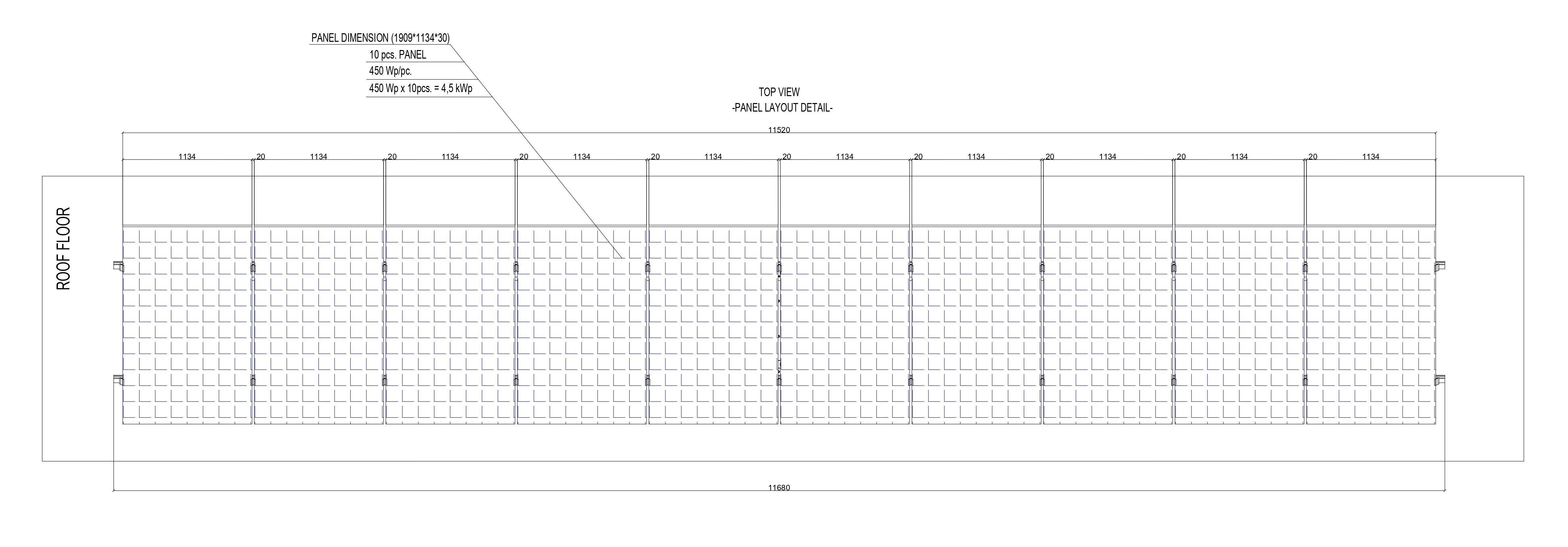

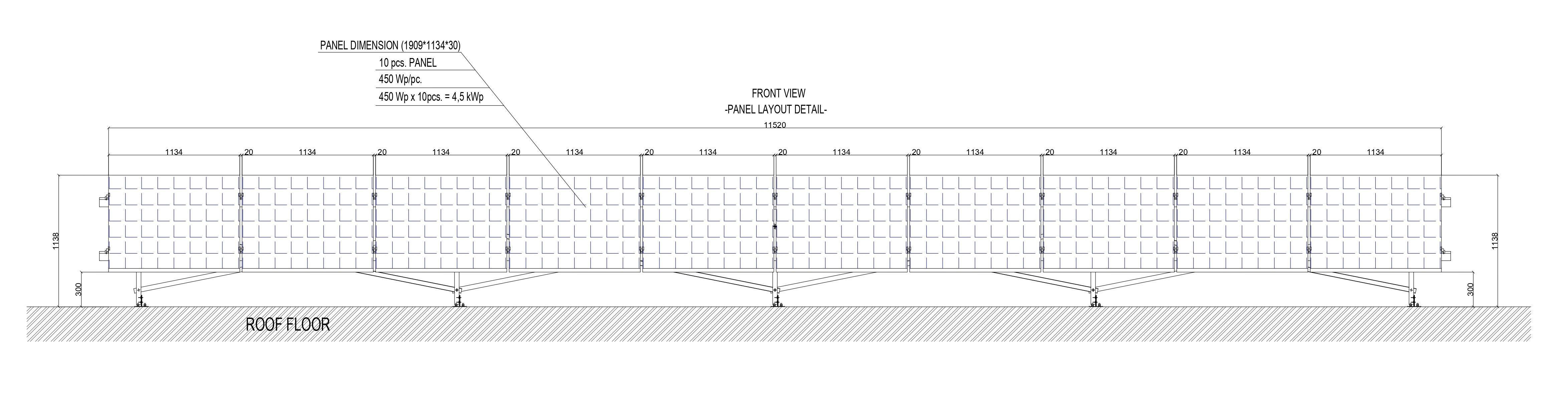

1x10 Vertical Panel Layout

Ground Connection Type; With Anchor Plate

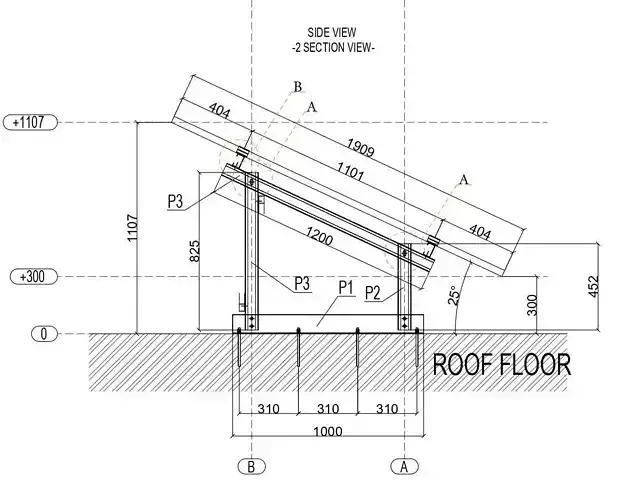

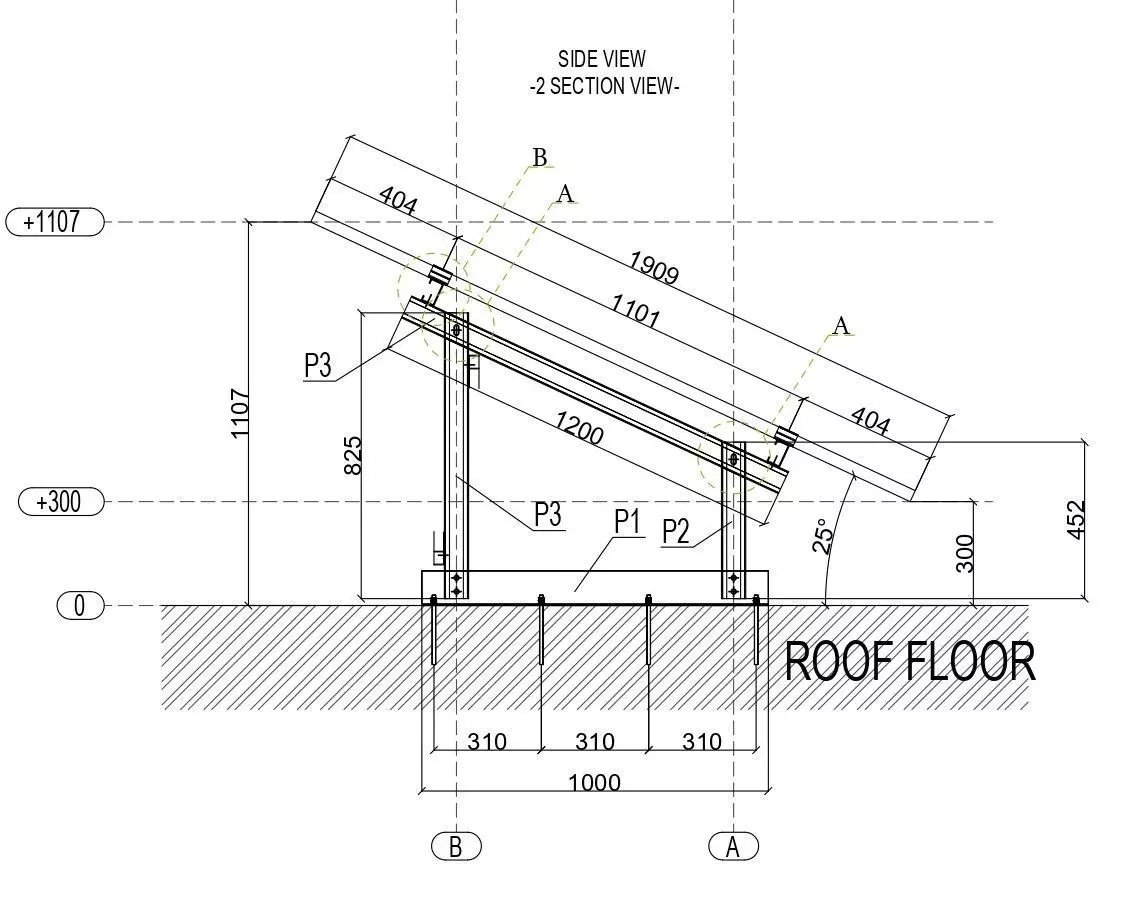

Panel Dimensions : 1909 x 1134 x 30 mm

Panel Power : 450Wp

1 solar panel steel construction produces 4,5 kWp power in 1 hour

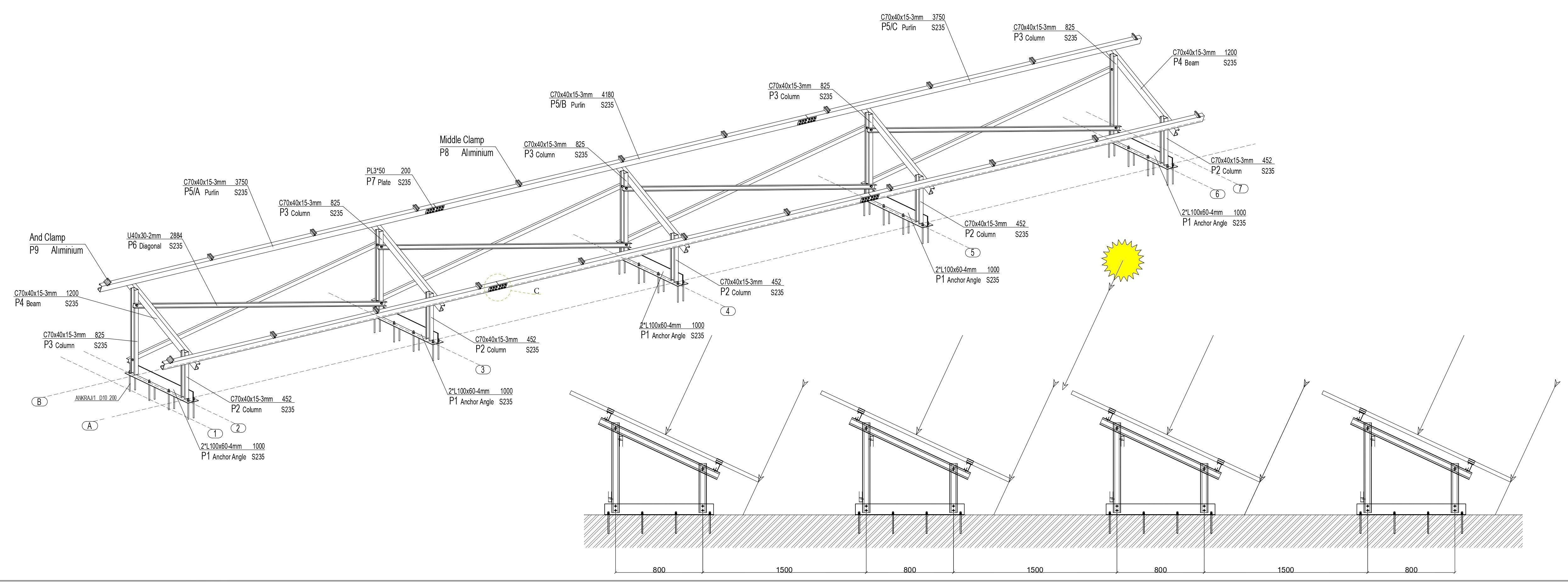

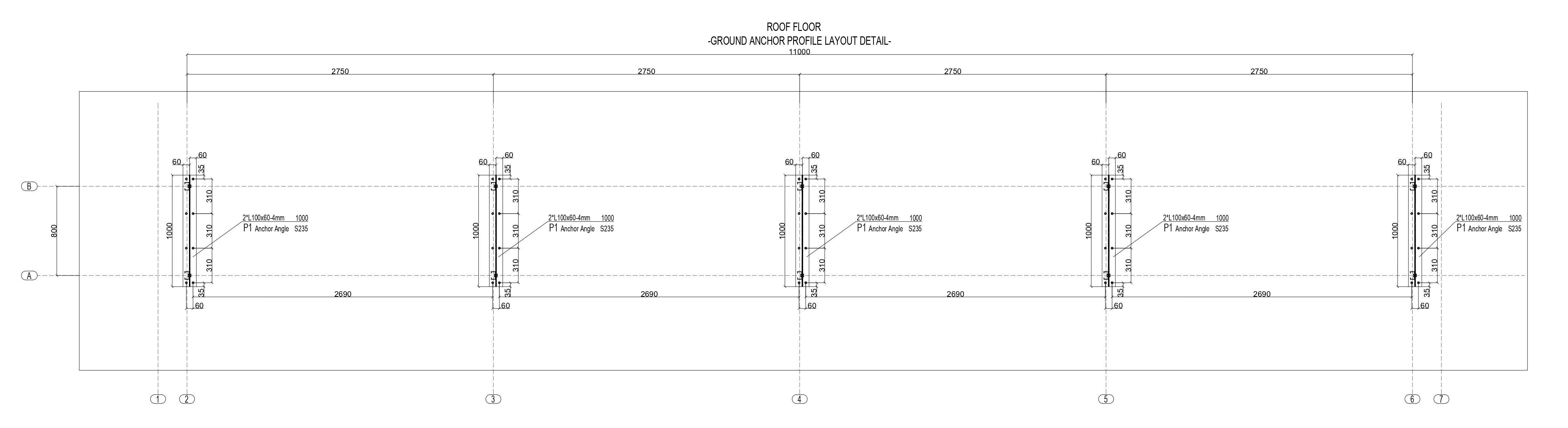

The system consists of 5 axles and the distance between each axle is 2750 mm.

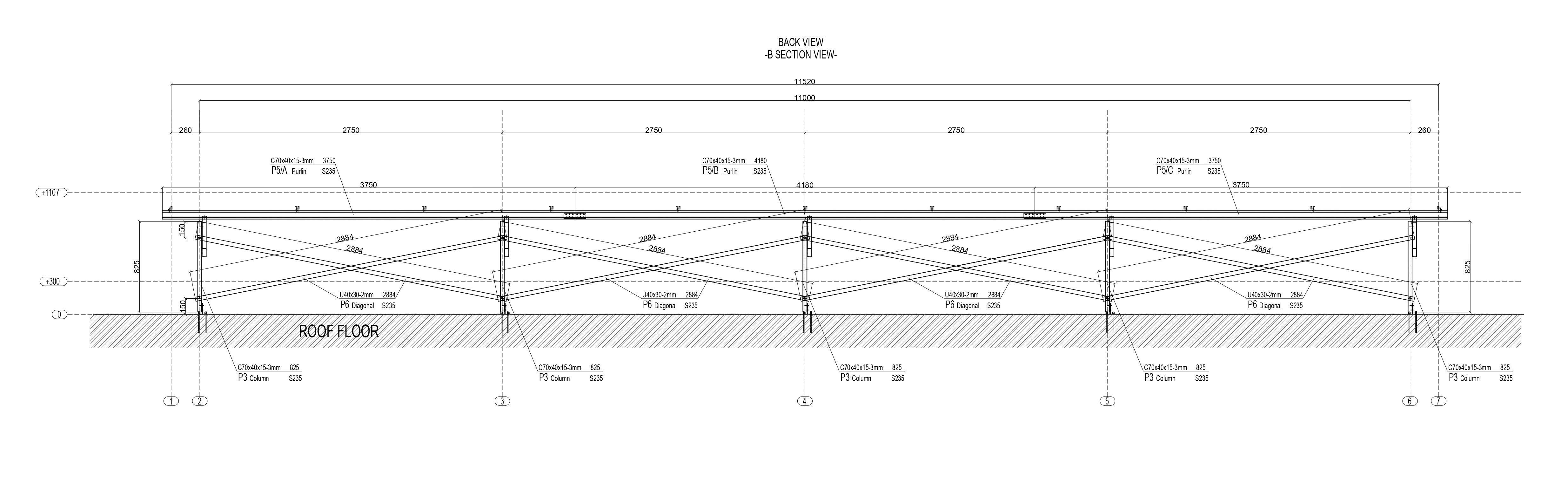

Distance between two columns 800 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 300 mm.

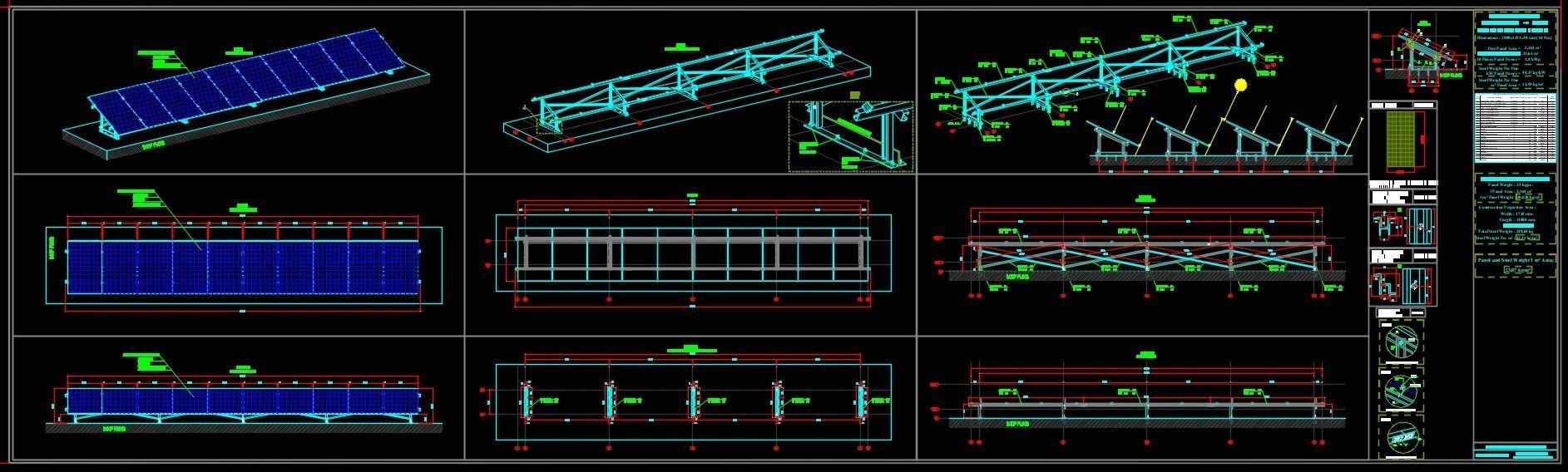

Prepared With AutoCAD Version 2021

Related Tagssolarenergymanufacturingsteelprojectdwgdxfautocadstatic
2d
drawingtrackertracking
pdf
architecturalengineering
