Axial Flux Coreless BLDC Motor 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

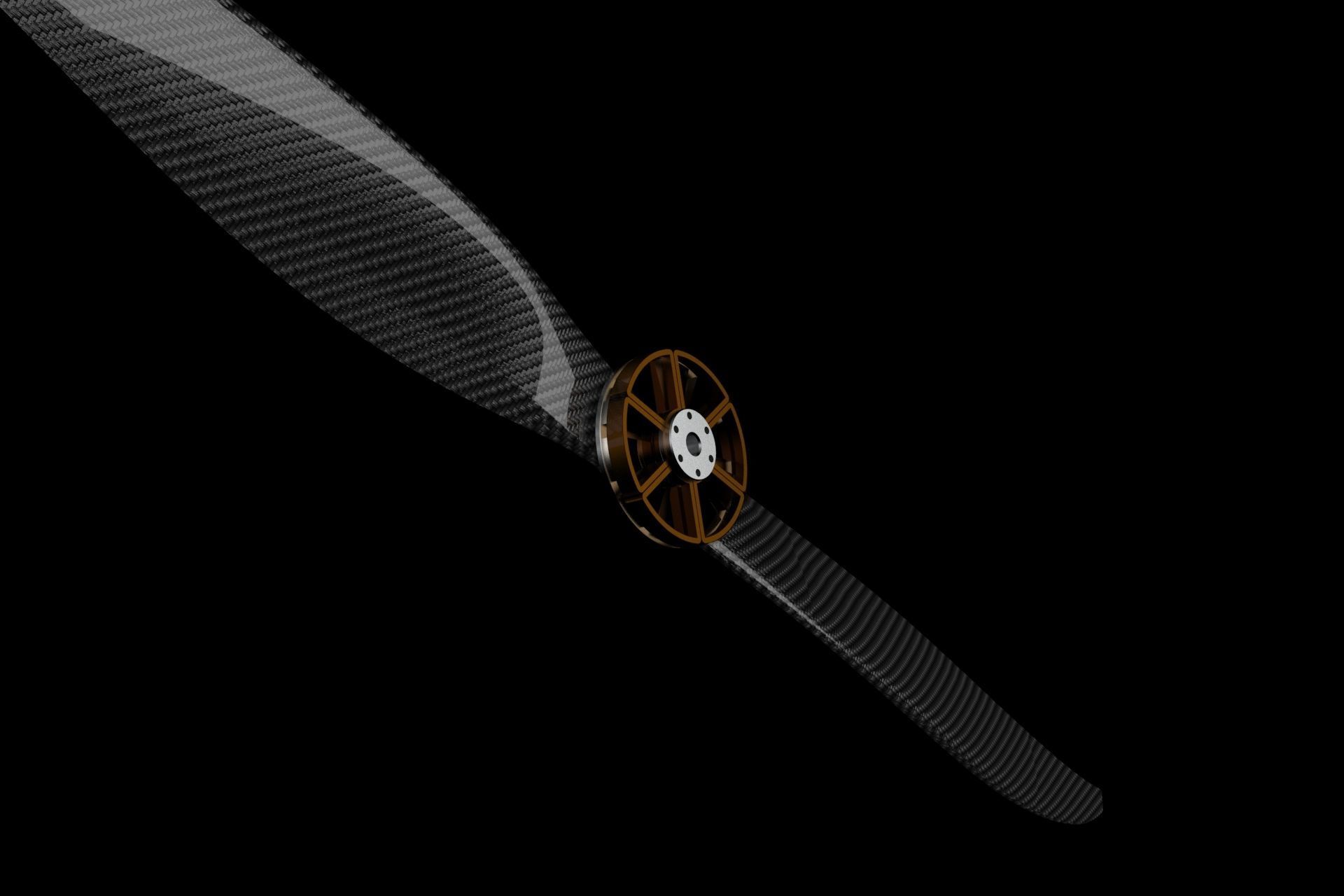

Specially designed for drone engines.

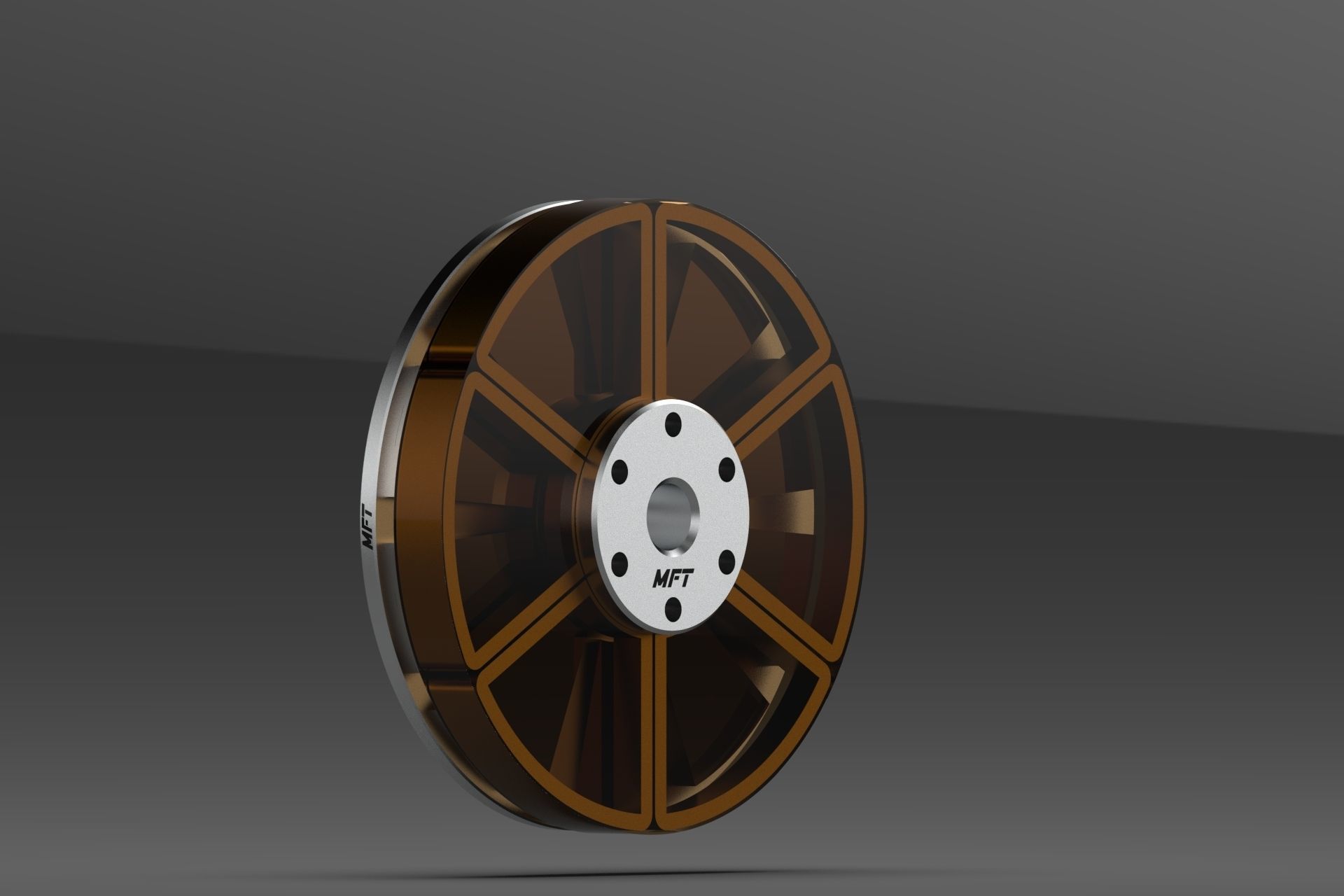

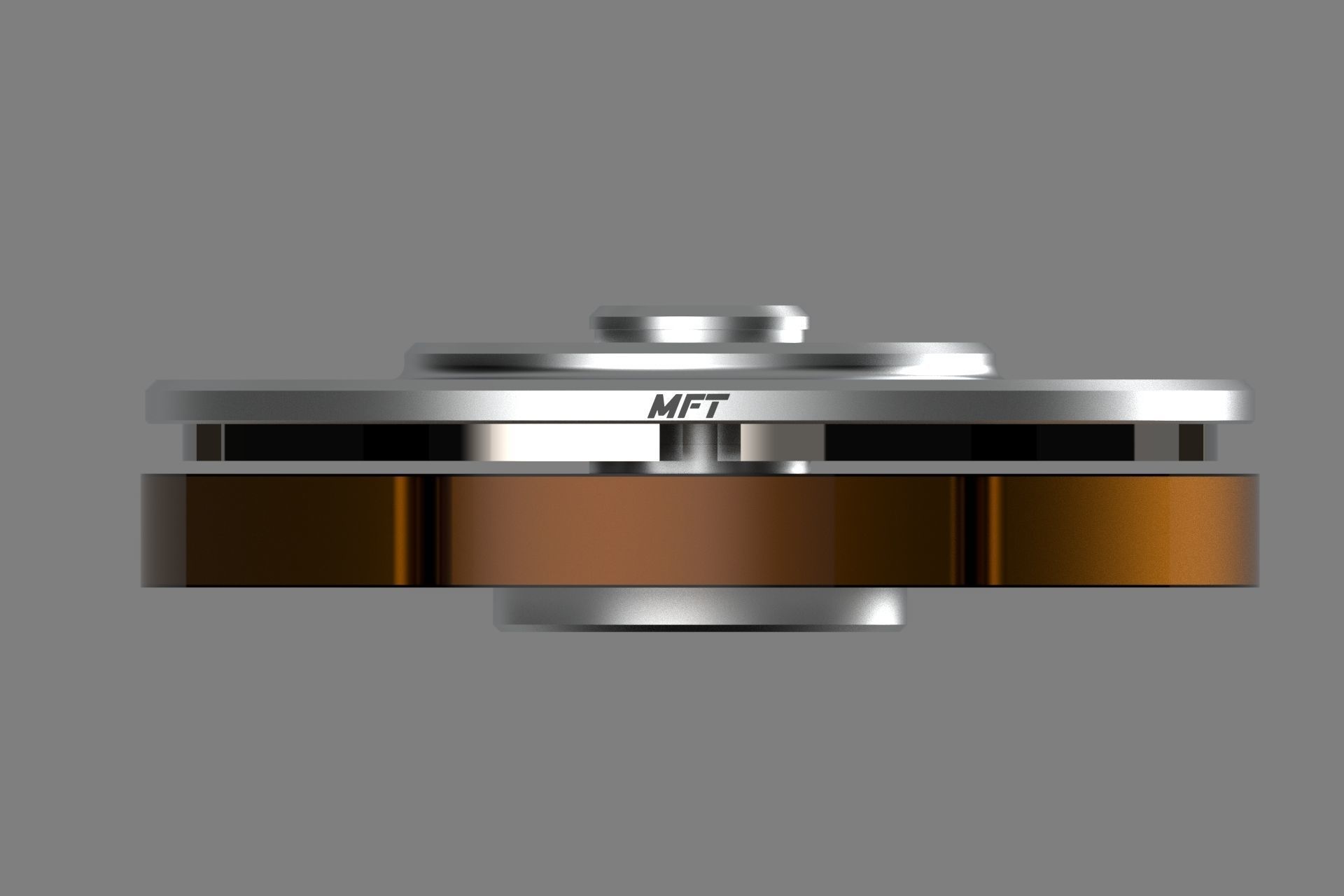

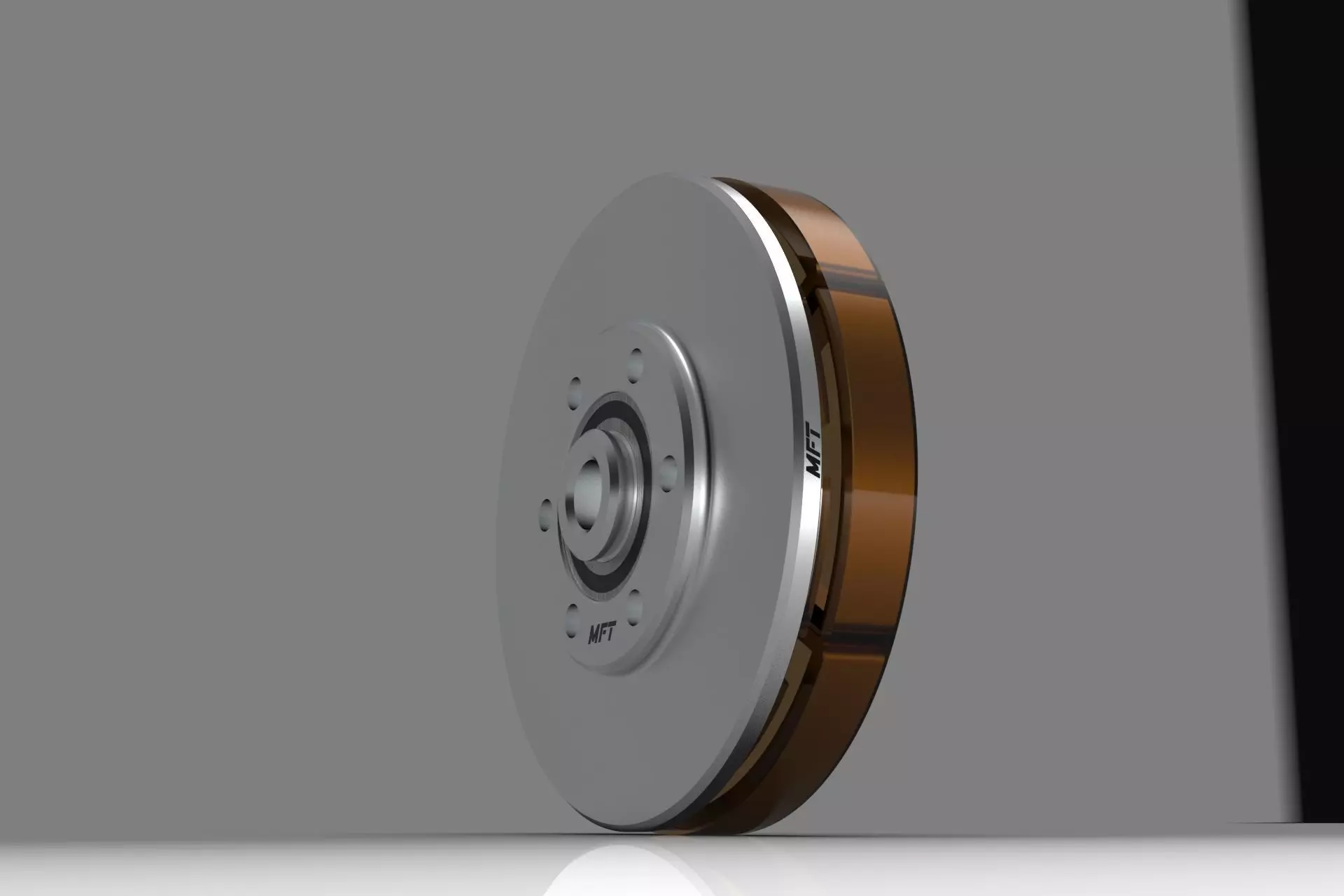

Axial Flux Coreless BLDC Motor

70mm diameter.22mm thickness.

It is a 3 phase bldc motor.

The stator part is made with resin.

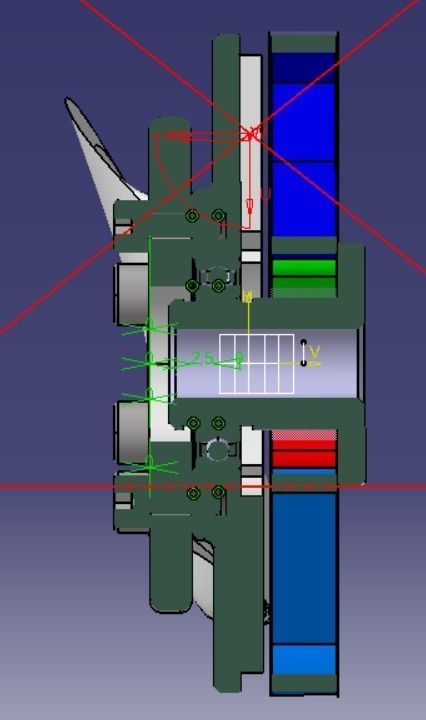

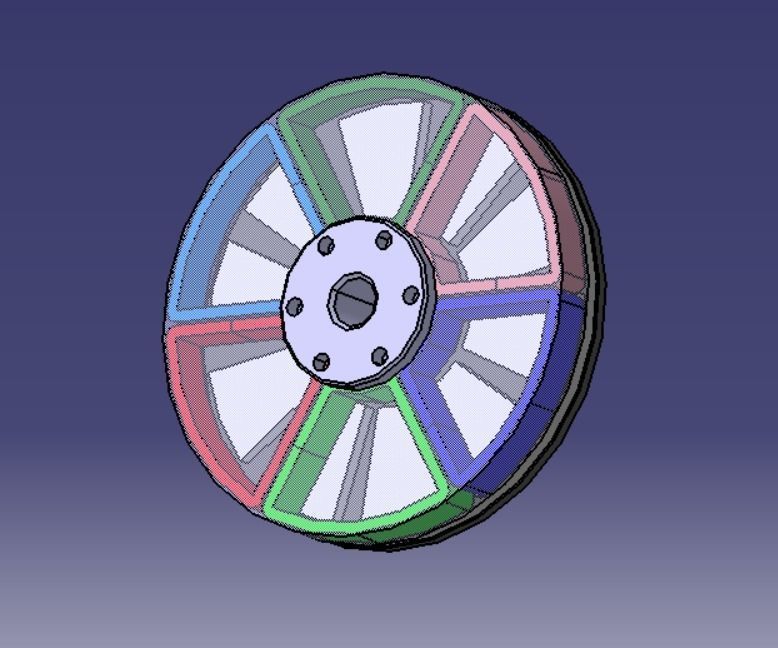

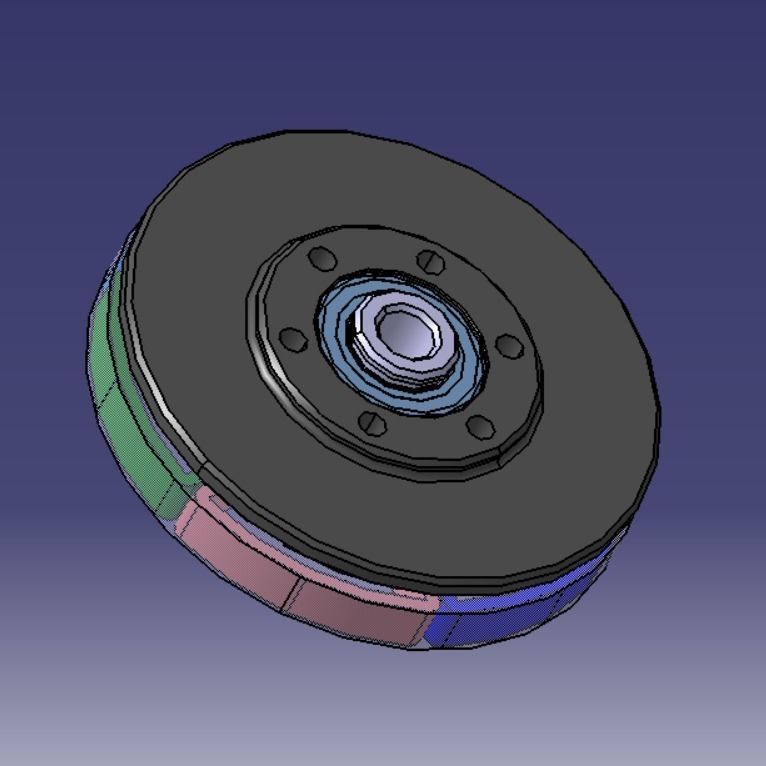

Designed using CATIA V5R21.

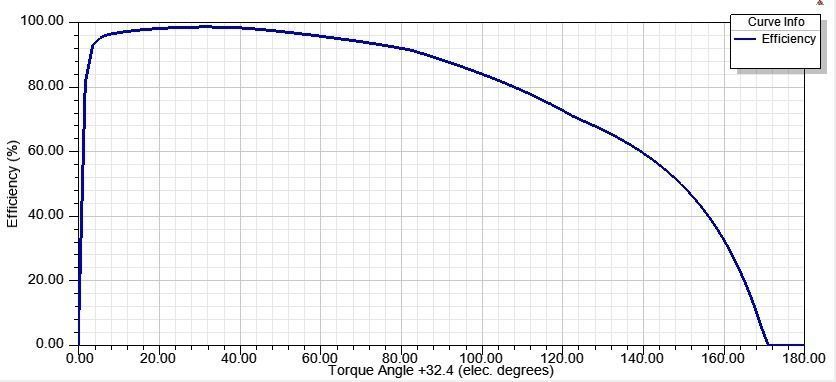

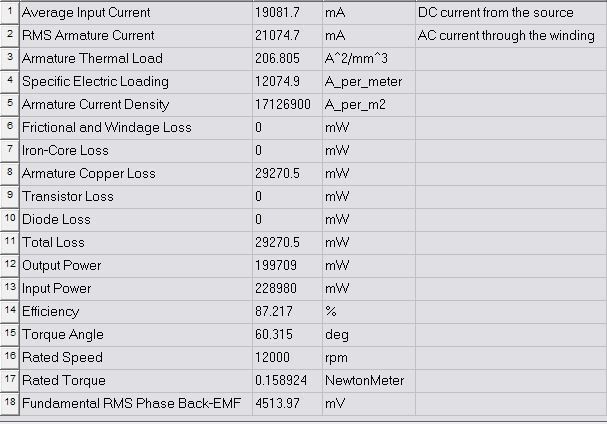

Analysis was performed using the ANSYS Maxwell rmxprt module.

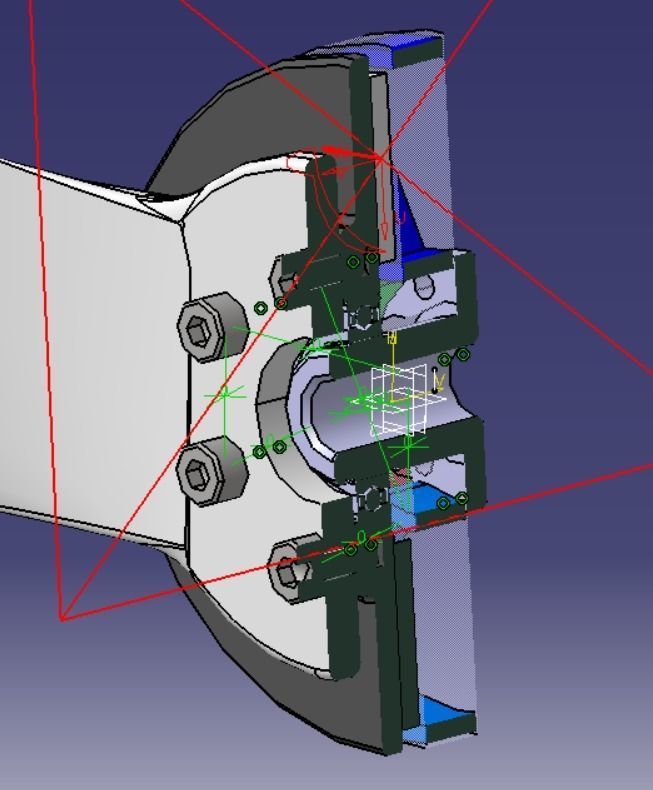

All mechanical system design is available.

You can contact us for production details. I can provide consultancy for an additional fee.

10,737 Vertices15,120 Polygons

.blend .stl.stp.igs.fbx.catpart.icem.ply.mtl.obj.x3d

Related Tagsmotor
electric
3phasebldcdroneuavplanemagnetaxialflux
coreless
bldcmotor
ansys
resincopper
dronemotor
minimotor
hommade
diyaircraftpartaircraft part
