Stage Lighting Truss Giant Collection 149 unique modular objects

Stage Lighting Truss Giant Collection 149 unique modular objects

Description

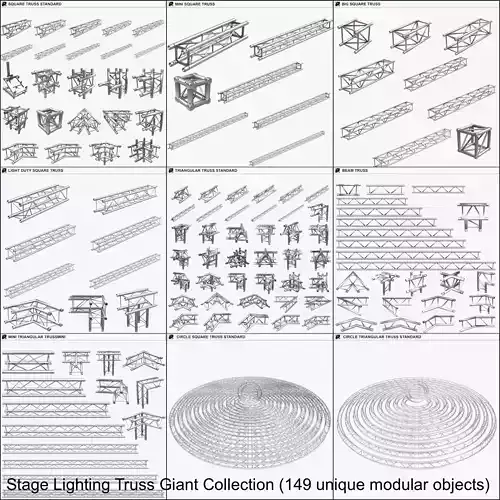

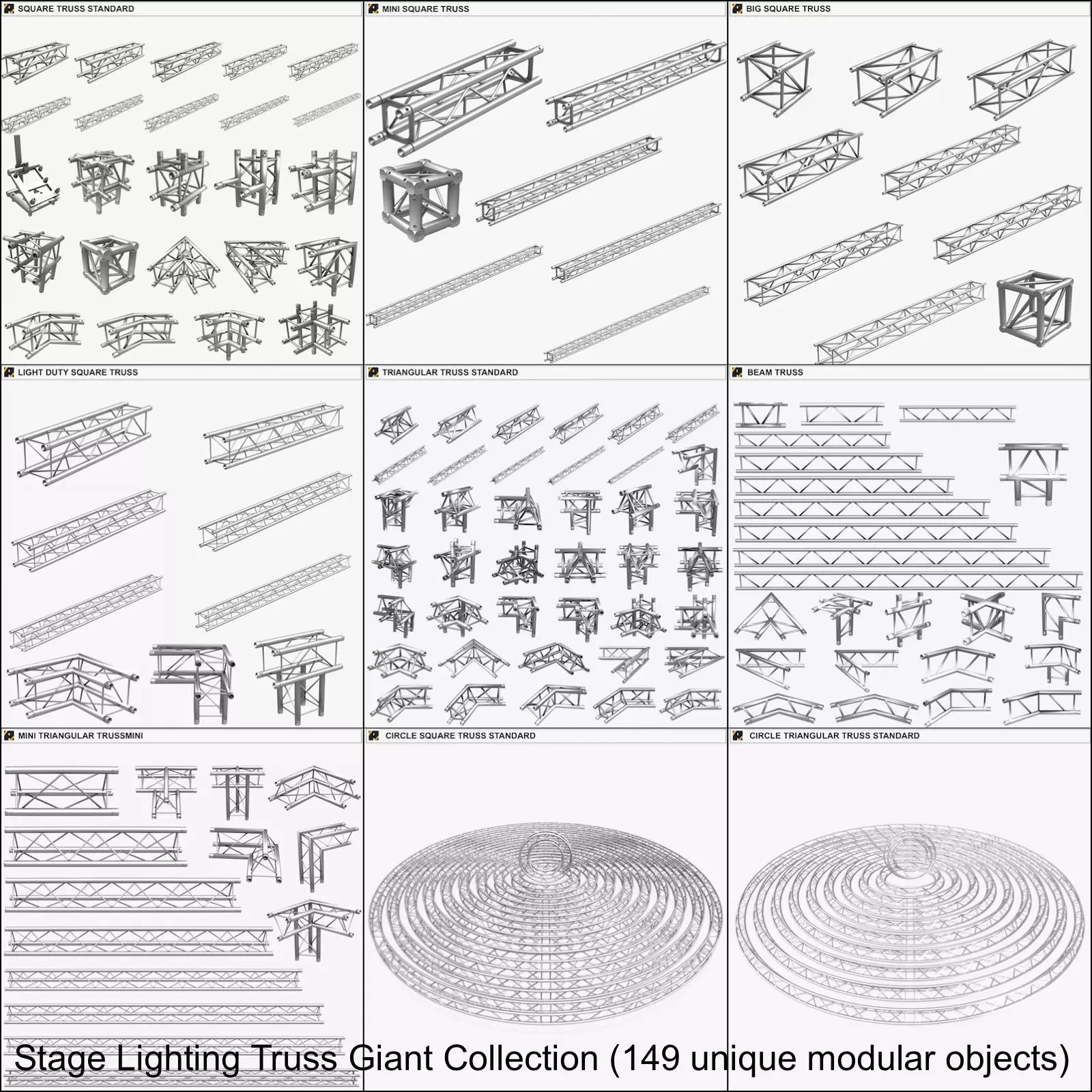

Modular Light Cages for TV Studio Stage and Stands. 149 unique modular objects

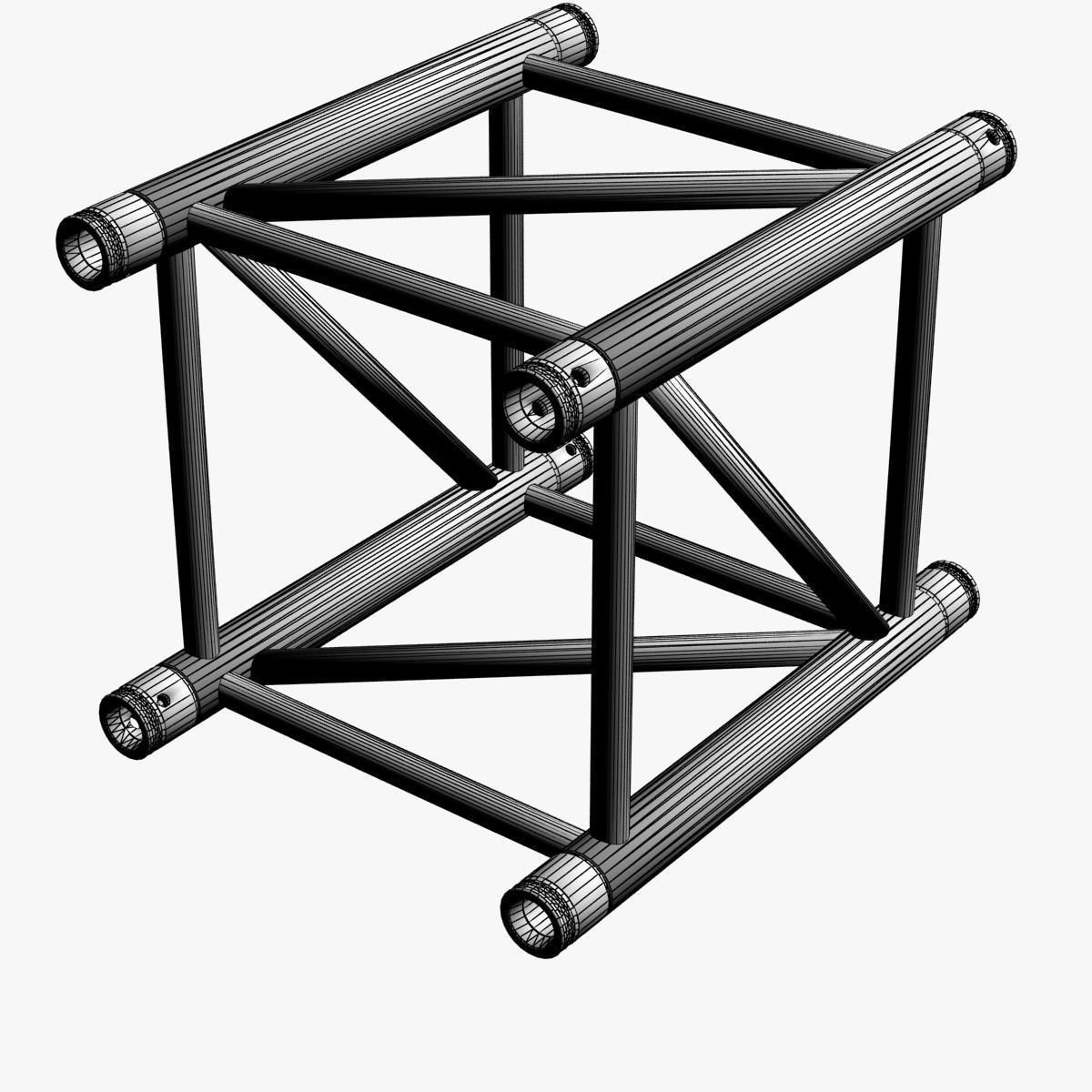

Square Trusses:

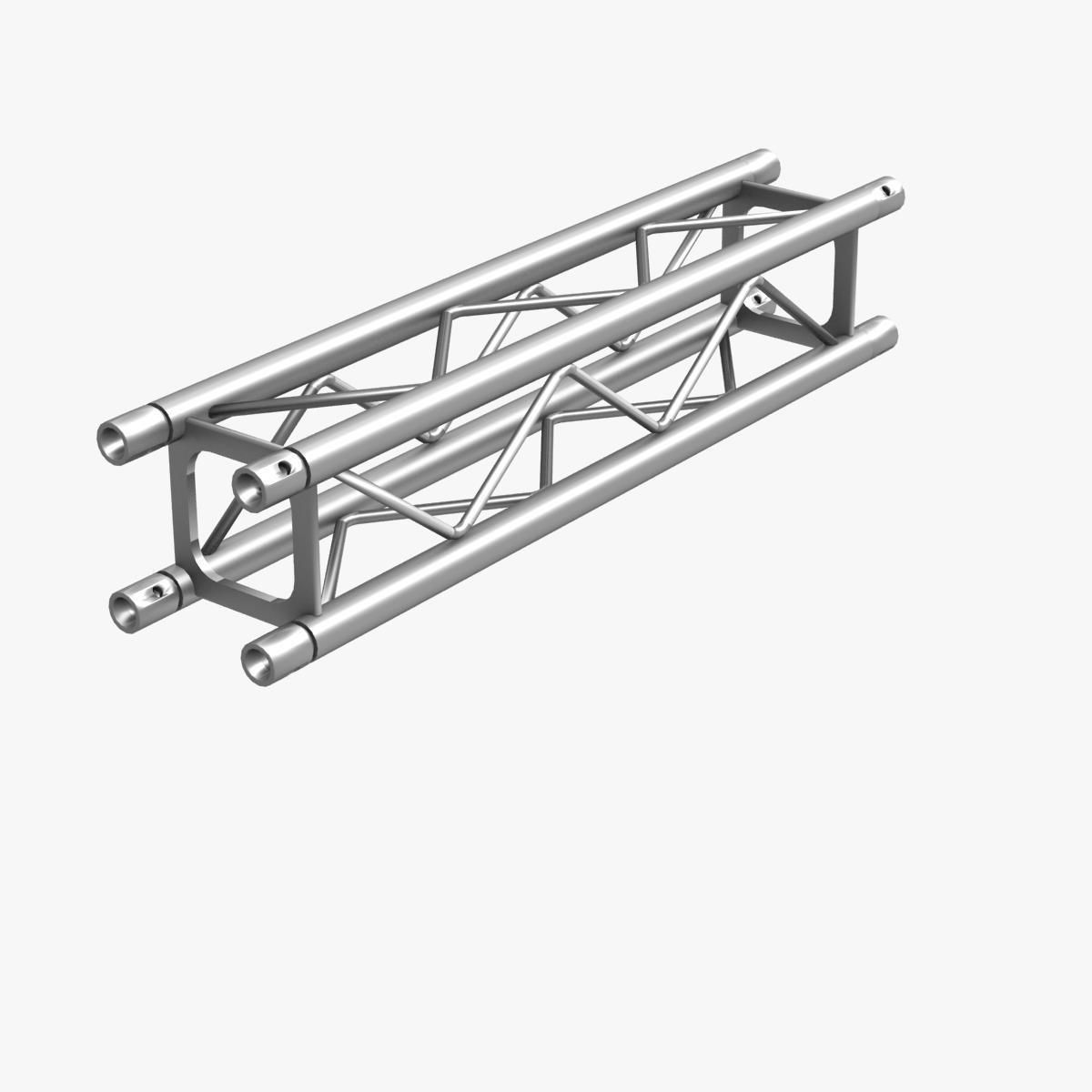

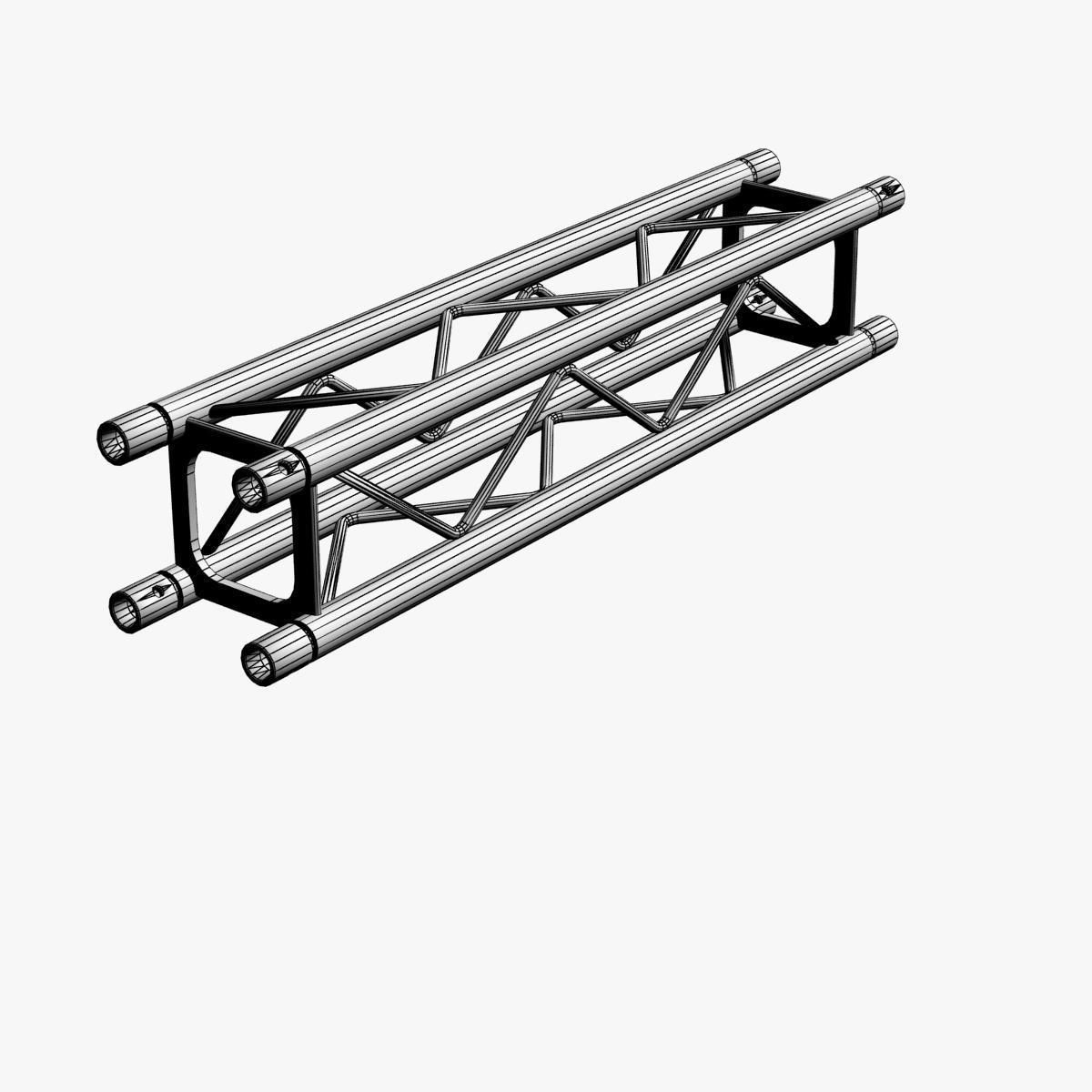

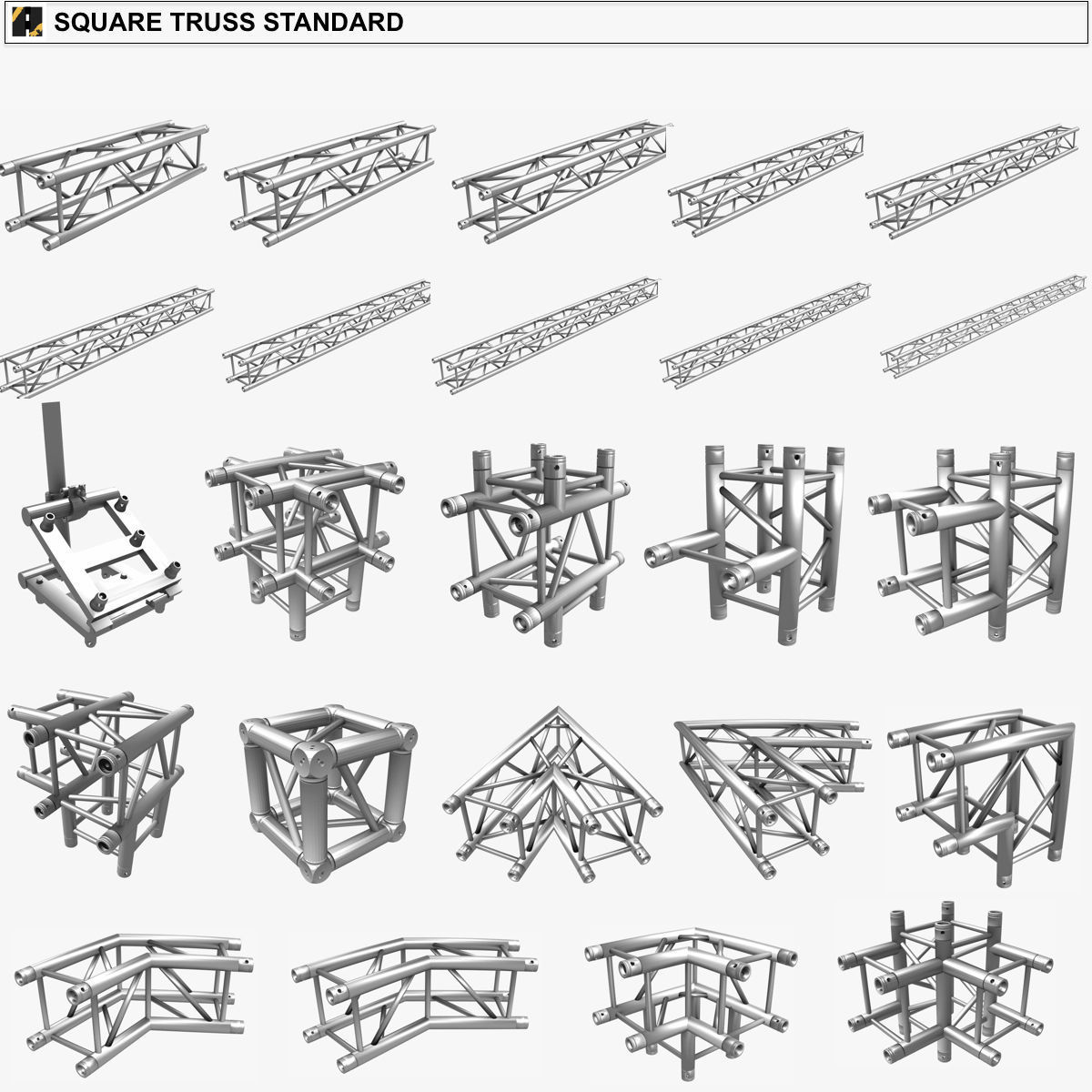

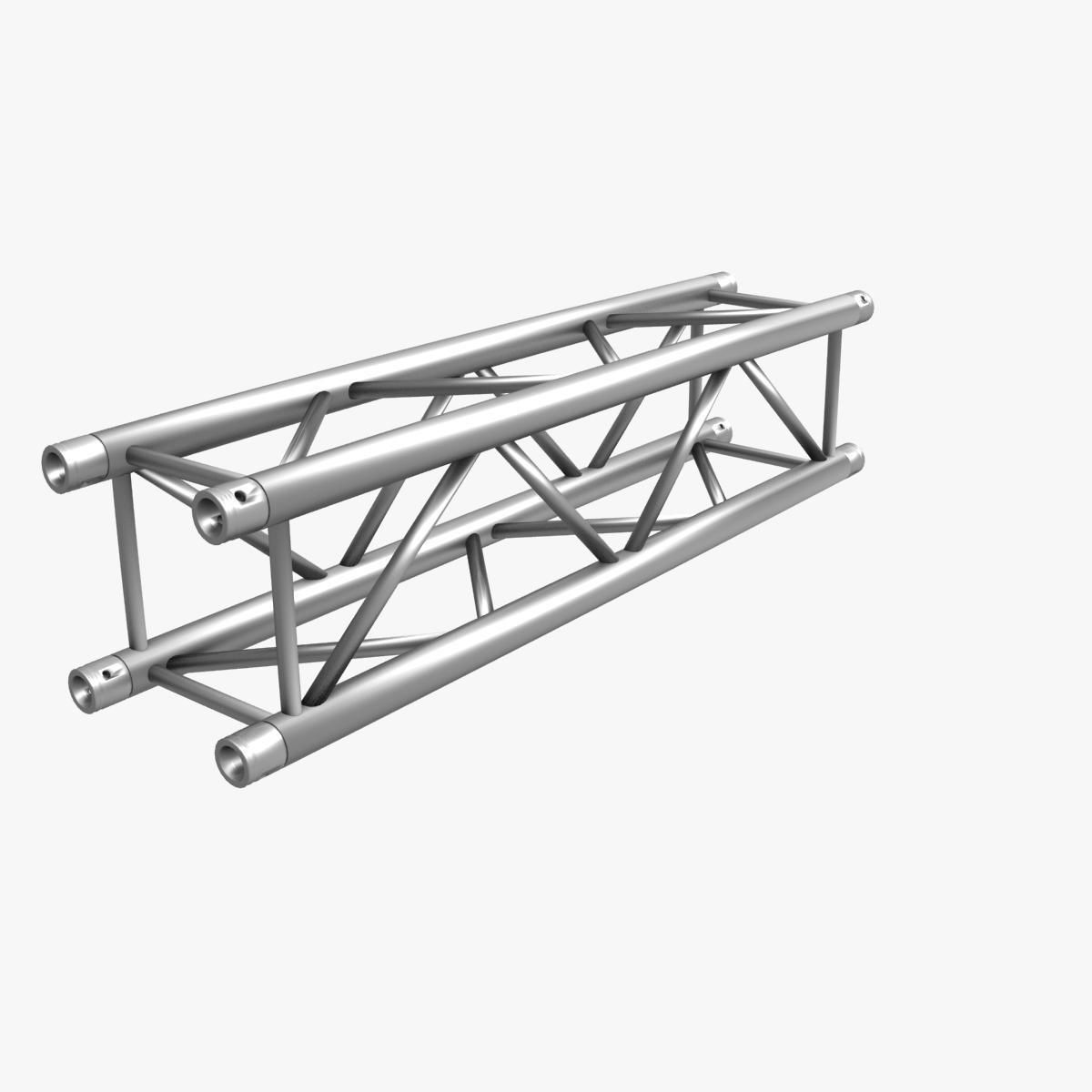

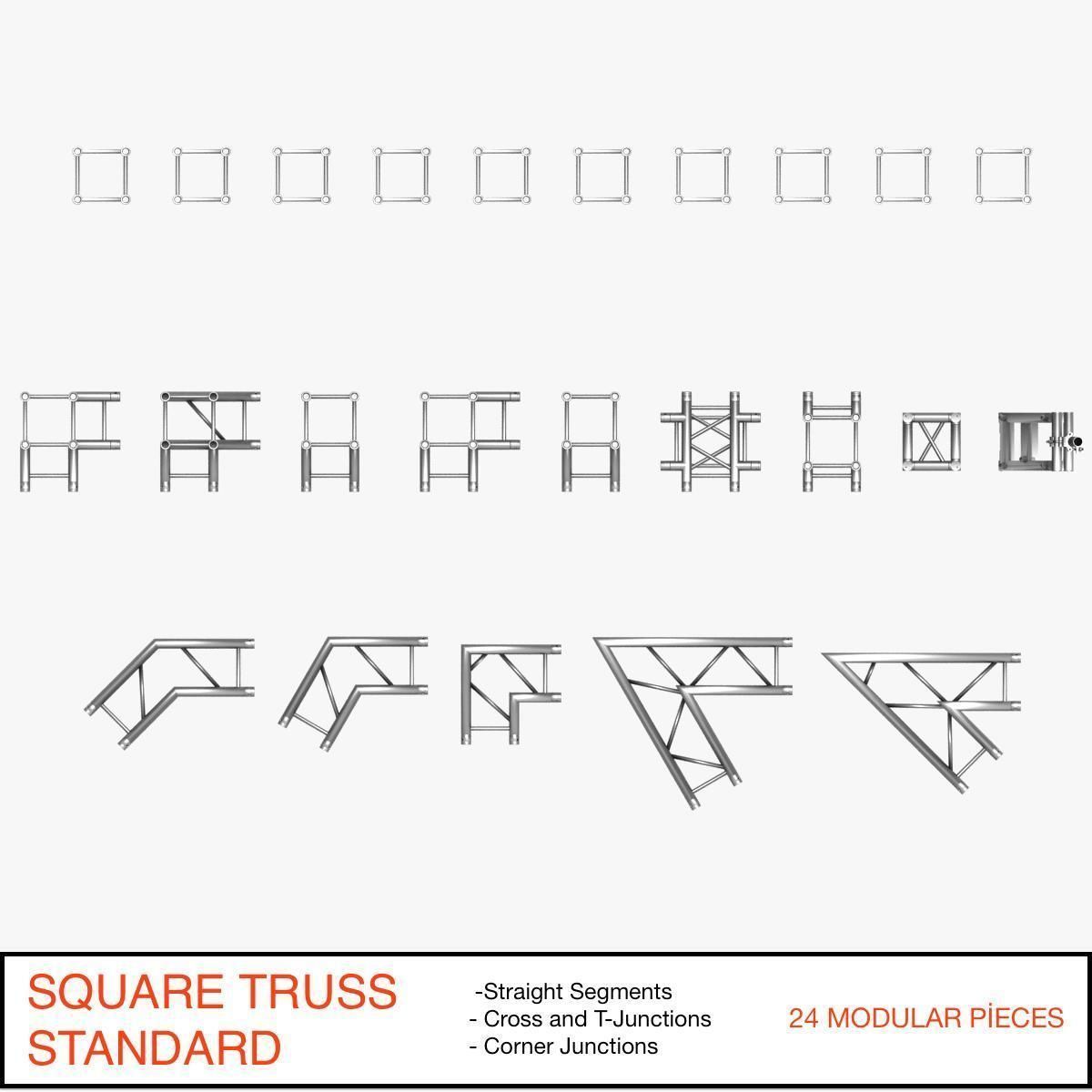

  • Square Truss Standard: 24 objects

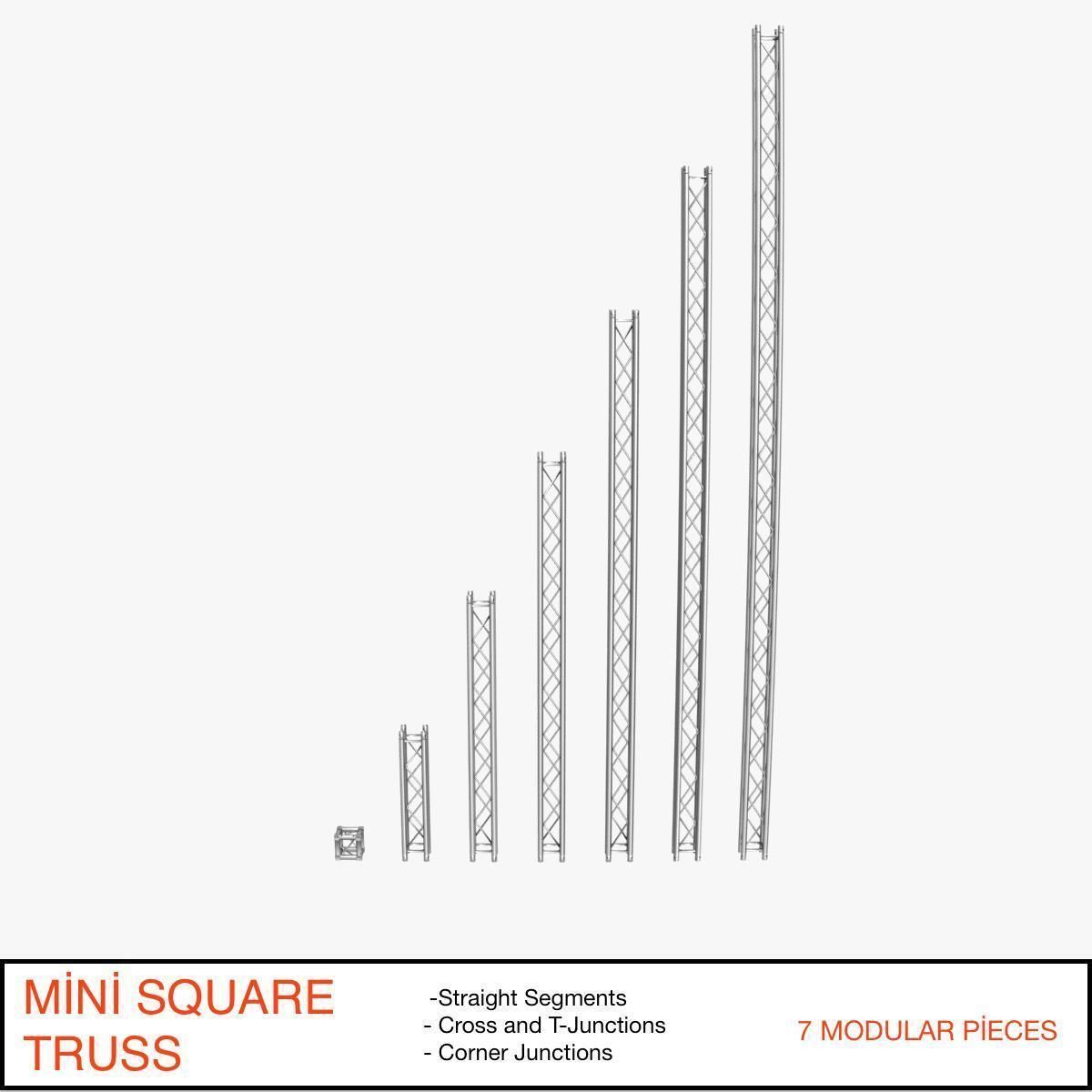

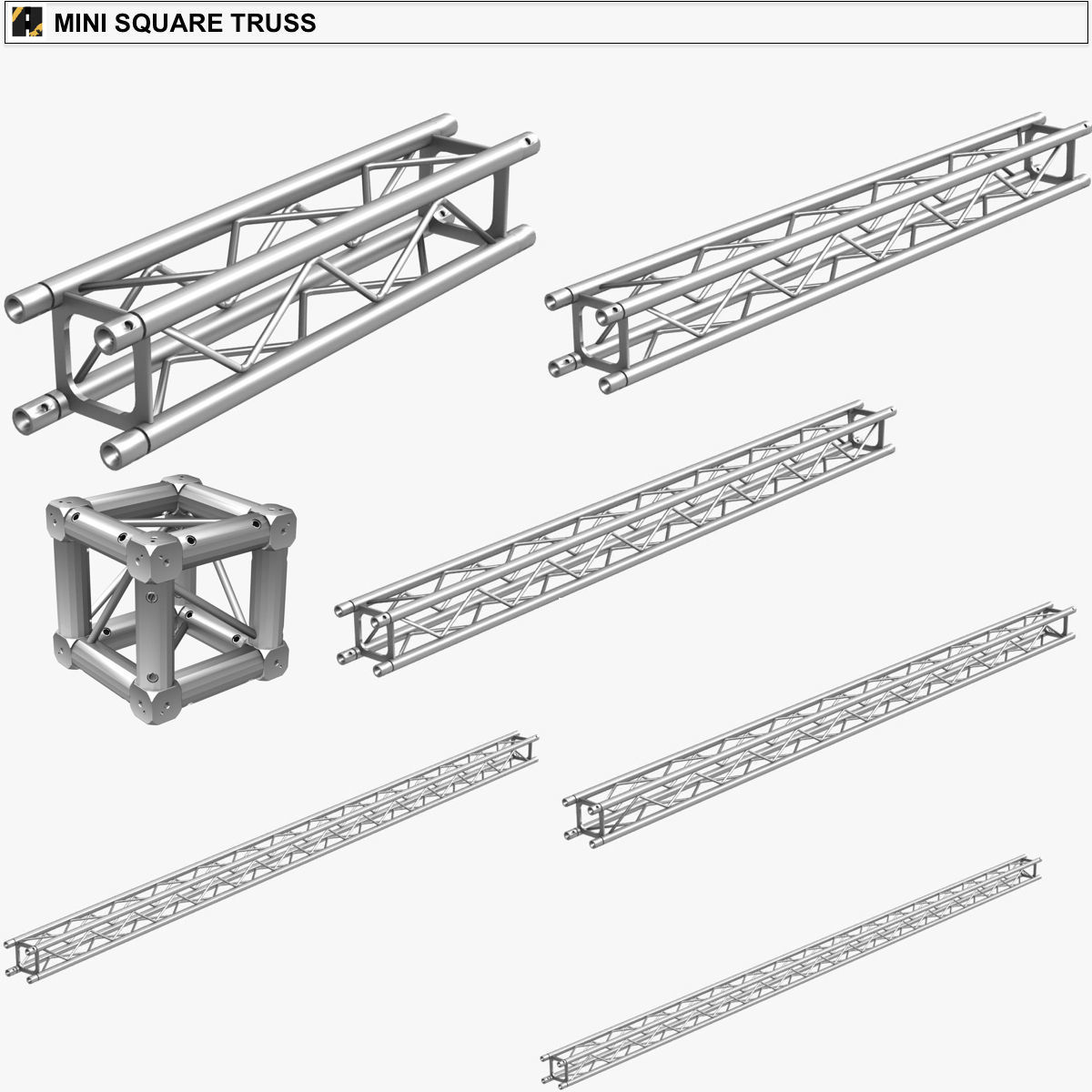

  • Mini Square Truss: 7 objects

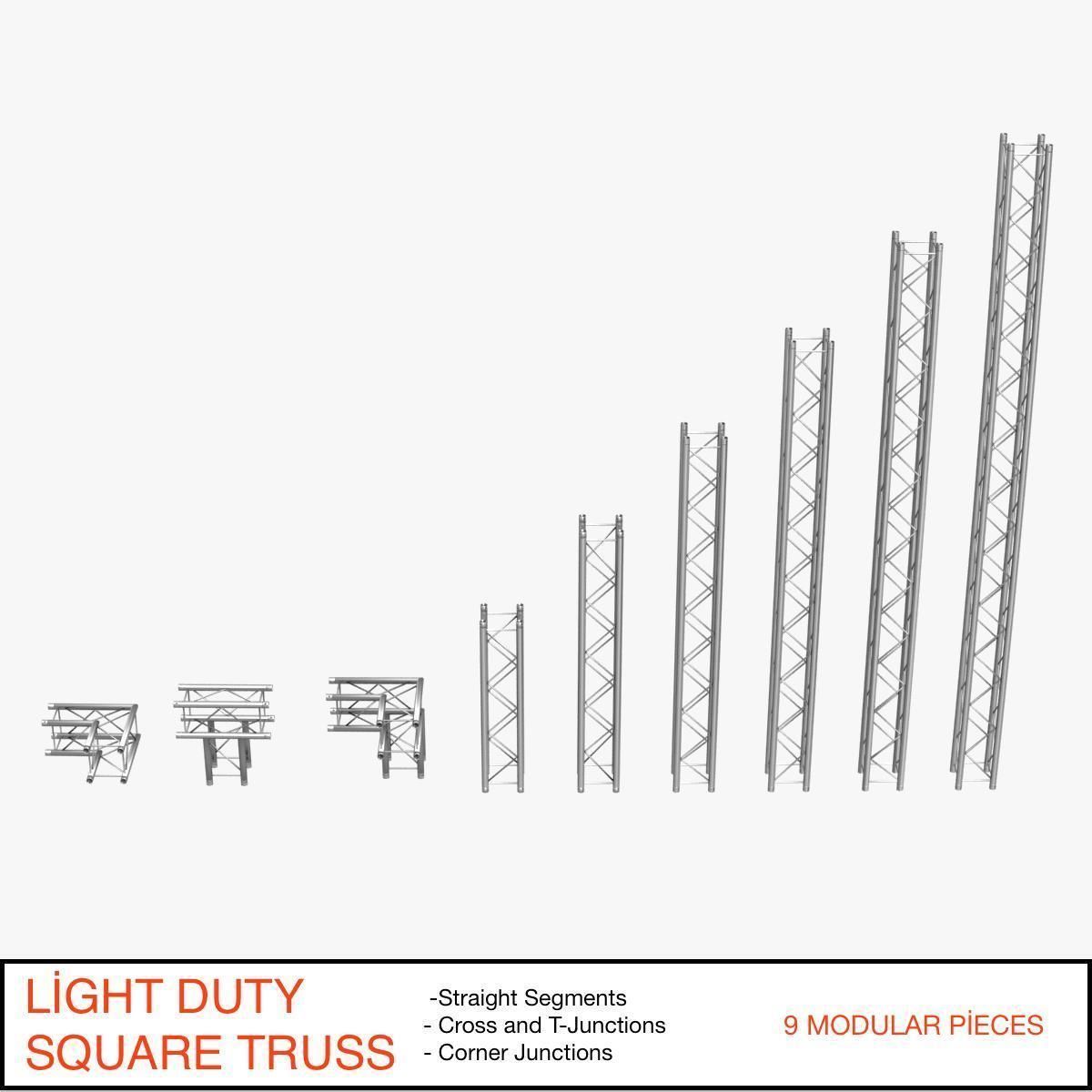

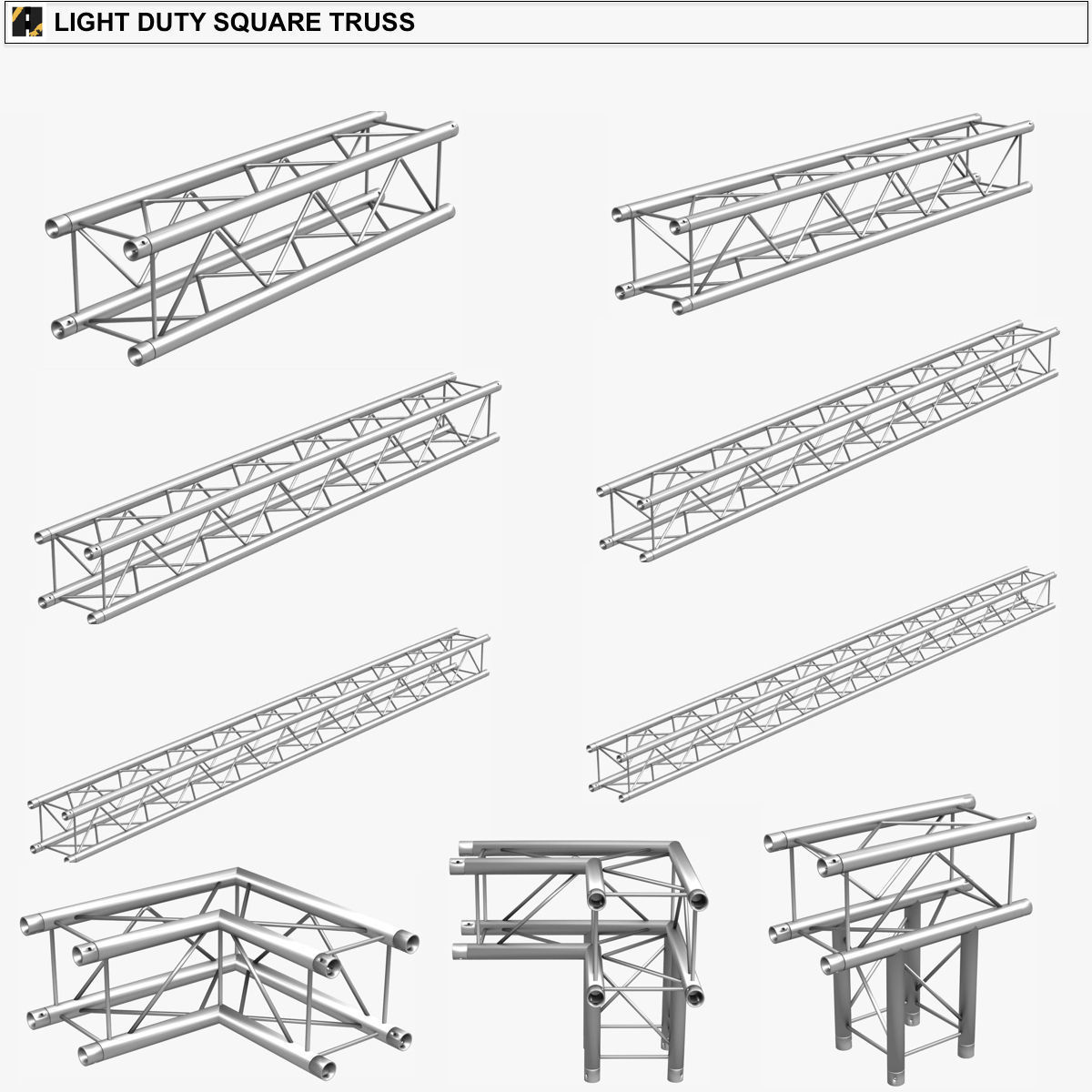

  • Light Duty Square Truss: 9 objects

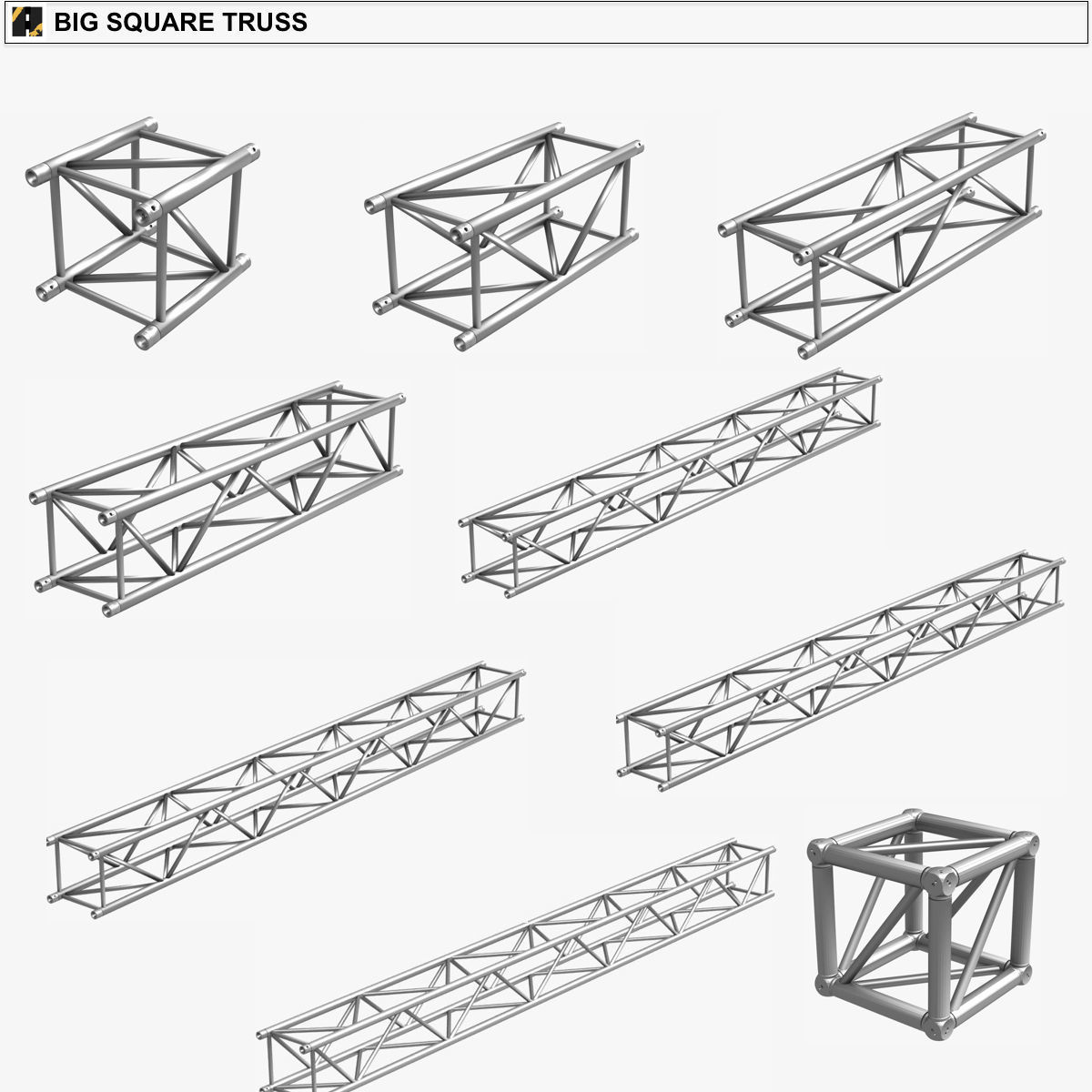

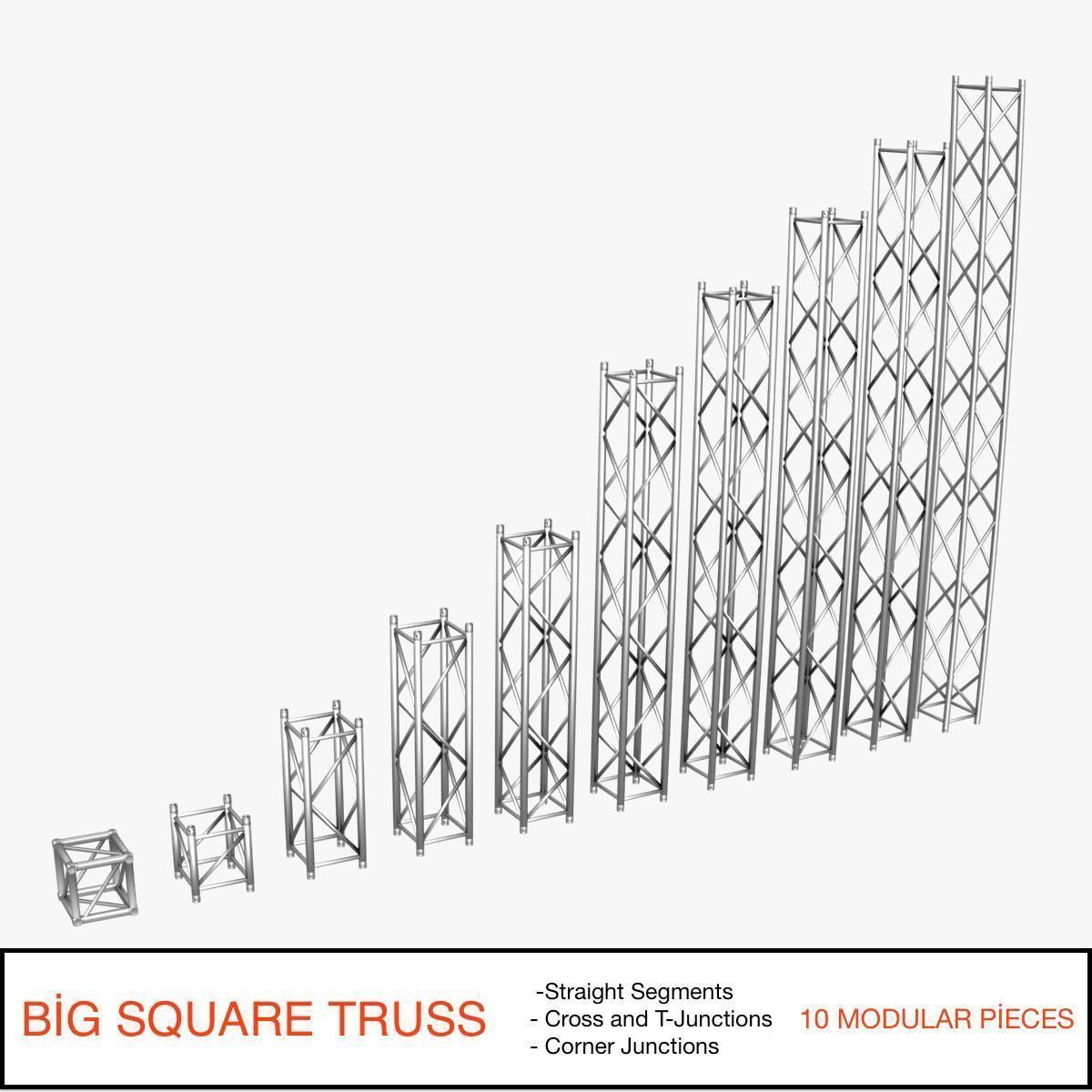

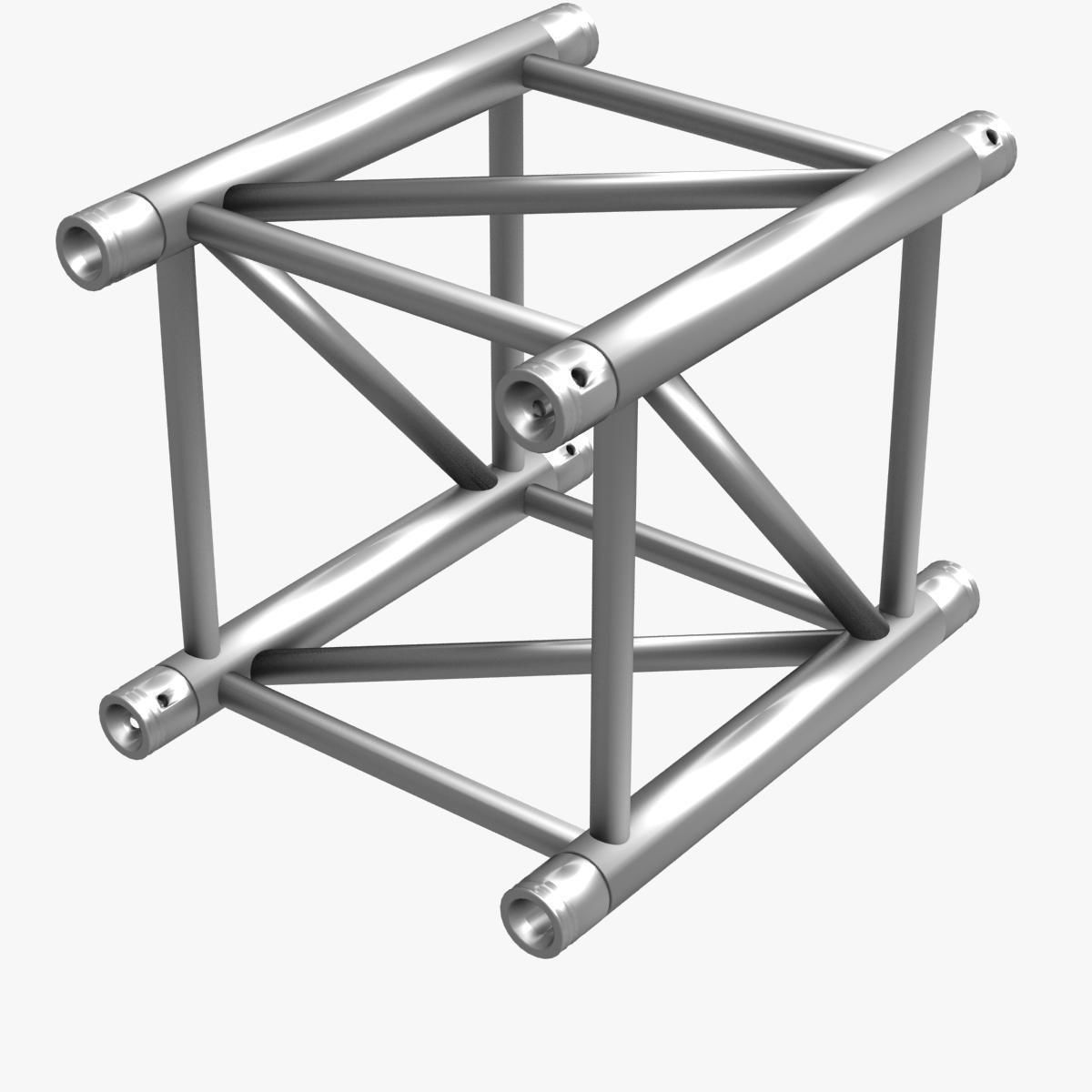

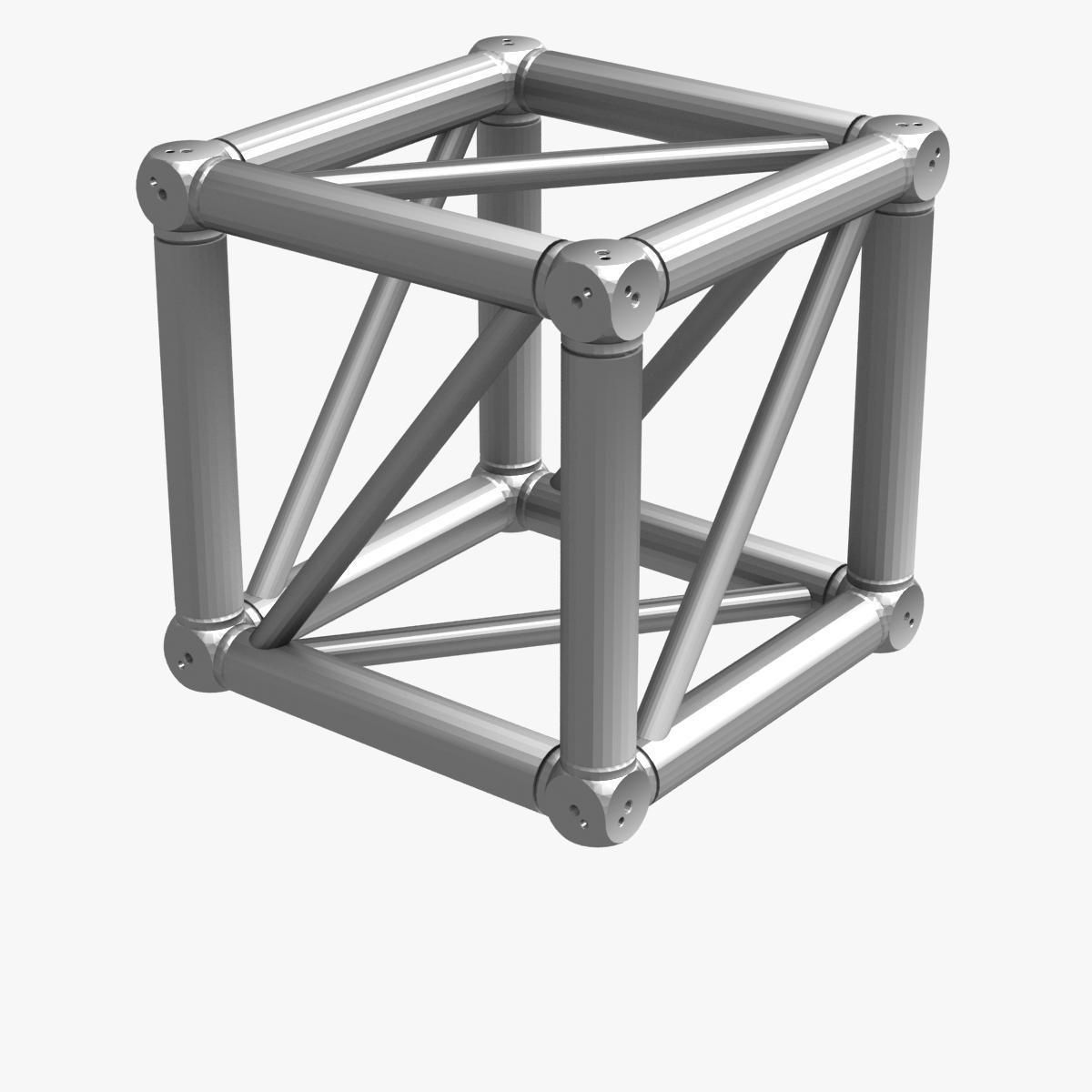

  • Big Square Truss: 10 objects

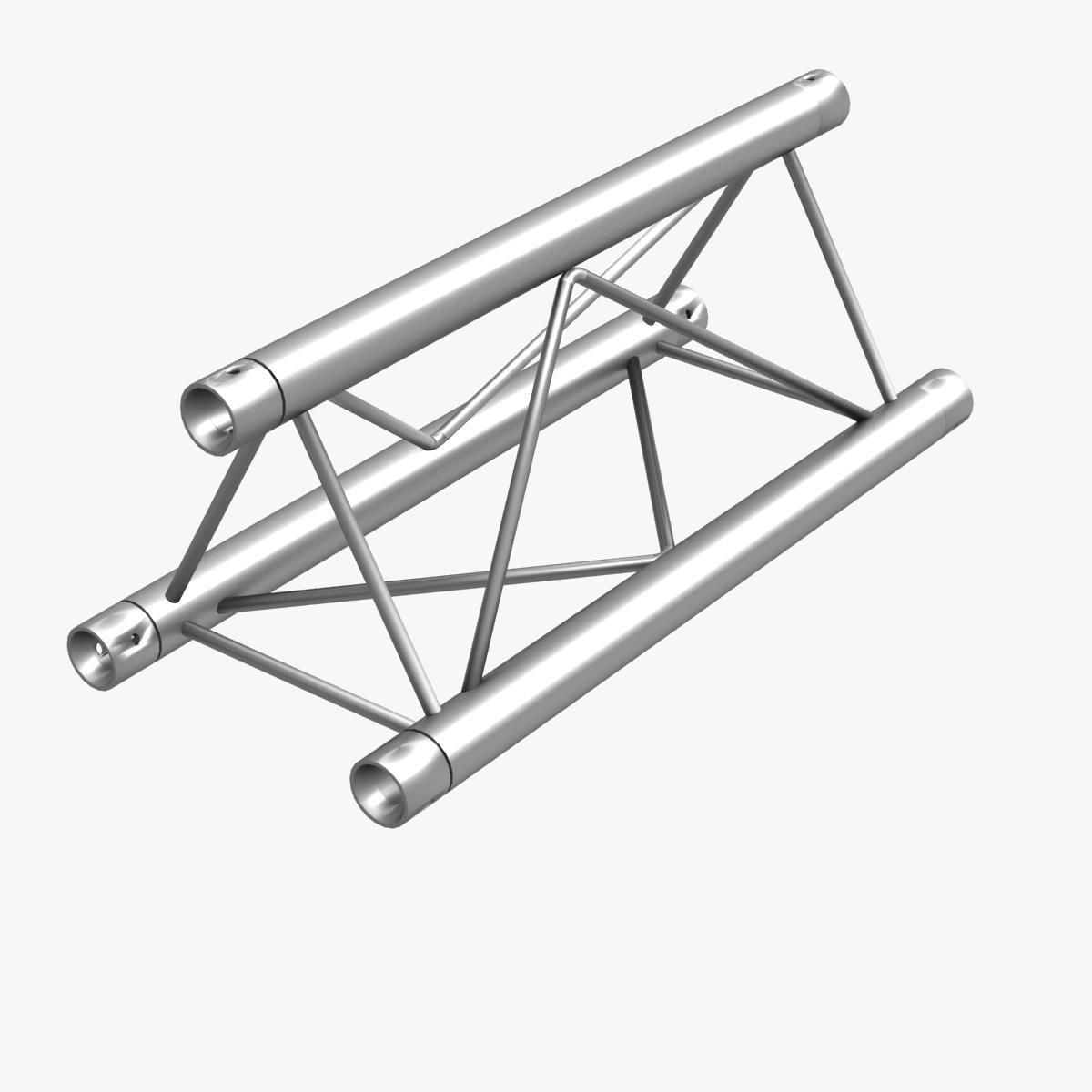

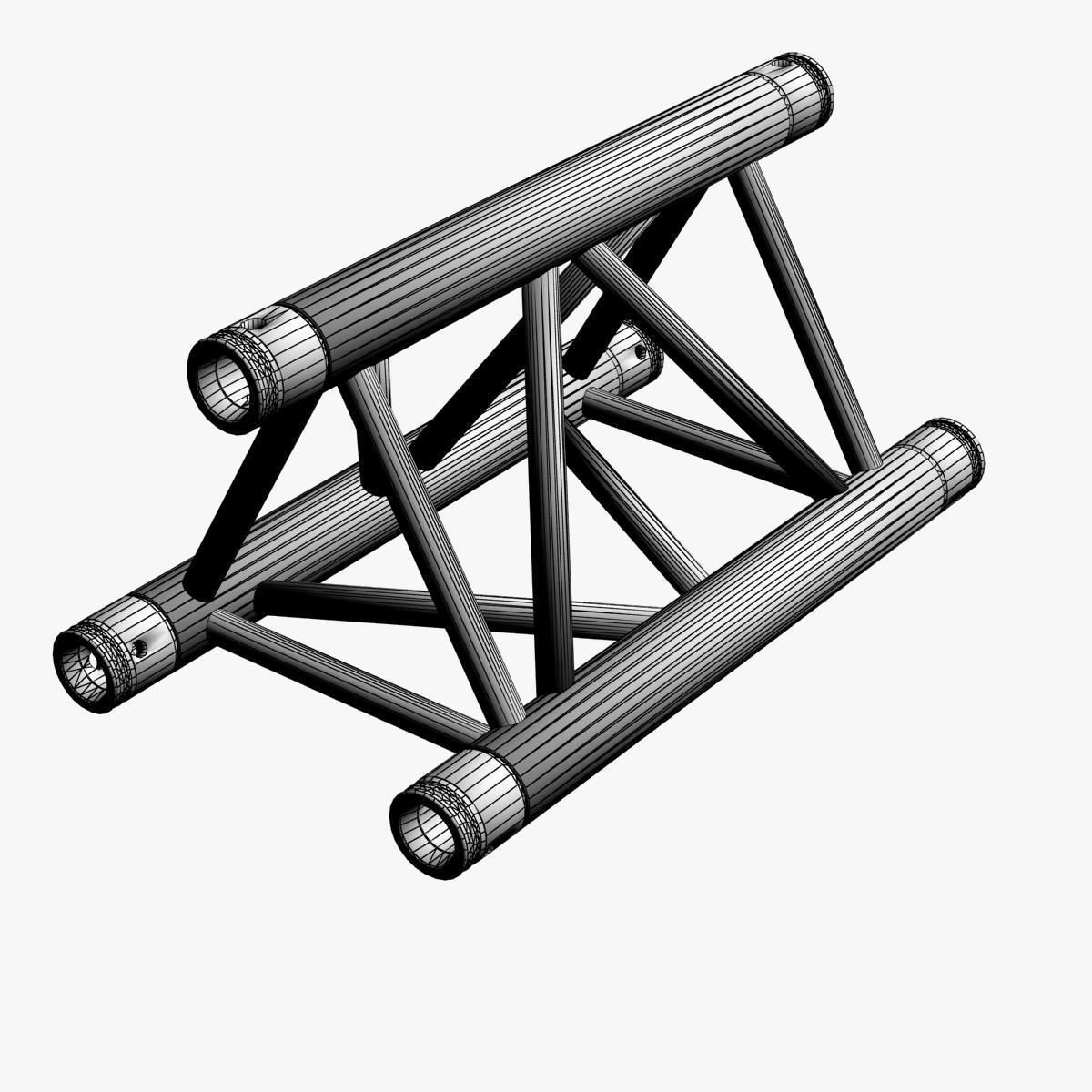

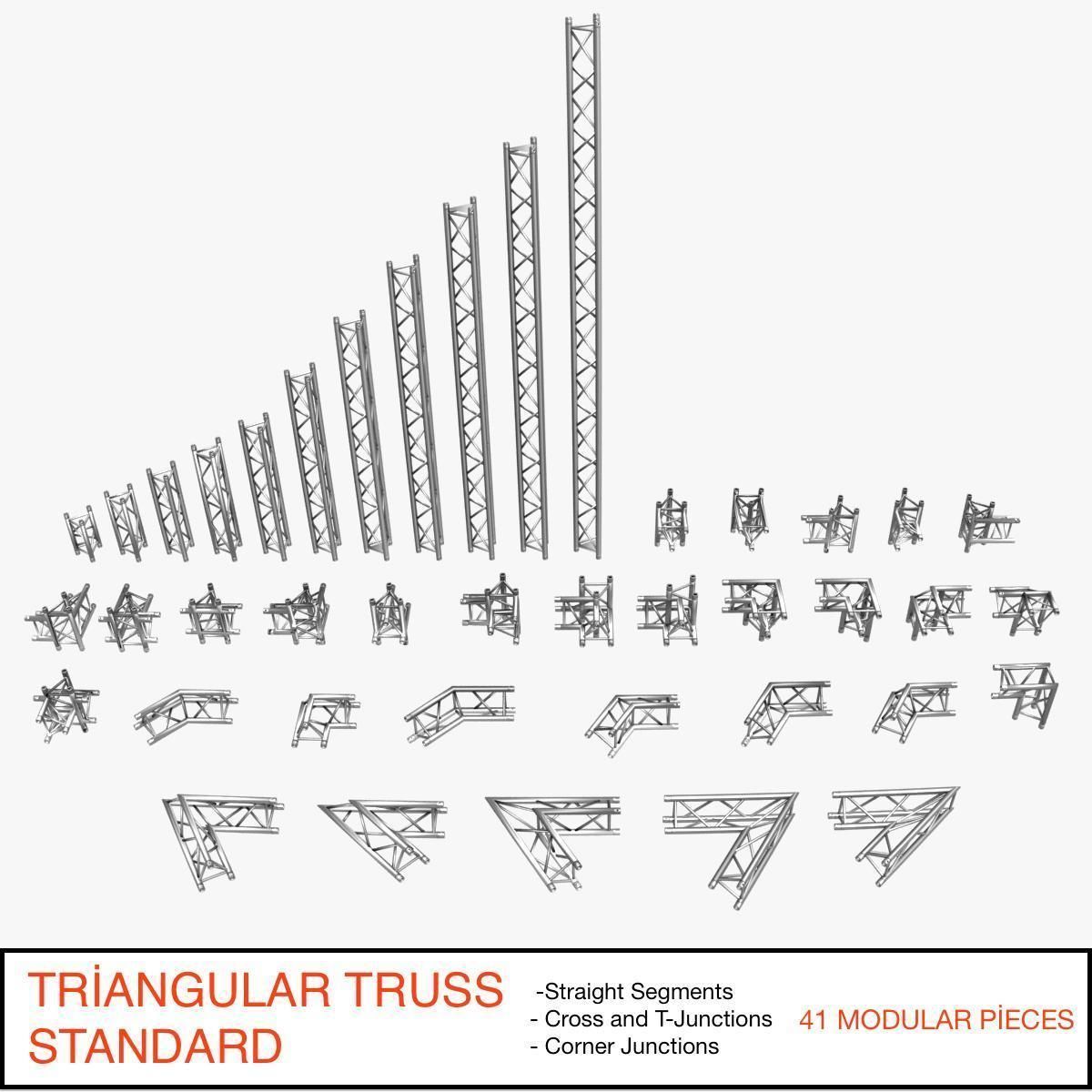

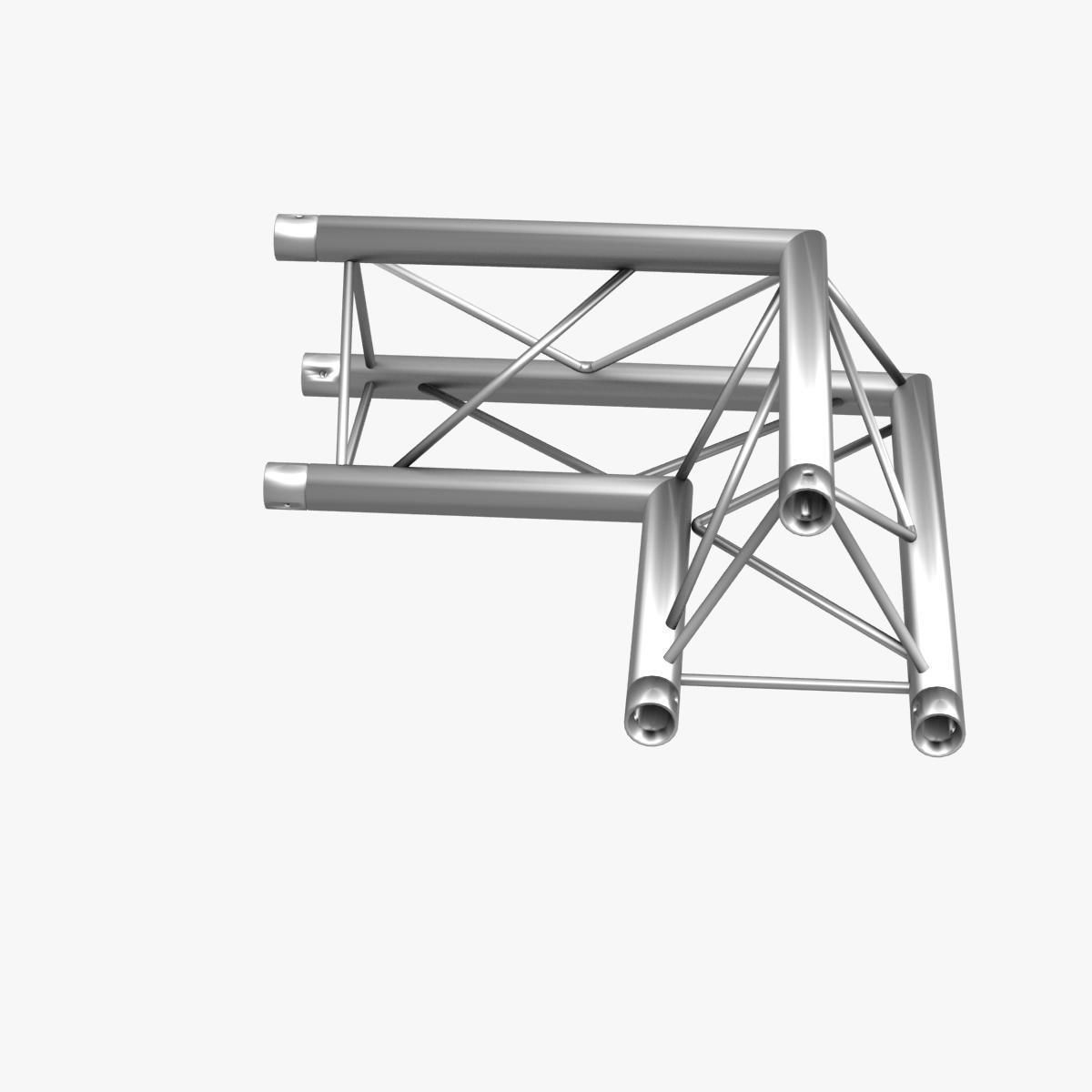

Triangular Trusses:

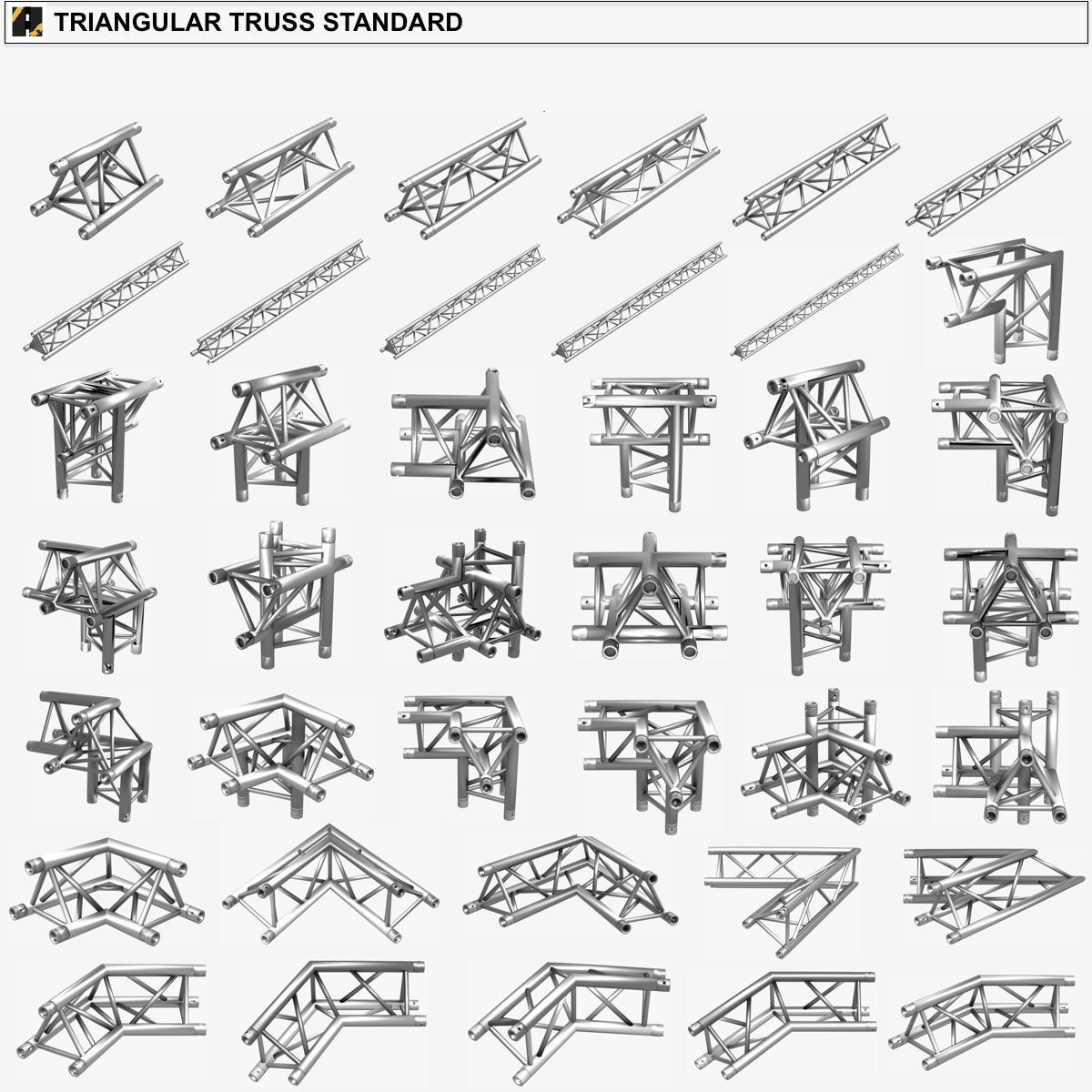

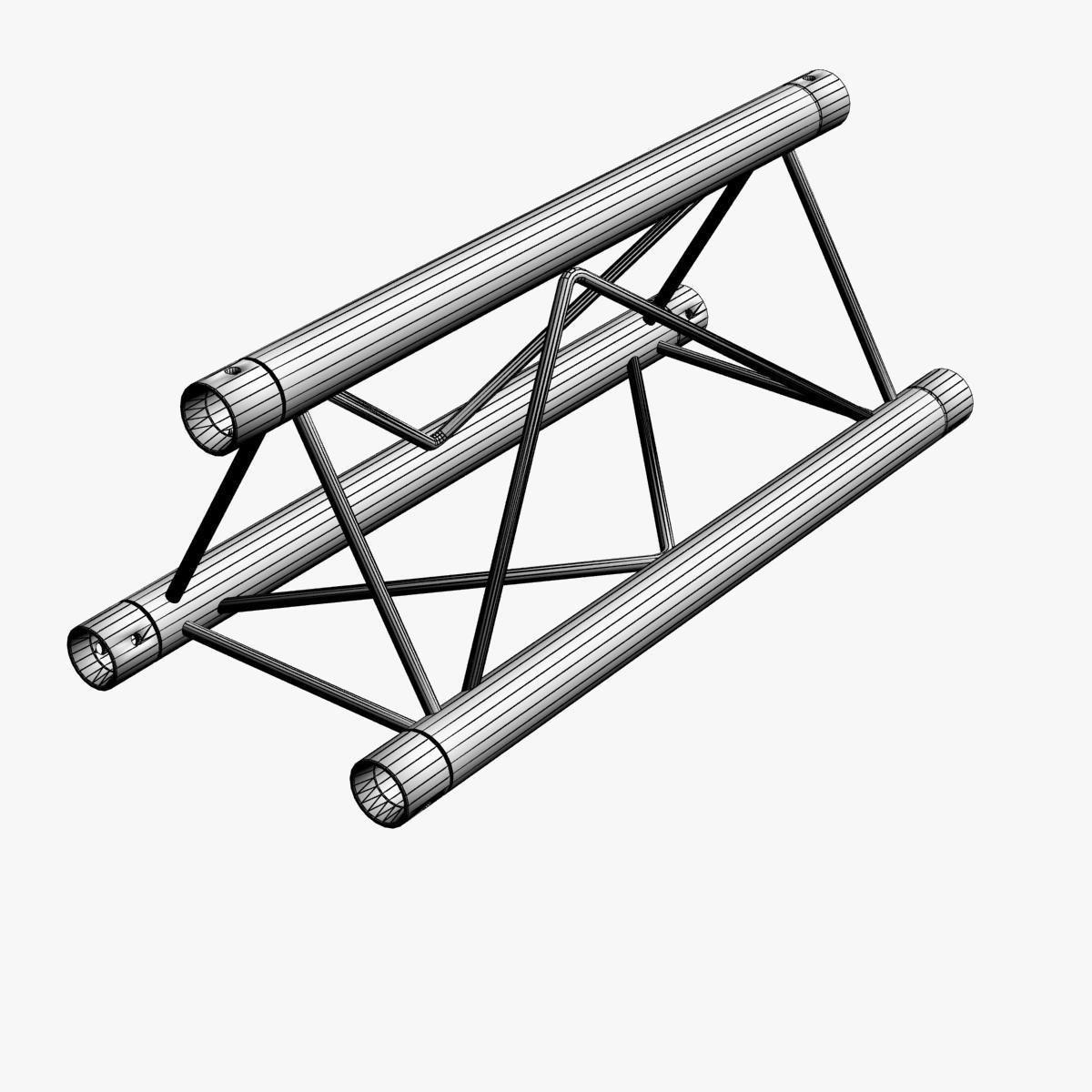

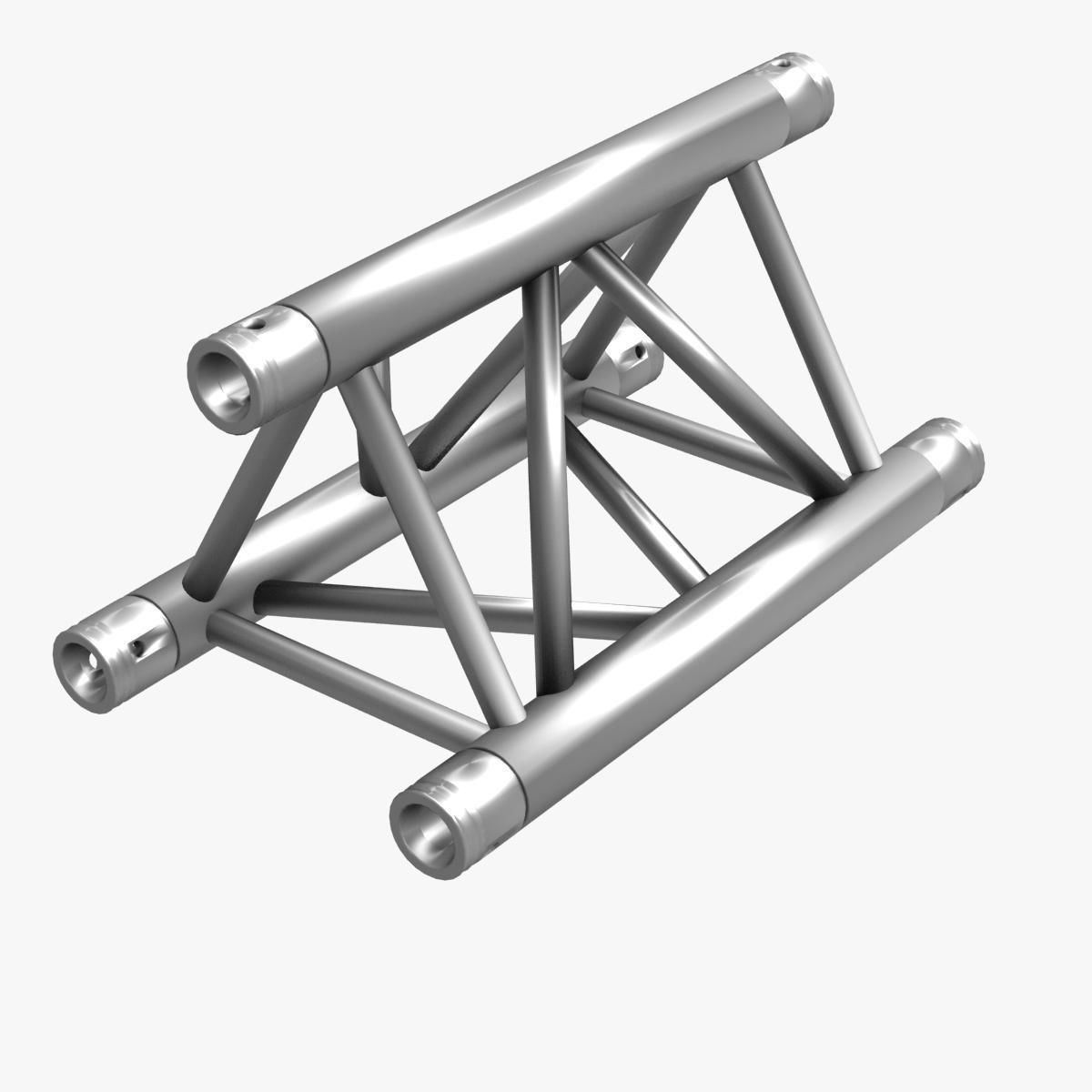

  • Triangular Truss Standard: 41 objects

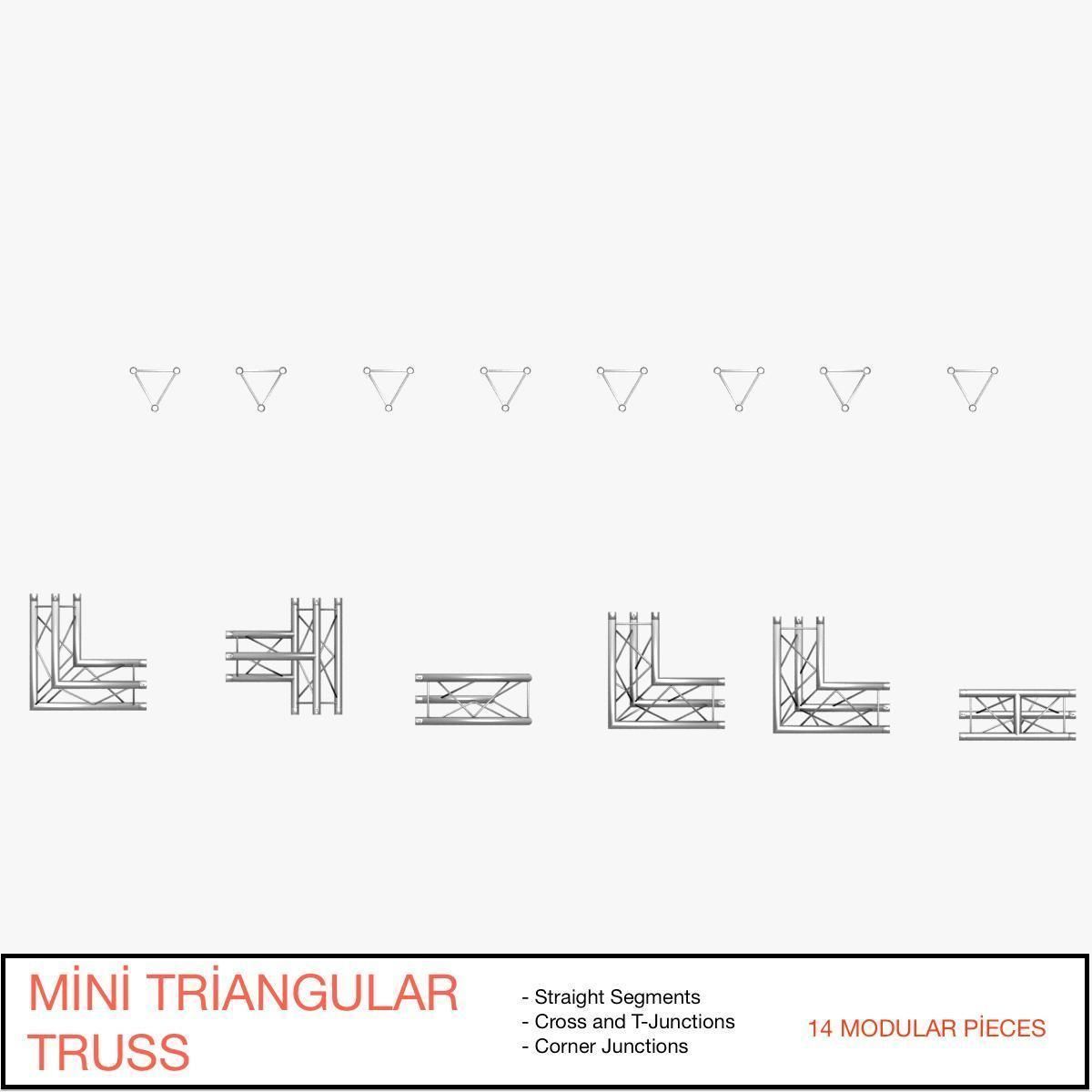

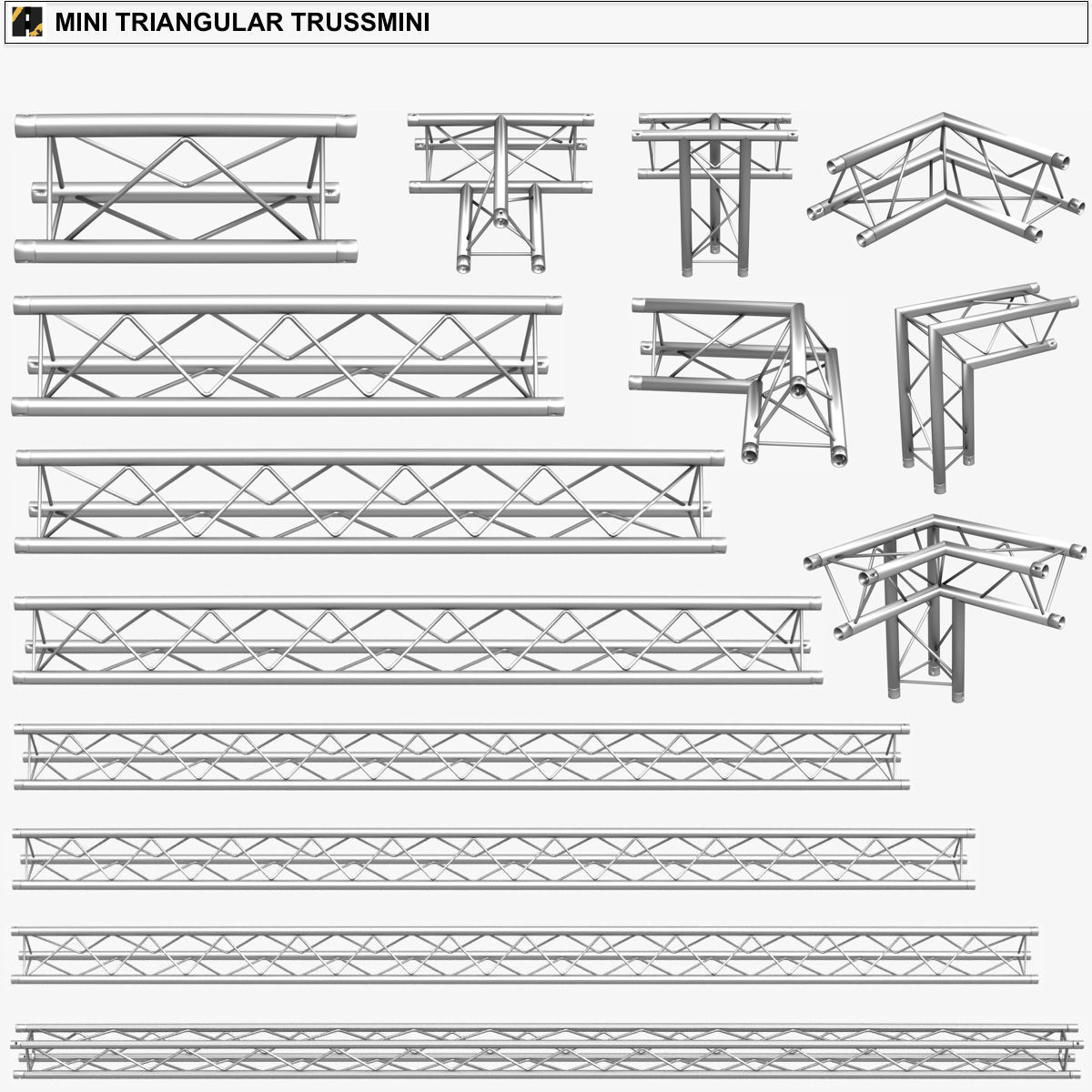

  • Mini Triangular Truss: 14 objects

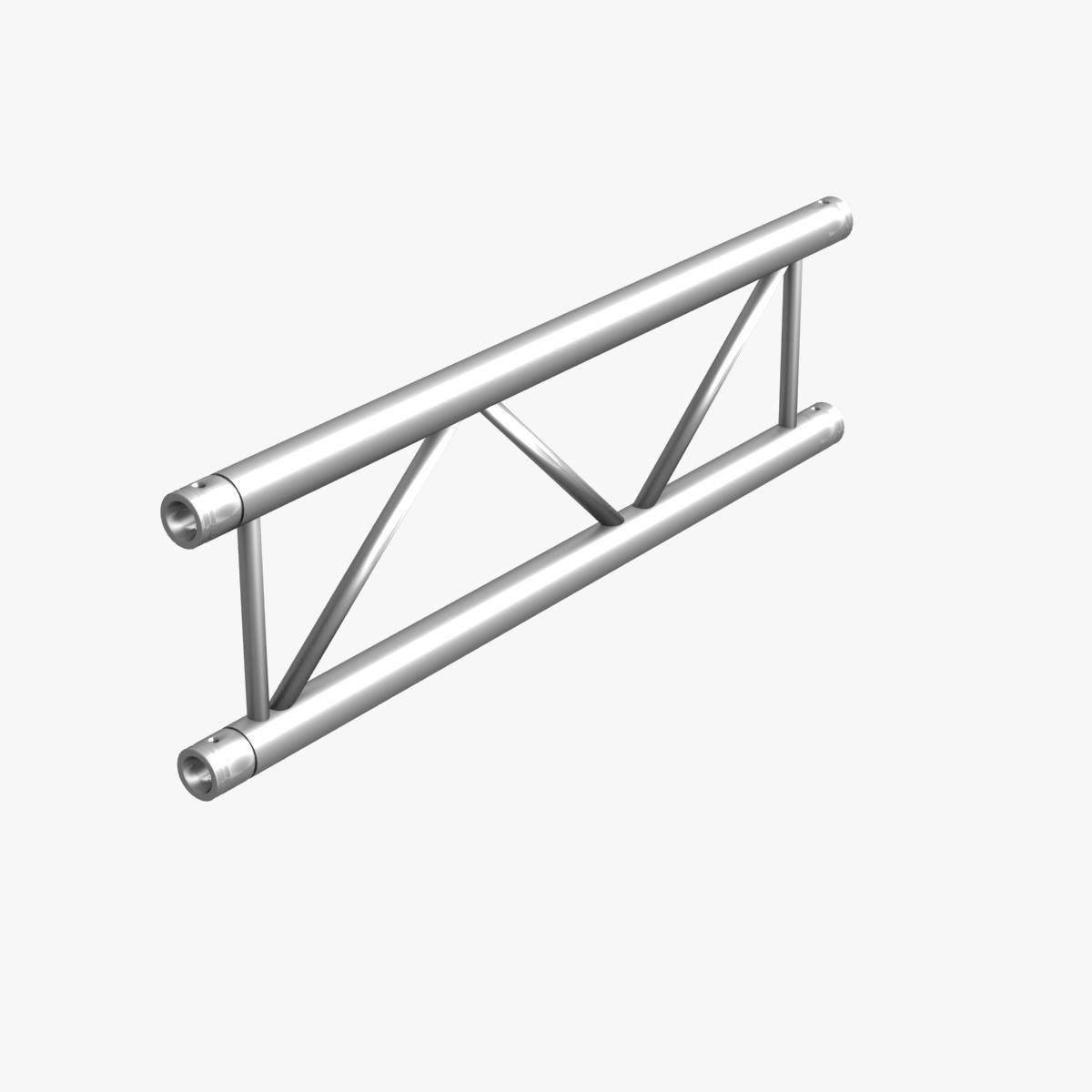

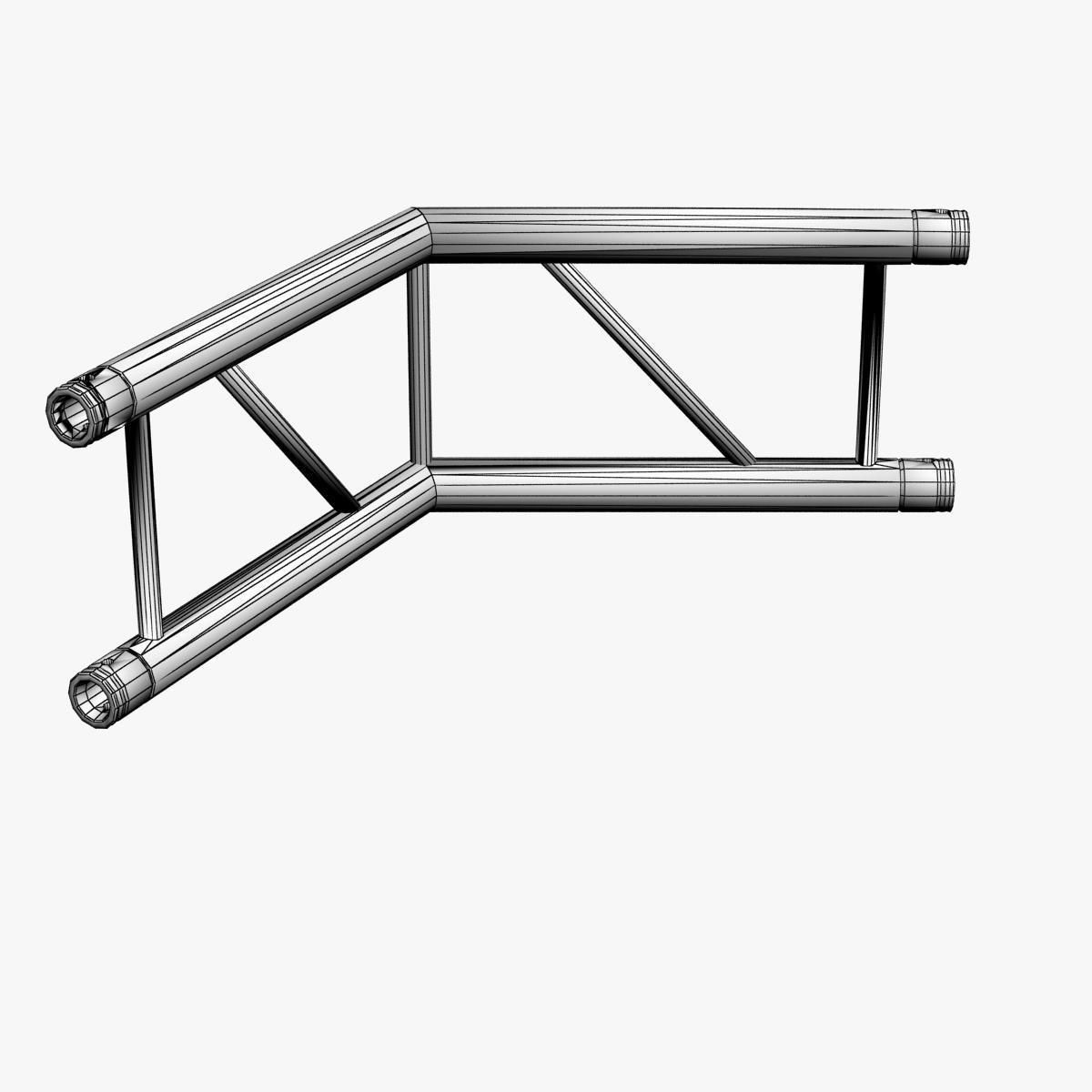

  • Beam Truss Standard: 24 objects

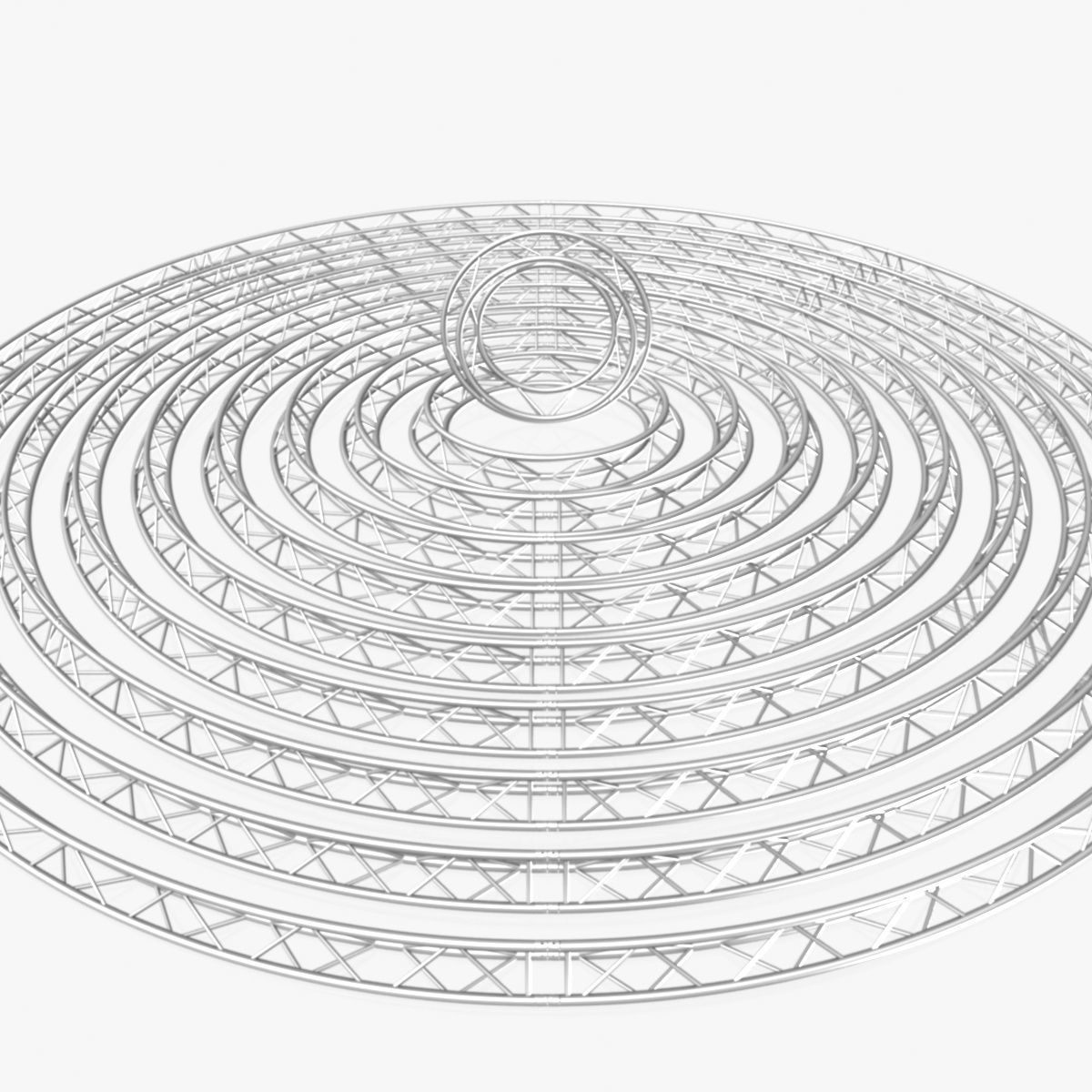

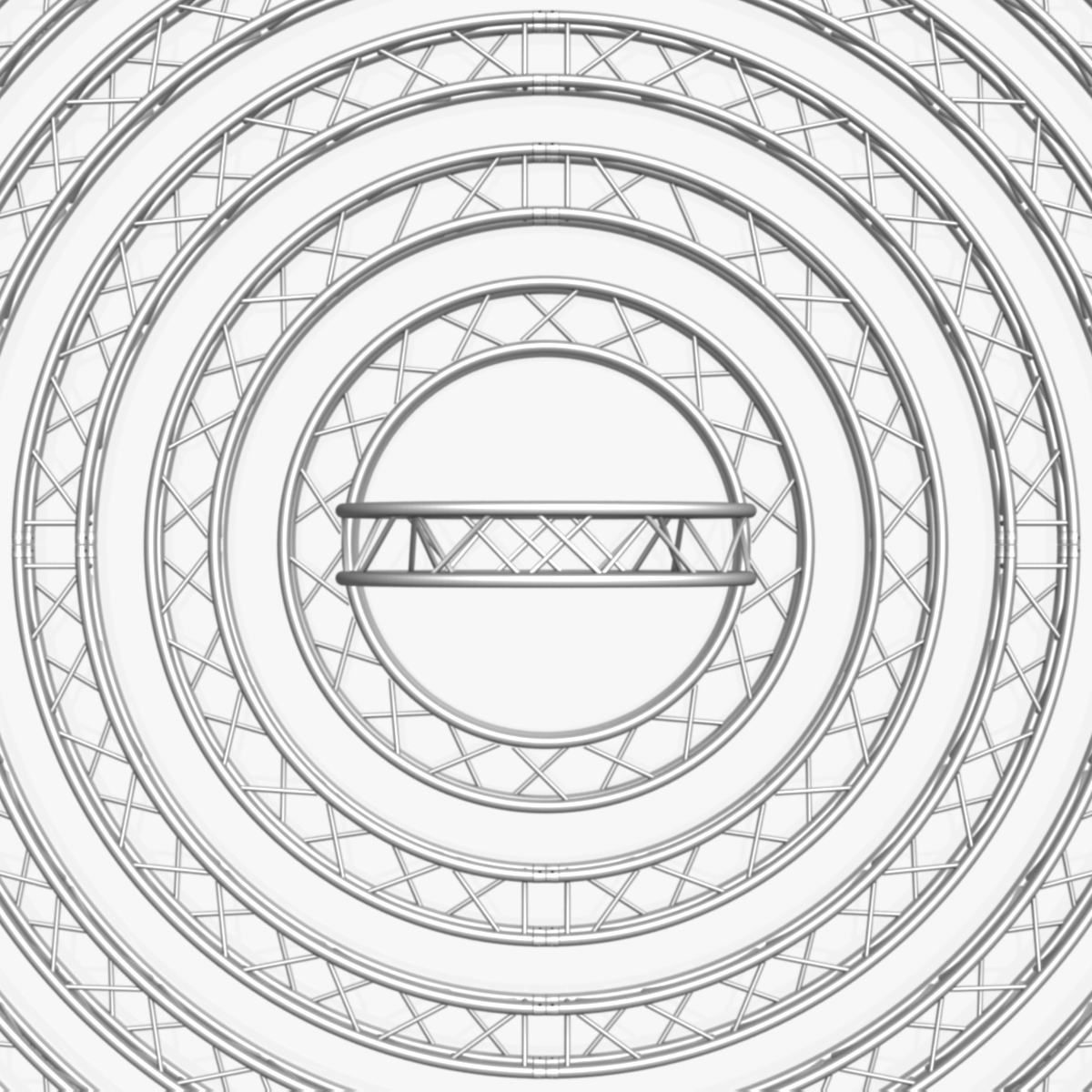

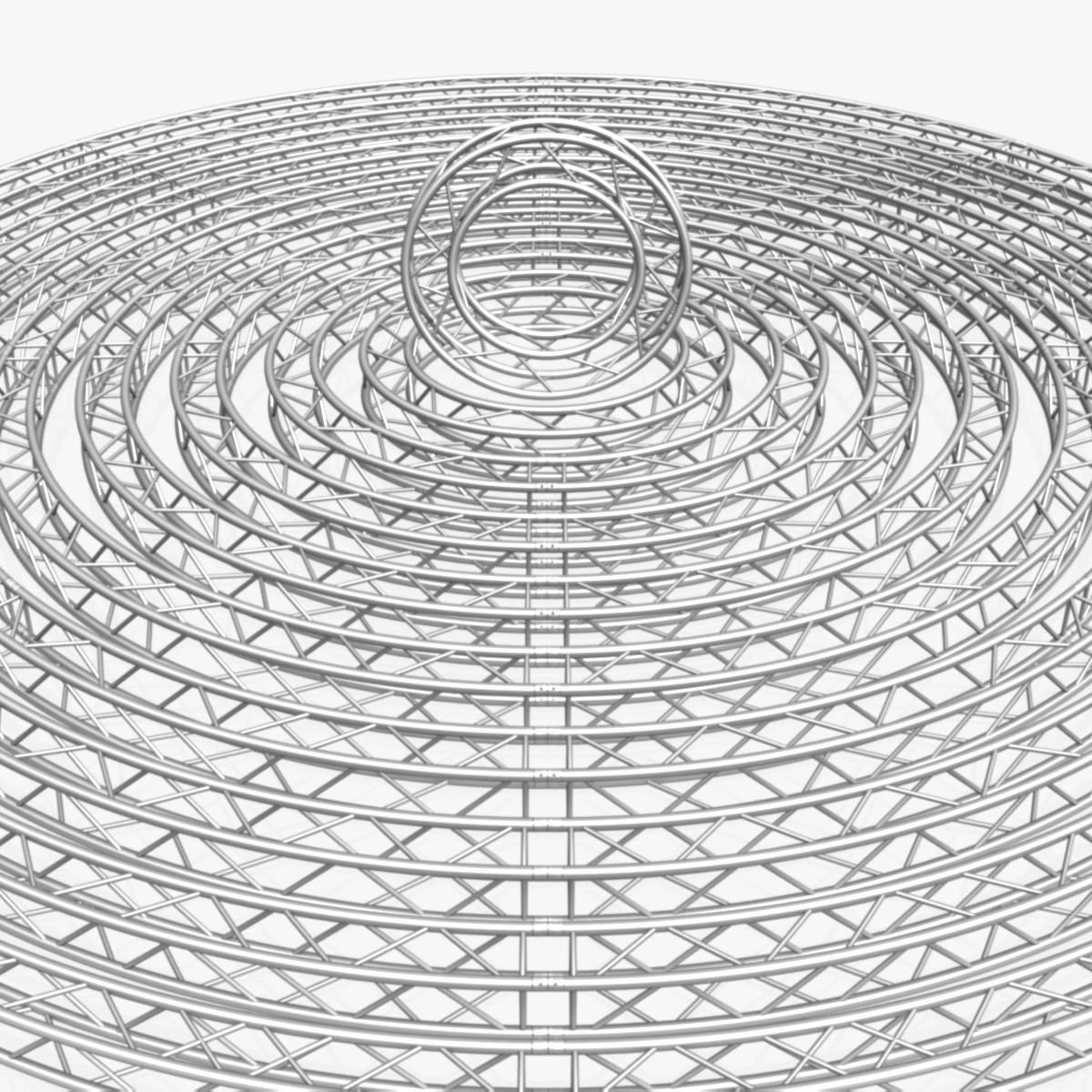

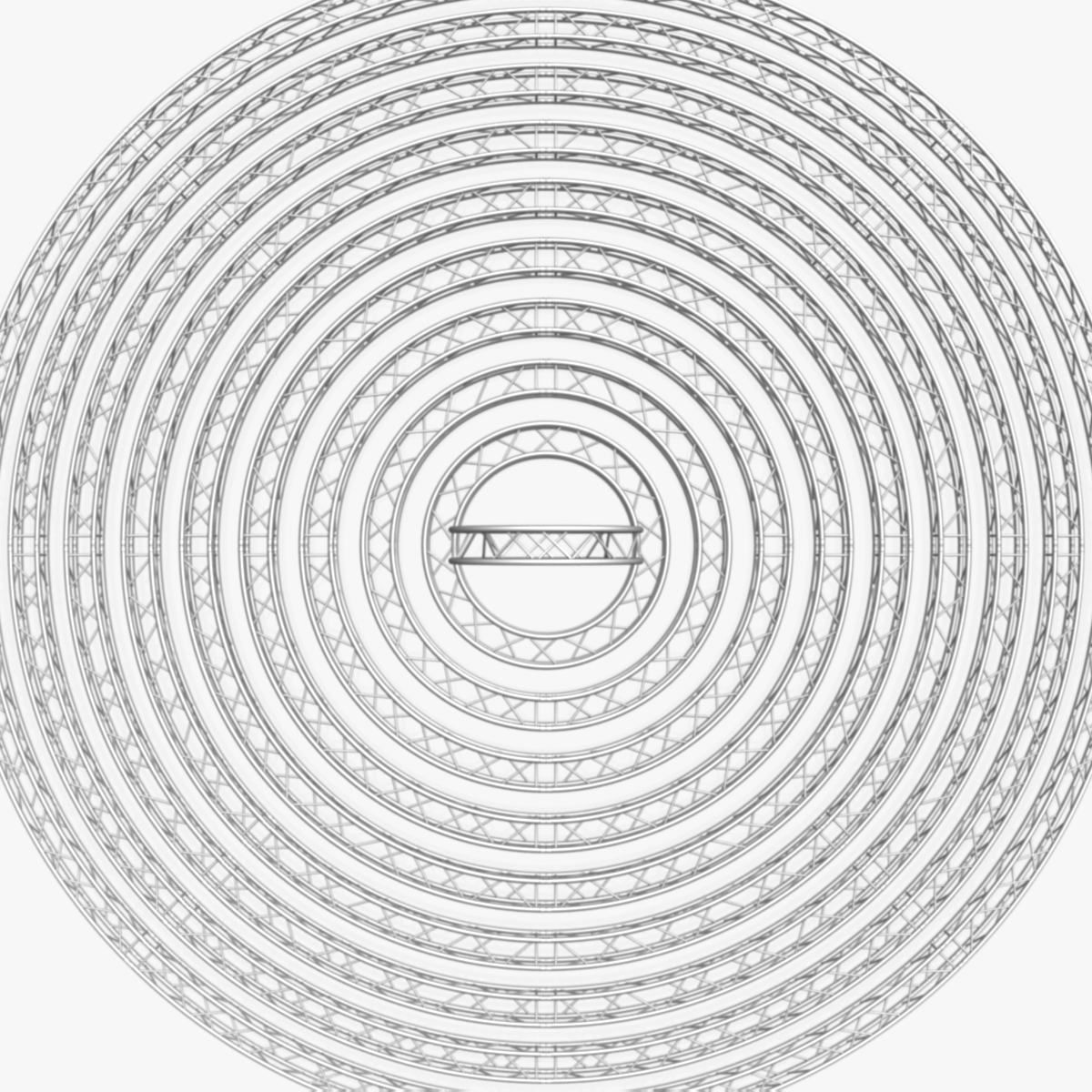

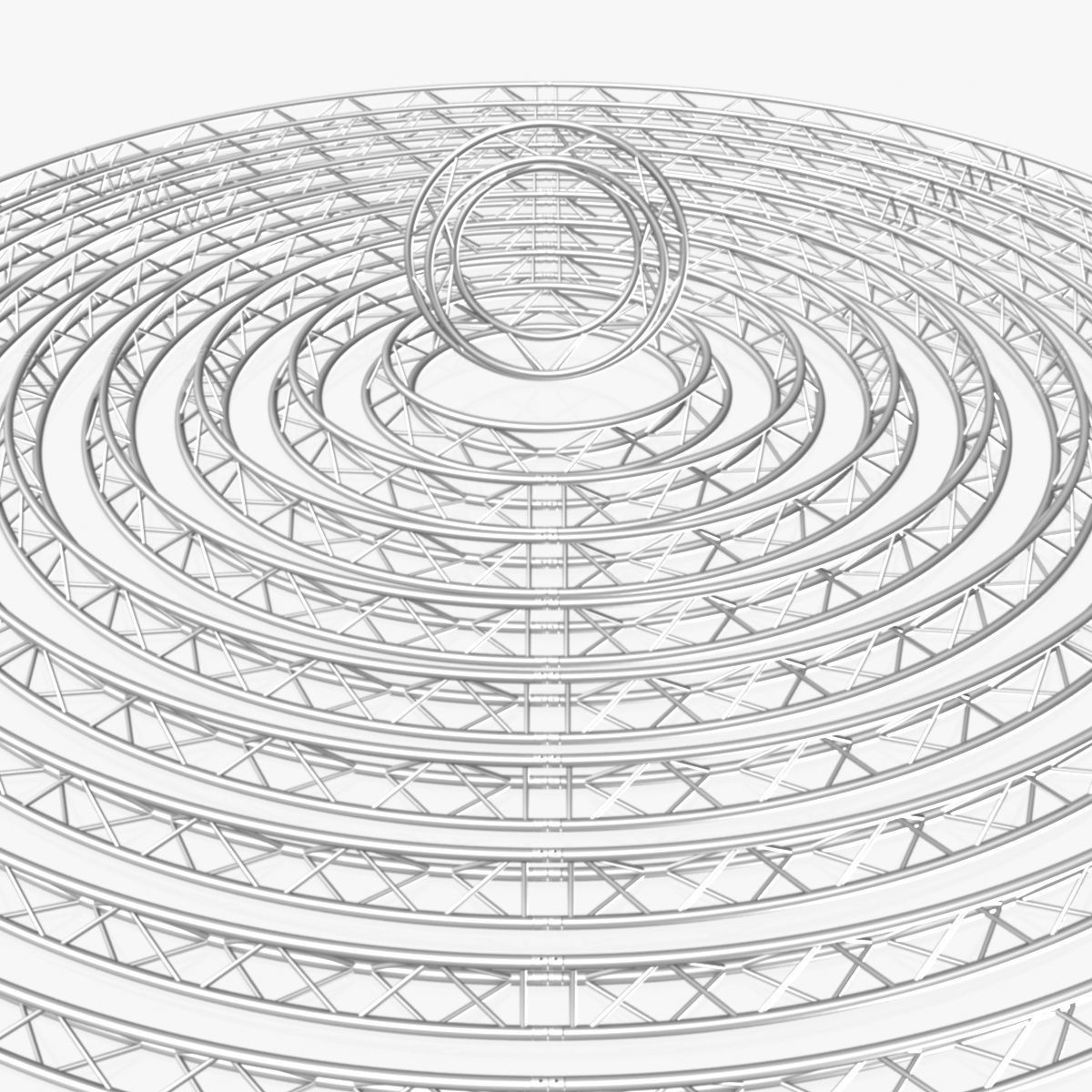

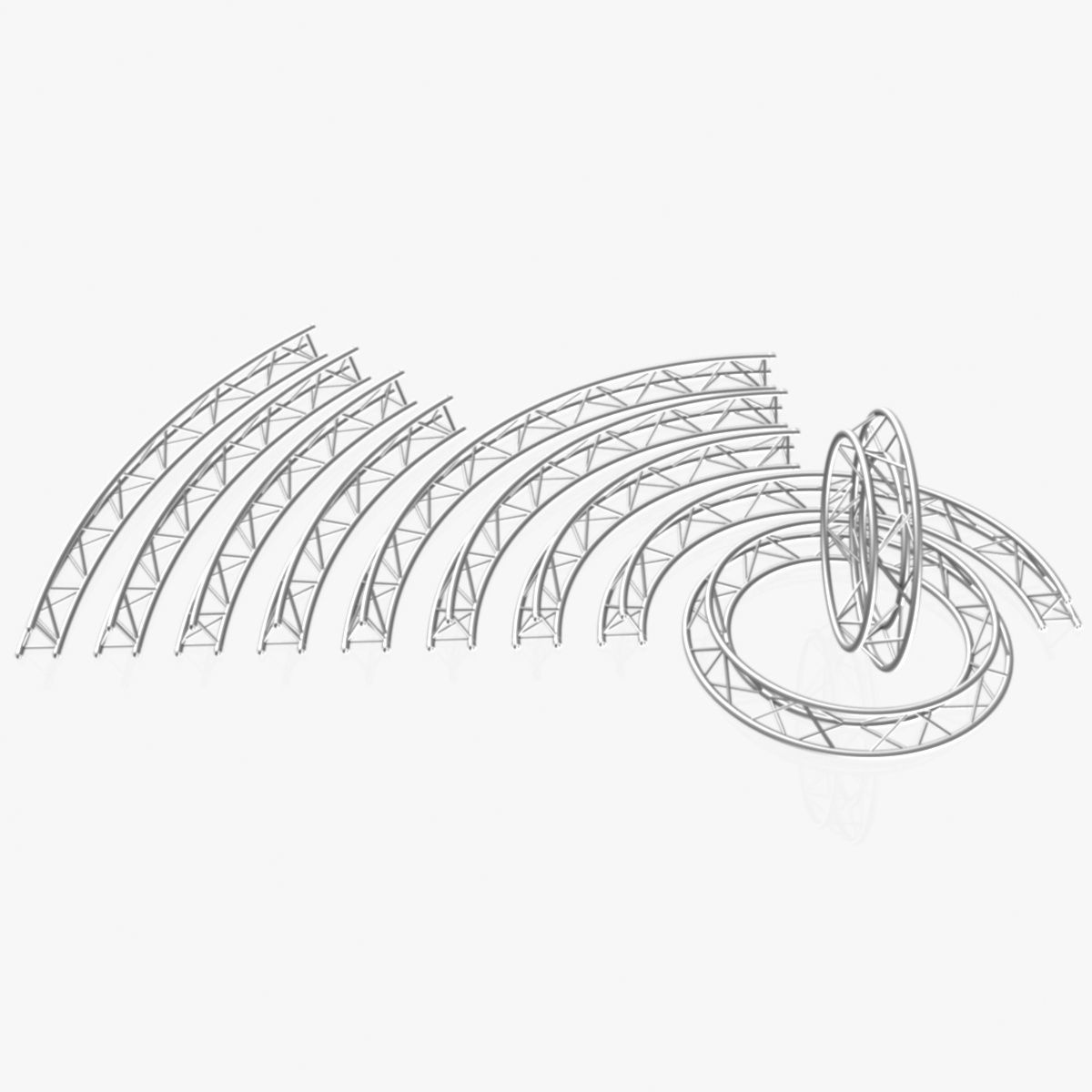

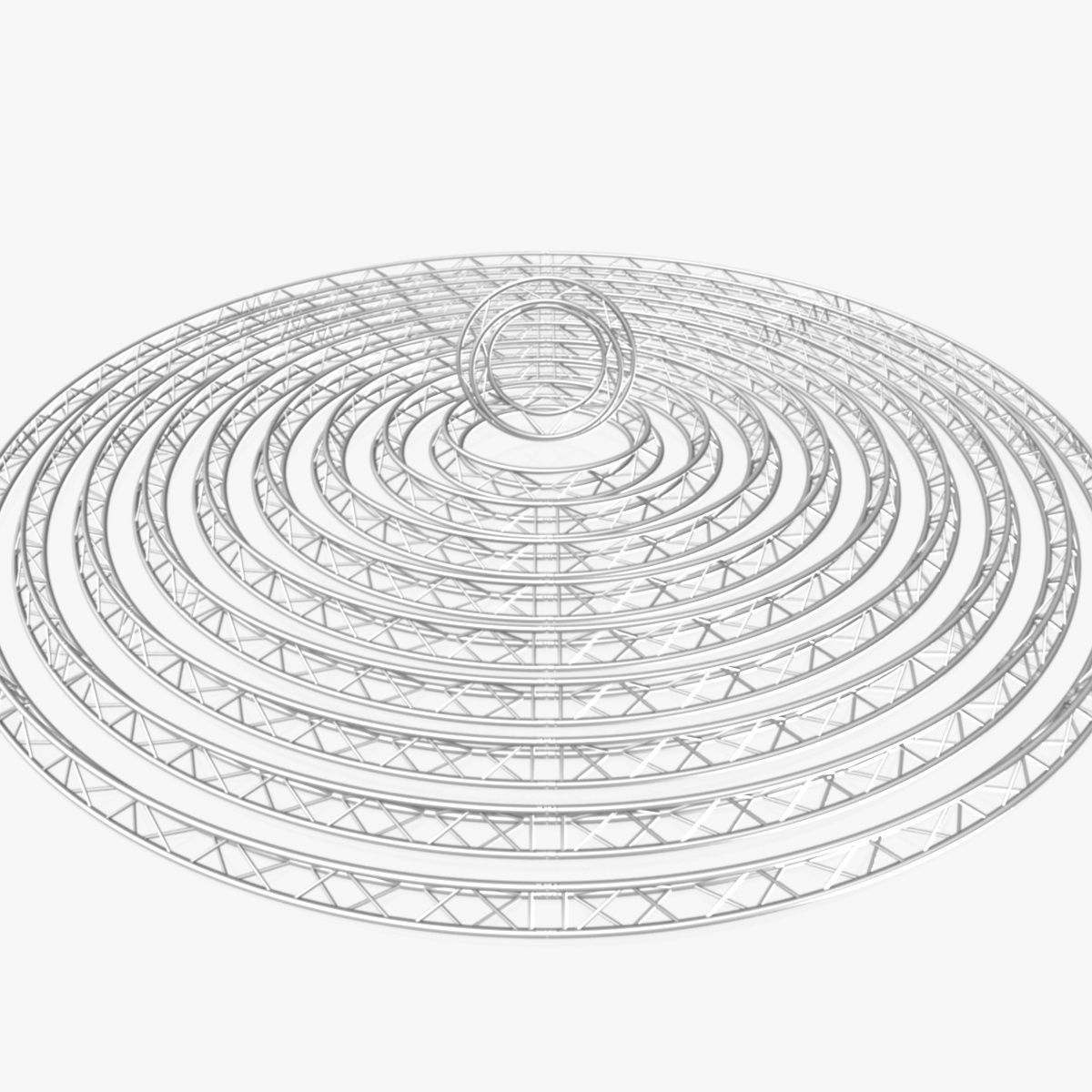

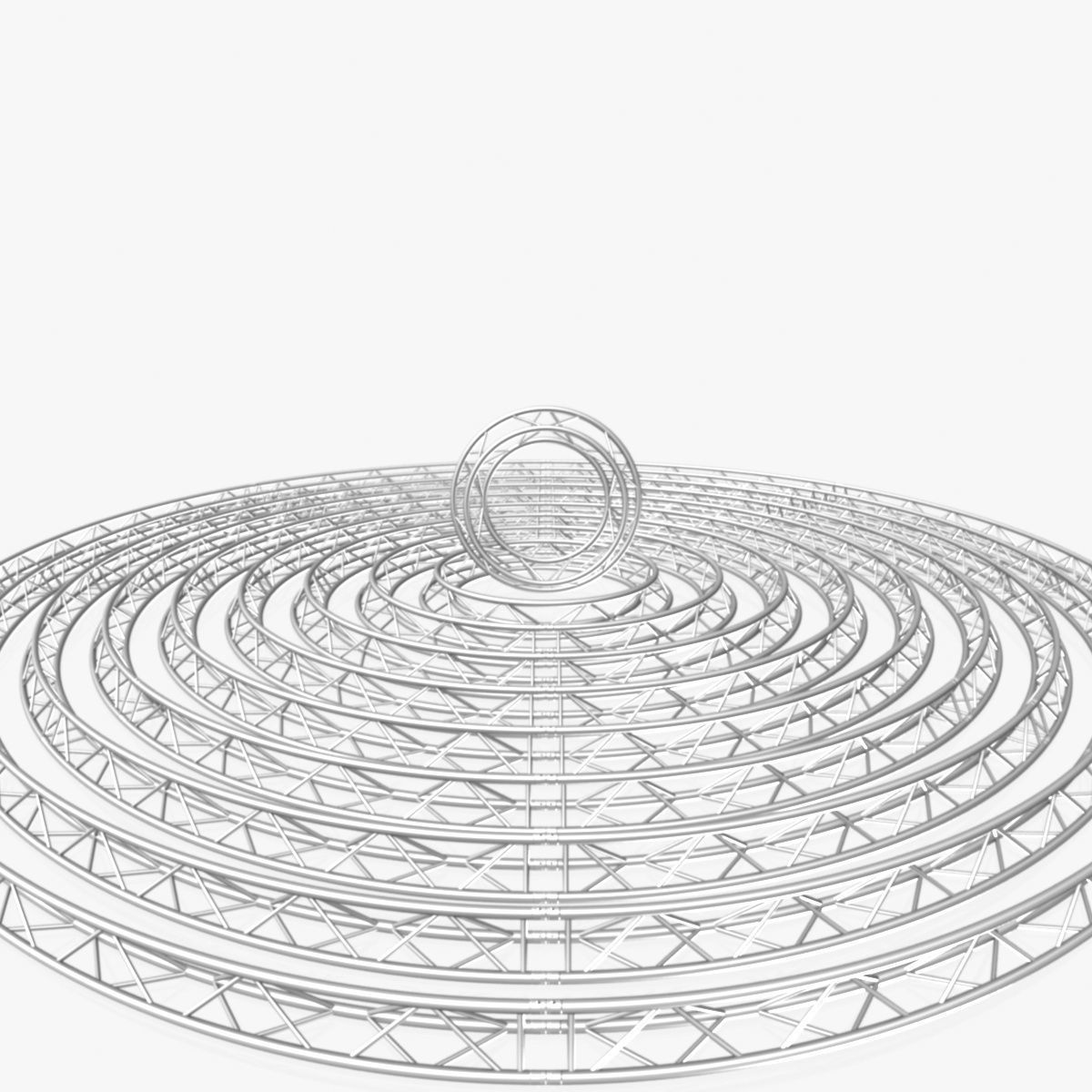

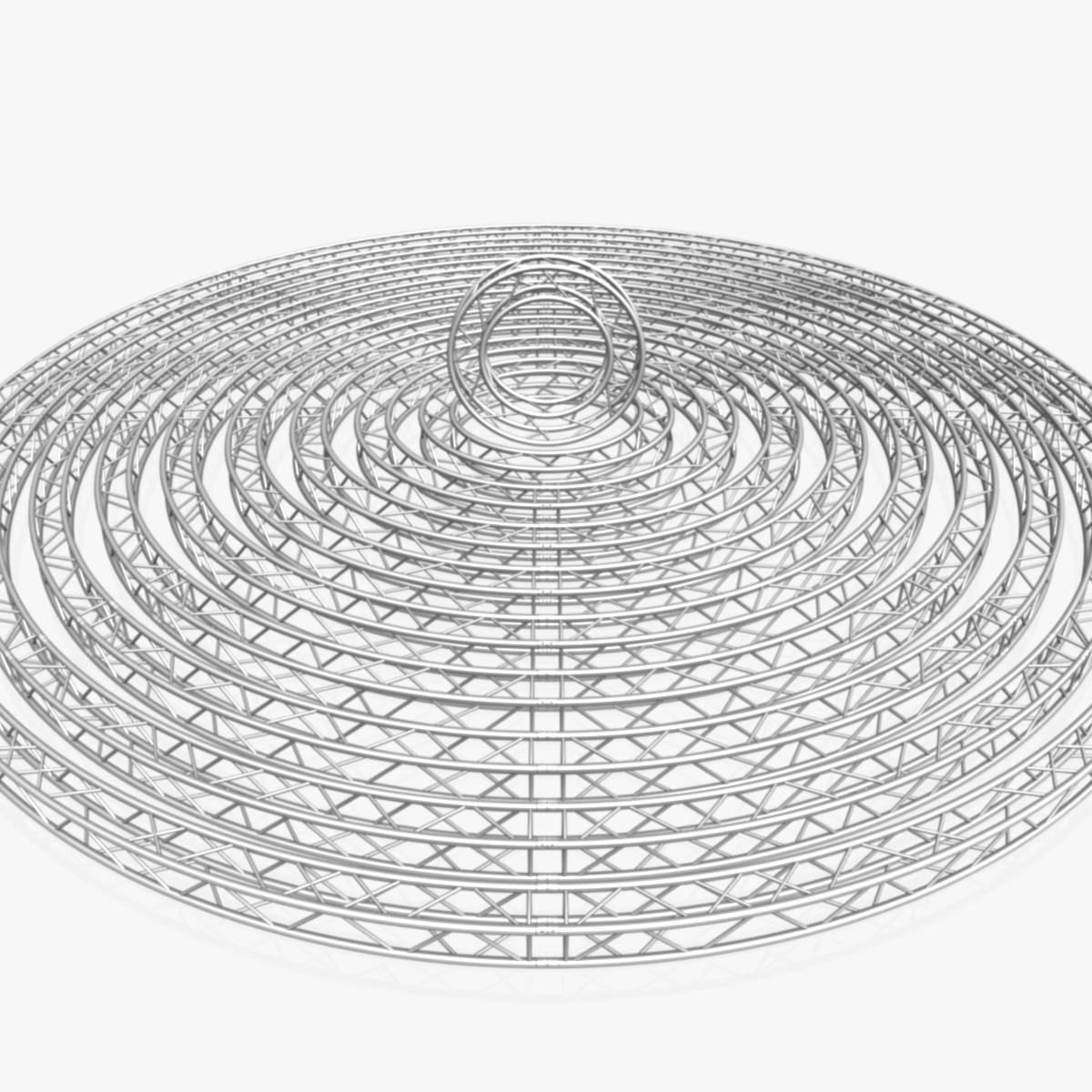

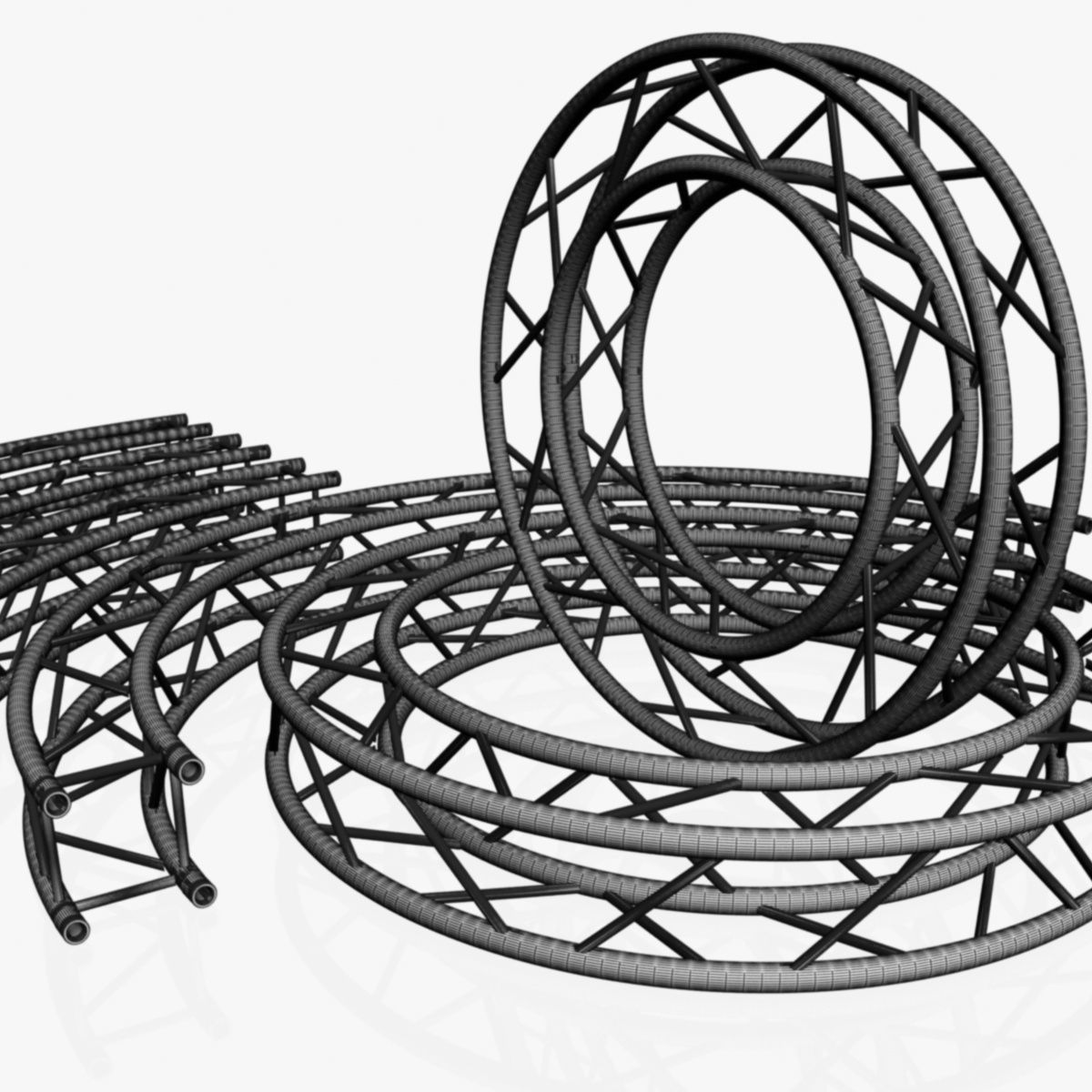

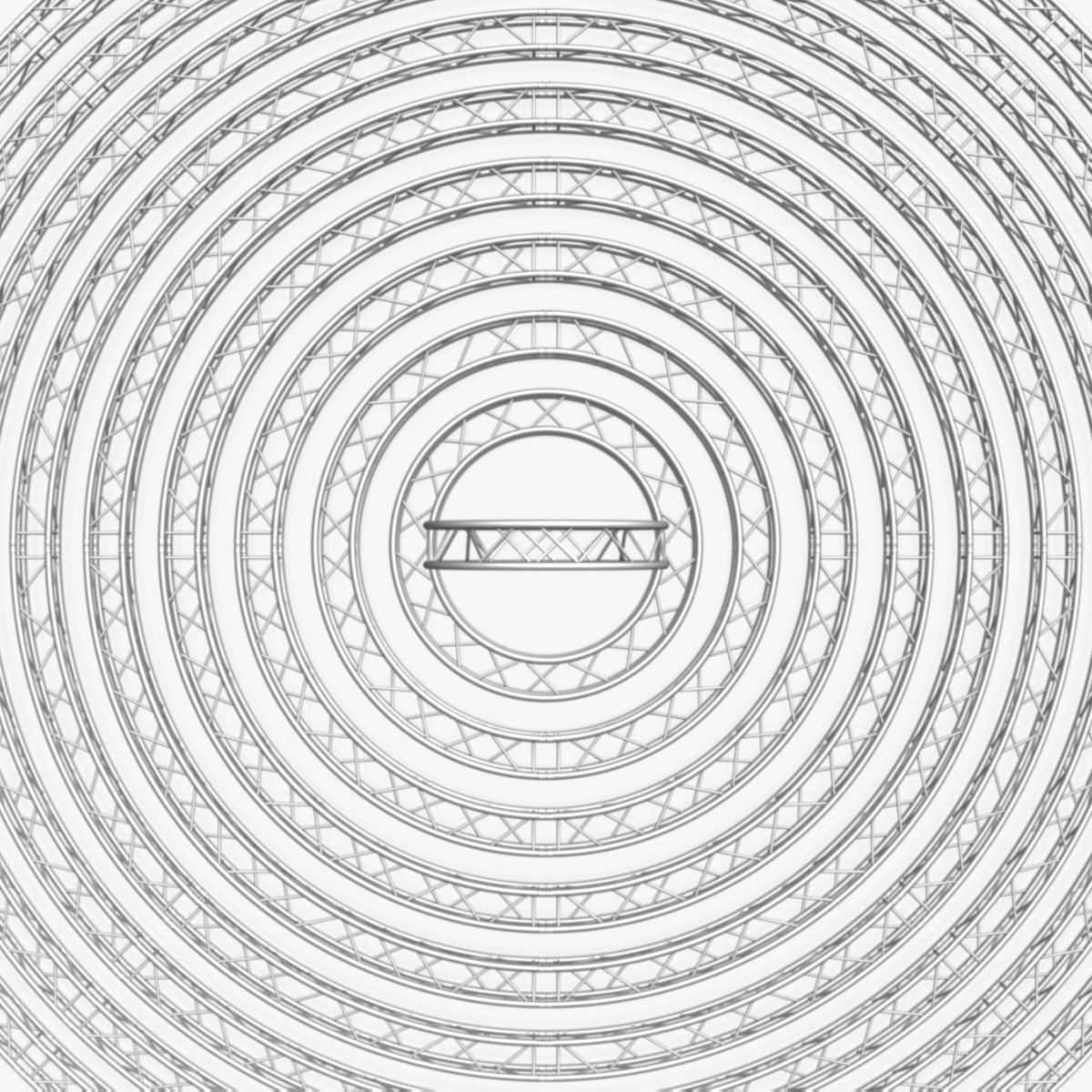

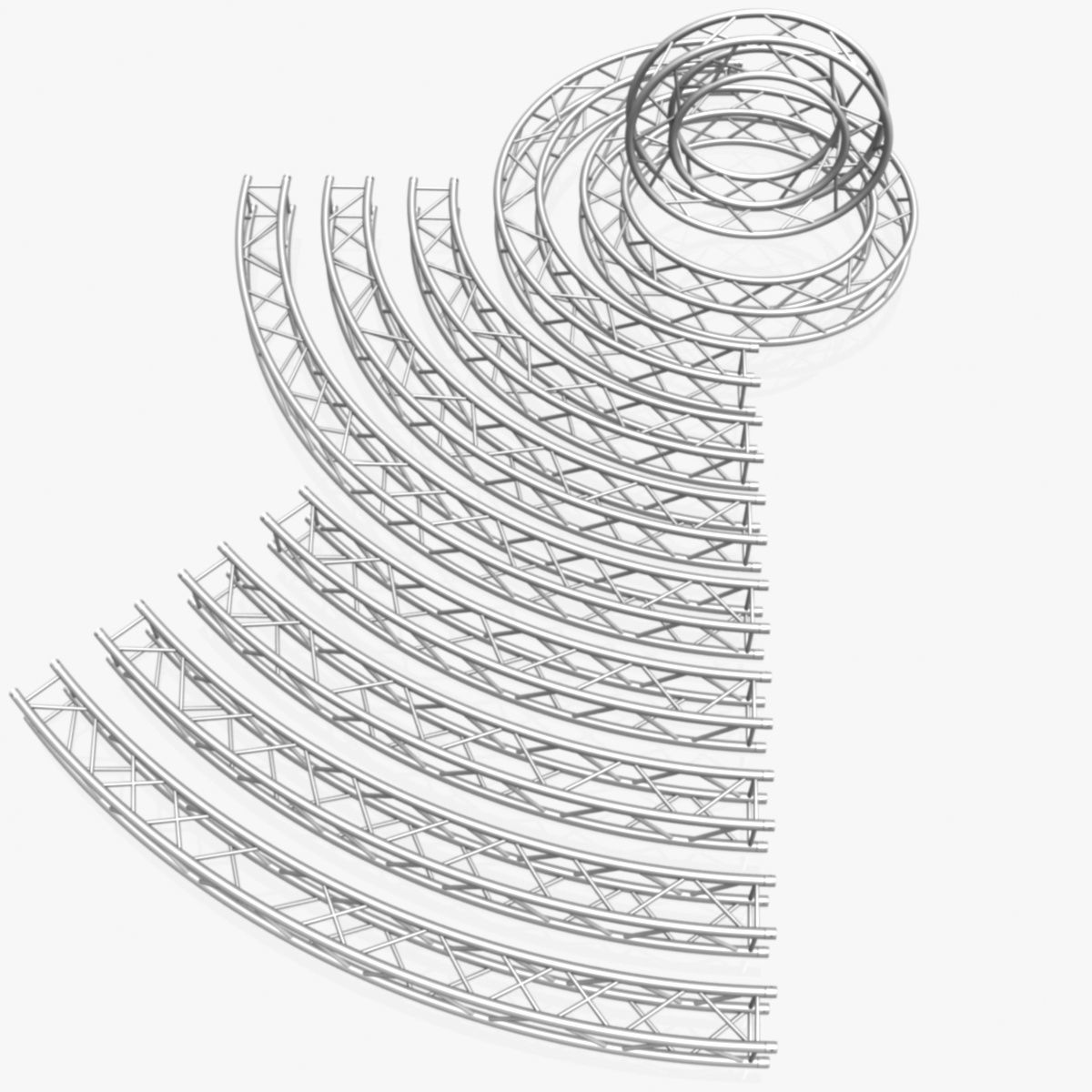

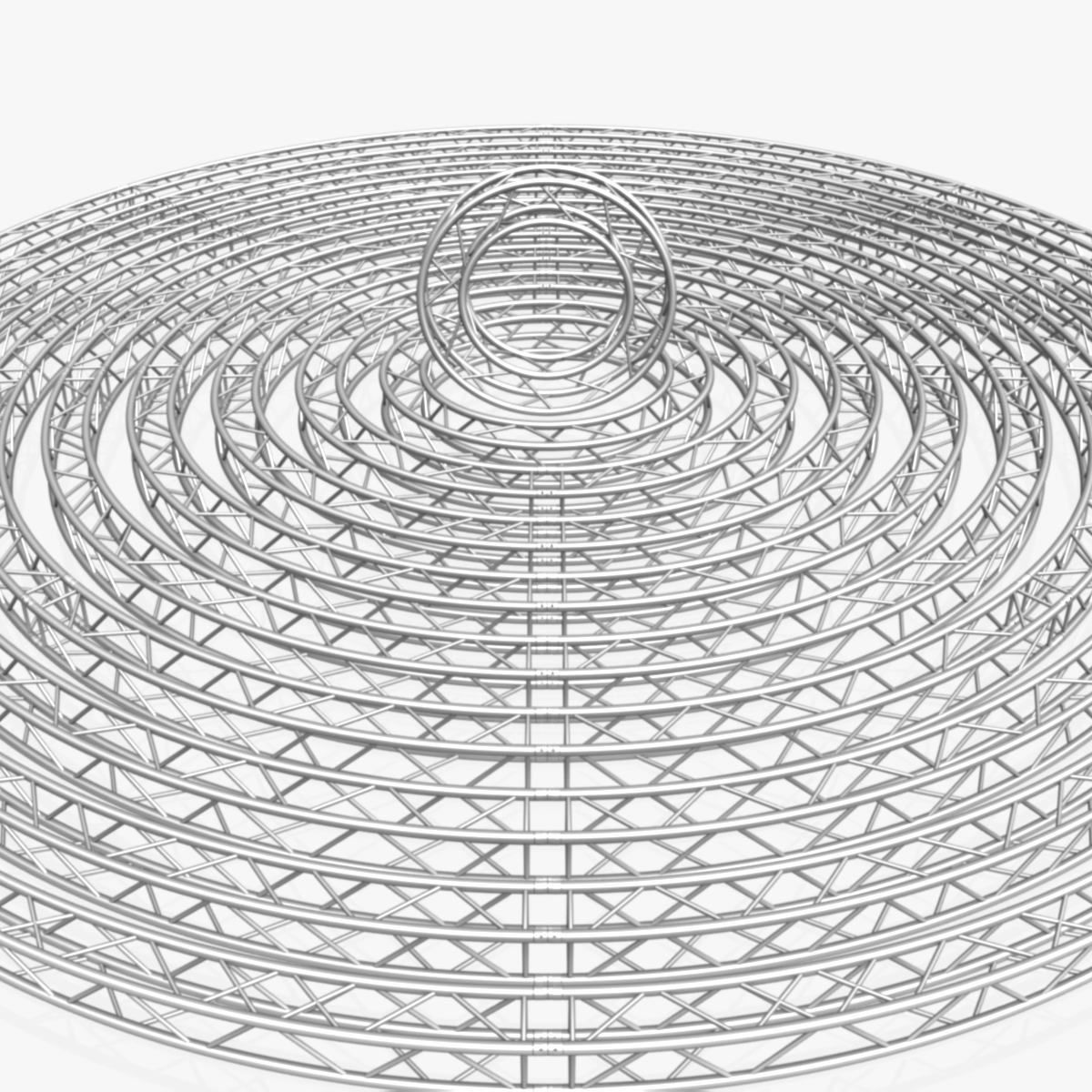

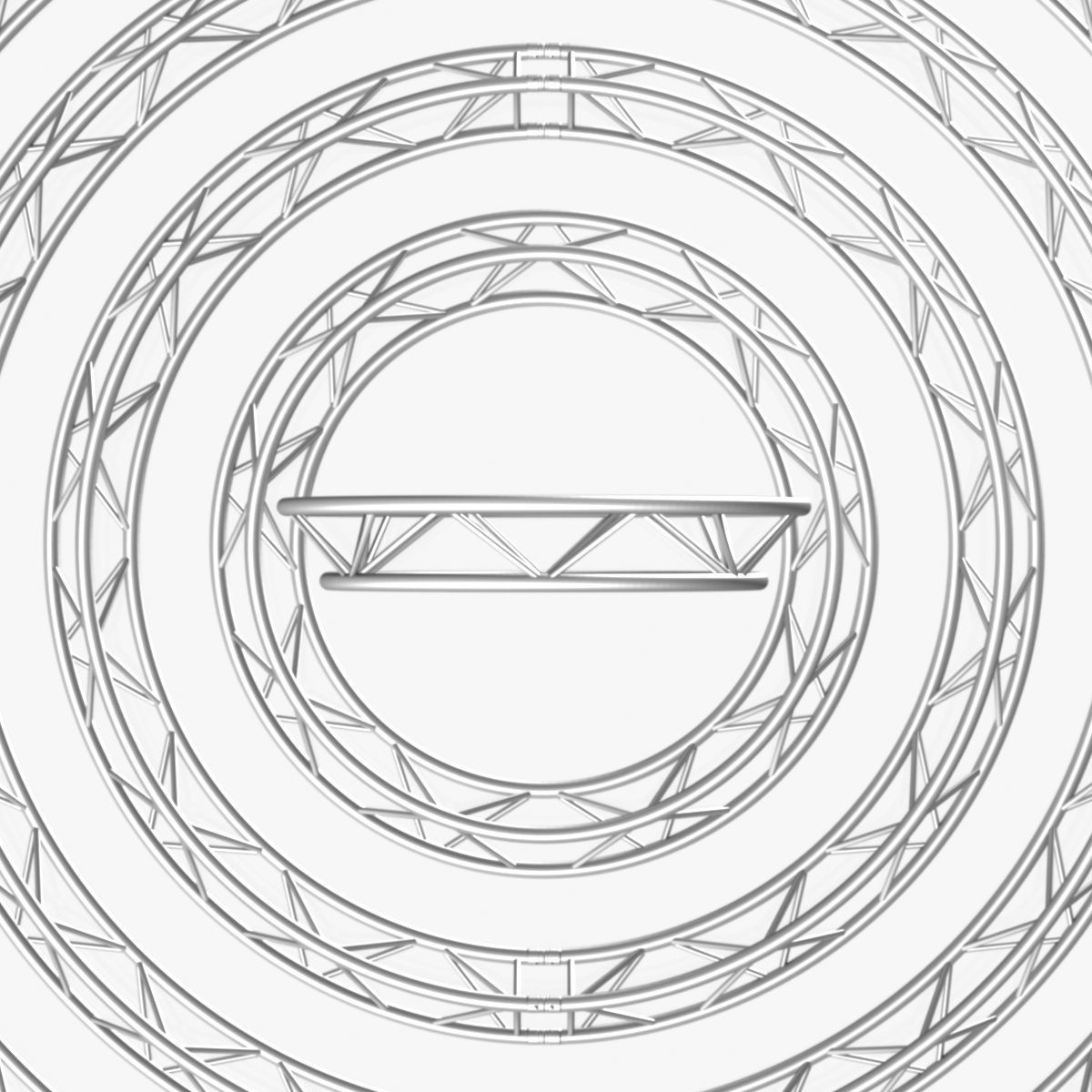

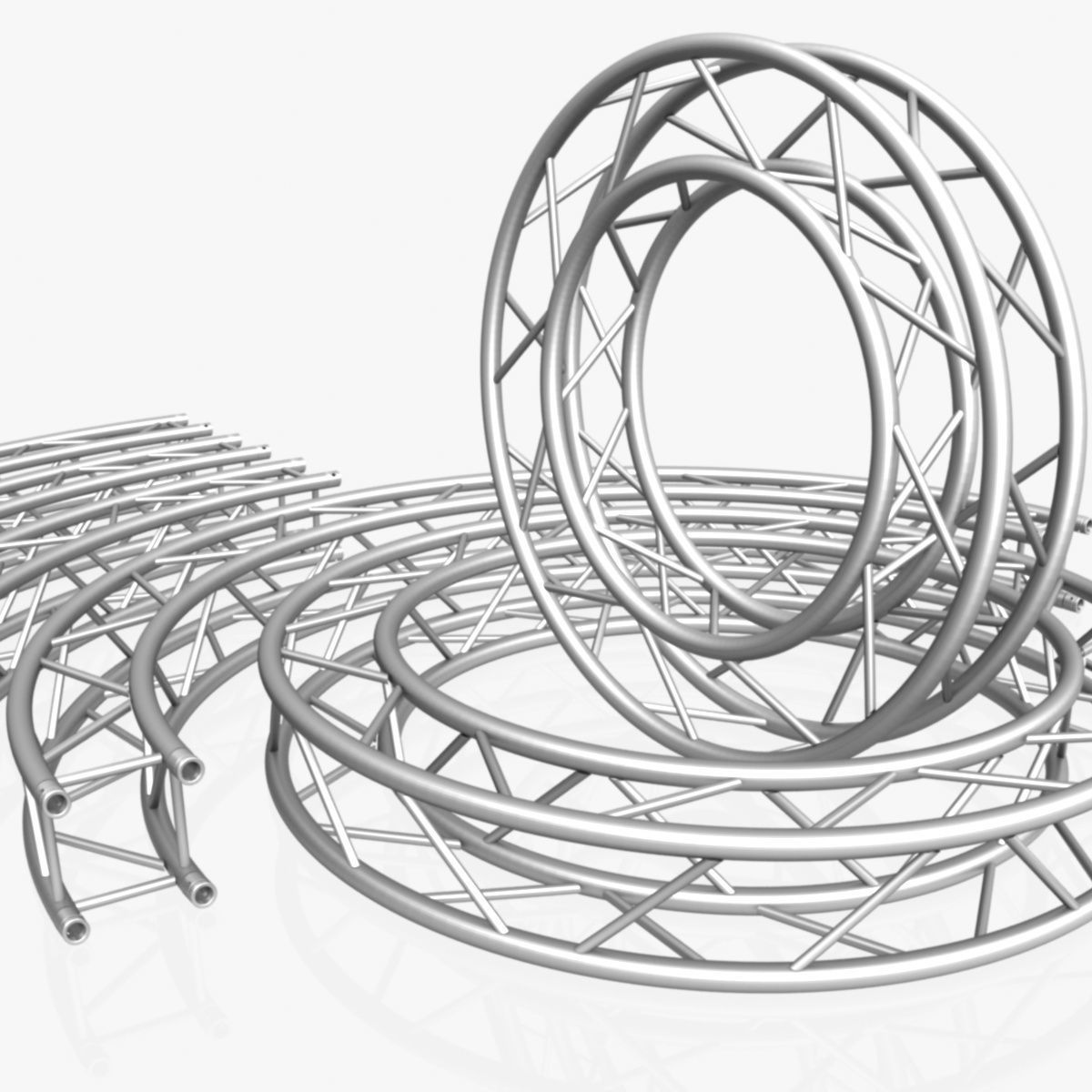

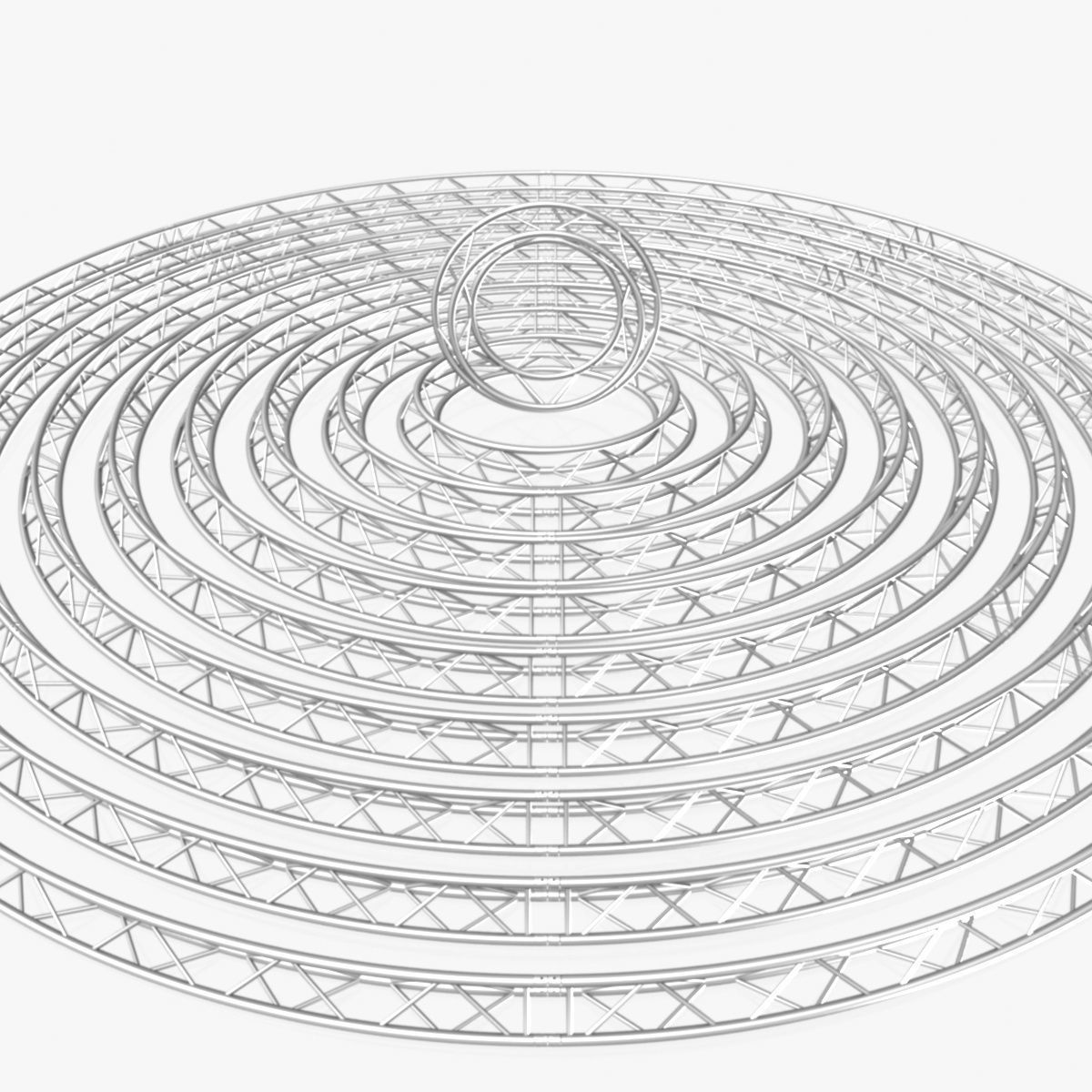

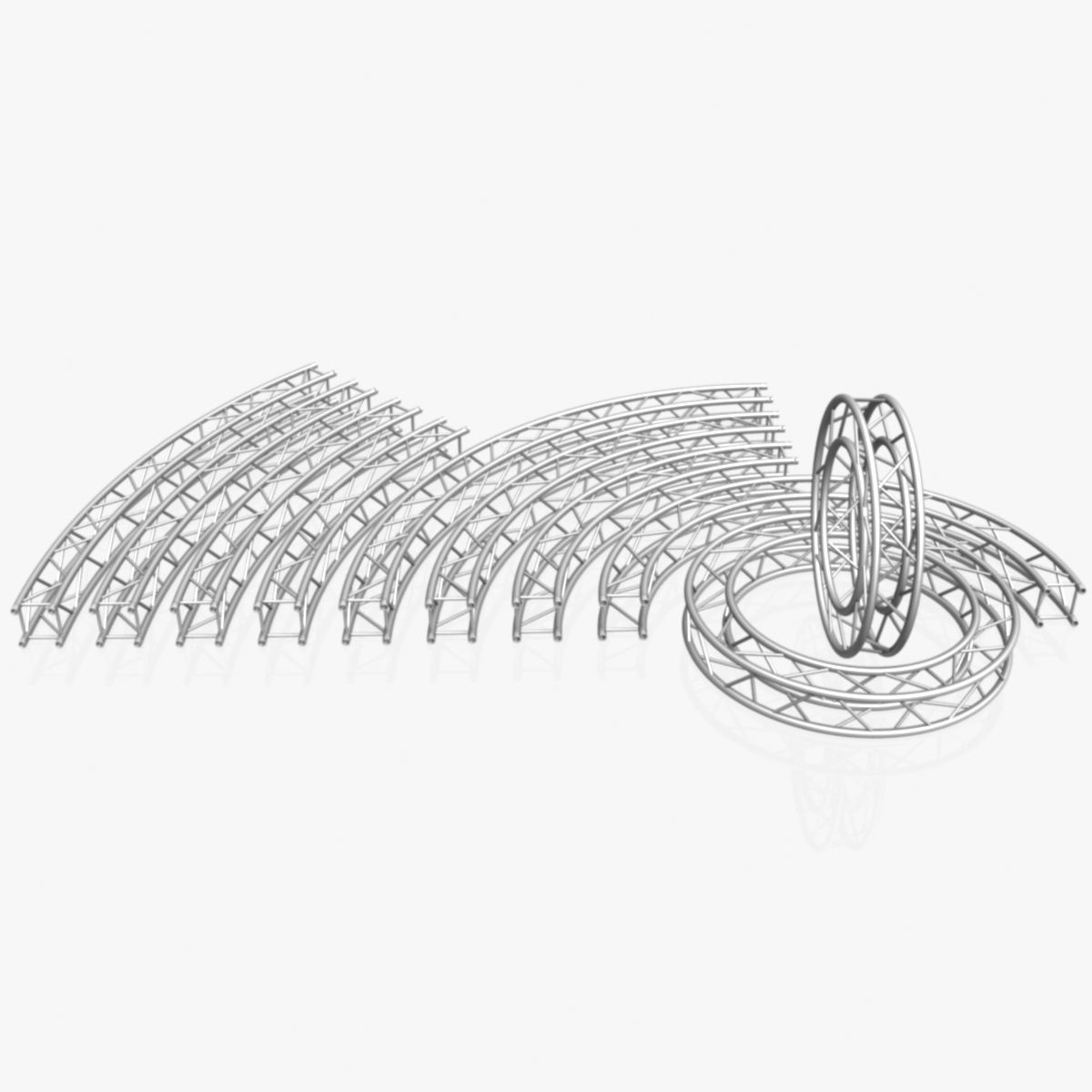

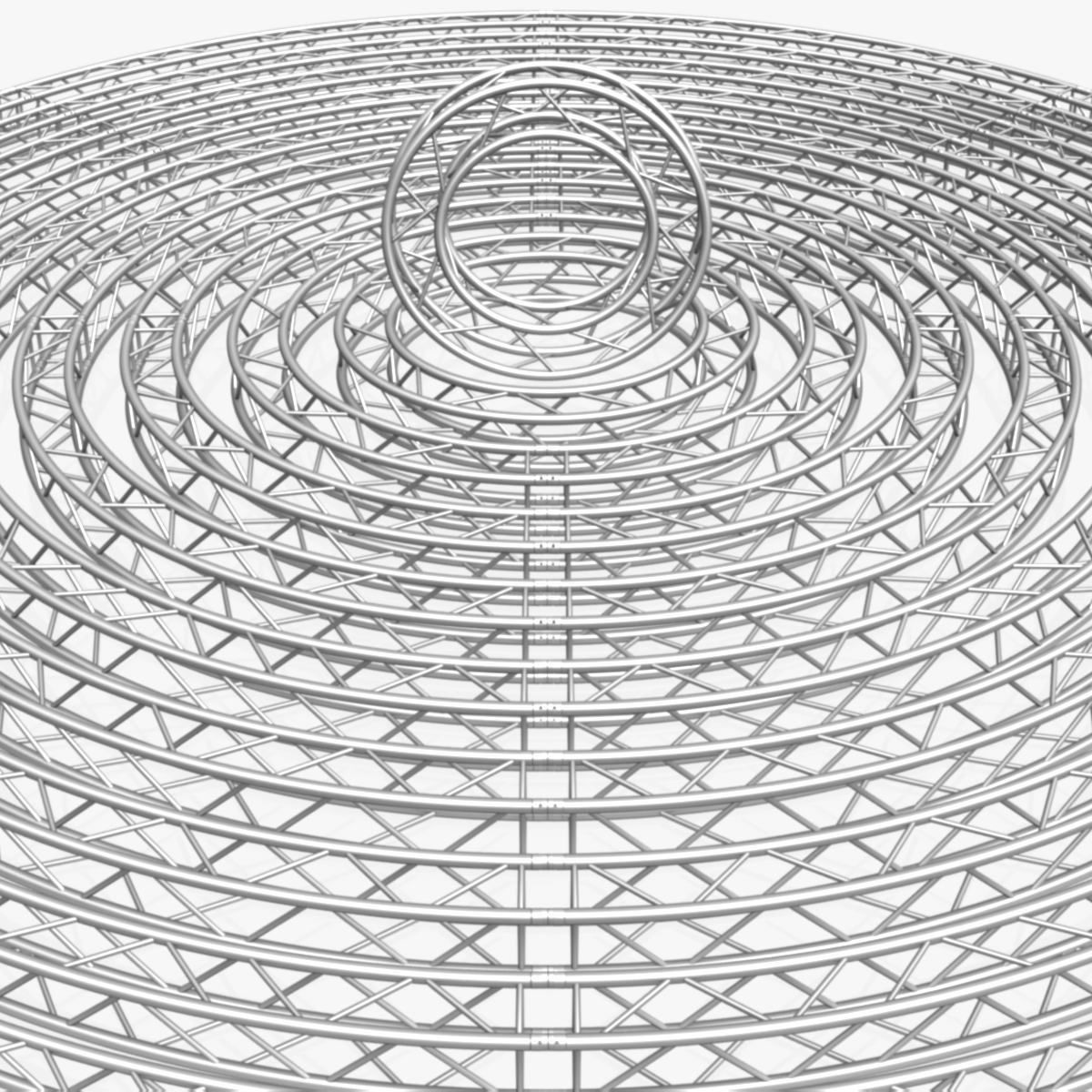

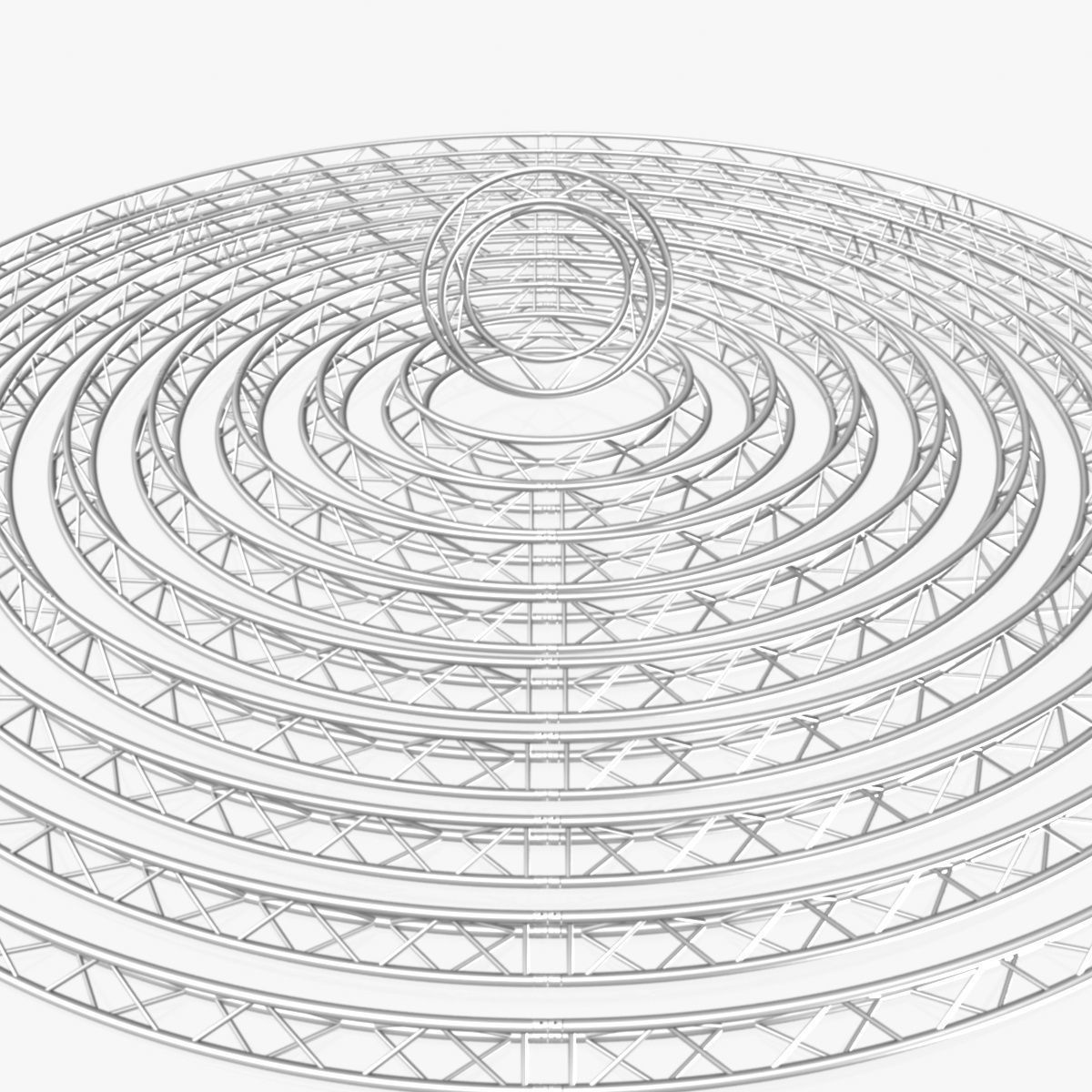

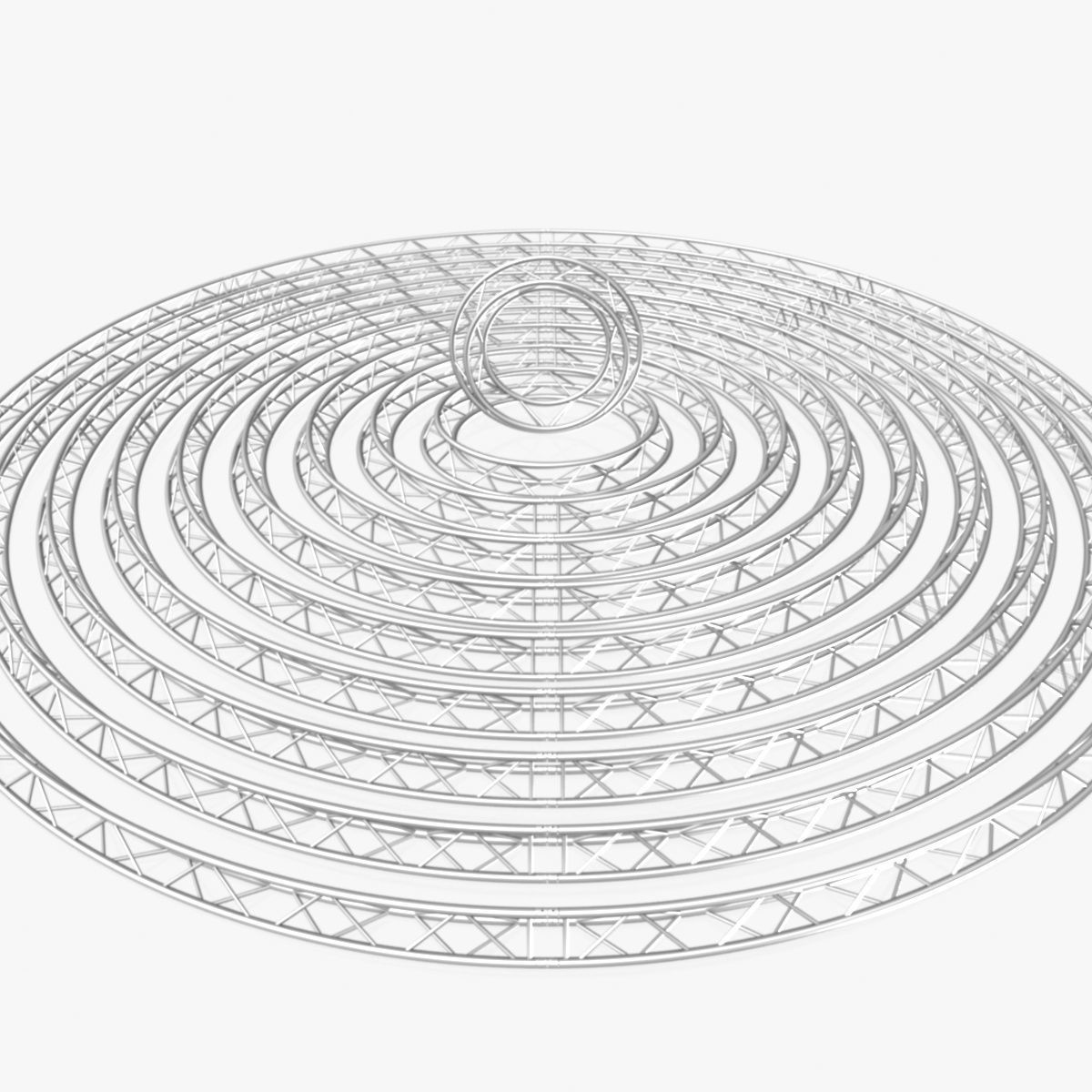

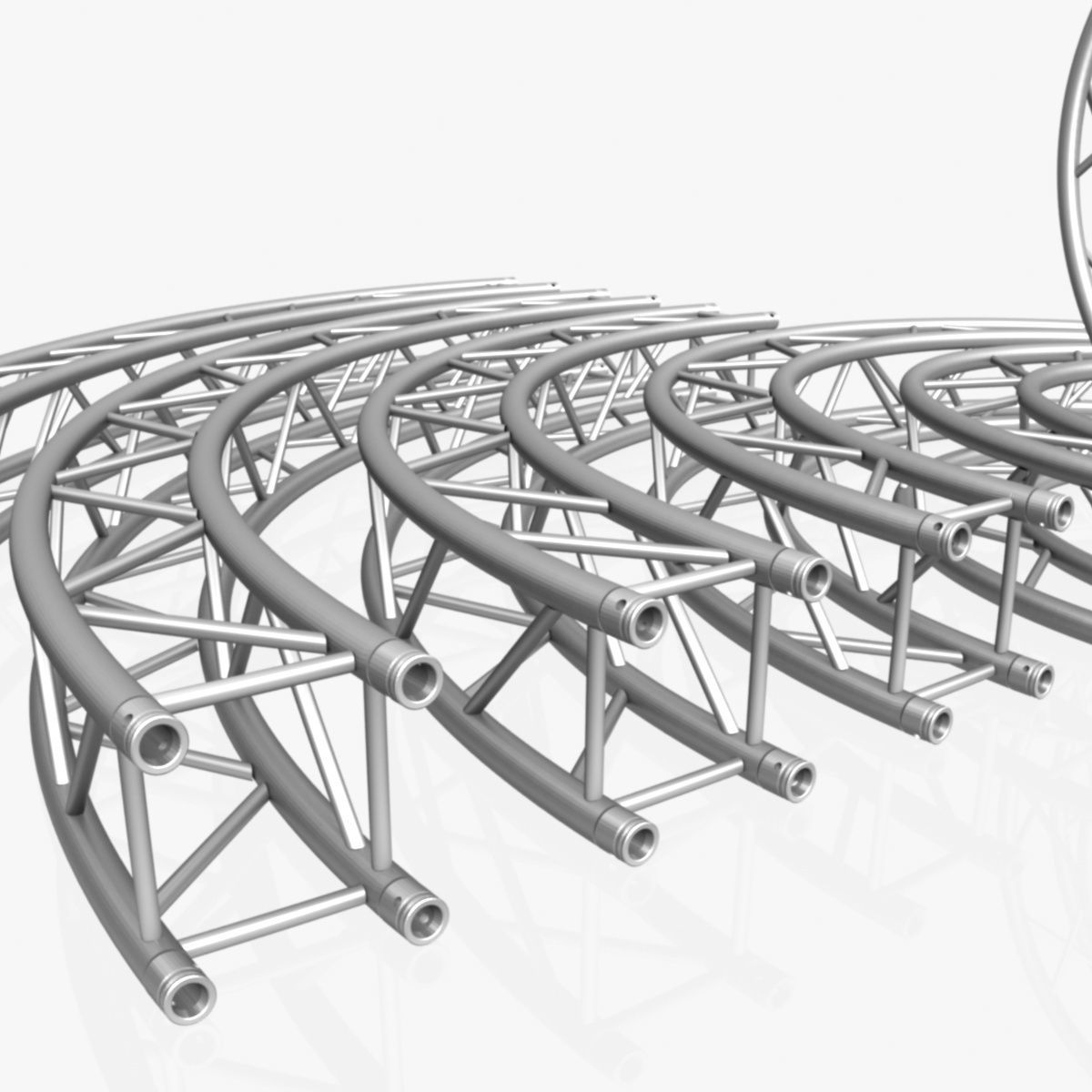

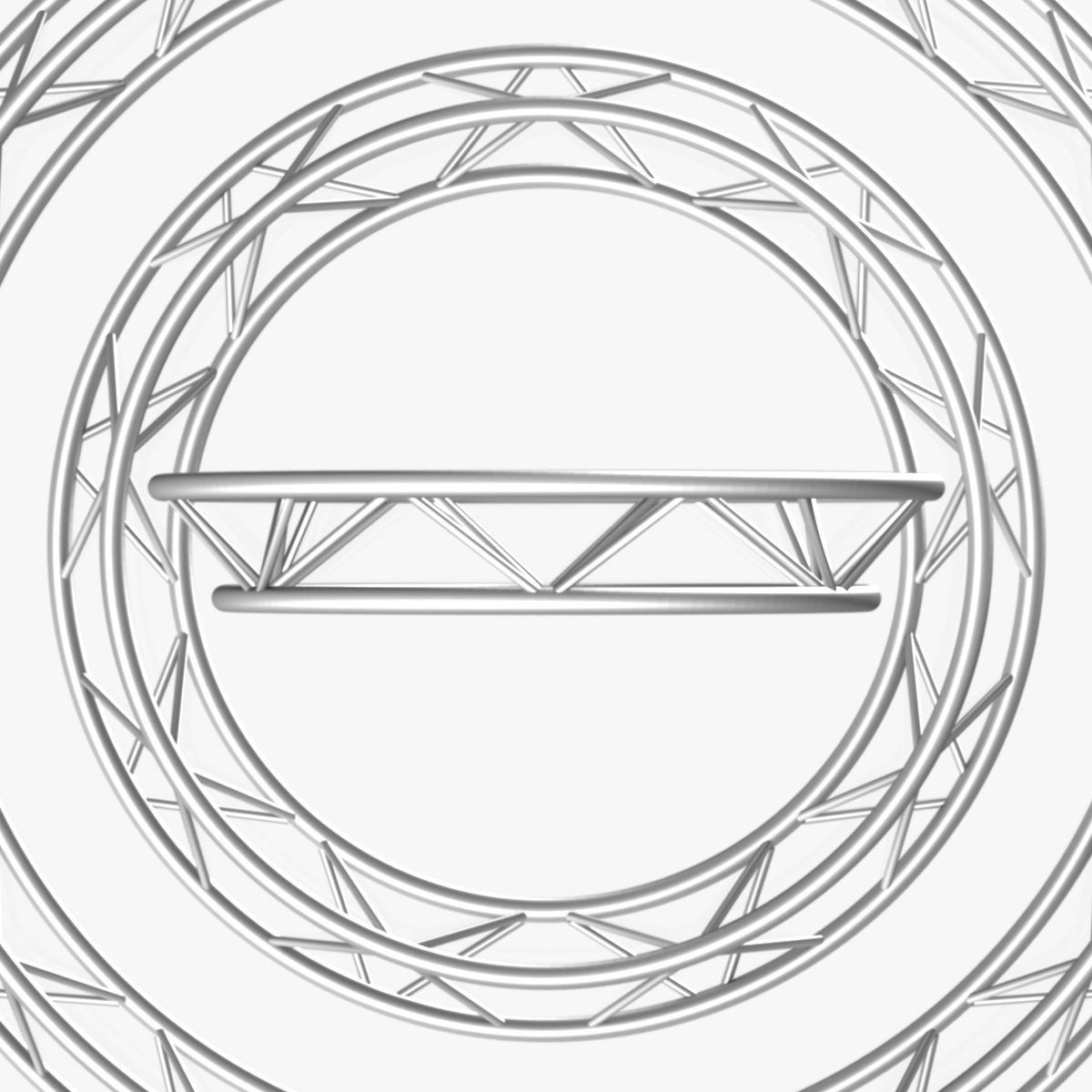

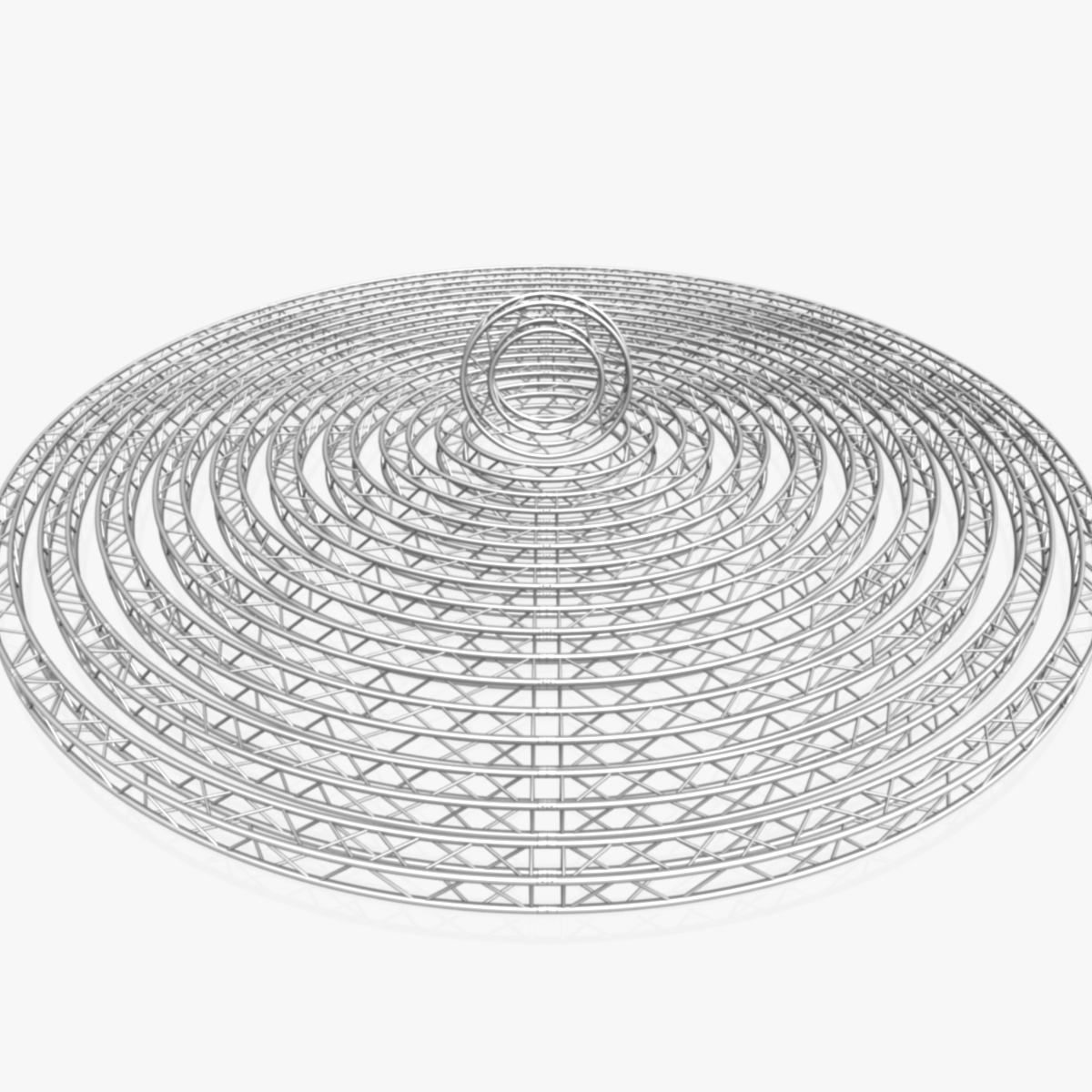

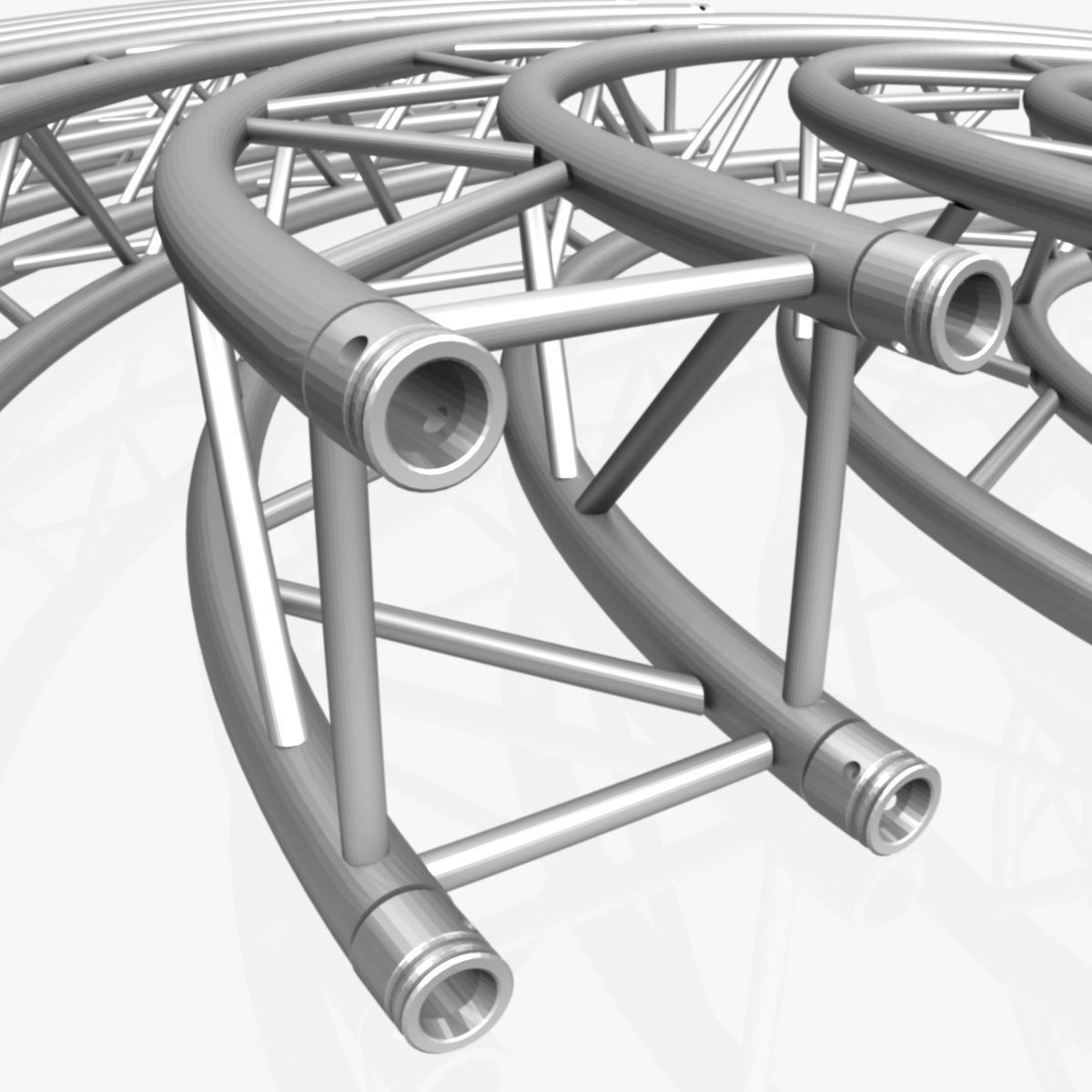

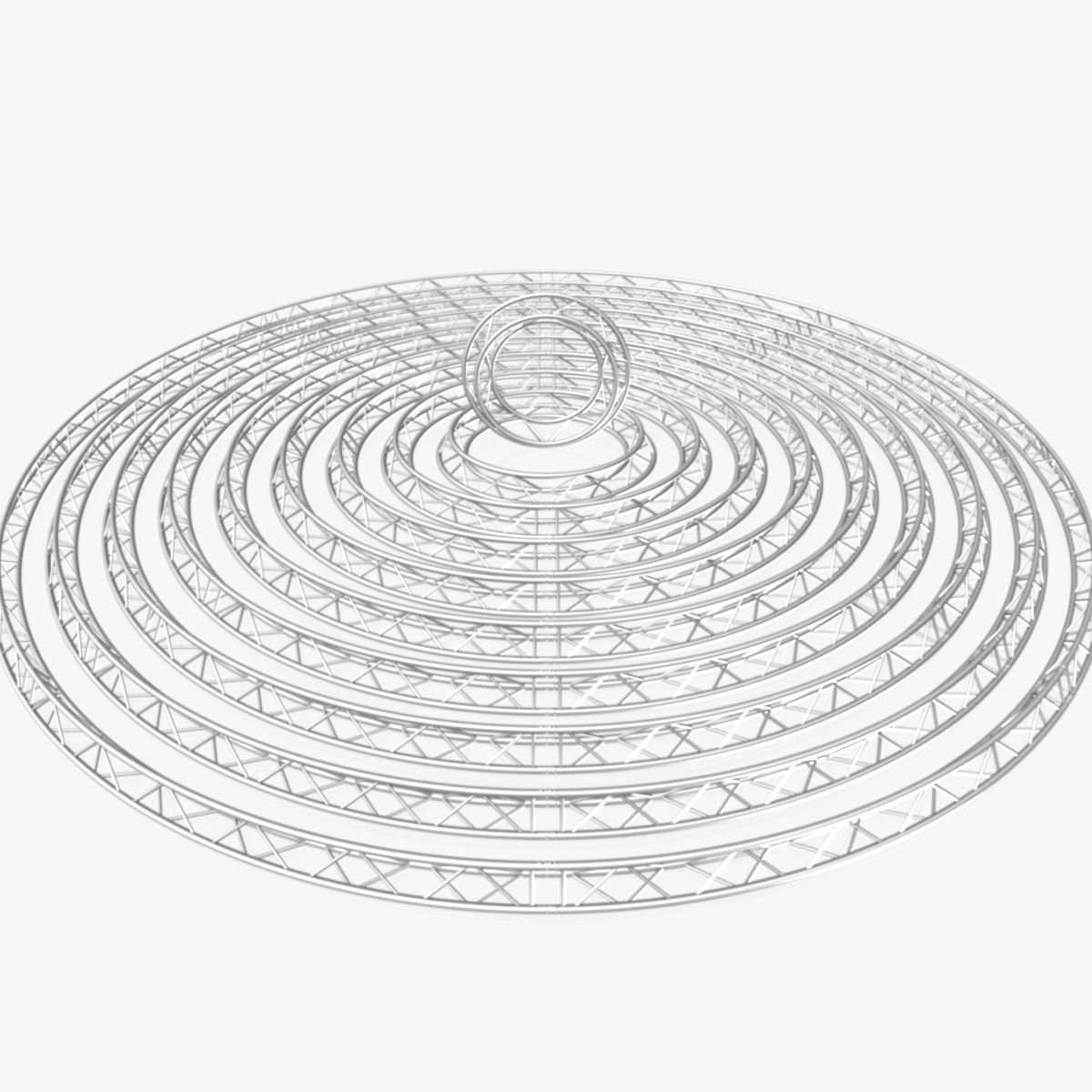

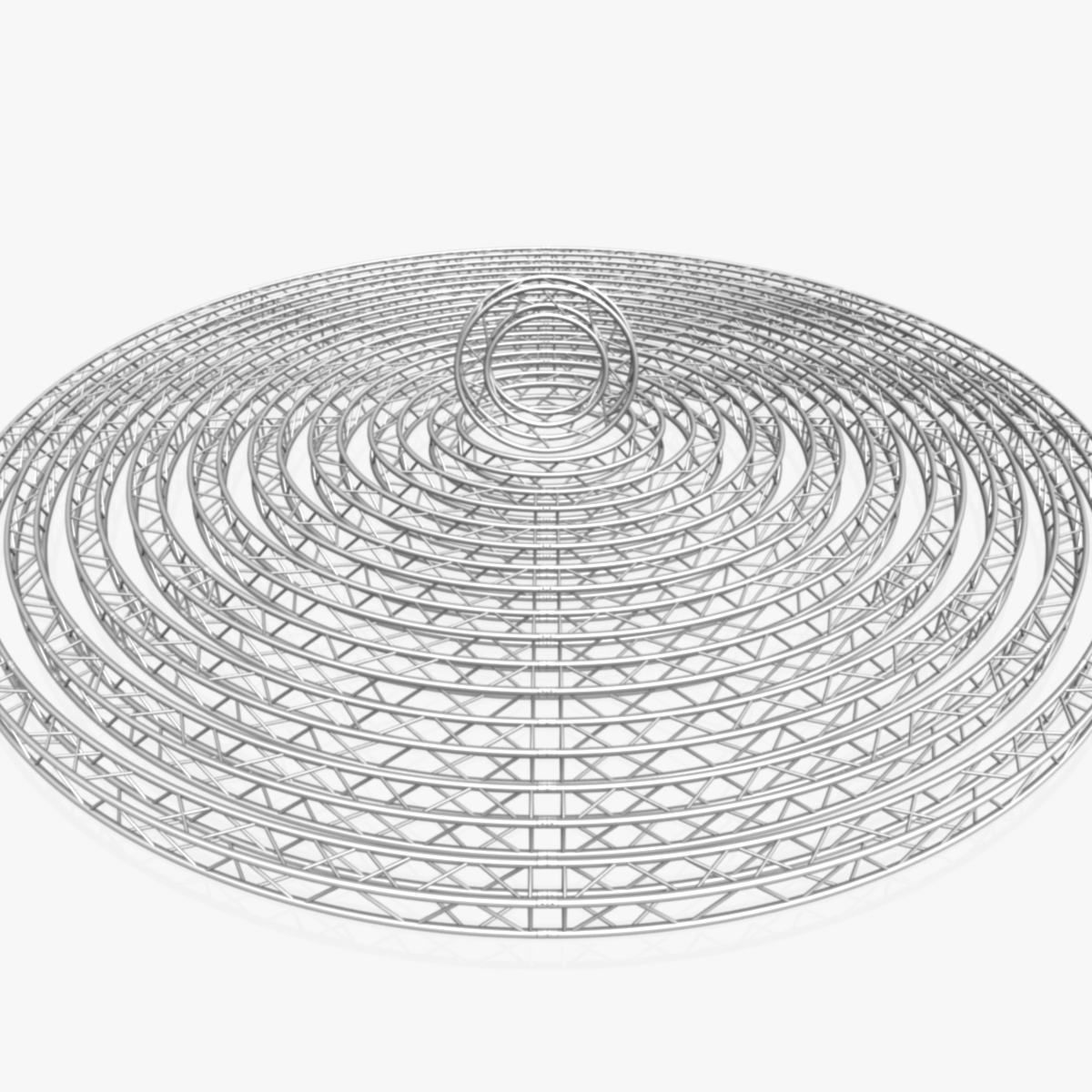

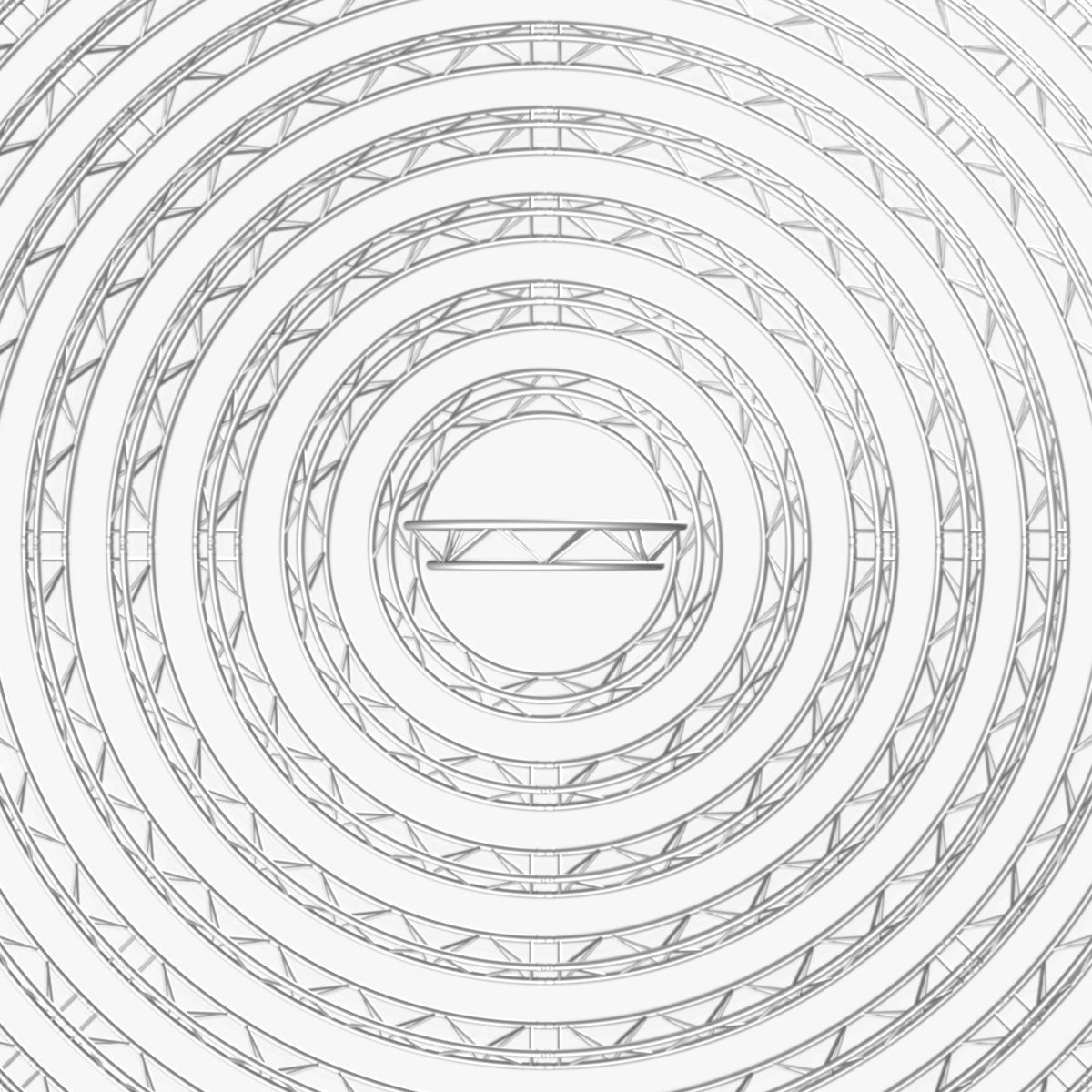

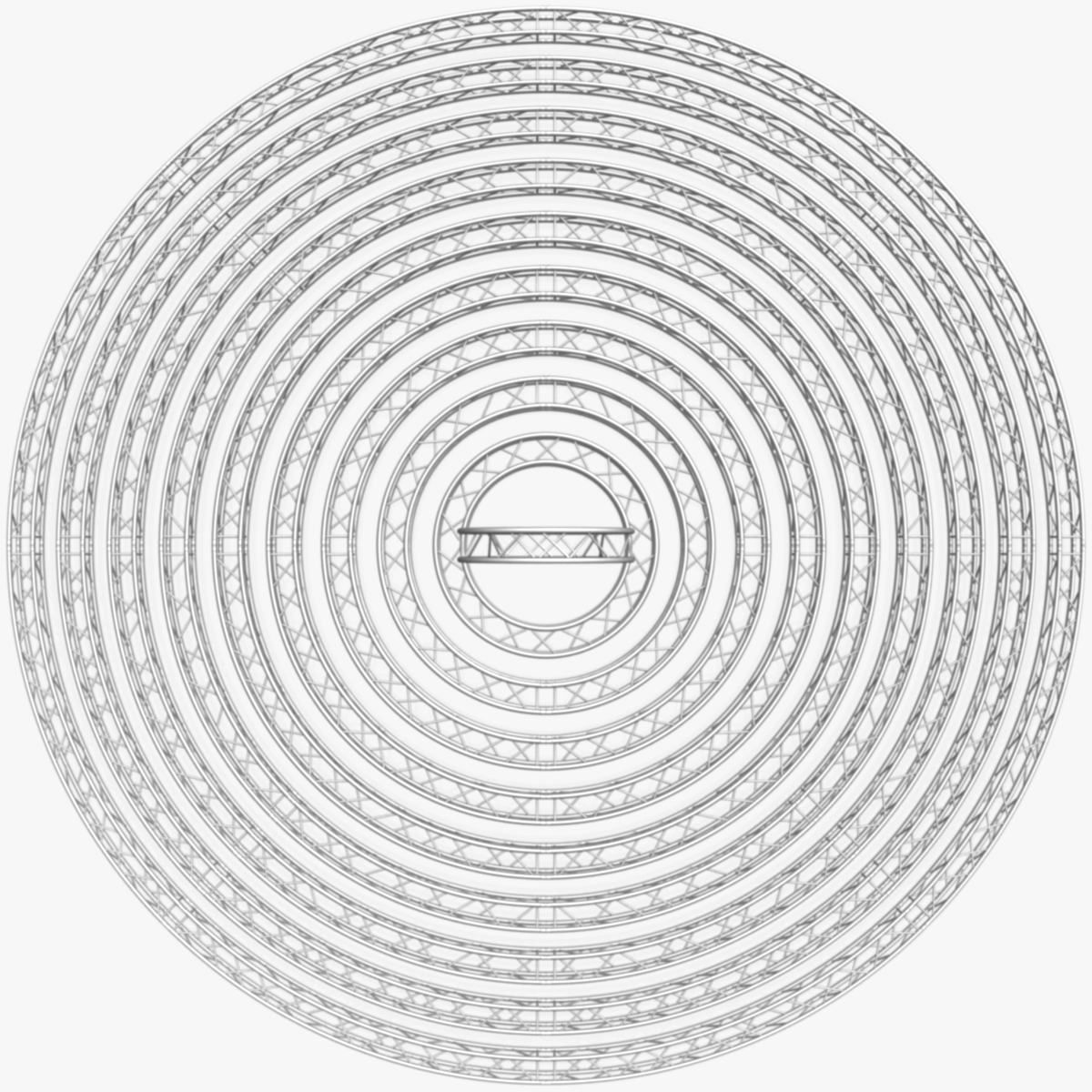

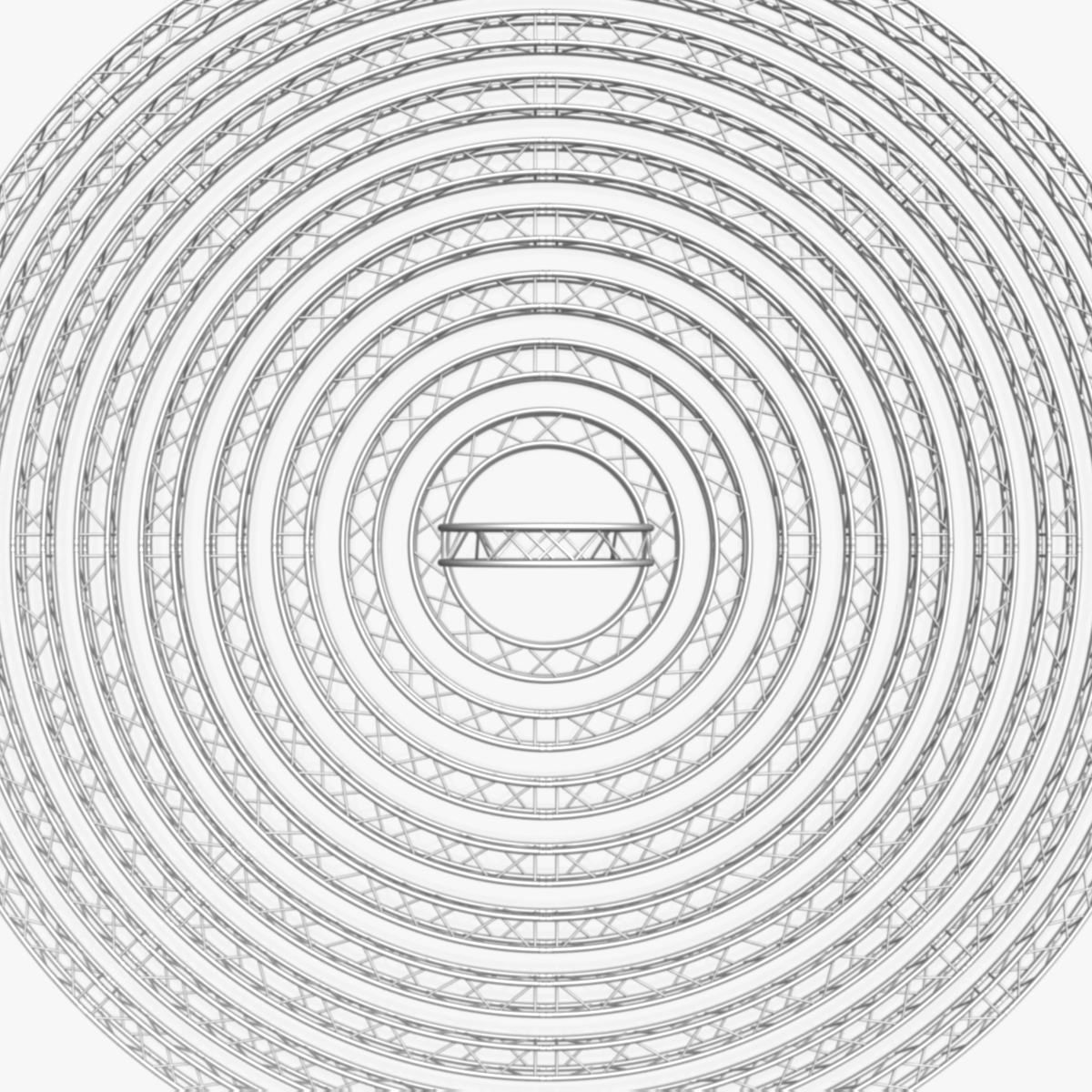

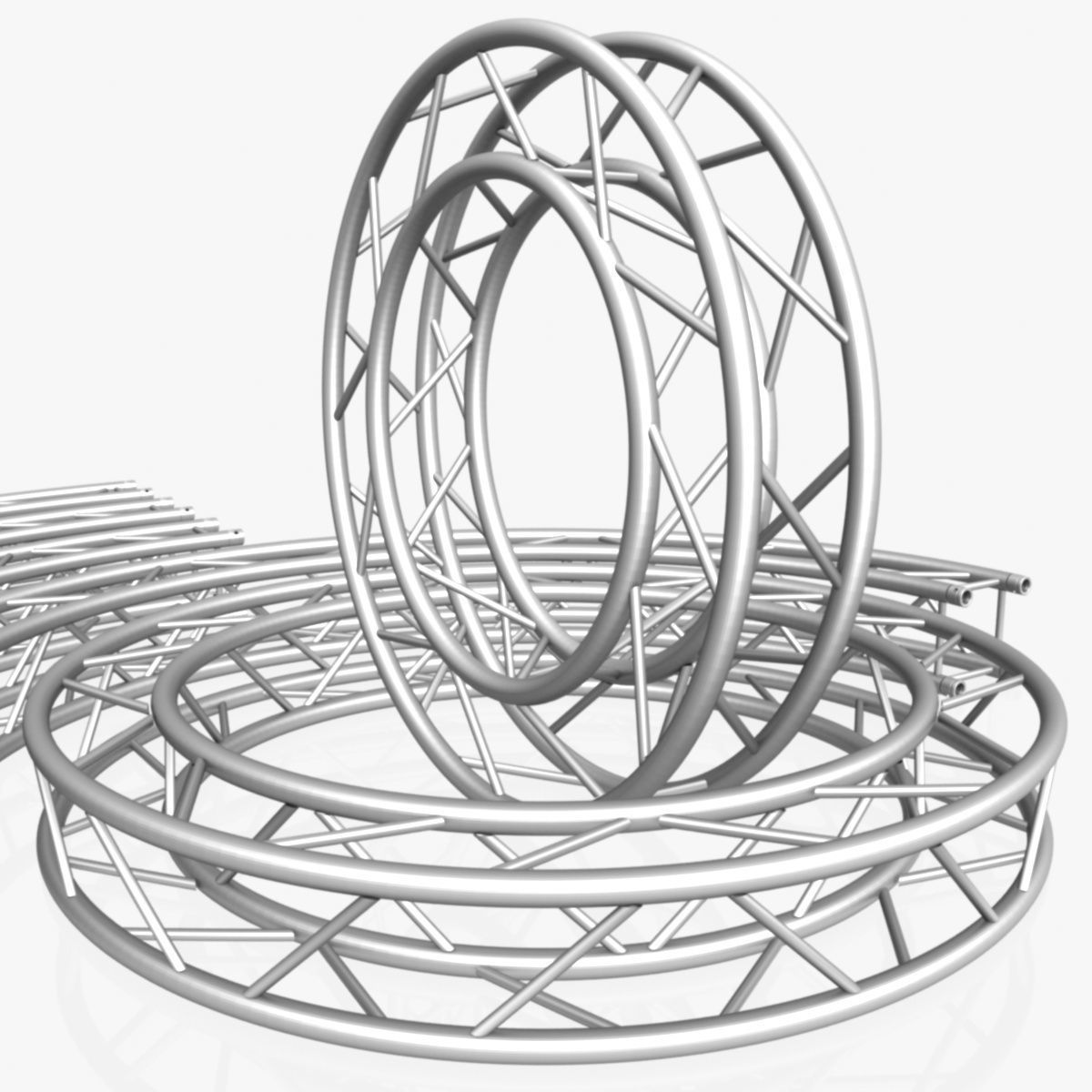

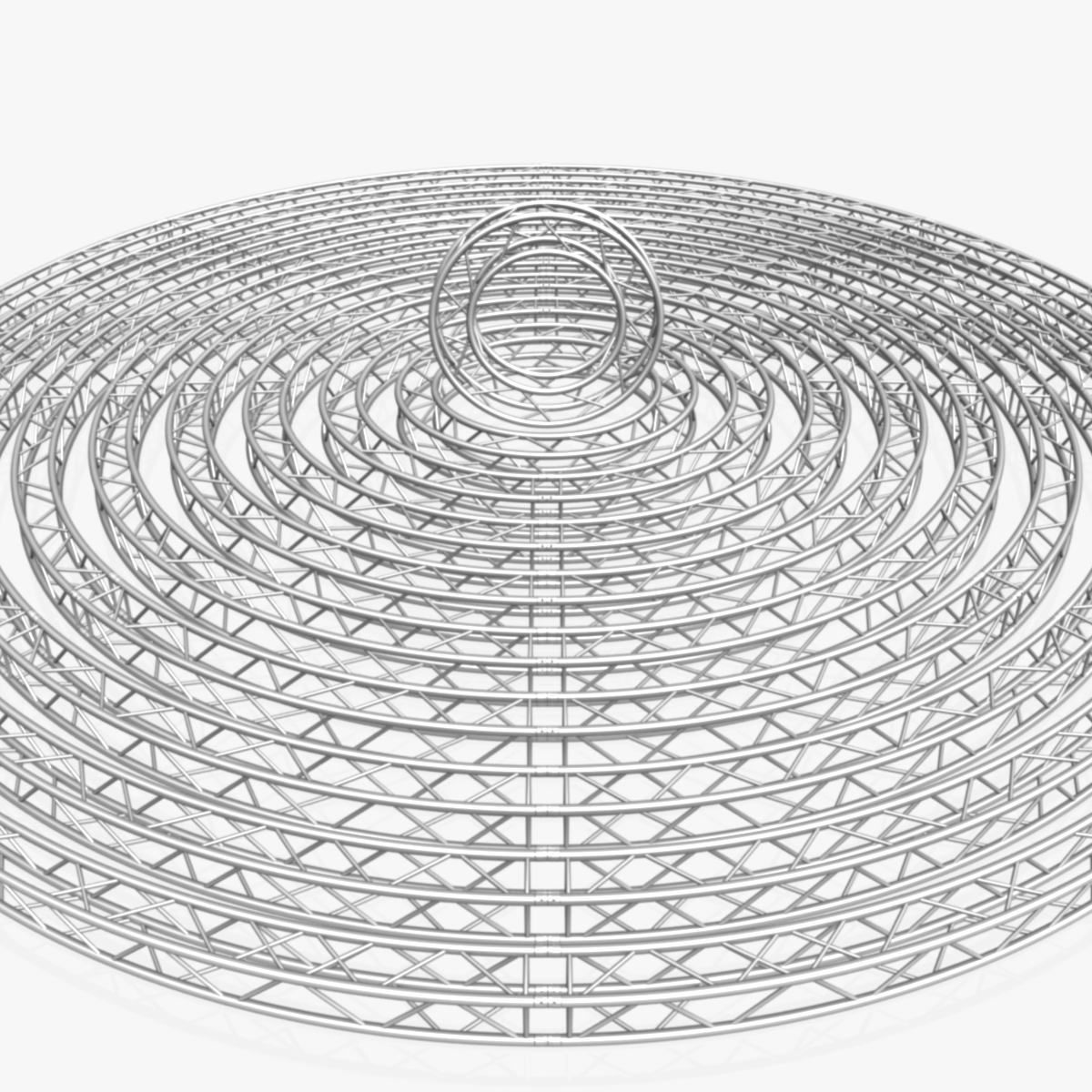

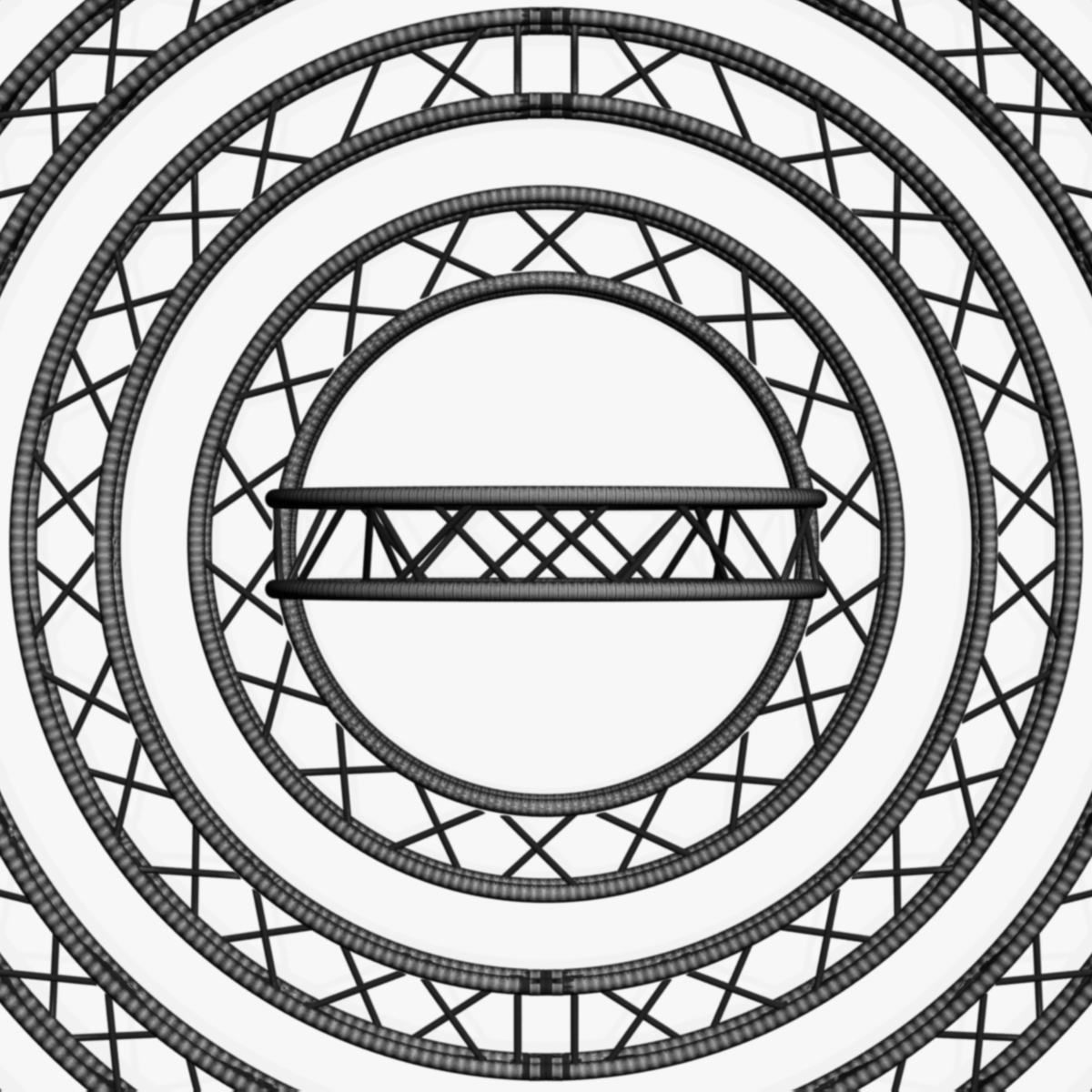

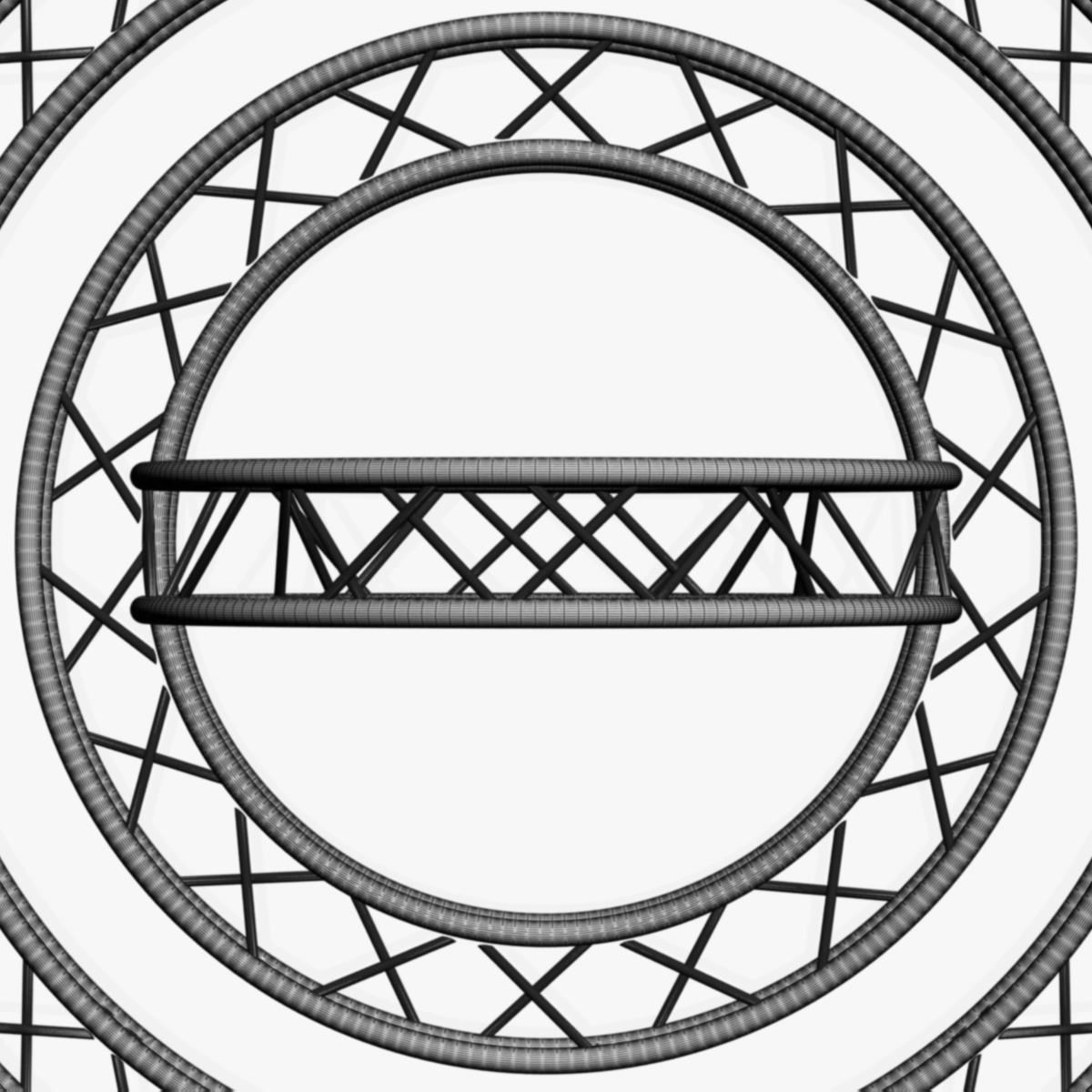

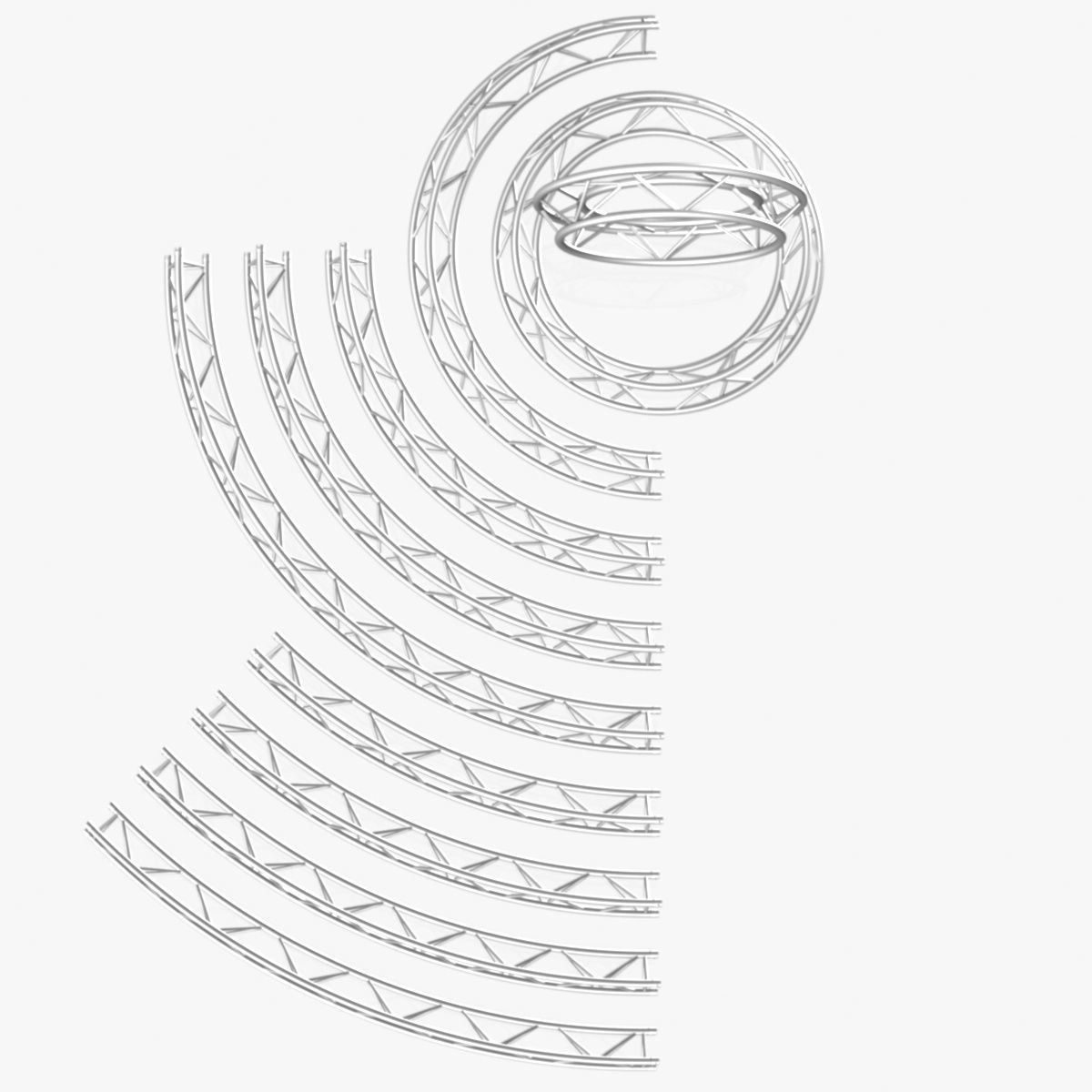

Circle Trusses:

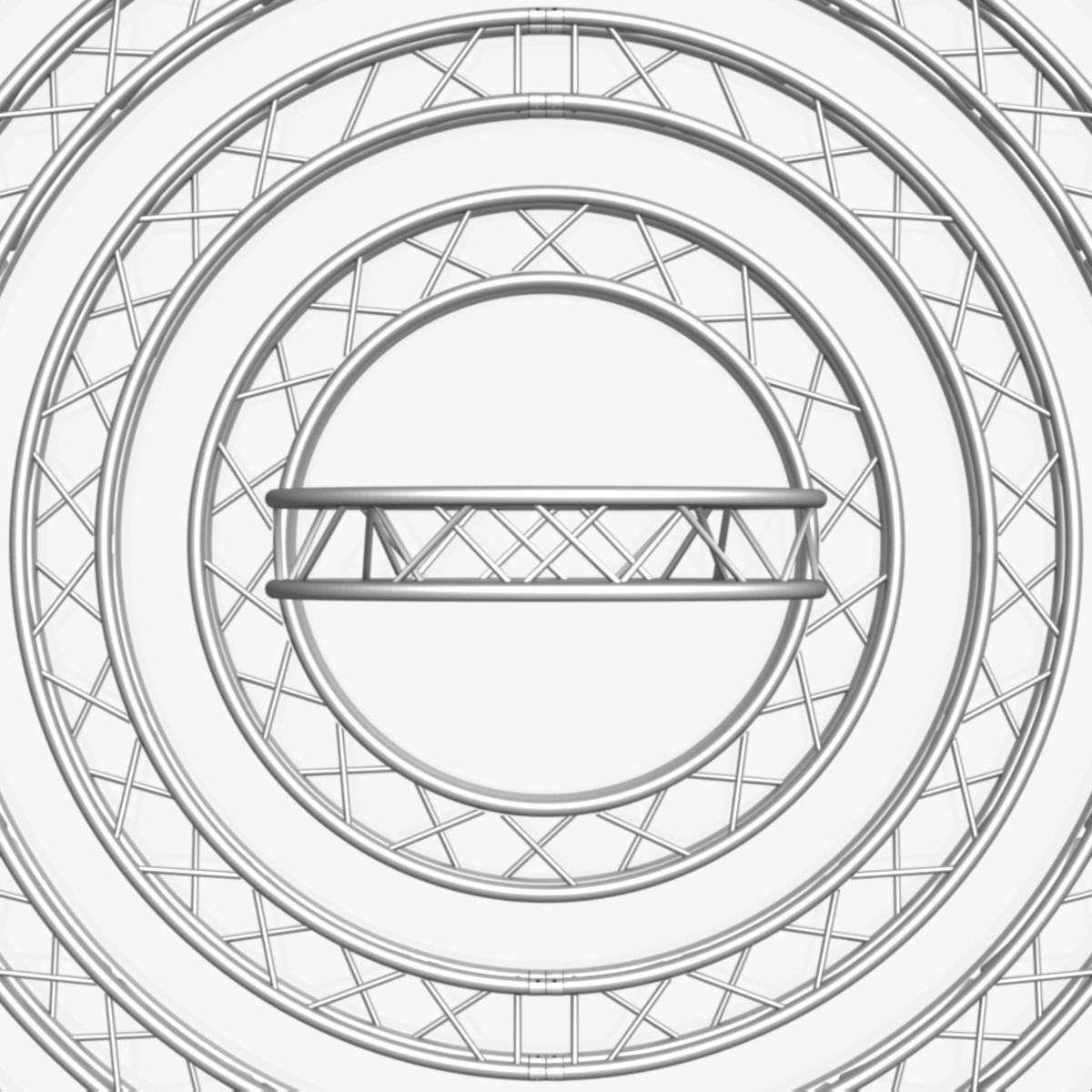

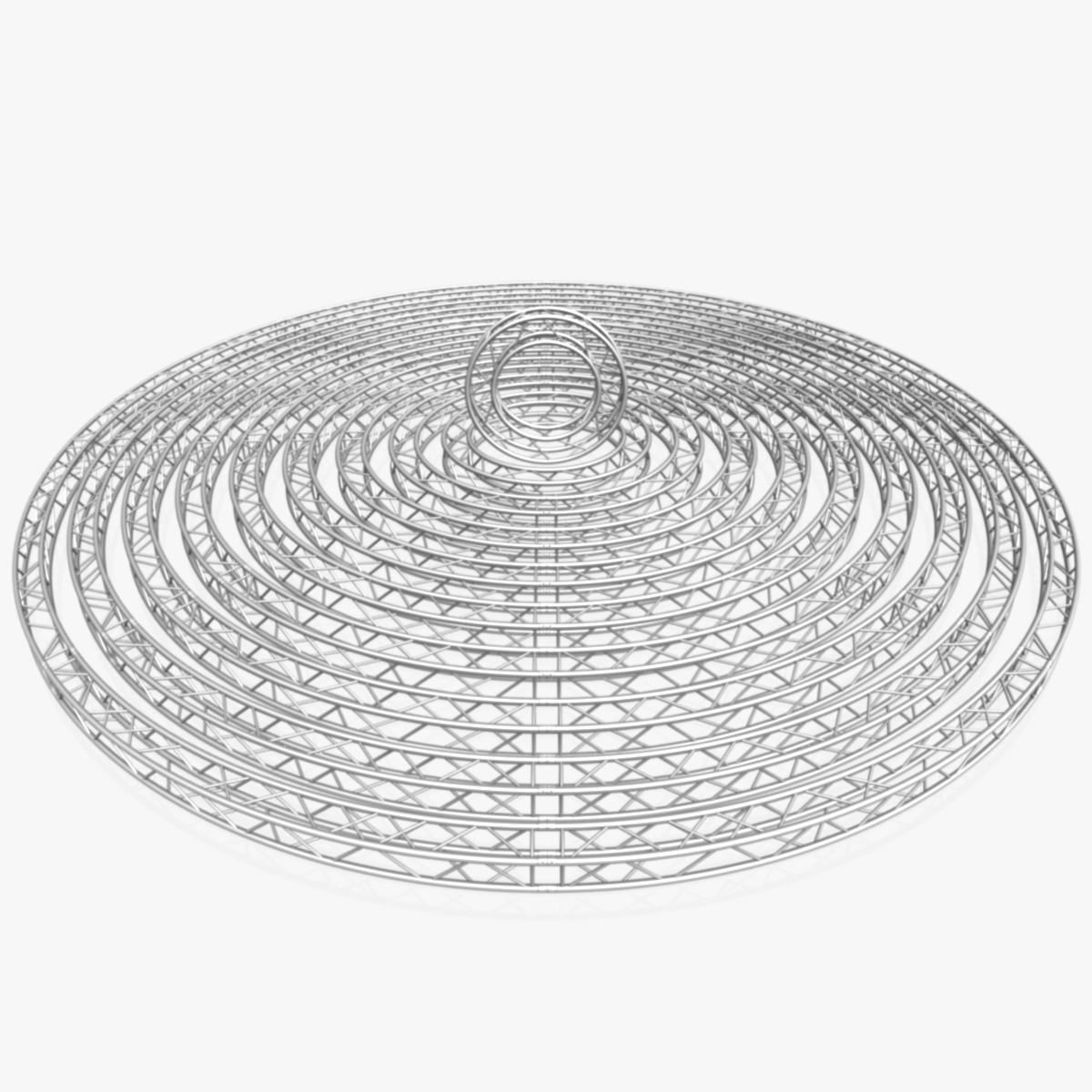

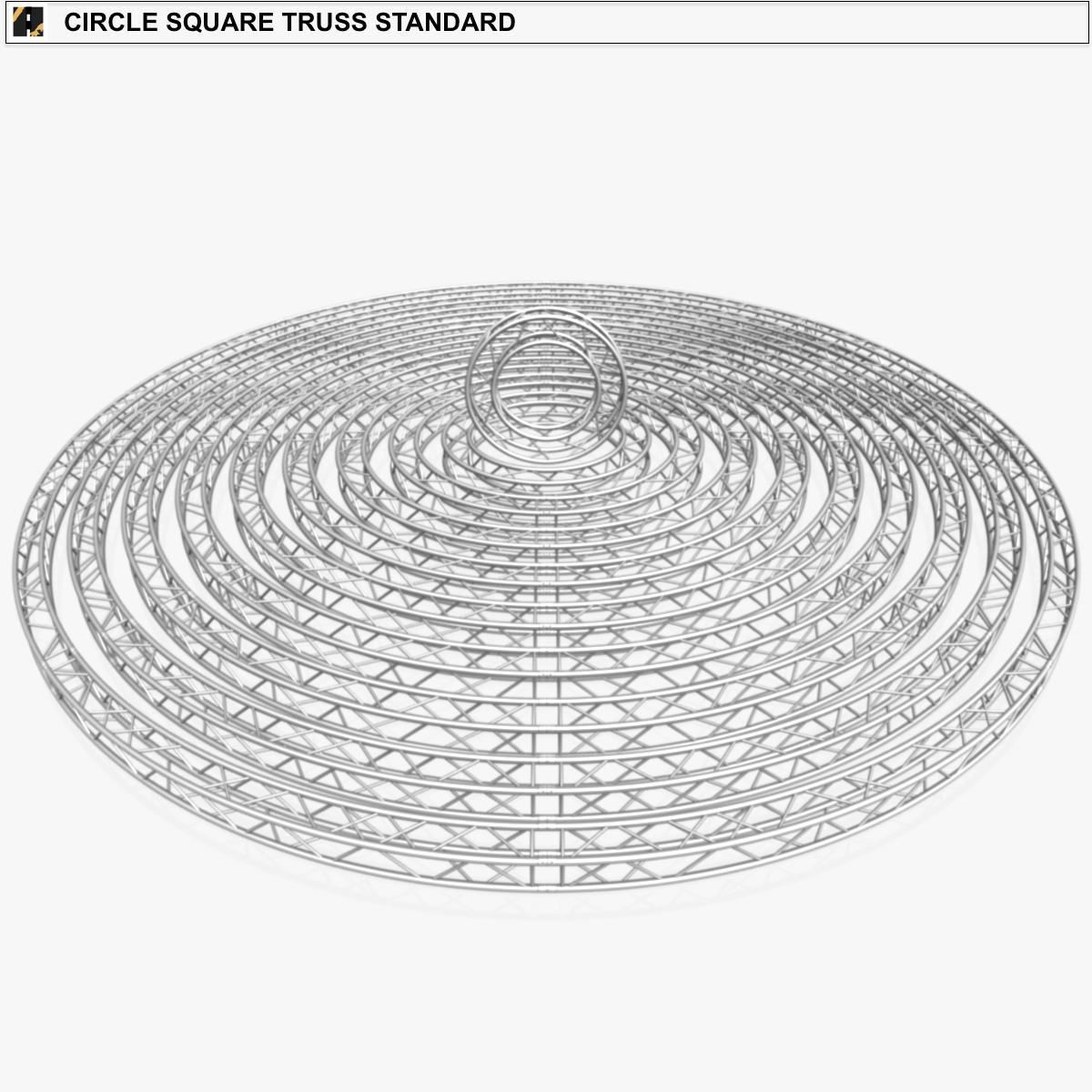

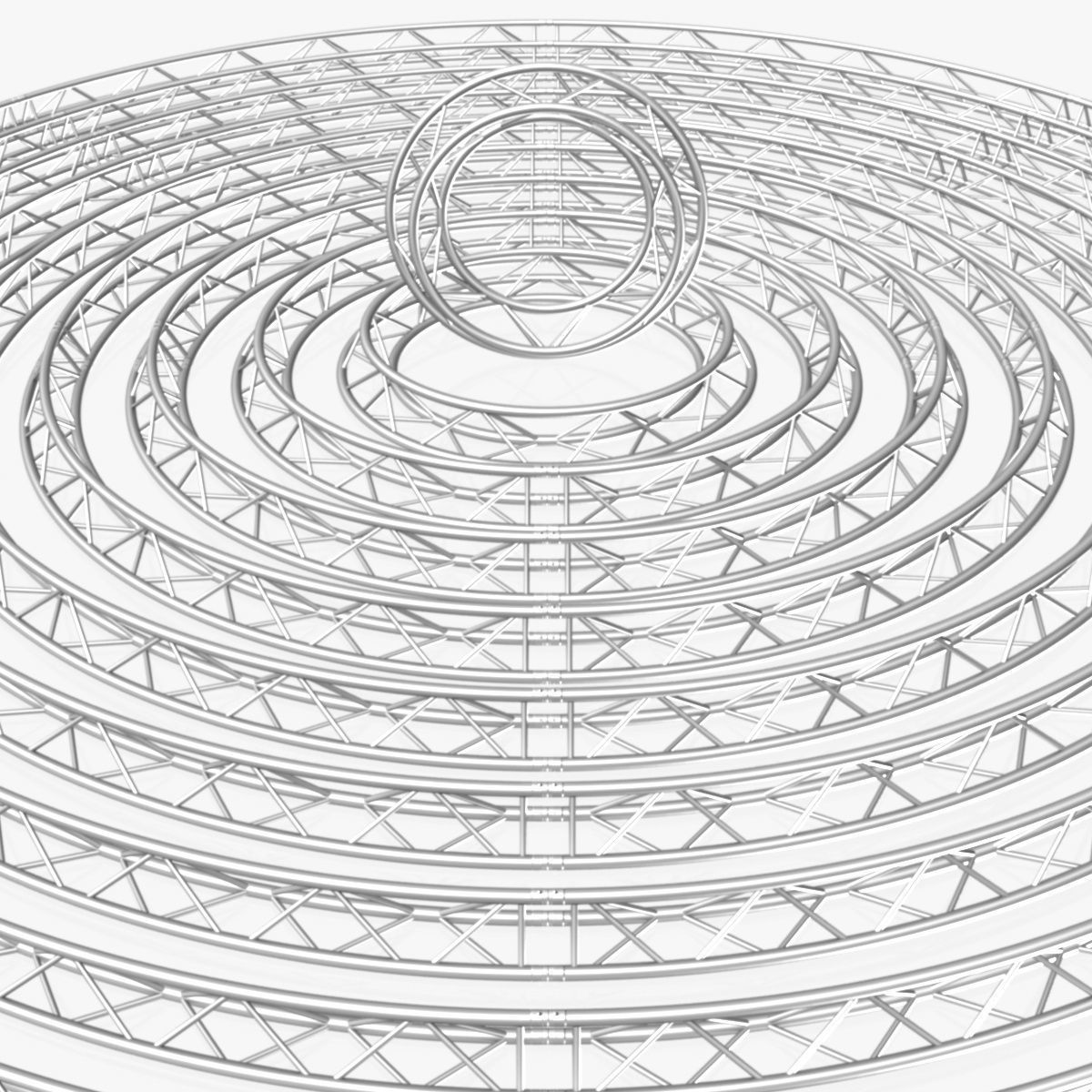

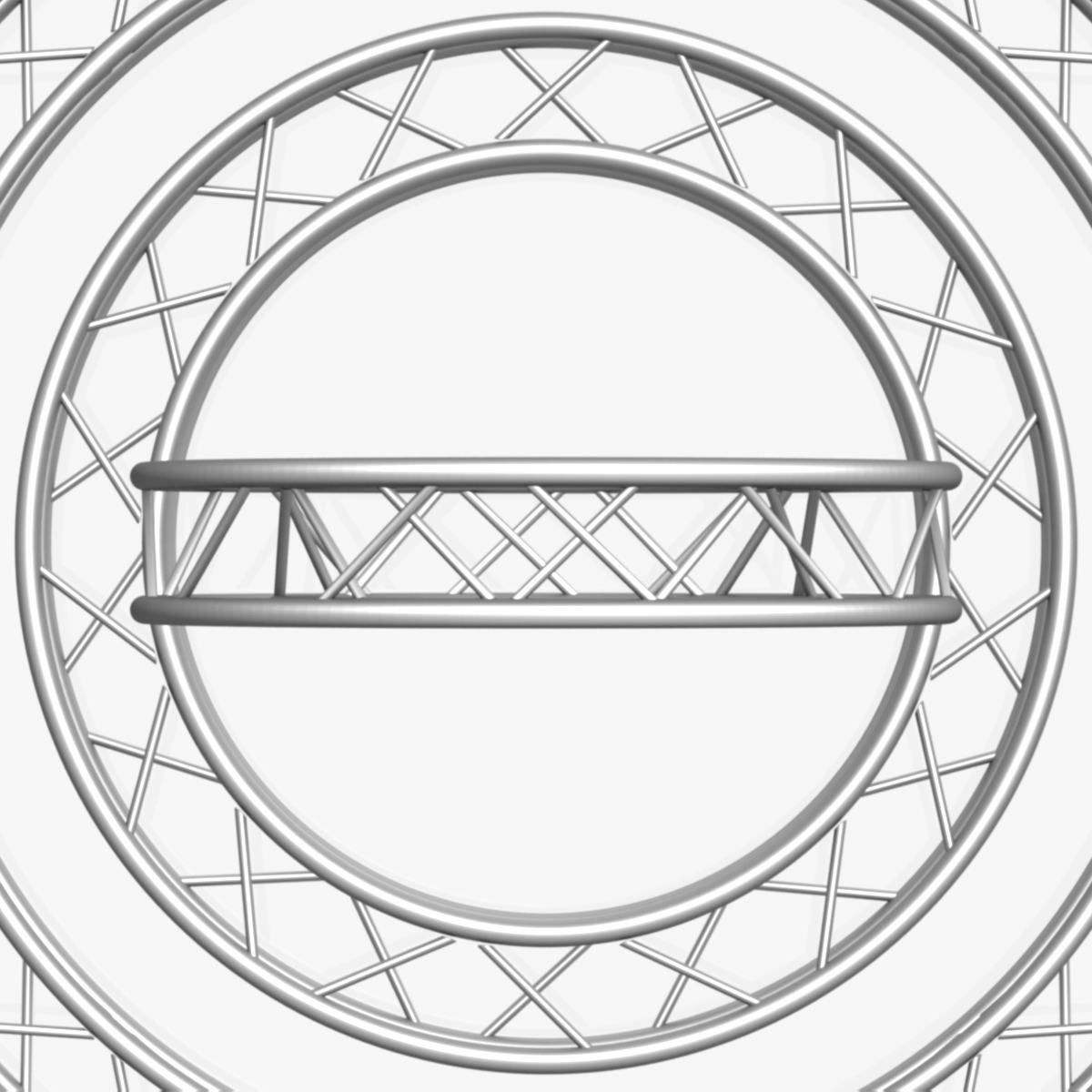

  • Circle Square Trusses Modular Collection 10 objects

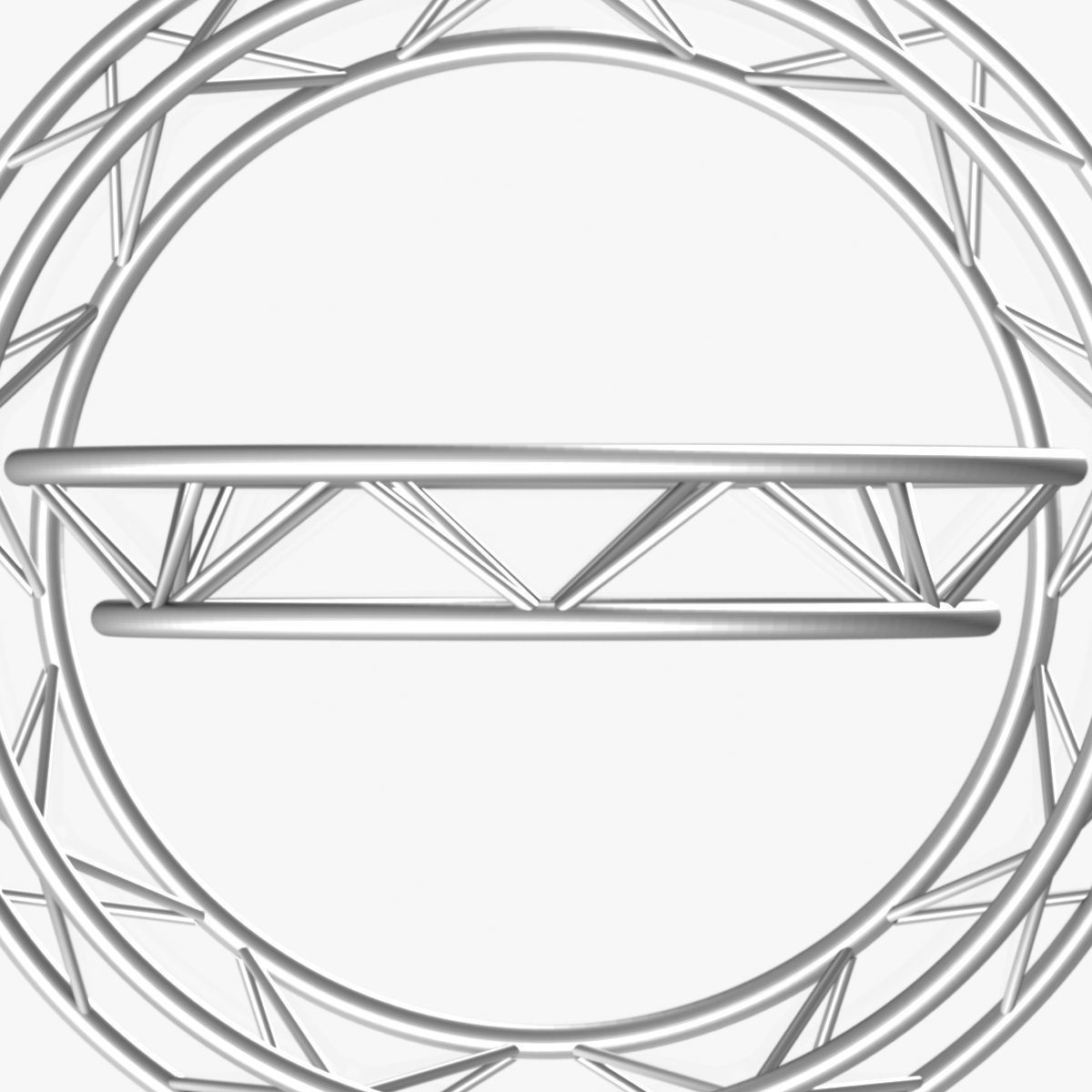

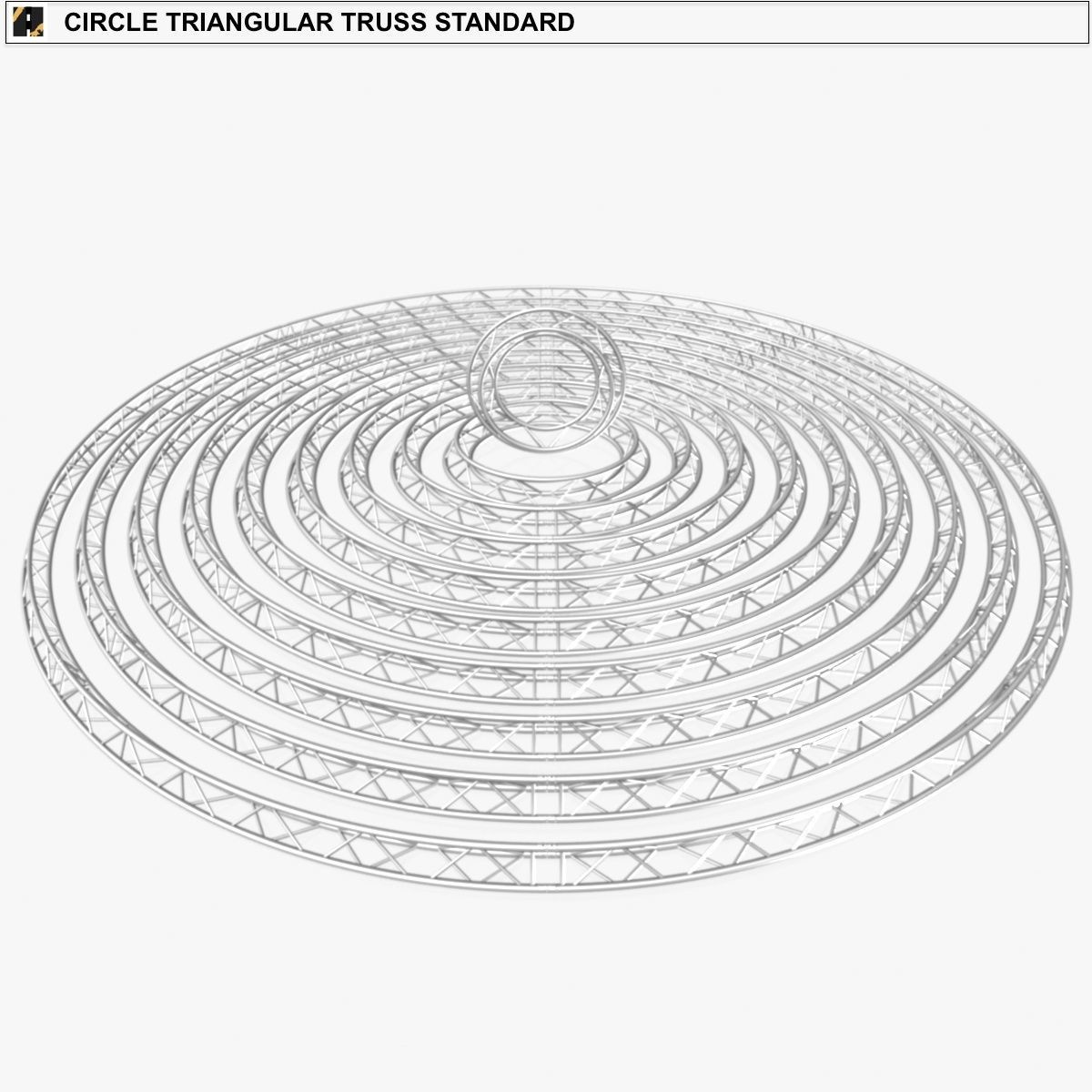

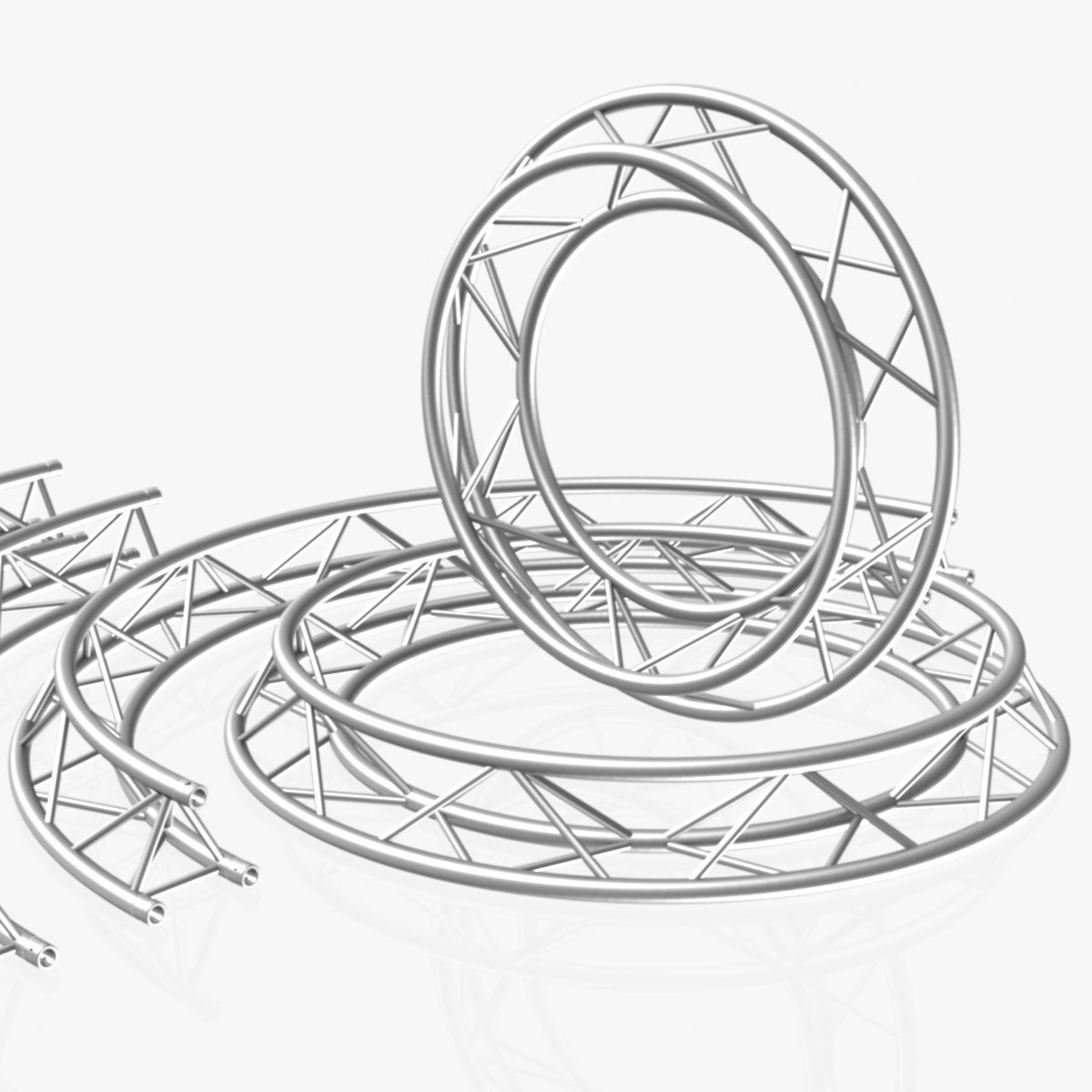

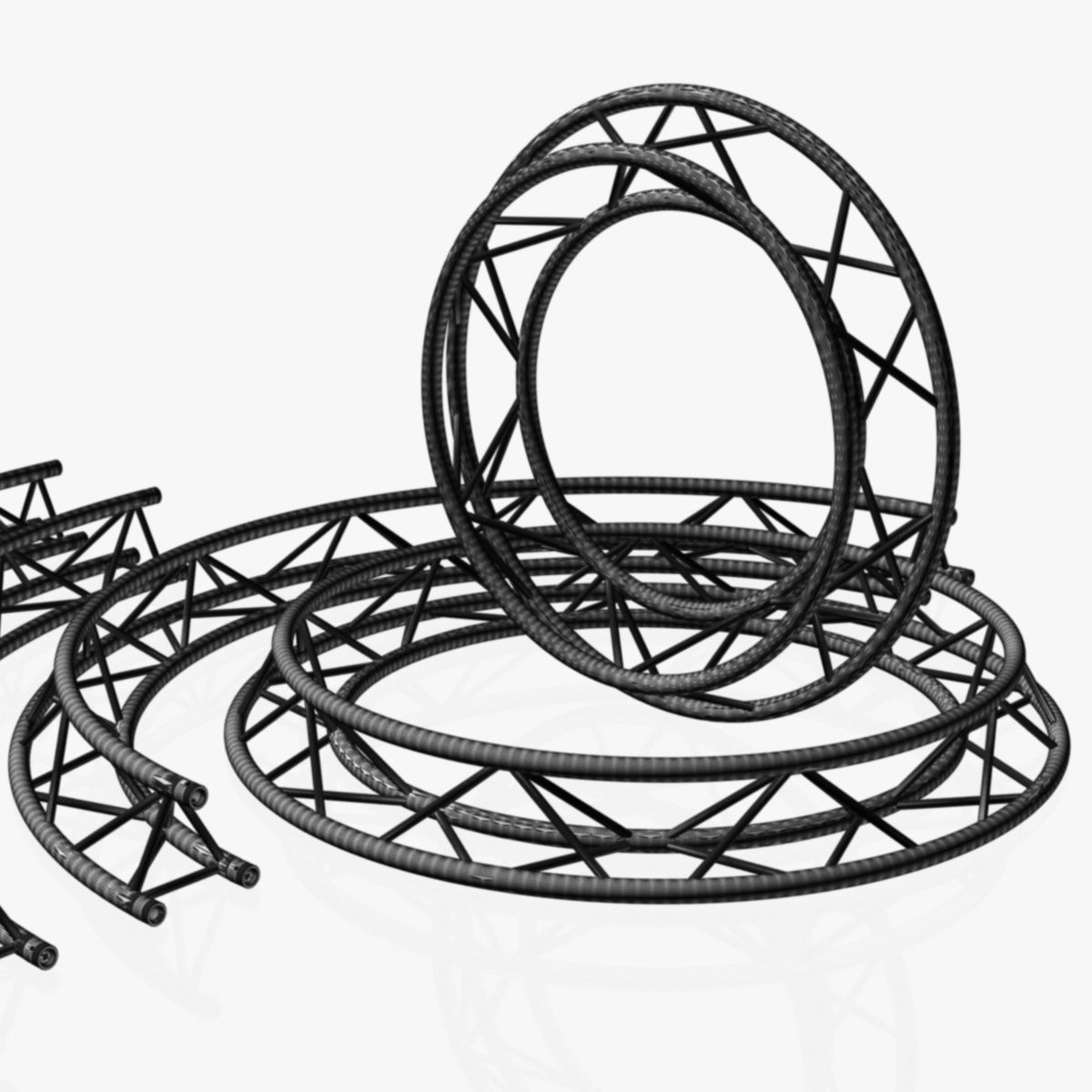

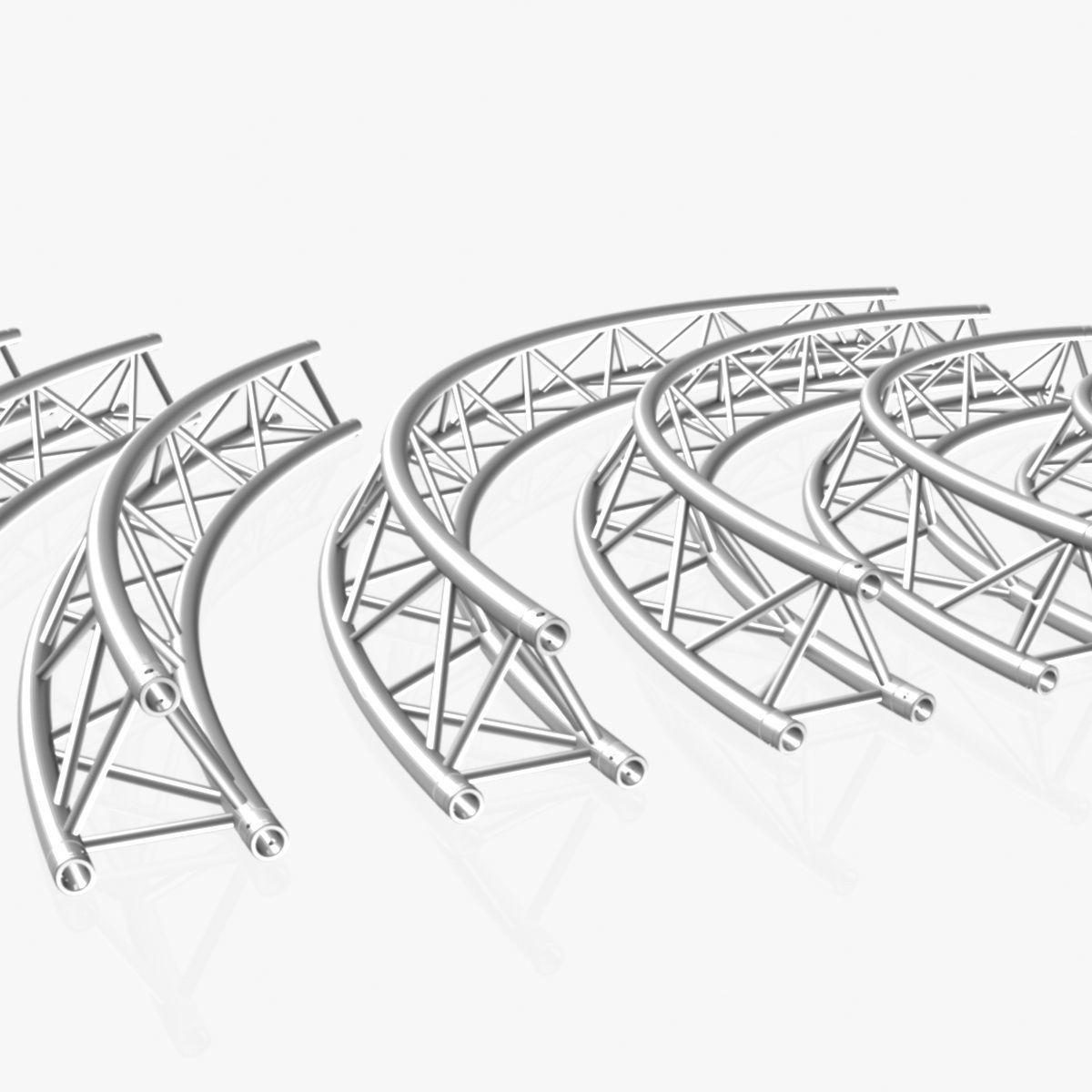

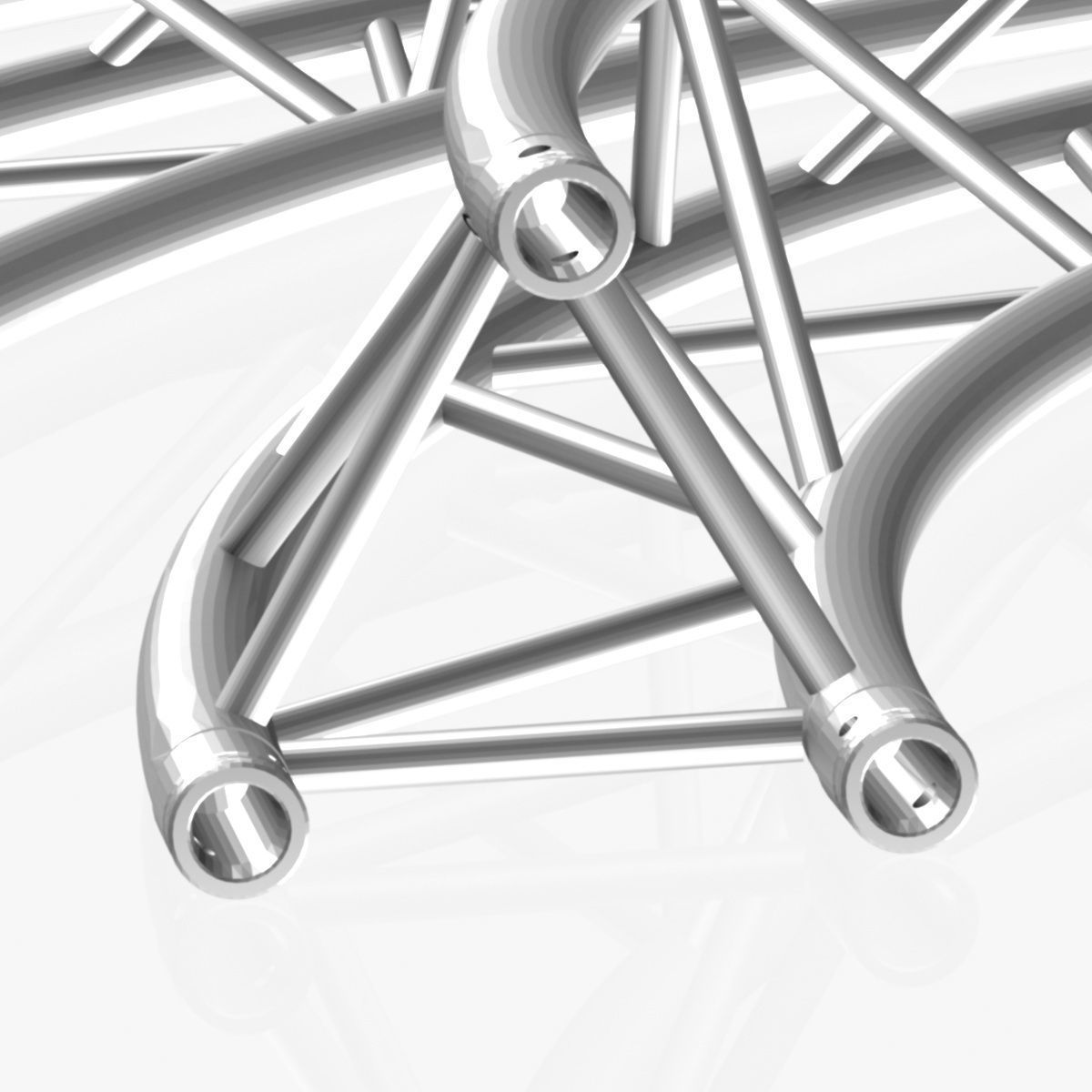

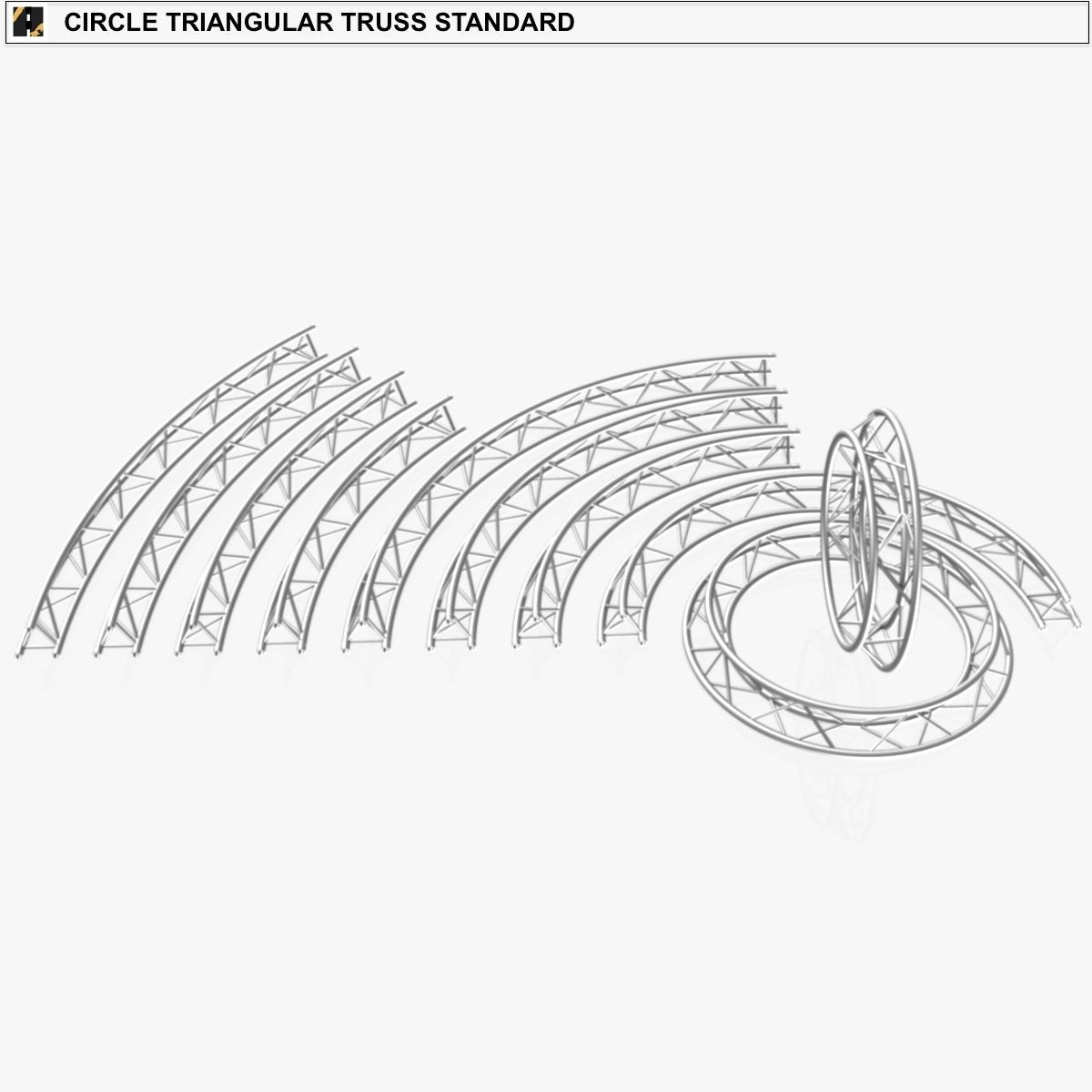

  • Circle Triangular Trusses Modular Collection 10 objects

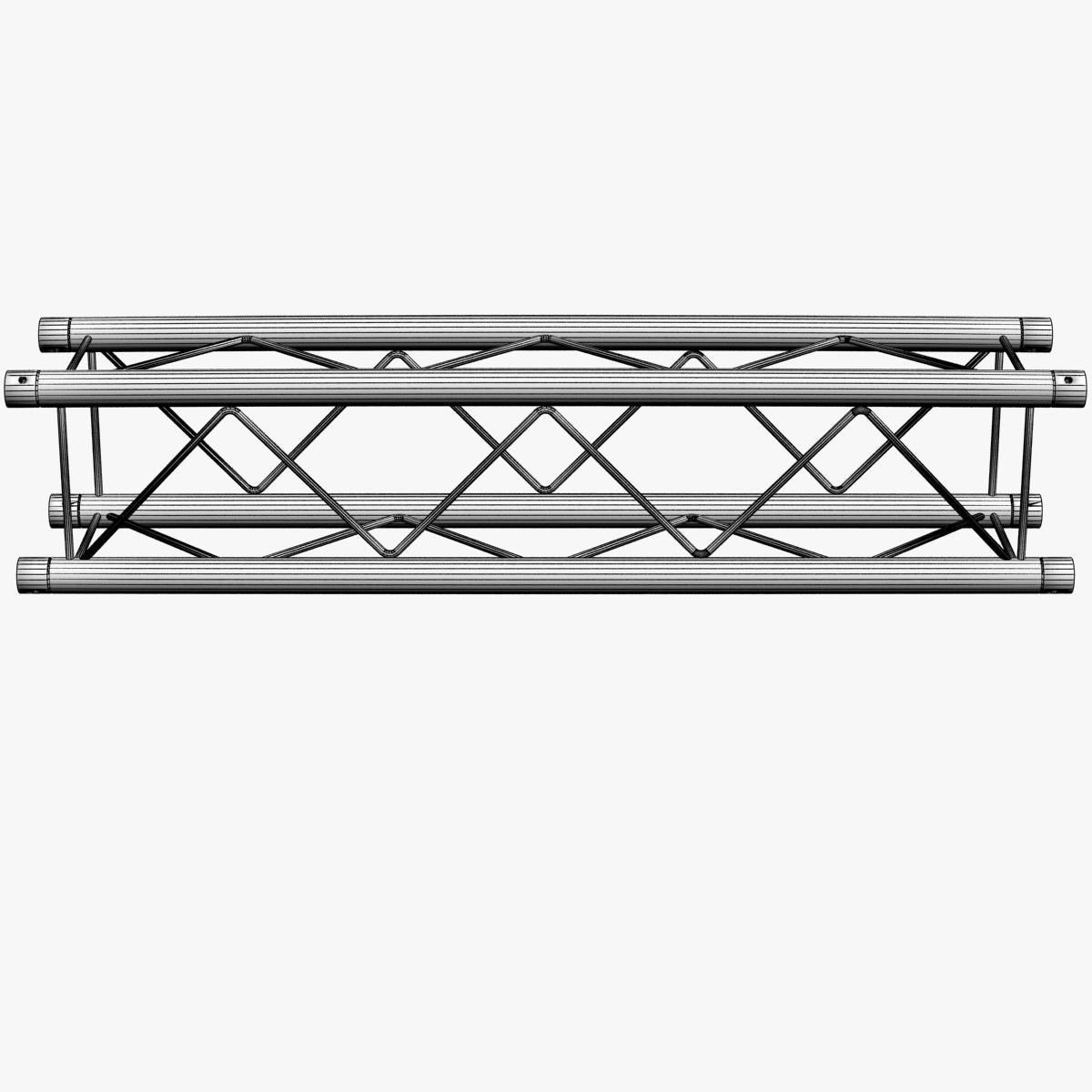

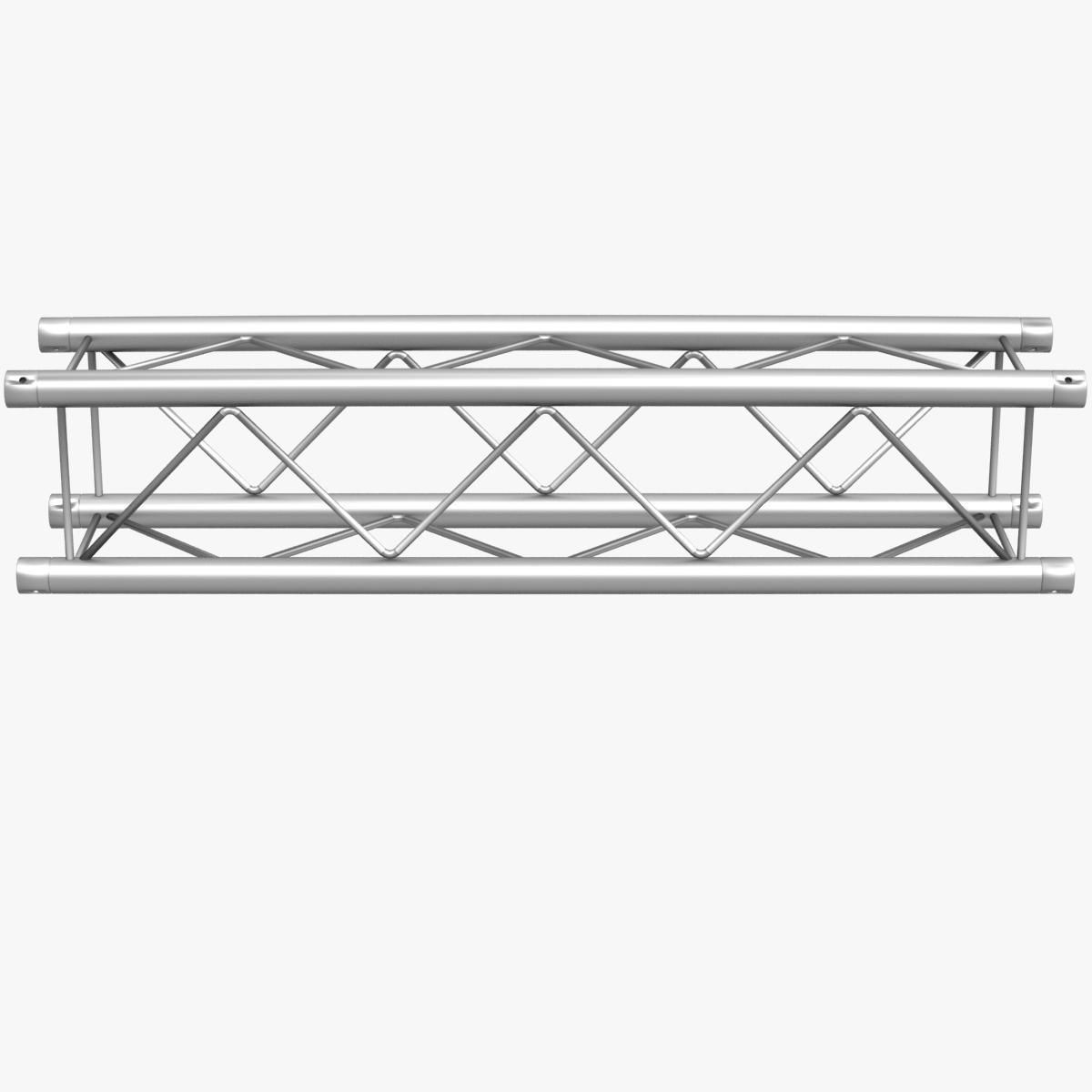

  • Straight Segments

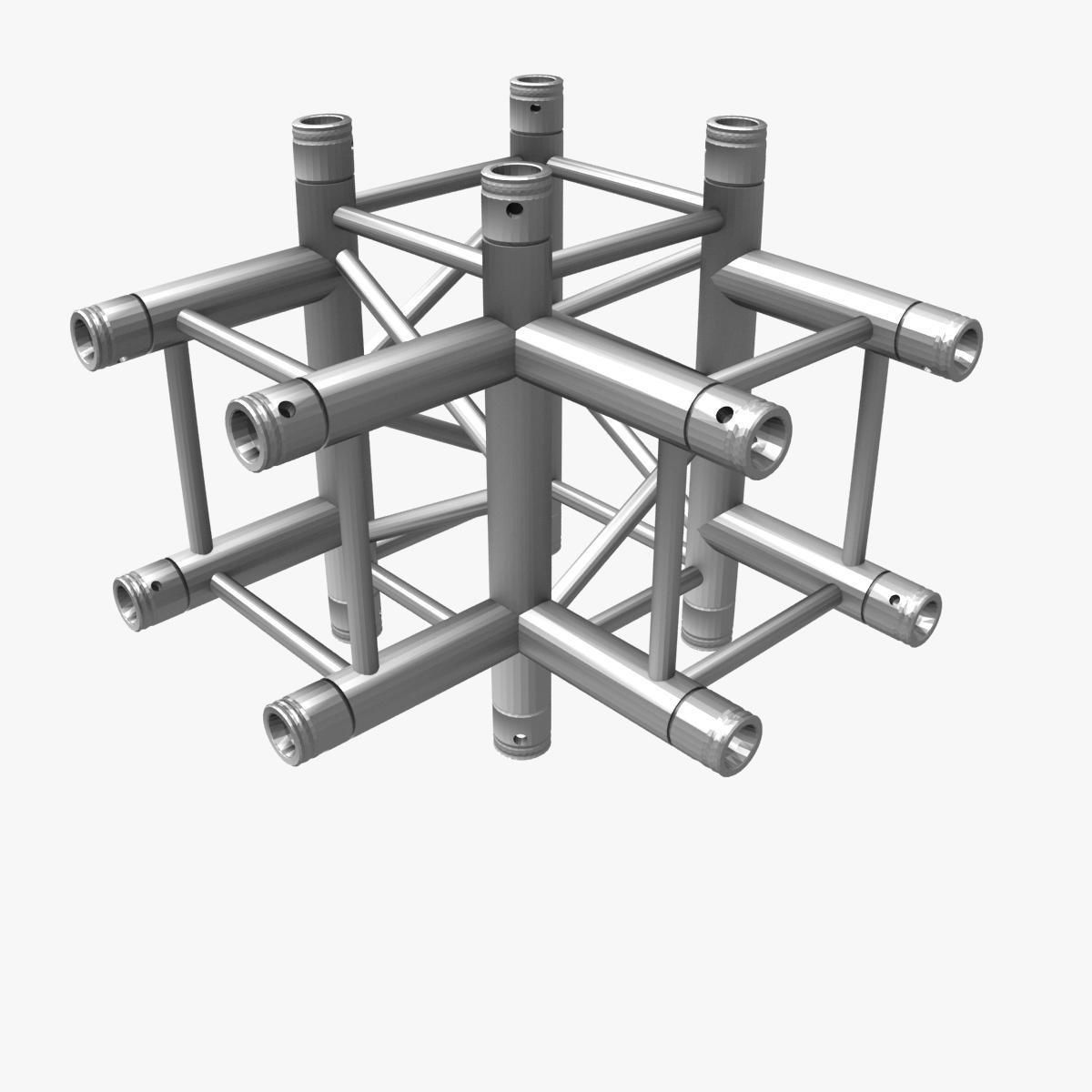

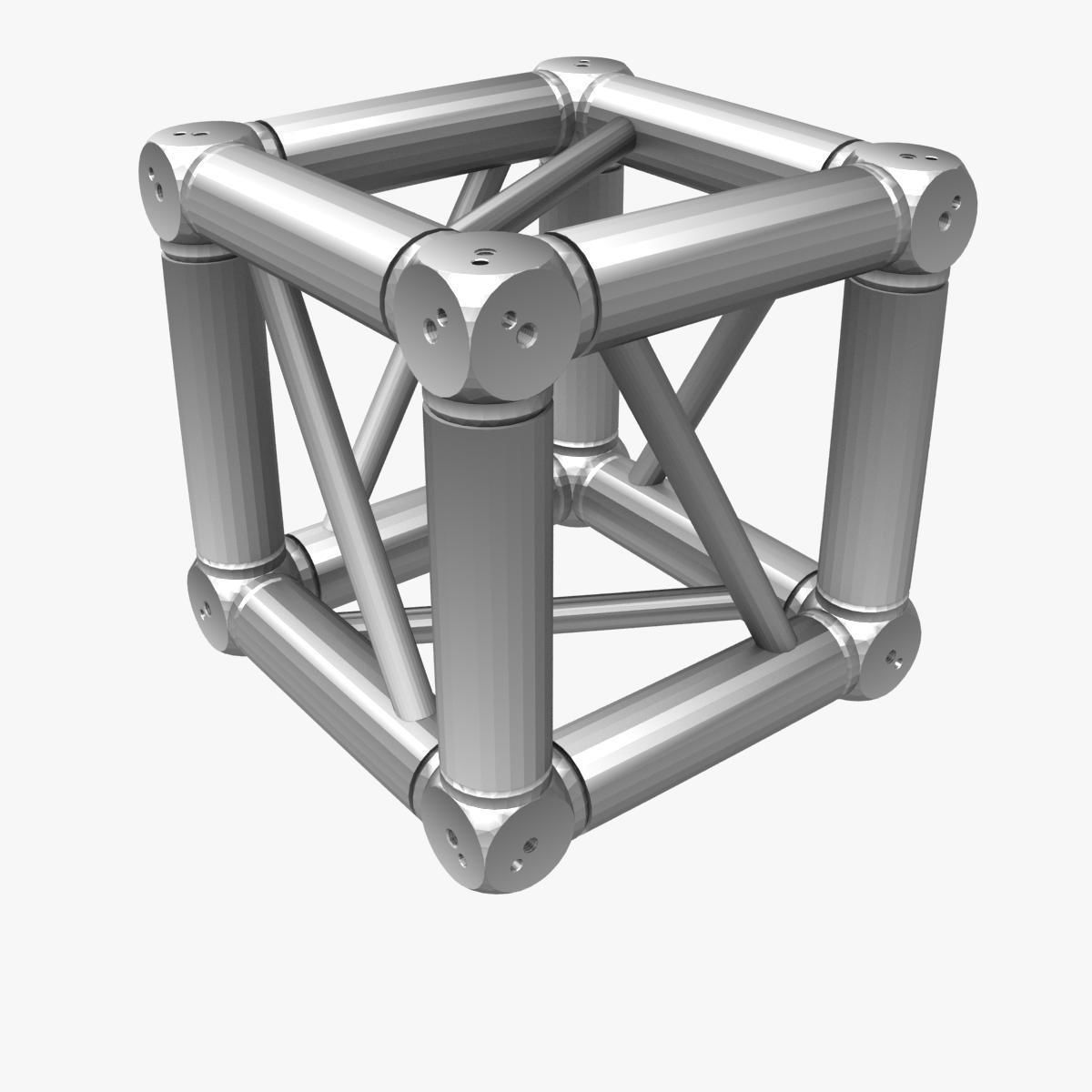

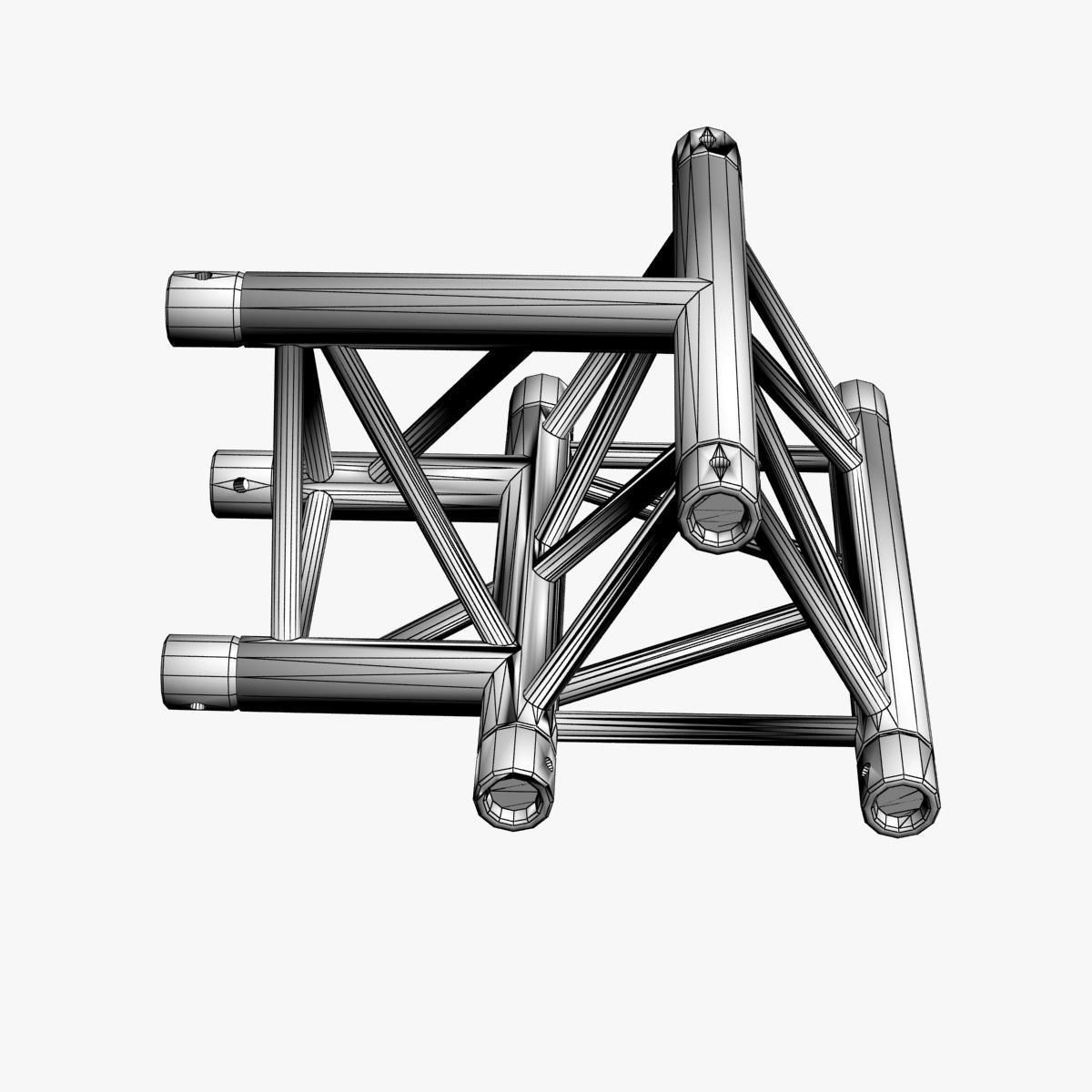

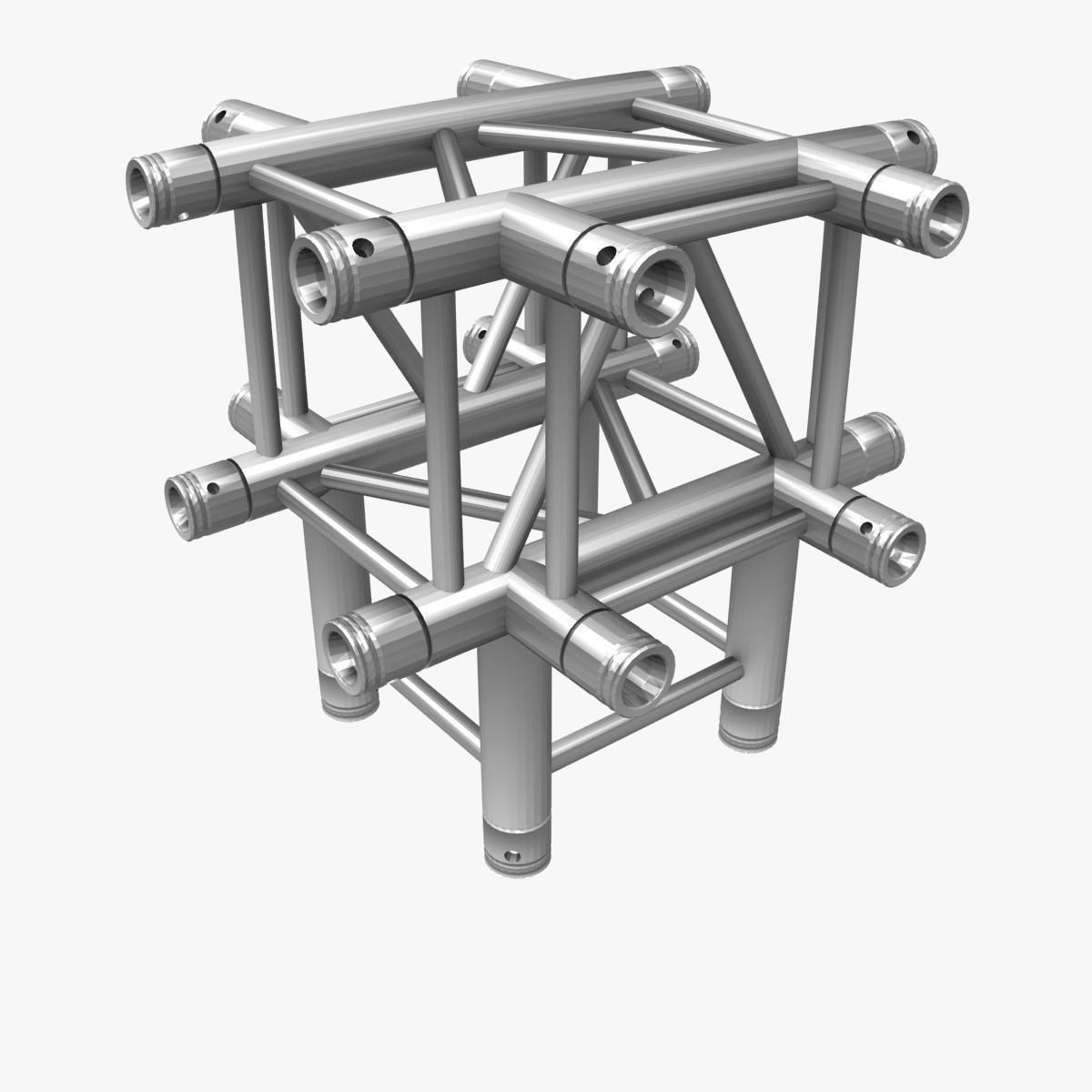

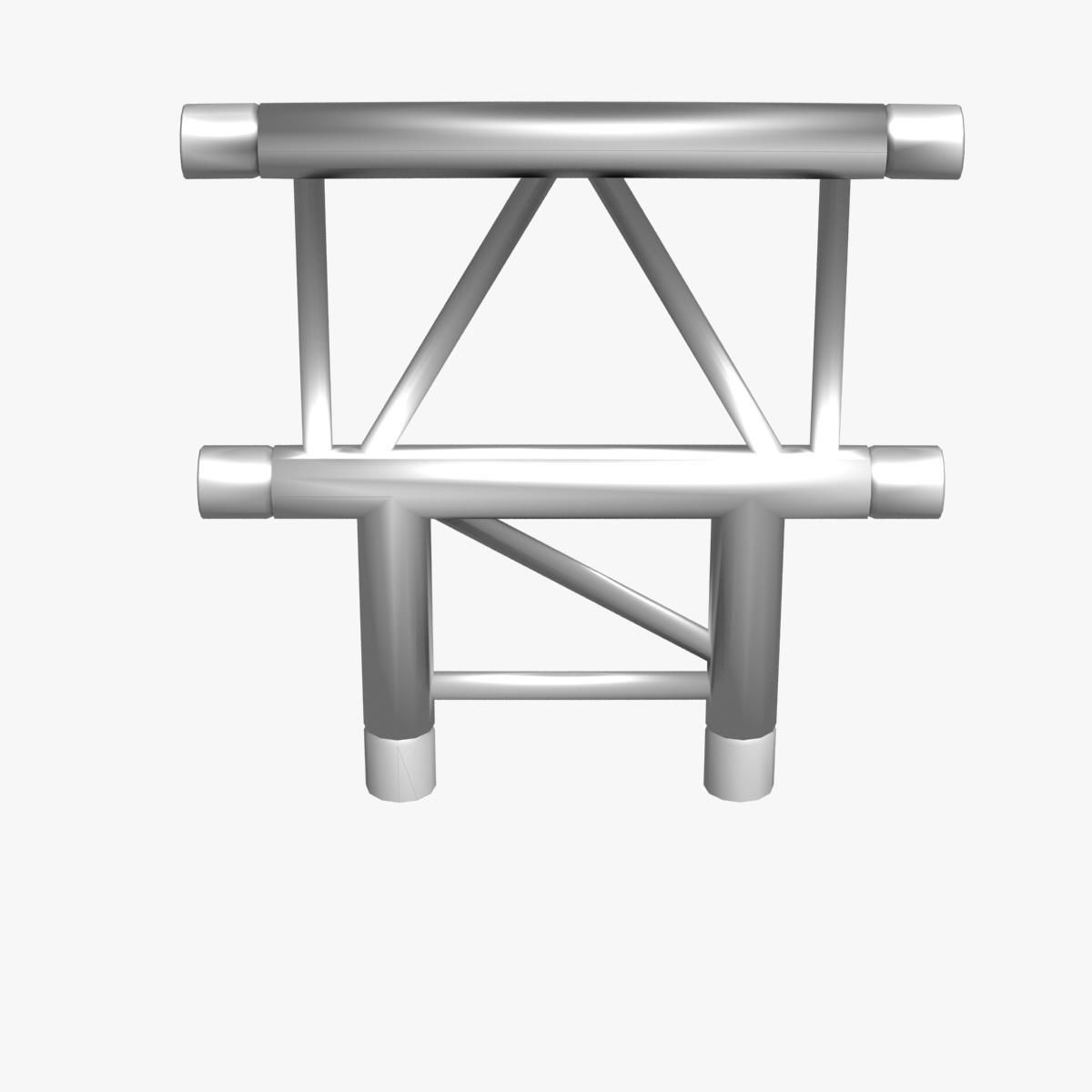

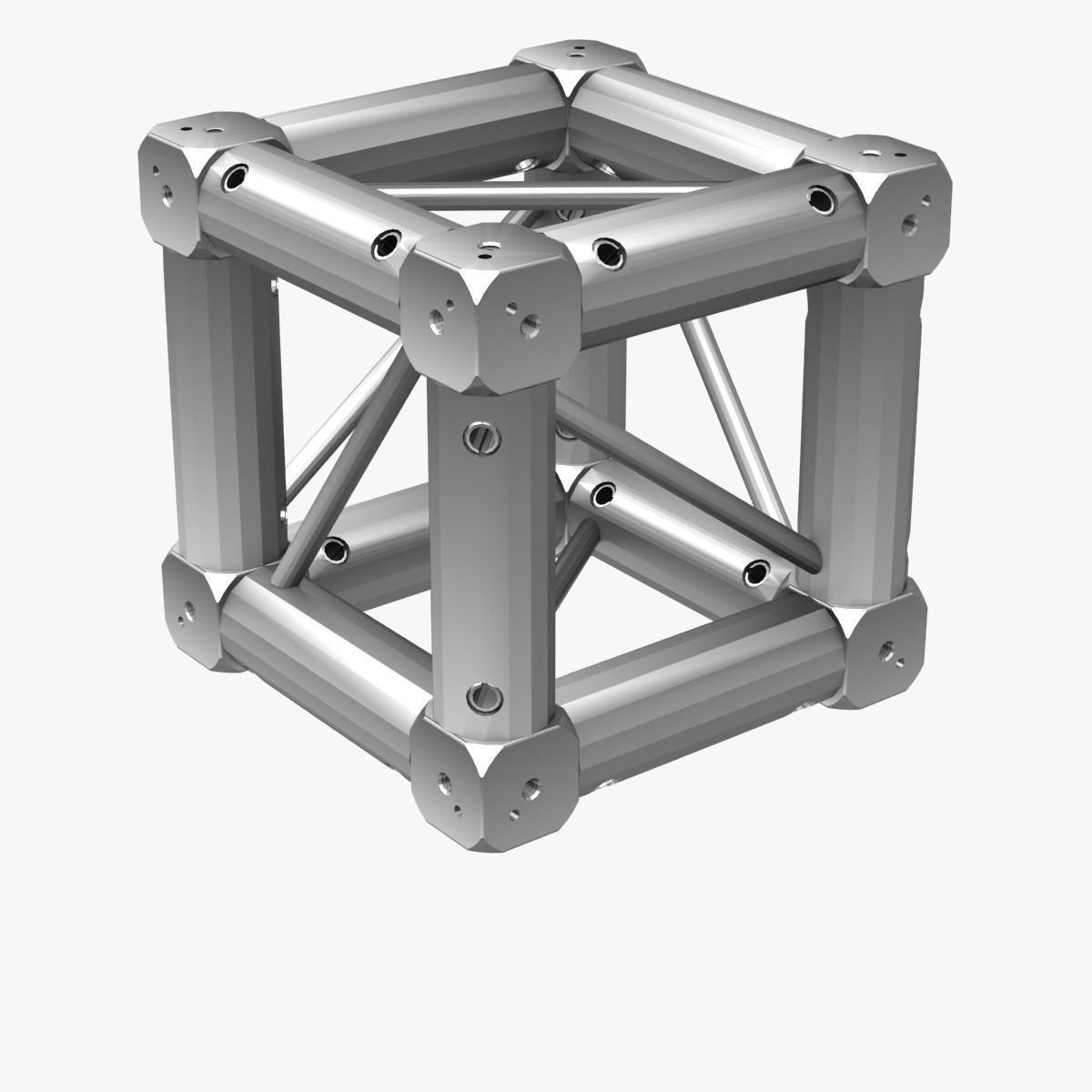

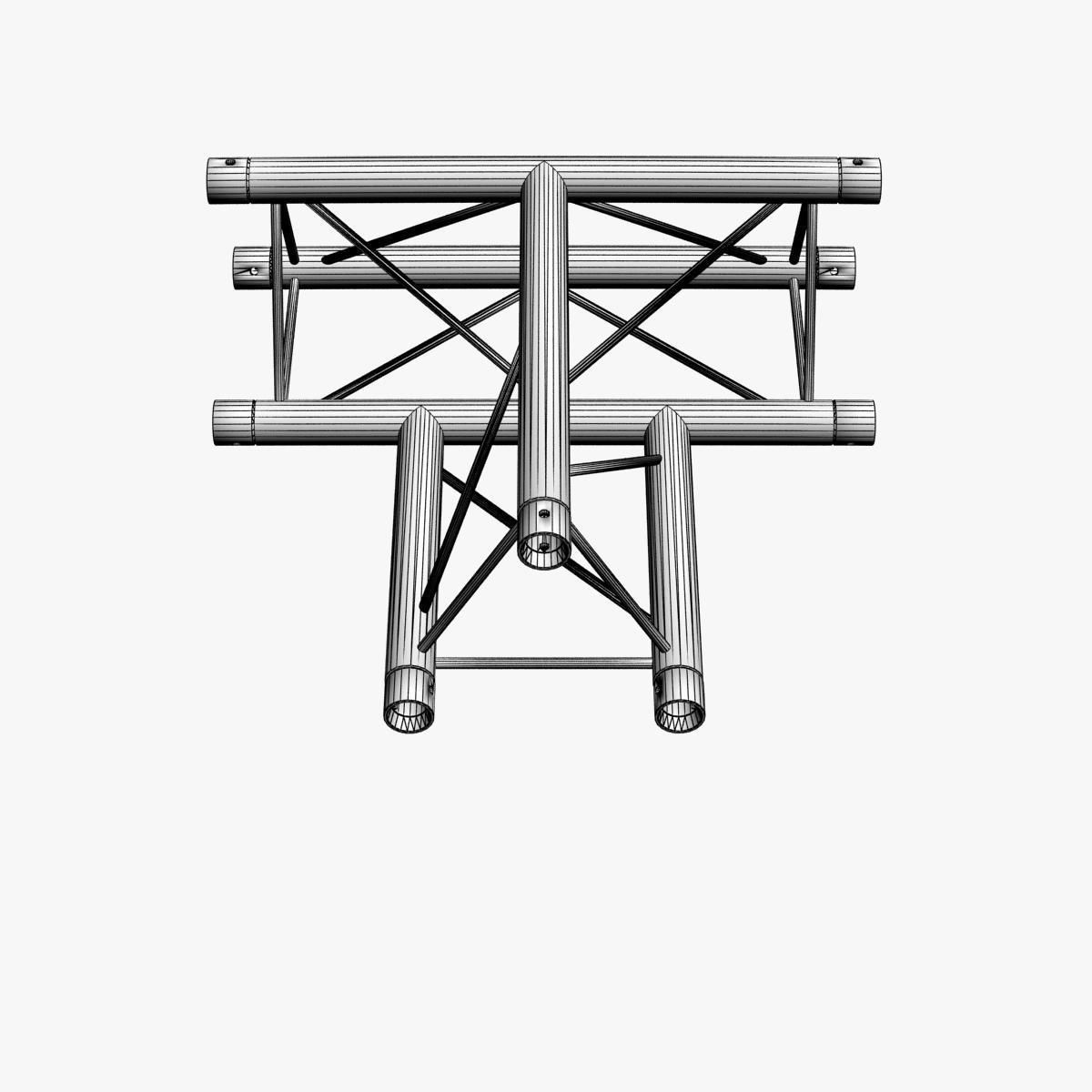

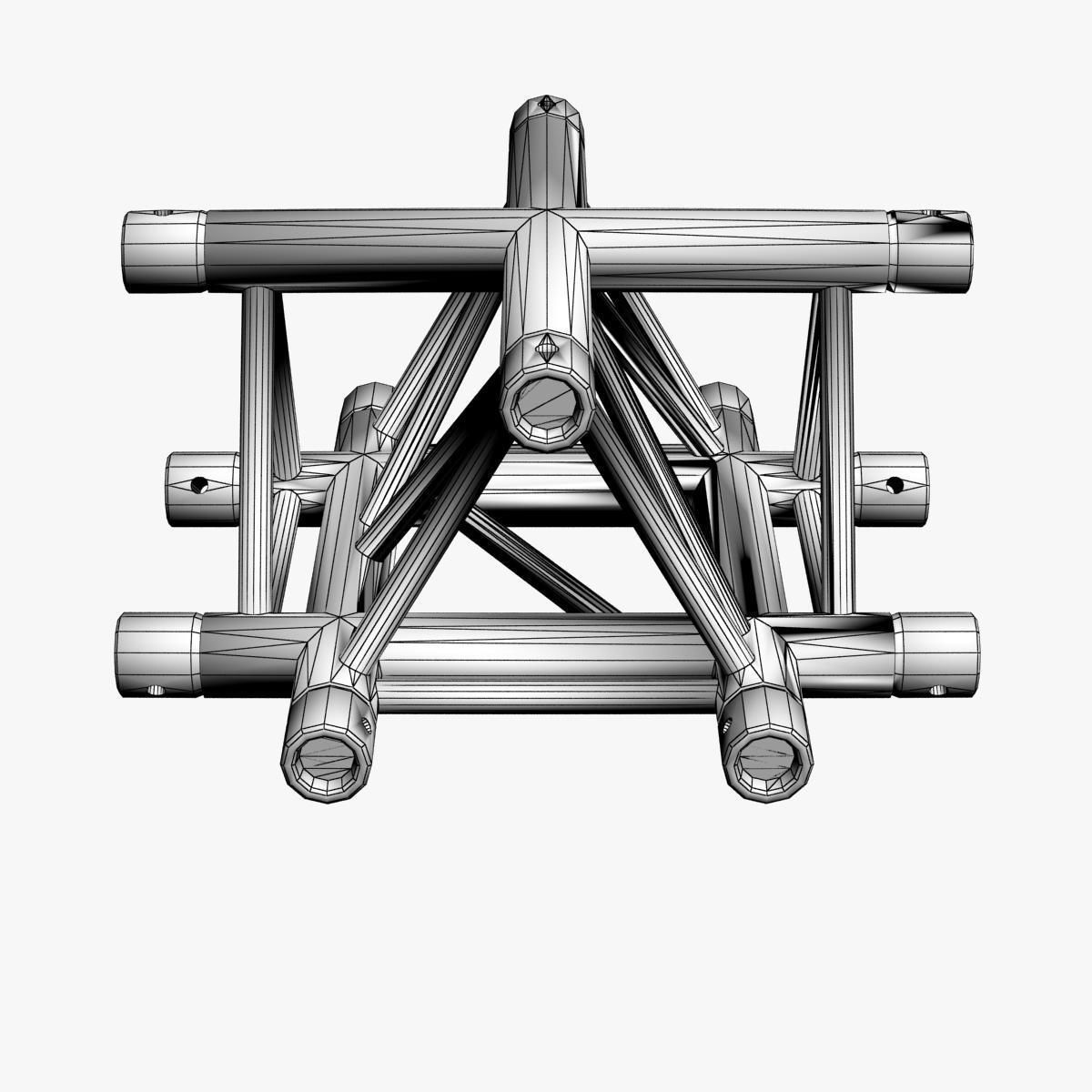

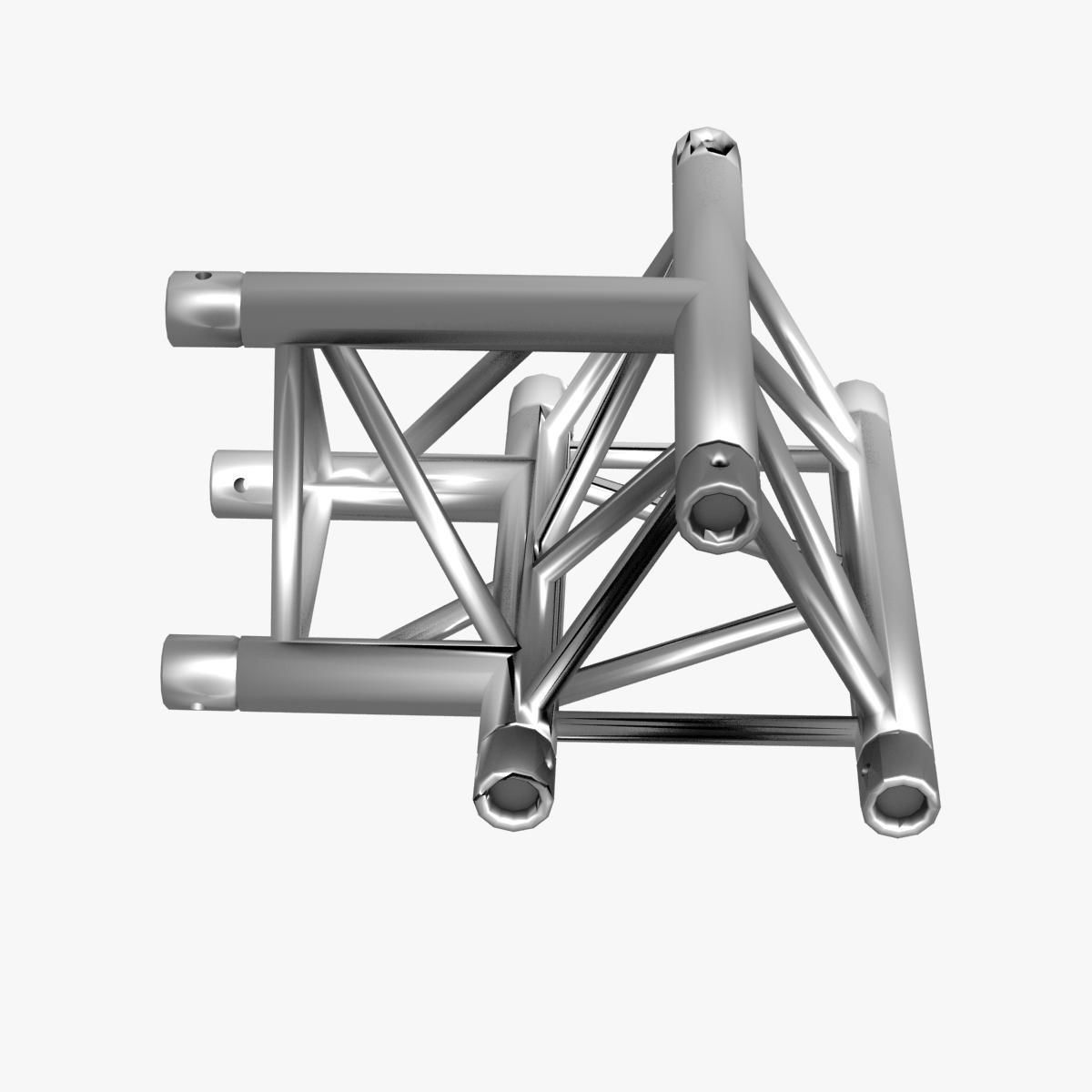

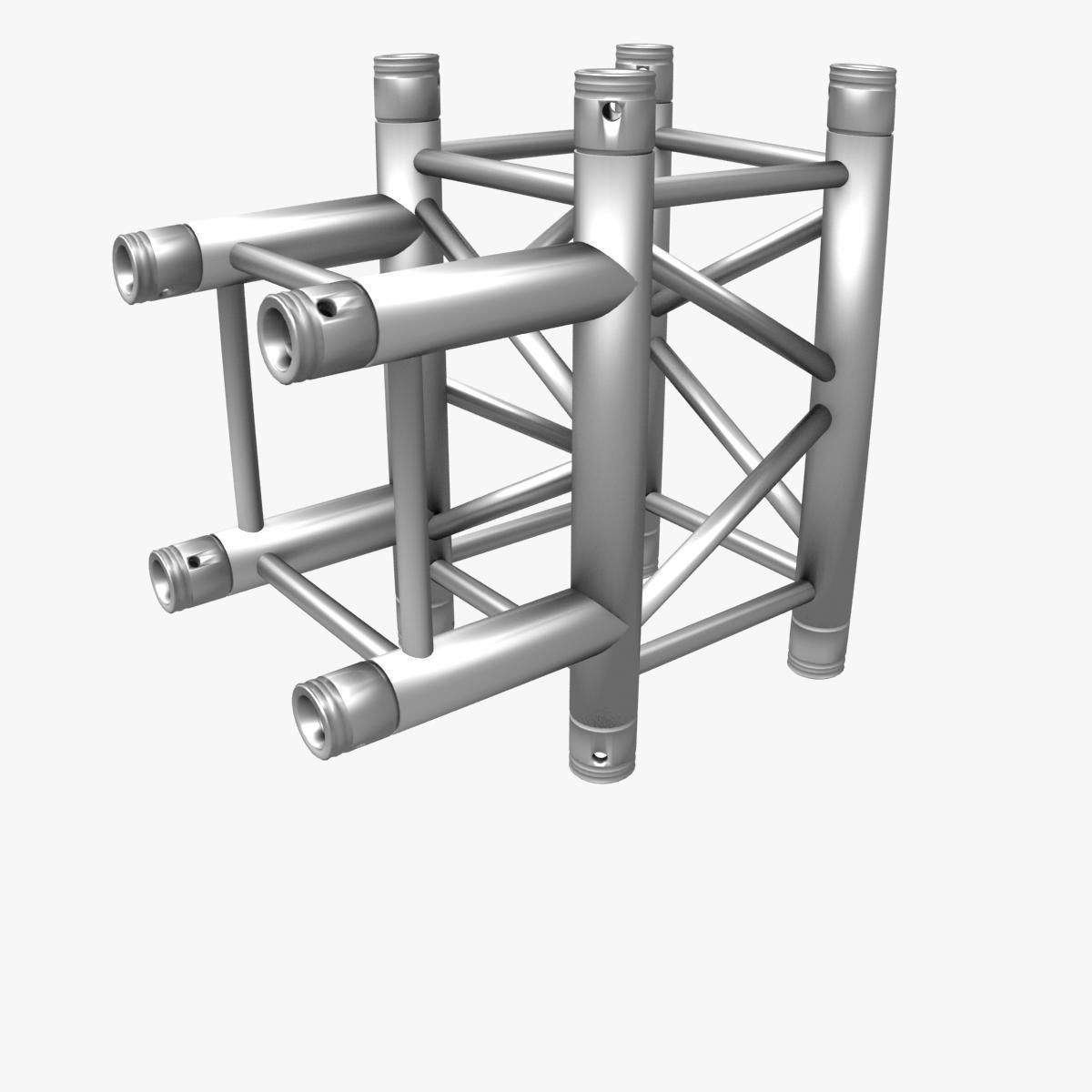

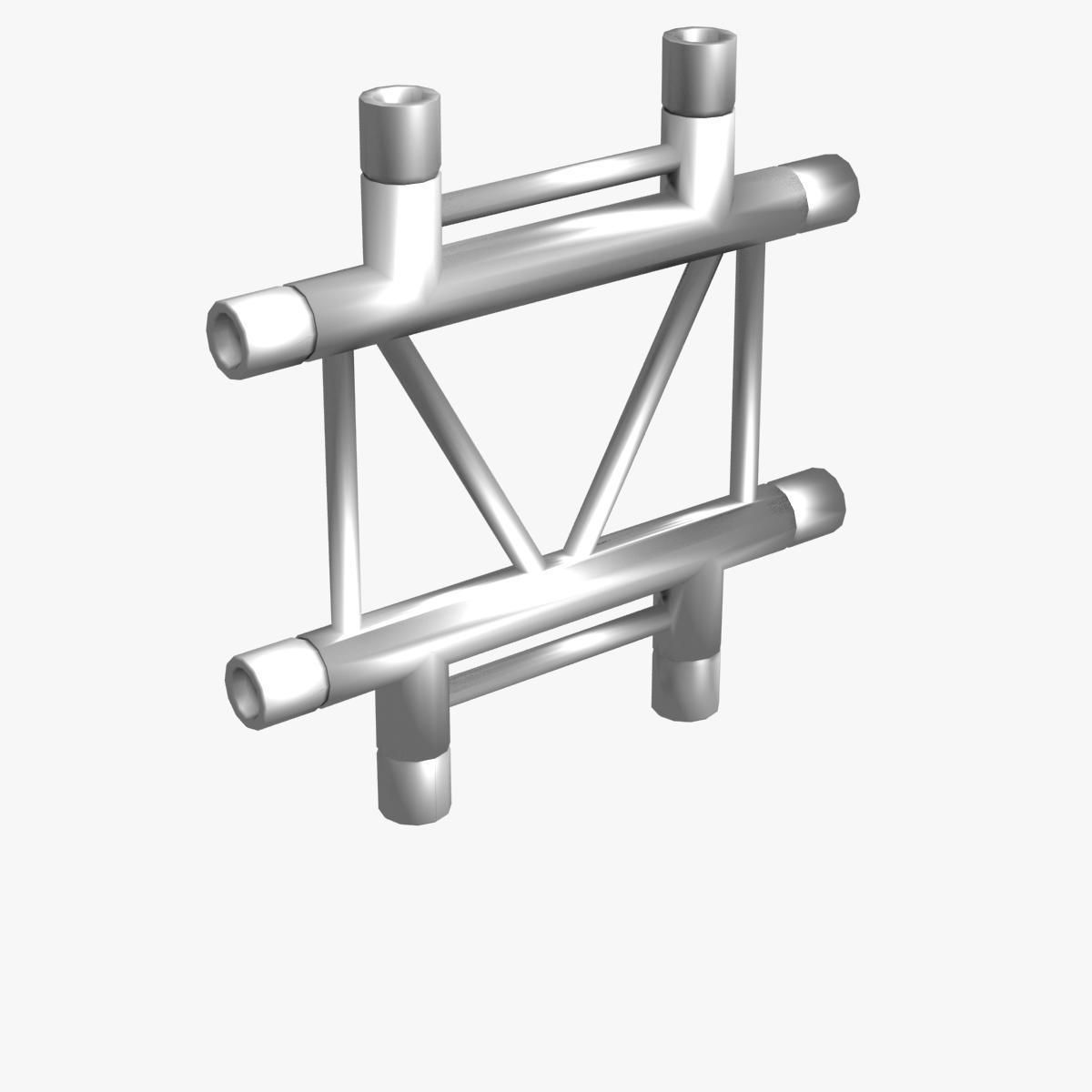

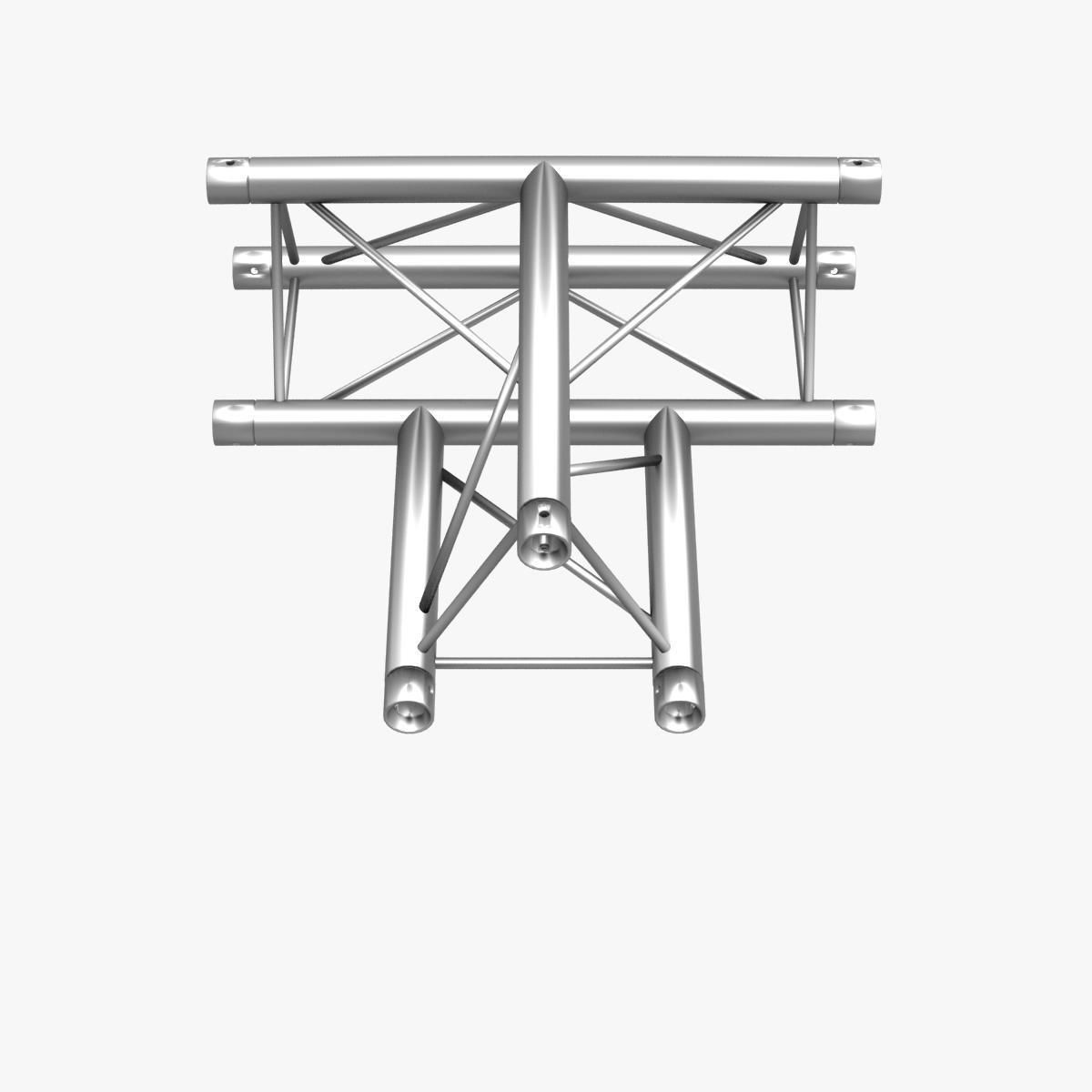

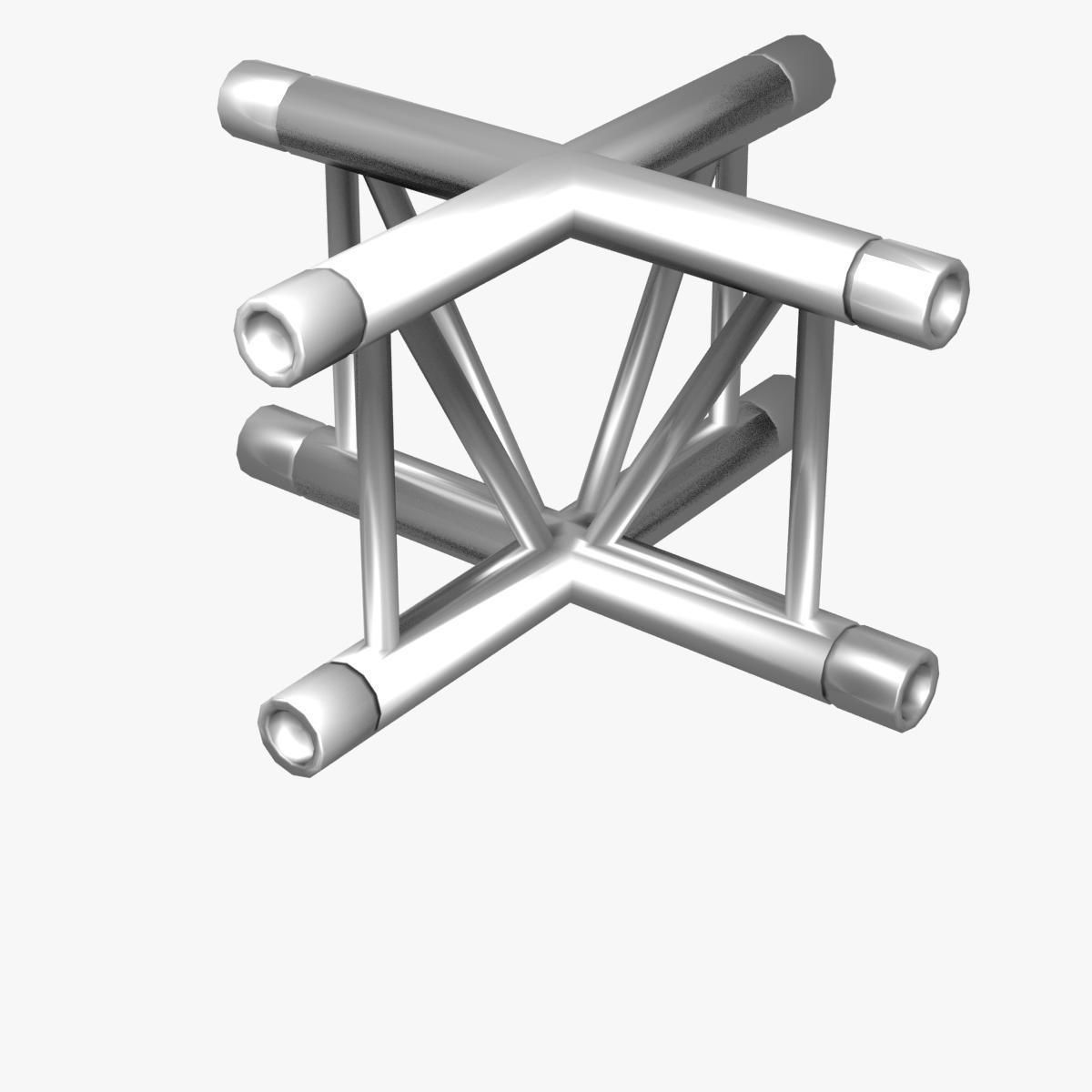

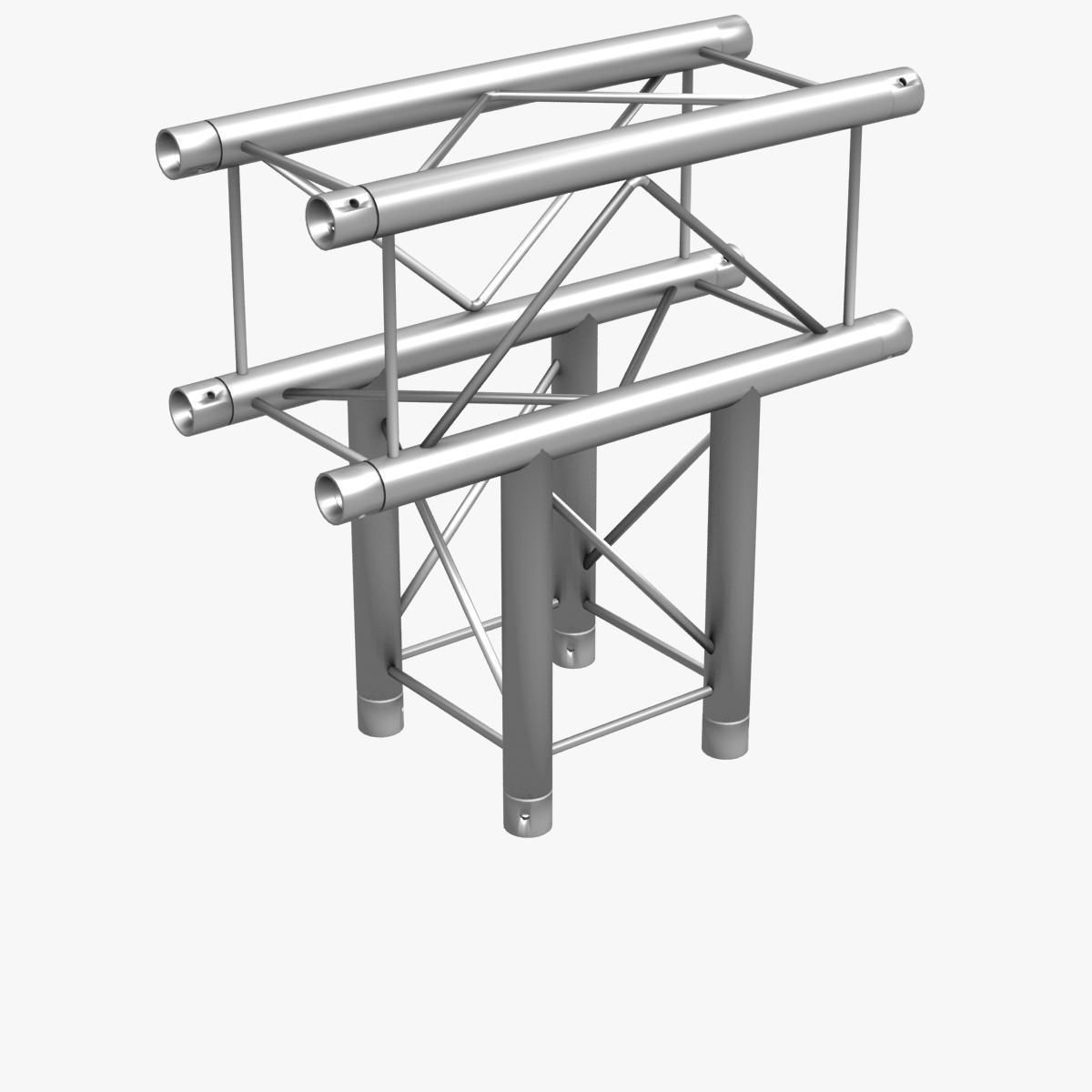

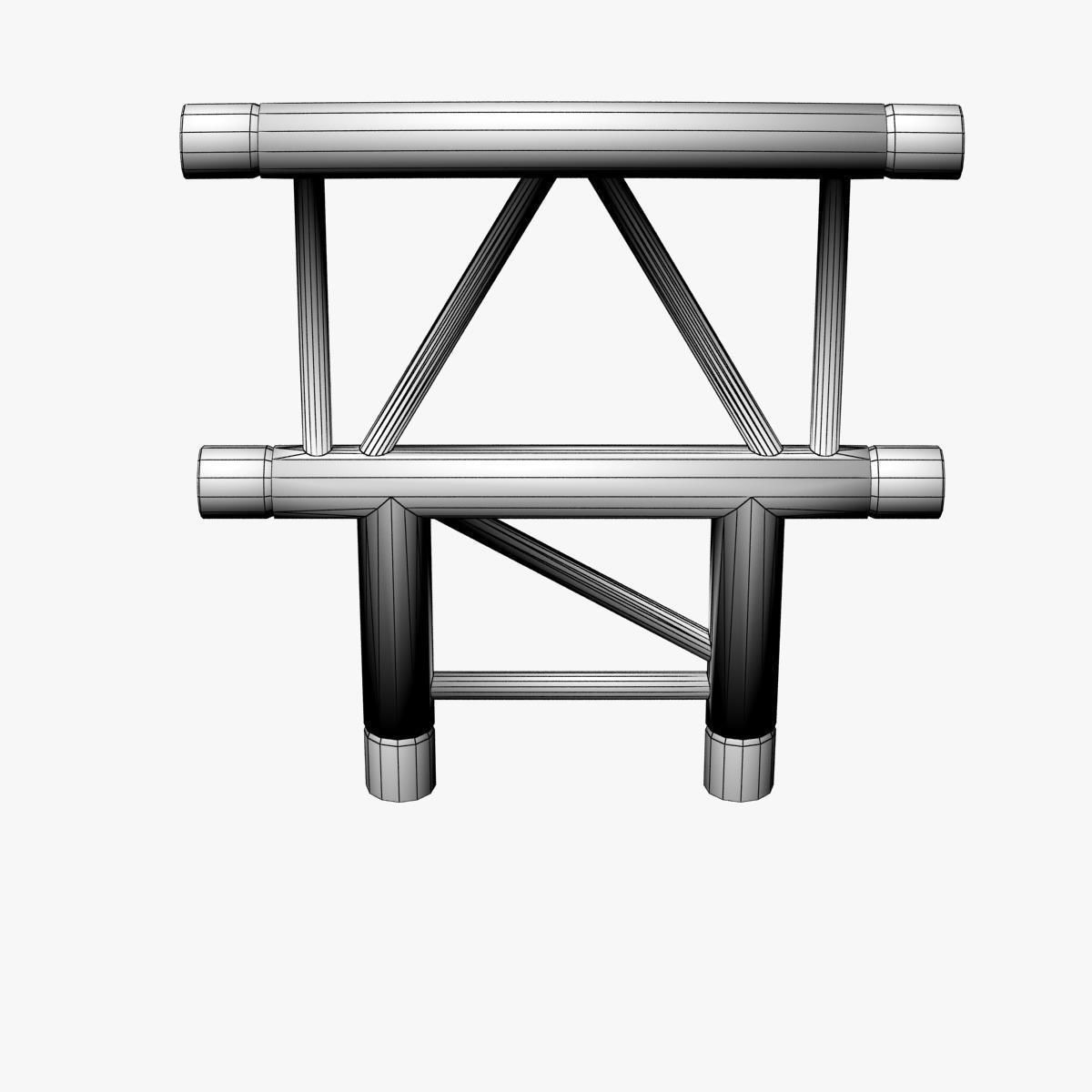

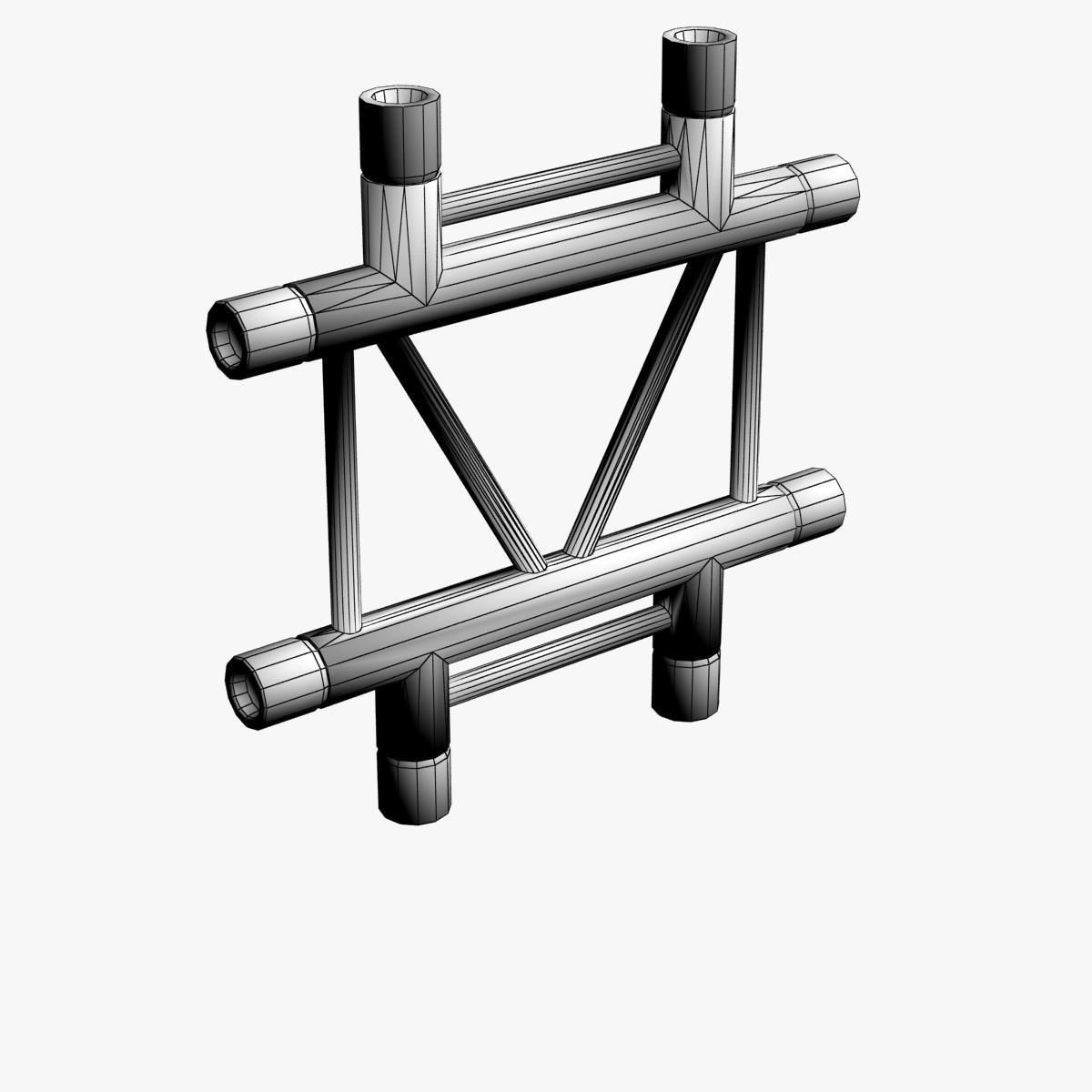

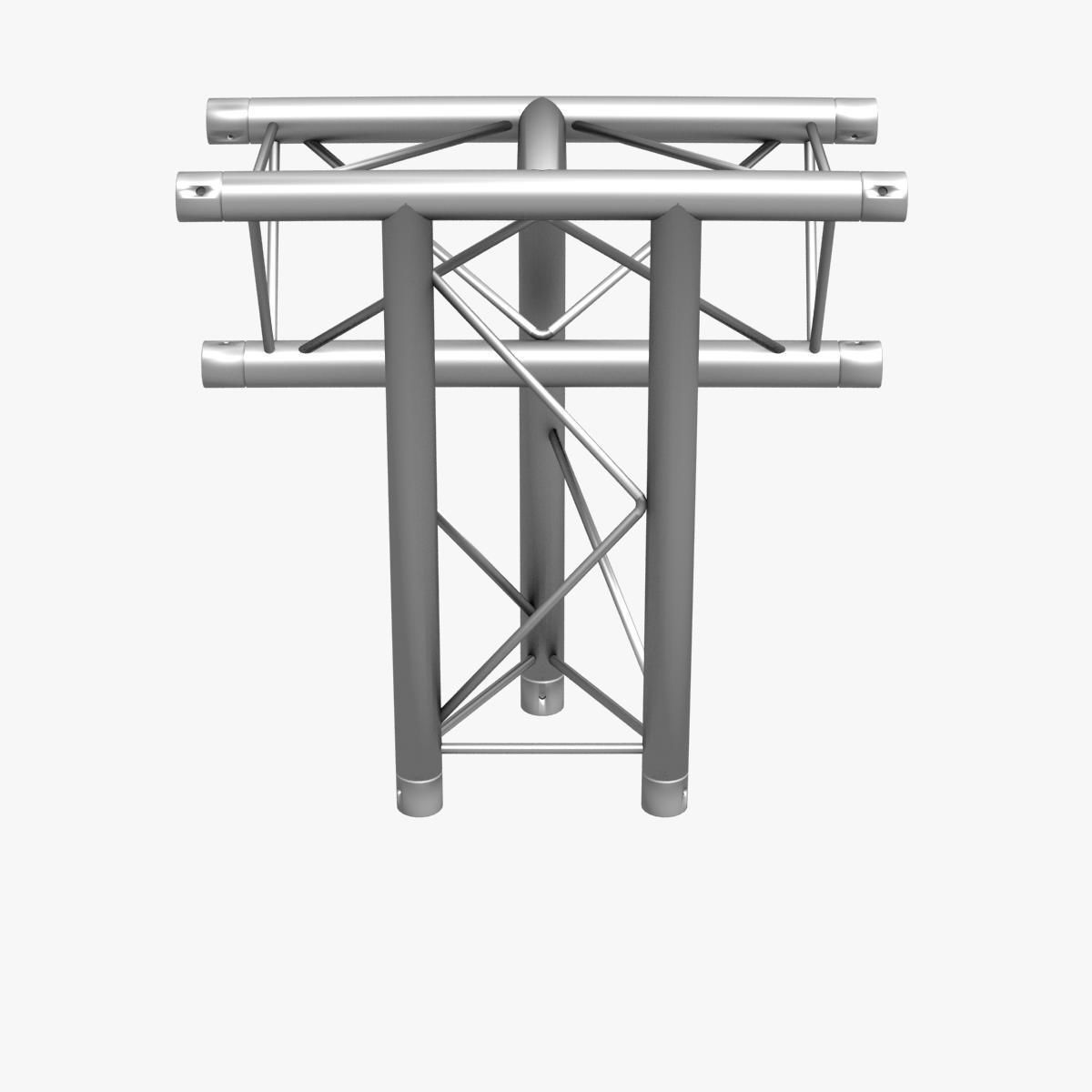

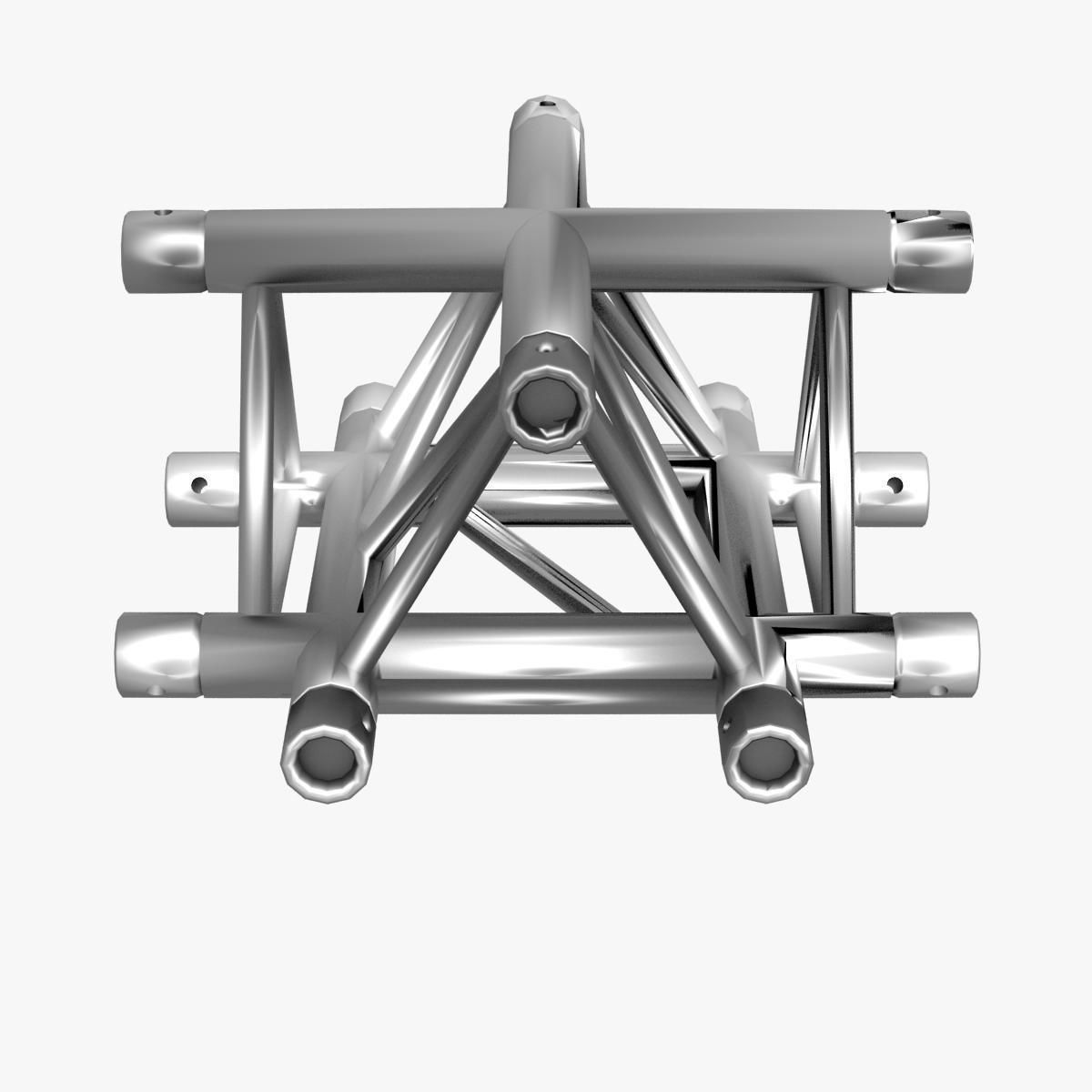

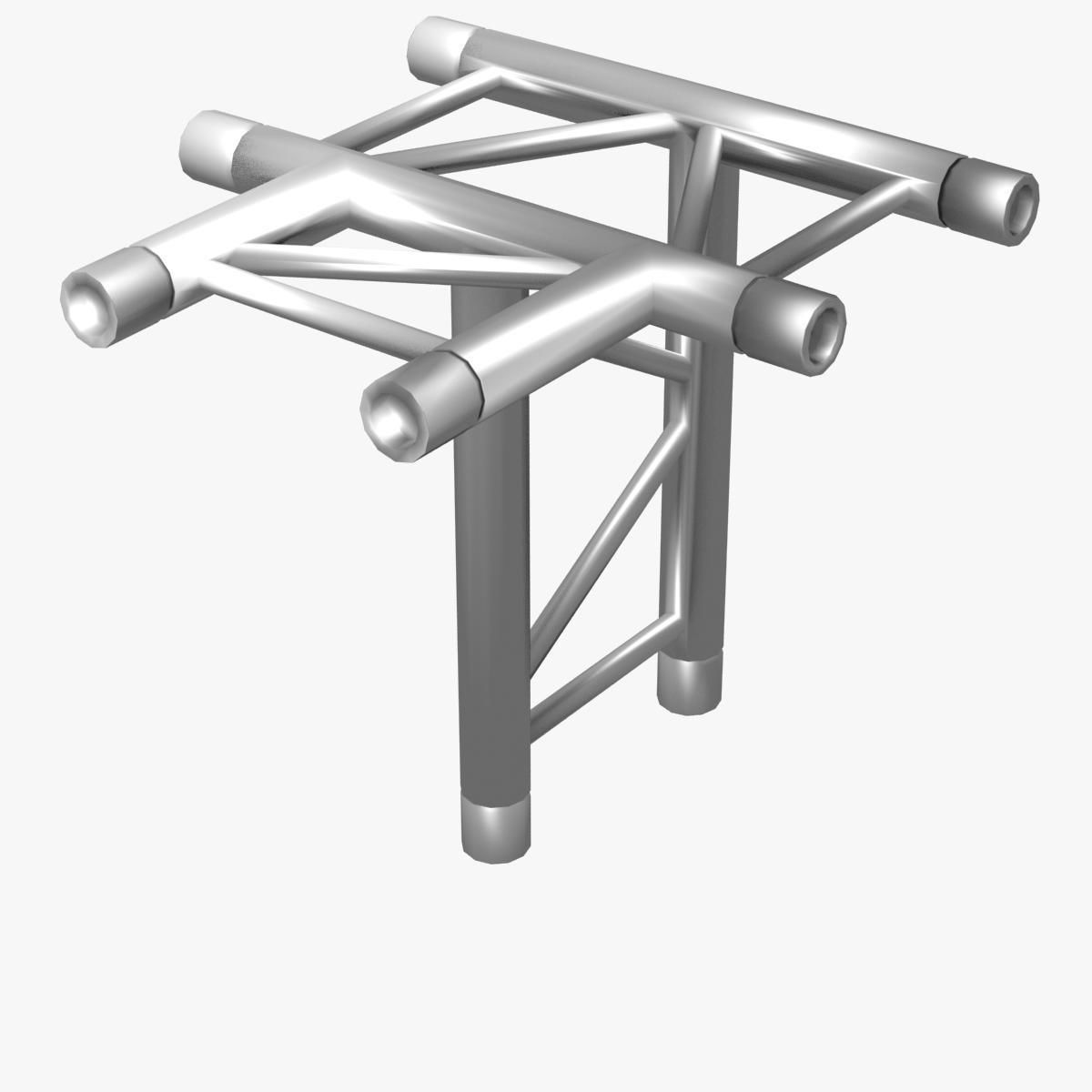

  • Cross and T-Junctions

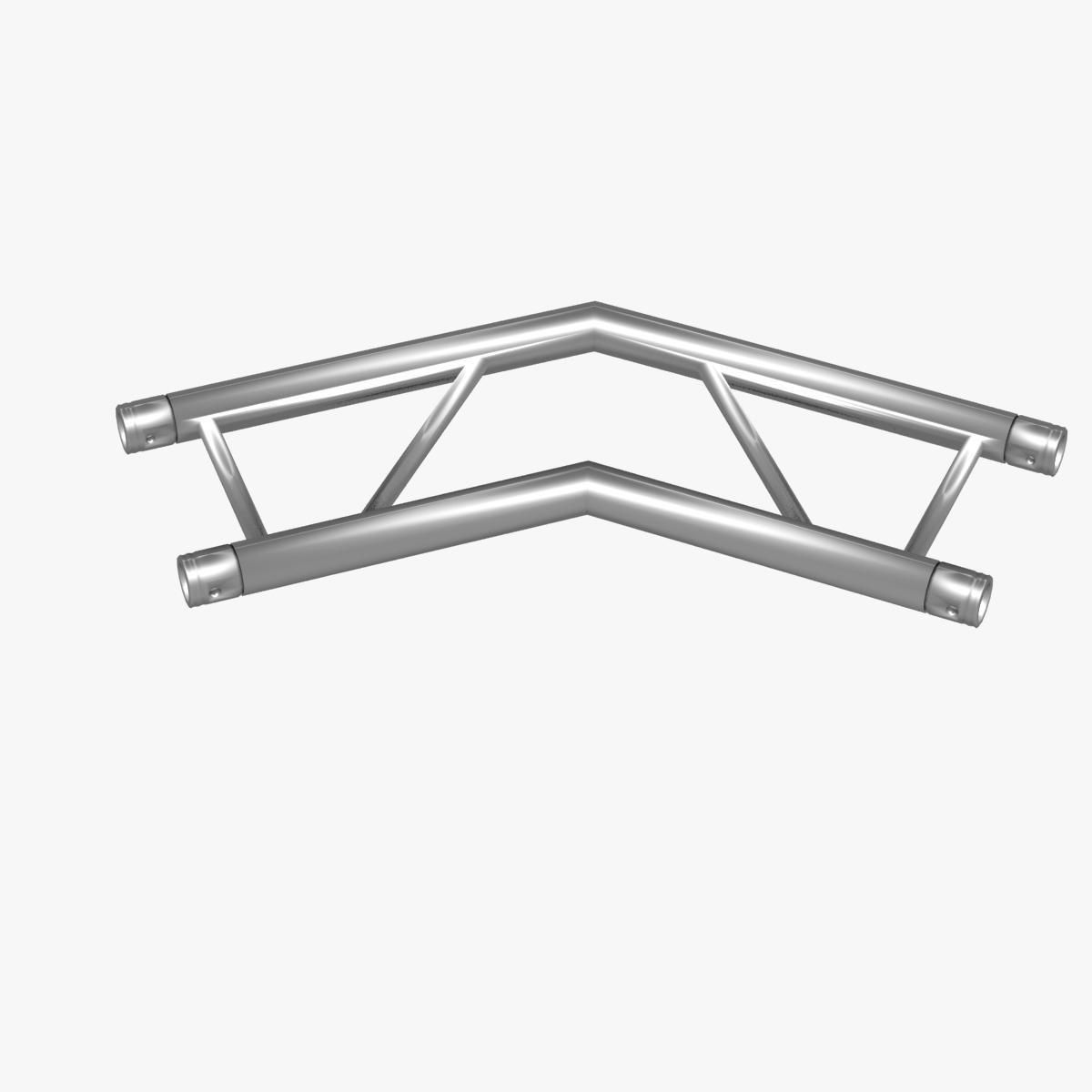

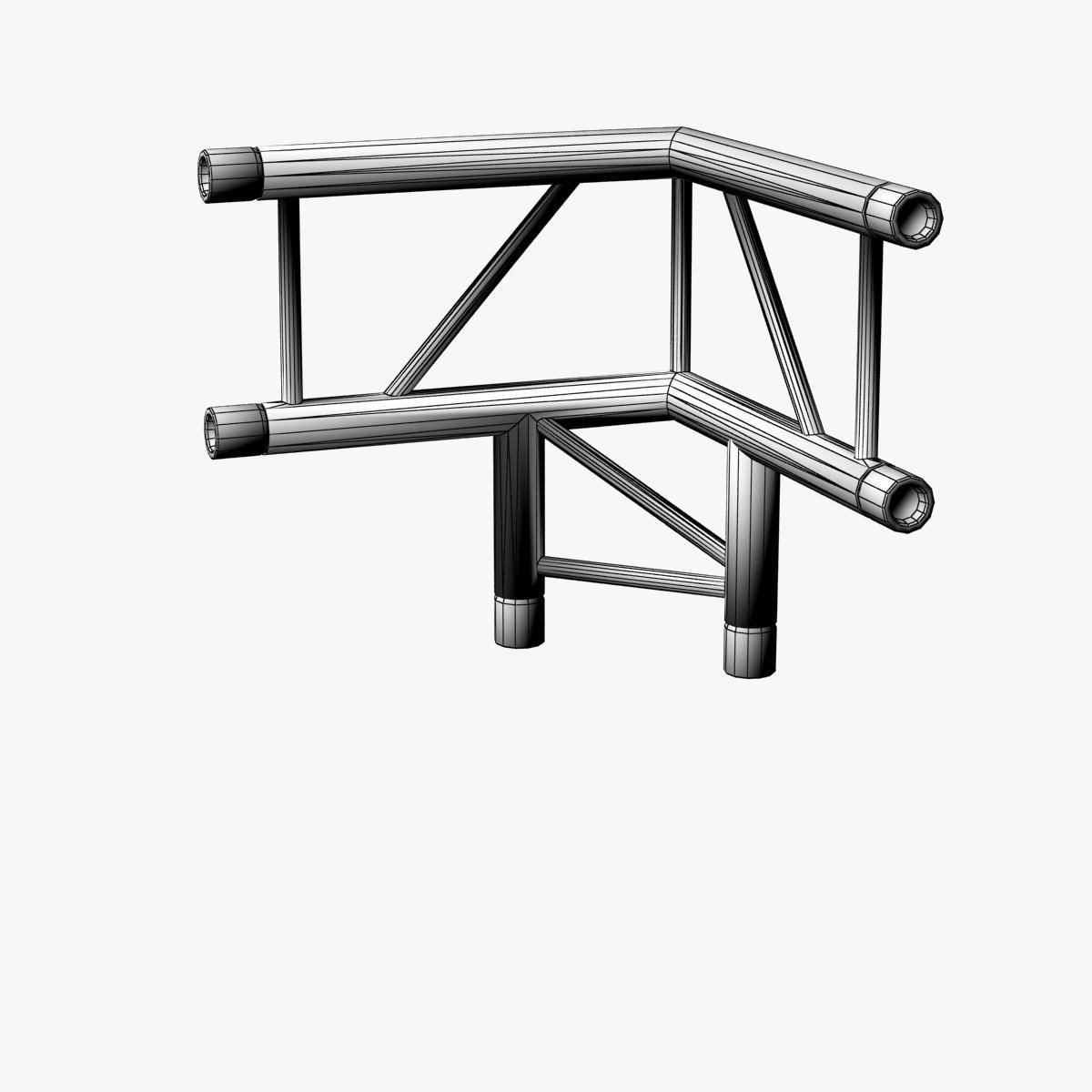

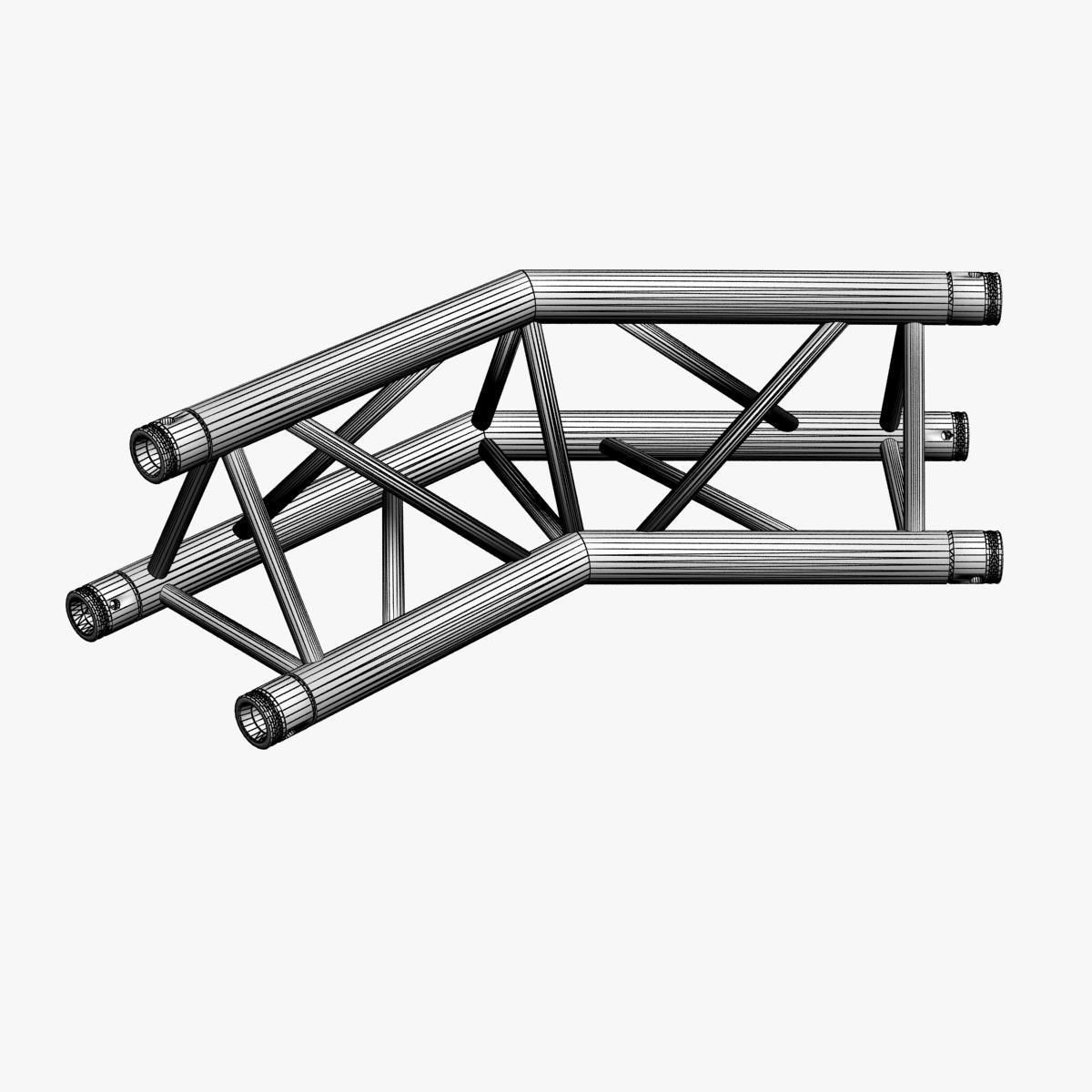

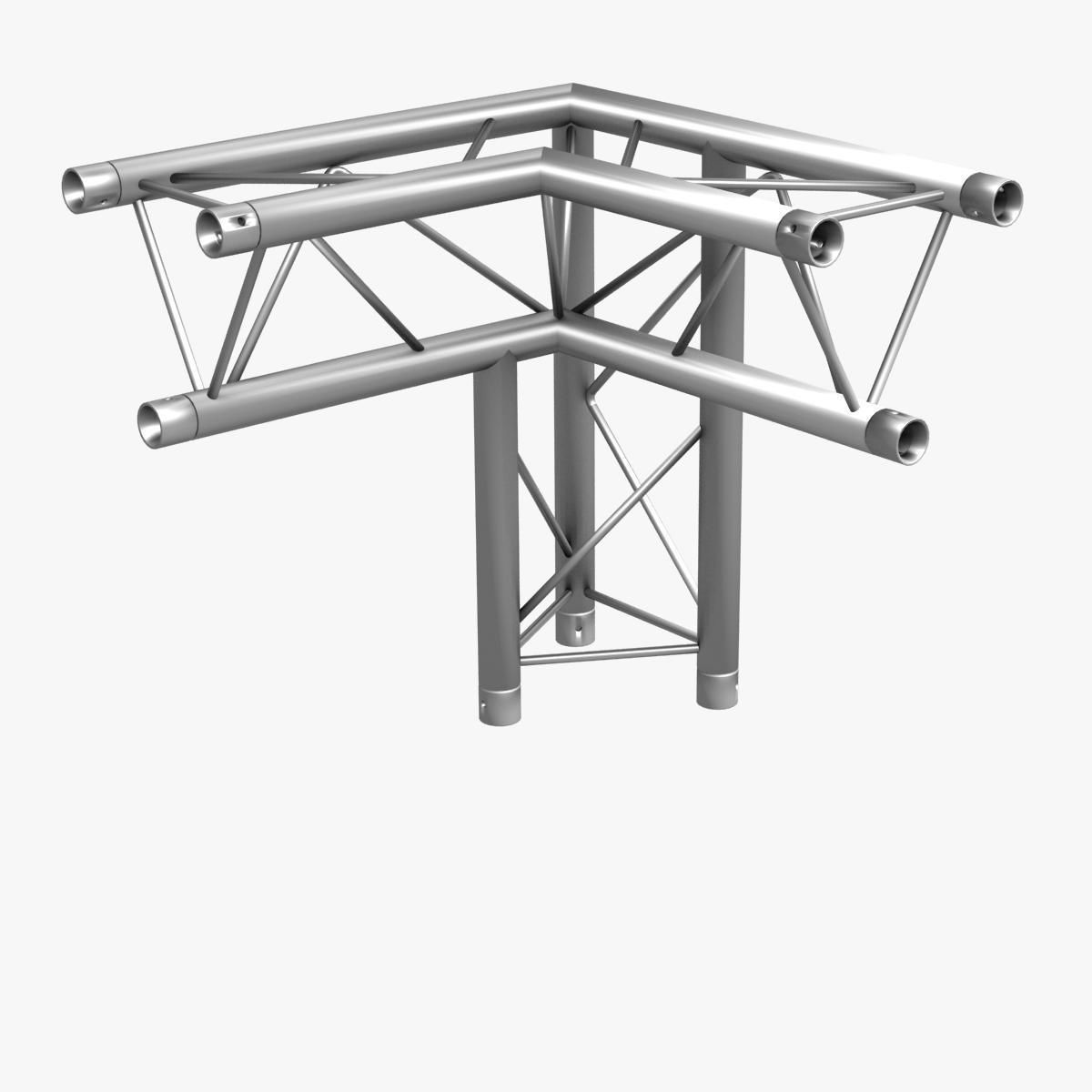

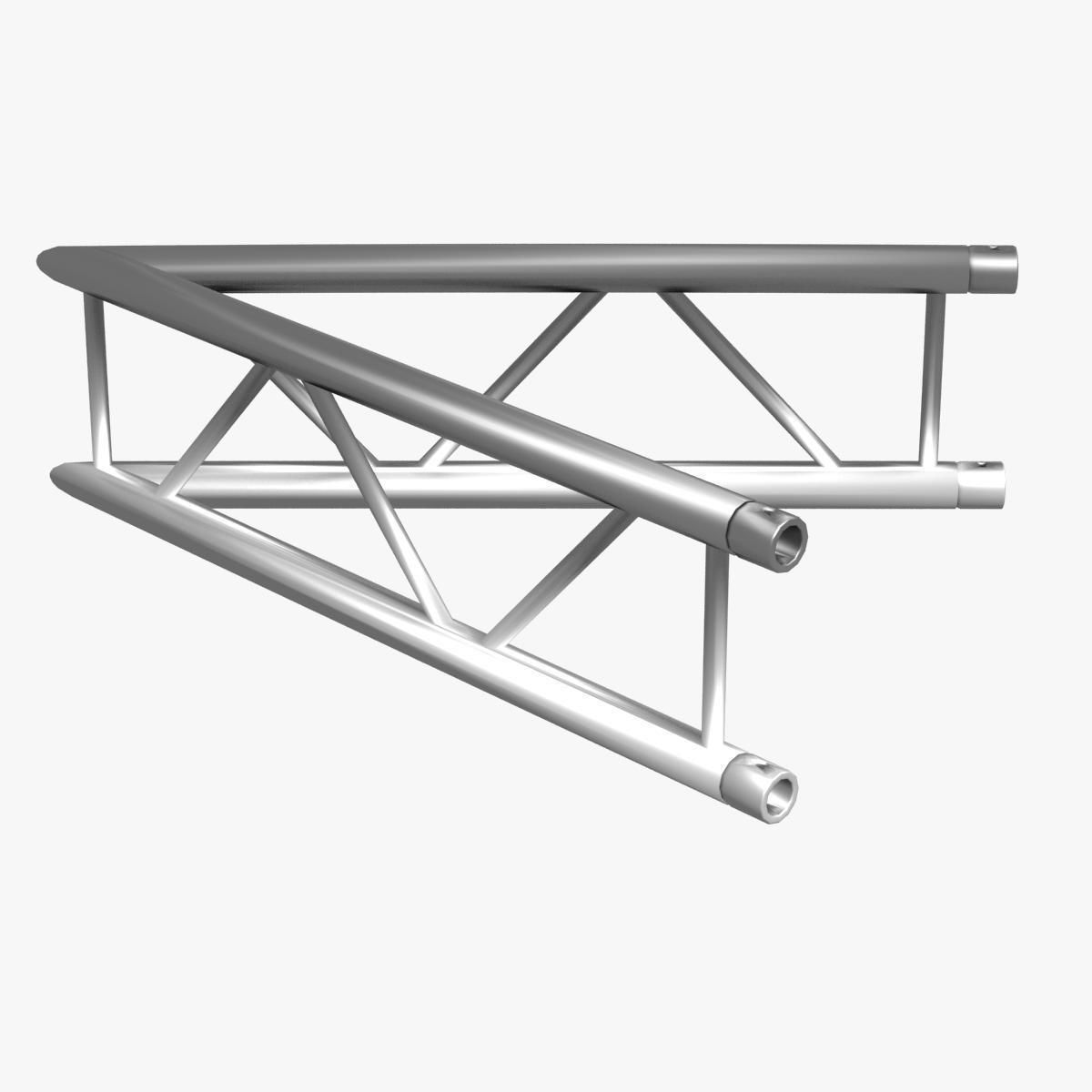

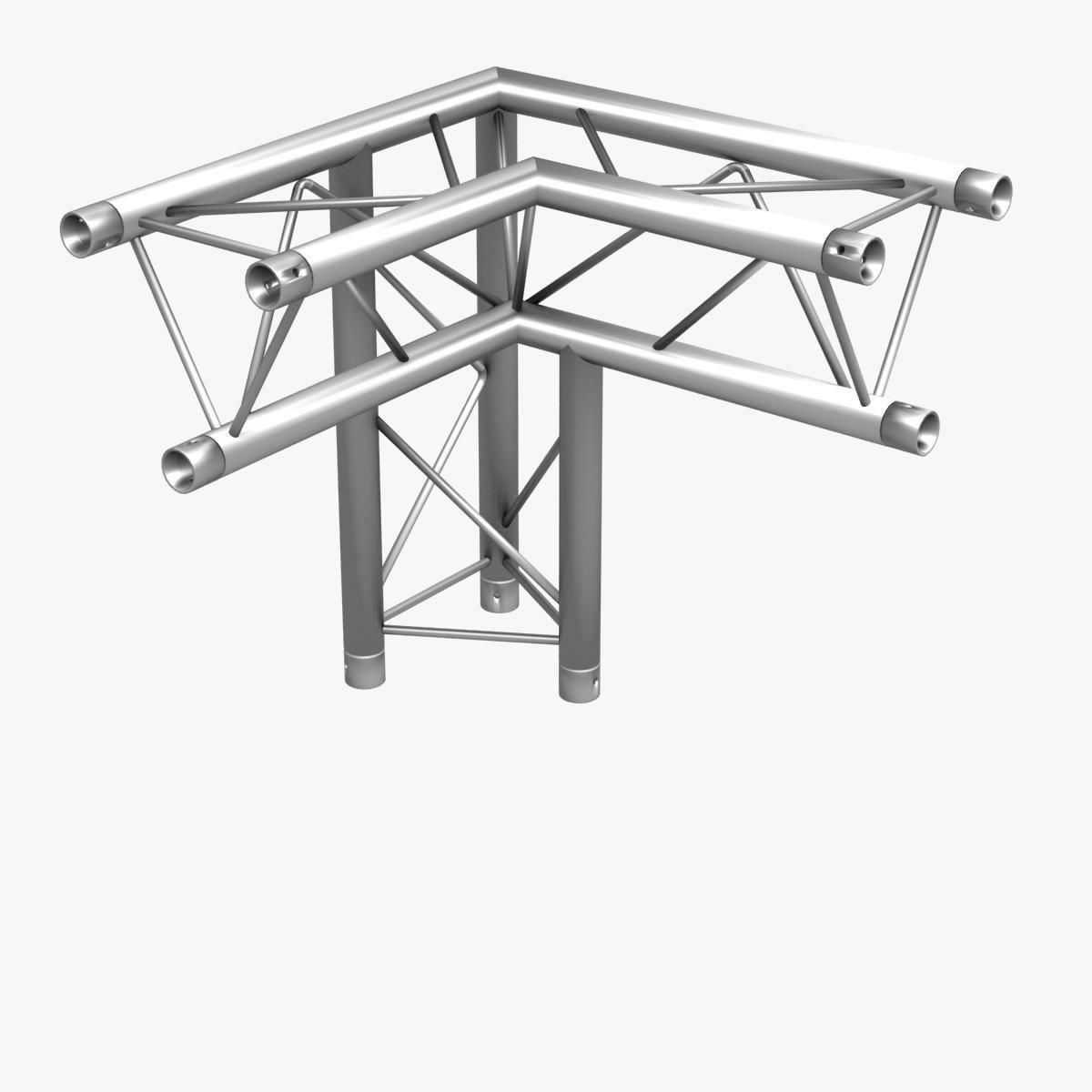

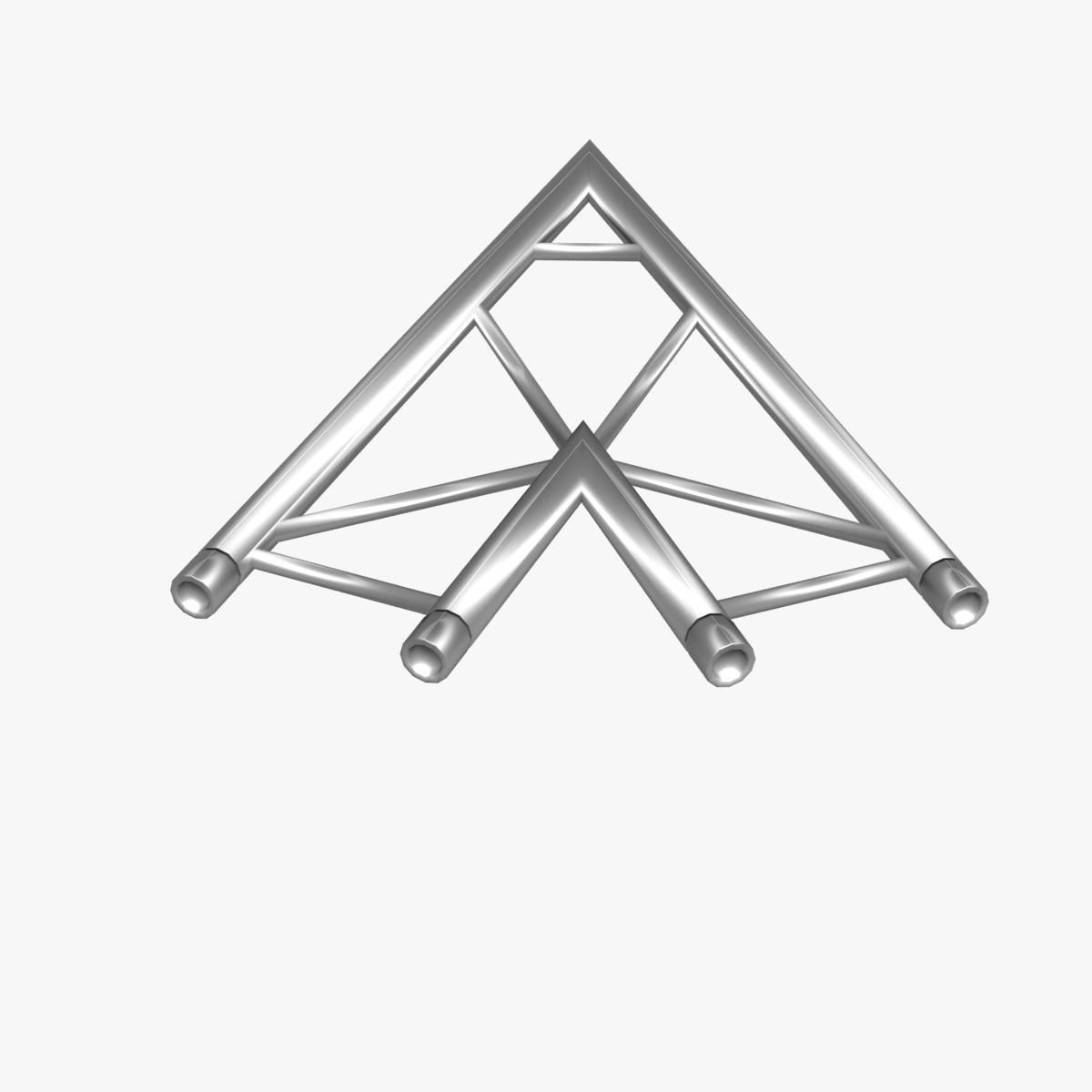

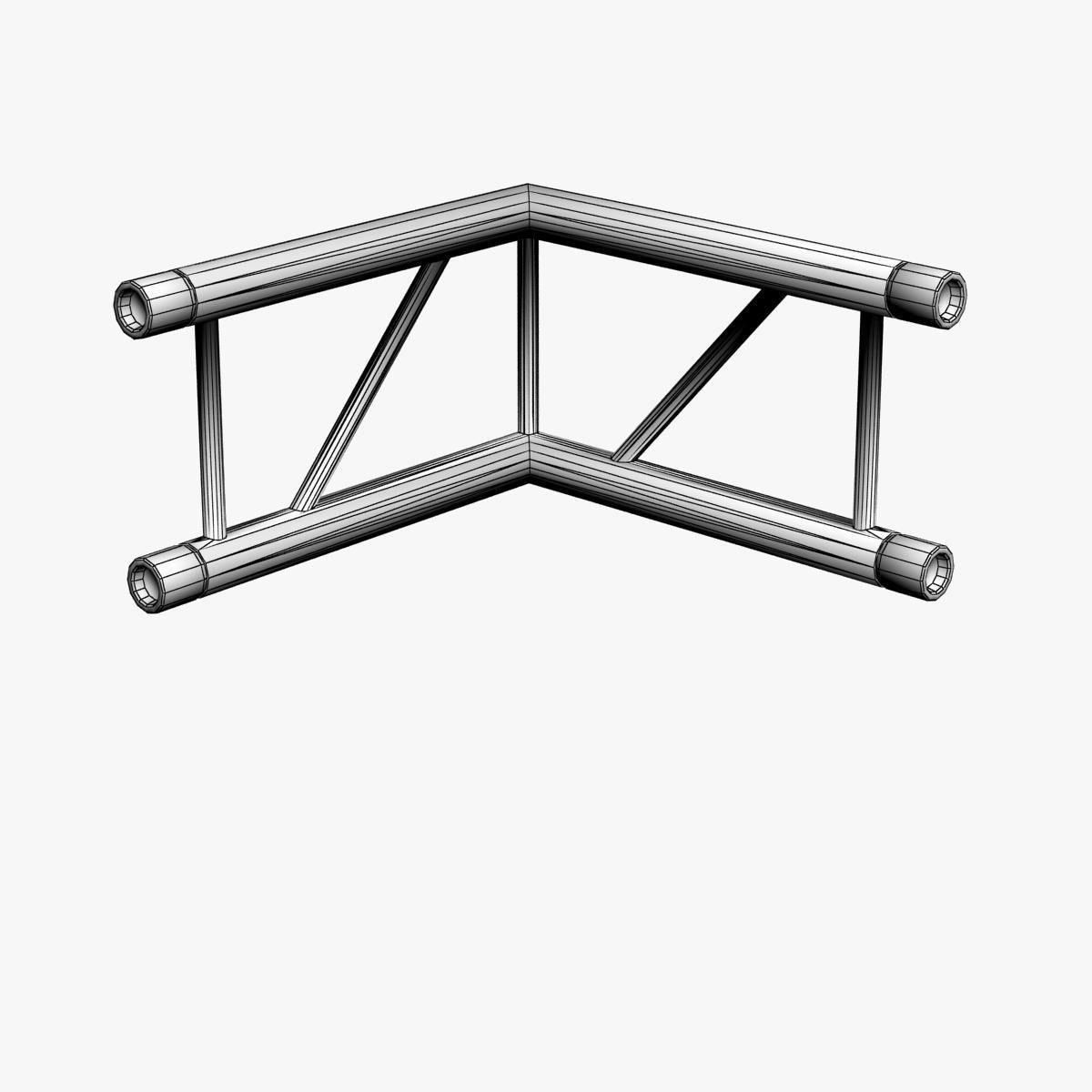

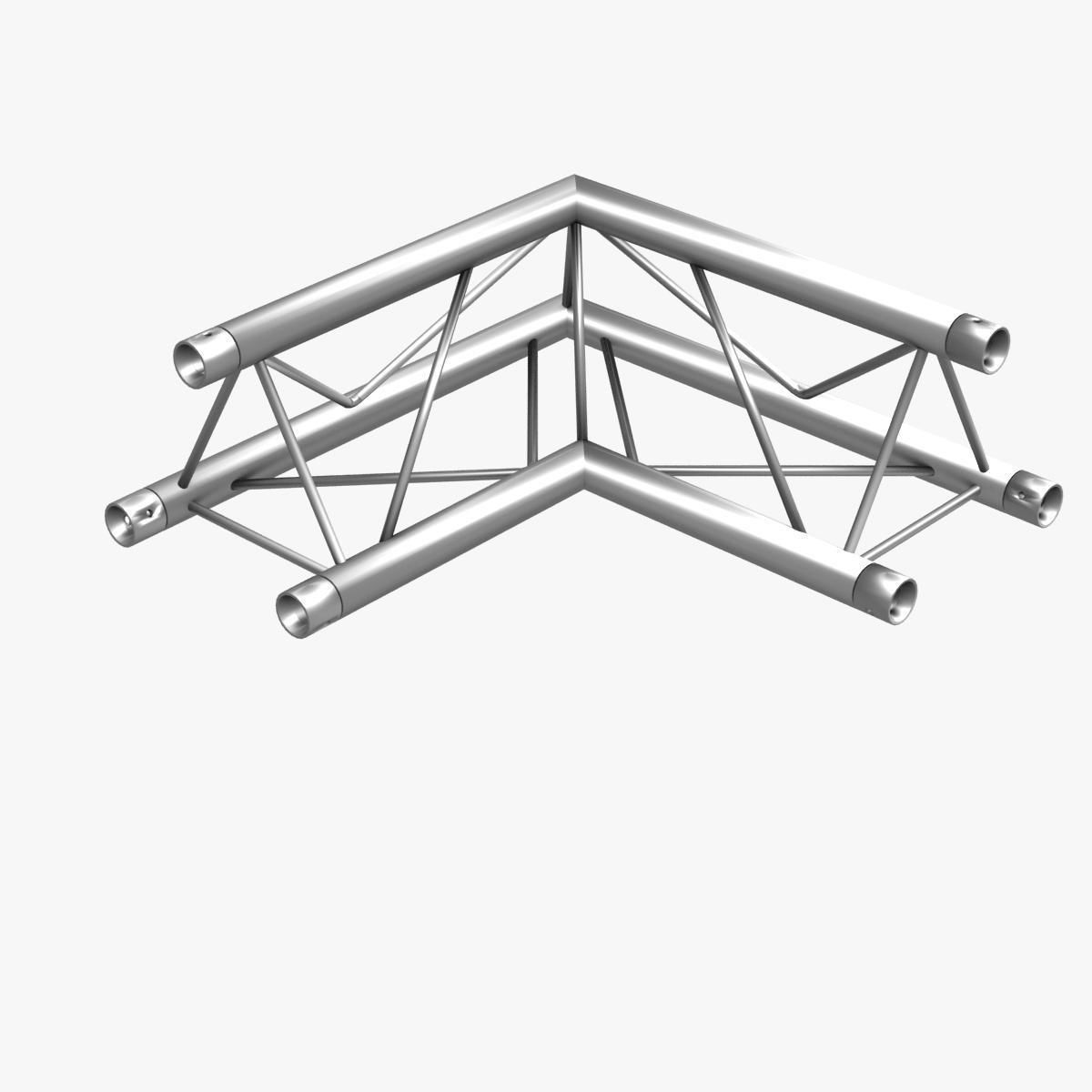

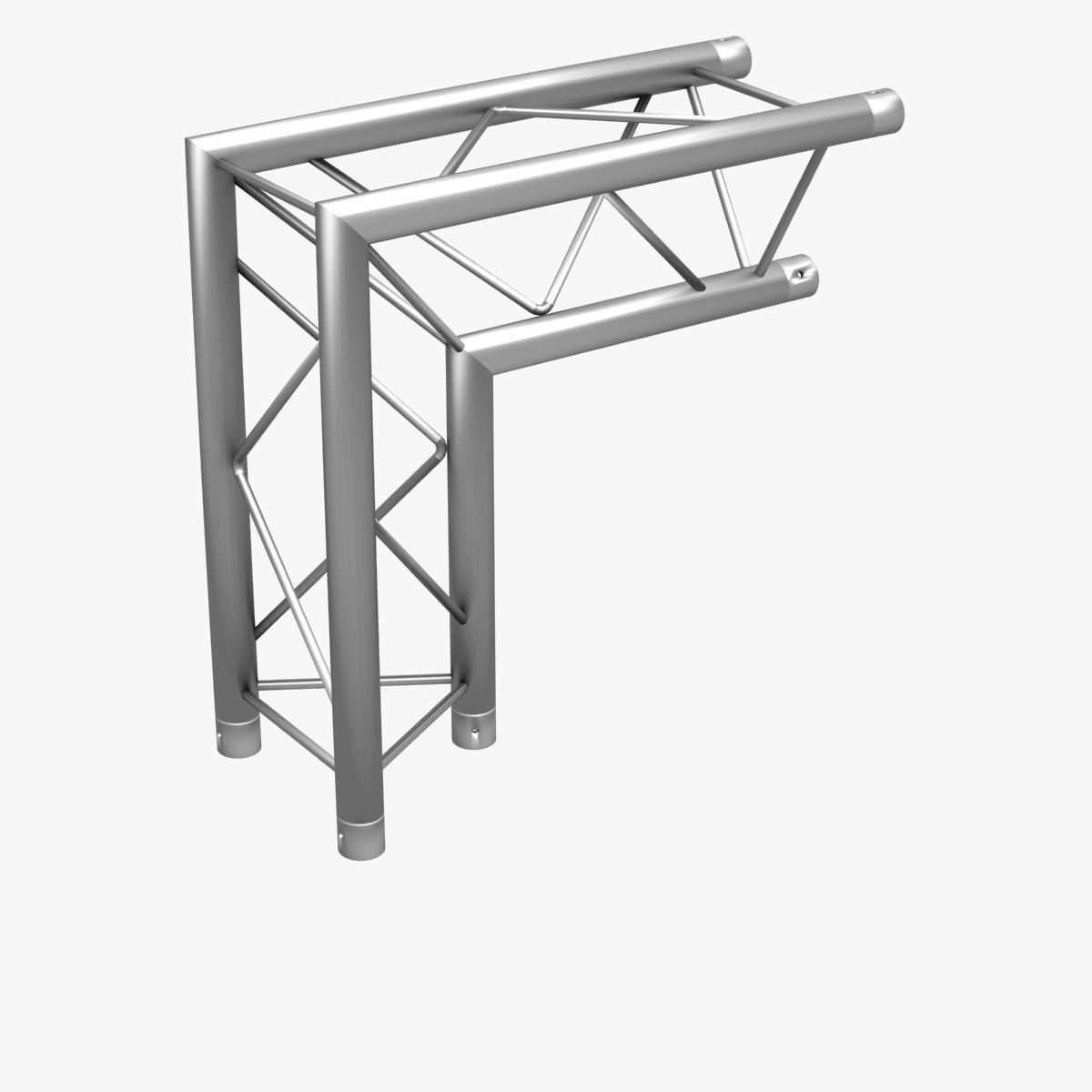

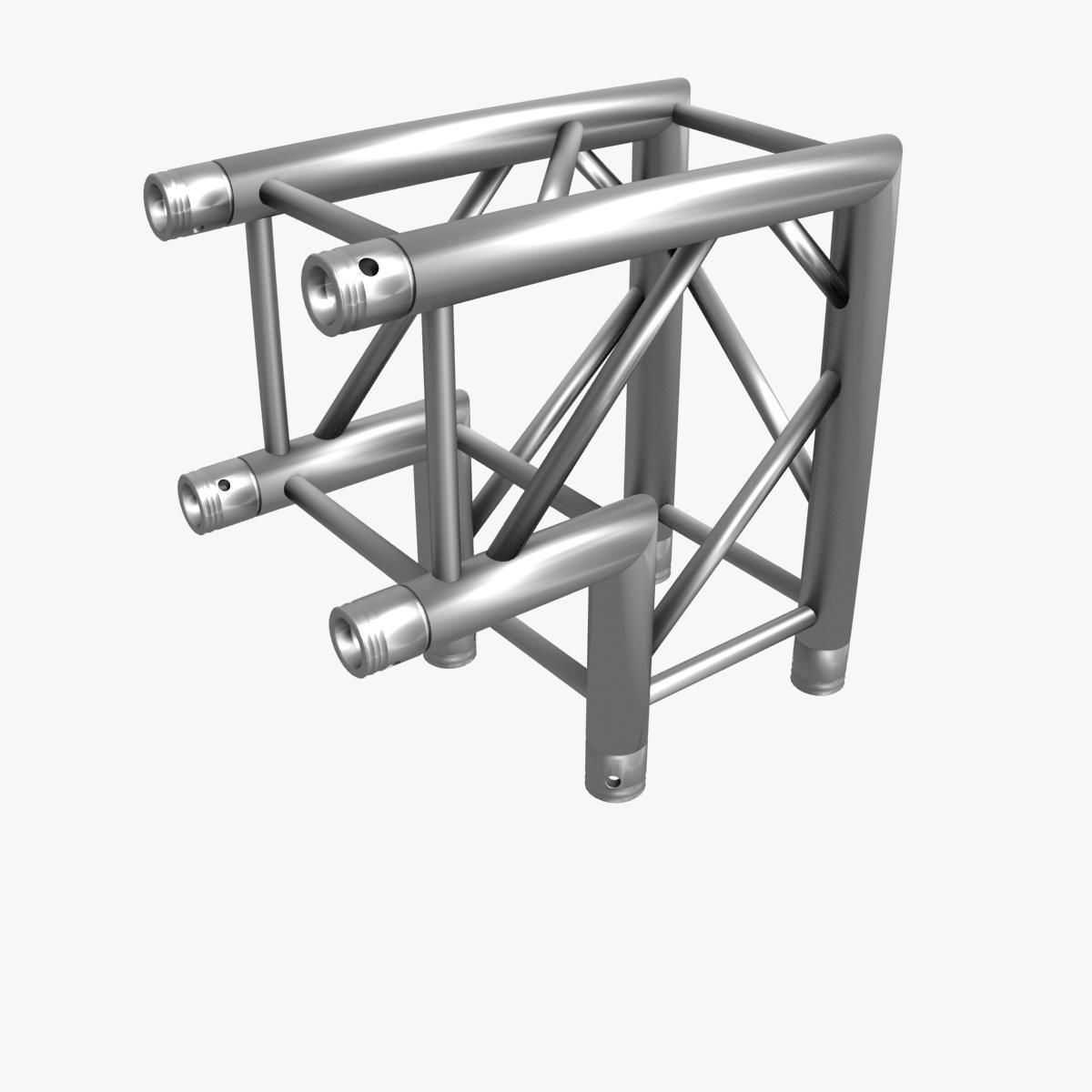

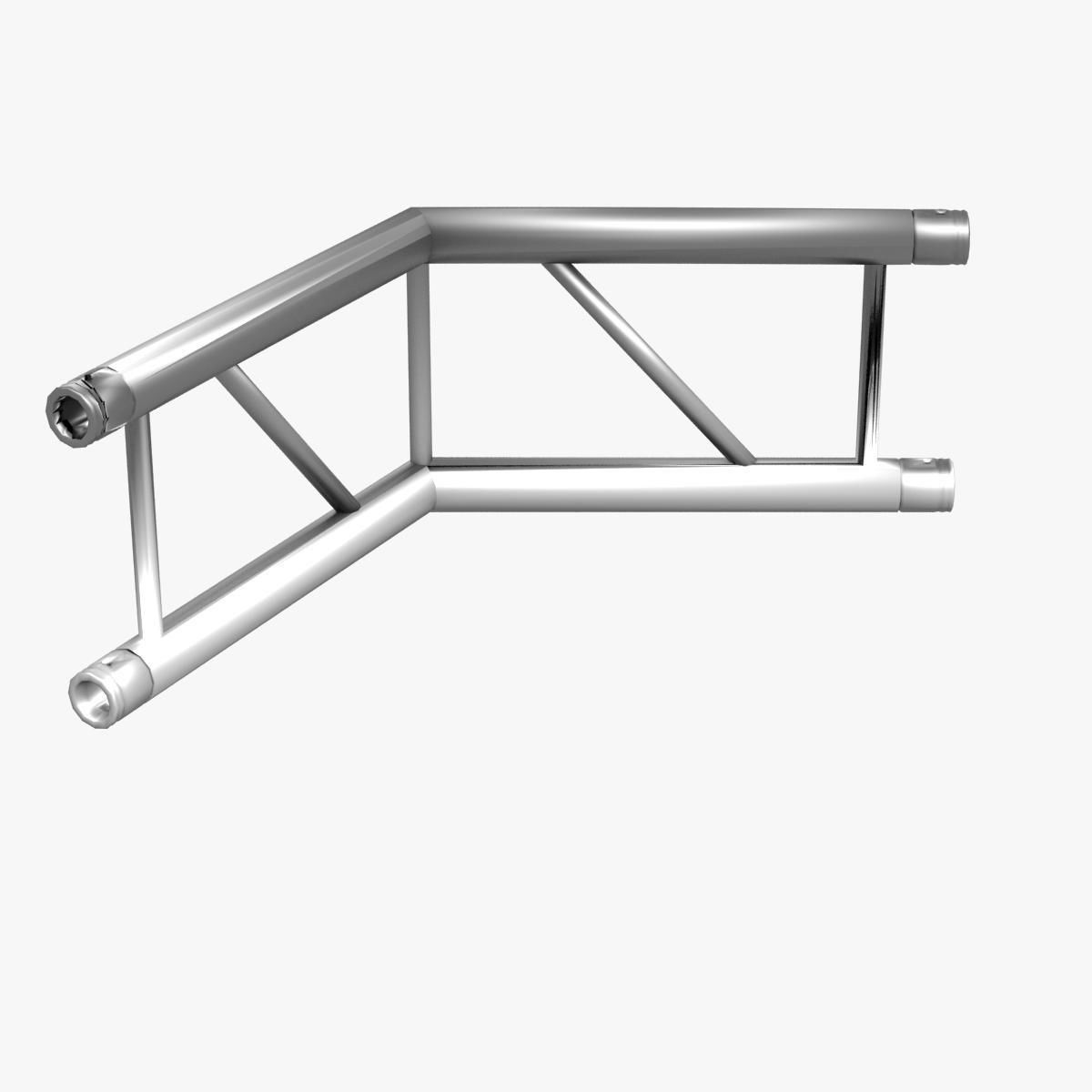

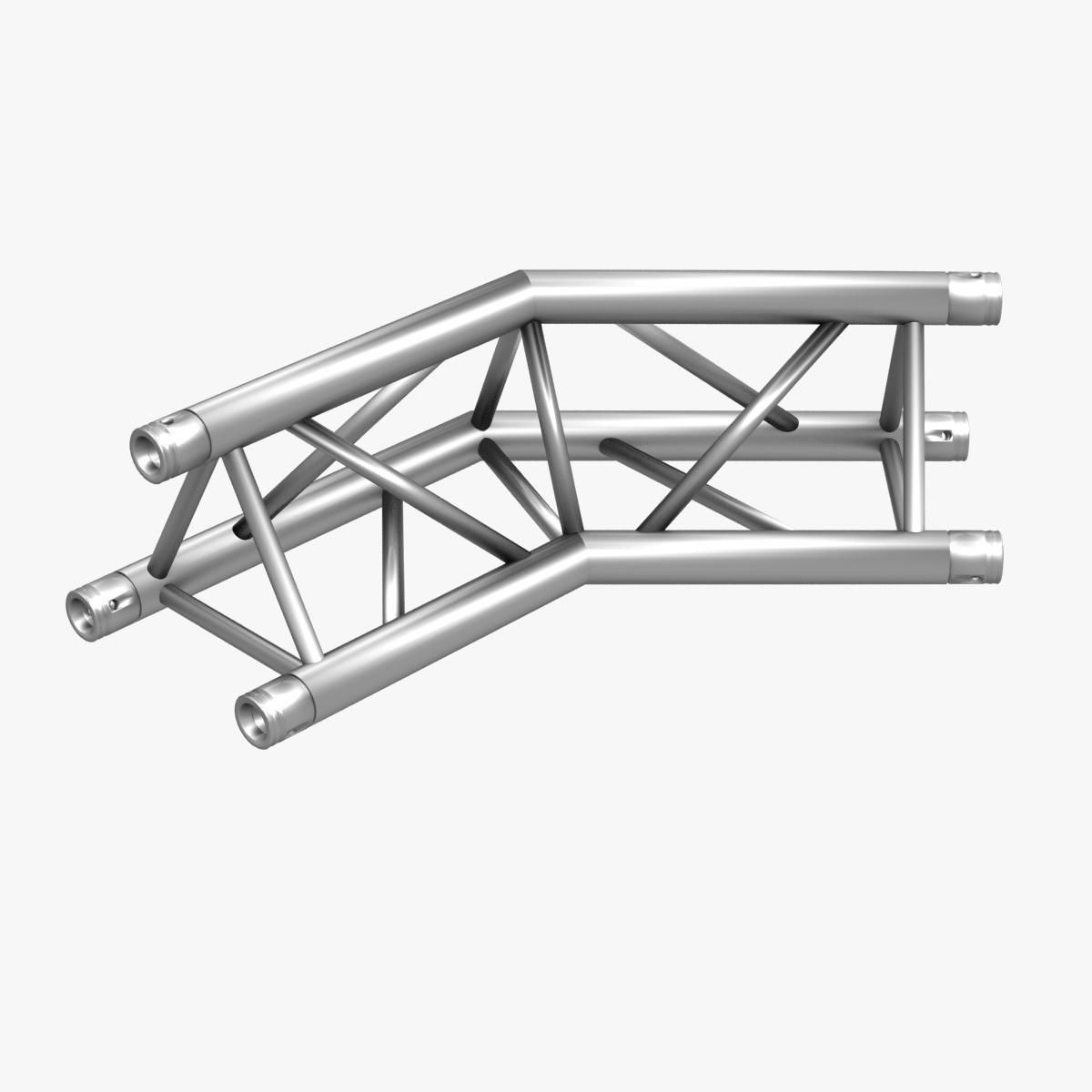

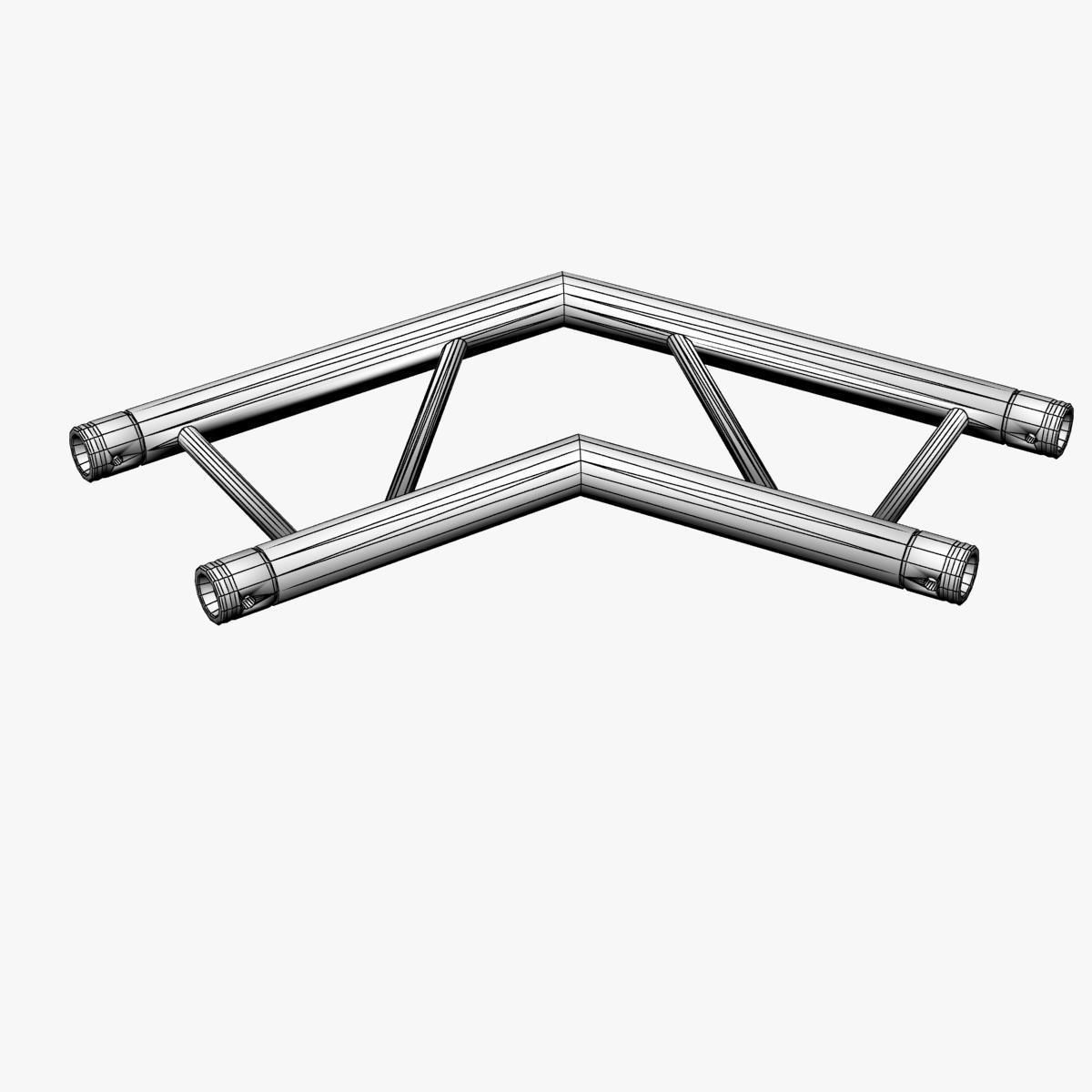

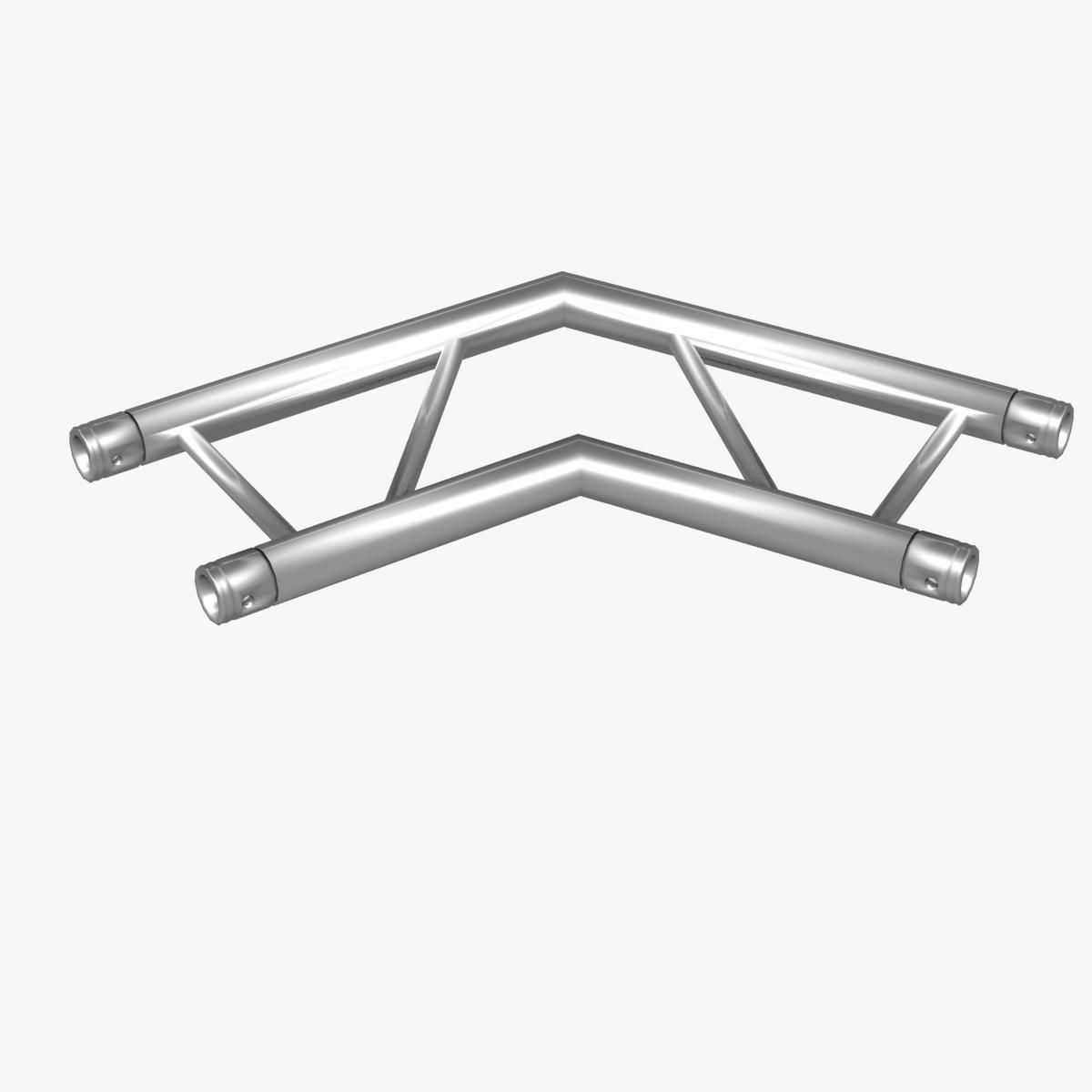

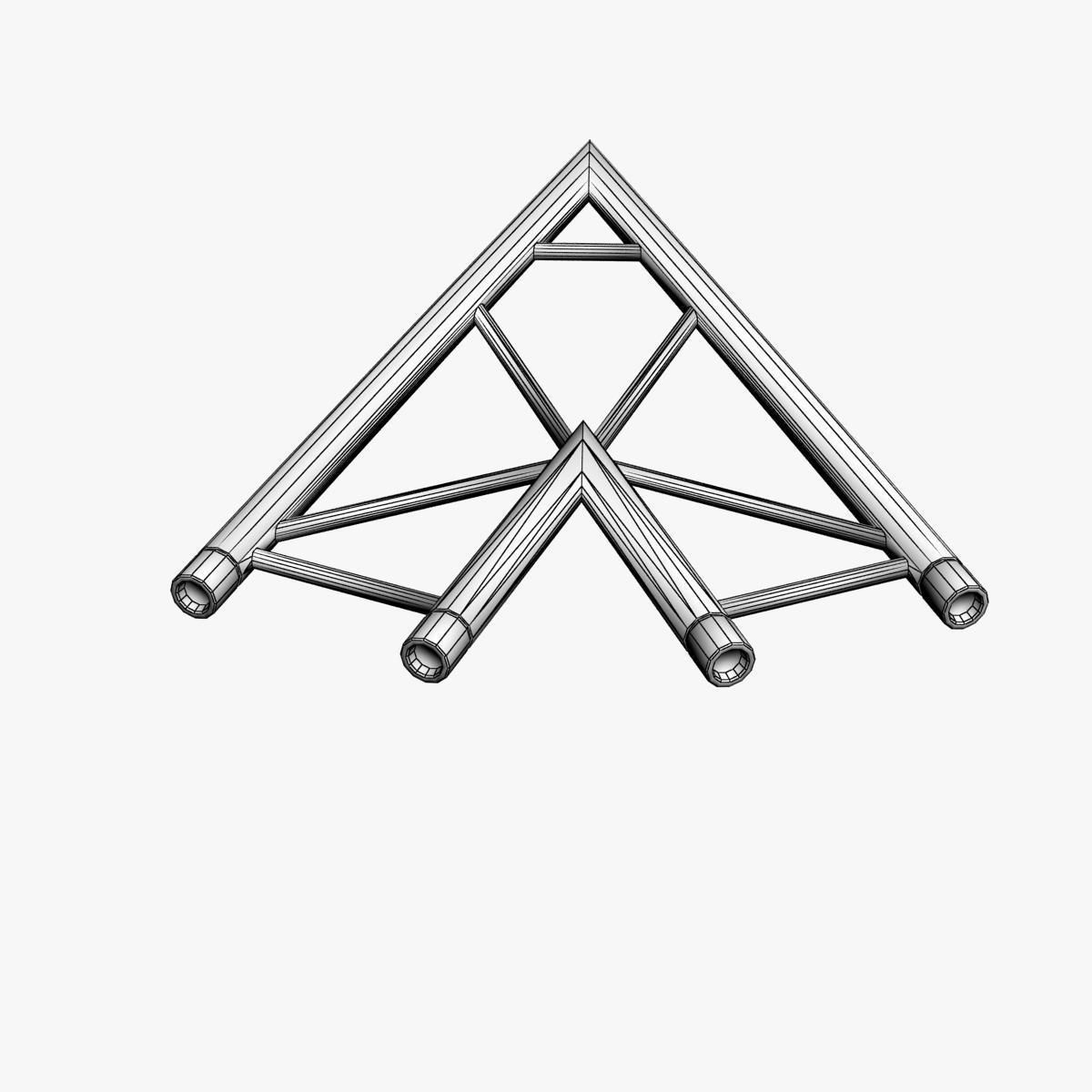

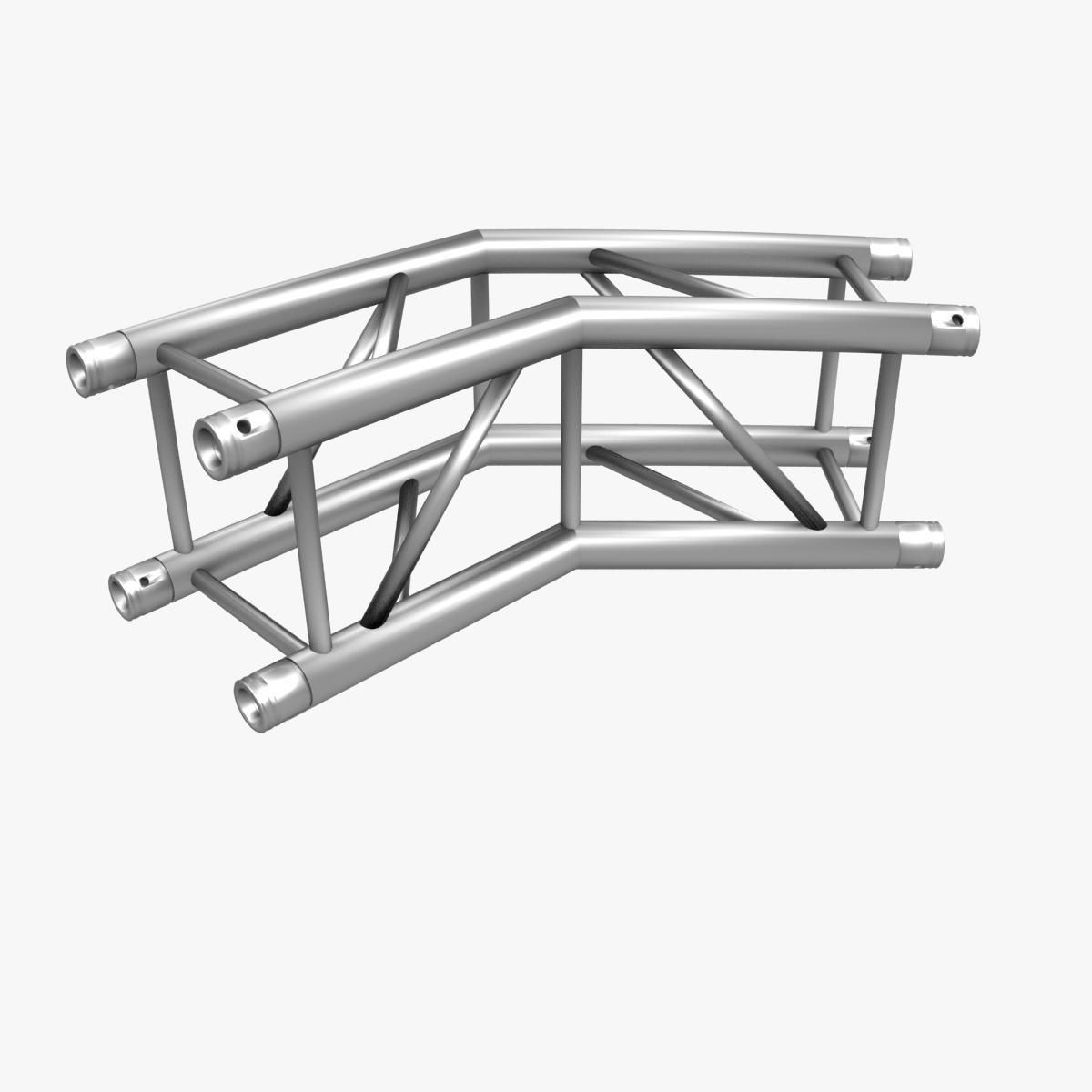

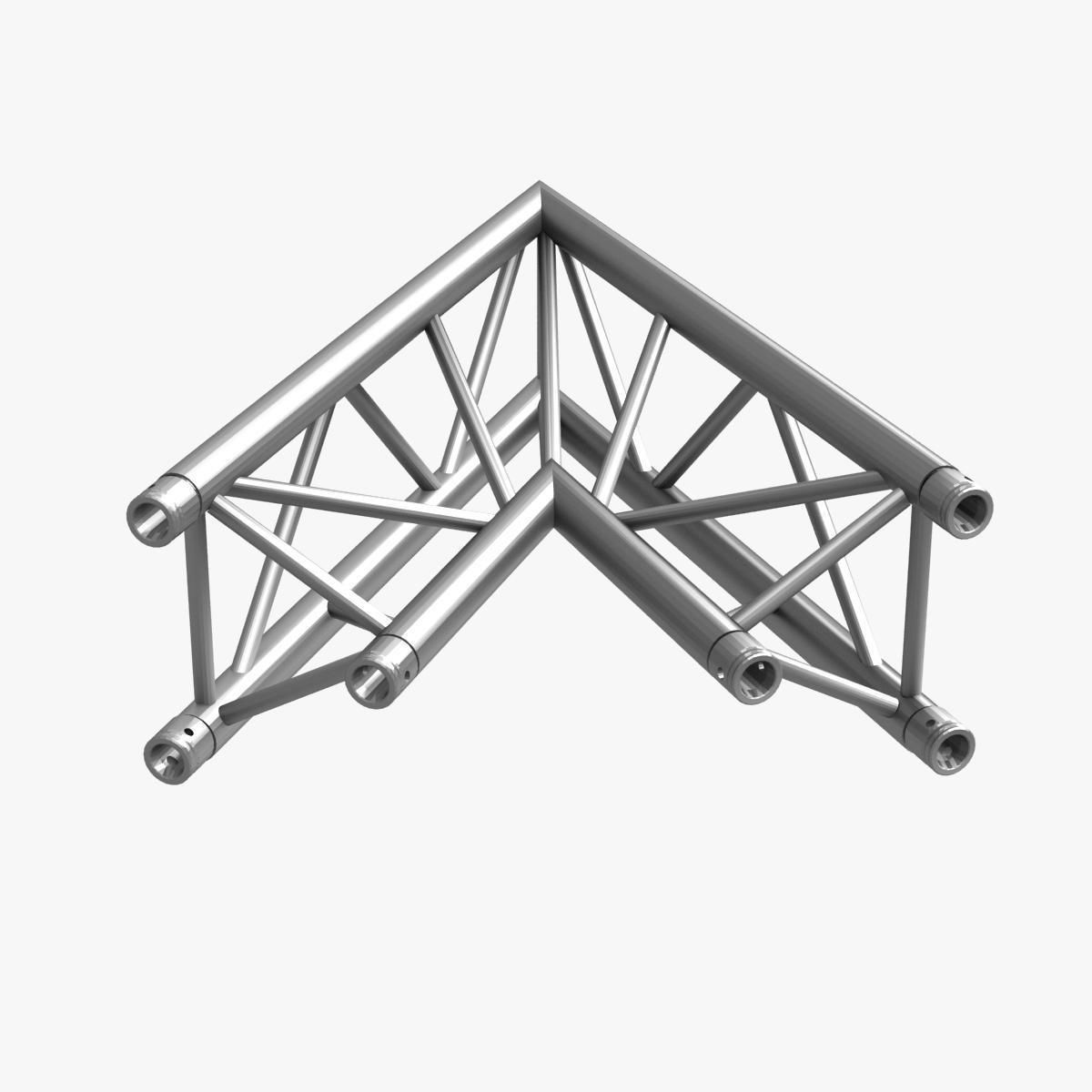

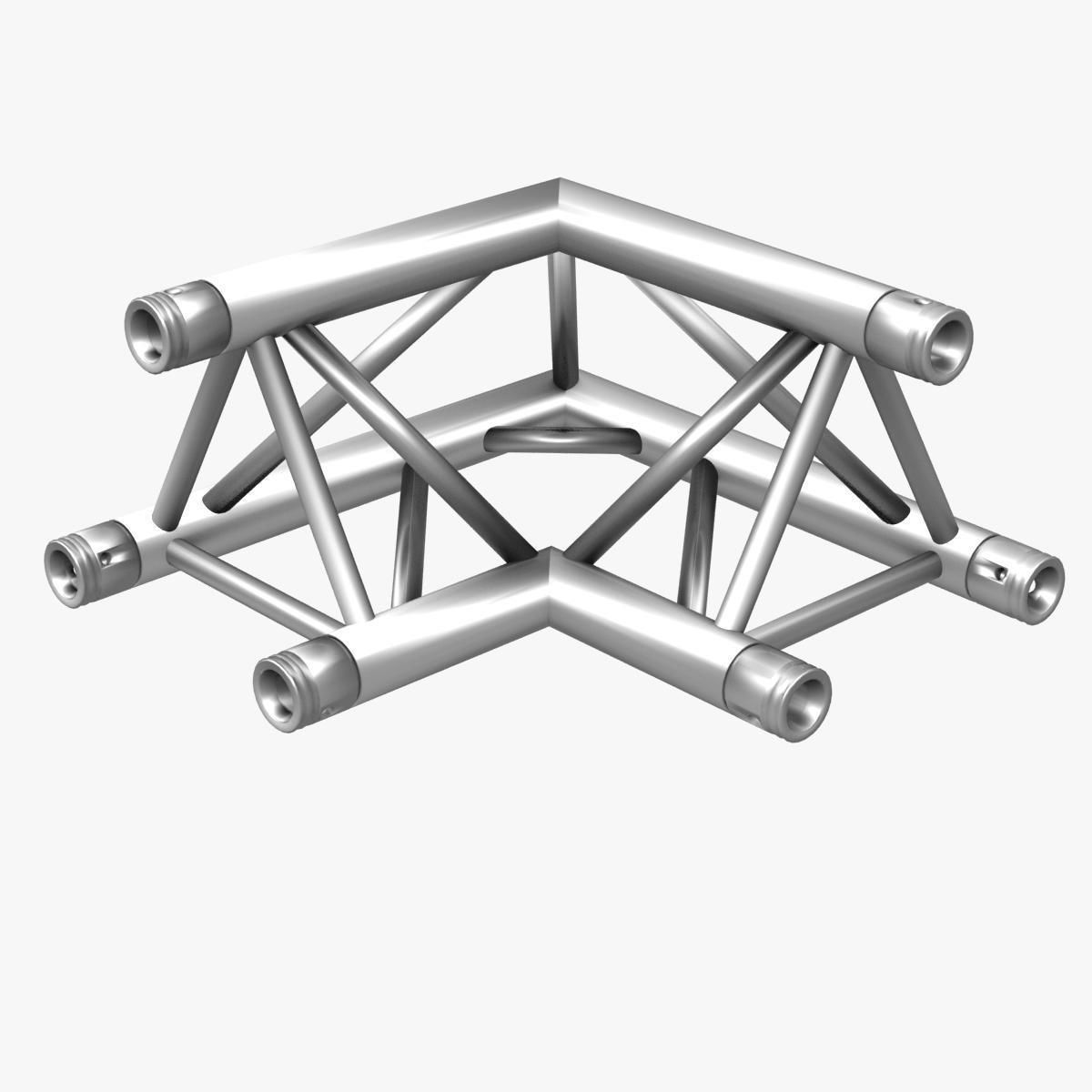

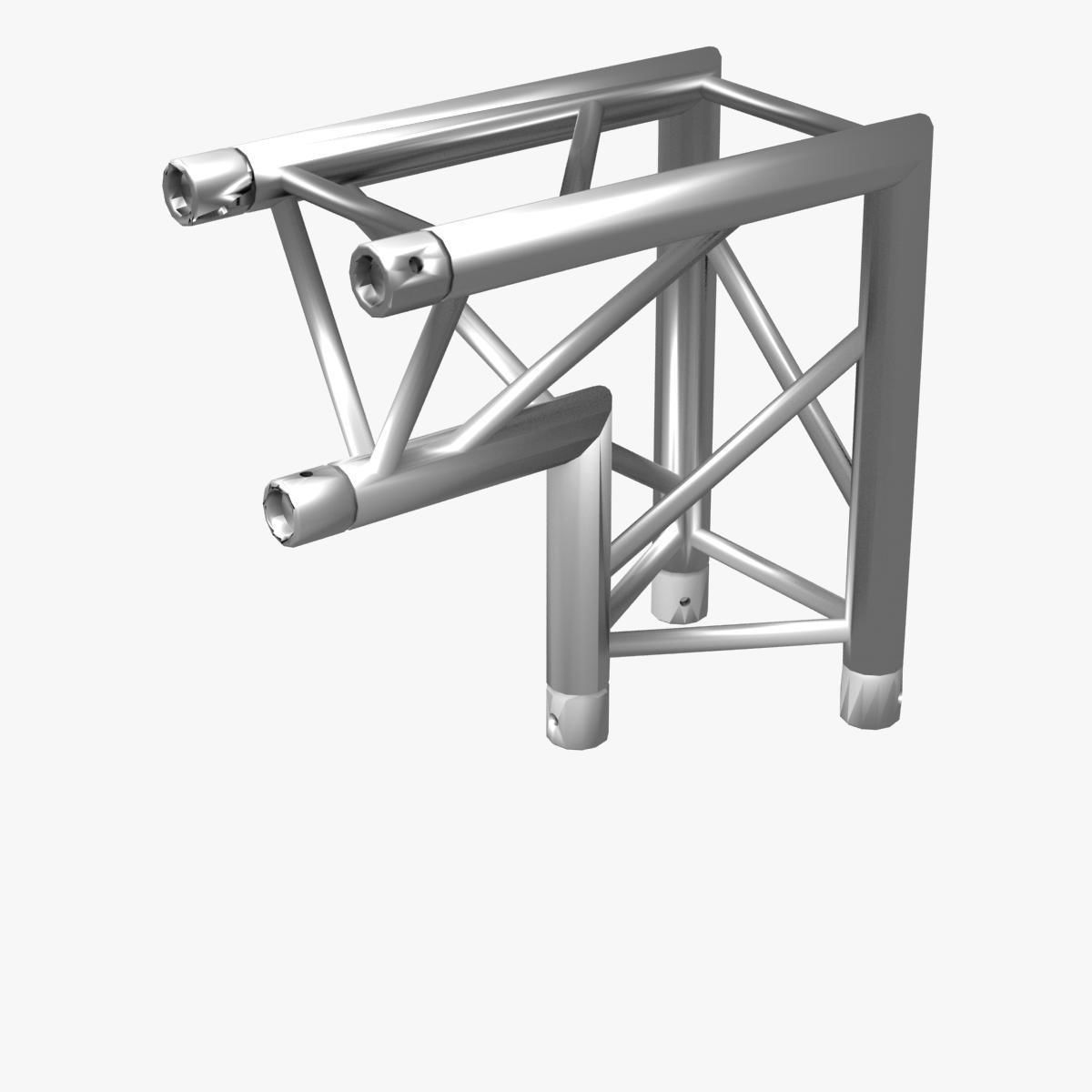

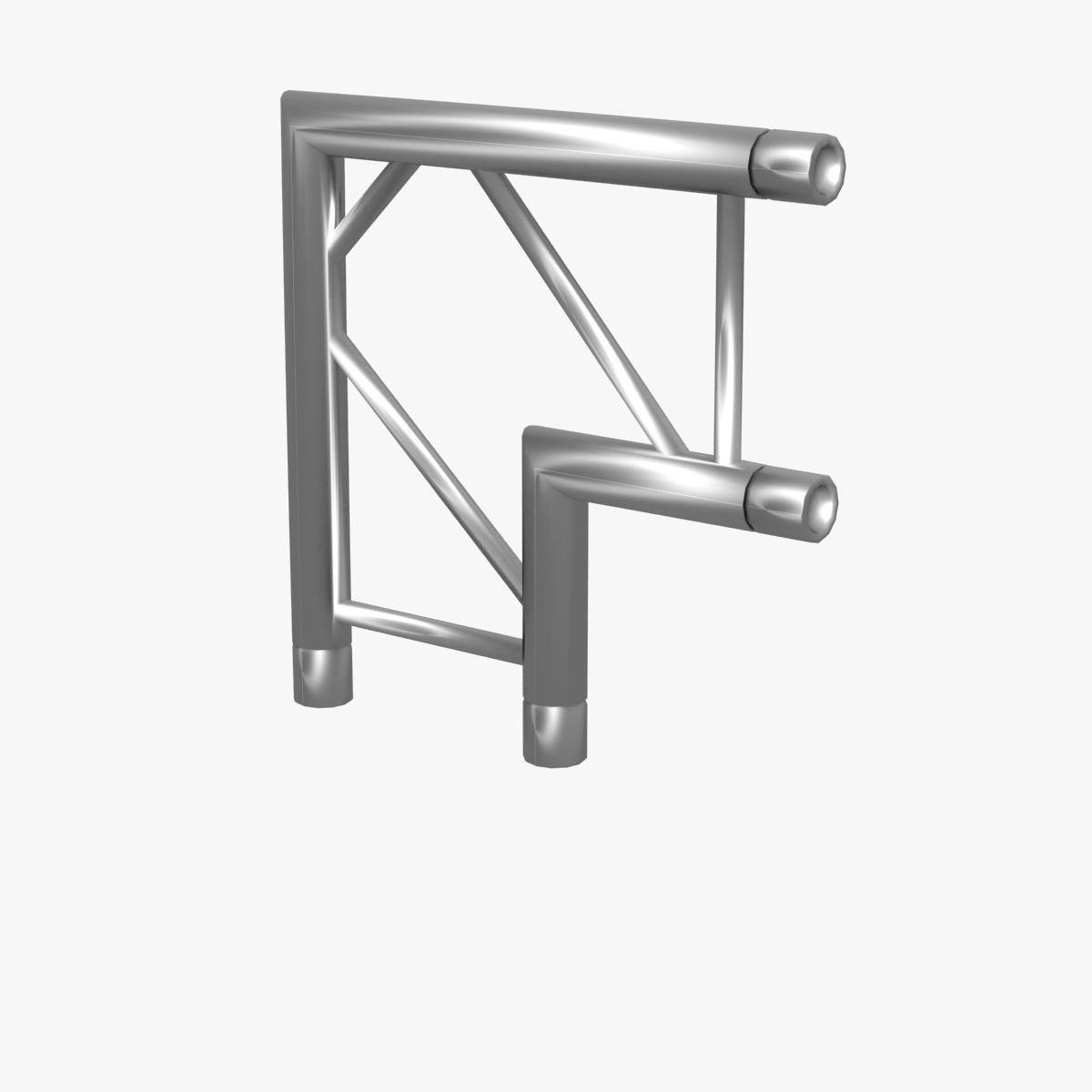

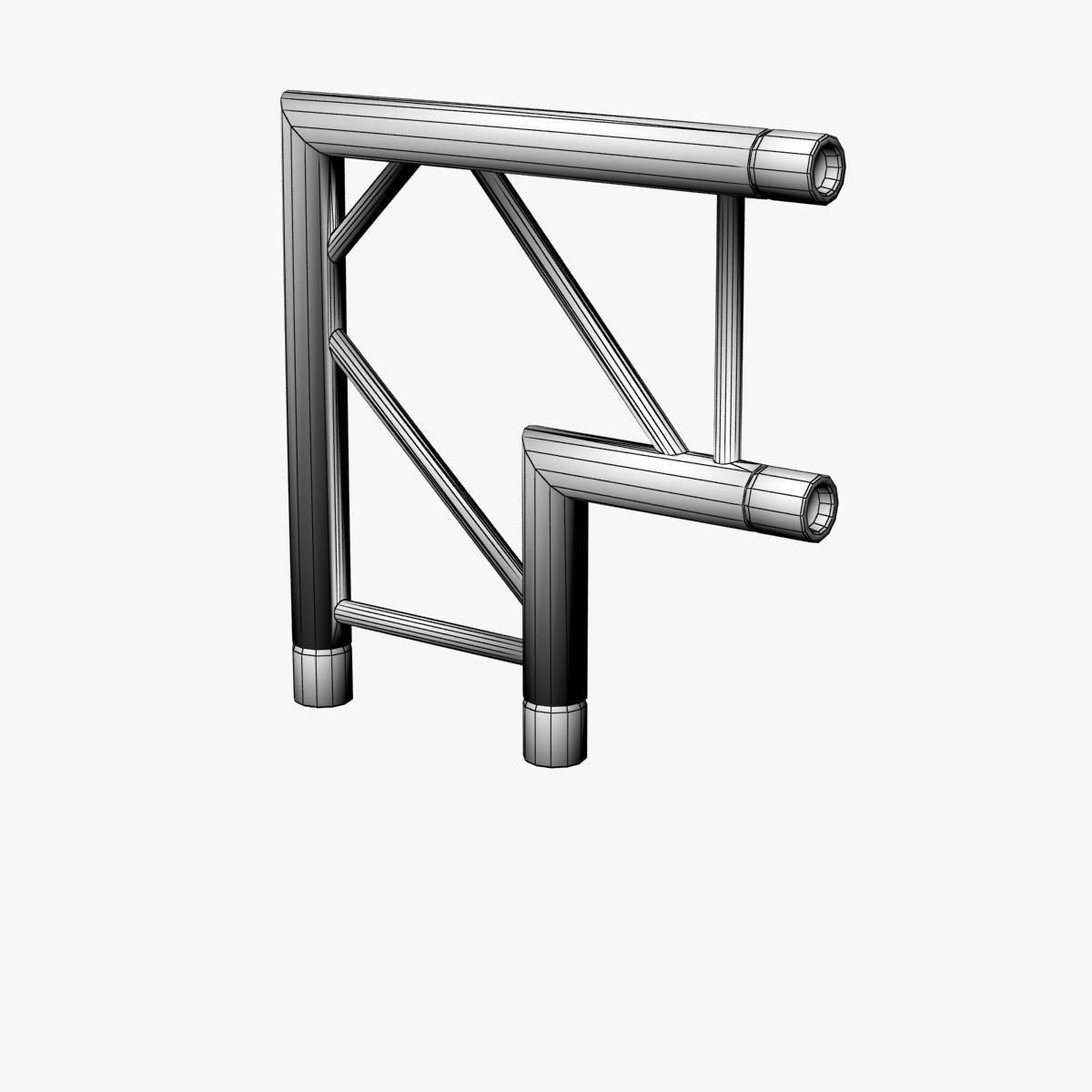

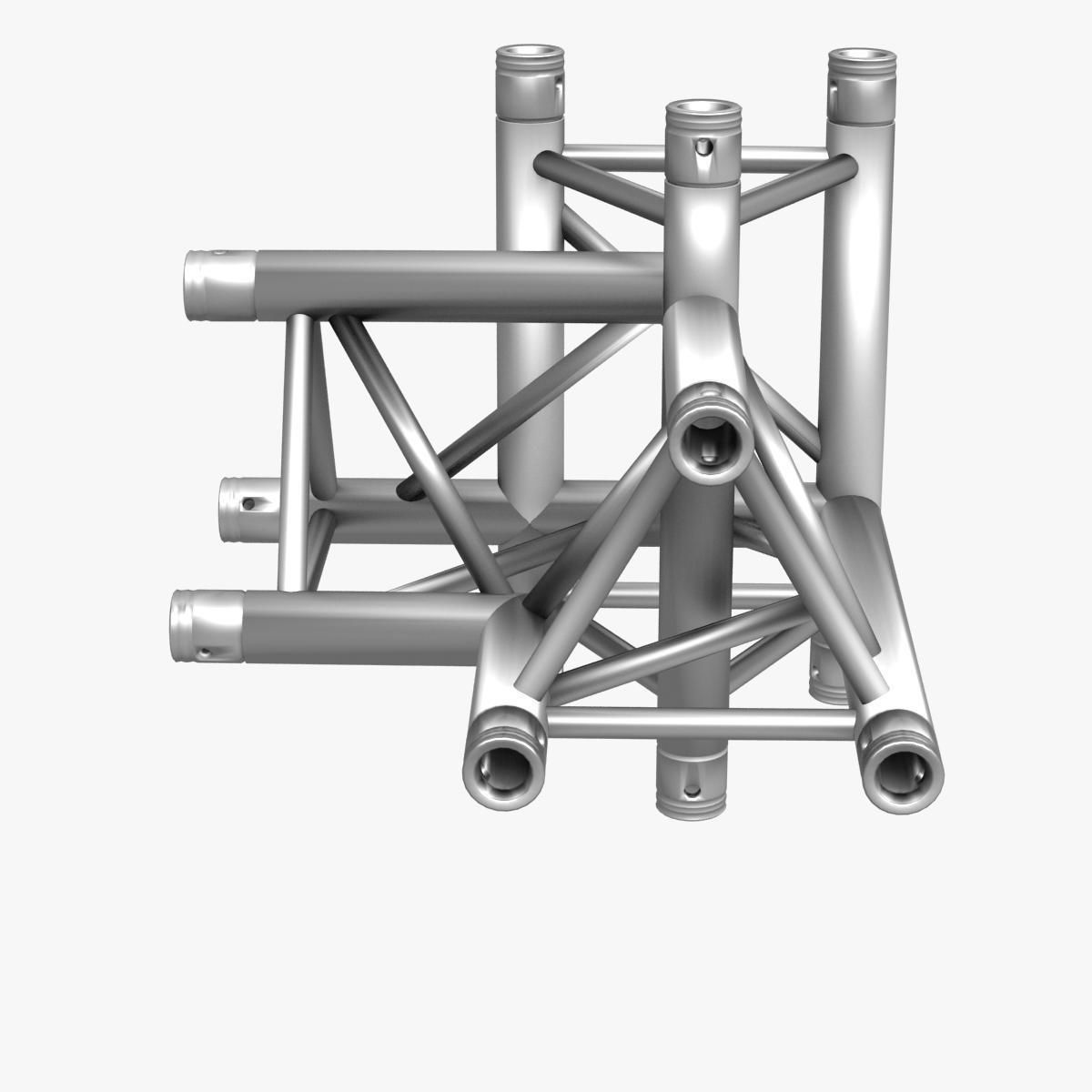

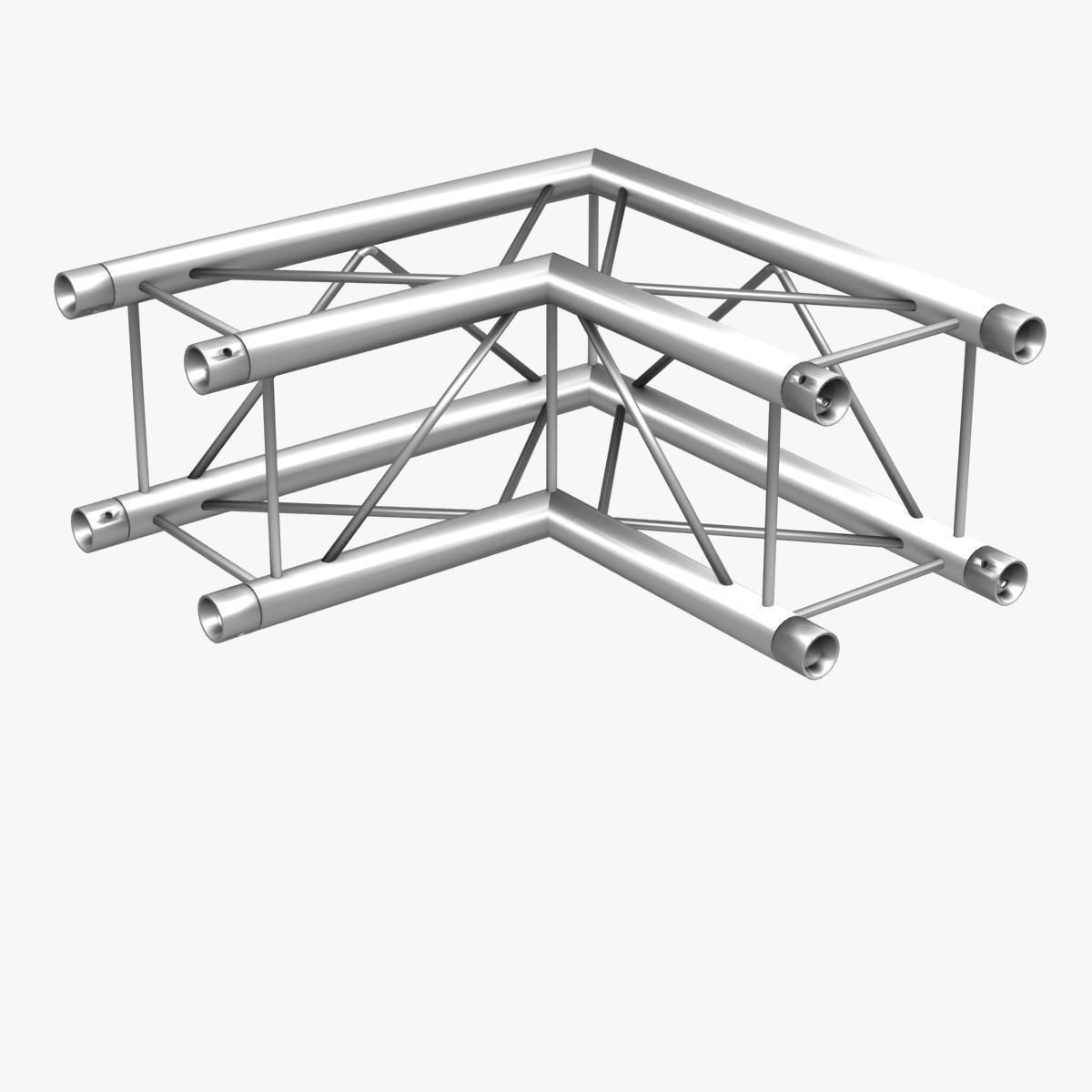

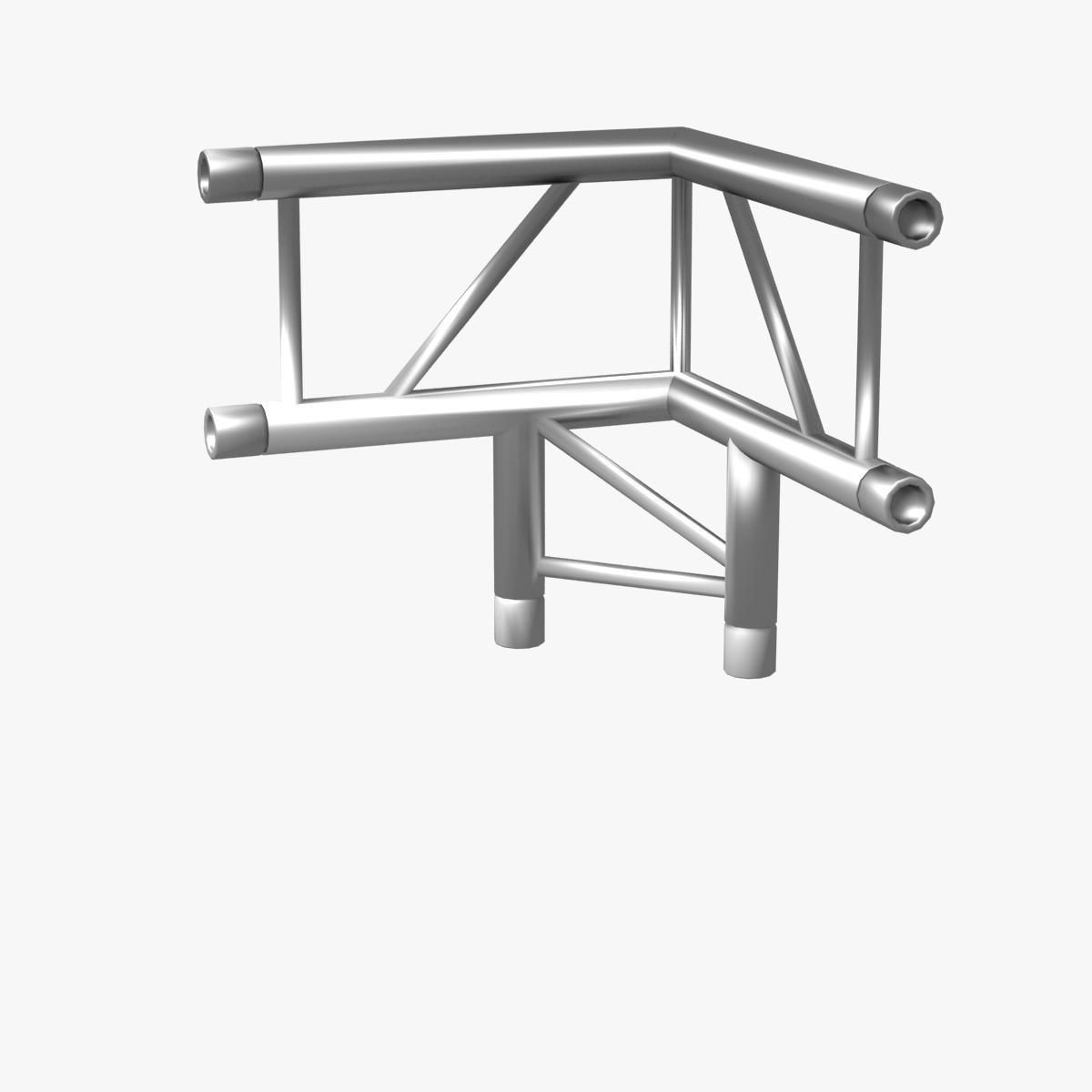

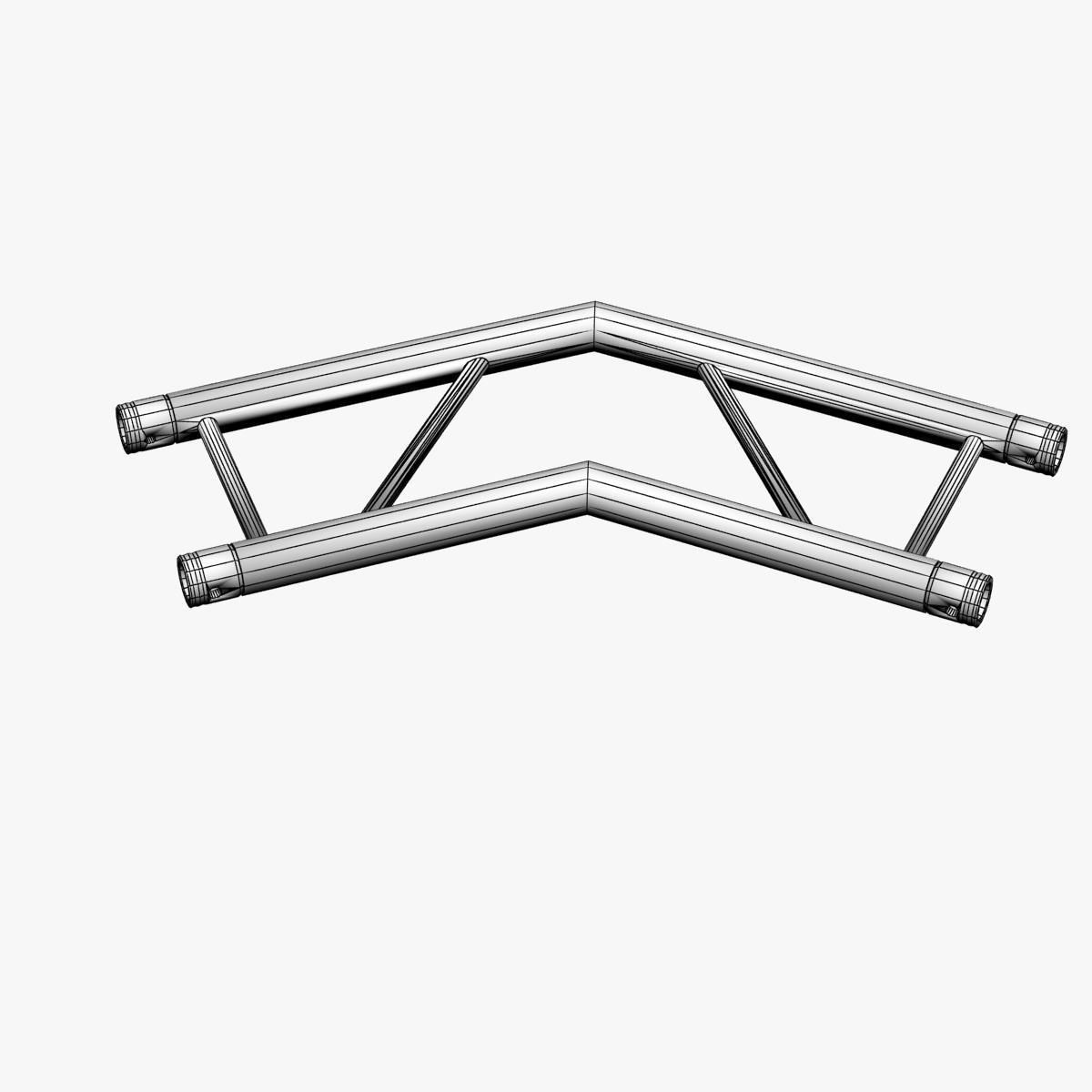

  • Corner Junctions

……………………………………

Model Info;

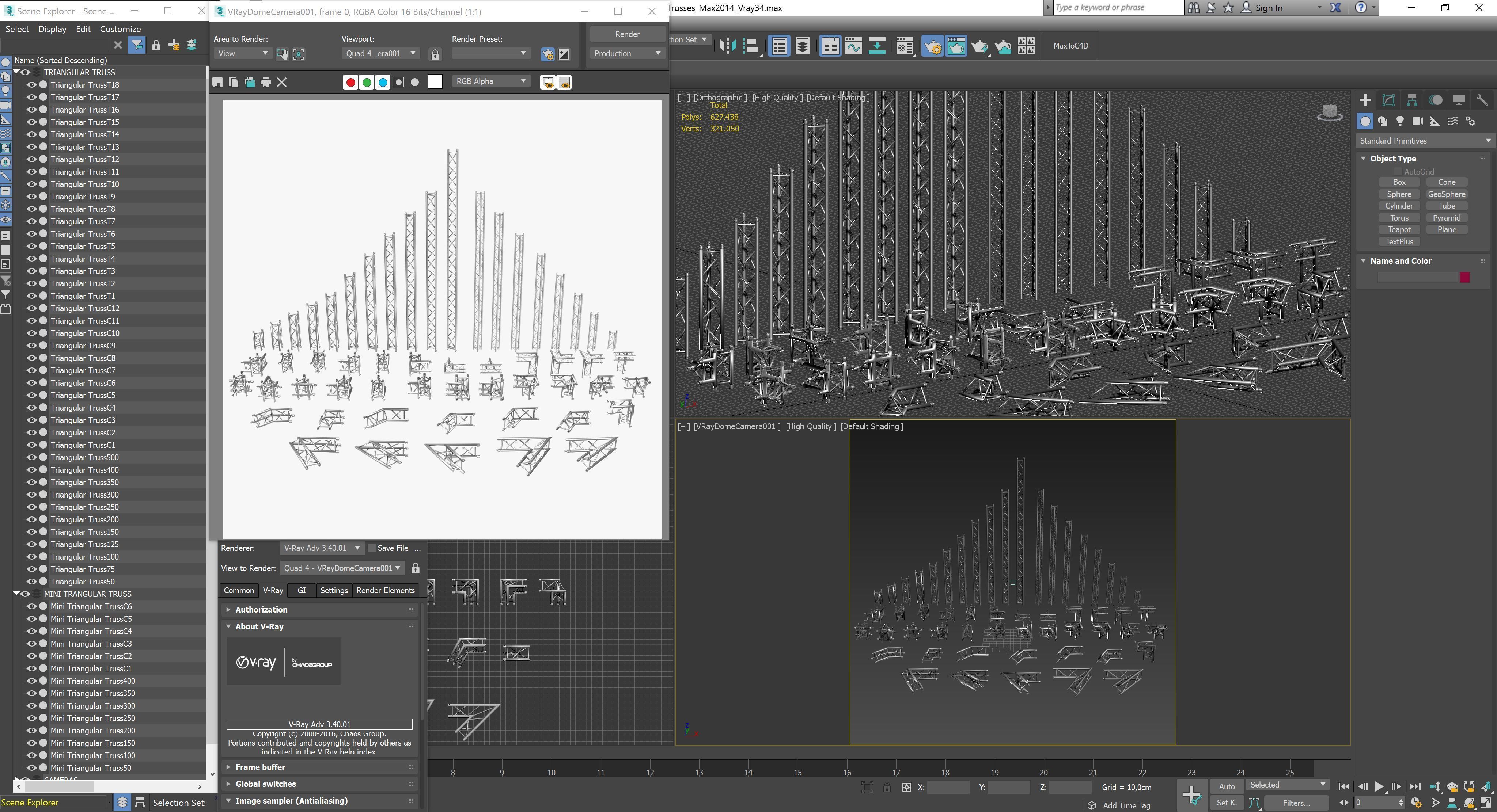

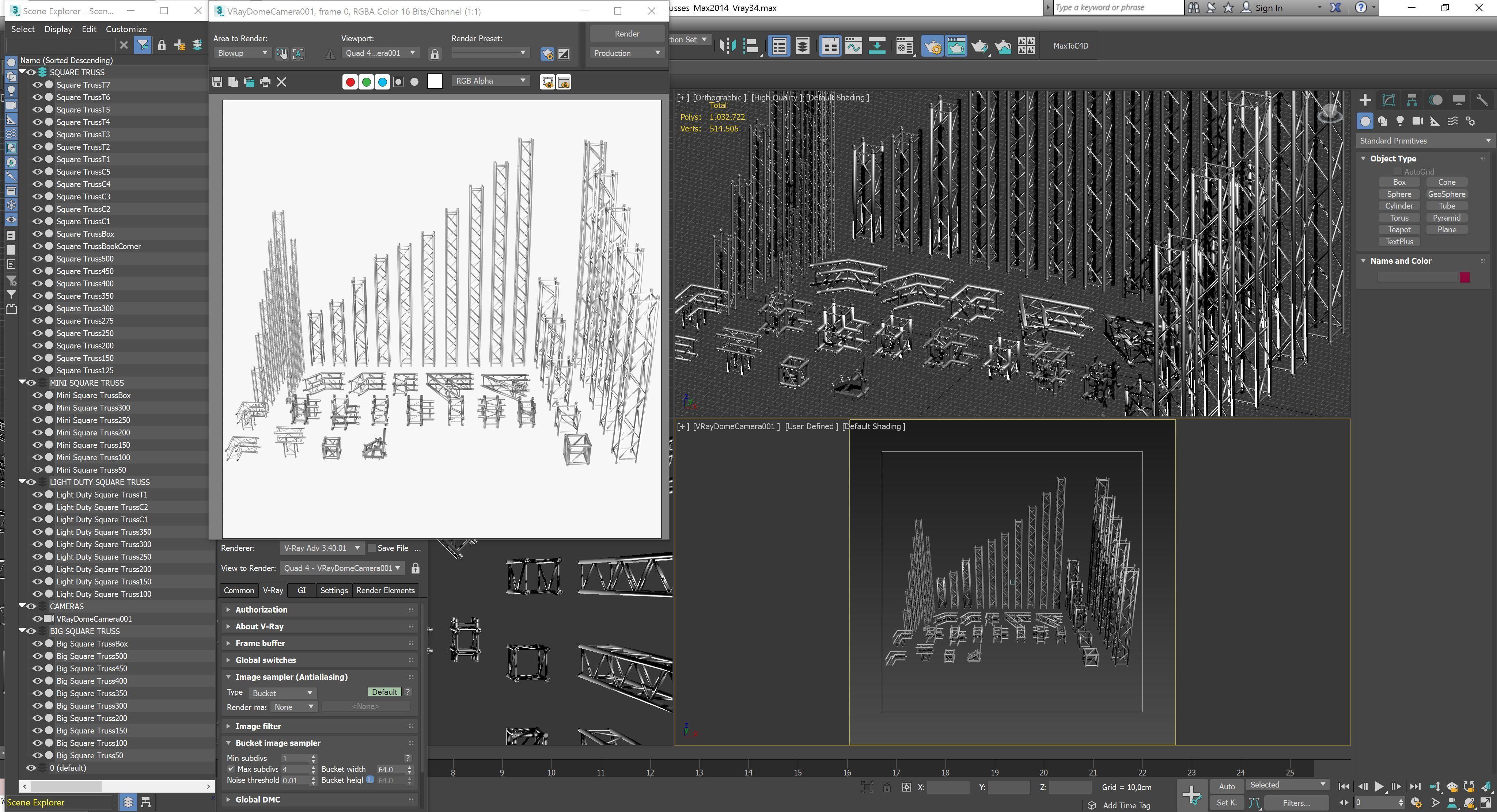

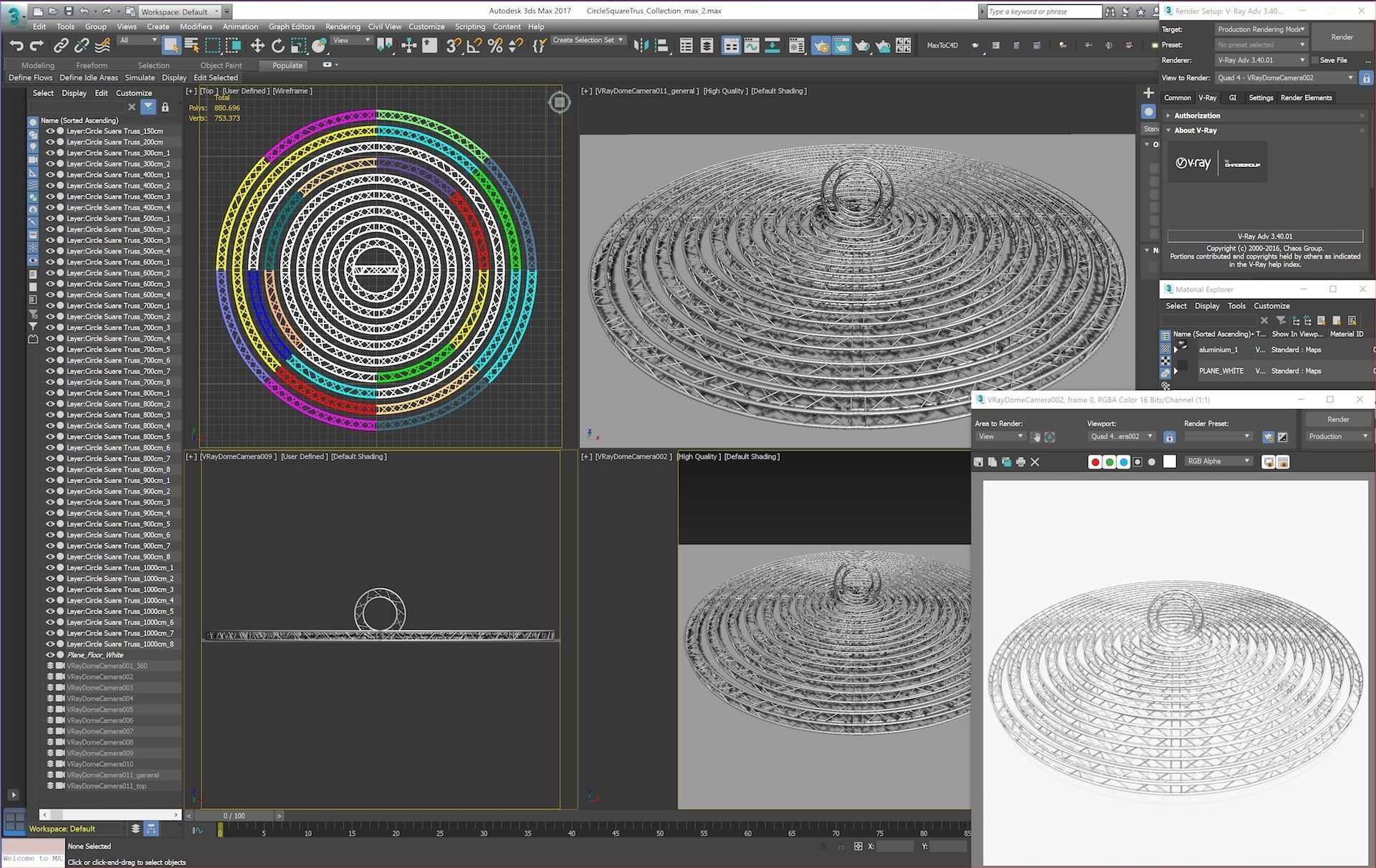

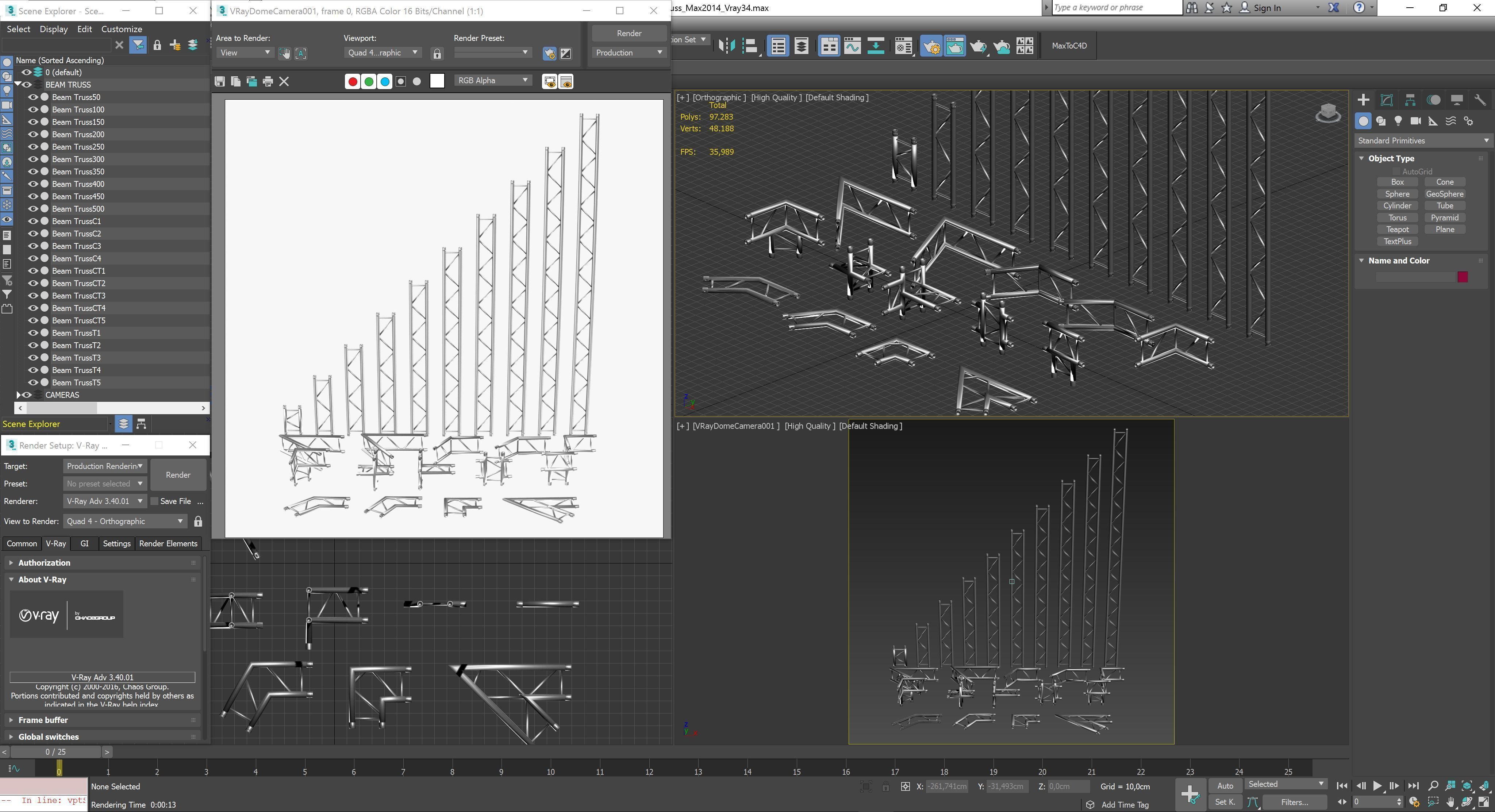

  • Originally created with 3ds Max 2010 - 2014
  • 149 unique modular objects
  • Modeled in Real World Scale
  • All Geometry Named Appropriately
  • Overall Width : 11 7/16" (290mm)
  • Outer Diameter Tubing : 2" (50mm)
  • Diagonal Bracing : 3/4" (20mm)
  • Wall Thickness : 0.08" (2mm)
  • Geometry: Polygonal

Square Trusses:

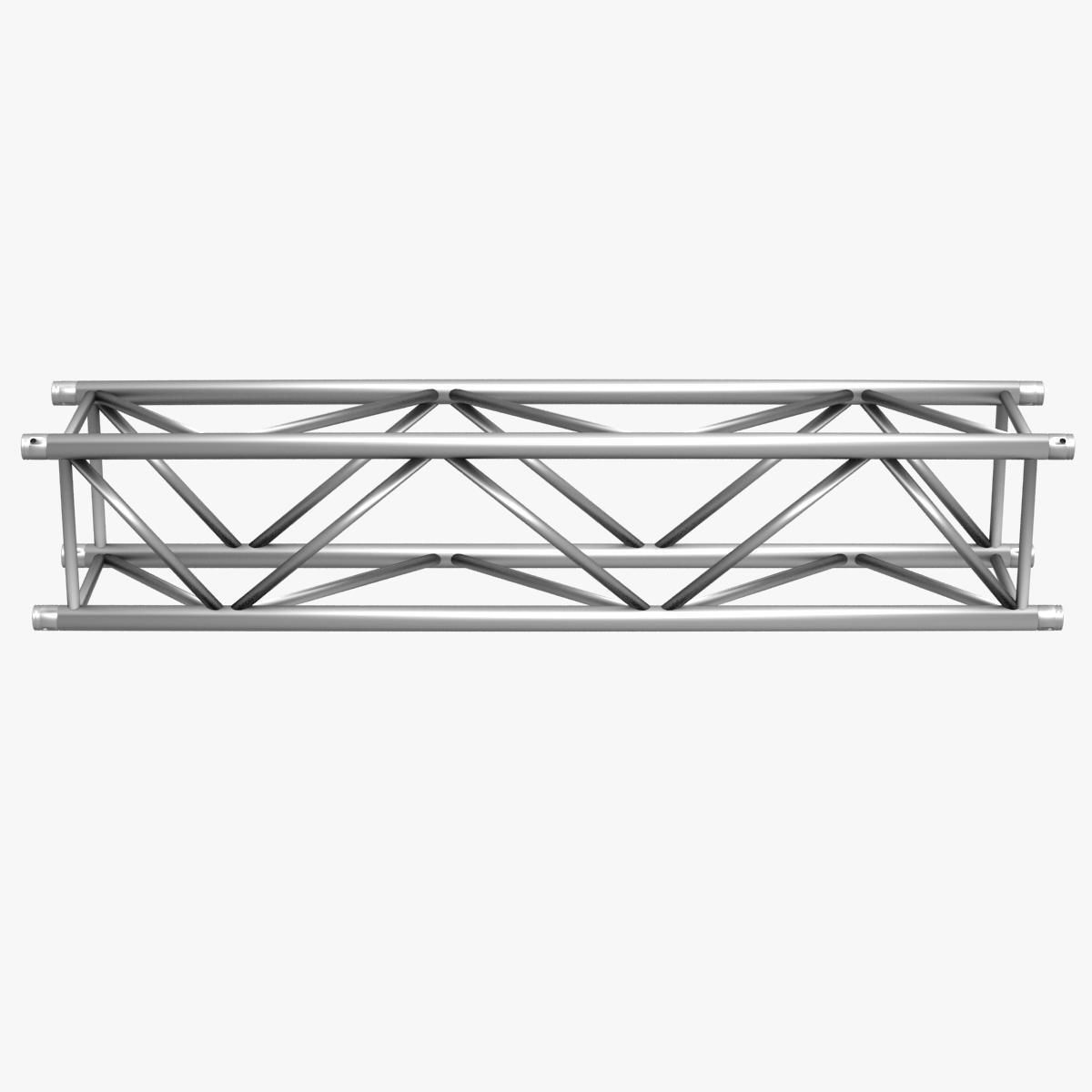

  • Square Truss Standard: 24 objects
  • Polygons: 507930 - Vertices: 252841

  • Mini Square Truss: 7 objects

  • Polygons: 128200 - Vertices: 63904

  • Light Duty Square Truss: 9 objects

  • Polygons: 205728 - Vertices: 102816

  • Big Square Truss: 10 objects

  • Polygons: 190864 - Vertices: 94944

Triangular Trusses:

  • Triangular Truss Standard: 41 objects
  • Polygons: 405900 - Vertices: 210321

  • Mini Triangular Truss: 14 objects

  • Polygons: 221538 - Vertices: 110729

  • Beam Truss Standard: 24 objects

  • Polygons: 97283 - Vertices: 48188

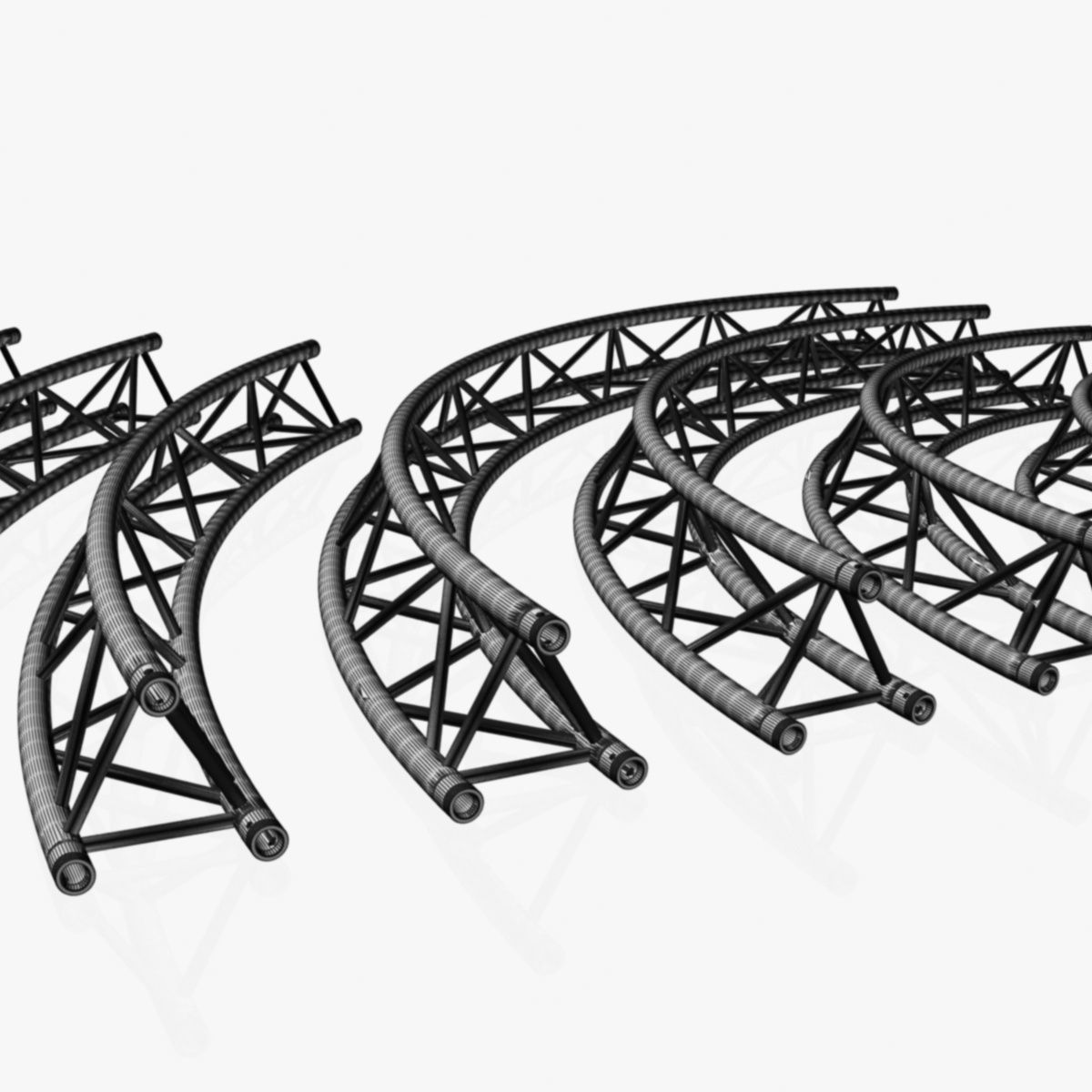

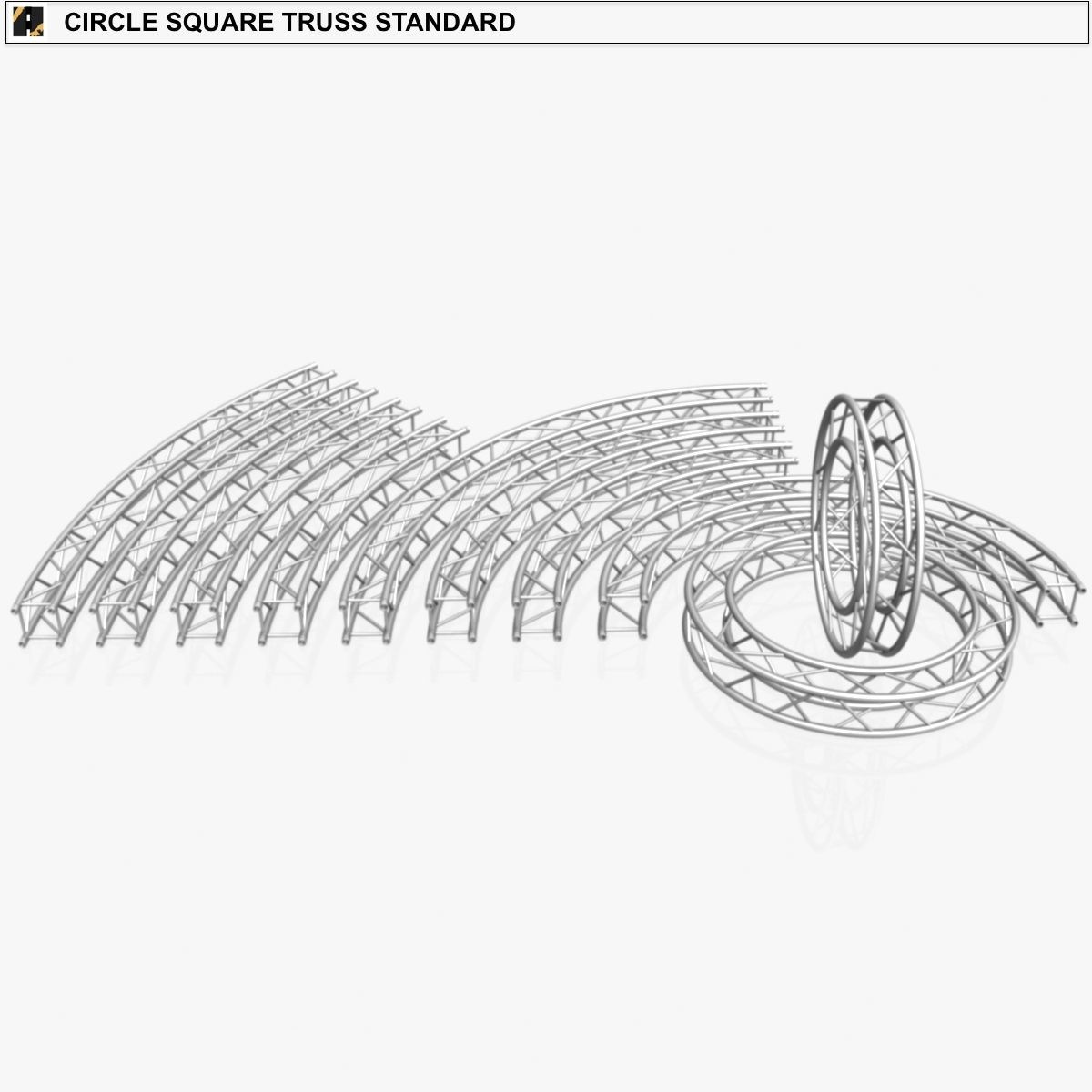

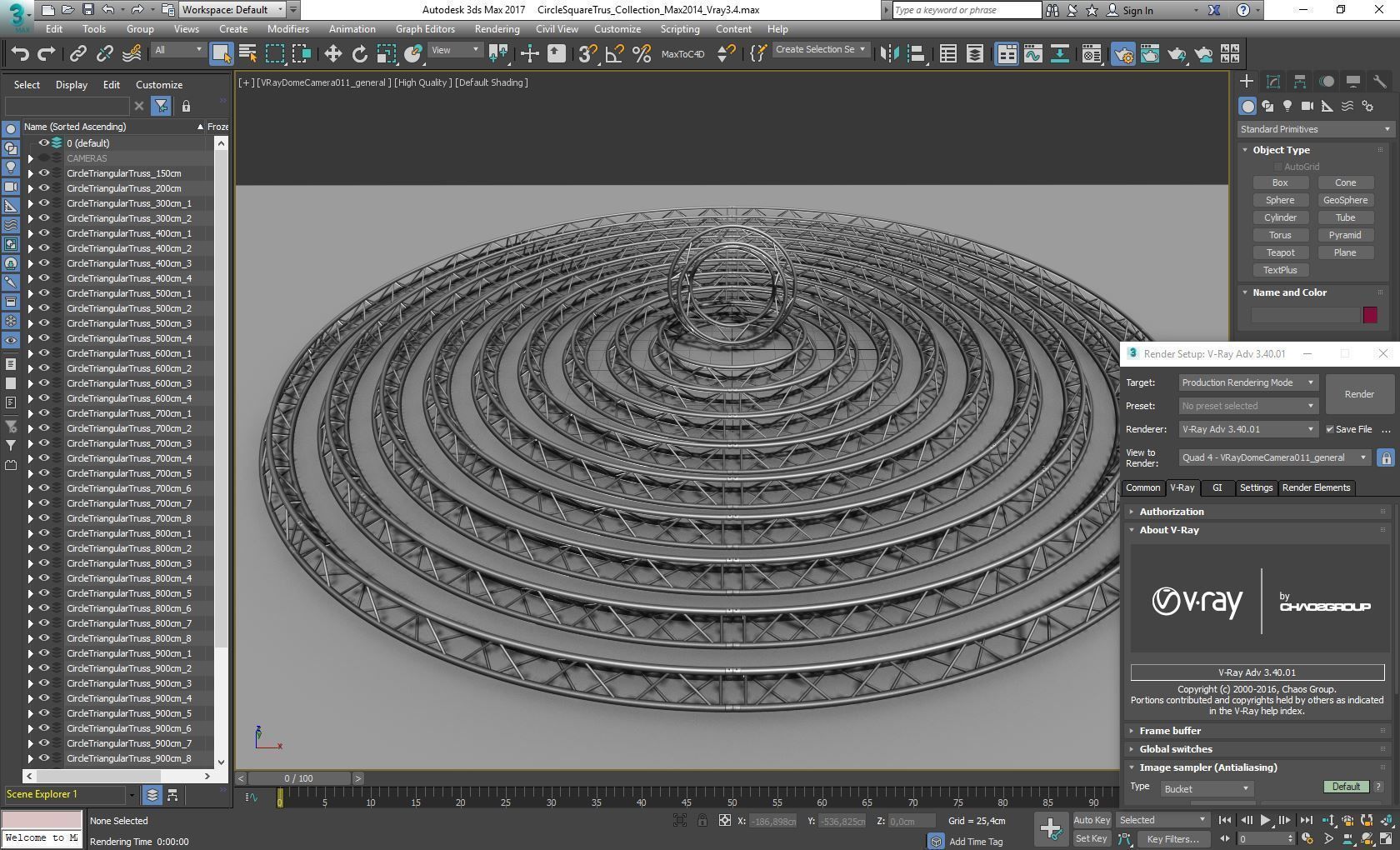

Circle Trusses: -Circle Square Trusses:

  • Polygons: 880696 - Vertices: 753373 -Circle Triangular Trusses:
  • Polygons: 2574816 - Vertices: 1742328

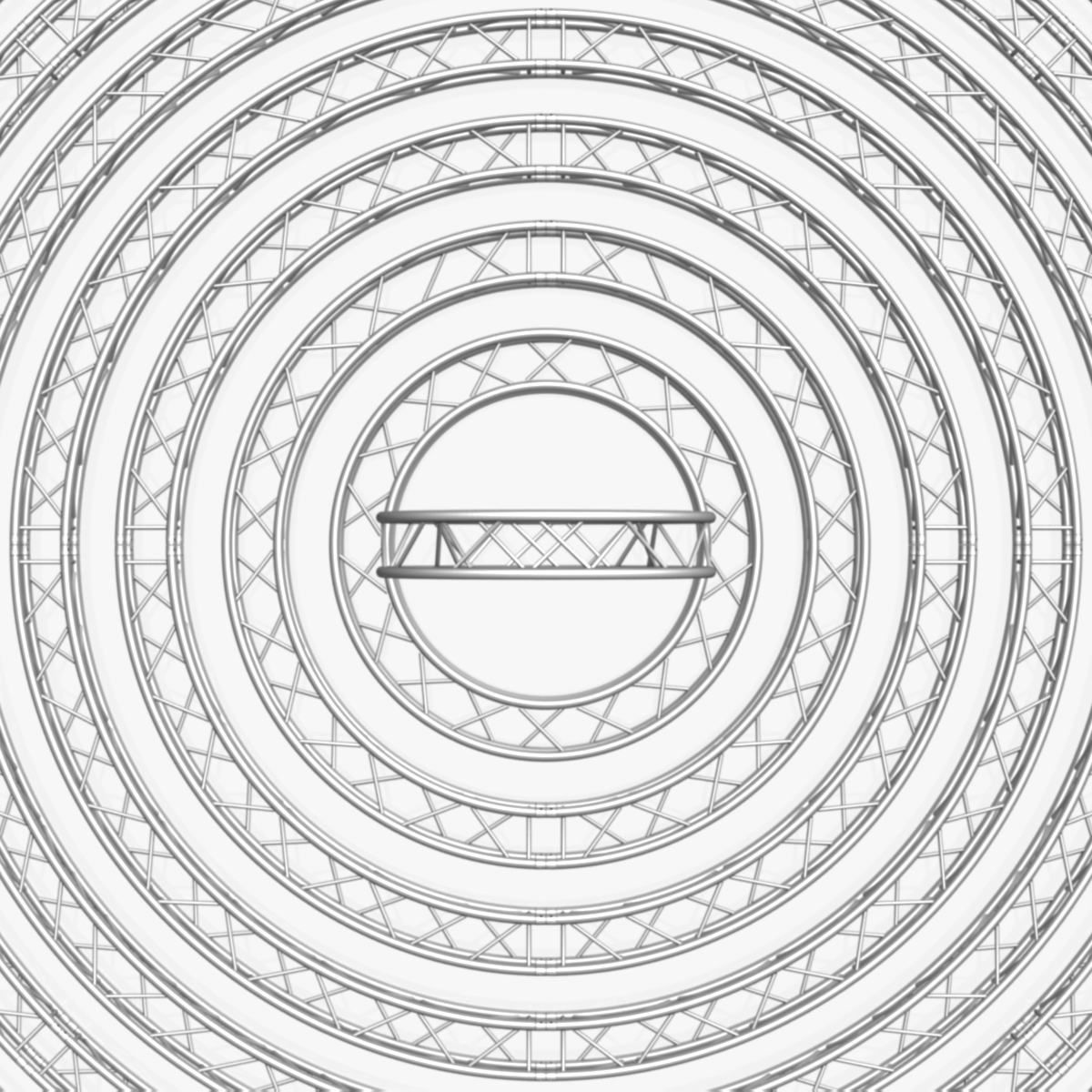

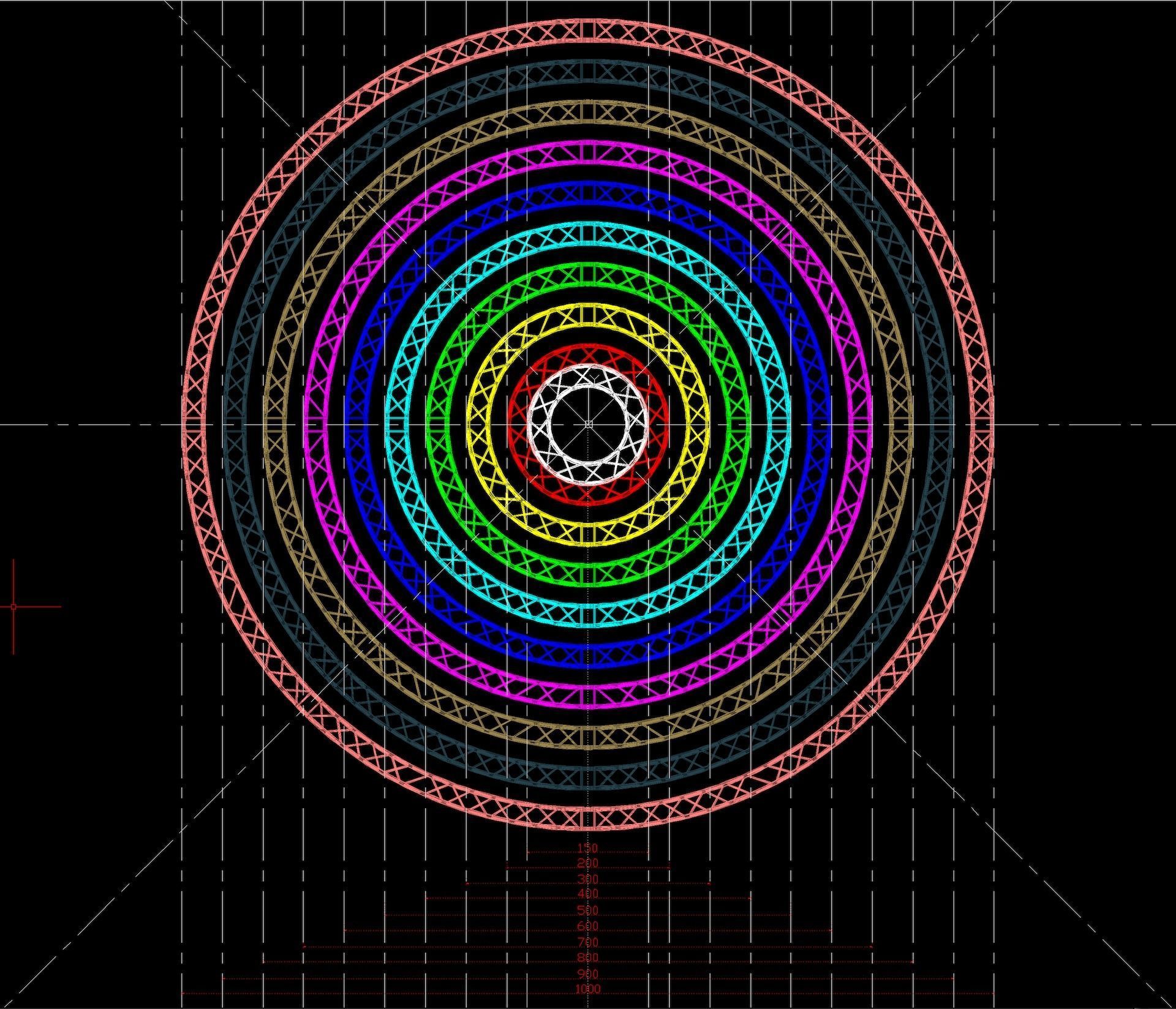

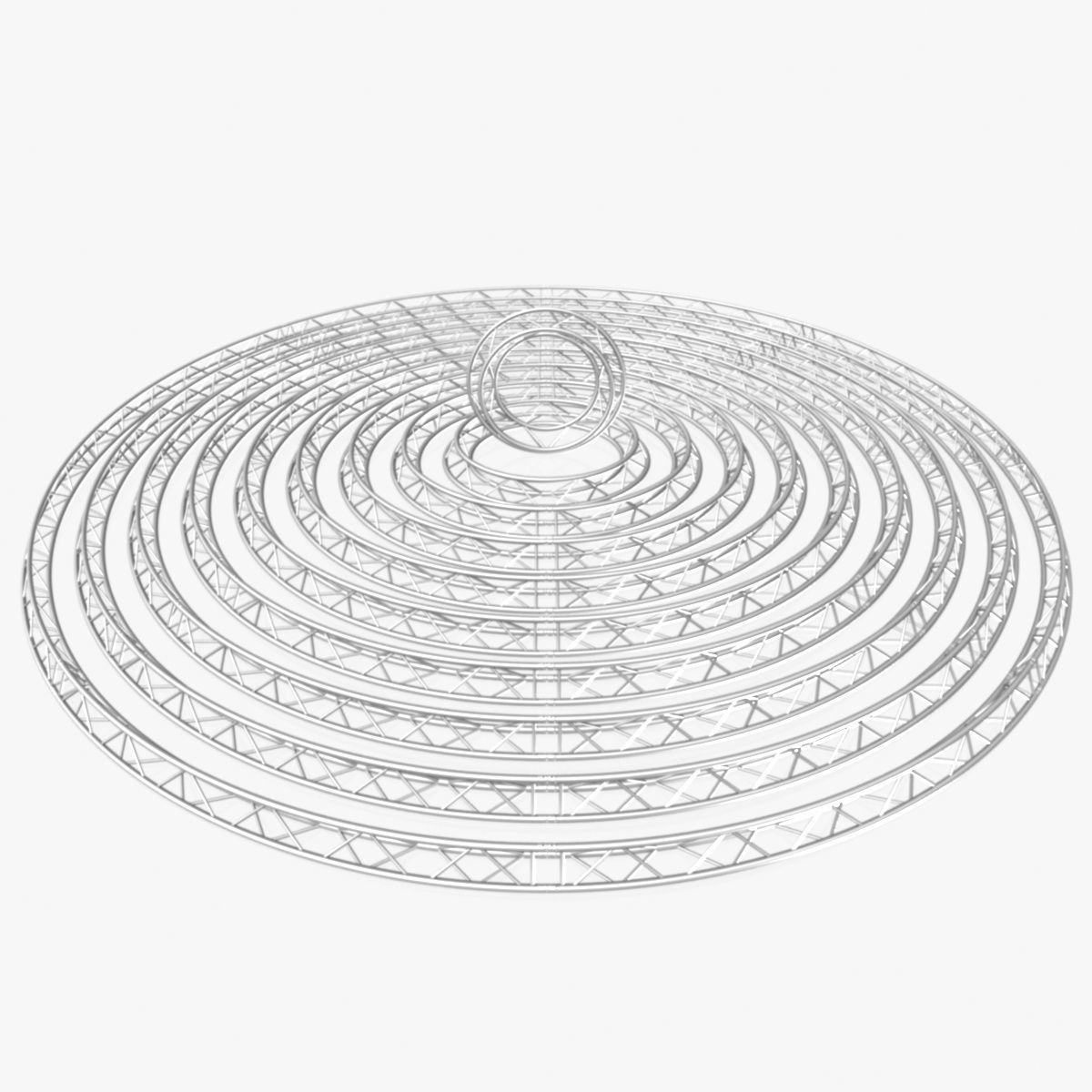

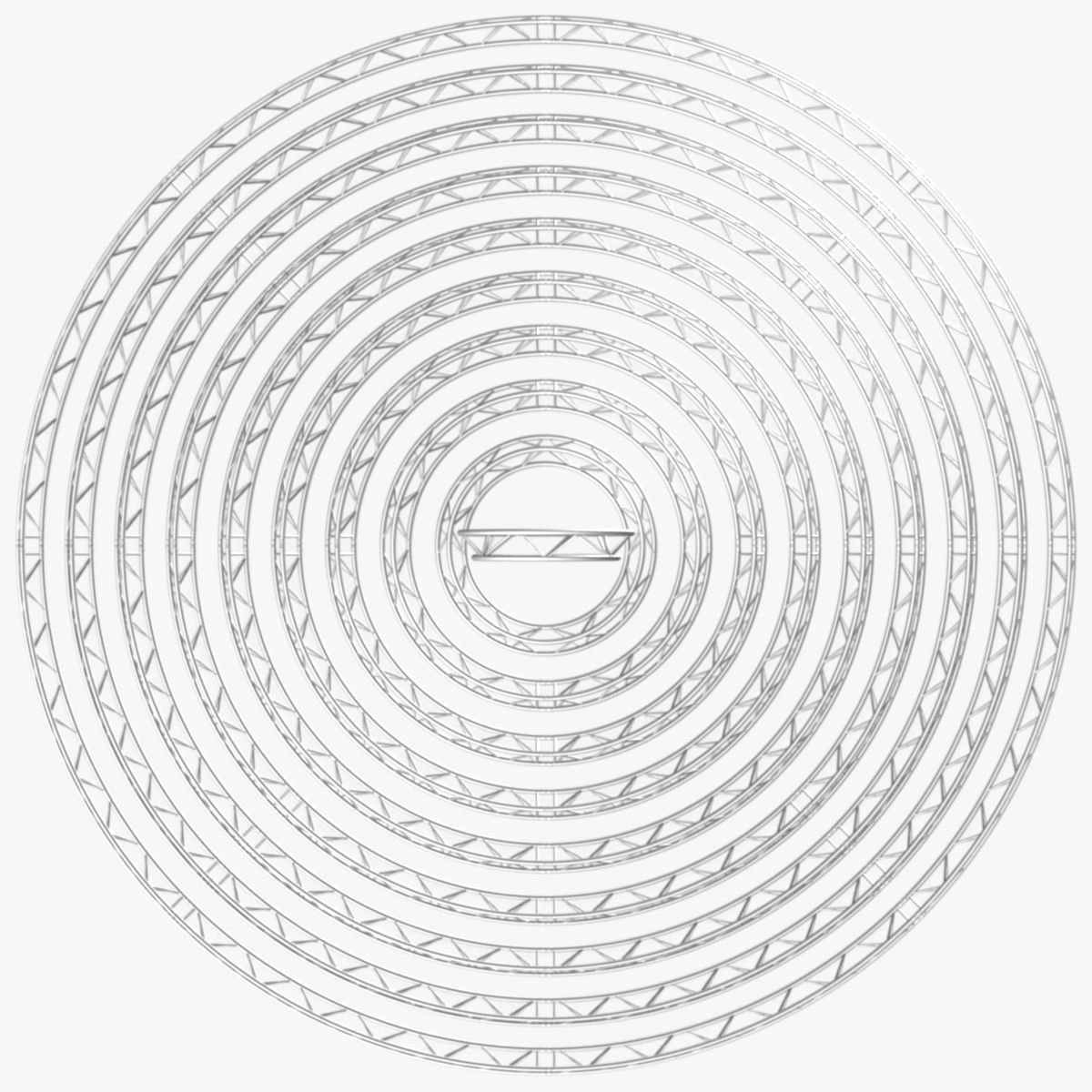

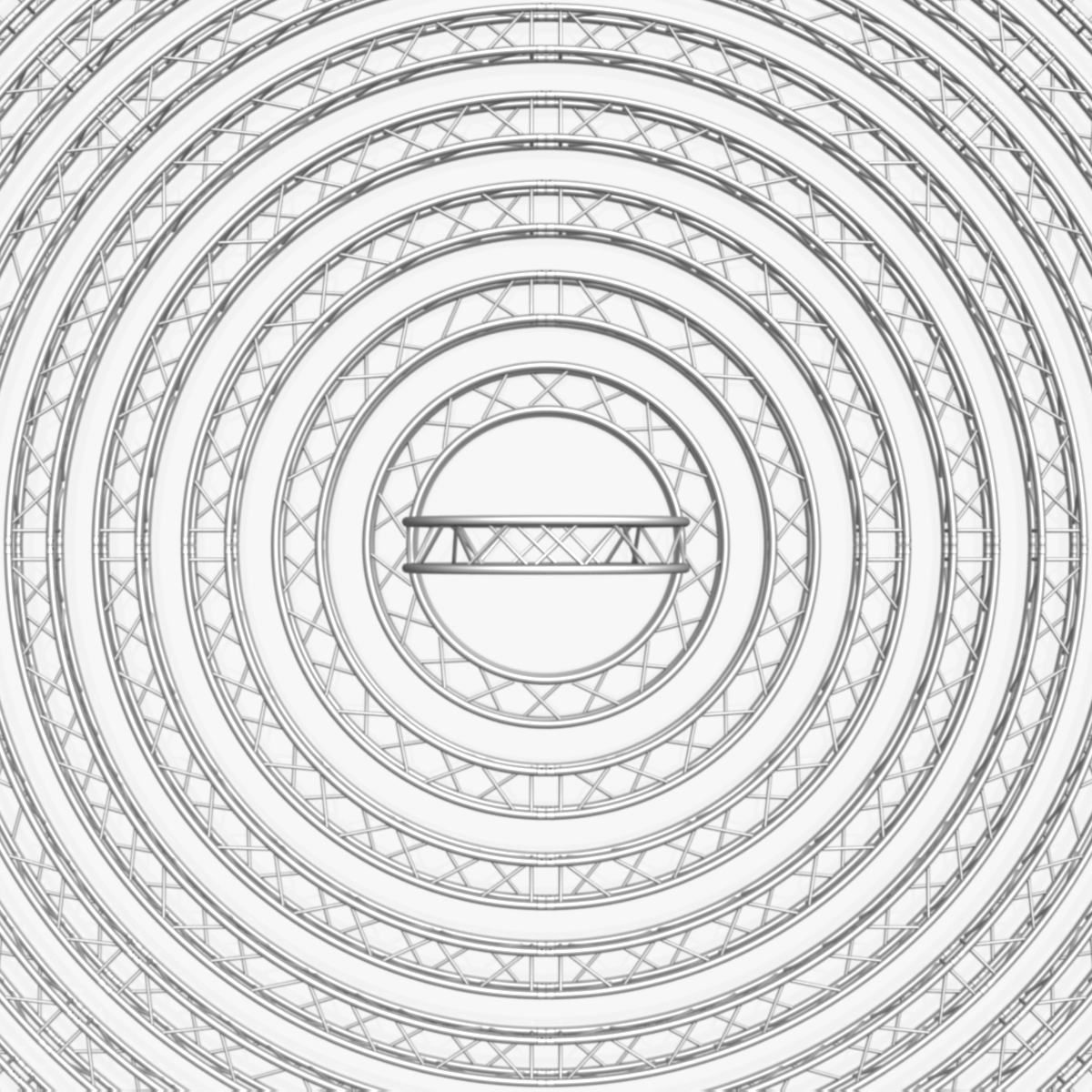

Full diameter measurements; 150cm; One piece 200cm; One piece 300cm; Two pieces 400cm; Four pieces 500cm; Four pieces 600cm; Four pieces 700cm; Eight pieces 800cm; Eight pieces 900cm; Eight pieces 1000cm; Eight pieces

……………………………………

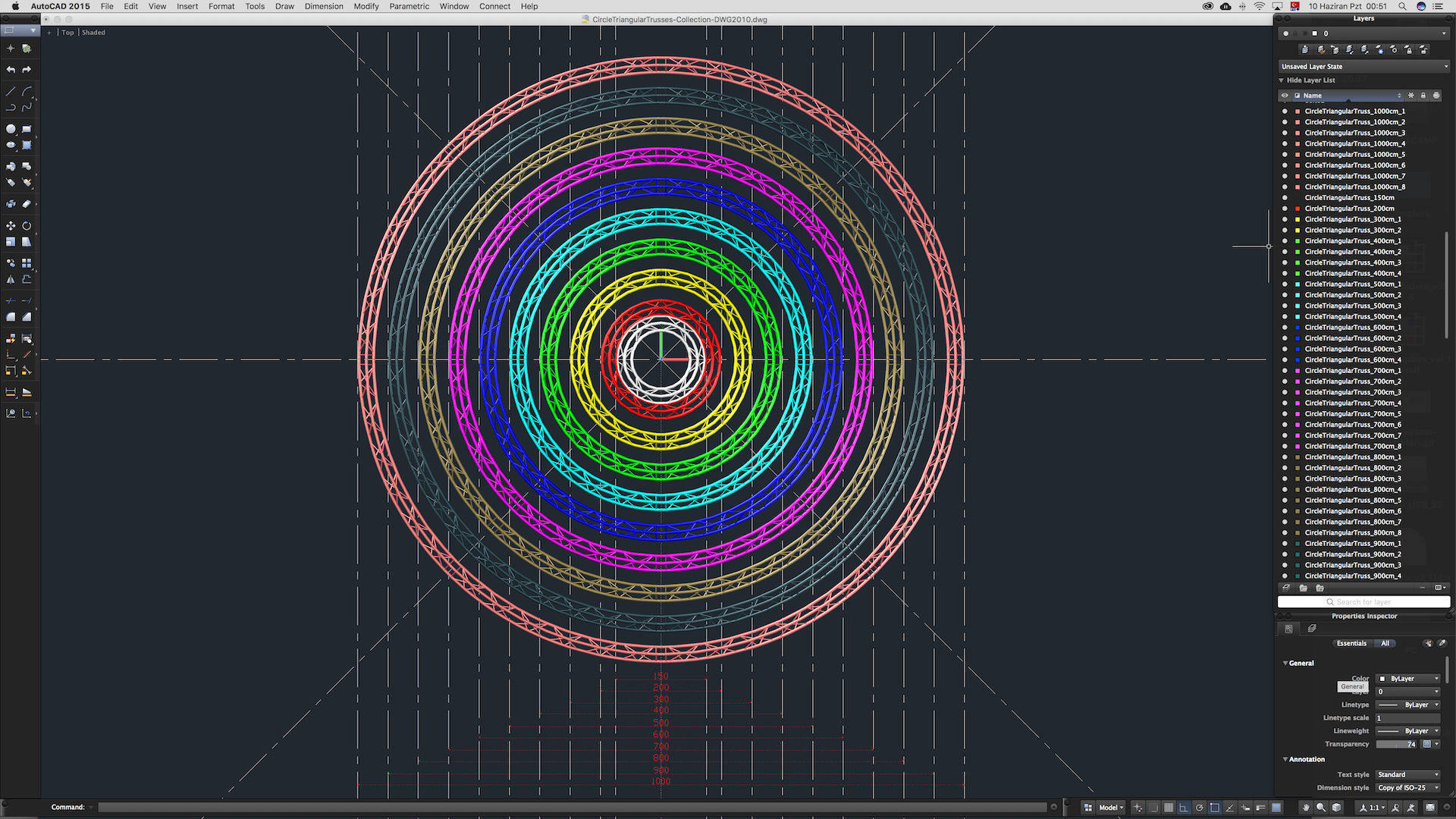

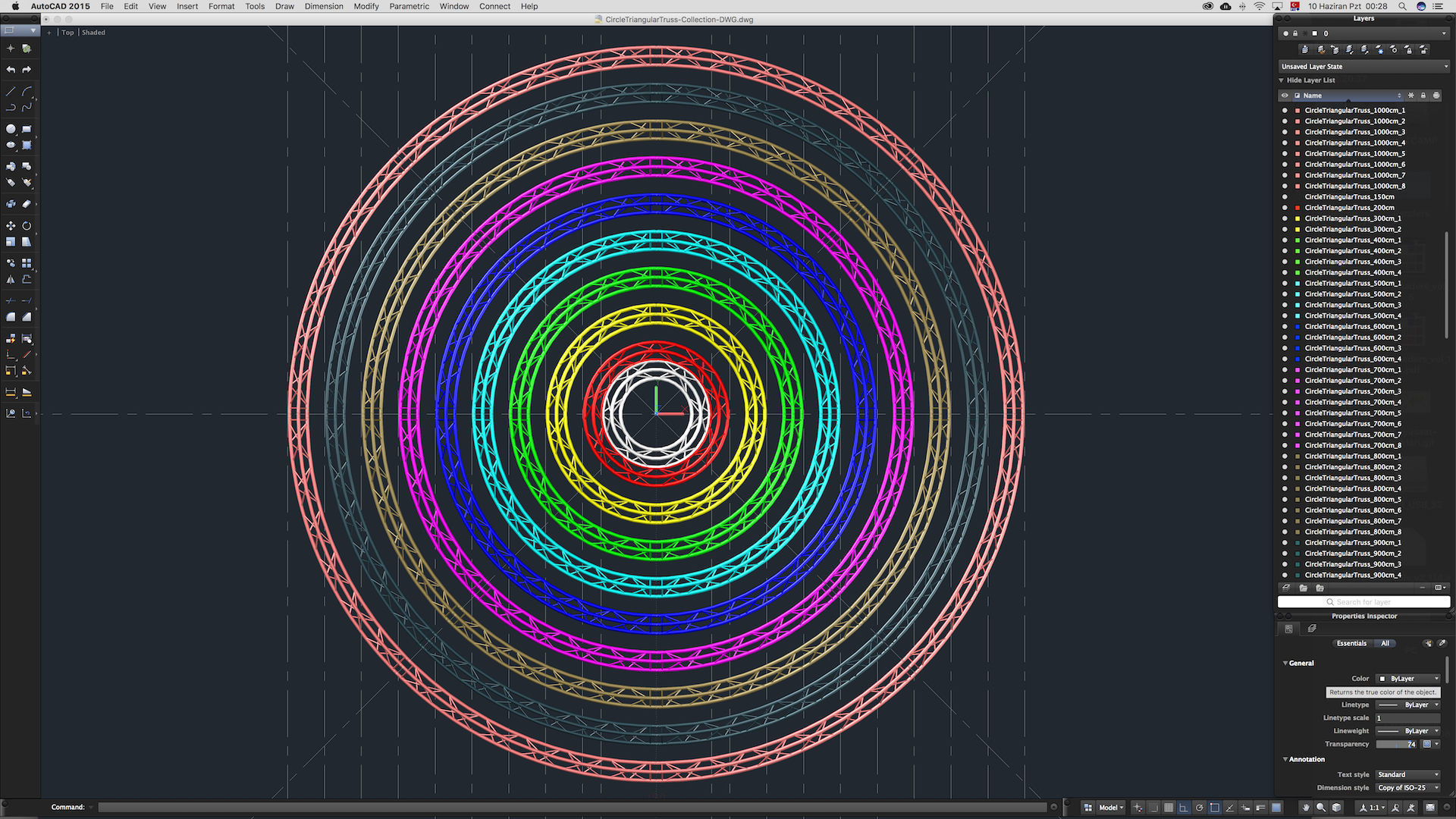

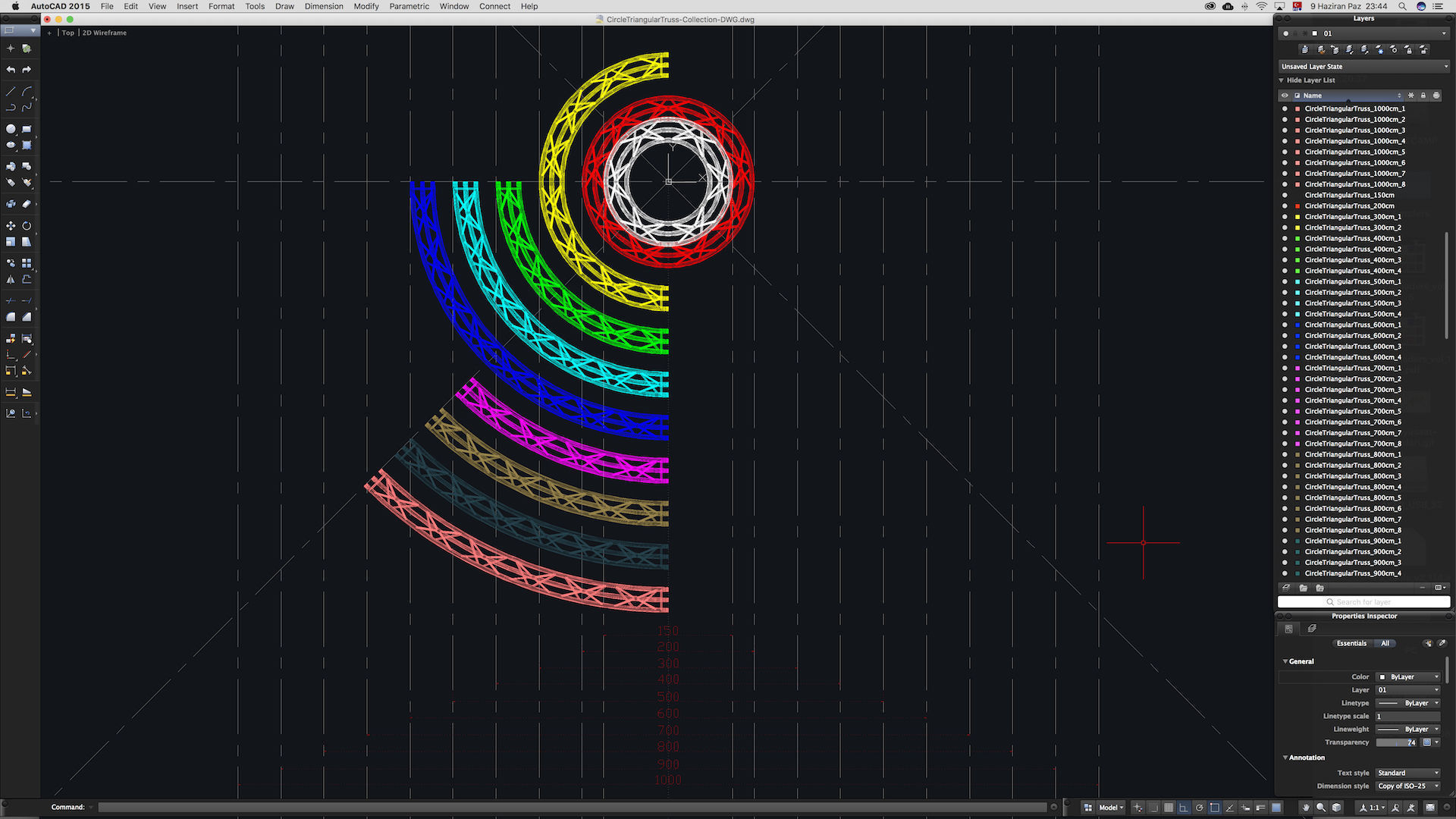

Formats; MAX, C4D, OBJ, DWG, FBX, 3DS, DXF, DAE, STL, AEP

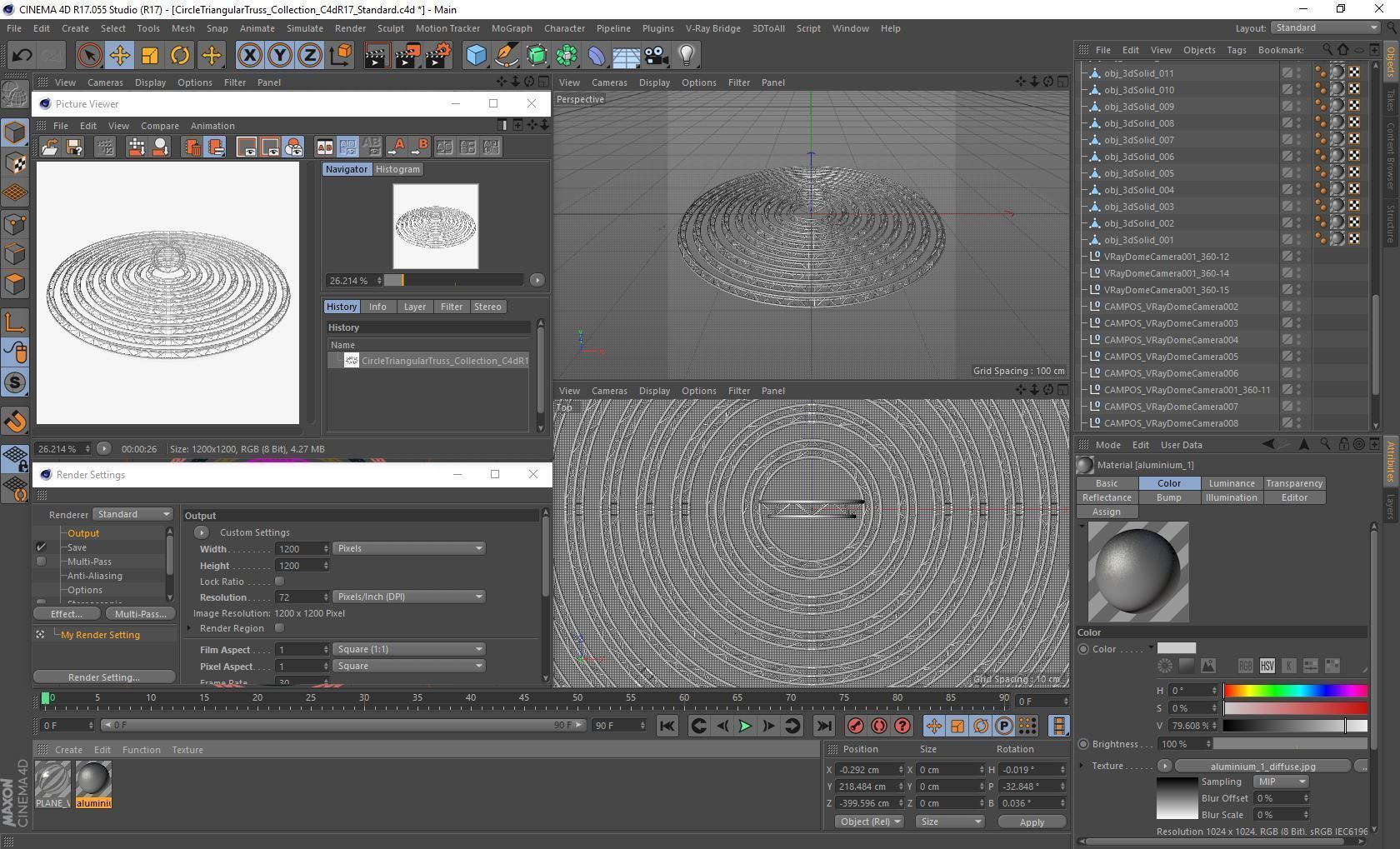

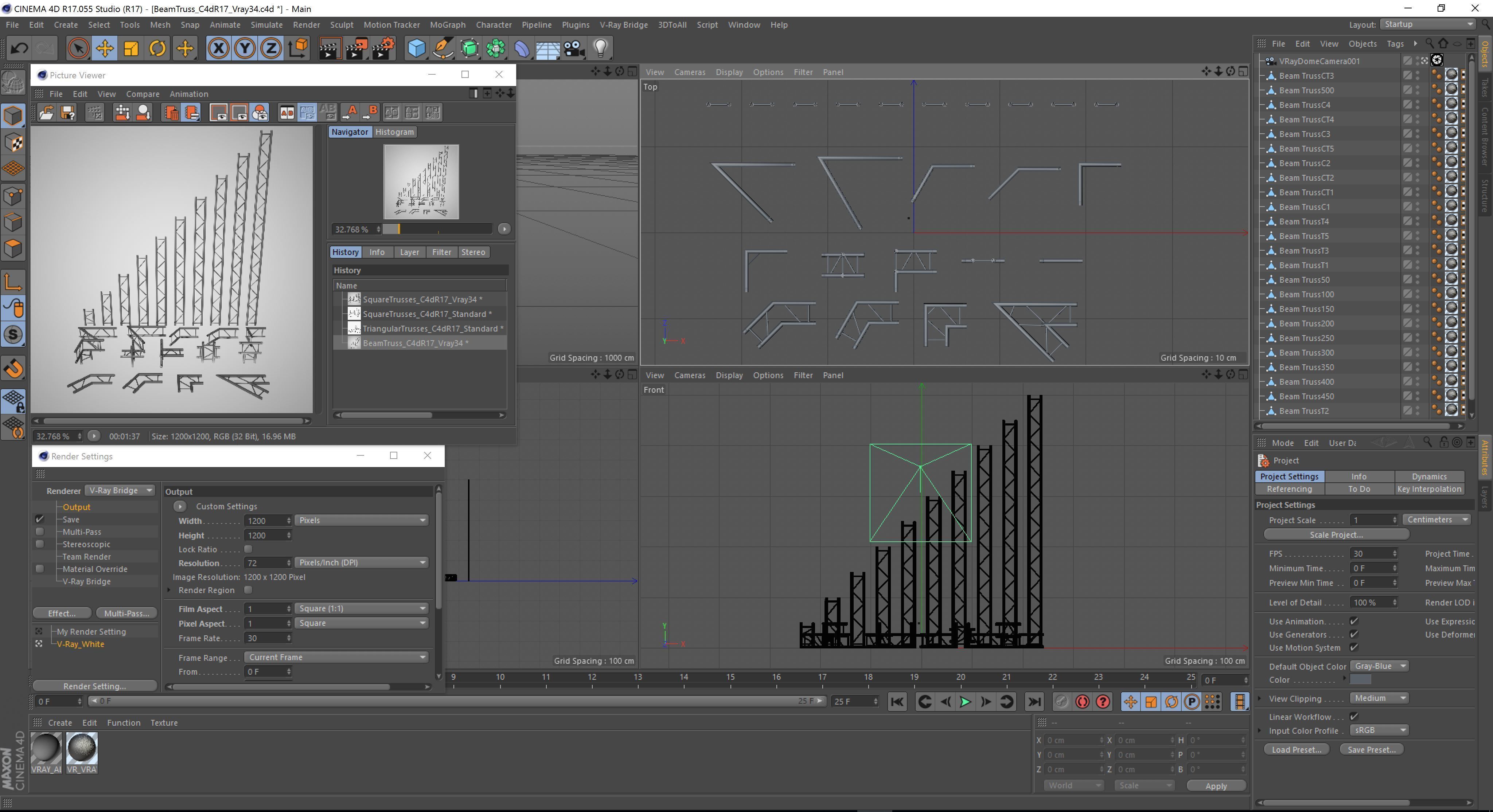

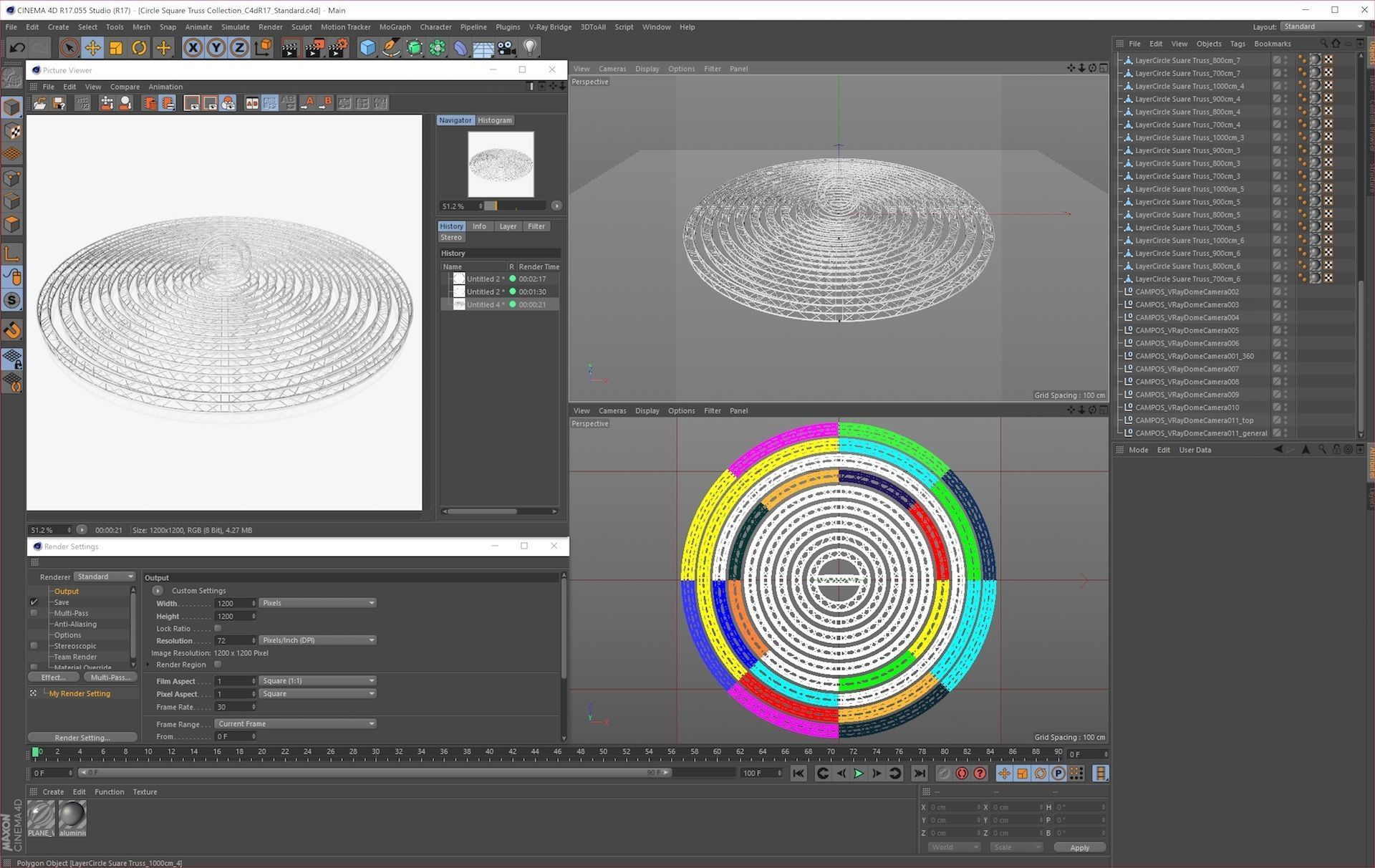

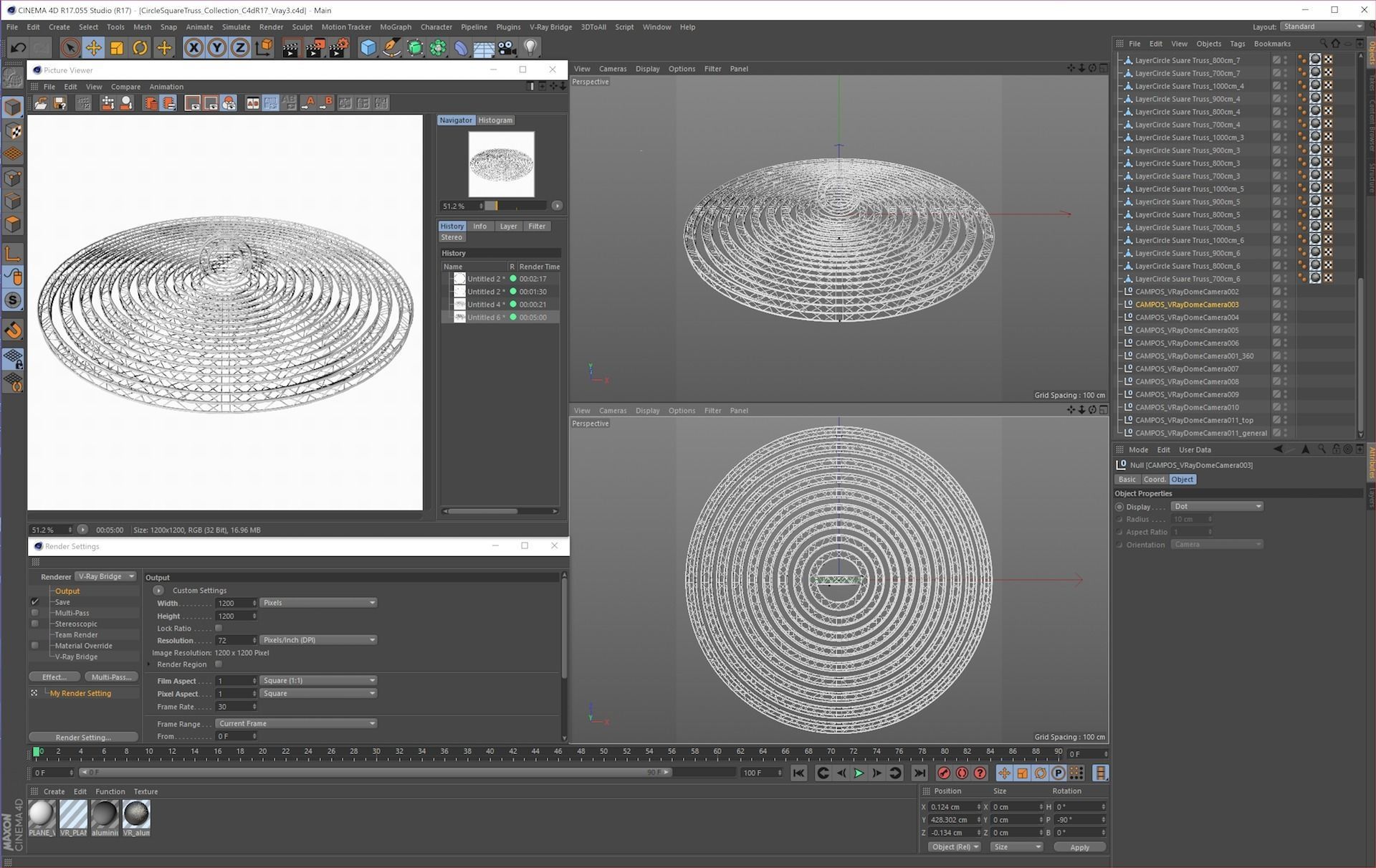

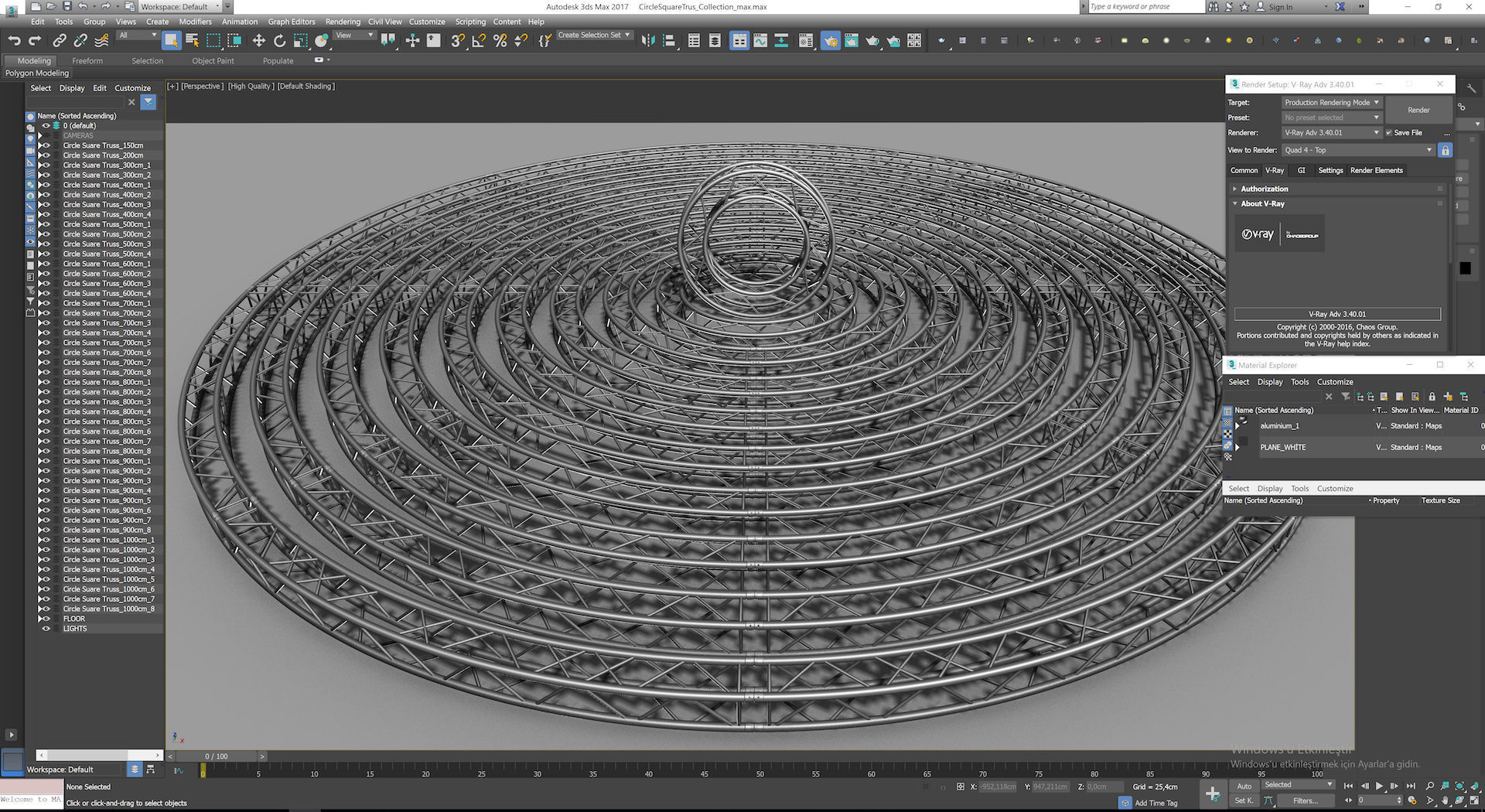

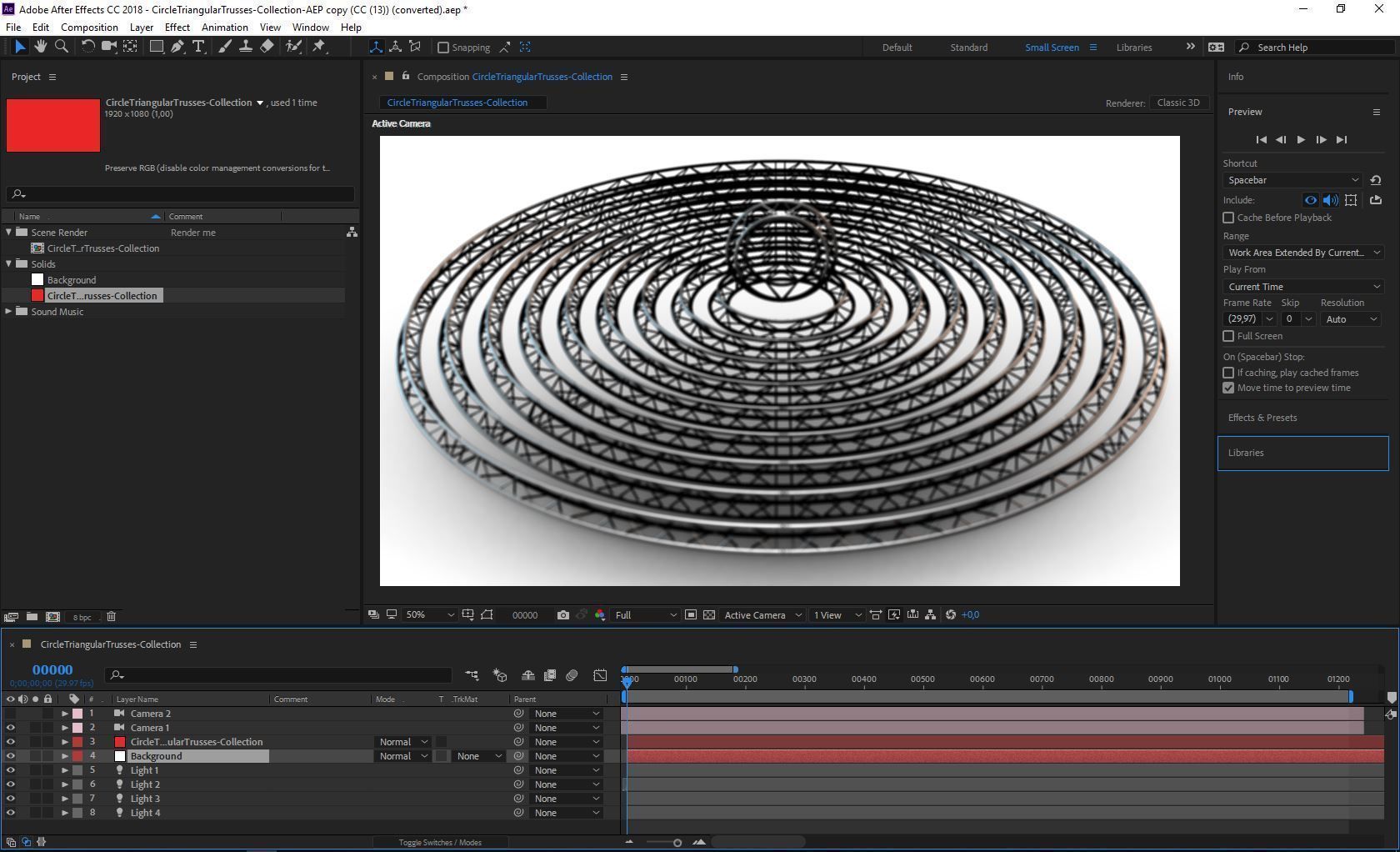

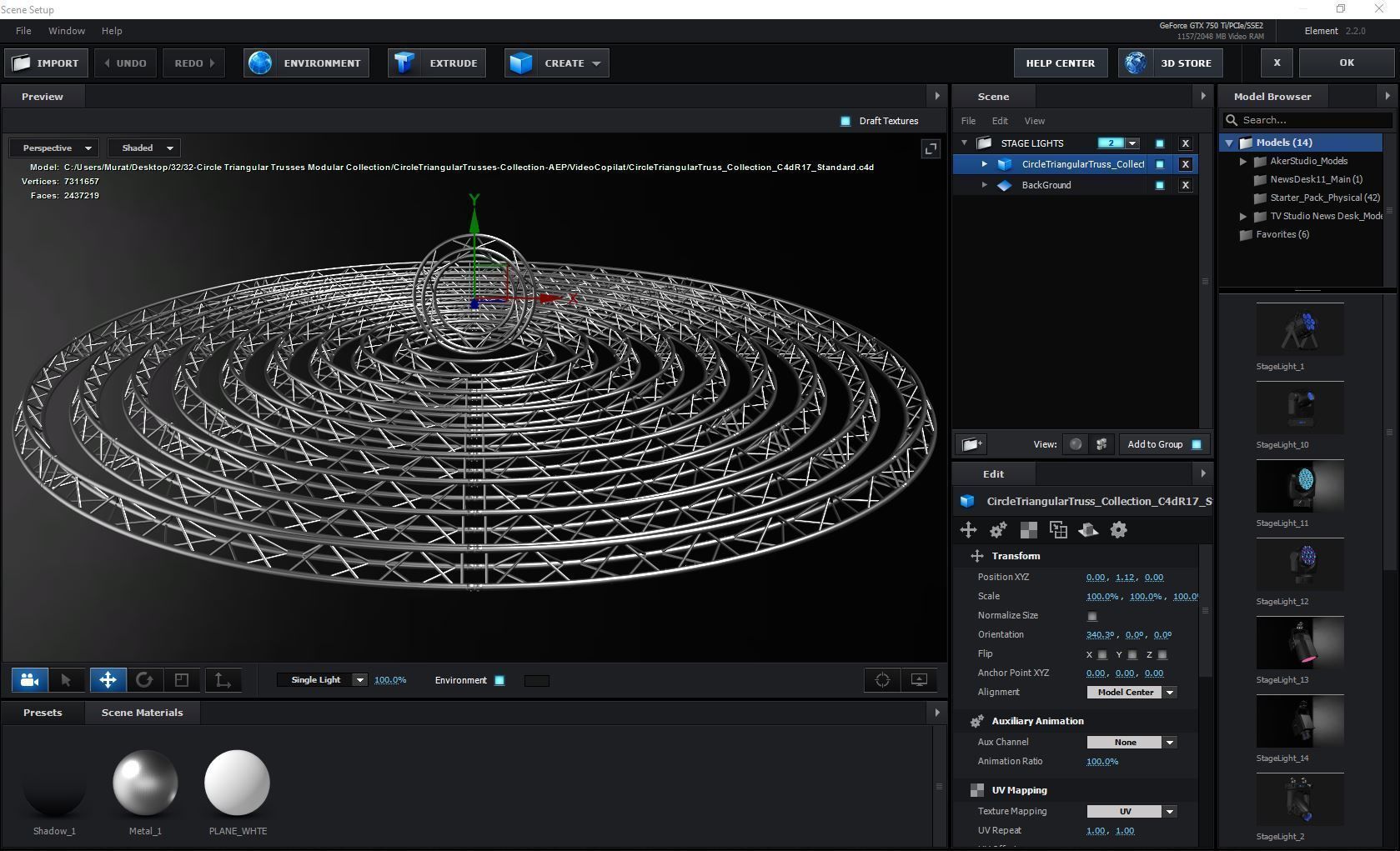

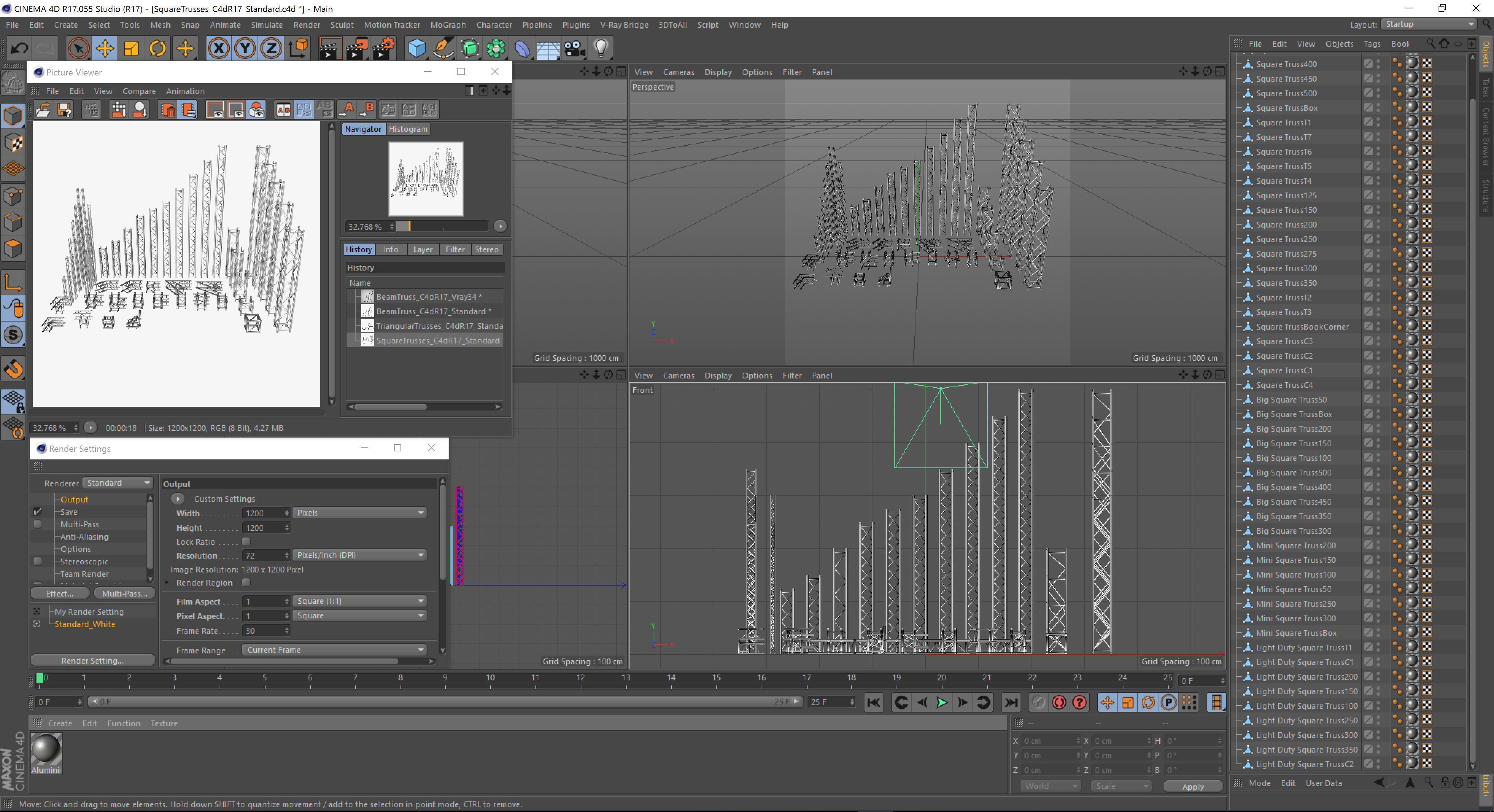

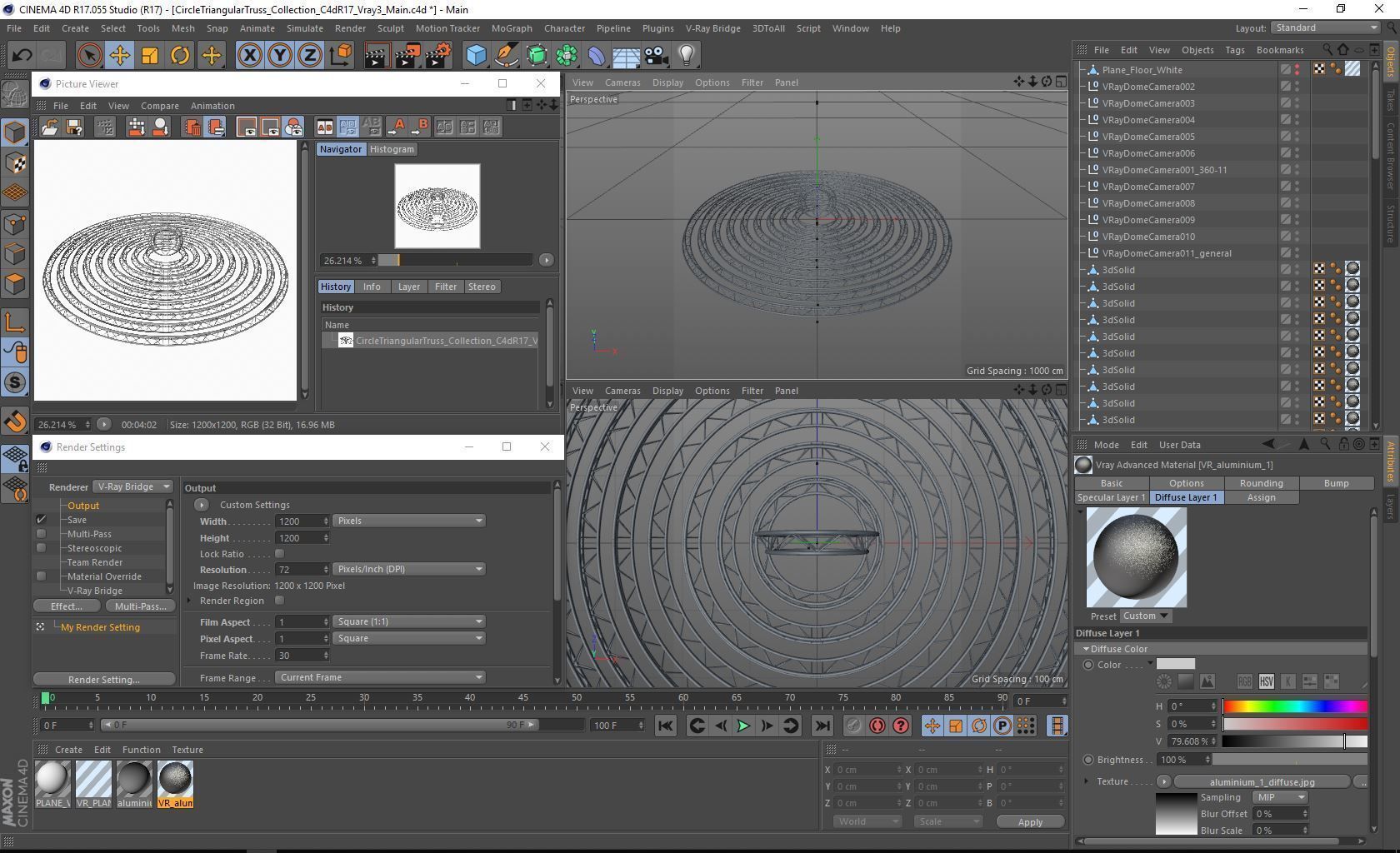

Software; *.max - 2010 or higher *.max - 2014 or higher Cinema 4D - R17 or higher After Effects: CC - (Element 3D: v2.2)

Renderers;

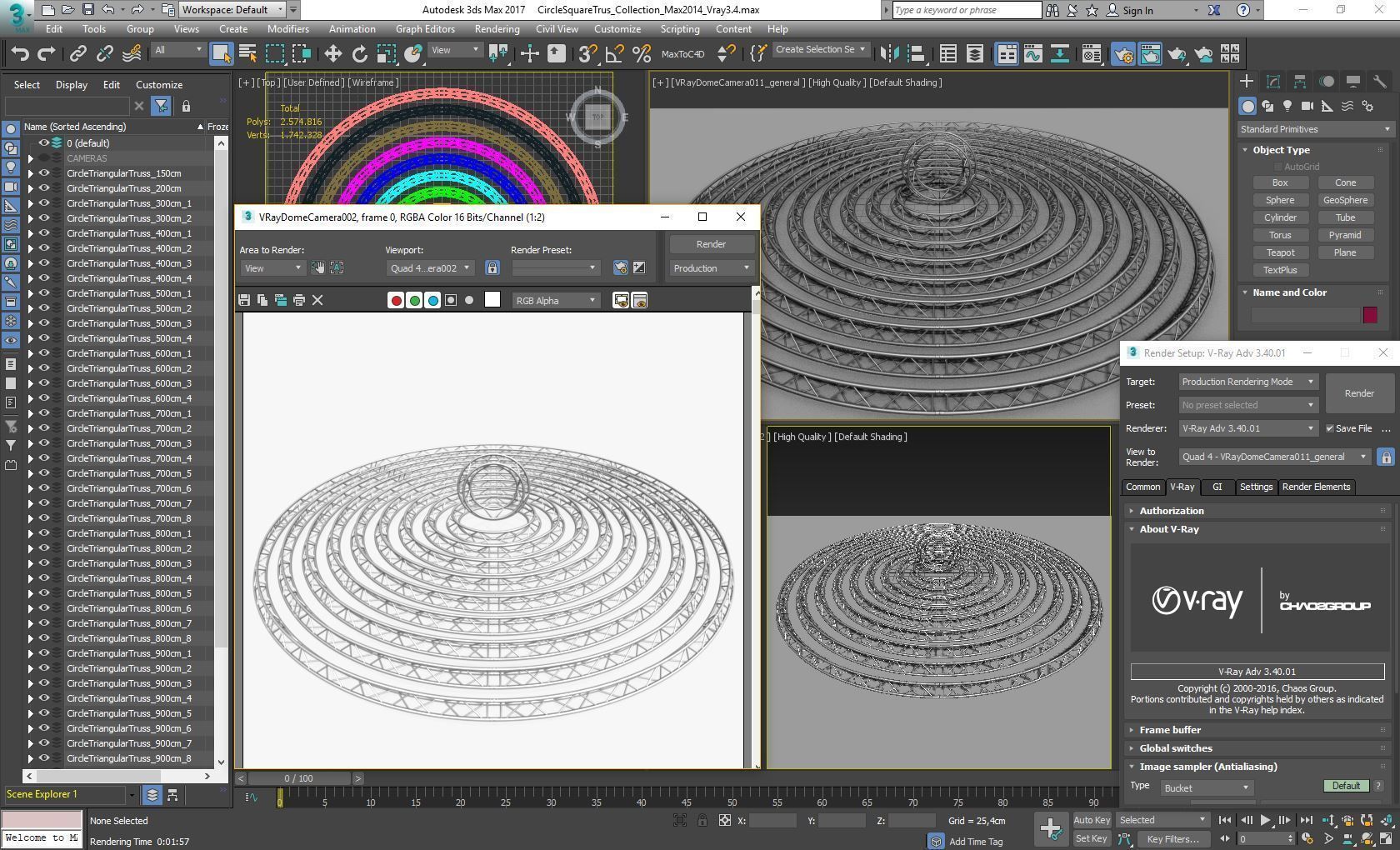

  • V-Ray *.max - 3.4 or higher - with textures and shaders
  • VRAYforC4D - object prepared for Cinema 4D R17 (with textures and shaders)
  • Cinema 4D R17 - Standard renderer (with textures and shaders)

……………………………………

  • For questions and requests please email us.
  • You can buy our collections with 70% discount
  • Click on the username to see our other models gallery.

Usage License: You may NOT sell or give away any files found in this zip package without express permission.

Enjoy.

S
samstolpe17 2024-03-05 15:14:15 UTC
a lot of nice truss pieces. I'm just wondering if you made truss bases and lighting cross bars for truss towers. as well as Lighting Trees and cheeseboroughs clamps
CGArt4u
CGArt4u 2021-06-18 08:57:00 UTC
Wou! Great idea and lot of work
IPG
IPG 2021-01-02 07:31:25 UTC
Great Collection!
Item rating
3 0
A
alain-k91 2021-04-12 23:17:47 UTC
Recommended
Very nice clean models, great value pack!
F
fredmaher 2020-03-26 02:14:23 UTC
Recommended
Outstanding! Truly realistic right down to the nuts, bolts and Chesebrough's!
Stage Lighting Truss Giant Collection 149 unique modular objects
$99.00

Royalty Free License
Stage Lighting Truss Giant Collection 149 unique modular objects
$99.00

Royalty Free License
