P-51D Mustang TW Shock Cyl Steering Declutch and Mount Brkts 3D Model Collection

This collection comprises all the sub-assemblies for the Tail Wheel Shock cylinder, Steering, Declutch mechanism, Pulley supports and mounting brackets. Full Size 1:1

Each sub-assembly includes Part Lists in PDF.

3D Model file formats are STL. STP, DWG and Parasolid X-B.

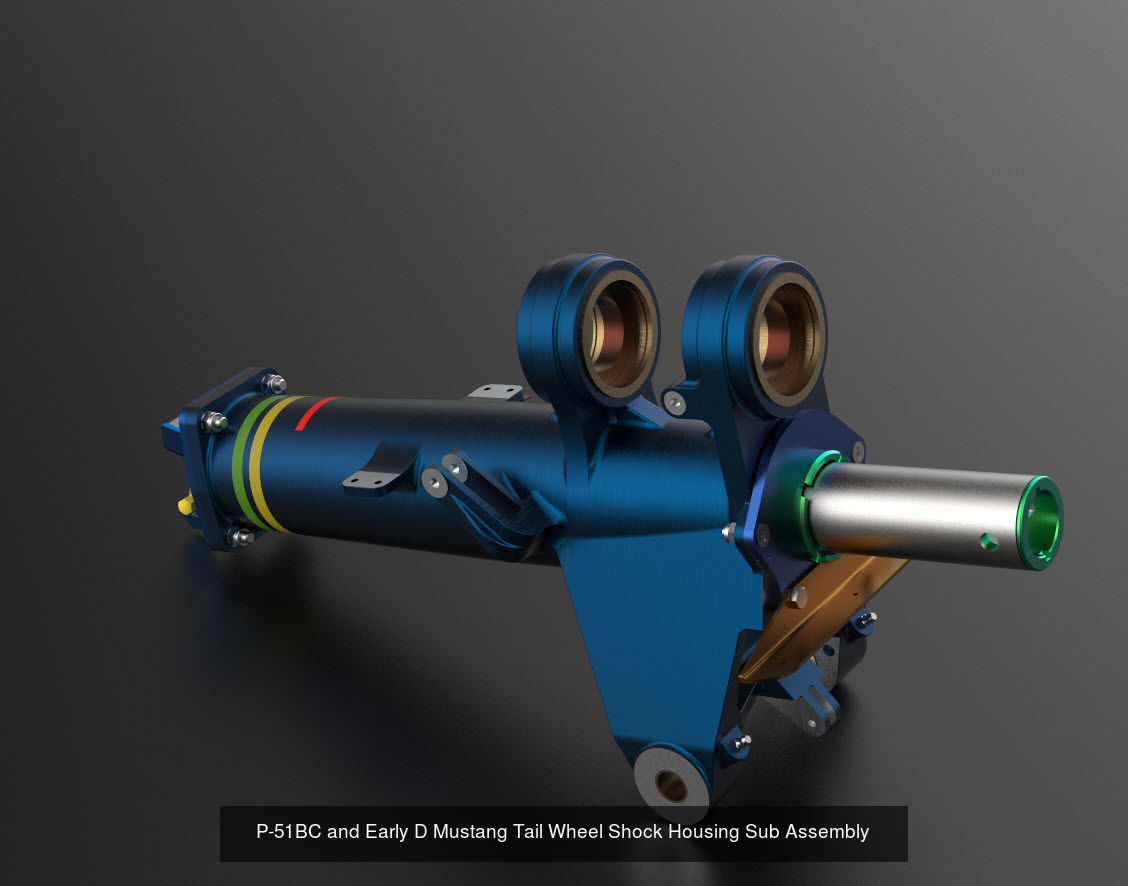

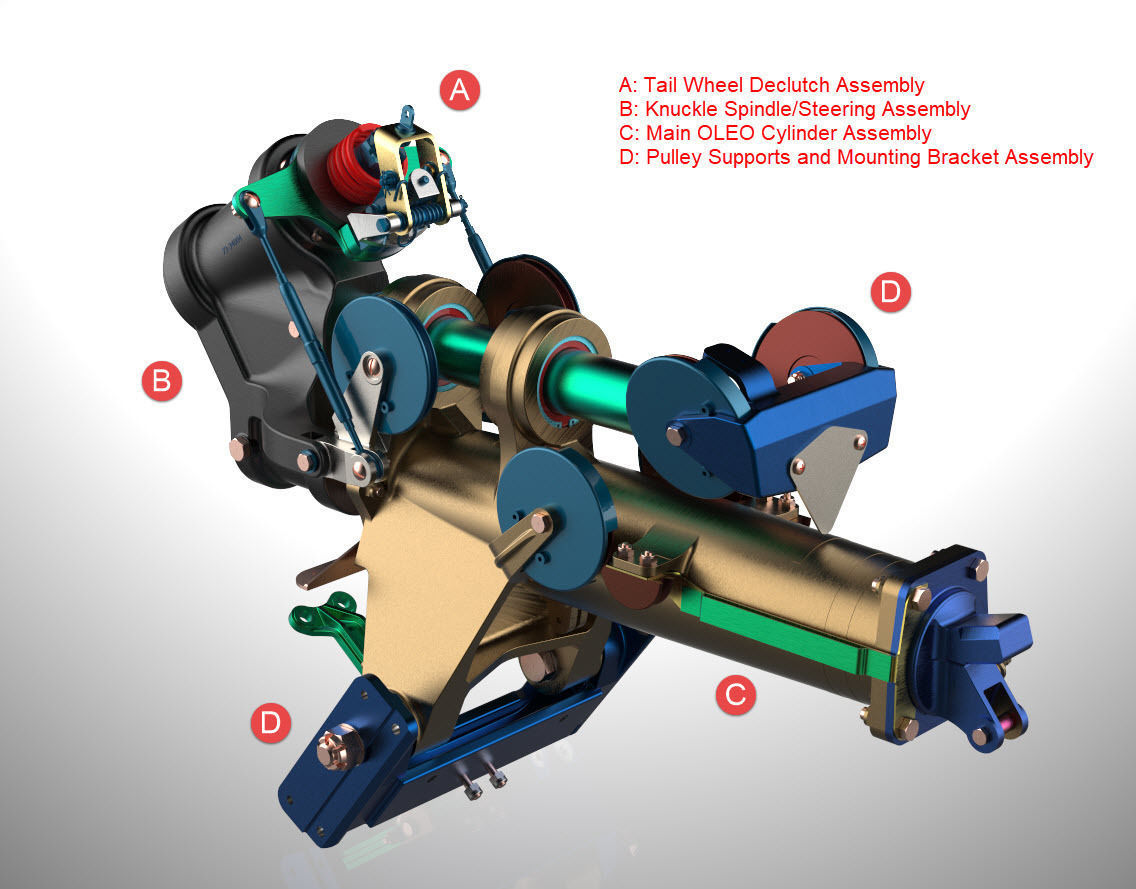

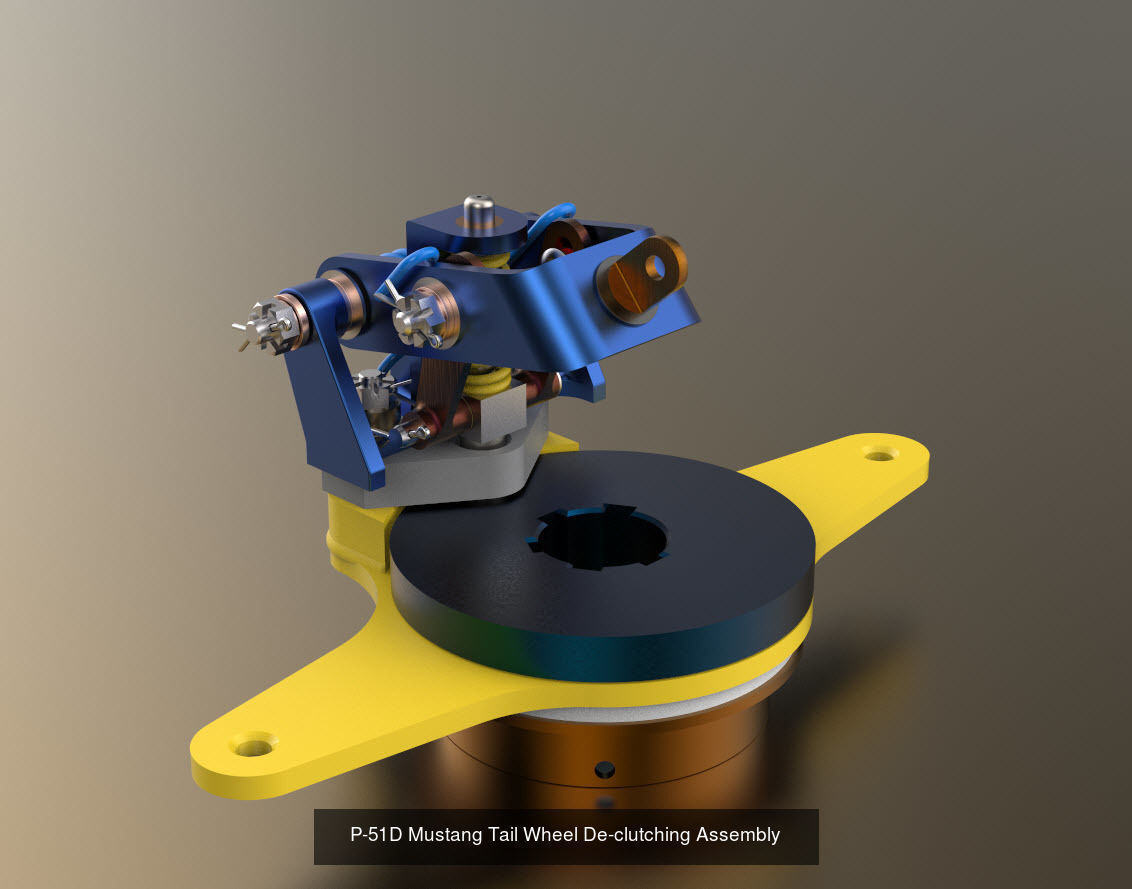

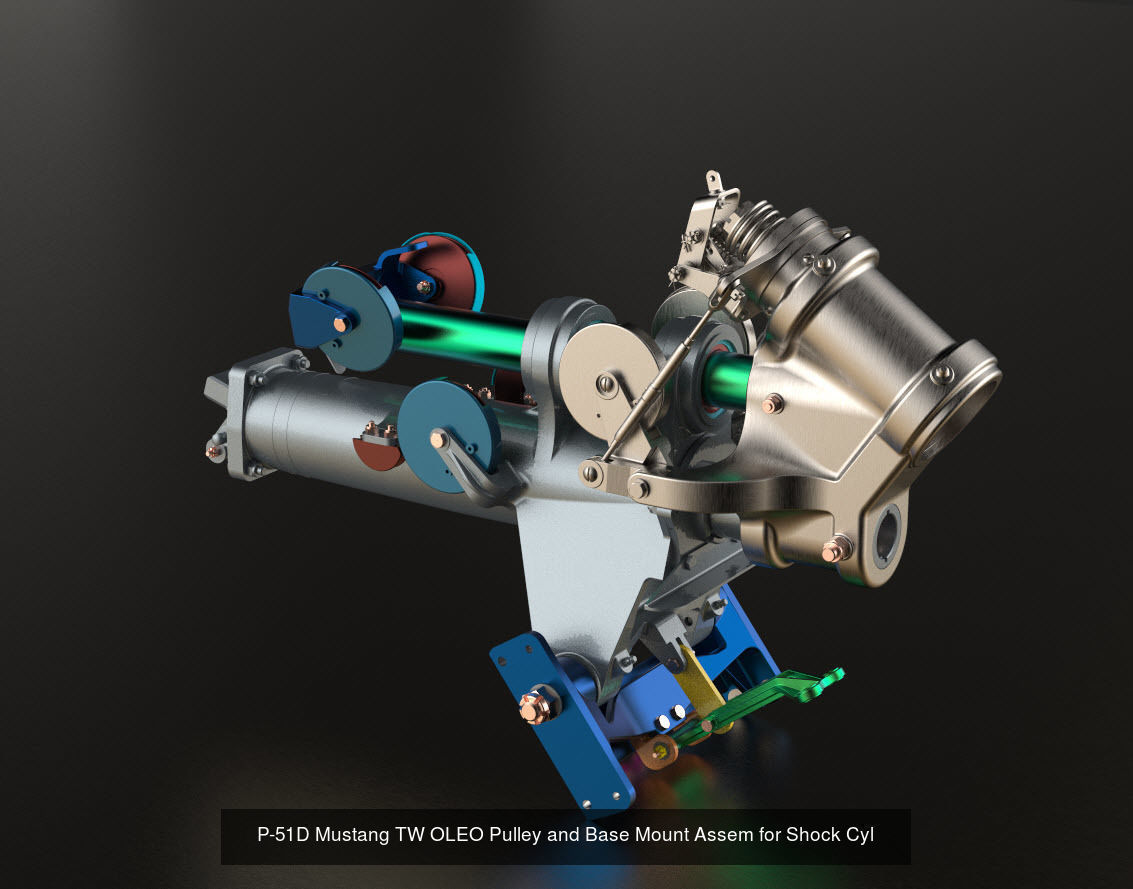

Collection comprises: Tail Wheel Declutch mechanism. Knuckle and Steering housing. Main OLEO Shock Cylinder. Pulley Supports and Mounting Brackets.

The P-51 Mustang Project: Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

The 3D CAD models are professionally developed; some of which are now being made available publicly for the first time. The Parts list drawings include important dimensional information to accurately locate components.
