P-51D Mustang Tail Wheel De-clutching Assembly Full Size 1:1

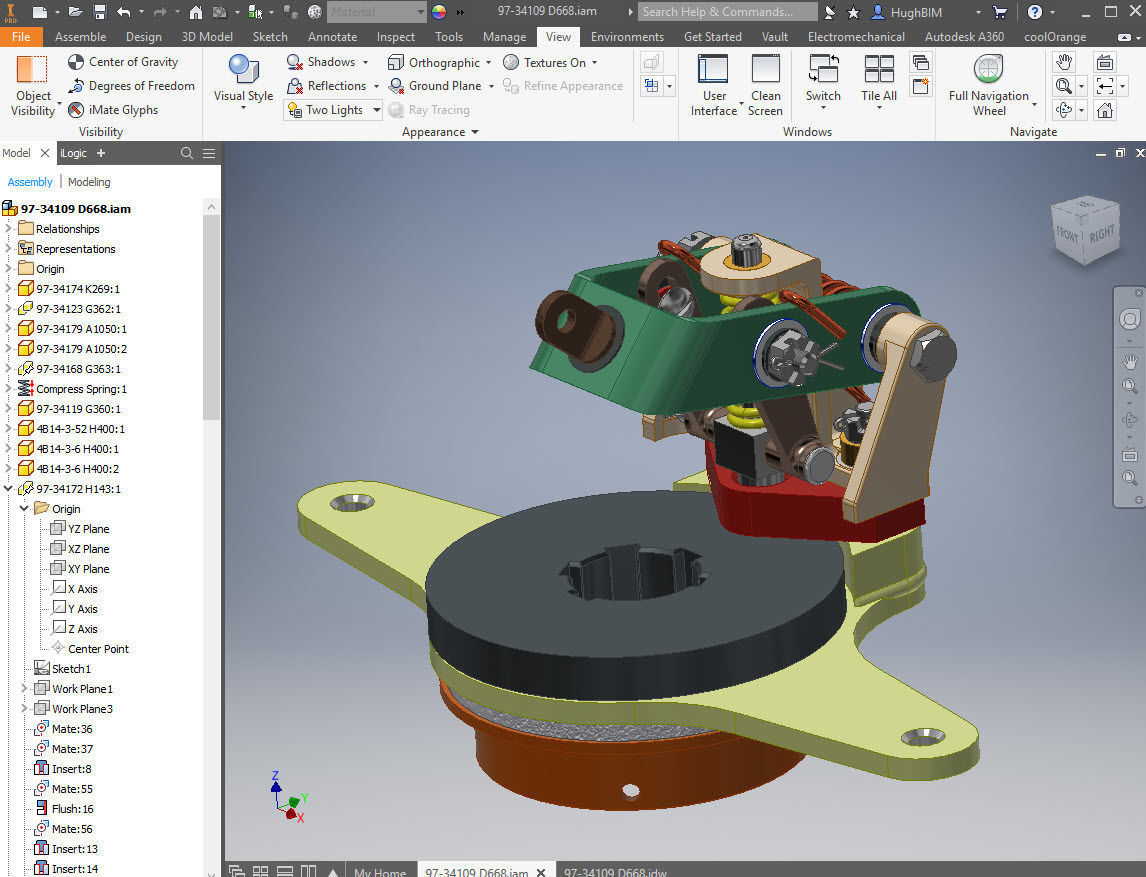

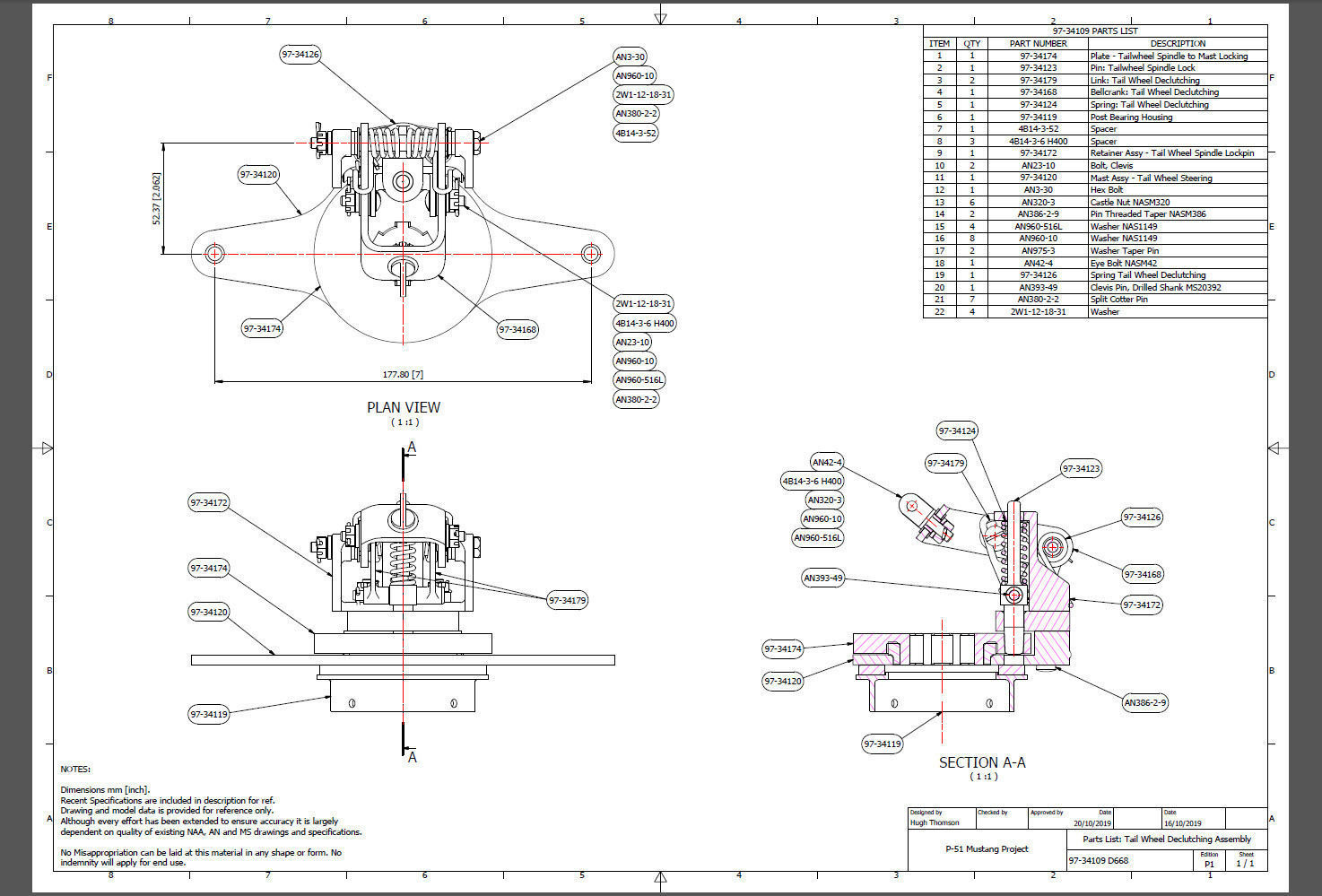

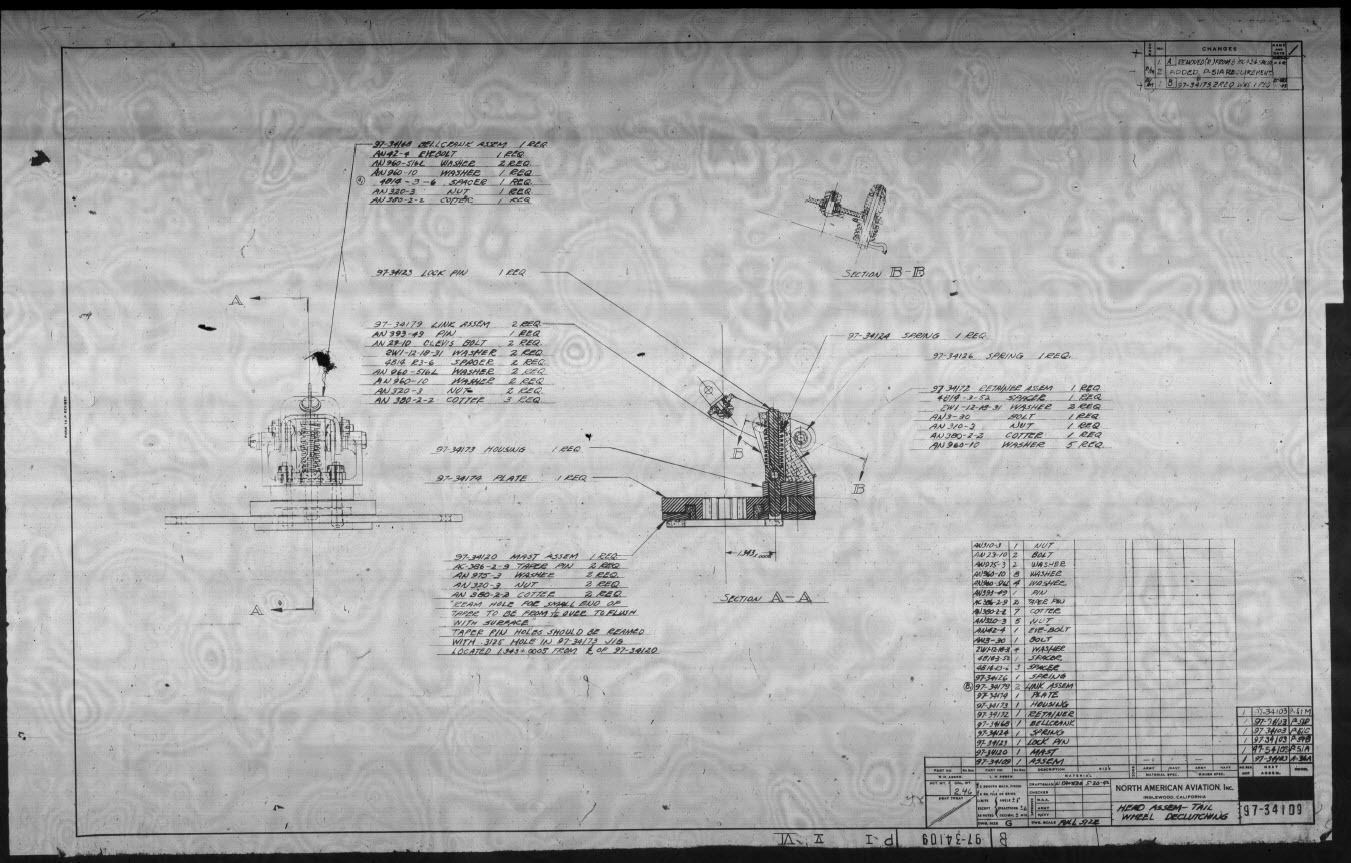

All parts; including nuts, bolts, washers etc; accurately modeled to original North American Aviation drawings and AN, MS, NASM specifications. The package includes the CAD model in DWG (218), STL, STP and Parasolid X-B formats; 3D PDF of the model and 2D PDF of the parts list as generated. NAA reference drawing 97-34109.The model can be used as a reference for maintenance and restoration purposes.The declutching mechanism is similar for P-51 B and C.

The P-51 Mustang Project:Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

The original ipt and iam Inventor cad files can be made available on special request.

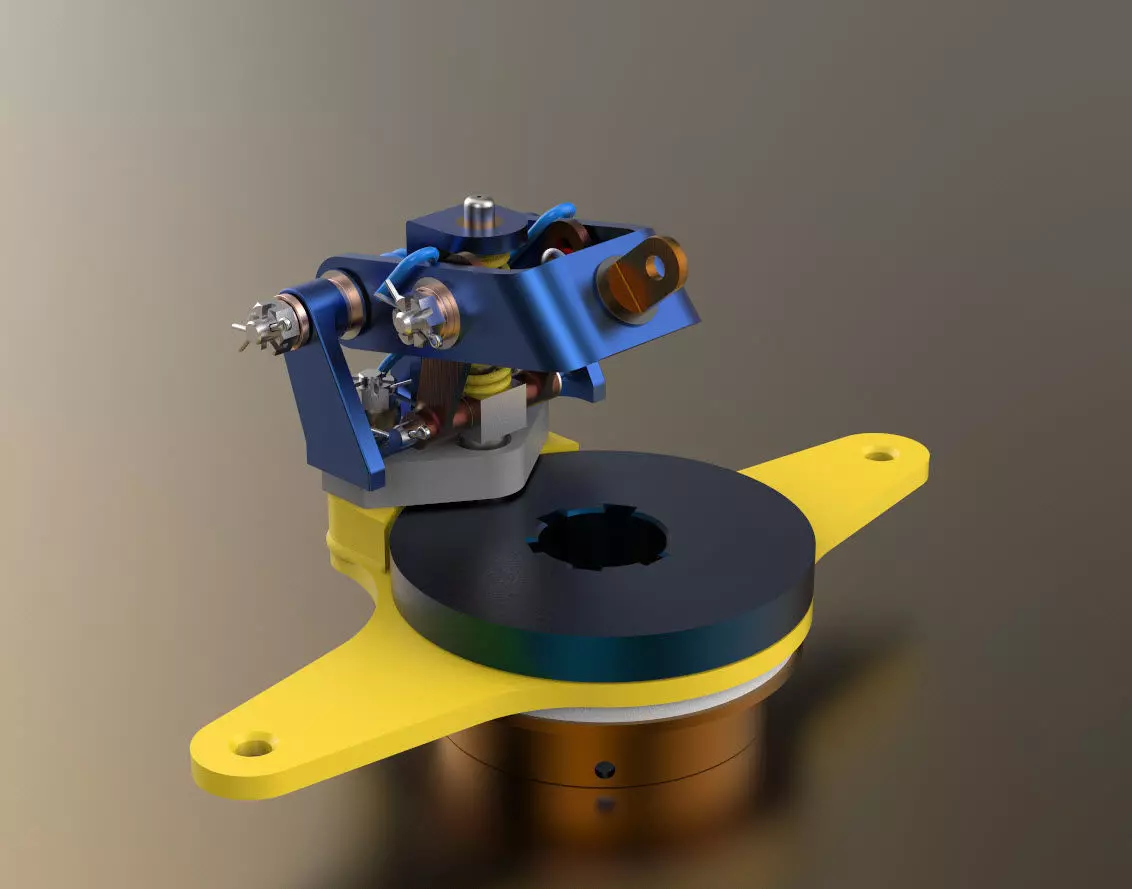

Rendered colours are not realistic as they are intended only to clarify model assembly components and construction.
