Description

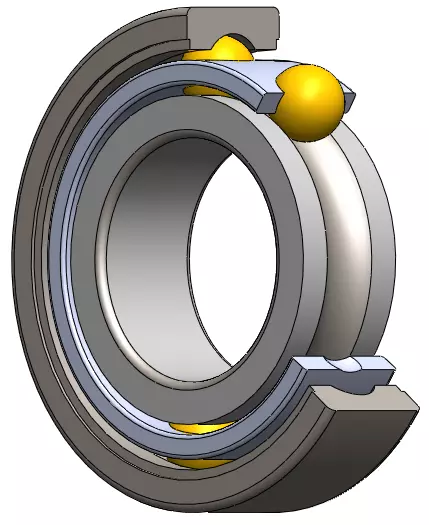

An assembly of a ball bearing with a full cage modeled in Solidworks. The material is applied in Solidworks for each component.

The assembly contains the following parts:

  • Outer ring
  • Inner ring
  • Rolling elements (balls)
  • Cage

This is the second ball bearing assembly from my collection of bearing. Feel free to download, share and give feedback!

Item rating
0 0
Ball bearing with a full cage
Free

Royalty Free No Ai License
Ball bearing with a full cage
Free

Royalty Free No Ai License
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl)3.78 MB
  • SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)970 KB

3D Model details

  • Publish date2020-12-11
  • Model ID#2752706
  • Ready for 3D Printing
