3D Printing Fastener - Bolt Gear

3D Printing Fastener - Bolt Gear Free 3D print model

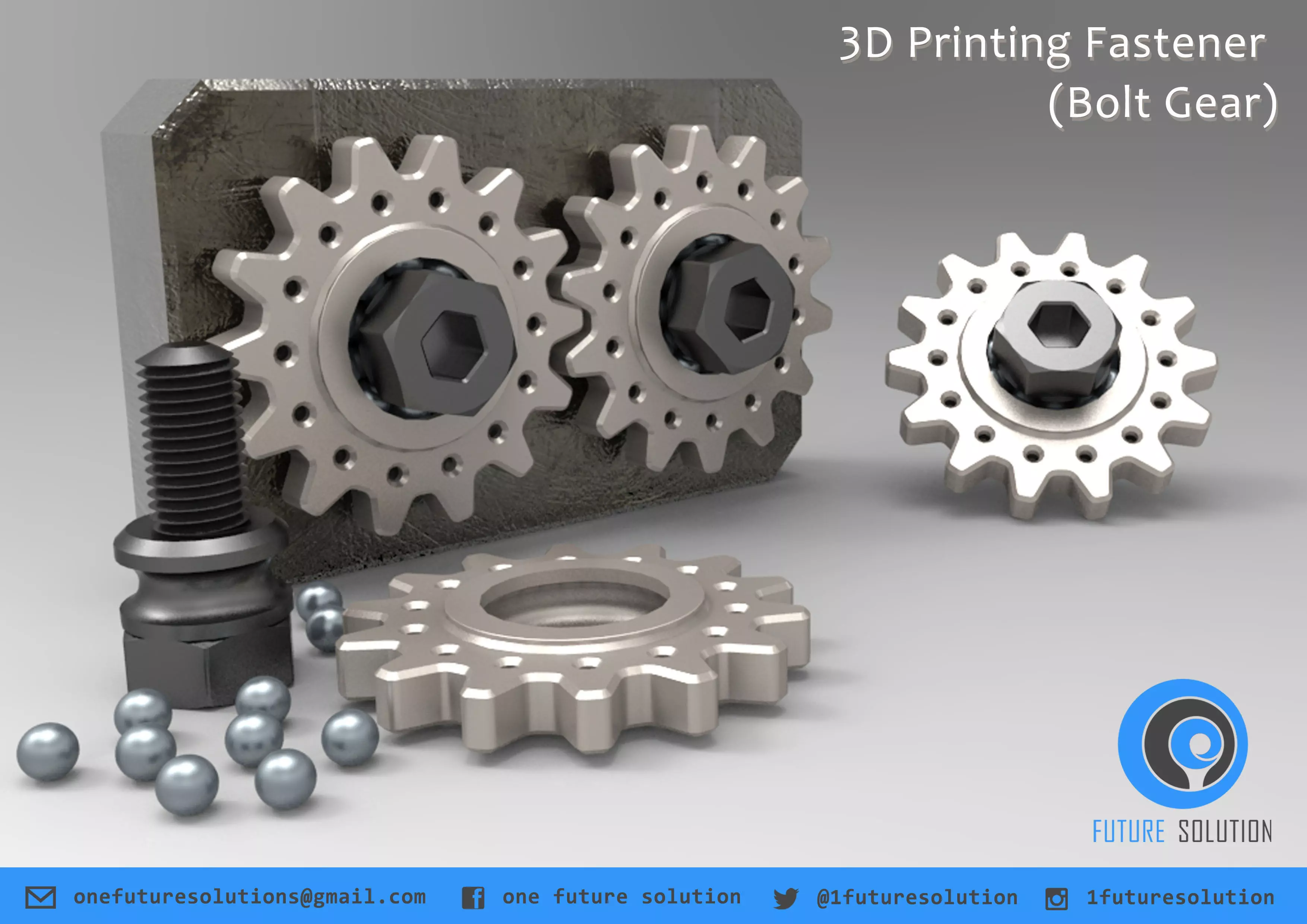

3D Printing Fastener (Bolt Gear)

Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )

Modeled with SolidWorks 2014

Rendered & Animated with KeyShot 5

File Types : .SLDPRT, .IGS, .OBJ, .STL.

Vertices : 138227

Polygons : 276522

Material : ABS Plastic or another recommended material.

Here, I make a combination of gear and bolt. Because this two items are commonly used together.

This is very usefull for gear box, machined and mechanical motion (gear), etc.

So, I initiated this idea, a product that is useful for many people, simple, multifunctional, and created using 3D Printing technology (assembly product in once printing process).

The dimension and gear just for sample, so we can adjust the standard dimension like we need.

Adittional feature :

I've add a hexagonal slot at bolt head, so we can tighten with spanner or L key also.

You can download this model for Free, but you should to hit ♥ button as the payment :).

Catch us :

Email : onefuturesolutions@gmail.com

Instagram : https://www.instagram.com/1futuresolution/

Youtube : http://bit.ly/ytc-onefuturesolution

FB : https://www.facebook.com/1futuresolution/

Cheers,

Ridwan S
