Karl Gerat engine grate Free 3D print model

This design replaces the photo etch engine grate on the 1/35 scale Karl-Gerat by Trumpeter. Design was made from photo evidence and represents my best guess of the part. No measurments of the real part was possible. Part replaces the 2D part supplied with the kit. Part was not tested on the Dragon 1/35 scale kit because I don't have one of those.

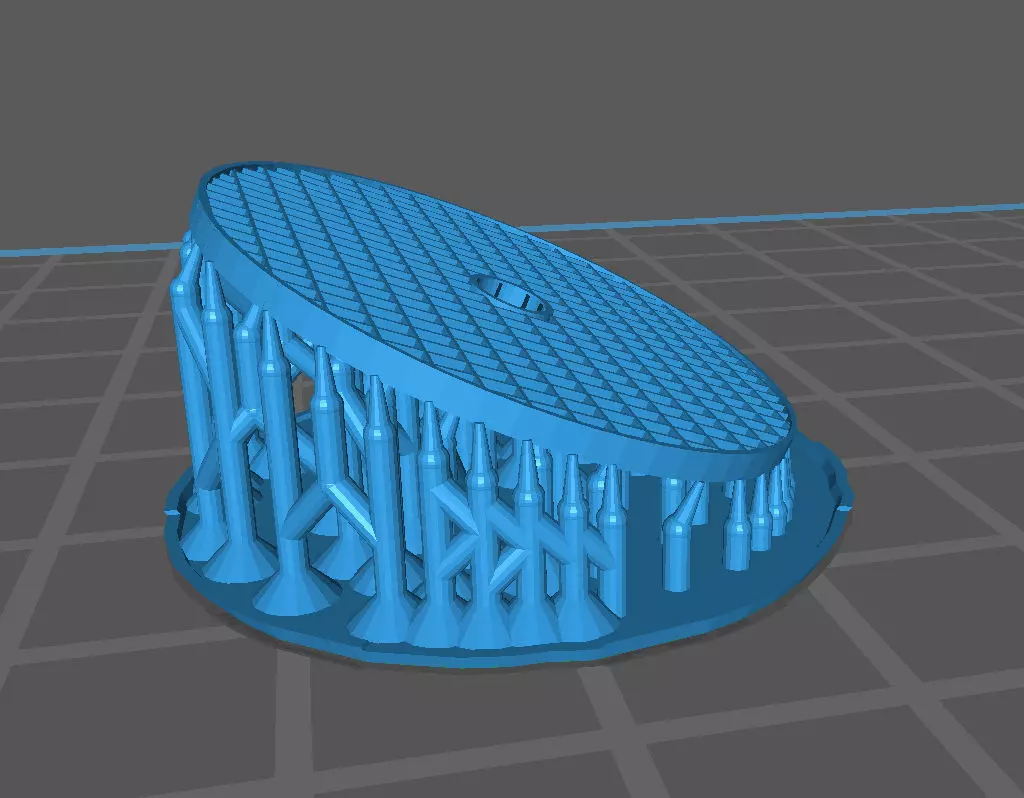

Printed on a Anycubic Photon Mono M5s Pro at .02 layer thickness.
