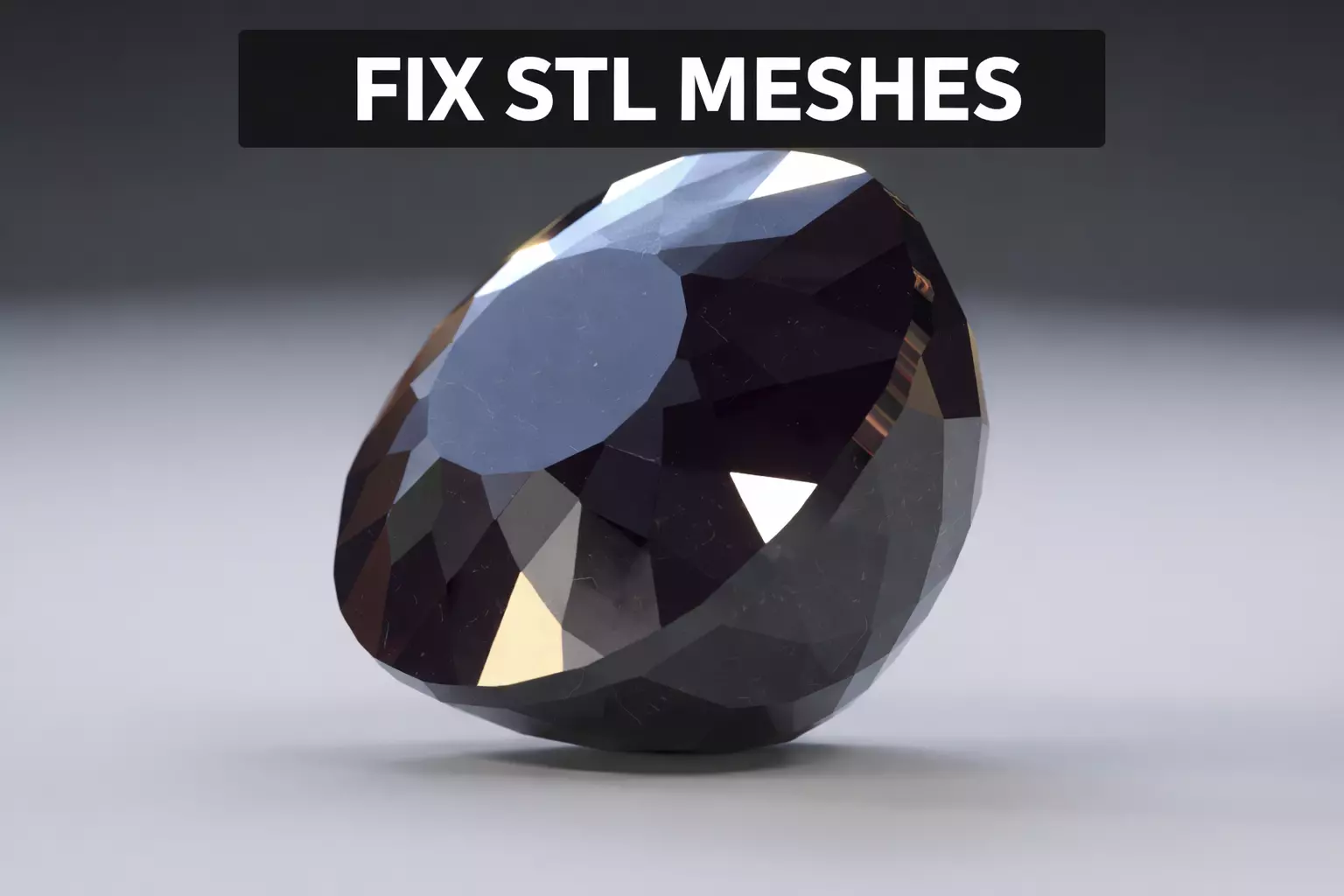

Gemstone STL to Clean CAD Conversion – Free Example (Jewelry Production & Rendering)

This file is a free example demonstrating the process of converting a raw gemstone STL scan into a clean, production-ready CAD model.

It clearly shows the difference between unprocessed mesh data and accurate geometry suitable for jewelry manufacturing and high-quality rendering.

Raw STL scans often contain irregular topology, noise, shading artifacts, and incorrect surface behavior. These issues affect both production and rendering quality.In this example, the geometry has been fully rebuilt — not just cleaned — to achieve precise surfaces, correct proportions, and reliable structure.

The result is a clean CAD model that behaves correctly under light, produces accurate reflections, and can be safely used in real manufacturing workflows.

What I do:Convert STL scans into clean, editable CAD geometry (3DM)Rebuild surfaces from scratch instead of fixing meshPrepare models for jewelry production and castingCorrect scan defects, distortions, and topology issuesEnsure accurate proportions and structural integrityKey benefits:Clean, production-ready geometry without mesh artifactsAccurate reflections and realistic light behavior in renderingFully editable CAD model (Rhino / 3DM workflow)Consistent scaling and reliable dimensionsSuitable for casting, 3D printing, and renderingAccuracy

The original stone shape is carefully followed with high precision.The goal is not approximation, but controlled reconstruction of the geometry for predictable and stable results.

Workflow

Input: STL (scan / mesh)Output: Clean CAD model (3DM or STL)

If you are working with scanned gemstones or mesh-based models, I can provide the same conversion service for your projects.
