Light Bird Temple

Light Bird Temple Free 3D print model

29-05-2021 The foundation parts are updated. The new STL files can be found in “NEW foundation parts.zip”

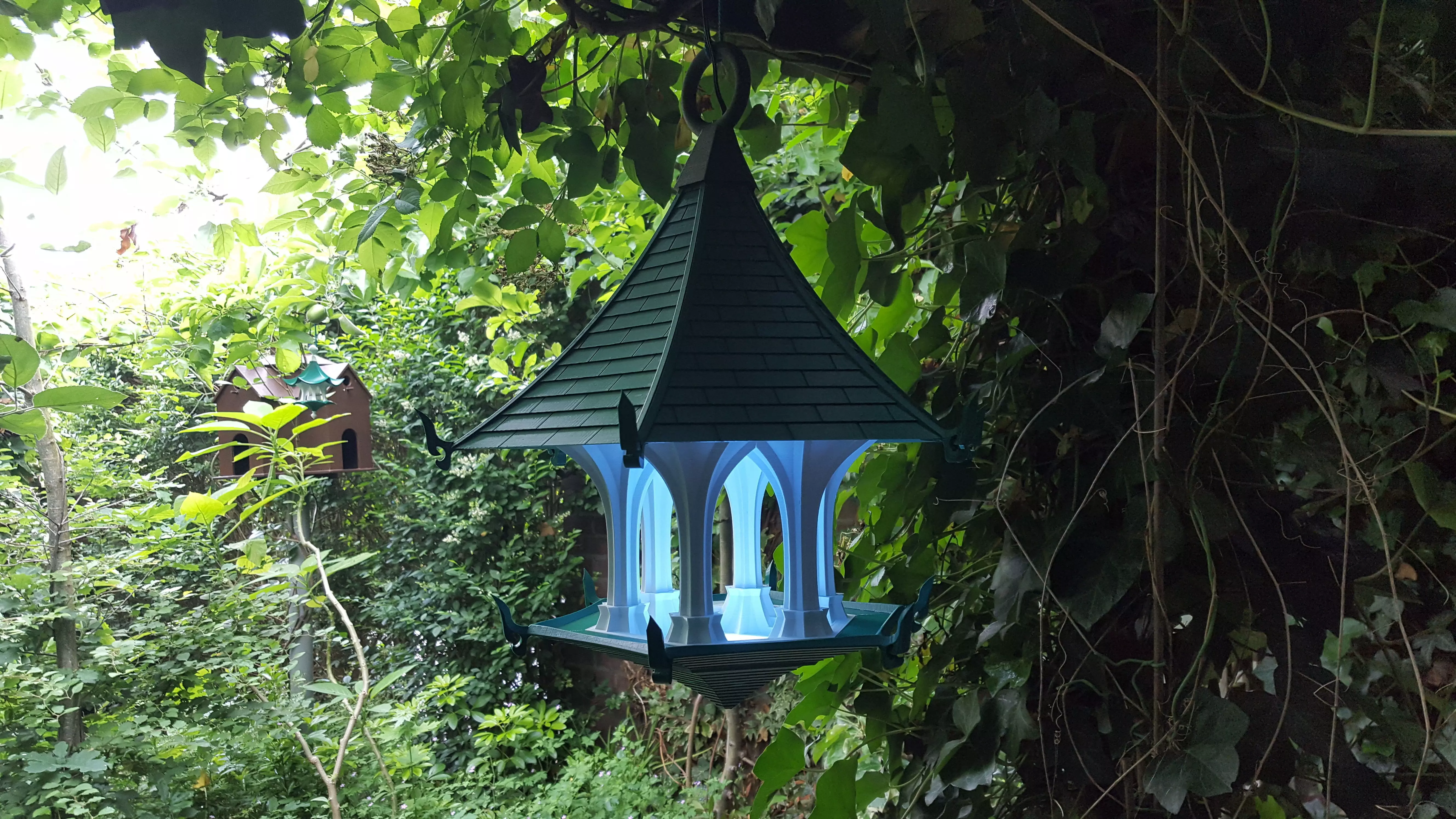

This Bird Feeder has a build in lamp. The lamp sits in the feeder part and shins up. The Lamp is actually a RGB LED strip, so it can change colors also. I tried to make the feeder part in such a way that water can easily escape trough an build in channel. Because there is a lamp inside it's possible to take this one apart for fixing purposes in the future. In the center of the pillars sits a “translucent PET-G printed” cylinder (lamp glass roof.stl) wherein the IR receiver is placed. This way the remote can still be used :-). If you do not have a remote, you can also use this part to place a second lamp :-)

The position of the “ROOF PART with cable bore.stl” might be strange but works very good.

Printing details for people who like a guide line:

base.stl is printed with 30% infill and 4 wall, bottom & top lines/layers in PLA foundation parts are printed with 10% infill and 4 wall, bottom & top lines/layers in PLA lamp glass or feeder part.stl is printed 25% infill, 3 wall lines, 3 Top layers & 2 bottom layers in PET-G lamp glass roof.stl is printed 25% infill, 2 wall lines, 3 Top layers & 2 bottom layers in PET-G mount STL's are printed 35% infill and 4 wall, bottom & top lines/layers in PET-G Carbon the pillars are printed 10% infill and 4 wall, bottom & top lines/layers in PLA the roof parts are printed 10% infill and 4 wall, bottom & top lines/layers in PLA the spikes are printed 20% infill and 4 wall, bottom & top lines/layers in PLA (the heat bed temp must kept as low as possible to prevent warping on the spiky tips/ends)

needed parts: 1X base.stl 1X foundation part with bore for cable to the baseA.stl 1X foundation part with bore for cable to the baseB.stl 2X foundation partA.stl 2X foundation partB.stl 1X lamp glass or feeder part.stl 1X lamp glass roof.stl 1X mount second peace.stl 1X mount with bore.stl 1X pillar with bore for cable to the base.stl 3X pillar with mounting for base.stl 2X pillar.stl 6X ROOF PART with cable bore.stl 6X spike foundation part.stl 6X spike roof.stl 6X M3x20mm bolt & nut (3 extra ones are optional for roof) 1X M3x60mm bolt & nut (or 2 nuts and 60mm treated rod as I did) 1X Lamp or LED to mount inside. Super Glue & Universal Glue for the base feeder part

If you have any questions, feel free to ask :-)

PS: for more information about this model go to https://www.designuitinspiratie.nl/3d-printer/verlichte-lucht-tempel/ on my personal website :-)
