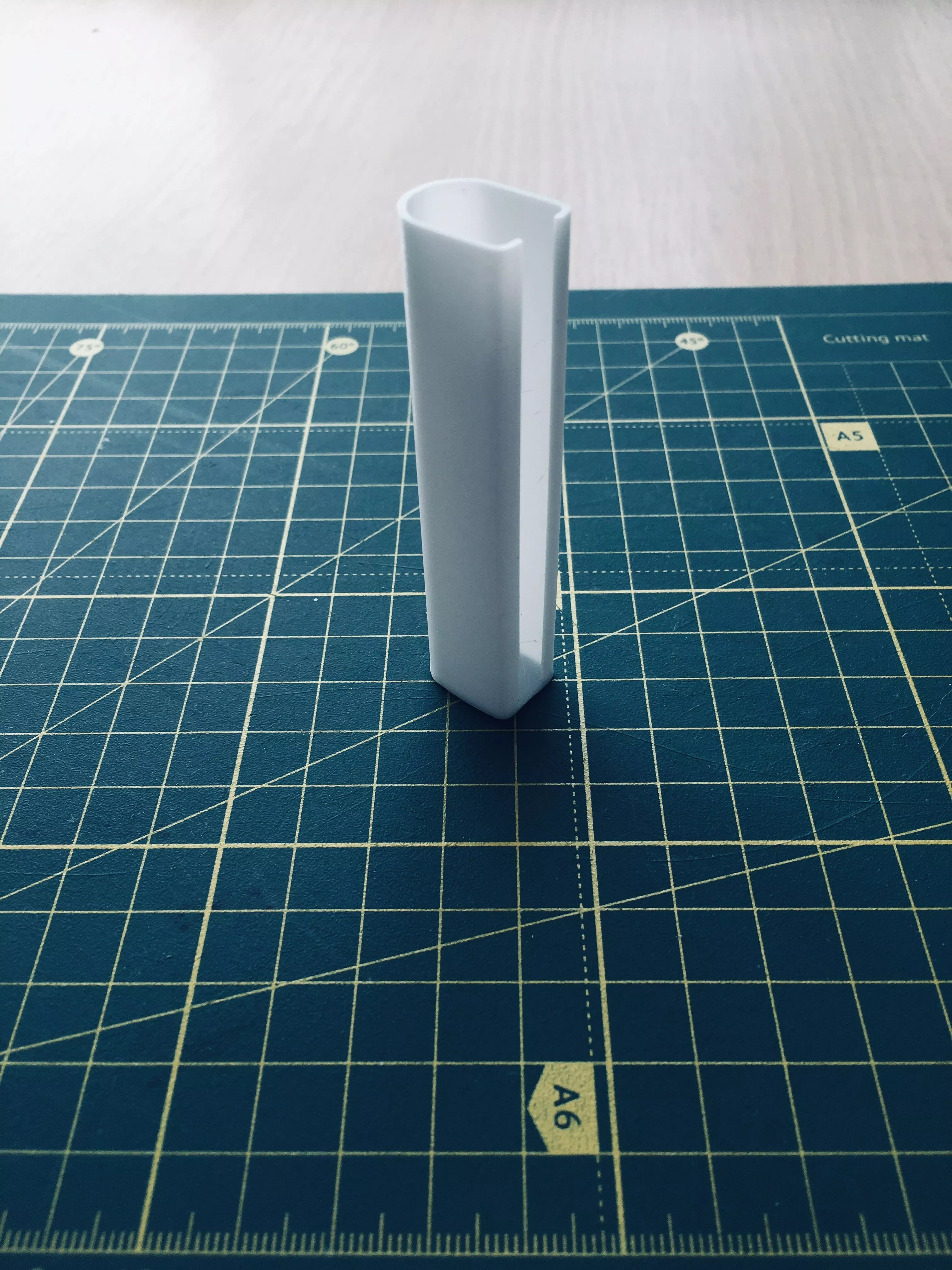

uPVC Window Lower Hinge Cover – Replacement3D-printable replacement cover cap for the SIEGENIA corner hinge used with uPVC/PVC window hardware.A 3D-printable replacement protective cover for the lower hinge of uPVC/PVC windows.The cover protects the hinge mechanism from dust, dirt, and moisture while restoring the clean appearance of the window hardware.

Dimensions:

• Height: 73 mm
• Width: 14 mm
• Depth: 16 mm
• Hinge cutout width: 6 mm

*Please check your original cover and hinge dimensions before printing. See the drawing for detailed dimensions.*

3D Printing Settings:

• Layer height: 0.16 mm
• Nozzle diameter: 0.4 mm
• Walls: 3
• Infill: 15% Gyroid
• Supports: Not required
• Brim: 5 mm recommended
• Recommended material: PETG
• Printing Notes

The part has a tall and narrow geometry, so a 5 mm brim is strongly recommended to improve bed adhesion and reduce the risk of detachment during printing.

Print the model with the flat side on the build plate.

PETG is recommended for window applications because of its better heat resistance compared with PLA. PLA can be used for indoor applications or windows that are not exposed to direct sunlight.

This model is intended as a replacement part for 3D printing and is not an original manufacturer part.

Please check the dimensions and compatibility with your window hardware before printing.
