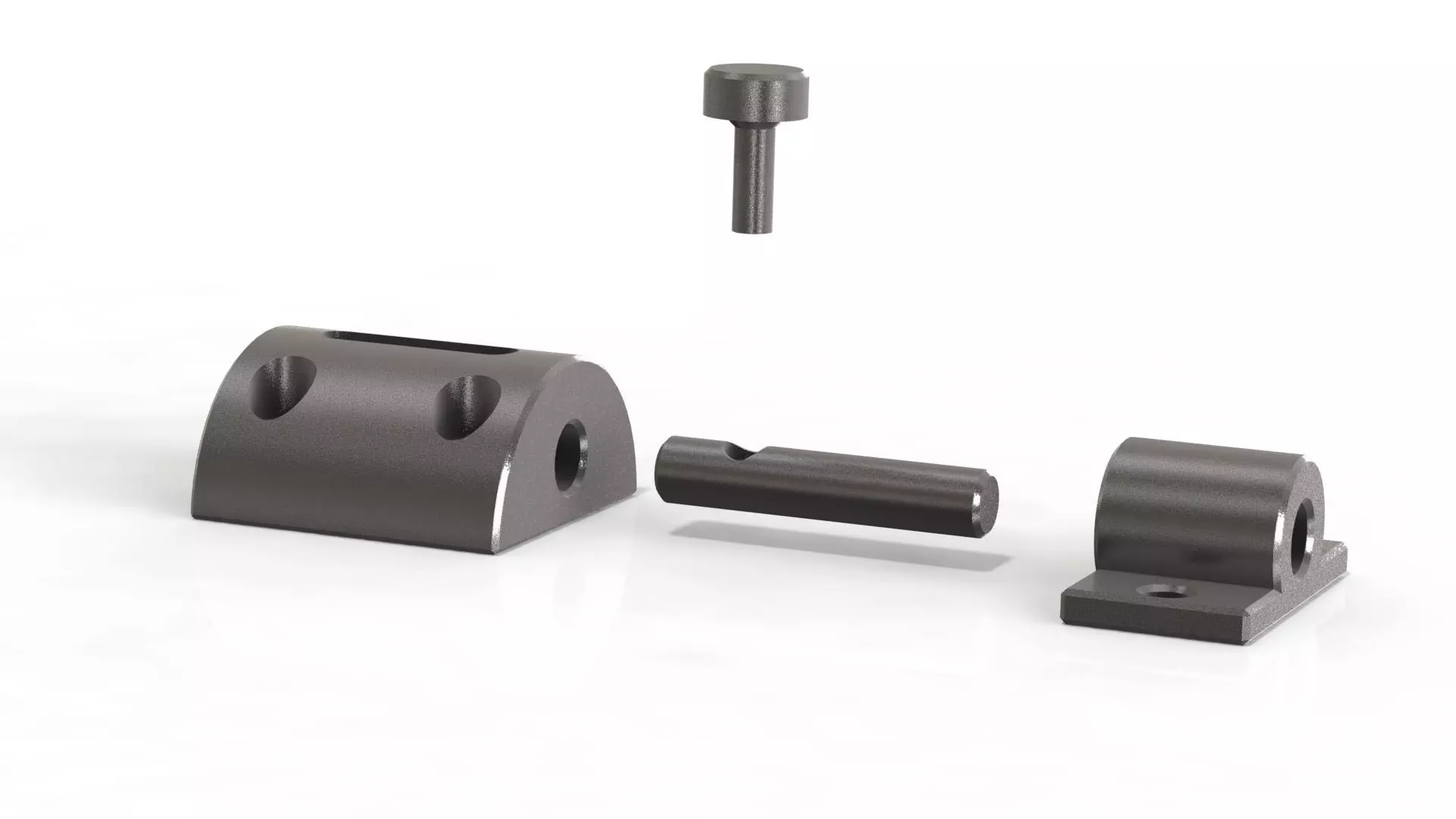

Manual door lock/stopper for close doors and windows from one side. Depending on the scale used it can be printed for verity of door and window sizes. It consists of total 4 pieces namely (Main-1 to Main-4) of which needs (Main-2 and Main-3) will require assembly after print probably with some quick glue will do the job. The holes for fastening it are suitable for flat head screws of ISO M6 size.

And most importantly, It will be enormous fun to 3D print things that are cool and useful. That feeling never gets old.

The technical specs of all pieces are as follow :-

Main-1 :- Dimensions : L 60 x B 60 x H 30 mm Tris : 19902

Main-2 :- Dimensions : L 60 x Dia. 11.80 mm Tris : 19902

Main-3 :- Dimensions : L 28 x head Dia. 08 mm Tris : 4670

Main-4 :- Dimensions : L 30 x B 60 x H 30 mm Tris : 10066

Depends on printing scale size can be varied from the base design. This will fit happily for any door and window. Enjoy your food and 3D printing experience.

Please let us know at if you have any questions or suggestions to improve my skills. I will try to respond in 24 hours.

Many thanks, J.K.
