Odrod C3 case with wire coordinator Free 3D print model

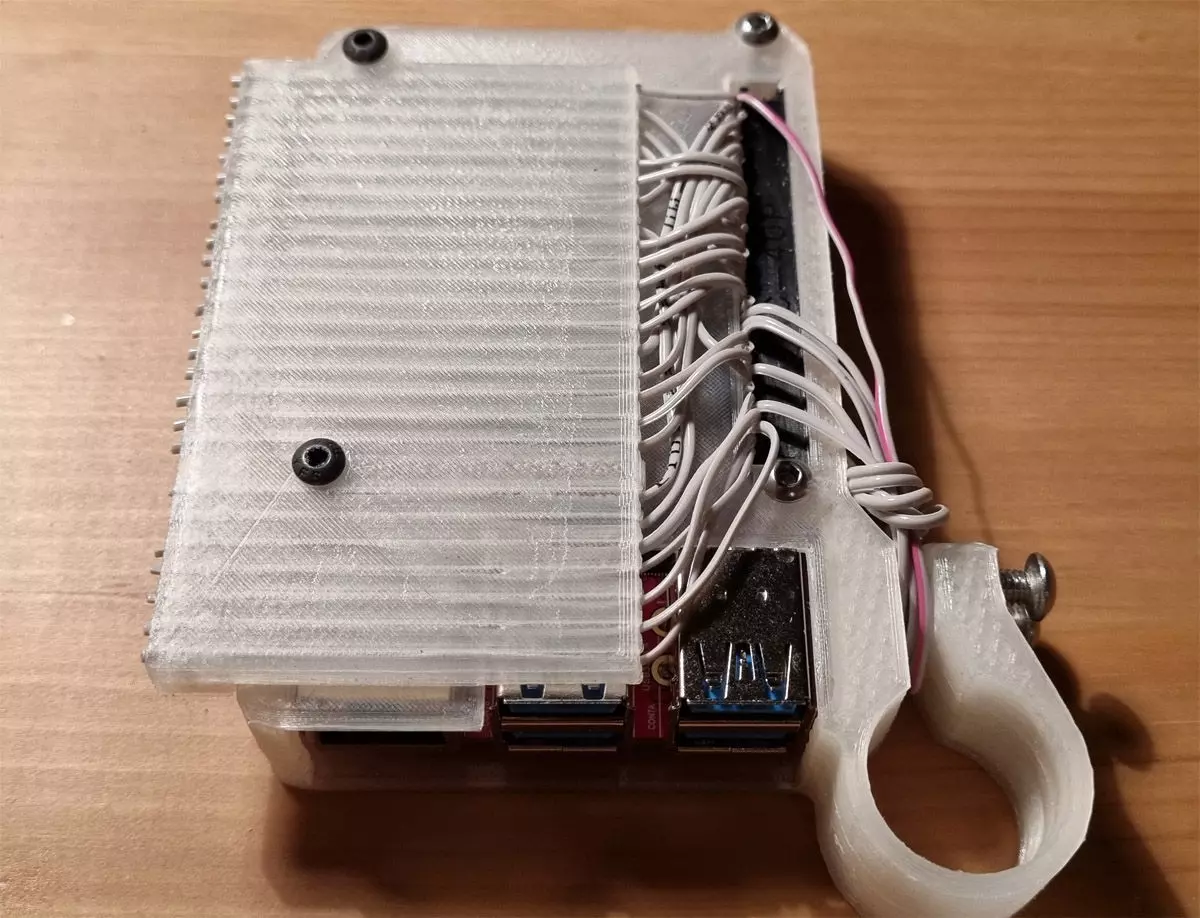

Low form factor casing for an Odrod C3 ARM processor card.Comes in two variants: vanilla and with an attachment point to a 20mm tube.

An optional wire coordinator provided, with 25 wiring outputs fixed with M3 hole-through screws. Case has a hole that can fit a standard 40-wire PC-IDE cable, which are abundant.Or simply use individual signal wires.Wire fixing screws should not be tightened too hard as there is a risk of delamination in the coordinator.

Notes:Better use 0.2 nozzle, at least for the wire coordinator part.If parts imported in wrong scale, just scale up 1000& or scale down 10%.Use M3 and M4 threading tool to add the necessary screw threads, on M3 bottom lid and M4 for the tube fixing loop. The rest of the holes might come out somewhat shrunk and might need using 3mm and 4mm drill bits.

Coordinator piece has fine holes and should be printed without support. Use 1.5 drill bit to clean out the holes and m3 threading tool for the screw holes, not going too far in.Recommended to spray the parts with a clear laquer right after print, to seal up cracks, waterproofing the piece for longevity. Might also make it a little bit stronger.
