Hose Collar

Hose Collar Free 3D print model

Description

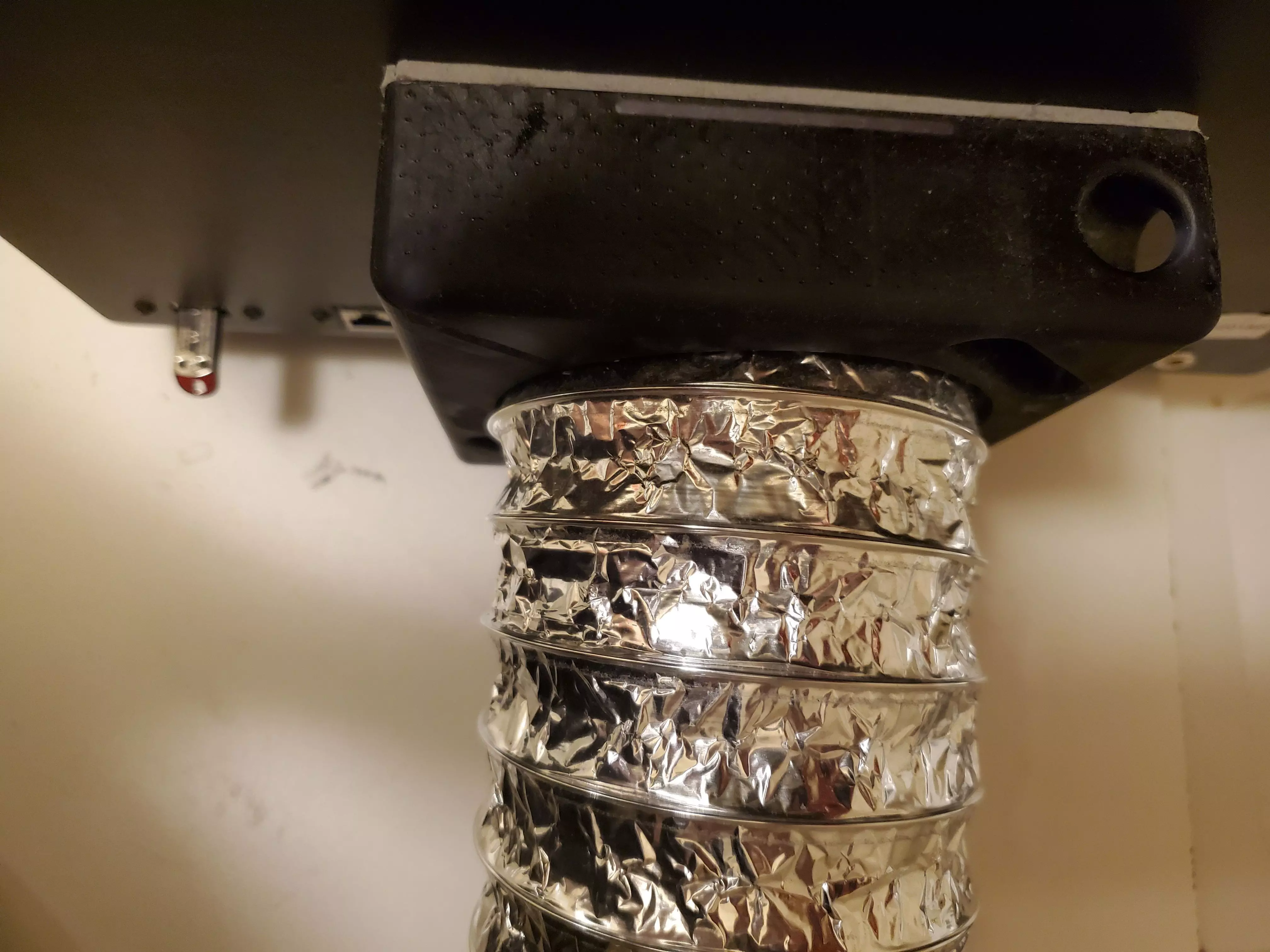

This is meant to be a hose collar for 4.25inch flexible ducting. It is meant to hold a hose against a metal housing and there are channels for magnets or double sided tape to hold the collar against whatever outlet vent you have. The channels are a little over 10mm wide and 3.5mm deep.

The two halves are intended to be held together with glued in magnets. The indent for the magets are 22mm in diameter and a little over 5mm deep (5.3mm). If you are unsatisfied with this solution you could certainly drill a hole through each side and screw the two sides together, or modify the model in such a way as to provide this feature.

If you need a tighter seal, I would recommend adding a gasket between the collar and whatever surface you are mating it to. The original application for this is to vent the fumes from a peopoly phenom SLA 3d printer. If this is your application, as well, it should work quite well.

Item rating
0 0
Hose Collar
Free

Royalty Free No Ai License
Hose Collar
Free

Royalty Free No Ai License
Response - % in - h

3D Model formats

Format limitations
  • Other 236 KB
  • OBJ (.obj, .mtl) (2 files)1.23 MB
  • Stereolithography (.stl) (2 files)1.12 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2024-08-14
  • Model ID#5467443
