Professional CNC design package for a 40x40mm square tube base plate.

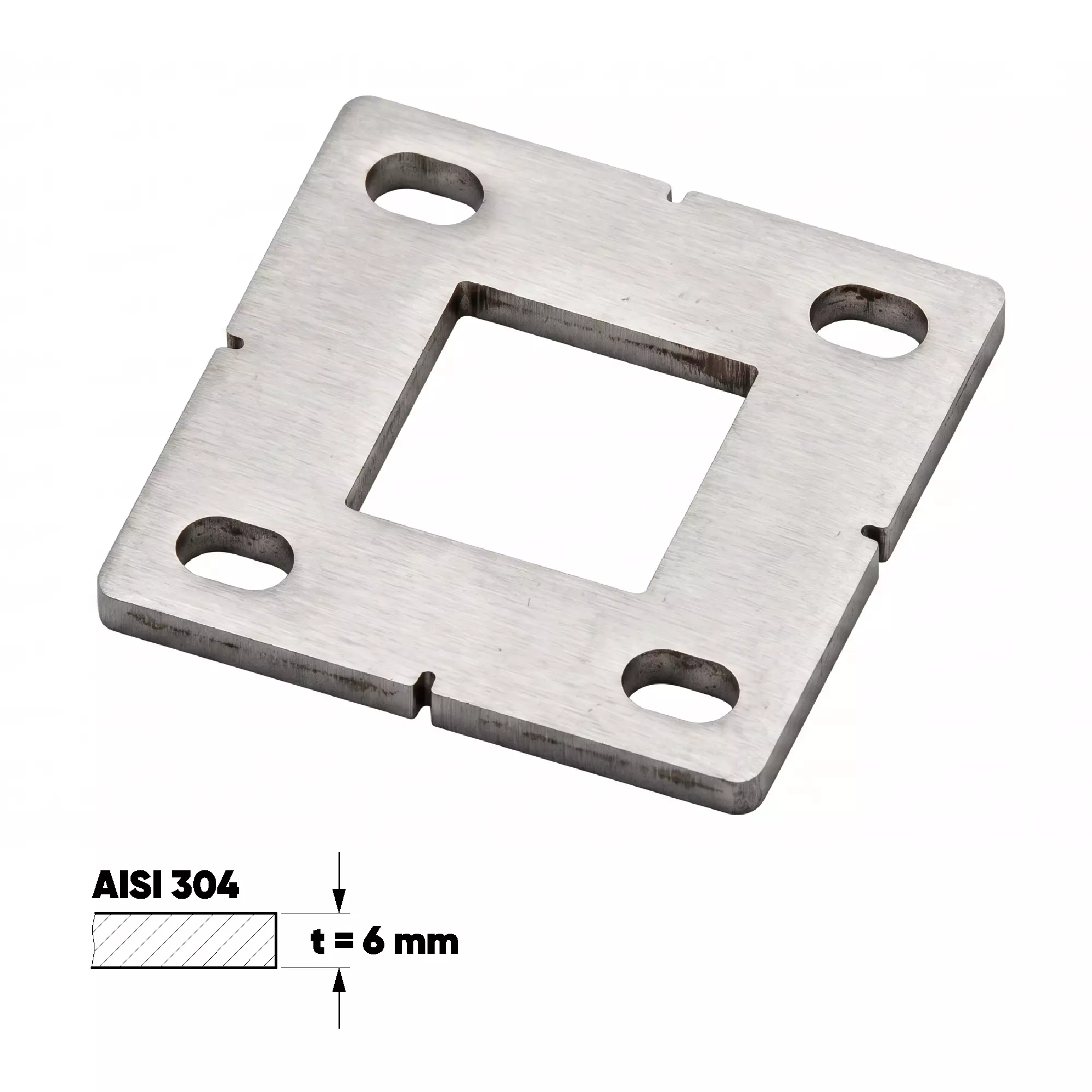

This high-quality mounting flange is designed for sheet metal fabrication (laser, plasma, or waterjet cutting). It provides a strong, reliable, and aesthetic base for metal posts, railings, and structural columns.

Key Features:

Tube Fitment: Perfect centered socket for 40x40 mm square tubes.

Material Thickness: Optimized for 6 mm sheet metal.

Positioning Notches: Four centering notches on the edges ensure easy and precise tube alignment before welding.

Adjustable Mounting: Elongated (slotted) holes allow for lateral position adjustment after floor installation.

Included Files in the Archive:

.DXF (Flat pattern ready for 2D CNC cutting)

.STEP (3D solid model for easy integration into your CAD assemblies)

.PDF (Detailed technical drawing with dimensions and welding notes)
