DESCRIPTION

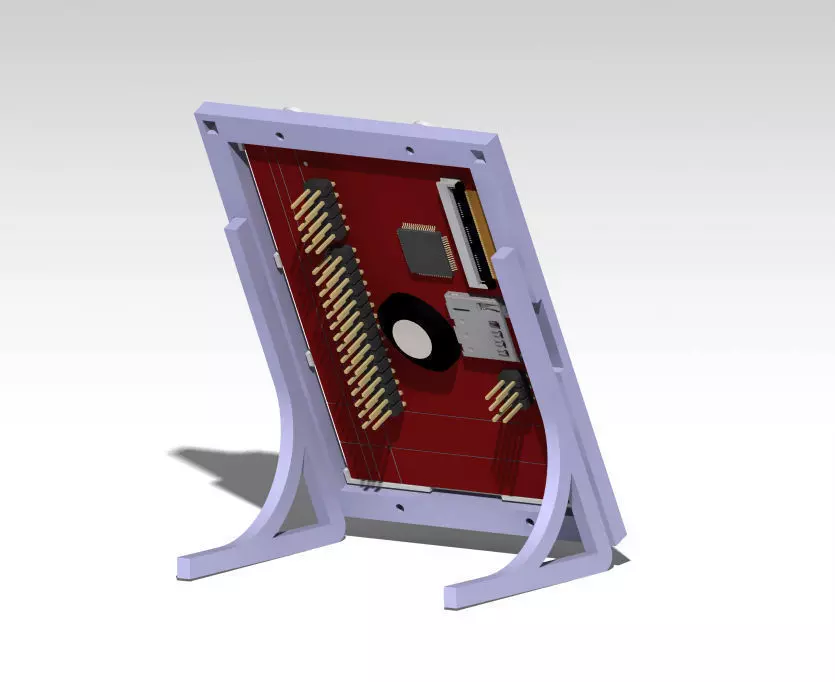

This frame will support a 4D systems 32PTU LCD screen. http://www.4dsystems.com.au/product/uLCD_32PTU/It uses 2-28 tri-lobular thread forming screws to mount it. It will hold the screen in landscape or portrait. Just print 2 of the supports, and one of the frame. Square holes may need to be clearanced (use a file on the square support pegs) to get a nice fit, they are dead on right now. Frame is 4mm thick with a gap for the uSD card. Enjoy! #printaday

Related Tagsarduinodiyframelcdmountpicassoscreensupporthobbyhobby diyotheraccessories
