Microsoft 3D Builder Test Model by Raidenmeden Free 3D print model

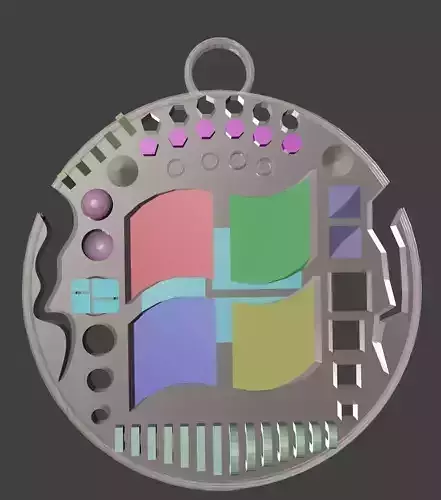

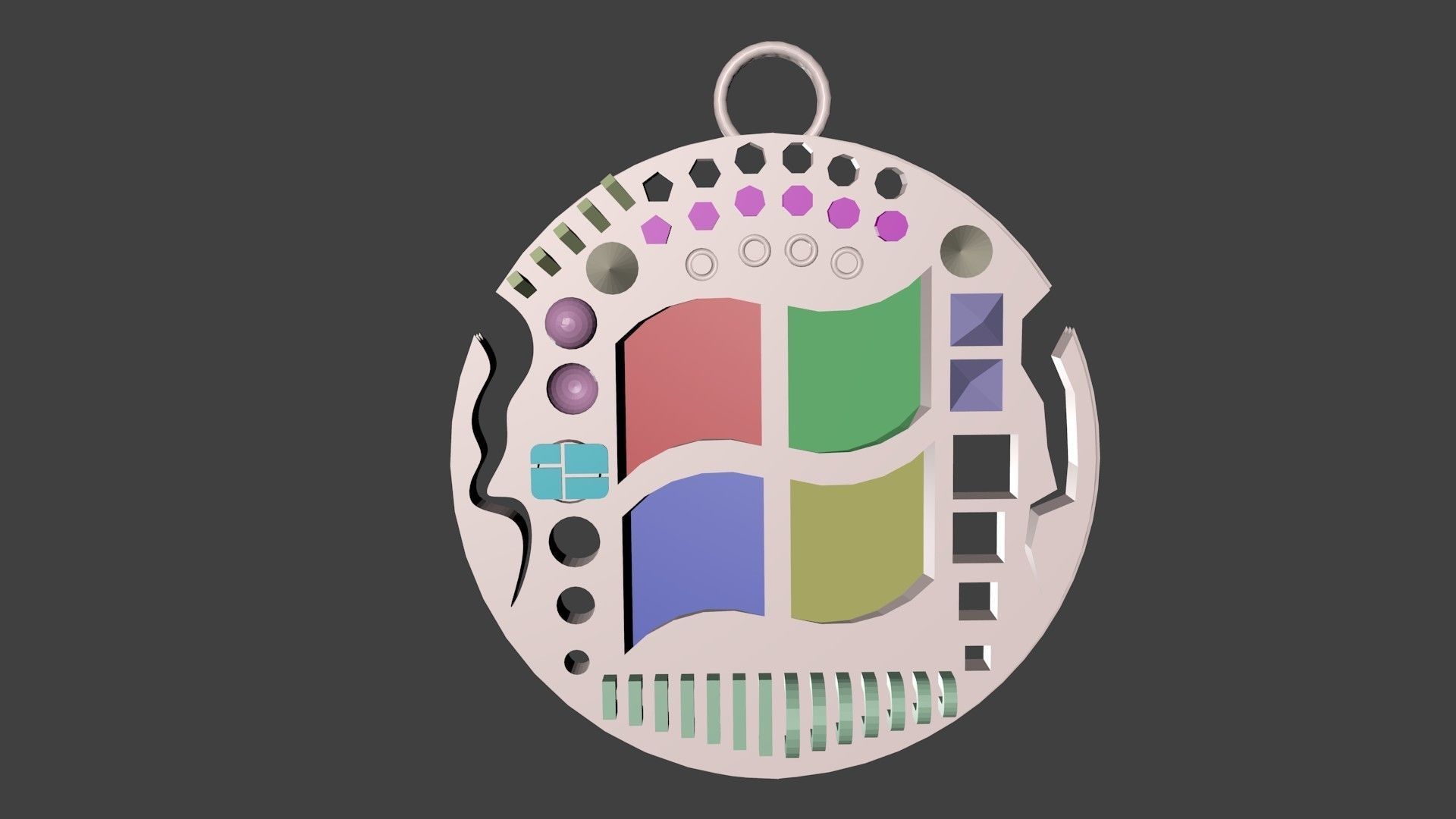

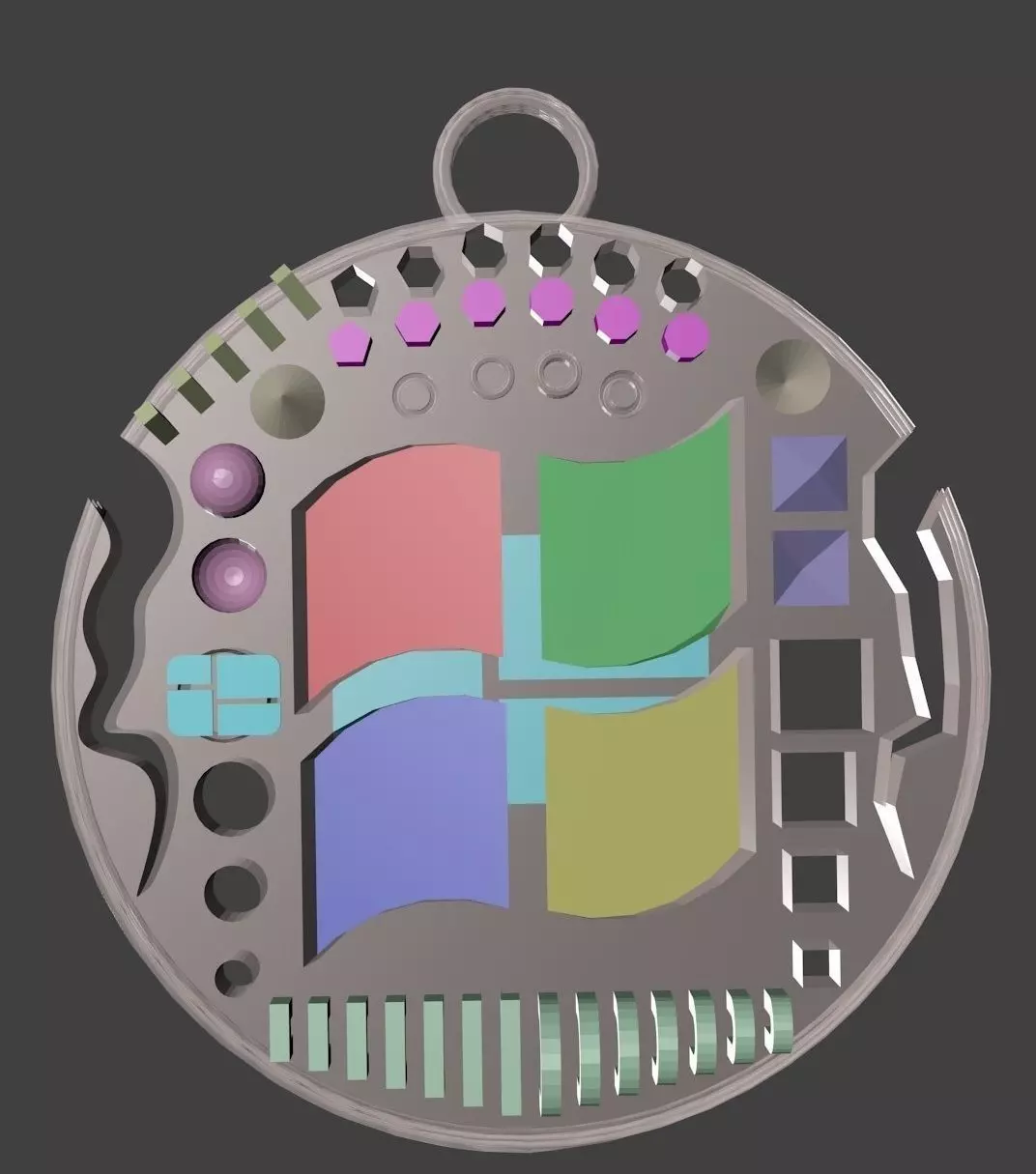

Microsoft 3D Builder Test Model by Raidenmeden inspired in microsoft windows logos.

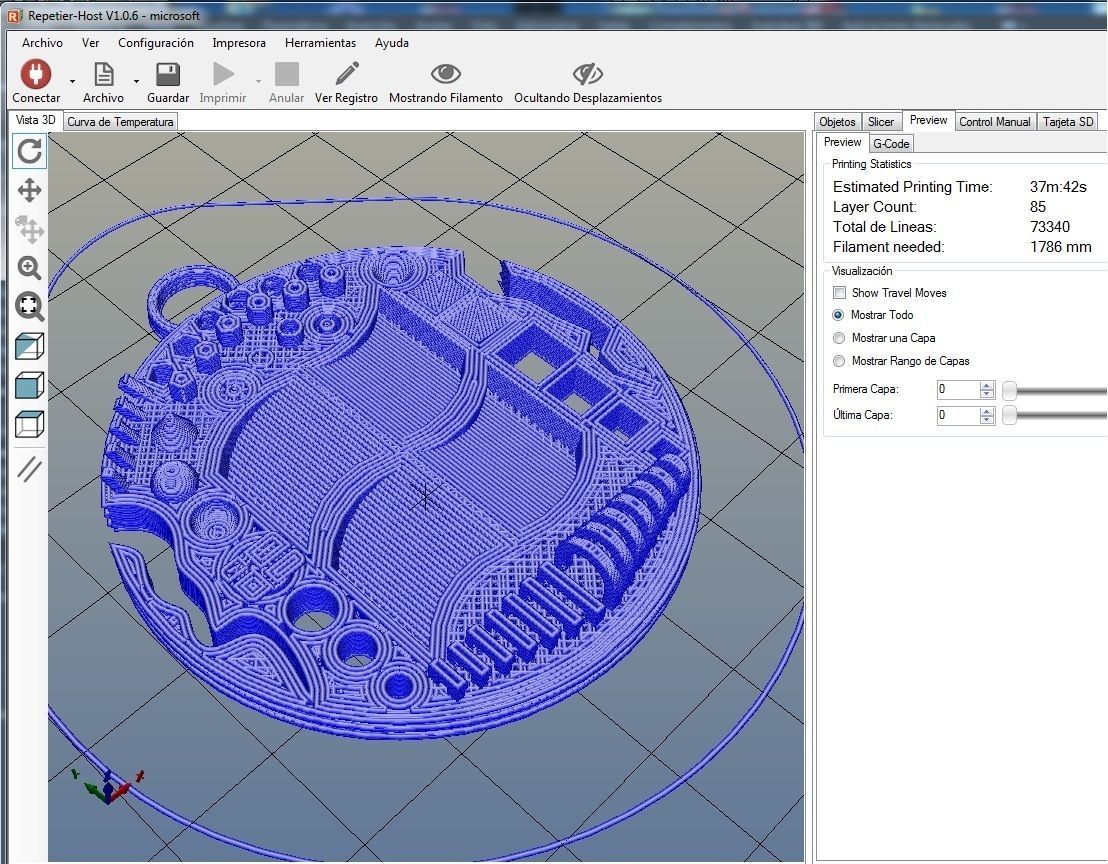

Printer settings: Print time: ~37 minutes Layer height : 0.1 mm Infill : 40% Print Speed : 60 mm/s (Perimeters, infill,top solid infill...) First layer speed: 30% (Tested with repetier host using Slic3r.)

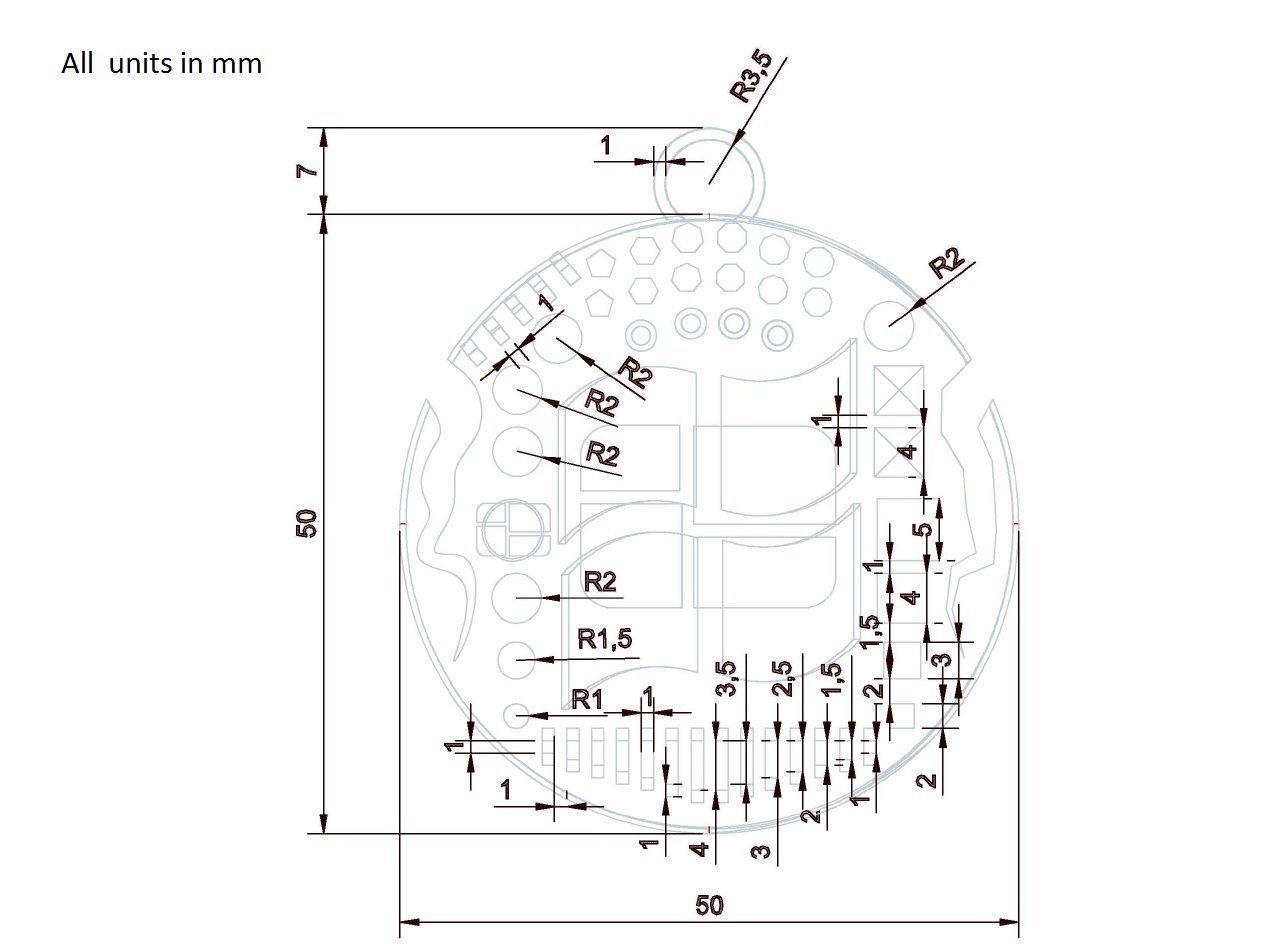

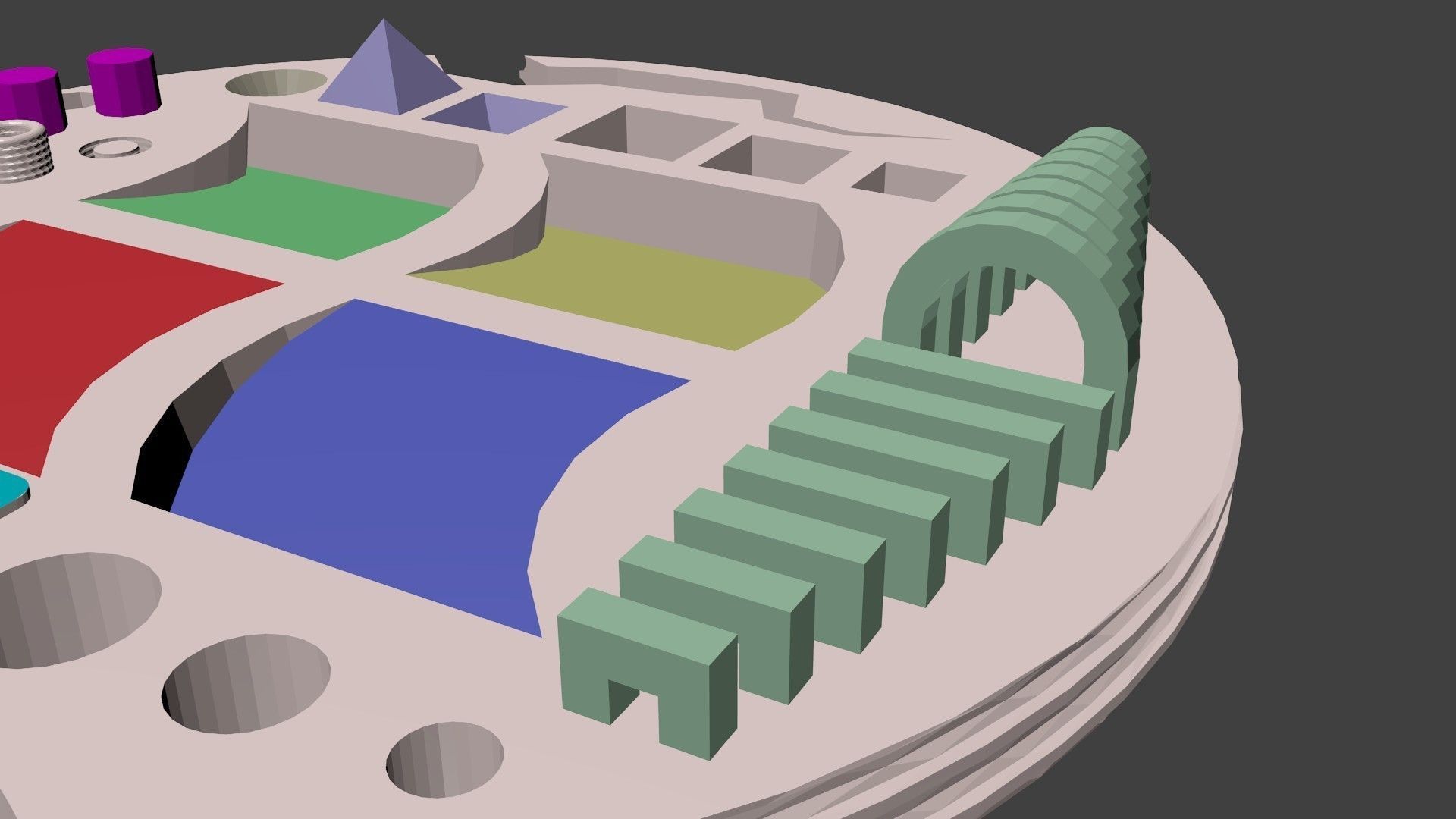

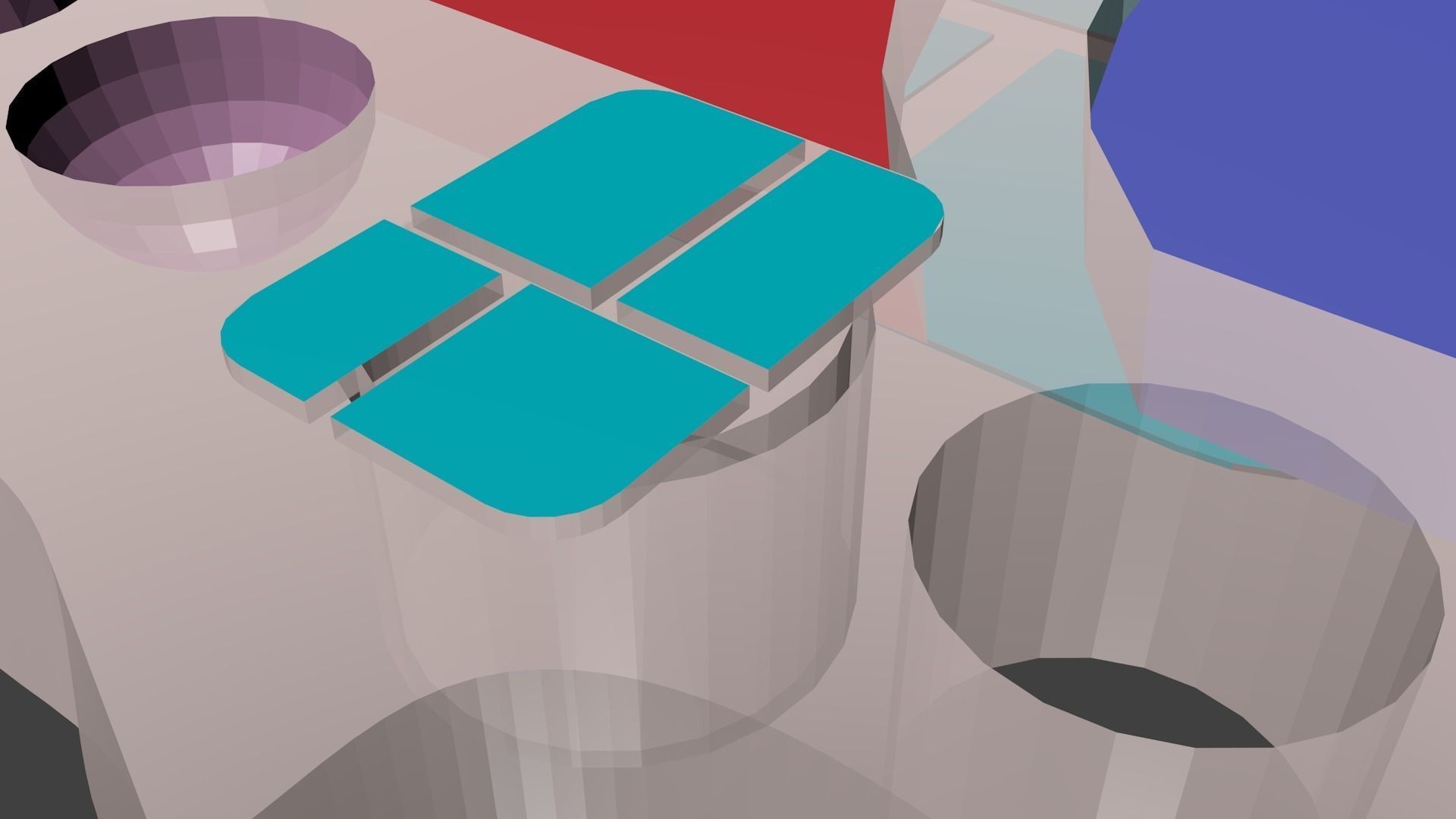

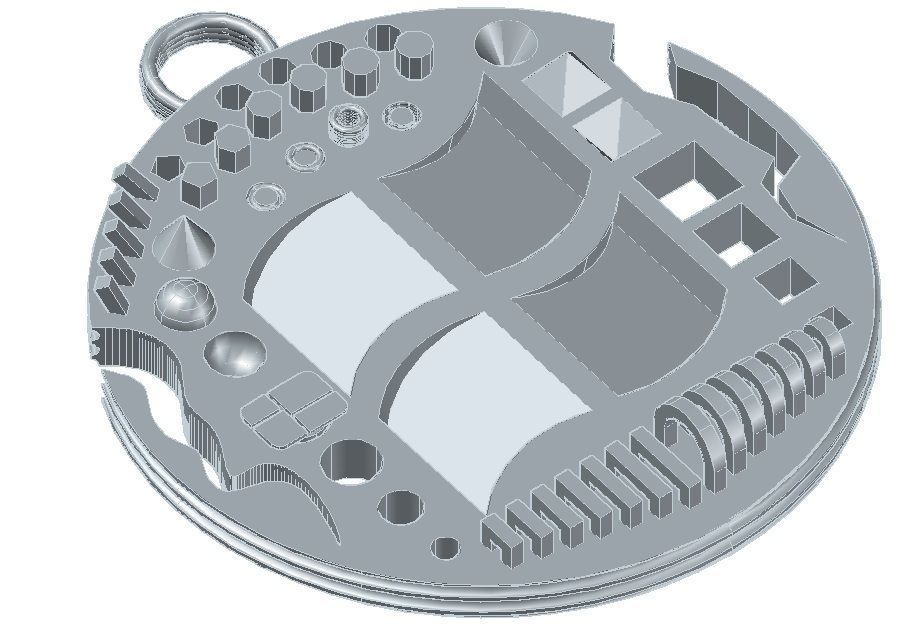

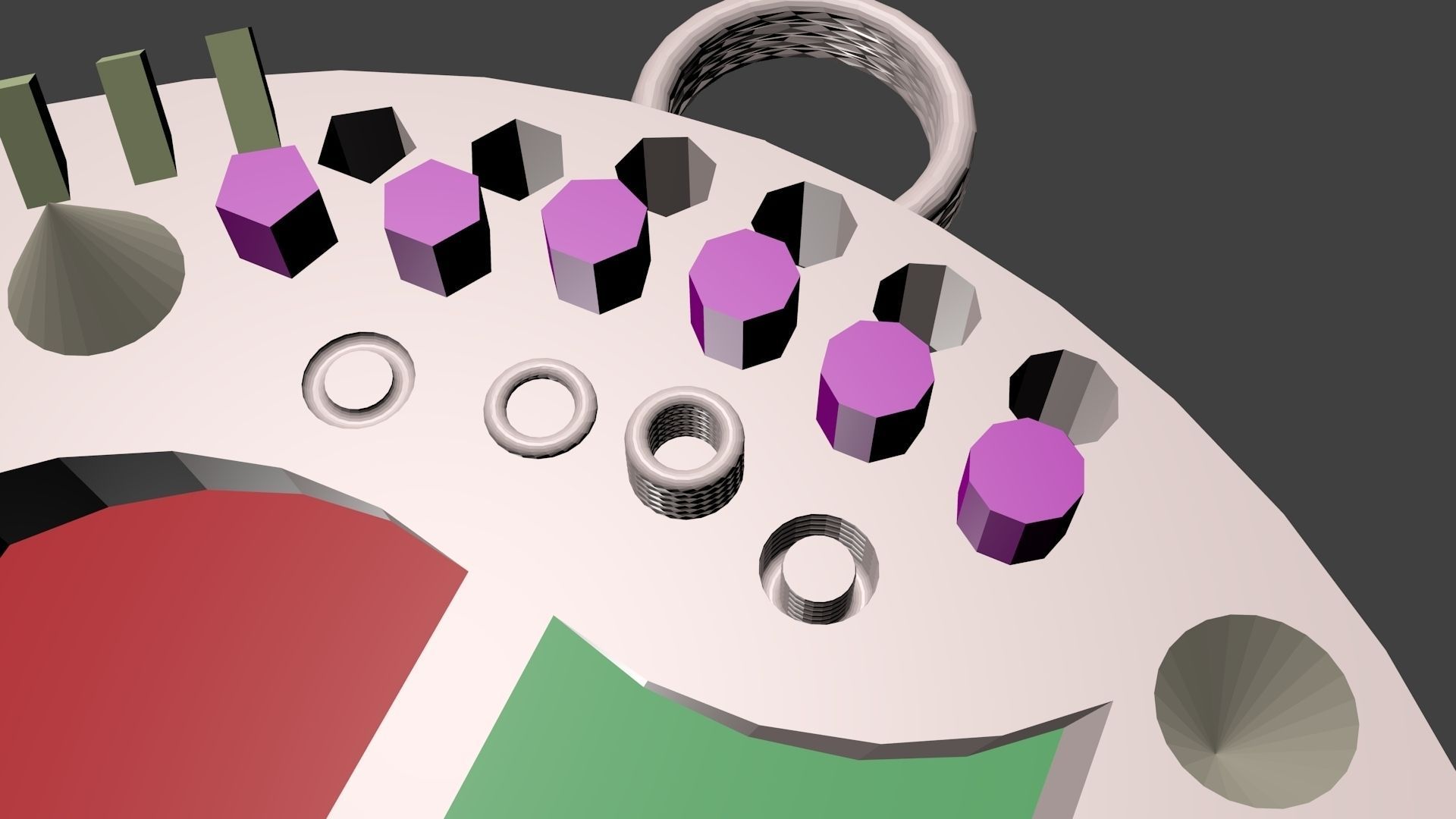

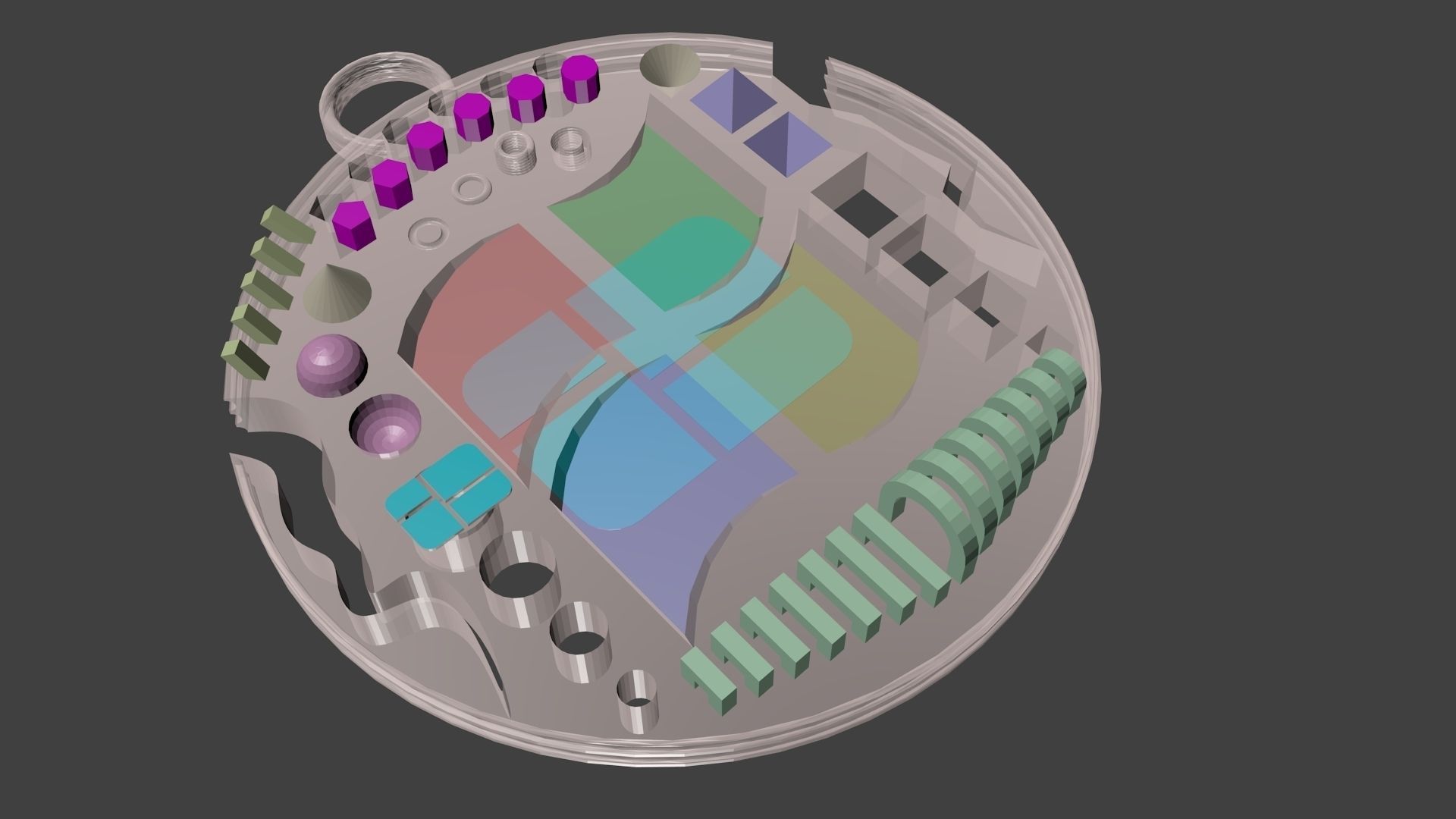

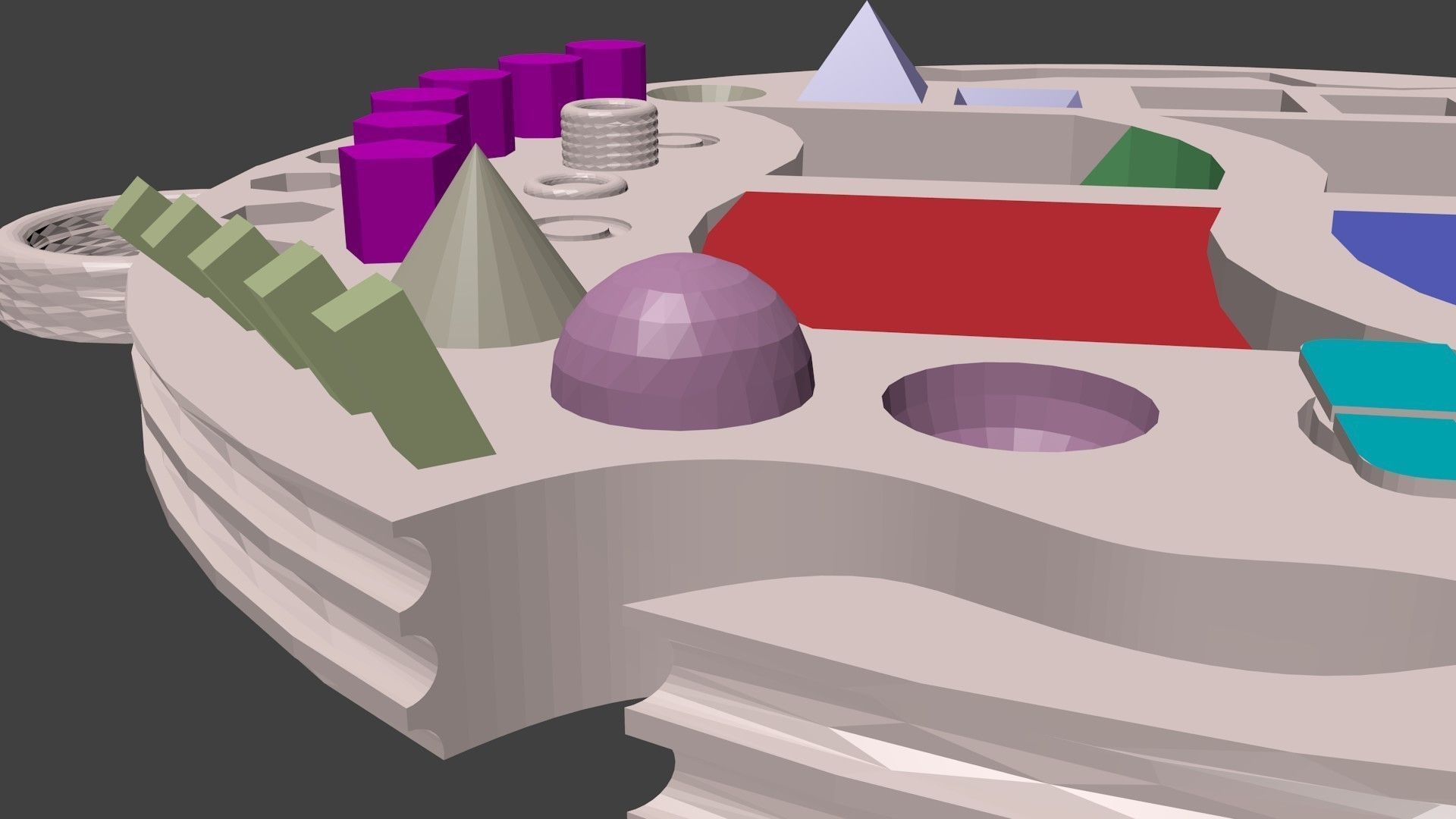

This model includes: Bridges, 2 different kind of bridge with or without arc from 1mm to 4mm between supports. Angle test, 5 inclined columns of 25º,30º,35º,40º and 45º. Embossed surface details, made with the windows logo from 0 to 2.40mm deep. Embossed bottom details,detail made with the windows logo of 0.1mm. Moving and removable parts to test printer clearances between separating pieces. (Gap distance = 0.2mm): -The first microsoft logo on the left can freely rotate. -The different kinds of prisms can be removed and fit into the correspondent holes. Two irregular cuts, 1 sharp and 1 rounded to test minimum details from more than 3 mm to 0 mm. Walls modeled at 1mm thick to test gapping between walls. Different kind of forms added or removed for different types of test.

Also, this model can be used as keychain.
