LED powered TARDIS earrings from Doctor Who
Choice of file sets to print:
1 TARDIS
1 Bottom plug - for the LED option
or
2 TARDIS
2 Bottom plugs - for the LED option

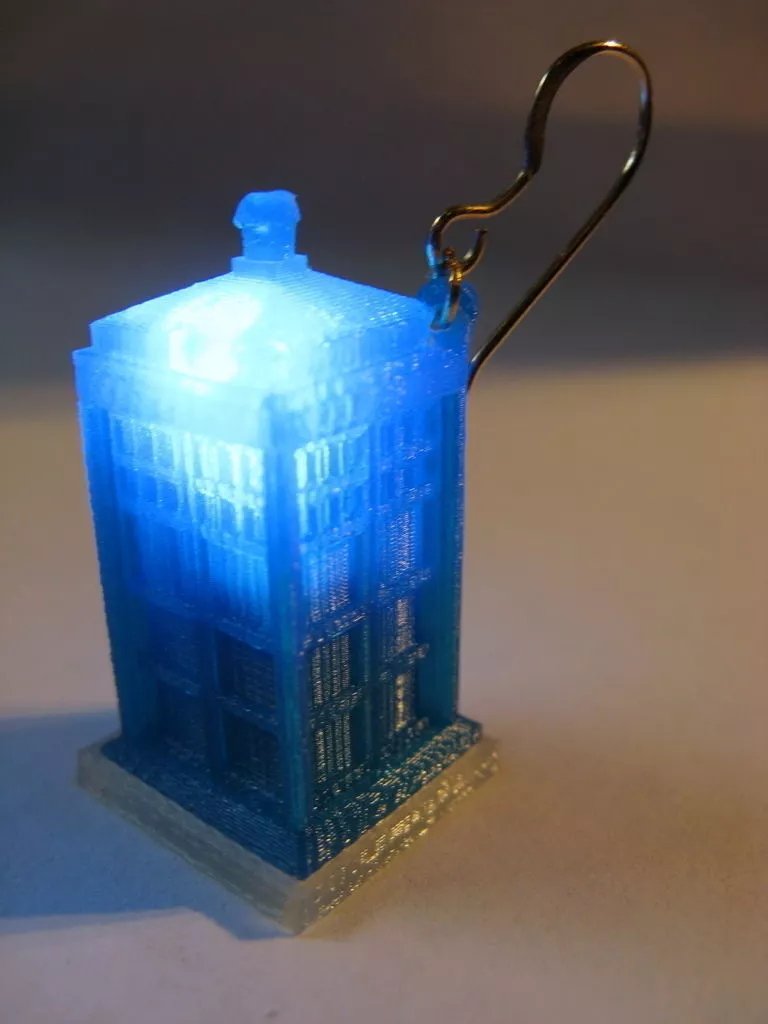

I printed my TARDIS both in ABS and PLA. For the PLA (pictured) I used Makerware with settings:
High
Infill: 15%
Number of Shells: 3
Layer Height 0.1
Temp: 230
Speed of extrusion: 80
LED - 3Volt
3 x 1.5V LR41 NL Button Batteries
(These can be taken directly from LED Fingerlight Item 65997)
Tape
Earring Hoops
Jewelry jump rings
1/16th drill
Pliers
1) Print 3D parts
2) Drill (probably best by hand) at the very base of the small nub (pictured)
3) Insert a jump ring into the TARDIS and earring hook
4) Tape the button cells into a column
5) Bend the LED wires into the configuration pictured above. The long end of the LED is positive and needs to be the wire that top of the battery column. You will probably have to cut the ends to length. I also recommend taping the positive wire to the battery column.
6) Insert battery/LED group LED first into the TARDIS.
7) Plug in bottom piece to turn on. (will be difficult at first to get the plug to snap into place - press hard)
