ISO 6432 cylinder diameter 25 mm Free 3D model

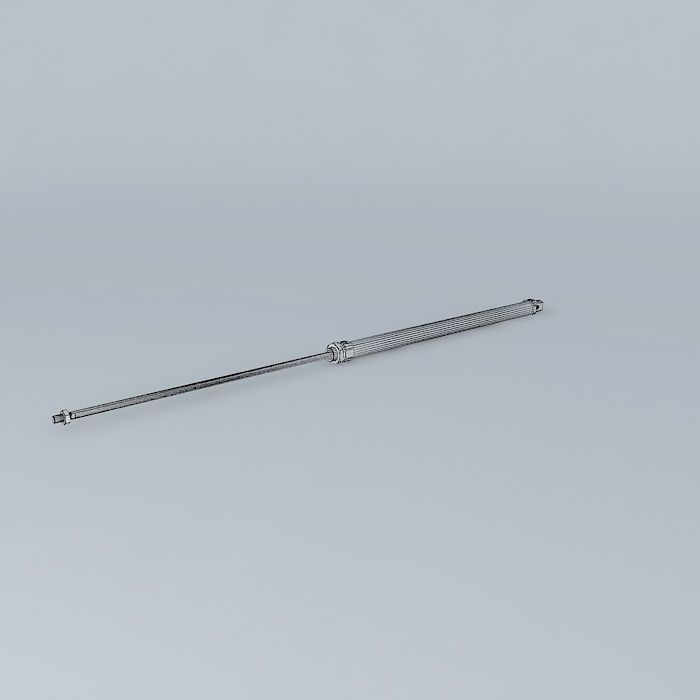

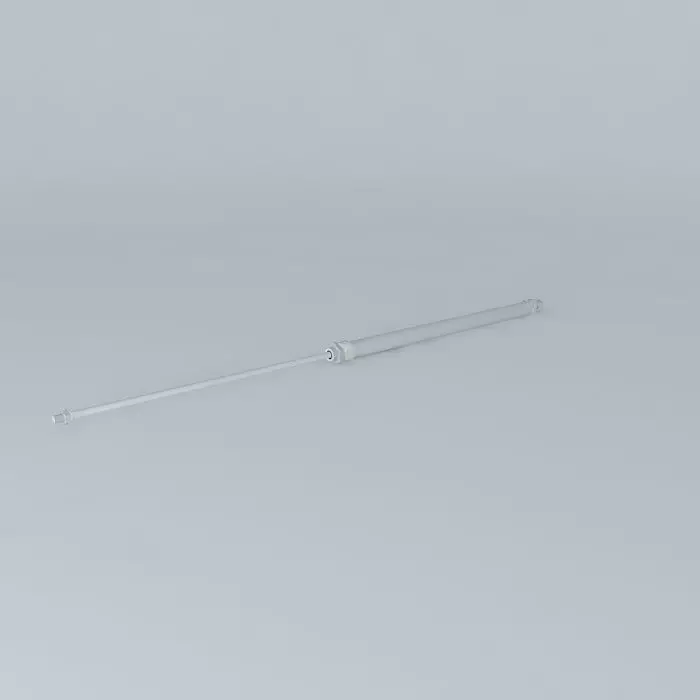

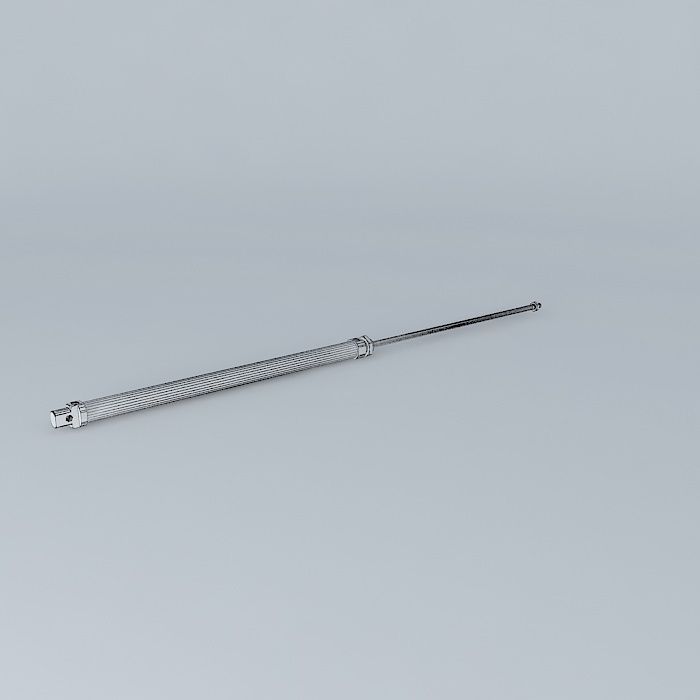

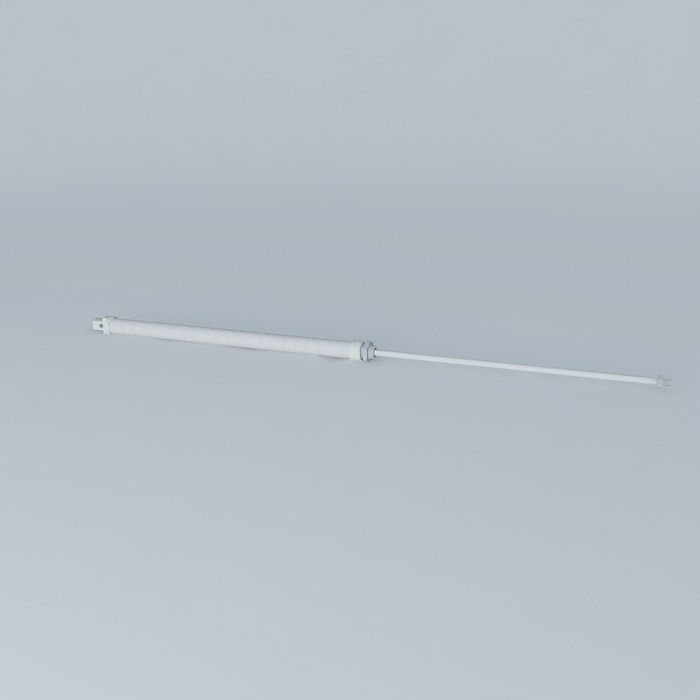

This 3D model was originally created with Sketchup 8 and then converted to all other 3D formats. Native format is .skp 3dsmax scene is 3ds Max 2016 version, rendered with Vray 3.00 Running between 0 and 500 mm. Represented with a stroke of 400 mm rod output. Standard races with the guides points are visible on the layer "strokes" (standard races vary greatly depending on the manufacturer). Connection 1/8, stem nut M10x1.25, M22x1.5 bottom nut (nuts are independent and positioned to use standard accessories, moving as needed). Fittings and fixtures are to be inserted into the group "body", the rod accessories are to be included in the group "A rod." To change the stem stroke "Rod A" output: 1) in the group "body" enter "cover" component and the end of the tube and position it to the desired course. 2) for the rod to open the "rod" component and positioning the end of the rod in the same race, then positioning the end of the group "Rod A" at the end of group "piston". To animate the rod move the group "Rod AB". Video tutorial in the following link.
