SIEMENS NX Skills Showcase - Elliot LOPAC Impeller

SIEMENS NX Skills Showcase - Elliot LOPAC Impeller Free 3D model

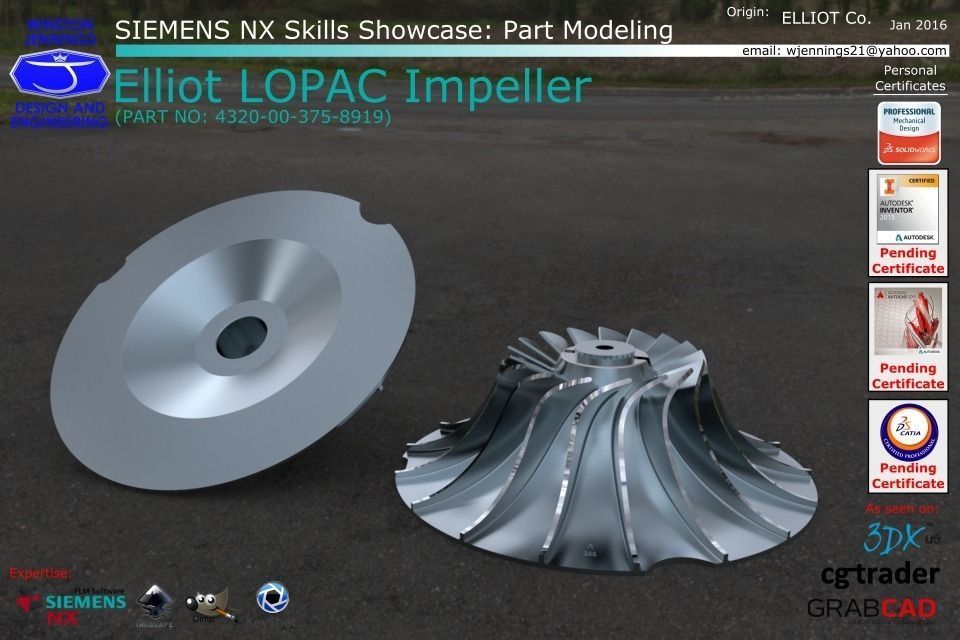

The Elliot LOPAC Impeller was modeled using the Modeling Application in NX

Features ________________________________________________________________________________ Overall Width 1.900 inches nominal Overall Diameter 5.760 inches nominal Blade Quantity 17 Hub Length 0.150 inches nominal Size Designator 0.280-20 nc Blade Type Straight Design Type Single Width Mounting Method Setscrew Rotation Direction Counterclockwise Hub Bore Diameter 0.820 inches nominal Hub Location Back side Hub Quantity 1 Hub Projection Length 0.150 inches nominal Setscrew Quantity 1 Material Aluminum

Reference part, http://www.ebay.com/itm/ELLIOT-LOPAC-COMPRESSOR-PUMP-IMPELLER-258367-203-825218-32-8Y0142-1-8Y0149-8-/191510920547?_trksid=p2141725.m3641.l6368

Modeled in NX 8.5 Rendered in Keyshot 5.0

Don't forget to hit "like" button before you leave :)
