Double-Suction Centrifugal Pump Casing Free 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

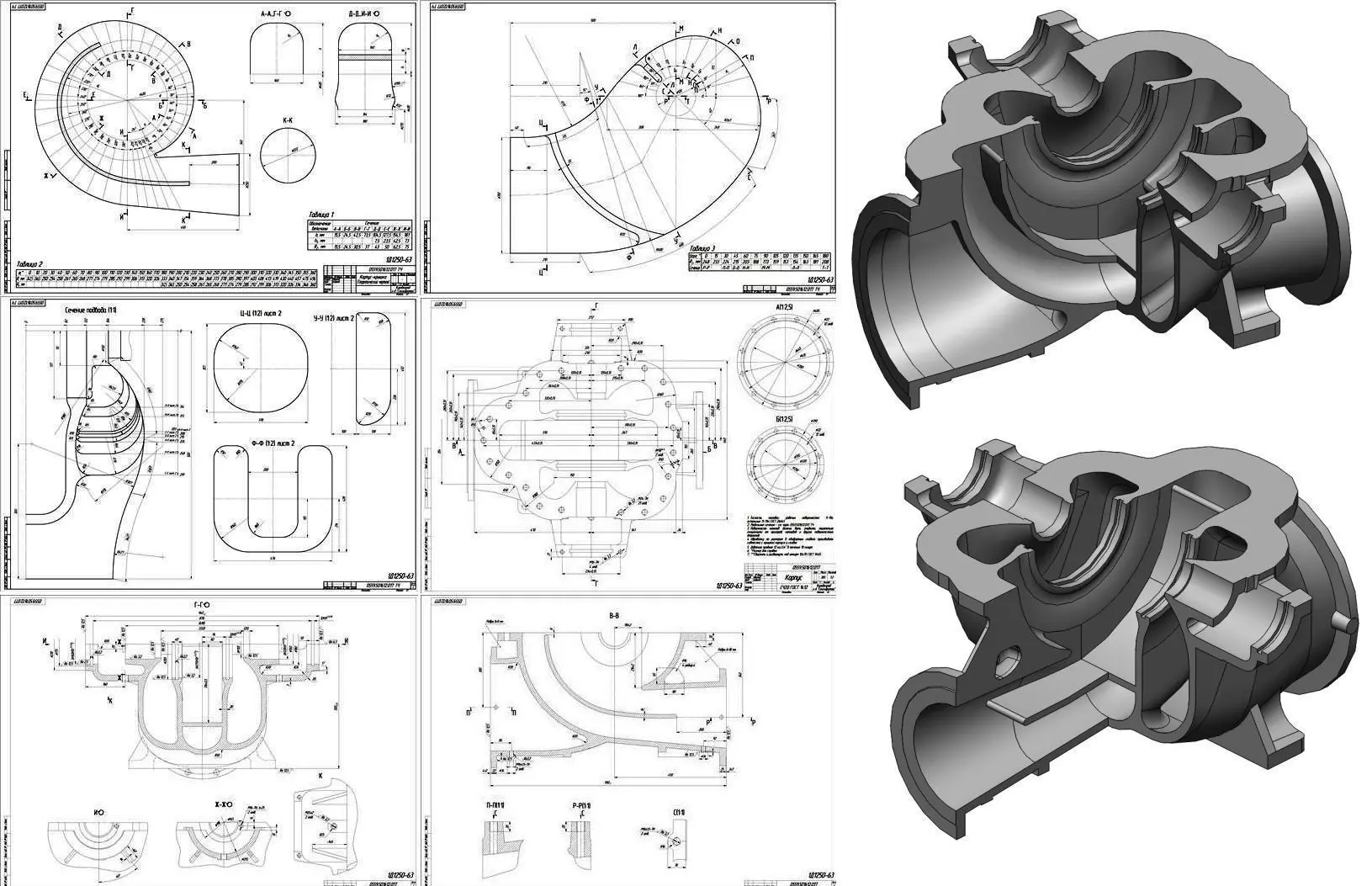

Casing of Axial Split Casing Horizontal Double Suction Centrifugal Pump. SolidWorks 3D Model and .jpeg Drawings.

Centrifugal Pump Casing was modeled in SolidWorks. The model was developed in 2010. Now I send this model in public downloading and review as like training model for other engineers.For its construction surface and solid modeling was used. In other words, this type of modeling is called a hybrid.In the drawings sketches were built in different sections of the model. Further, they were knited into the surface and then solid bodies created.

Tutorial video - https://youtu.be/KFfxGgPl7UQ

Related Tagscadengineeringcentrifugalpumpcasing
