Sphere Wall Mount V3

Sphere Wall Mount V3 Free 3D model

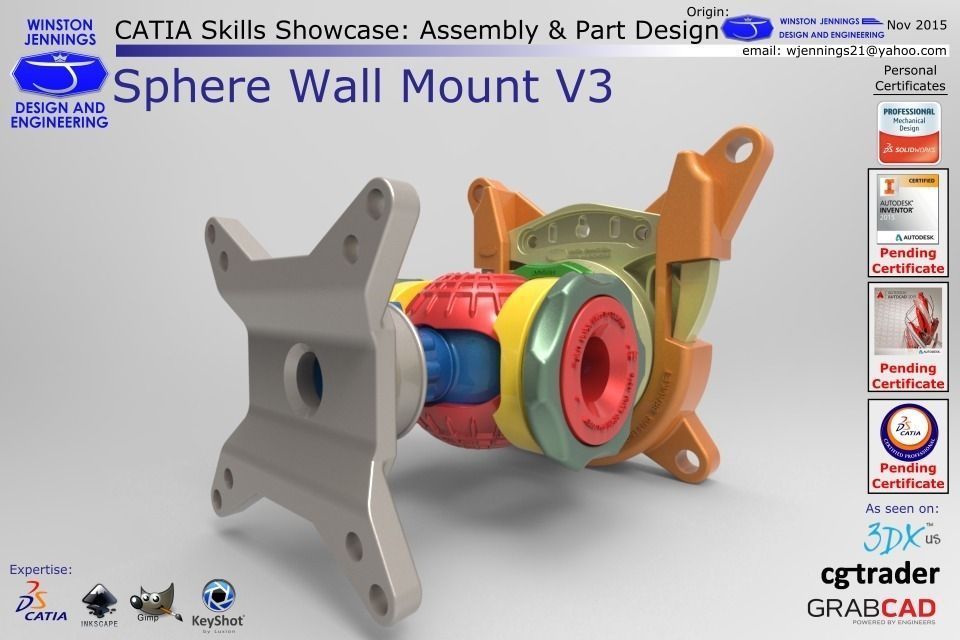

This design leverages the unlimited design freedom of 3D printing with the ability to 3D print moving assemblies in a single build.

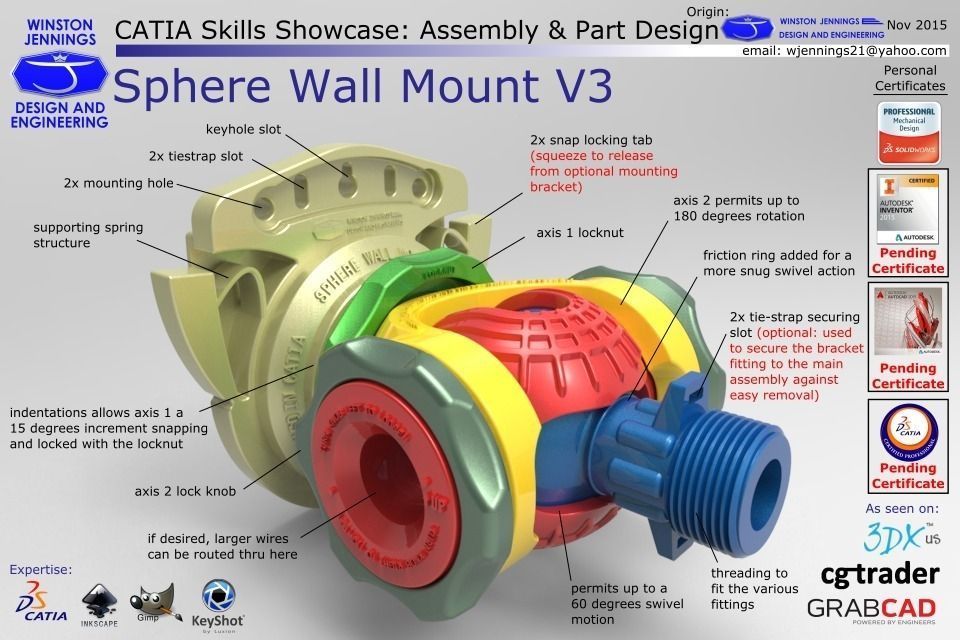

The applications of this hinge may include computer monitor mounts and speaker mounts. This is printed in a single build and cannot be disassembled. However, it can be easily lubricated and serviced.

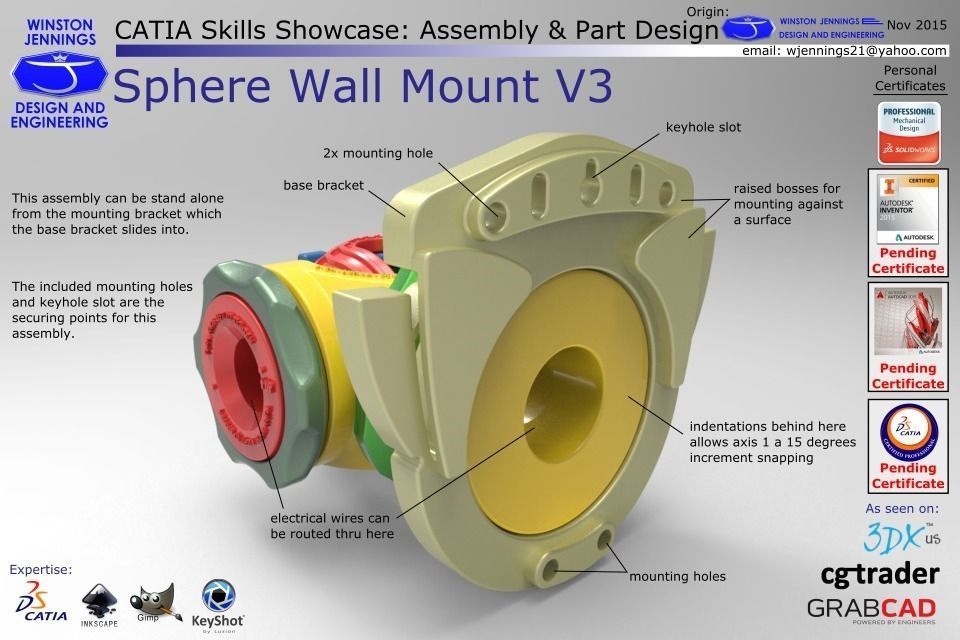

This design can route electrical wires through making for a clean wire free install.

If printed with the FDM process, soluble material is required as a support material. ________________________________________________________________________________

Sphere Wall Mount V3 was modeled using mainly the Assembly & Part Workbench

Modeled in CATIA V5R20 Rendered in Keyshot 5.0

Don't forget to hit "like" button before you leave :)
