Hanging swing rope walkway Free 3D model
Description

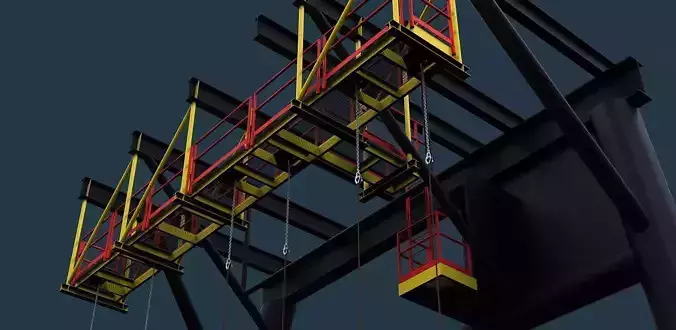

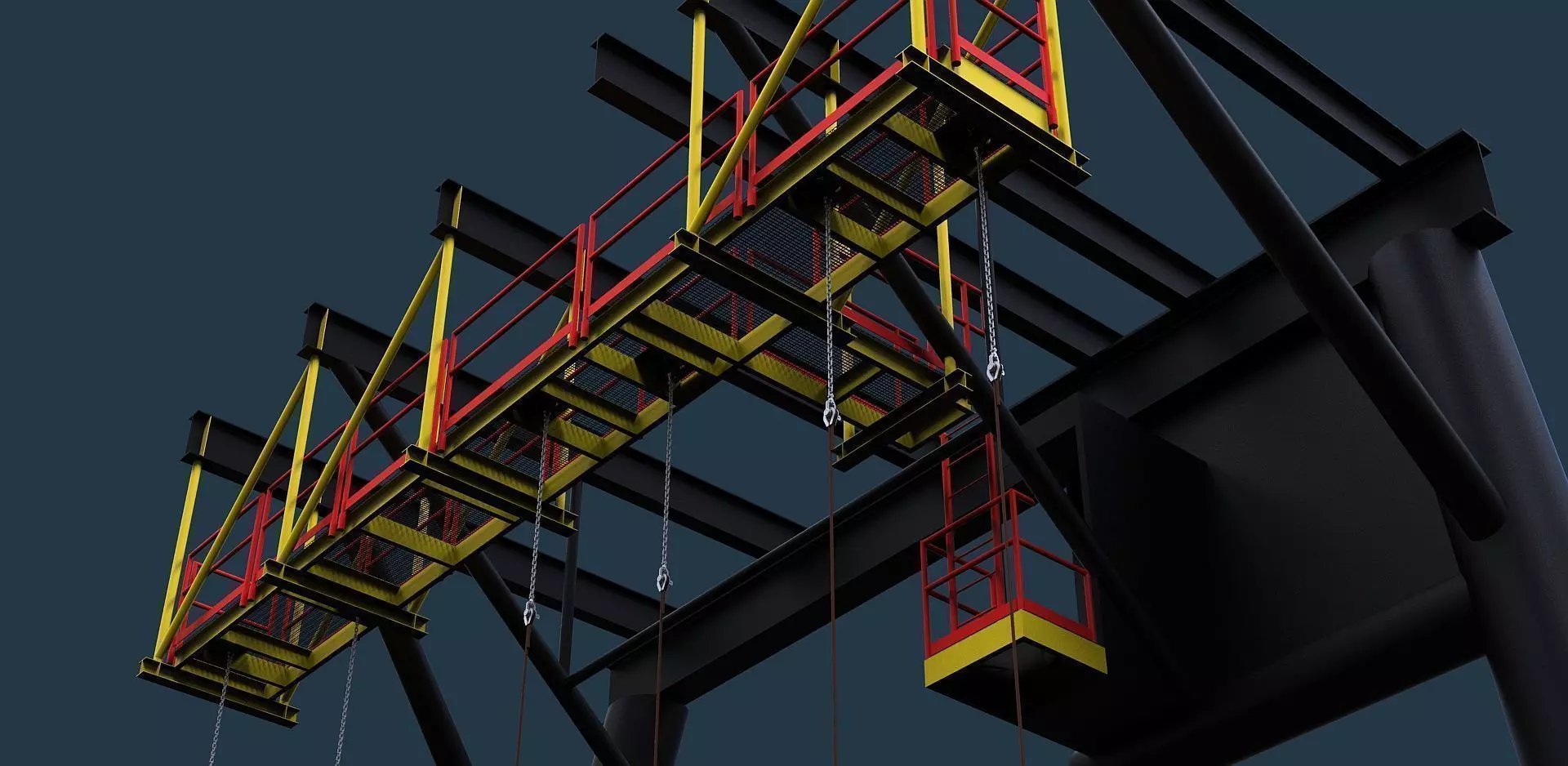

i designed this swing rope access walkway to an existing platform, the only dimension i knew was center of deck leg to the other deck leg 35'-0". designed all from pictures and to be field verify, i was off by 6" on the hangers to support the walkway. detail of the part for swing rope assembly detail added
Hanging swing rope walkway
Hanging swing rope walkway
3D Model formats
Format limitations
- IGES (.ige, .igs, .iges) (2 files)37.4 MB
- AutoCAD (.dwg)3 MB
3D Model details
- Publish date2014-12-17
- Model ID#98323
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 0
- Vertices 0
- Textures -
- Materials -
- UV Mapping -
- Unwrapped UVs Unknown
- Plugins used -
- Ready for 3D Printing
