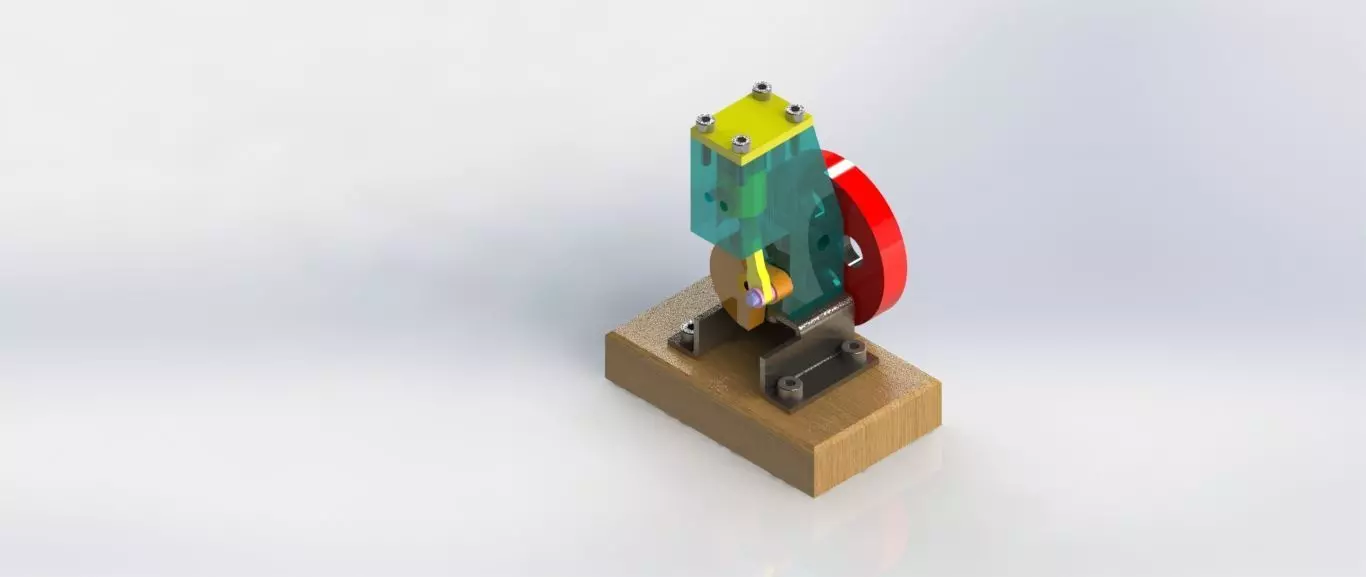

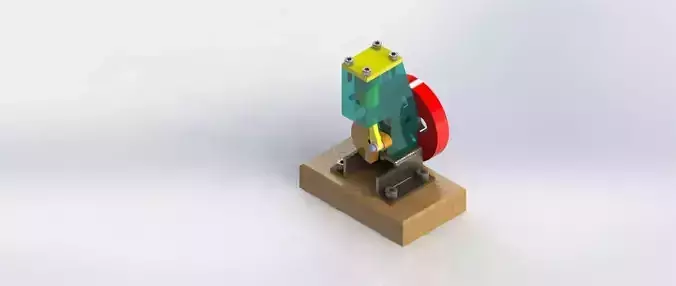

Pneumatic-Motor-Assembly robot Free 3D model

Description

In this assembly, these parts are

  1. Base Plate
  2. Mounting Bracket
  3. Motor Block
  4. Cylinder Head
  5. Flywheel
  6. Crankshaft
  7. Crank
  8. Connecting Rod
  9. Piston
  10. Crank Pin
  11. Piston Pin
  12. Washer
