Air-Patrol cool Dex V1 Free 3D model

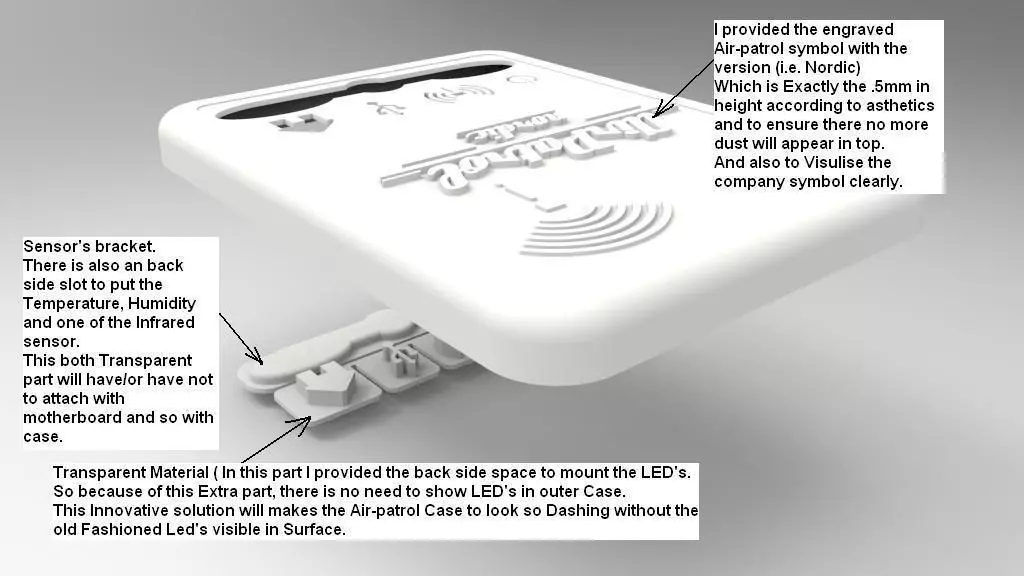

During the rough sketching for Air-patrol case design challenge, I found the innovative solution for the LED's in my mind and Started to design it.

Why we always using the Old fashioned LED's in front surface. So I remove the LED's from the top surface and Made an extra part (Transparent Material) in back of which i located the holes to mount the LED's Internally and due to this The glowing and Dashing look comes to the Case surface.

The Height of Air-patrol text and its version (Nordic) is approx 0.5mm. Ensuring the Aesthetics and to less dust collection at top of it.

Bottom side of the Glowing LED's plate, i placed the sensors. Both of Temperature and humidity sensor are in left and right hand side. One of the infrared sensor are in the mid of it and second one is in bottom of this device. Second one infrared having the mini concave structure cover for better range of operation.

I have to make lots of modification. So be Patent and wait for the Updates.

Updated:- Dec 12, All part file are in download.

The file size is little huge to upload, so i put them all in Archive (.rar file). If any one having problem to decompress it than feel free to tell me.
