AMD Microprocessor Socket AM3 Go-No-Go Bent Pin Inspection Jig Free 3D model
thumbnail
thumbnail
thumbnail
DESCRIPTION

This is a simple jig aimed at inspecting bent microprocessor pin(s).

This has been produced for SECONDARY product inspection ( manual inspection ) purpose at a multinational company based in the USA.

There has been automated bent pin inspection for quite some time.

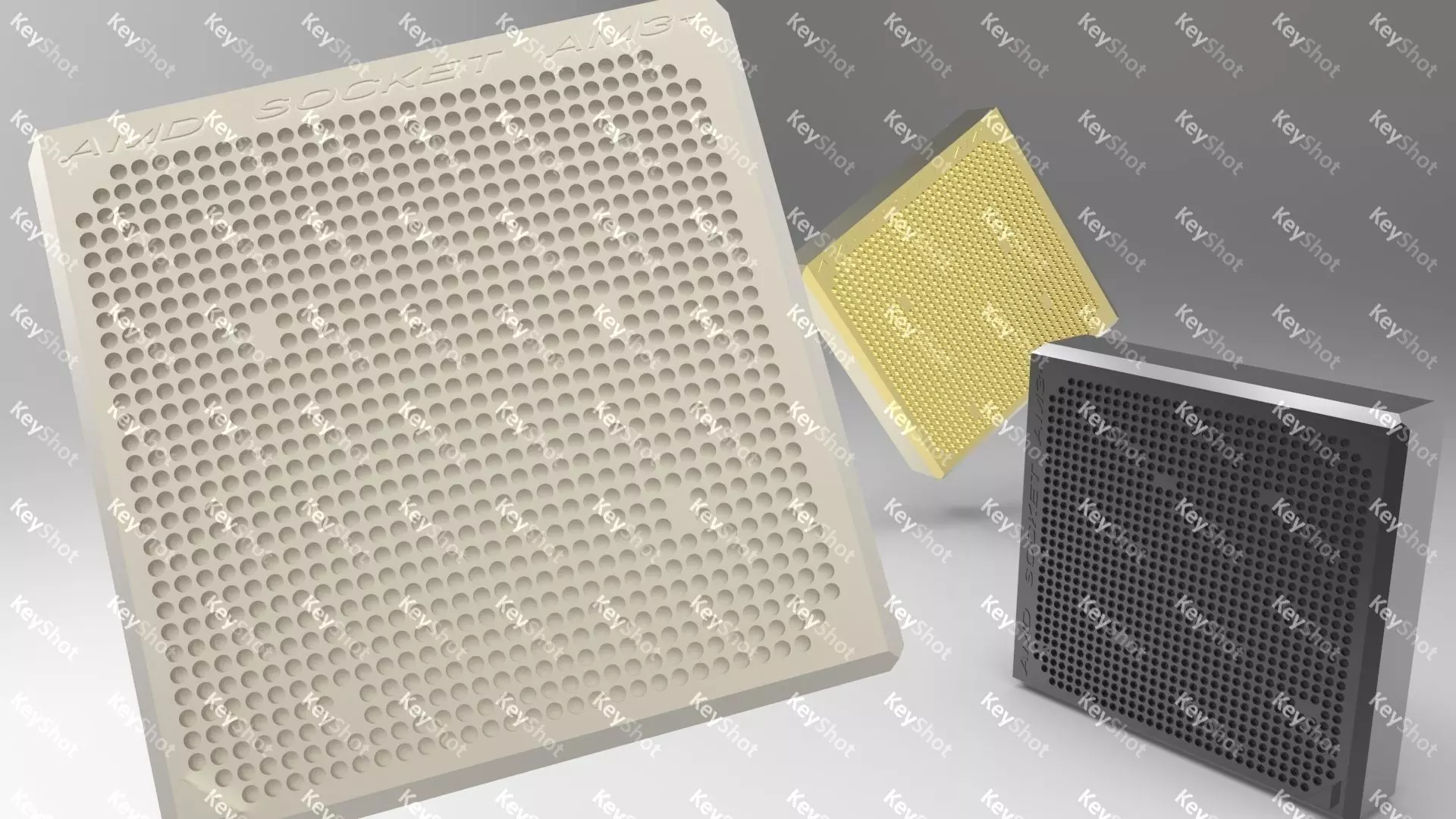

AMD Socket AM3+ Microprocessor Bent Pin Inspection Jig.

Manufacturer Of Processor: AMD.Socket Type : Socket AM3 + .Socket Array: Pin Grid Array - Zero Insertion Force ( PGA - ZIF )Total no. of pin holes : 931 holes.Notch/Fiducial marking : Triangular Notch/Fiducial ( Bottom Left ).Material : Stainless Steel.Machining Finishing : Debur & Break Sharp Edges.Diameter of pin hole : 1.00 mm ( each ).Microprocessor size : 40 mm X 40 mm. ( length X width )Inspection Jig size : 44mm X 44 mm. ( length X width )

Related Tagsfixturejigdesignsocketindustrialamdmicroprocessor
am 3
electronicscomputer
