AMD Athlon II Microprocessors Substrate Microprocessor Lid R... Free 3D model

Manufacturer Of Processor: AMD. Socket Type : Socket AM3 + . Socket Array: Pin Grid Array - Zero Insertion Force ( PGA - ZIF ) Total no. of pin : 931 pins. Notch/Fiducial marking : Triangular Notch/Fiducial ( Bottom Left ). Diameter of pin : 1.00 mm ( each ). Microprocessor size : 40 mm X 40 mm. ( length X width )

~ 97 % Accurate Dimension. ~ 2-3% chip-cap dimension uncertainty. ~ 2-3% Silicone Die dimension uncertainty. ~ 95% confidence level in terms of dimensioning.

40.00 mm x 40.00 mm Microprocessor Substrate.

30.77 mm x 34.05 mm Microprocessor Lid.

Athlon II.

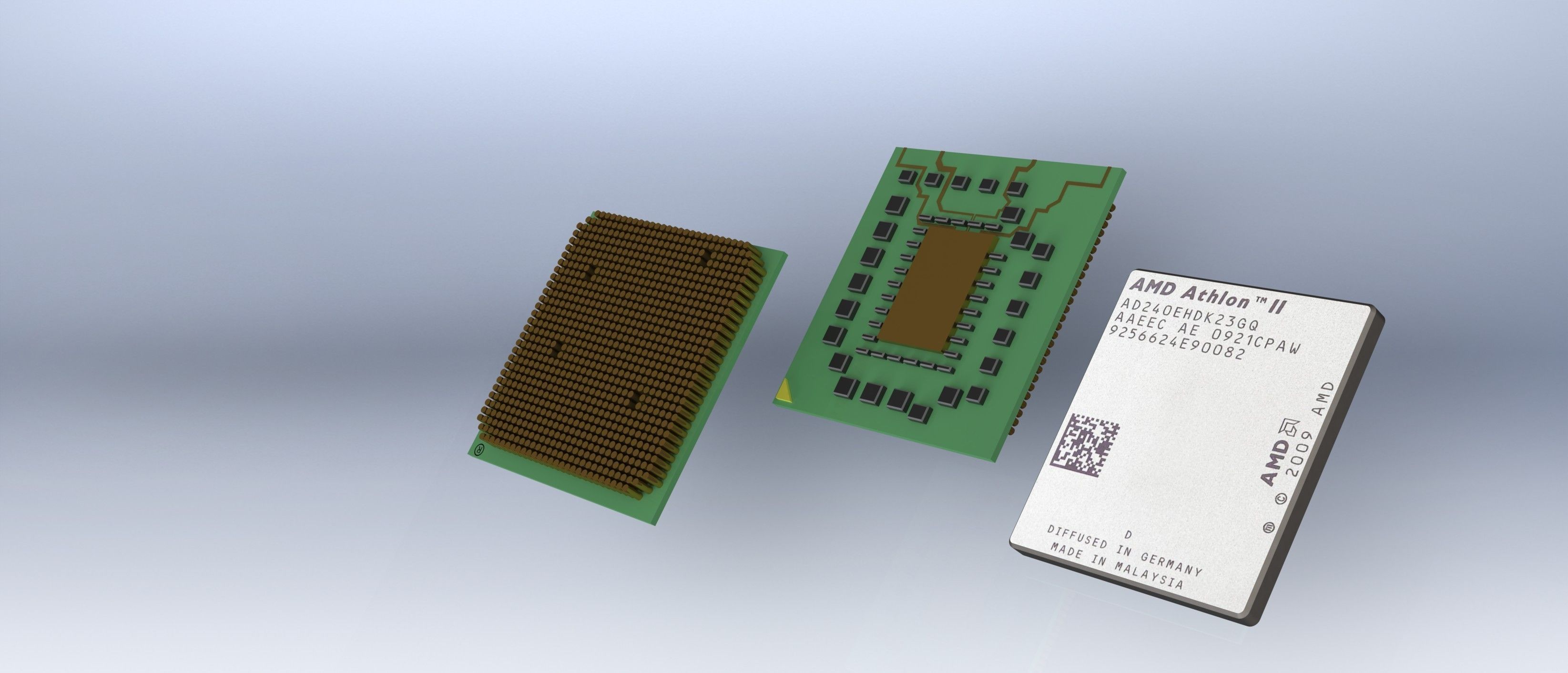

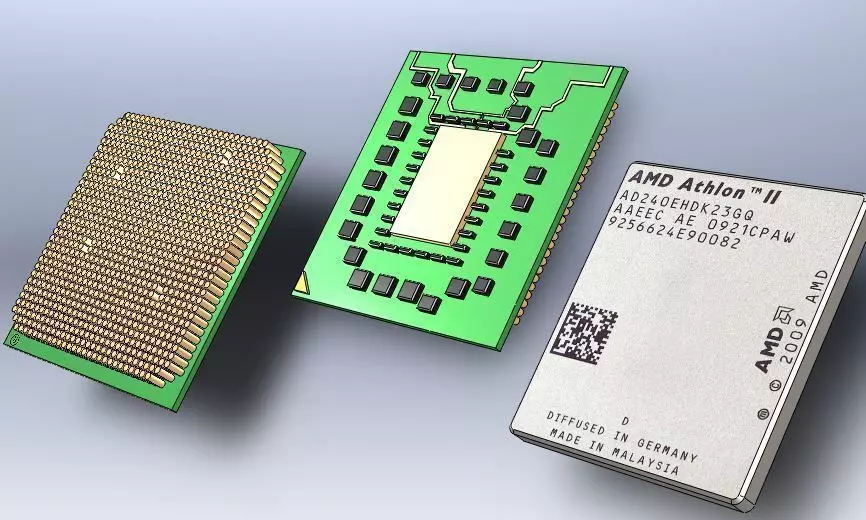

What It looks like BEFORE microprocessor lid attach process

OR

What It looks like AFTER conducting microprocessor lid shearing , OR AFTER conducting microprocessor lid tensile tests.

Dummy set.

Can be useful for running machine tests especially during new machine buy-off / acquisition timeline period.
