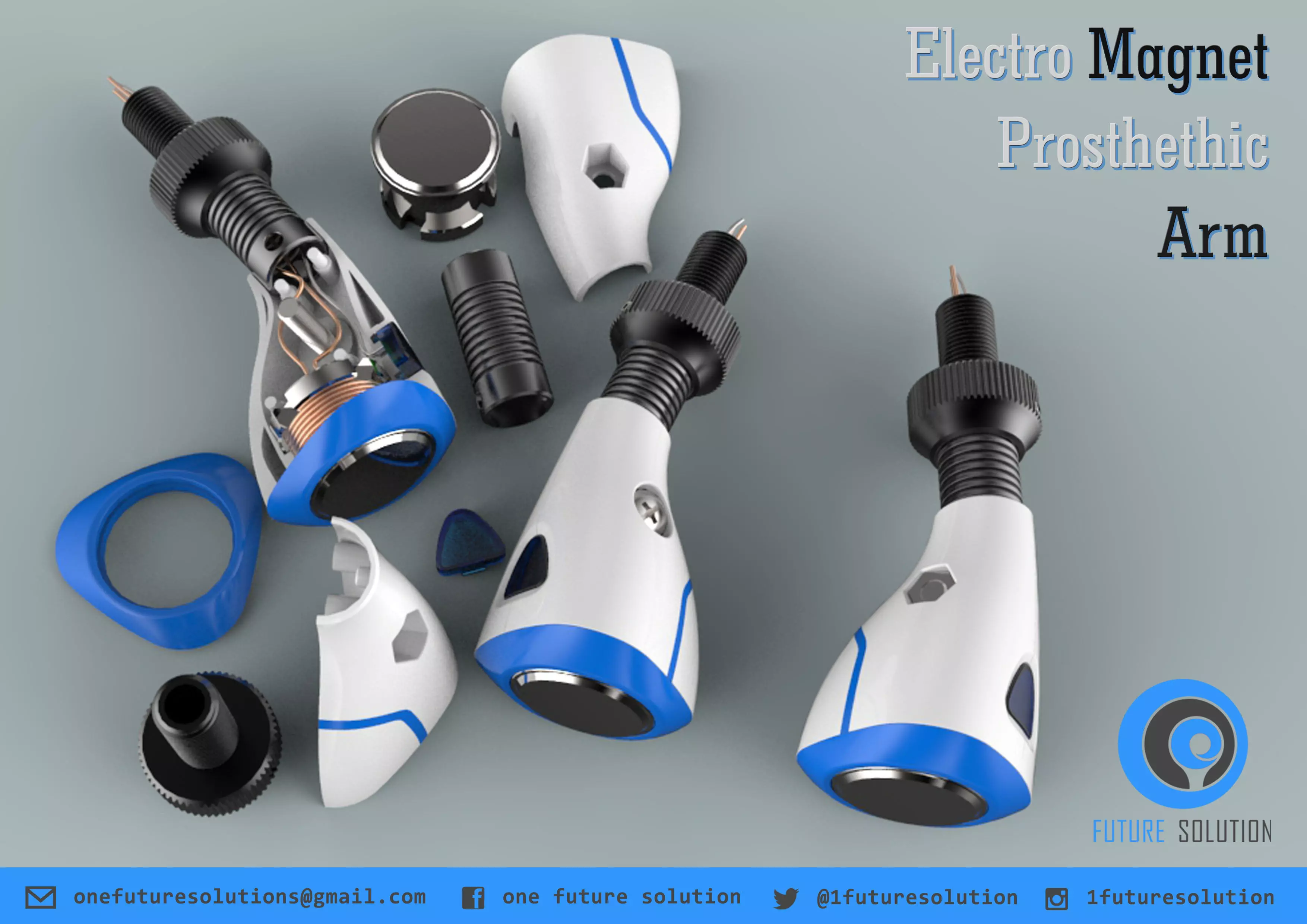

Electro Magnet Prosthethic Arm

Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )

Modeled with SolidWorks 2014

Rendered with KeyShot 5

File Types : .SLDPRT, .SLDASM, .IGS, .OBJ, .STL.

Vertices : 183704

Polygons : 367798

This products create to explore and make new invovative solution for prosthethic arm accesorries and support part.

The main concept of this products are to carry some metal parts and stuff with electro magnet system.

• The power supply located inside in the Main Arm, if we need to carry some metal part, the power supply will on and activate the electro magnet system and then we can carry that's metal parts.

When we want to put that's metal parts, the electro magnet system are off (power supply shutting down).

• The Led are automatically on when the electro magnet system was on. And the Led off when electro magnet system was off (this is just like indicator light).

• I just imagine we must place the on/off button in somewhere on human body that's can easily reachable and use with another part of human body. Or we can put the on off cable that's can be directly connected and disconected with special movements like when the arm are bended this is will on and when the arm are back into the initial position this device will off. Or something like that.

My design direction is create products that's :

• Simple

• Easy to use

• Suitable for veterans (safe, durable)

• Visually pleasing design

• Functional

Kind of things do you envision being picked up with this tool is like :

• The commonly magnet will use in daliy activities are to pick up the fallen needle or nail or some small metal parts with very easy.

• To open the refrigenerator door, or some handle door that's made from metal.

• Carrying stainless steel material like, stainless steel cup or another else

• Tidy up the house garage/warehouse/workshop, because in this place there is many metal stuff that's we can handle with this products.

• Holding on the stair metal rail when we turn up and down the house stair

• Holding on the metal handrail when we in the mass transportation like train or bus.

• Adjust the Jacket Zipper (Metal Zipper).

• Open the metal box case.

• Many else.

• We can explore any activities and another benefits that's need this system. We will know more function off this system when we try it and use it.
