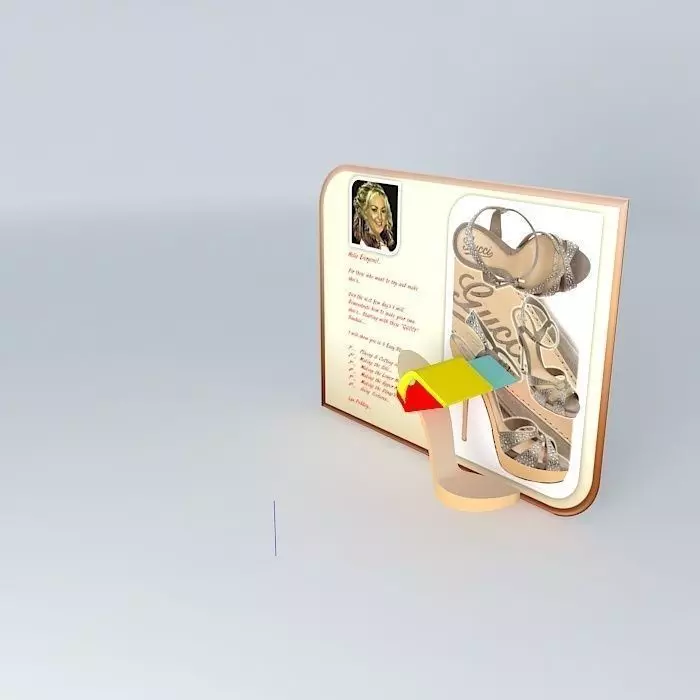

This 3D model was originally created with Sketchup 8 and then converted to all other 3D formats. Native format is .skp 3dsmax scene is 3ds Max 2016 version, rendered with Vray 3.00 ShoeTute... 4th Stage... Making the Upper Heel!... Ankle Straps.. This section will be in 3 steps... Step (1).. 2 .. %26 3...
NOTE!!!... Because of the Complexity of the Strapping in this Model ... I have Decided to Extend the Step's from 3 to 6/7...
Tools Needed:.. " Line.... Push/Pull..
NOTE!.... This Tutorial will ONLY! be using the Basic Sketchup Tools... NO Fancy Plugins... it is the only way to learn...
Note (Red JIG... Guide Lines (A) .. (B).. (C)... Must be Exactly like mine!)... Treat ALL BLUE AREA'S ..as Waste...
