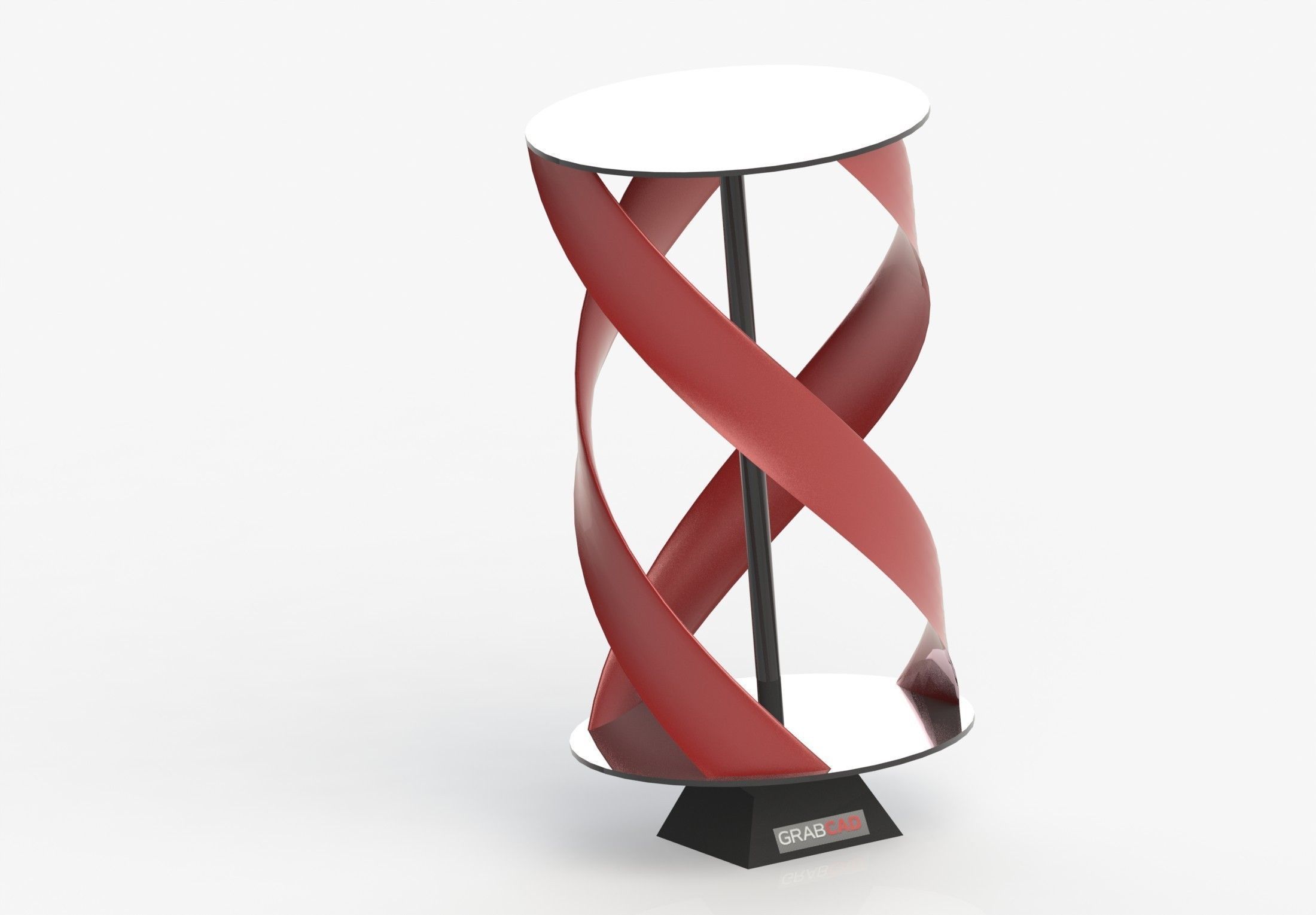

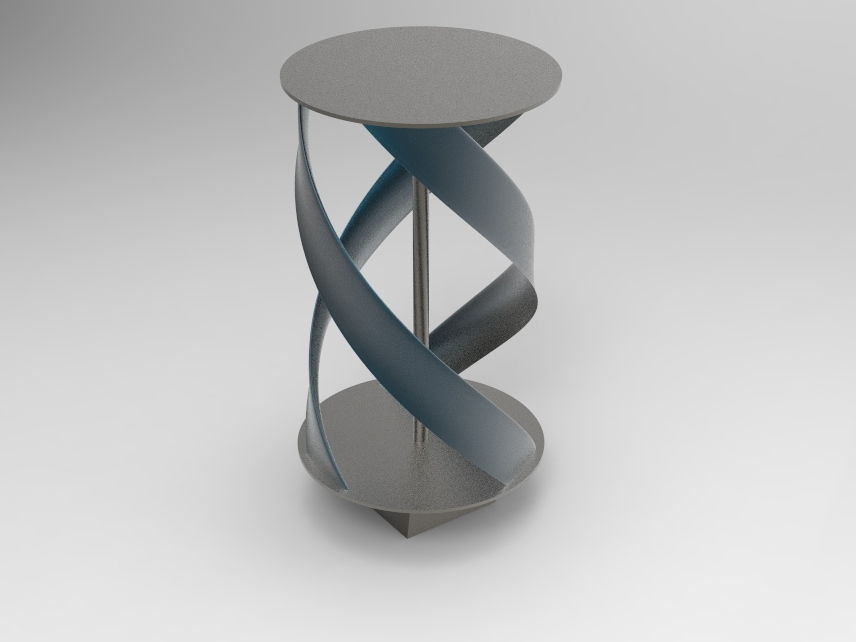

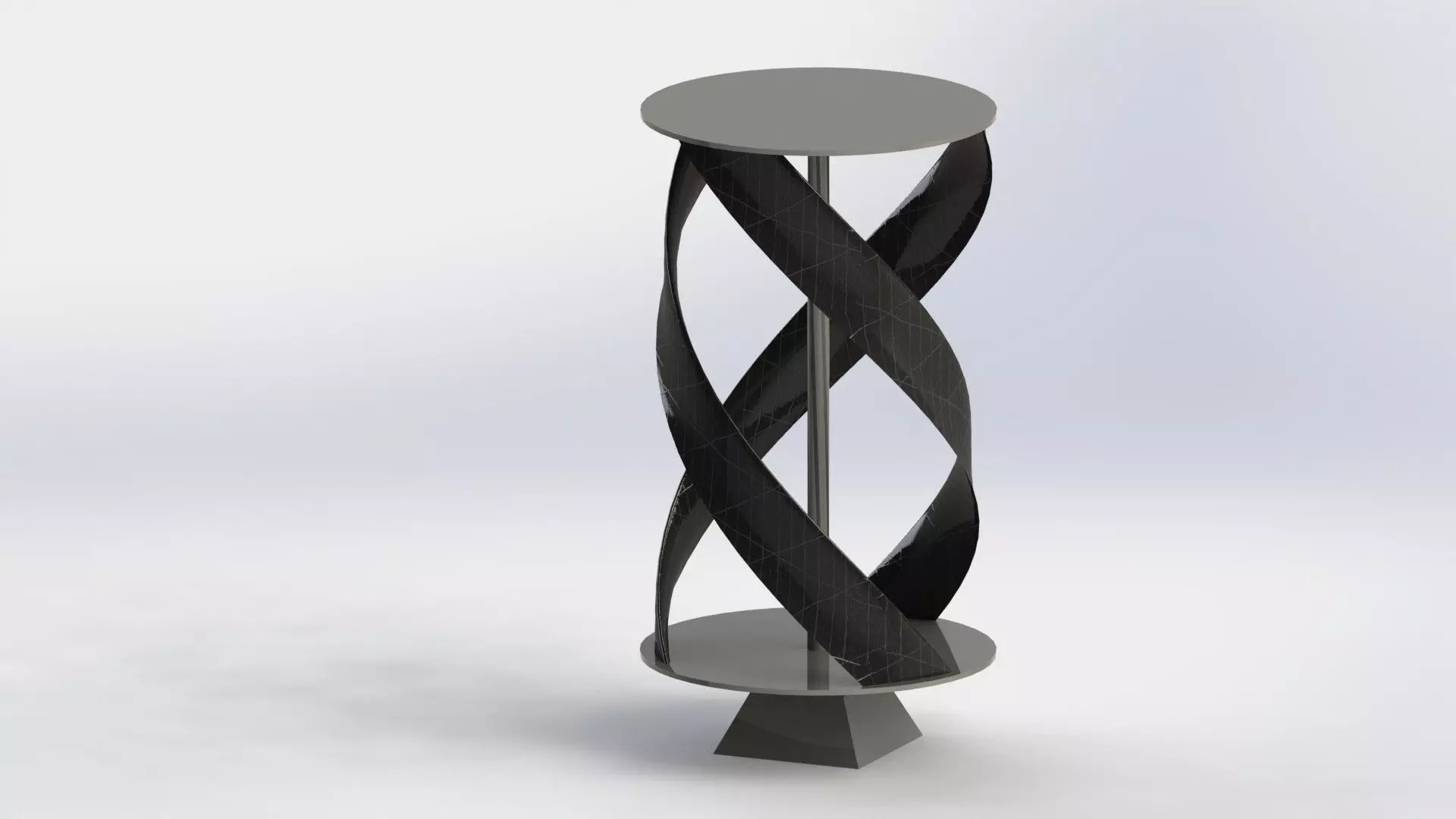

GORLOV Wind Turbine

GORLOV Wind Turbine Free 3D model

Description

The Gorlov helical turbine (GHT) is a water turbine evolved from the Darrieus turbine design by altering it to have helical blades/foils. It was patented in a series of patents from September 19, 1995[1] to July 3, 2001[2] and won 2001 ASME Thomas A. Edison Patent Award. GHT was invented by Professor Alexander M. Gorlov of the Northeastern University. The physical principles of the GHT work[3] are the same as for its main prototype, the Darrieus turbine, and for the family of similar Vertical axis wind turbines which includes also Turby wind turbine Quietrevolution wind turbine Urban Green Energy. GHT, turby and quietrevolution solved pulsatory torque issues by using the helical twist of the blades.

Read more http://en.wikipedia.org/wiki/Gorlov_helical_turbine

Item rating
0 0
GORLOV Wind Turbine
Free

Royalty Free No Ai License
GORLOV Wind Turbine
Free

Royalty Free No Ai License
Response 50% in 2639.6h
3D Modeling
Hire me

3D Model formats

Format limitations
  • SolidWorks (.sldprt, .sldasm, .slddrw)612 KB
  • IGES (.ige, .igs, .iges)1.45 MB
  • Other 26.9 MB
  • Stereolithography (.stl)867 KB

3D Model details

  • Publish date2014-11-12
  • Model ID#88646
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices 0
  • Textures -
  • Materials -
  • UV Mapping -
  • Unwrapped UVs Unknown
  • Plugins used -
  • Ready for 3D Printing
