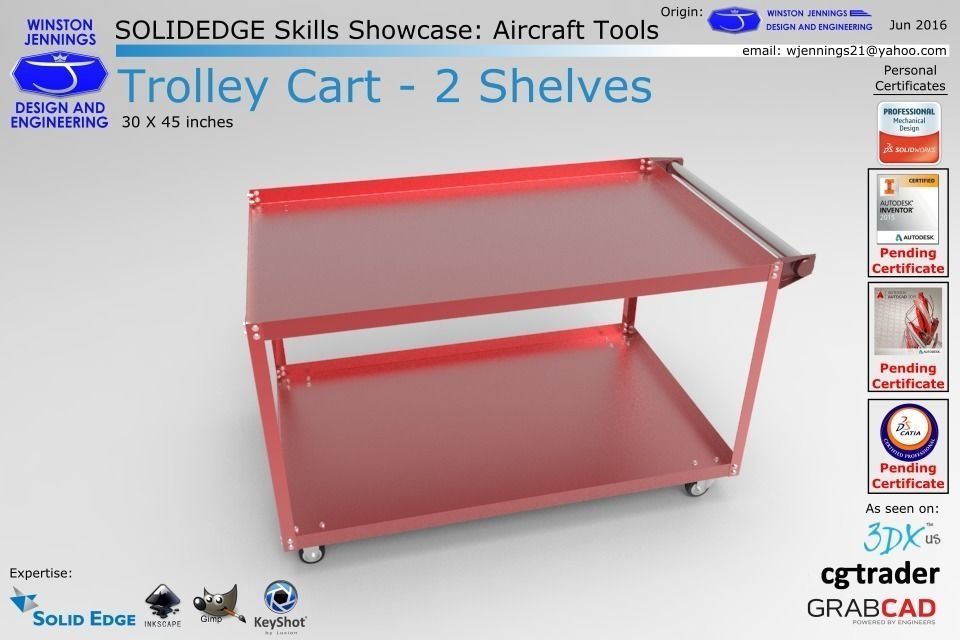

The Trolley Cart - 2 Shelves was modeled using the Part and Assembly environment in Solidedge

This shelf cart is of my own design.

Reference material

Corrosion-Resist Caster with 2-1/2X3-5/8 Plate Swivel with Brake, 3x 1-1/4 Rubber Wheel, 200 lb Capacity

reference: http://www.mcmaster.com/#8359t121/=12oo0mn

Corrosion-Resist Caster with 2-1/2X3-5/8 Plate Rigid, 3x 1-1/4 Rubber Wheel, 200 lb Capacity

reference: http://www.mcmaster.com/#casters/=12oo0lw

18-8 Stainless Steel Hex Head Cap Screw 1/4-20 Thread, 9/16 Long, Fully Threaded

reference: http://www.mcmaster.com/#92240a538/=12p7a11

Cadmium Yellow-Chromate Plated Steel Hex Nut Grade 9, 1/4-20 Thread Size, 7/16 Wide, 17/64" High

reference: http://www.mcmaster.com/#95036a012/=12p60p5

Type 316 Stainless Steel Flat Washer 1/4Screw Size, 0.281 ID, 0.625" OD

reference: http://www.mcmaster.com/#90107a029/=12p61ky

Modeled in Solidedge ST6 Rendered in Keyshot 5.0
