Solidedge Skills Showcase Malabar 25 Ton Axle Jack Free 3D model

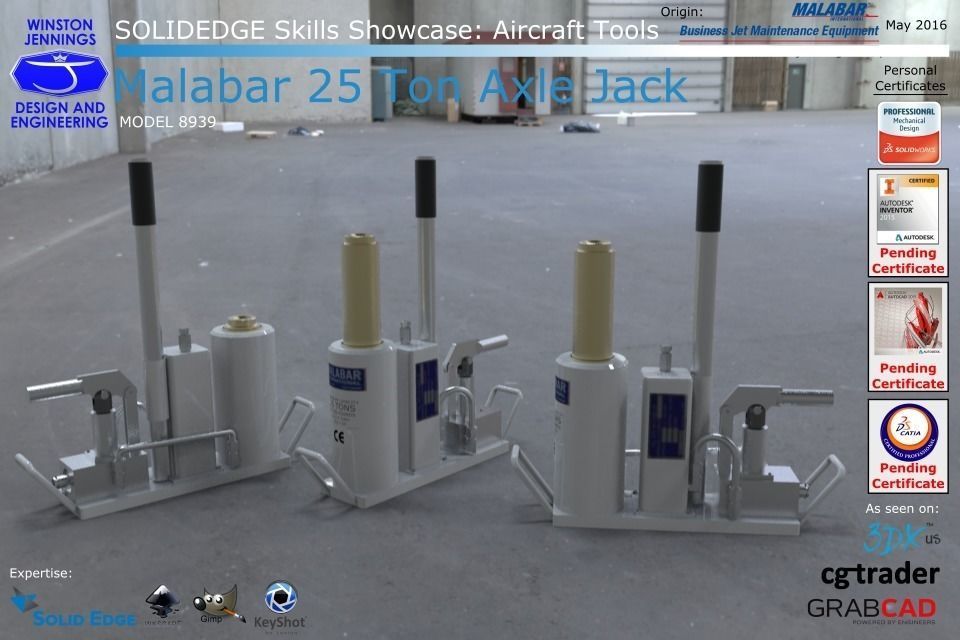

The Malabar 25 Ton Axle Jack was modeled using the Part and Assembly environment in Solidedge

Specification:

Rated Capacity............. 25 tons (22.7 m. tons) Side Load ...................... 10% of vertical load Low Height ......................... 10.5 inches (267 mm) Hydraulic Lift ...................... 6.5 inches (165 mm) Extension Screw ................ 4.5 inches (114 mm) Total Extended Height ..... 21 inches (546 mm) Oil Pressure at Rated Capacity ..8418 psig (592 kg/cm2) Safety Pop-off Valve set at .... 27.5 tons (24.9 m. tons) Proof Load ................................ . 37.5 tons (34.0 m. tons) Reservoir Capacity ...............0.19 Gallons (0.72 liters) Hydraulic Fluid ................. MIL-PRF-5606 or equivalent Approximate Jack Net Weight ...............74 lbs (33.6 kg)

Reference material, http://www.malabar.com/axle/8939.php

Modeled in Solidedge ST6 Rendered in Keyshot 5.0
