DESCRIPTION

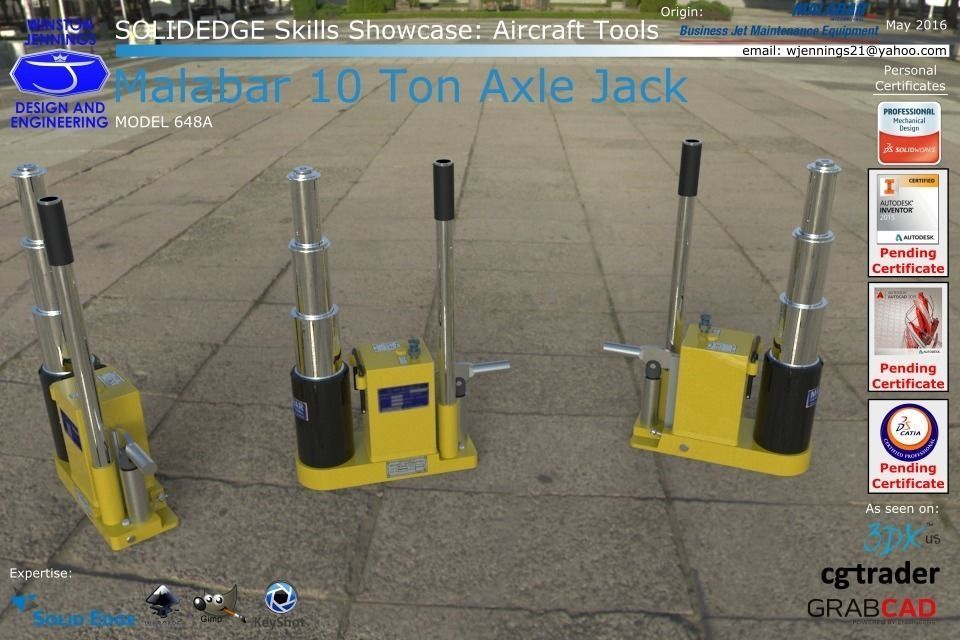

The Malabar 10 Ton Axle Jack was modeled using the Part and Assembly environment in Solidedge

SPECIFICATIONS Rated Capacity: 10 tons (9.1 m. tons) Side Load: 15% of vertical load

Low Height: 8 inches (203 mm) Hydraulic Lift: 13 inches (330 mm) Extension Screw: 3.75 inches (95 mm) Total Extended Height: 24.75 inches (629 mm) Oil Pressure at Rated Capacity: 5140 psig (361 kg/sq cm) Safety Pop-off Valve set at: 11 tons (10.0 m. tons) Proof Load: 15 tons (13.6 m. tons) Reservoir Capacity: 0.5 gallons (1.9 liters) Hydraulic Fluid: MIL-H-5606 or equivalent Approximate Jack Net Weight: 50 lbs (23 kg)

Reference material, http://www.malabar.com/pdf/product/axle/sd648A.pdf

Modeled in Solidedge ST6Rendered in Keyshot 5.0

Don't forget to hit "like" button before you leave :)
