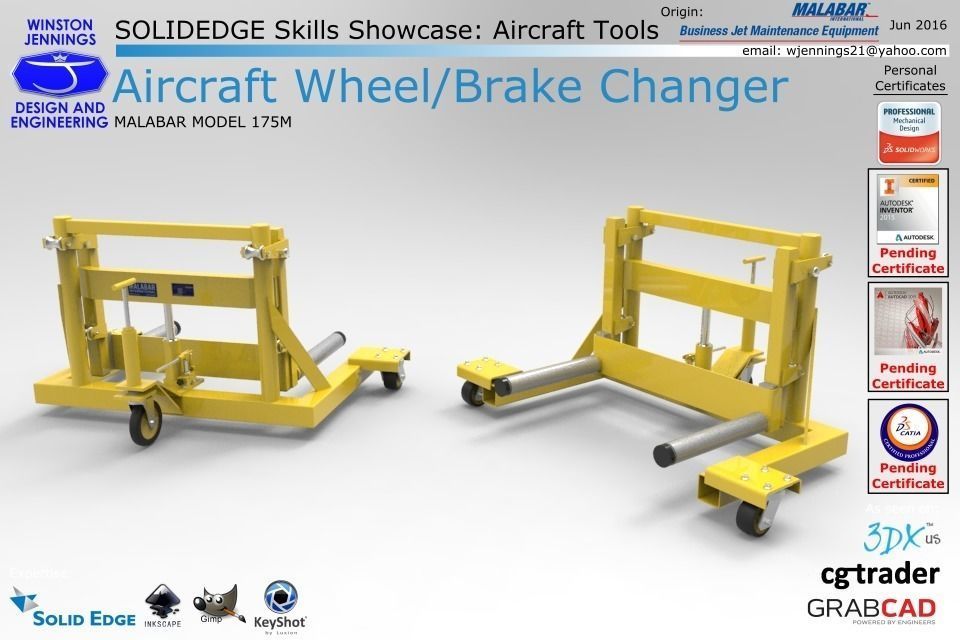

Solidedge Skills Showcase Aircraft Wheel Brake Changer Free 3D model
thumbnail
thumbnail
DESCRIPTION

The Malabar Model 175M was modeled using the Part and Assembly environment in Solidedge

PDF reference: http://www.malabar.com/pdf/product/wbtrl/sd175M.pdf

SPECIFICATIONS

Wheel Changer Rated Capacity: 600 lbs Total Lift: 4.75 inches (121 mm)Tilt Fore and Aft: ± 3°Approximate Net Weight: 275 lbs (125 kg)Optional Brake CradleRated Capacity: 600 lbs (272 kg)Brake Cradle Unit Weight: 40 lbs (18 kg)

Reference Material:

Shock-Absorbing Threaded Stem Caster6" x 1-1/4" Black Nomatic Wheel, 1/2"-13

Stem, 150 lb Capacity

reference:

http://www.mcmaster.com/#4429t31/=12s2454

Maintenance-Free Easy-Roll CasterSwivel, 6" x 2" Rubber on Aluminum Wheel,

700 lb Capacity

reference:

http://www.mcmaster.com/#9152t41/=12s29gh

Gladiator CasterSwivel, 4" x 2" Iron Wheel, 1500 lb

Capacity

reference:

http://www.mcmaster.com/#22455t19/=12s2ae0

Upright Hydraulic Hand Pump3000 Maximum PSI, 11-1/8" High

reference:

http://www.mcmaster.com/#42985k78/=12tt0f9

High-Strength Grade 8 Steel Cap Screw1/2"-20 Fully Threaded, 3/4" Long, Zinc-

Plated

reference:

http://www.mcmaster.com/#92620a735/=12u32m

l

Type 316 Stainless Steel Flat Washer1/4" Screw Size, 0.281" ID, 0.625" OD

reference: http://www.mcmaster.com/#90107a029/=12p61k

y

18-8 Stainless Steel Hex Head Cap Screw1/4"-20 Thread, 9/16" Long, Fully Threaded

reference:http://www.mcmaster.com/#92240a538/=12p7a11

Modeled in Solidedge ST6Rendered in Keyshot 5.0

Don't forget to hit "like" button before you leave :)

Related Tagsaircraftwheelbrake
changer
metal
hydralic
frameother
