Solidedge Skills Showcase 15 Gallon Skydrol Dispenser

Solidedge Skills Showcase 15 Gallon Skydrol Dispenser Free 3D model

Description

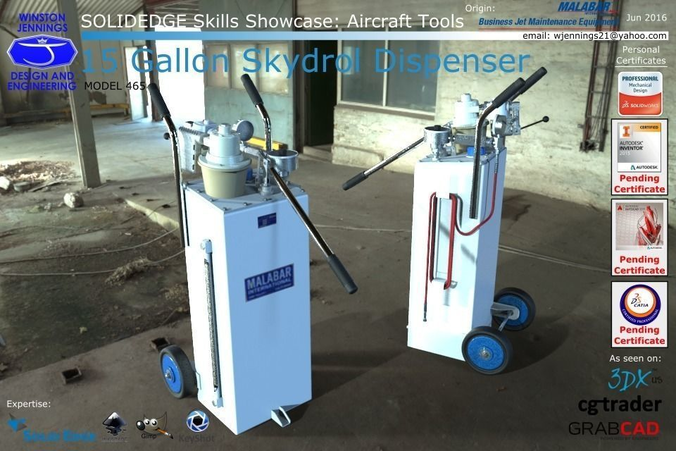

The Malabar 15 Gallon Skydrol Dispenser was modeled using the Part and Assembly environment in Solidedge

PDF reference: http://www.malabar.com/pdf/product/fluid/sd465.pdf

SPECIFICATIONS Fluid Type: Skydrol or HyJet IV Fluid Capacity: 15 Gallon (56.8 liters) Hand Pump Displacement per Stroke: 4.0 cu. in. (66 cc) Maximum Air Operated Pump Flow: 4.5 gpm (17.0 liters) Maximum Pump Outlet Pressure: 100 psig (7 kg/sq cm) Standard Hose Length: 120 inches (3048 mm) Standard Filter Rating: 2-3 micron nominal Net Weight: 105 lbs (47.6 kg)

Easy-Roll Corrosion Resistant 304 Stainless Steel Caster Rigid, 8" x 2" Solid Urethane Wheel, 1200 lb Capacity

reference:http://www.mcmaster.com/#23355t64/=12v9kmf

Modeled in Solidedge ST6 Rendered in Keyshot 5.0
