Description:

Sea-Doo Seat Support 269501699 – Reinforced Replacement Part

Reinforced 3D printable replacement model developed from the original Sea-Doo seat support, reference number 269 501 699.

The original component was reverse-engineered and redesigned with a focus on improving structural strength in the areas subjected to the highest loads.

The redesigned version features a 5 mm reinforced base, structural ribs and optimized filleted transitions designed to improve stiffness and reduce stress concentrations.

The model was developed in SolidWorks specifically for functional FDM 3D printing.

Key Features

Based on original Sea-Doo part 269 501 699Reverse-engineered from the original componentReinforced 5 mm baseStructural ribs for increased stiffnessFilleted transitions in critical load areasFunctional replacement designDesigned for FDM 3D printingRecommended for engineering-grade materialsRecommended material: PA12-CF / Nylon Carbon FiberDevelopment & Testing

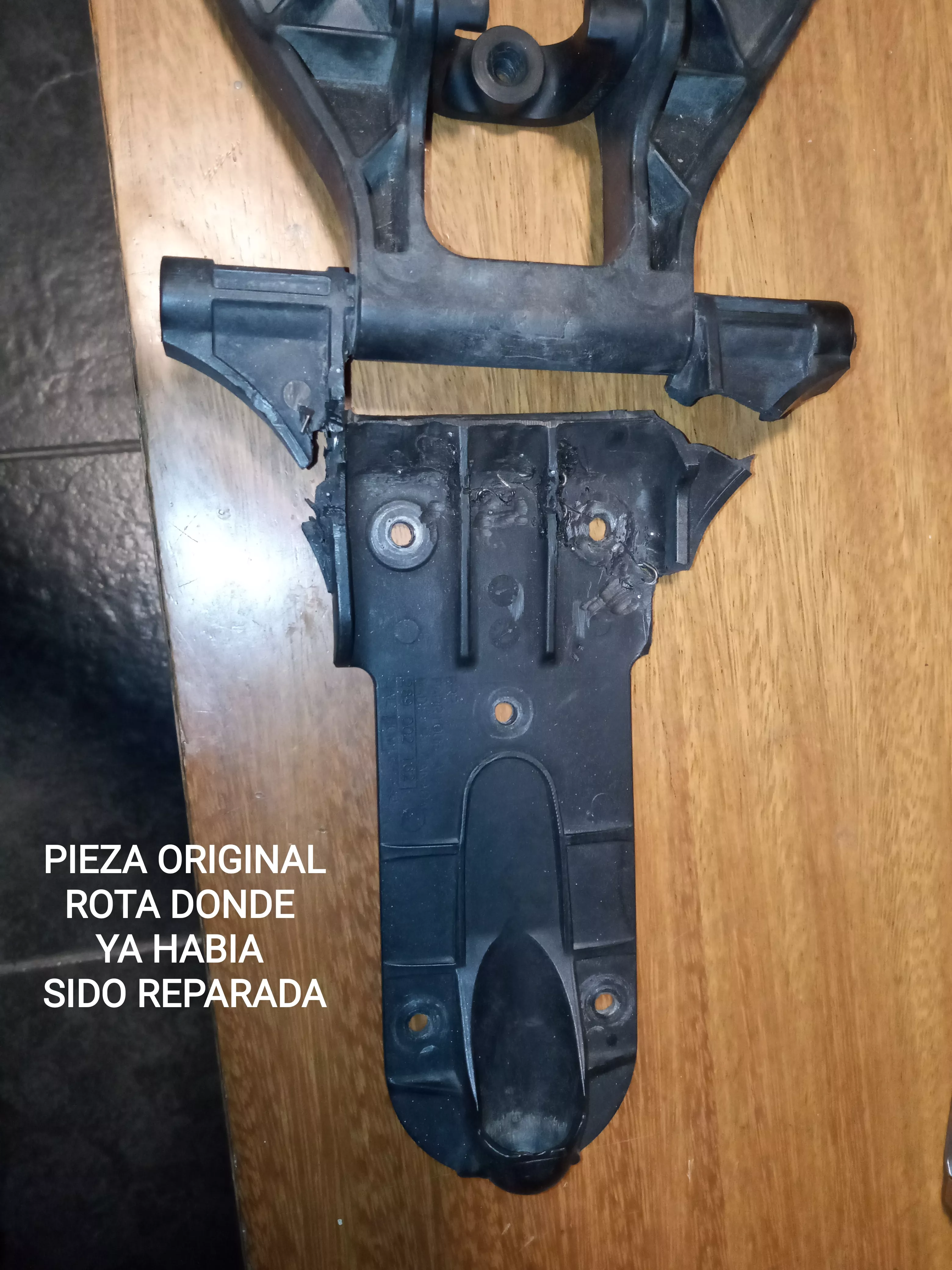

The original component was analyzed and redesigned after identifying a critical structural area in the original geometry.

Several design iterations were developed in SolidWorks, including modifications to the base thickness, structural ribs and filleted transitions.

A prototype was printed in PLA-CF to evaluate the redesigned geometry and identify areas requiring further reinforcement.

The final version was developed with PA12-CF / Nylon Carbon Fiber in mind for functional production.

Important

This is an independently designed replacement part based on the original component.

This model is not an original OEM product and is not affiliated with, endorsed by, or manufactured by Sea-Doo or BRP.

Original part reference: 269 501 699.

Please verify the dimensions and mounting geometry against your original component before printing.

The user is responsible for selecting an appropriate material, printing parameters and final application conditions.

File Included

STL file ready for 3D printingLicense

The purchased digital files are intended for 3D printing.

Redistribution, resale or sharing of the digital files is not permitted unless explicitly allowed by the applicable license.

Commercial printing and resale of physical parts are subject to the selected license terms.

Parámetros de impresión 3DRecommended Material

PA12-CF / Nylon Carbon Fiber

Other engineering-grade materials may be suitable depending on the intended application, printer, printing parameters and required mechanical properties.

For functional use, standard PLA is not recommended.

Recommended manufacturing method:

FDM / FFF 3D printingRecommended material: PA12-CF / Nylon Carbon Fiber0.4 mm nozzleFunctional engineering-material printing profile recommendedPrint orientation and parameters should be adapted to the specific printer and material
