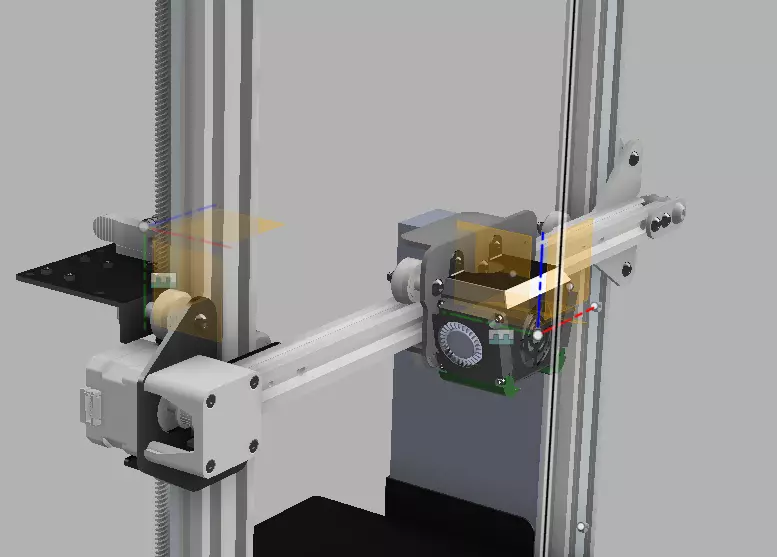

This document is not intended for printing. This is a complete assembly of the ender 3 max.

Currently in the design phase of a major upgrade of the ender 3 max. I carried out a complete modeling and assembly of the printer (except for the electronics, the PTFE tube and the belts.)

I use this assembly to visualize the integration of new components of my project.

Modeling on Fusion 360, I provide the file in .STP format. This file is intended to help in the design of modules and additional mechanical elements for this machine.

The final project of this upgrade will also be available on the platform

Thanking you in advance for your downloads and hoping that this model will help you in your development projects
